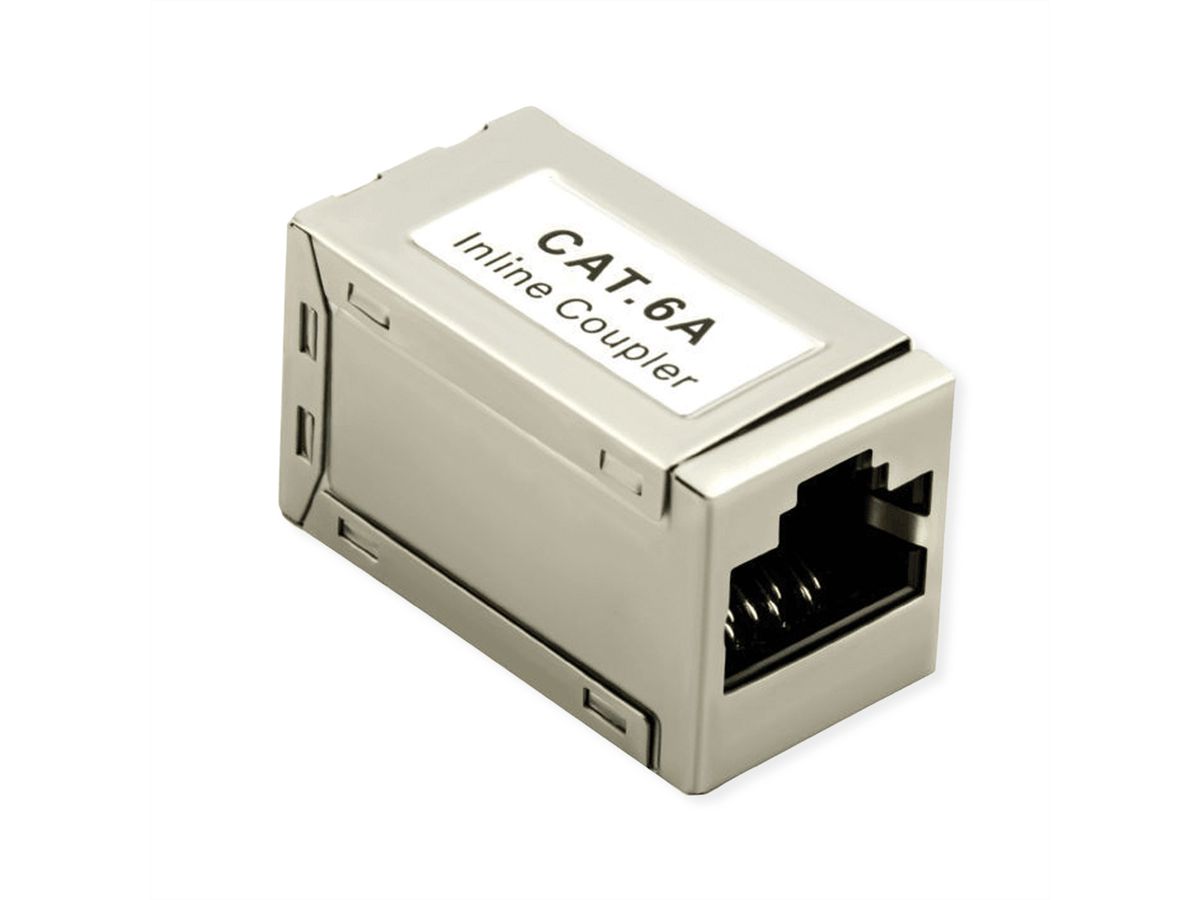

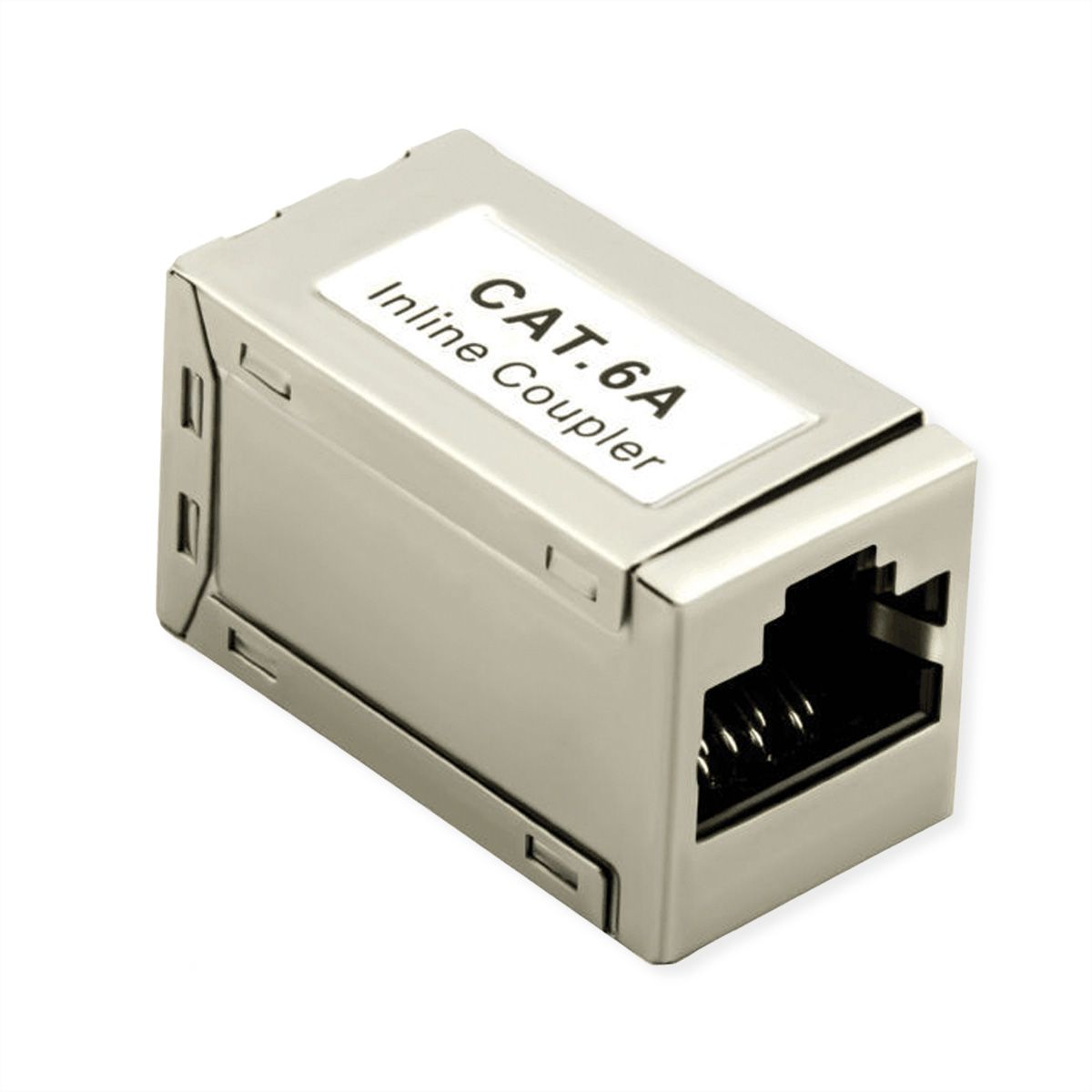

ROLINE RJ-45 Mini Inline Coupler, Cat.6A (Class EA), shielded, silver

Item no. 21.17.3118-20 Brand / Manufacturer ROLINE Manuf. no. 21.17.3118 EAN 7630049679245 Package weight 0.01 kg
ROLINE

Please log in to be able to use the shopping cart and then complete orders.

Log in
Available
Ordered until 3 pm - usually dispatched on the same day
Download PDF

Description

ROLINE Cat. 6A (Class EA) Mini Inline Coupler, with shielded metal housing, for the connection or extention of RJ-45 network cables.

  • Shielded metal housing to safe the signals against electrical and magnetical interferences
  • Allows you to extend Cat. 6A (Class EA) patch cords
  • Very small dimensions
  • With eight contacts, 1:1 connected

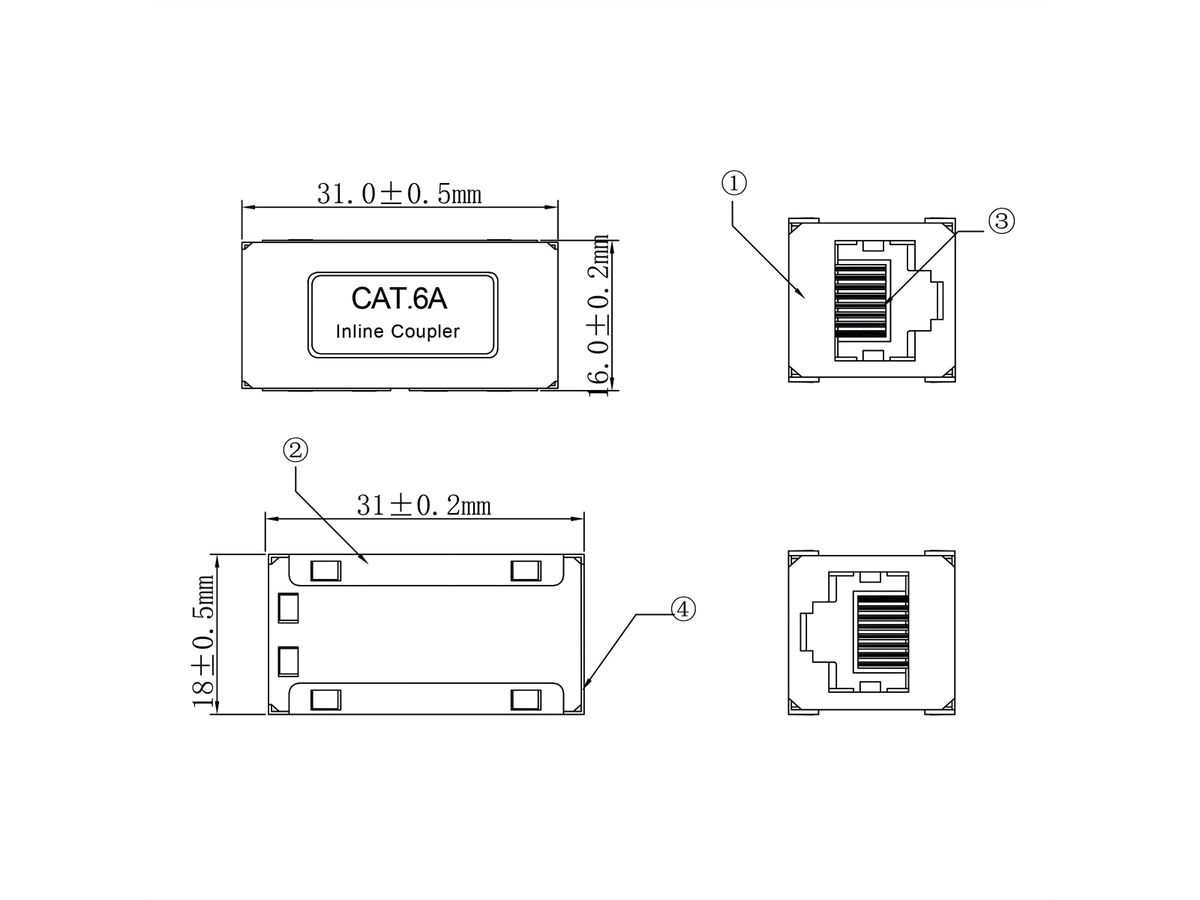

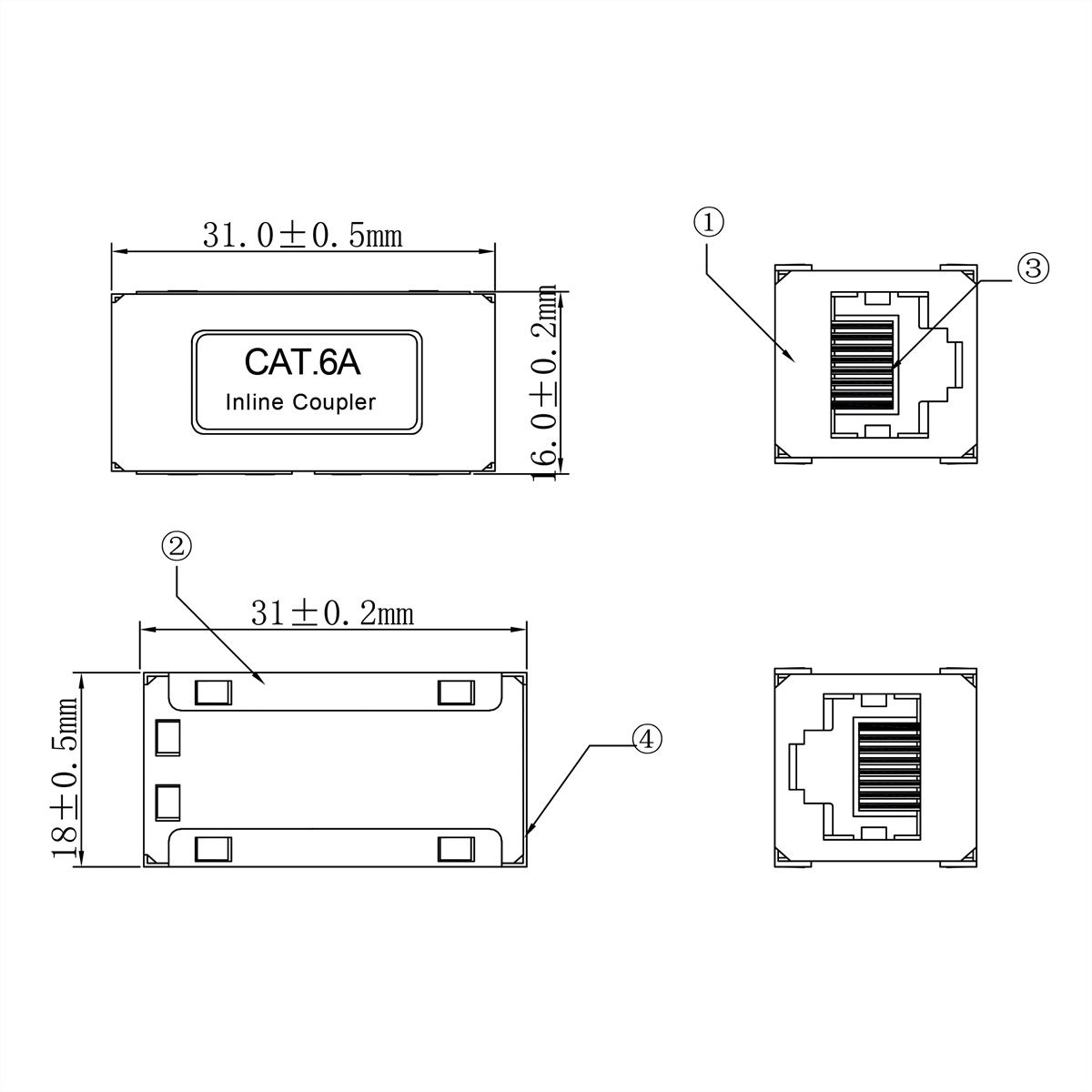

  • Dimensions: 18 x 16 x 31 mm
  • Colour: silver

Remark: Picture similar

Specifications

Manufacturer
ROLINE
Product group
Connection technology TP
Product type
RJ-45 Implementing clutch
Colour
silver
Scope of delivery
Coupler
Shield type
Screened
Transfer quality
Cat6A / Class EA
Quantity of ports
1
Assignment
EIA/TIA 568A
Side 1 Connector Type
RJ-45
Side 1 Connector Gender
Female
Side 2 Connector Type
RJ-45
Side 2 Connector Gender
Female
Material (casing)
metal
Shield contacts
yes
separate strain relief
no
Connection direction
Straight
Dimensions (HxWxD)
18 mm x 16 mm x 31 mm
Technical particularity
1 : 1 connected
Operating temperature min.
-10 °C
Operating temperature max.
60 °C
Storage temperature min.
-40 °C
Storage temperature max.
70 °C
Height
18 mm
Width
16 mm
Depth
31 mm
Weight
10 g
Height of packaging (single piece)
20 mm
Width of packaging (single piece)
20 mm
Depth of packaging (single piece)
30 mm
Package weight (single piece)
0.01 kg
