Description

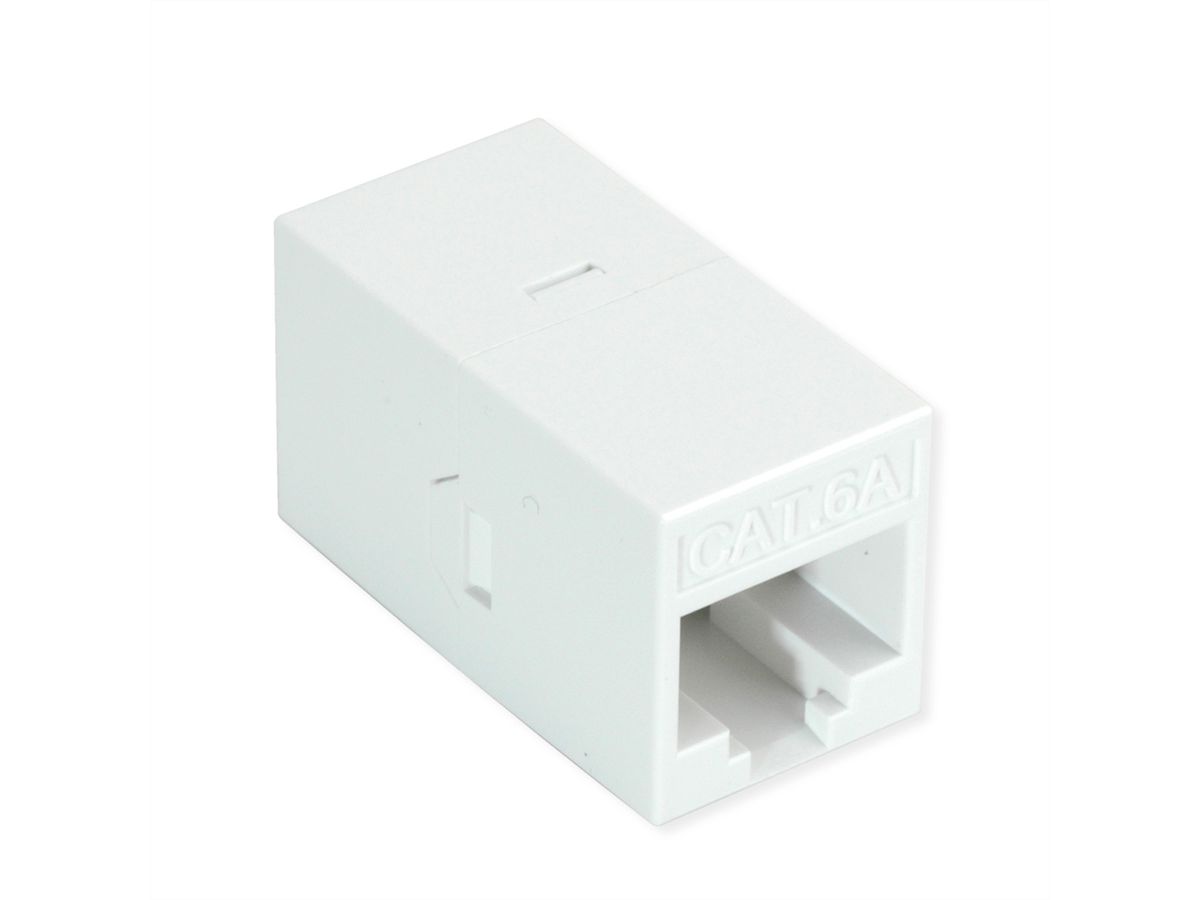

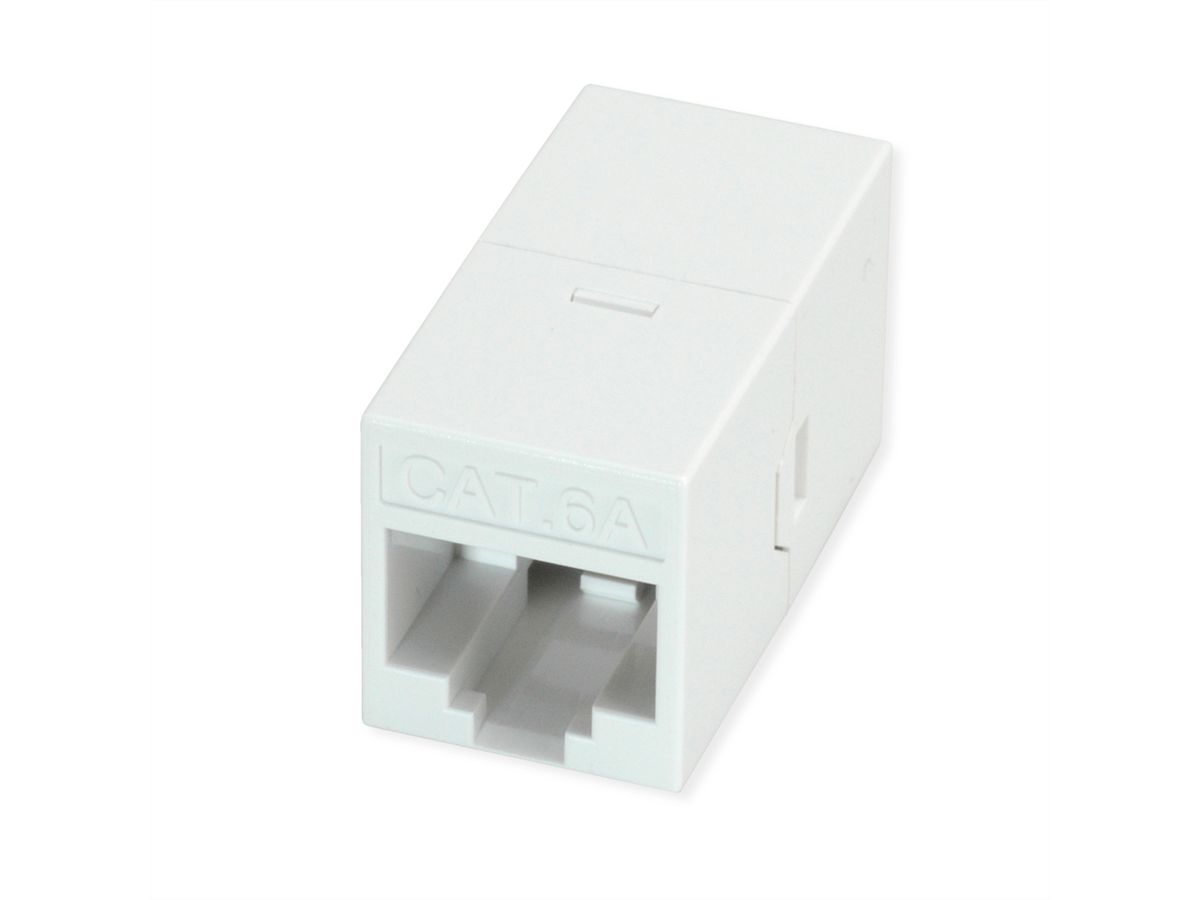

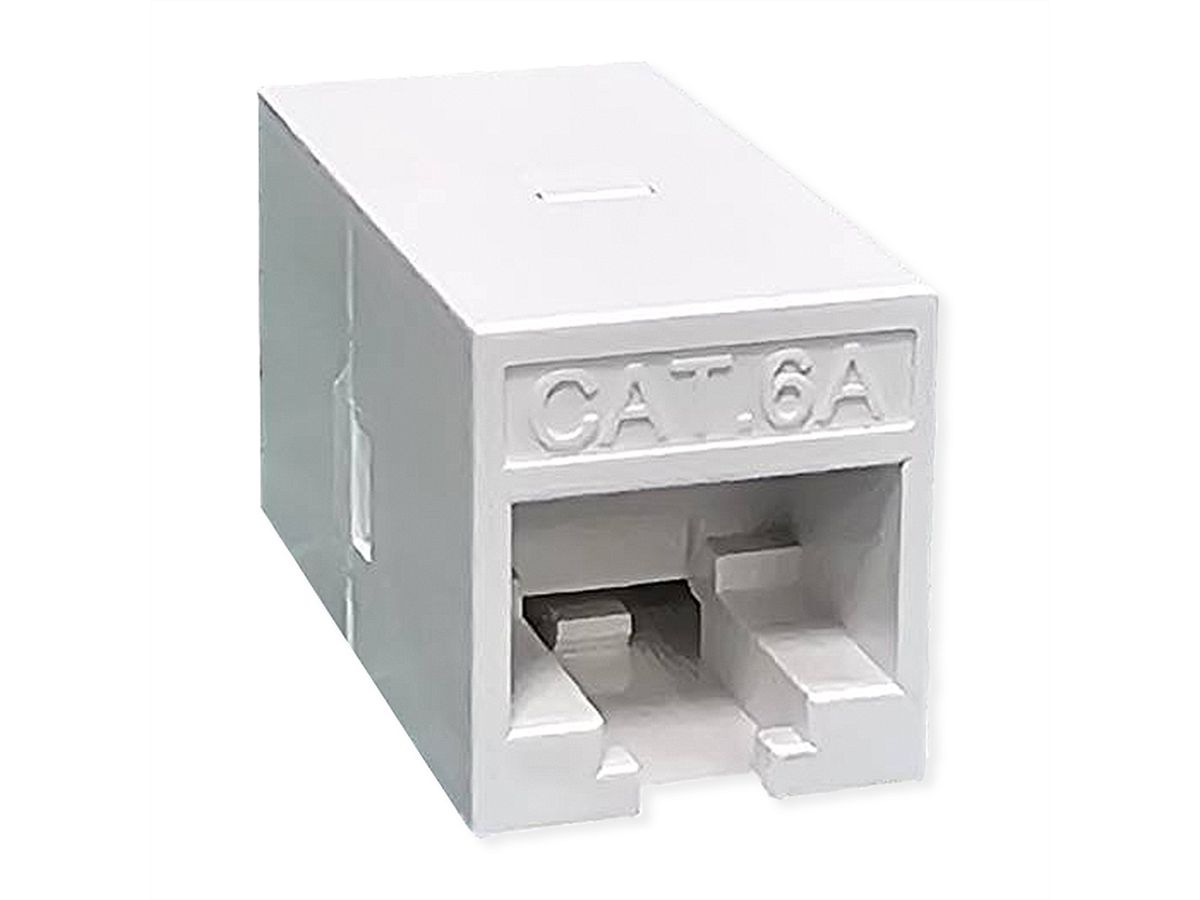

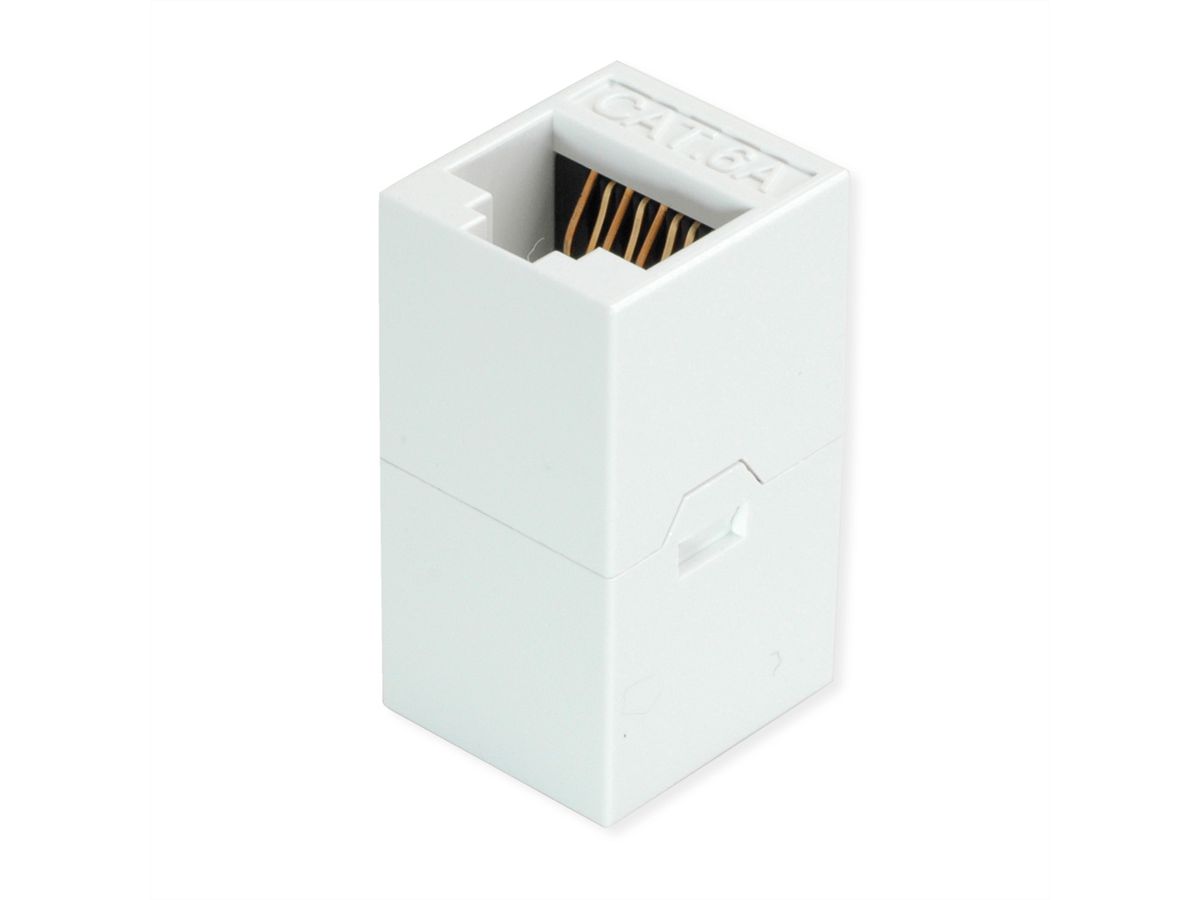

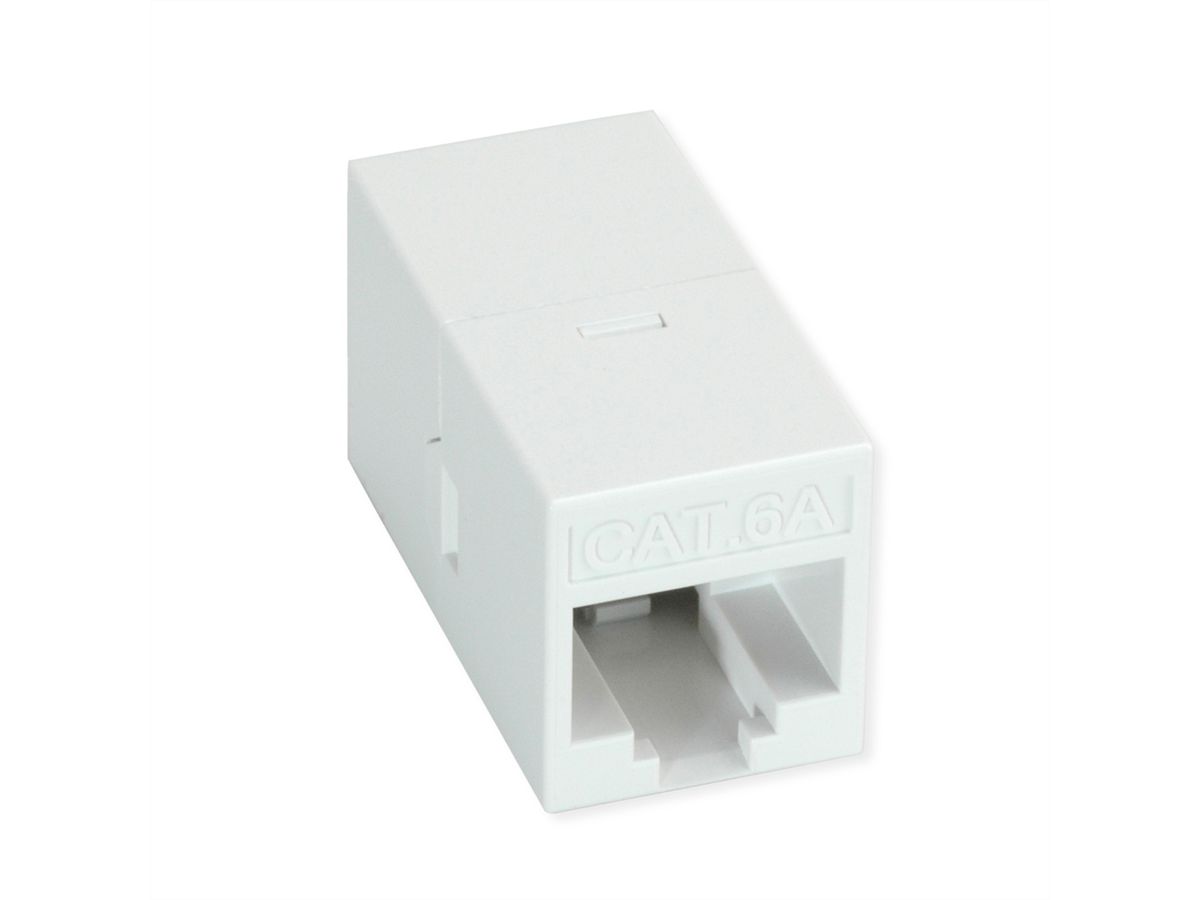

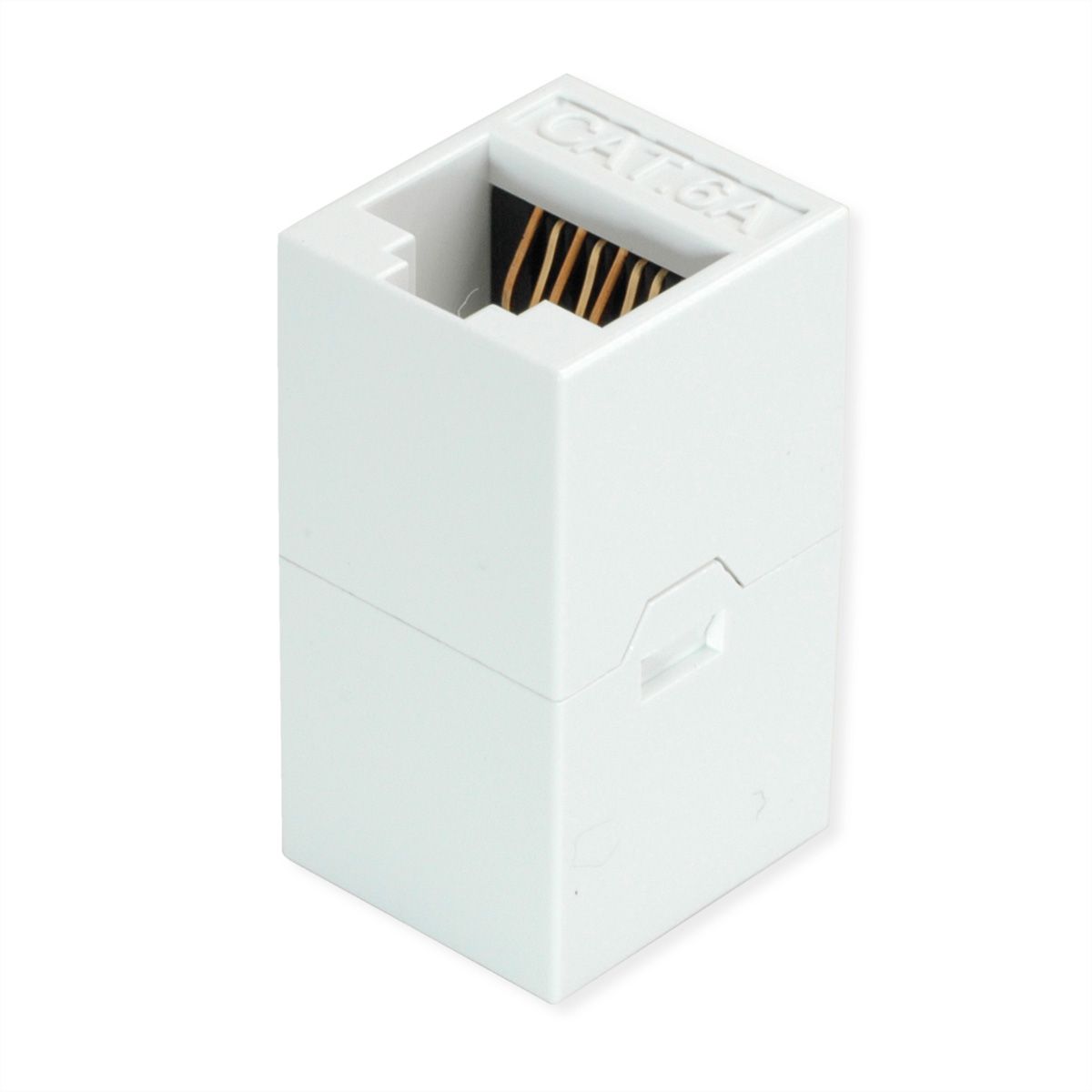

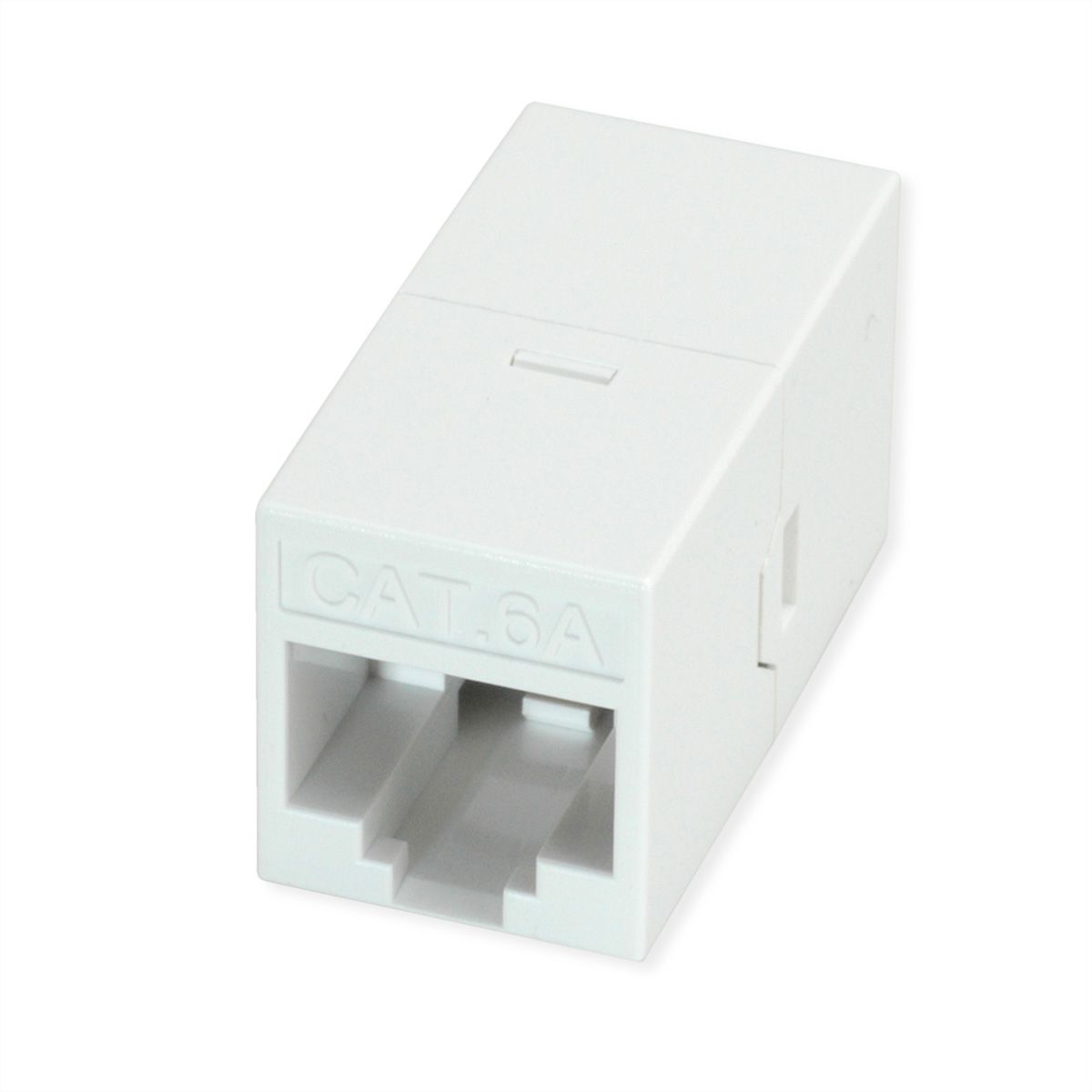

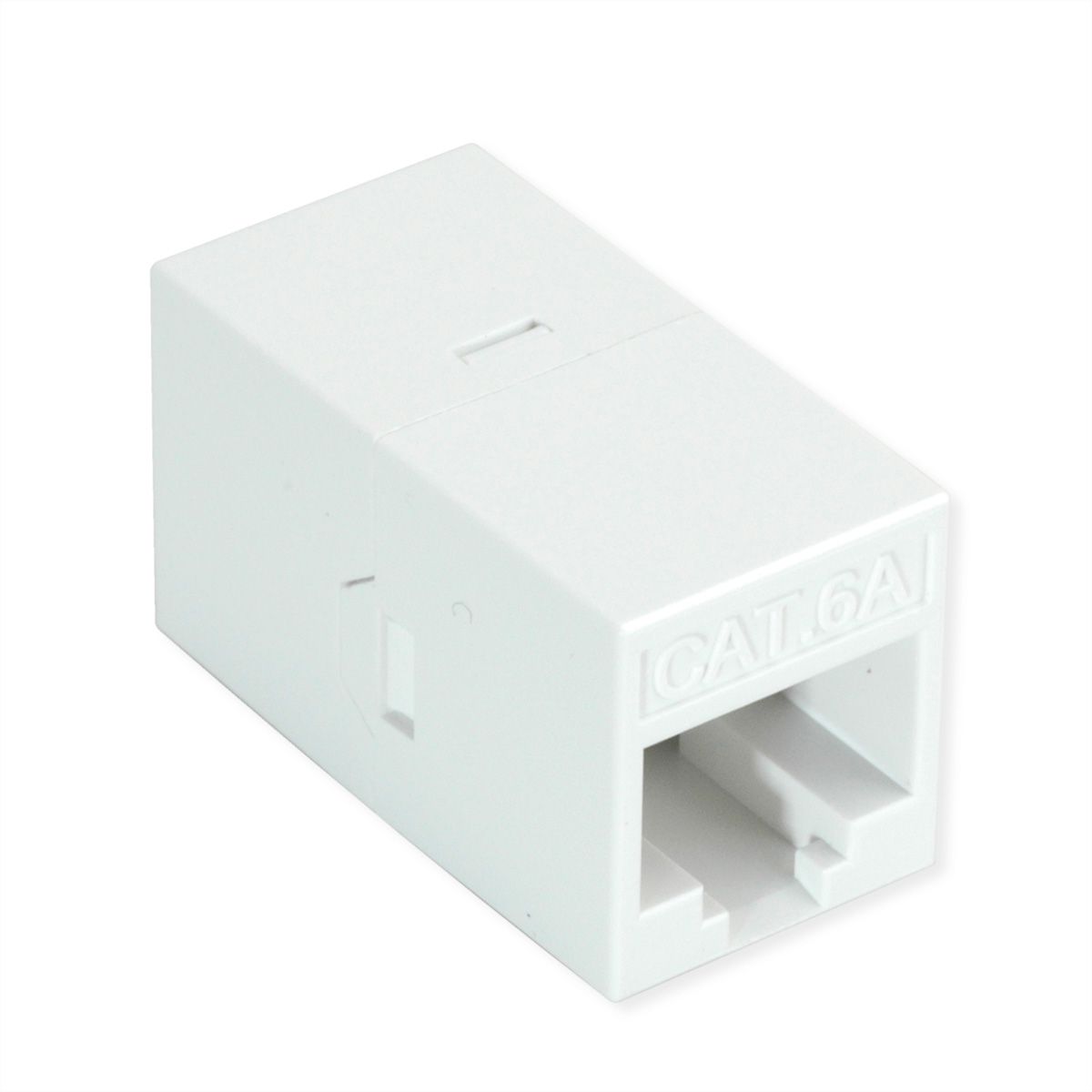

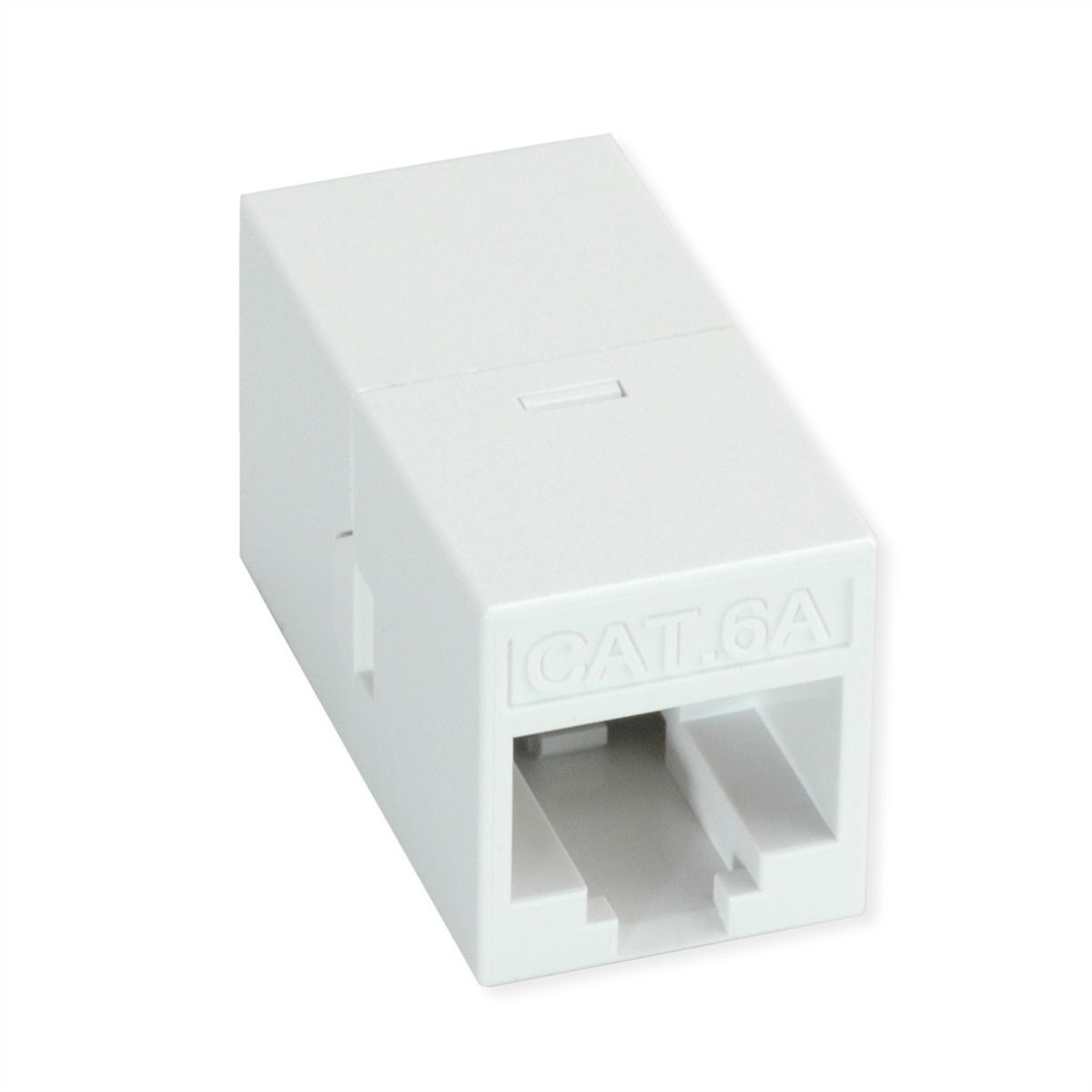

ROLINE Cat. 6A (Class EA) Mini Inline Coupler, unshielded, for the connection or extention of RJ-45 network cables.

• Allows you to extend Cat. 6A (Class EA) patch cords
• Unshielded, plastic housing
• Very small dimensions
• With eight contacts, 1:1 connected
• Colour: white

Remark: Picture similar

Specifications

Manufacturer	ROLINE
Product group	Connection technology TP
Product type	RJ-45 Implementing clutch
Colour	white
Scope of delivery	Coupler
Shield type	Not screened
Transfer quality	Cat6A / Class EA
Quantity of ports	1
Assignment	1:1
Side 1 Connector Type	RJ-45
Side 1 Connector Gender	Female
Side 2 Connector Type	RJ-45
Side 2 Connector Gender	Female
Material (casing)	plastic
separate strain relief	no
Connection direction	Straight

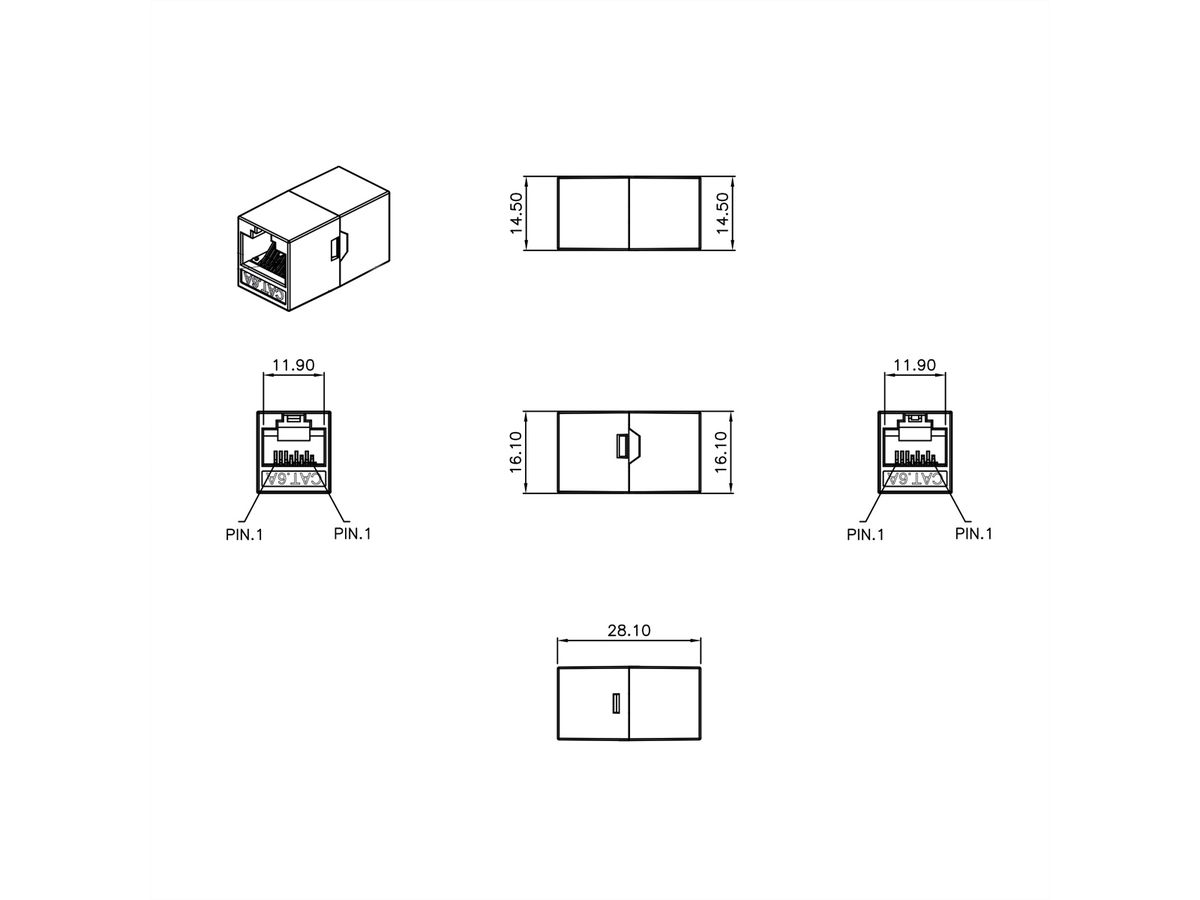

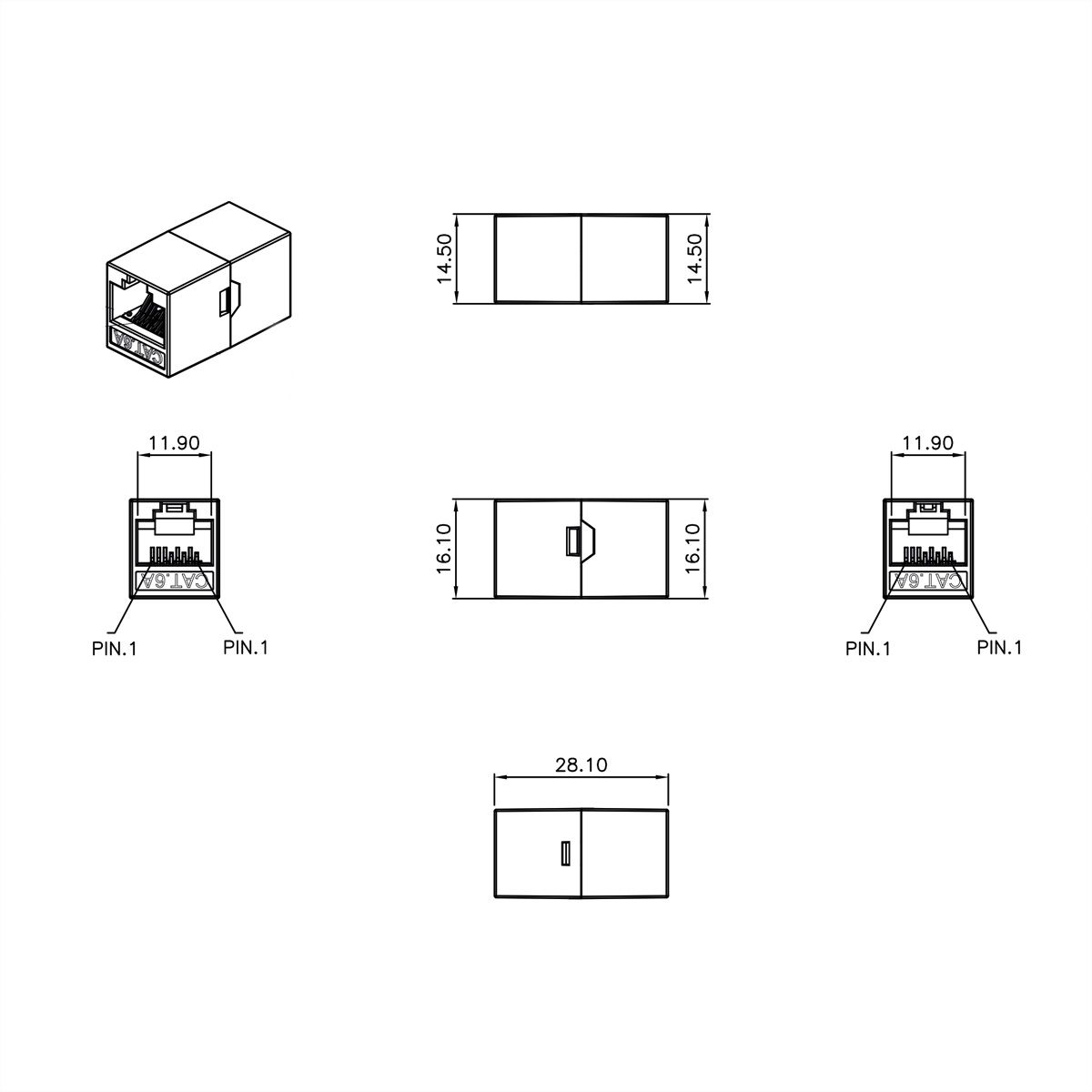

Dimensions (HxWxD)	16.1 x 14.5 x 28.1 mm
Operating temperature min.	-10 °C
Operating temperature max.	60 °C
Height	16.1 mm
Width	14.5 mm
Depth	28.1 mm
Weight	4 g
Height of packaging (single piece)	20 mm
Width of packaging (single piece)	20 mm
Depth of packaging (single piece)	30 mm
Package weight (single piece)	0.01 kg
