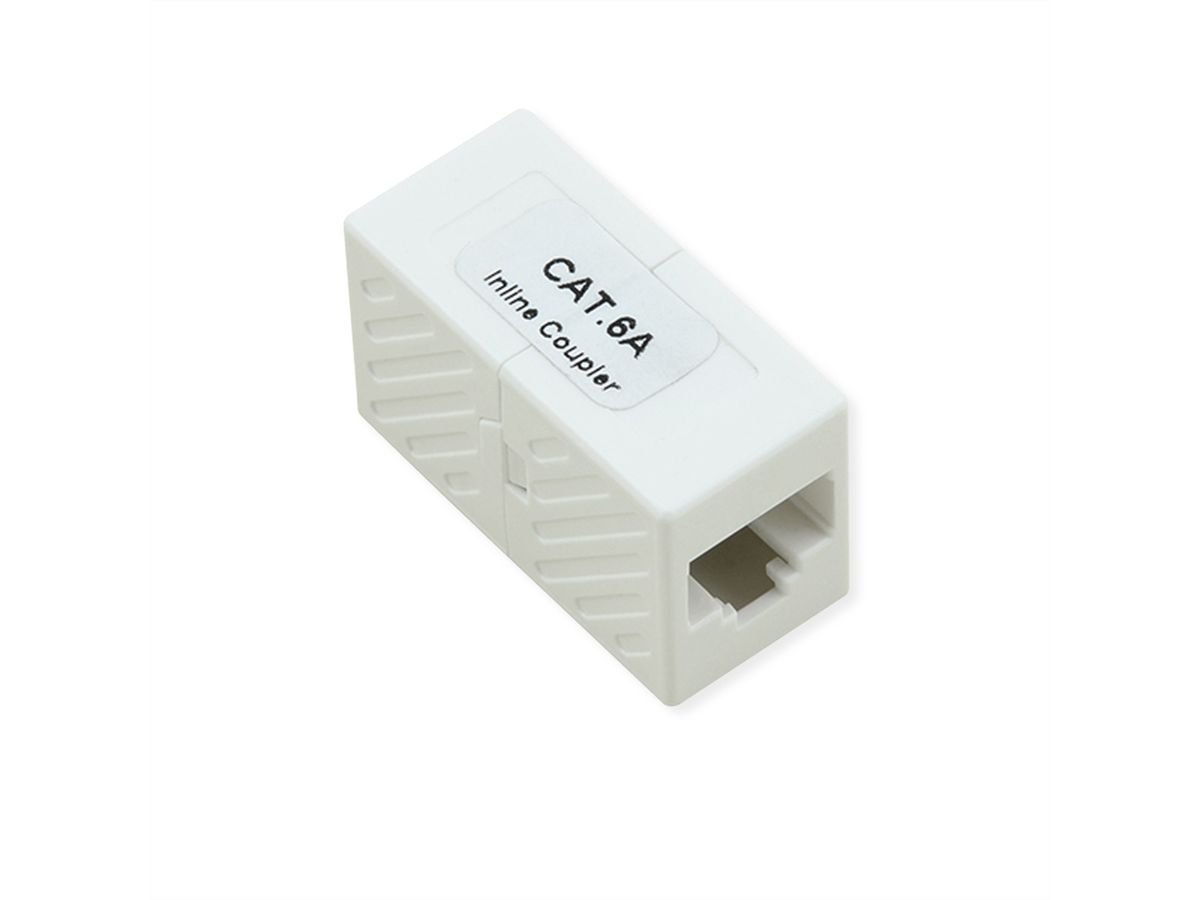

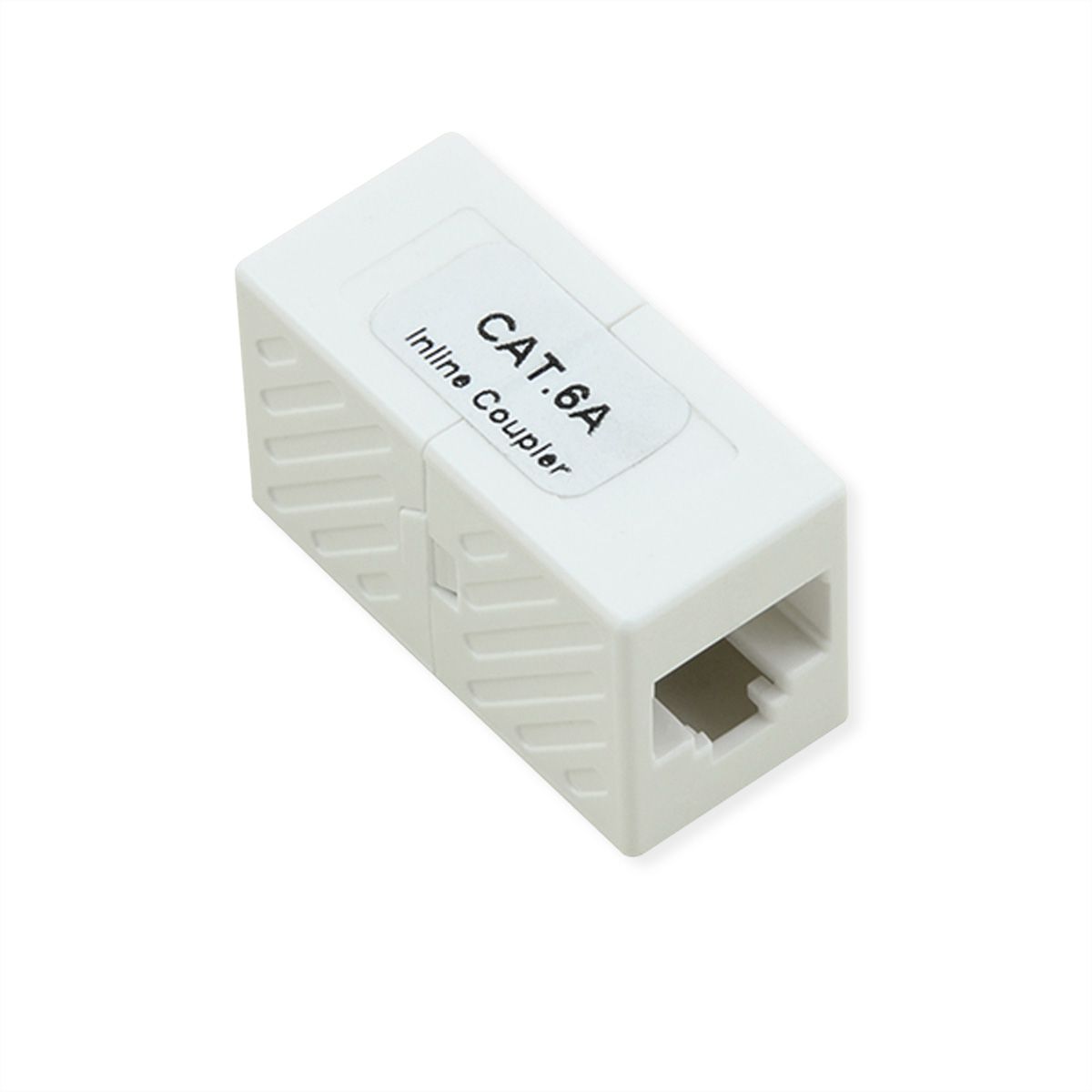

ROLINE RJ-45 Mini Inline Coupler, Cat.6A (Class EA), unshielded, white

Item no. 21.17.3117-20 Brand / Manufacturer ROLINE Manuf. no. 21.17.3117 EAN 7630049679238 Package weight 0.02 kg
ROLINE

Please log in to be able to use the shopping cart and then complete orders.

Log in
Available
Ordered until 3 pm - usually dispatched on the same day
Download PDF

Description

ROLINE Cat. 6A (Class EA) Mini Inline Coupler, unshielded, for the connection or extention of RJ-45 network cables.

  • Unshielded in plastic housing
  • Allows you to extend Cat. 6A (Class EA) patch cords
  • Very small dimensions
  • With eight contacts, 1:1 connected

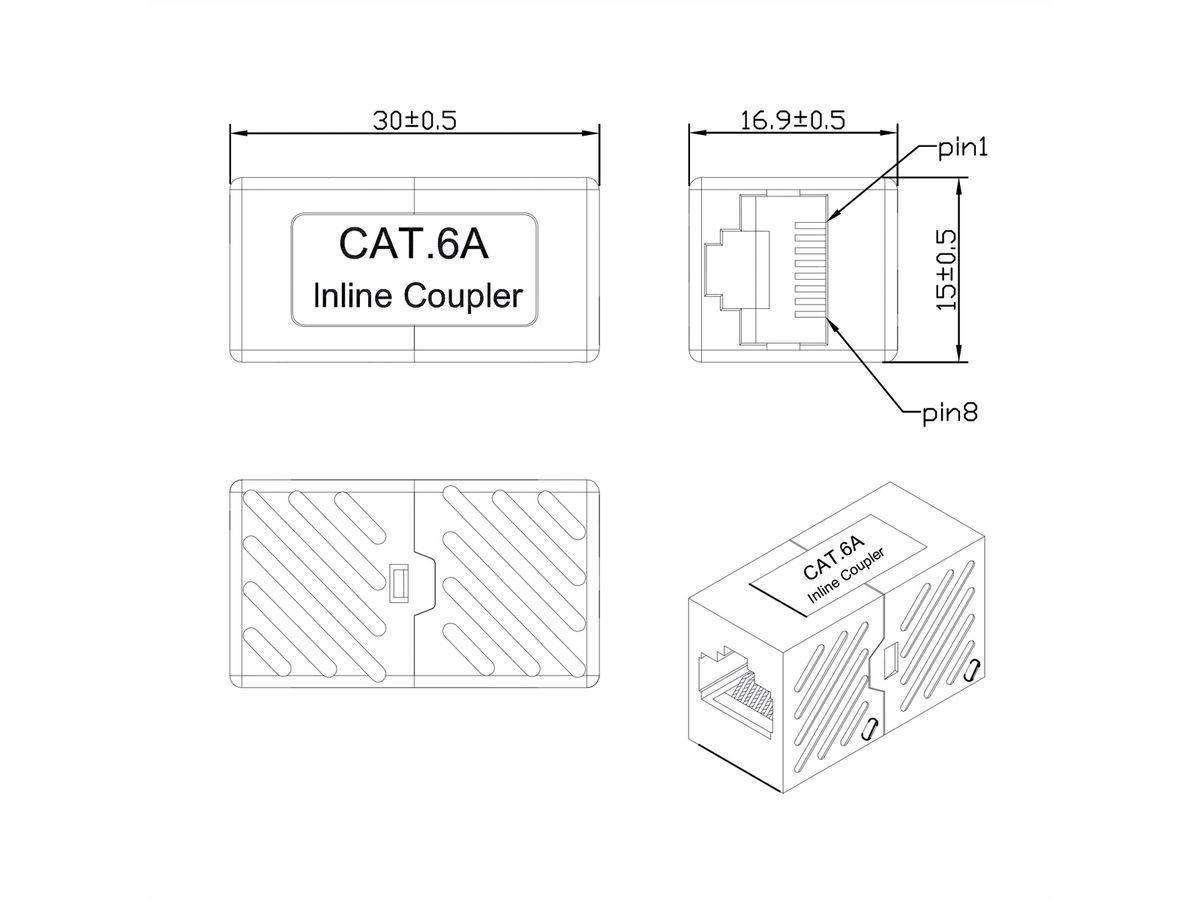

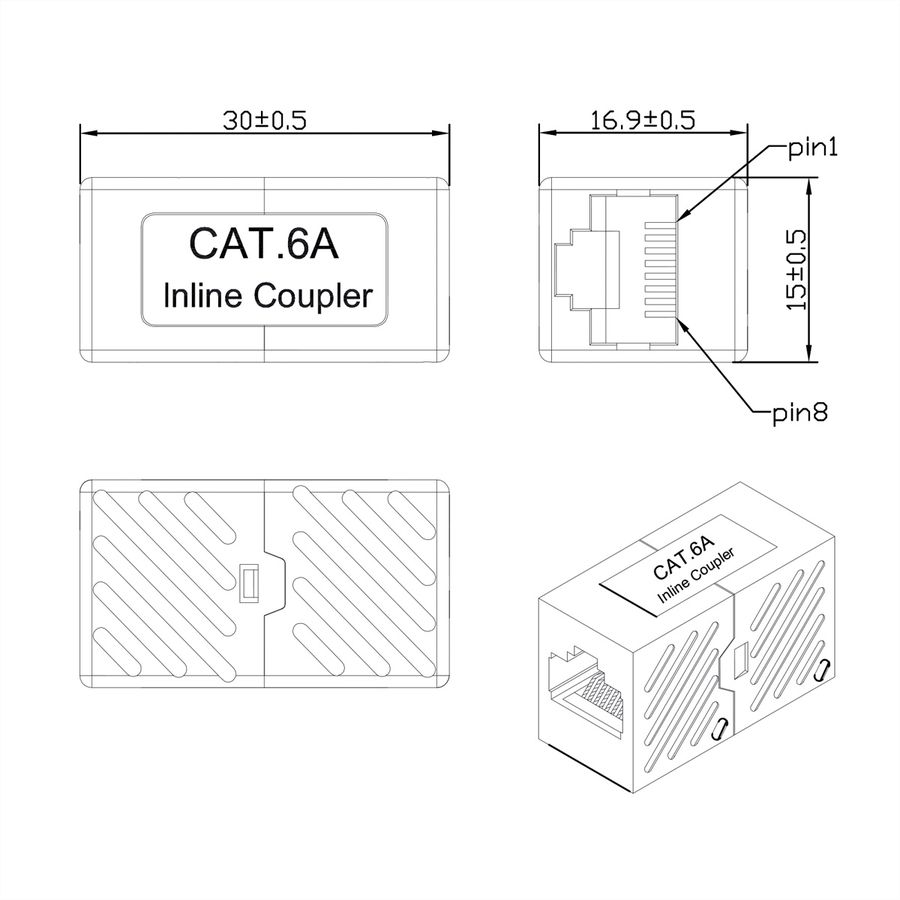

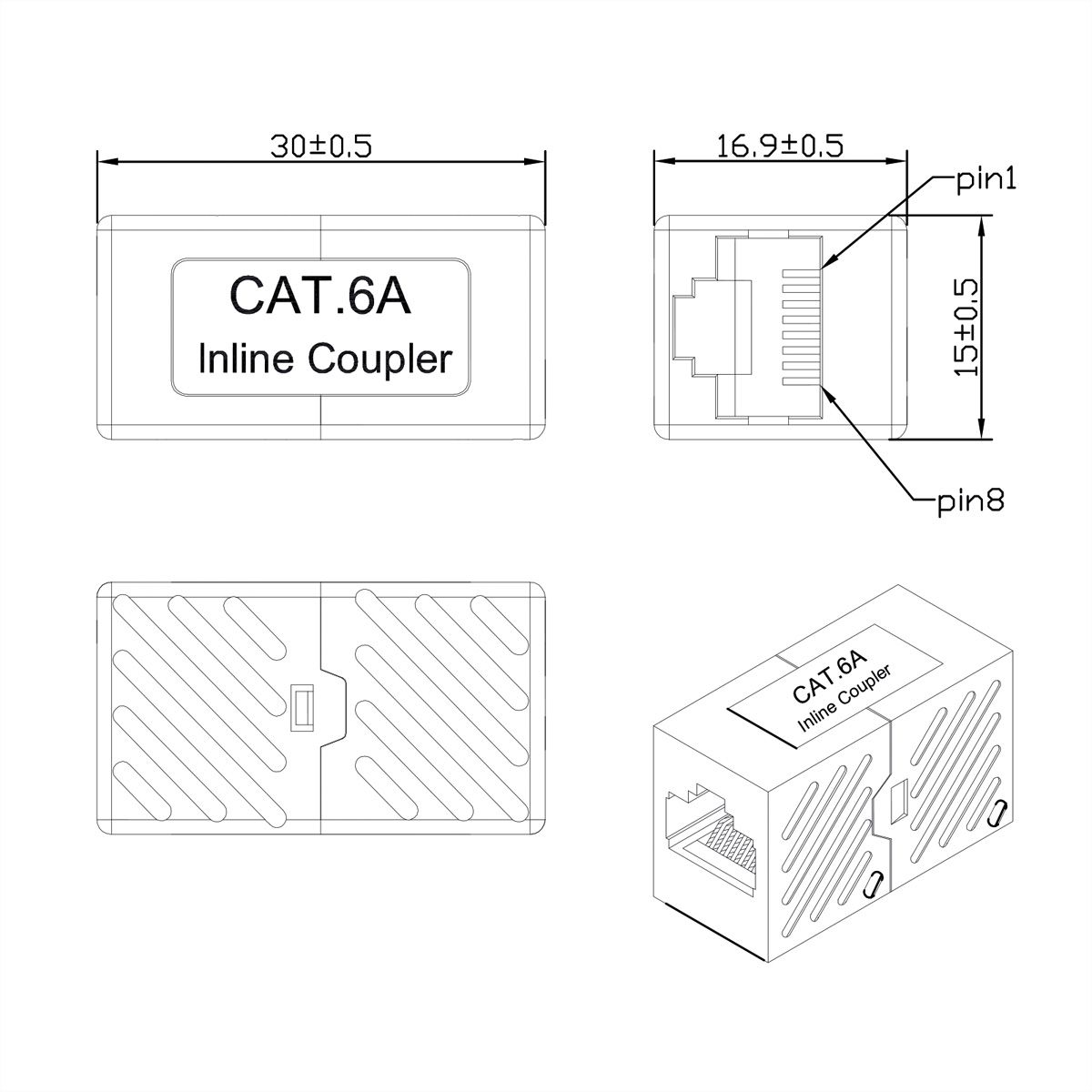

  • Dimensions: 16.9 x 15 x 30 mm
  • Colour: white

Remark: Picture similar

Specifications

Manufacturer
ROLINE
Product group
Connection technology TP
Product type
RJ-45 Implementing clutch
Colour
white
Scope of delivery
Coupler
Shield type
Not screened
Transfer quality
Cat6A / Class EA
Quantity of ports
1
Assignment
EIA/TIA 568A
Side 1 Connector Type
RJ-45
Side 1 Connector Gender
Female
Side 2 Connector Type
RJ-45
Side 2 Connector Gender
Female
Material (casing)
plastic
separate strain relief
no
Connection direction
Straight
Dimensions (HxWxD)
16.9 x 15 x 30 mm
Technical particularity
1 : 1 connected
Operating temperature min.
0 °C
Operating temperature max.
50 °C
Storage temperature min.
-20 °C
Storage temperature max.
60 °C
Height
16.9 mm
Width
15 mm
Depth
30 mm
Weight
5 g
Height of packaging (single piece)
20 mm
Width of packaging (single piece)
20 mm
Depth of packaging (single piece)
30 mm
Package weight (single piece)
0.02 kg

Downloads

Product data sheet - English (39.4 KB) Manufacturer data sheet - English (151.8 KB)
