Description

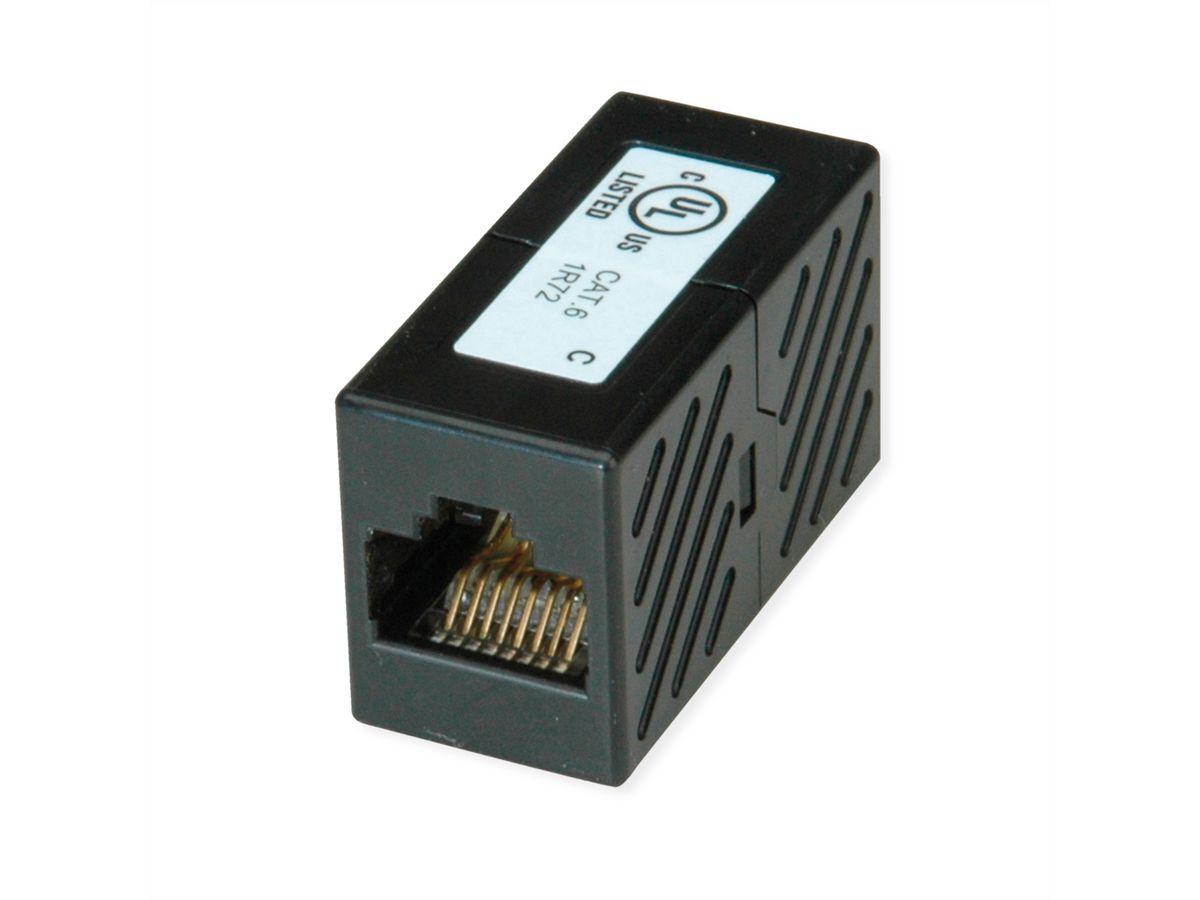

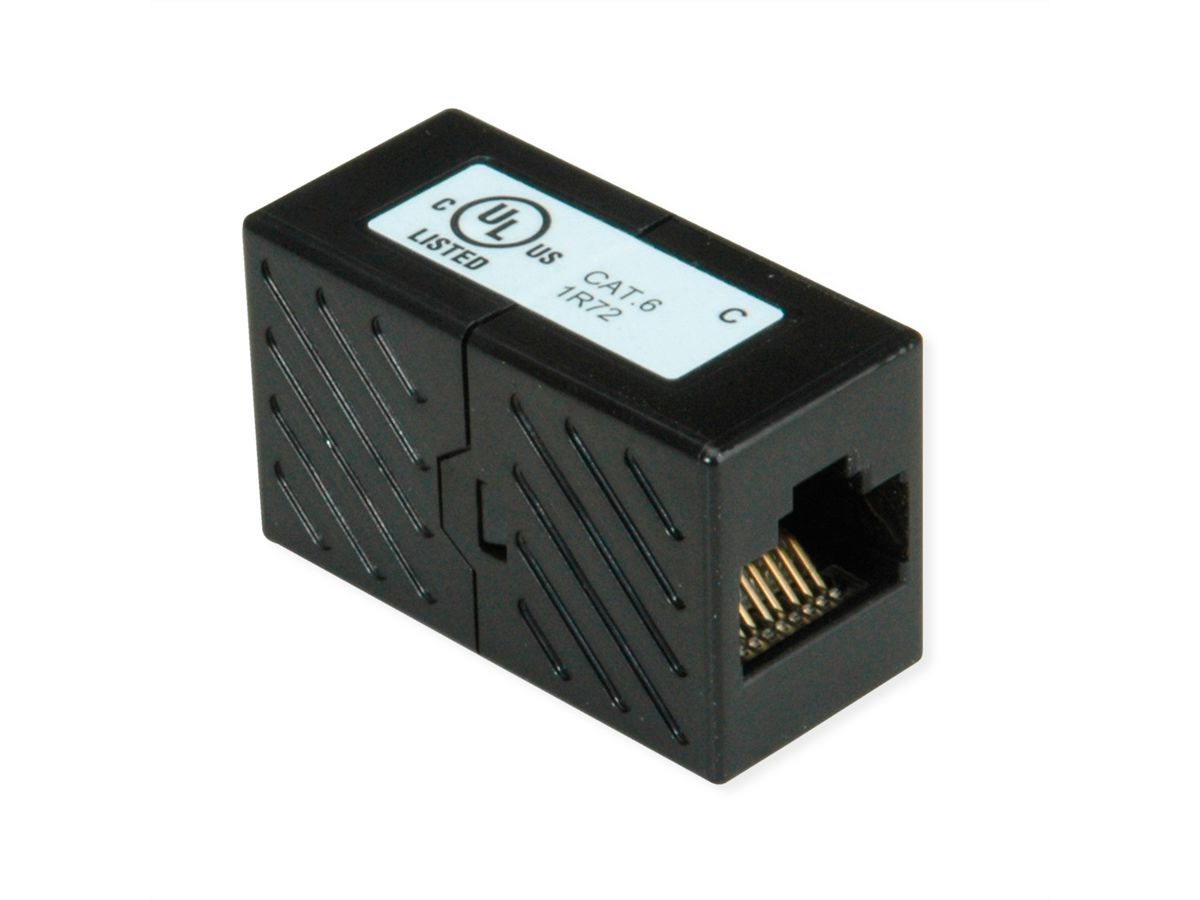

ROLINE Cat. 6 (Class E) Coupler for connecting or extending RJ-45 network cables – set of 25 pcs!

• Cat. 6 (Class E) Coupler - set of 25 pcs
• Unshielded in plastic housing
• The couplers are able to extend Cat.6 cables
• All couplers with eight contacts, 1:1 connected
• Colour: black

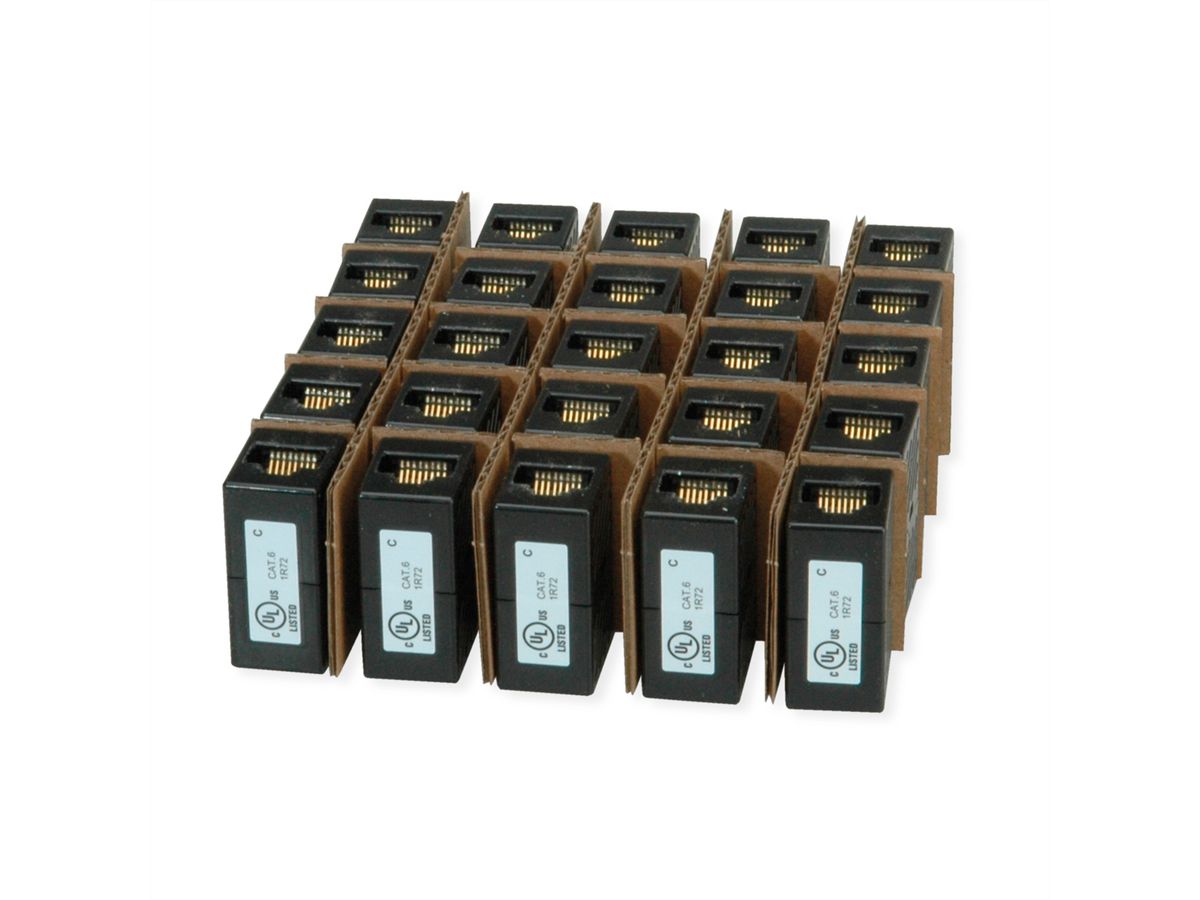

Now available in a pack of 25.

Specifications

Manufacturer	ROLINE
Product group	Connection technology TP
Product type	RJ-45 Implementing clutch
Colour	black
Scope of delivery	Pack of 25 Couplers
Shield type	Not screened
Transfer quality	Cat6 / Class E
Quantity of ports	1
Assignment	EIA/TIA 568A
Side 1 Connector Type	RJ-45
Side 1 Connector Gender	Female
Side 2 Connector Type	RJ-45
Side 2 Connector Gender	Female
Material (casing)	plastic
Connection direction	Straight

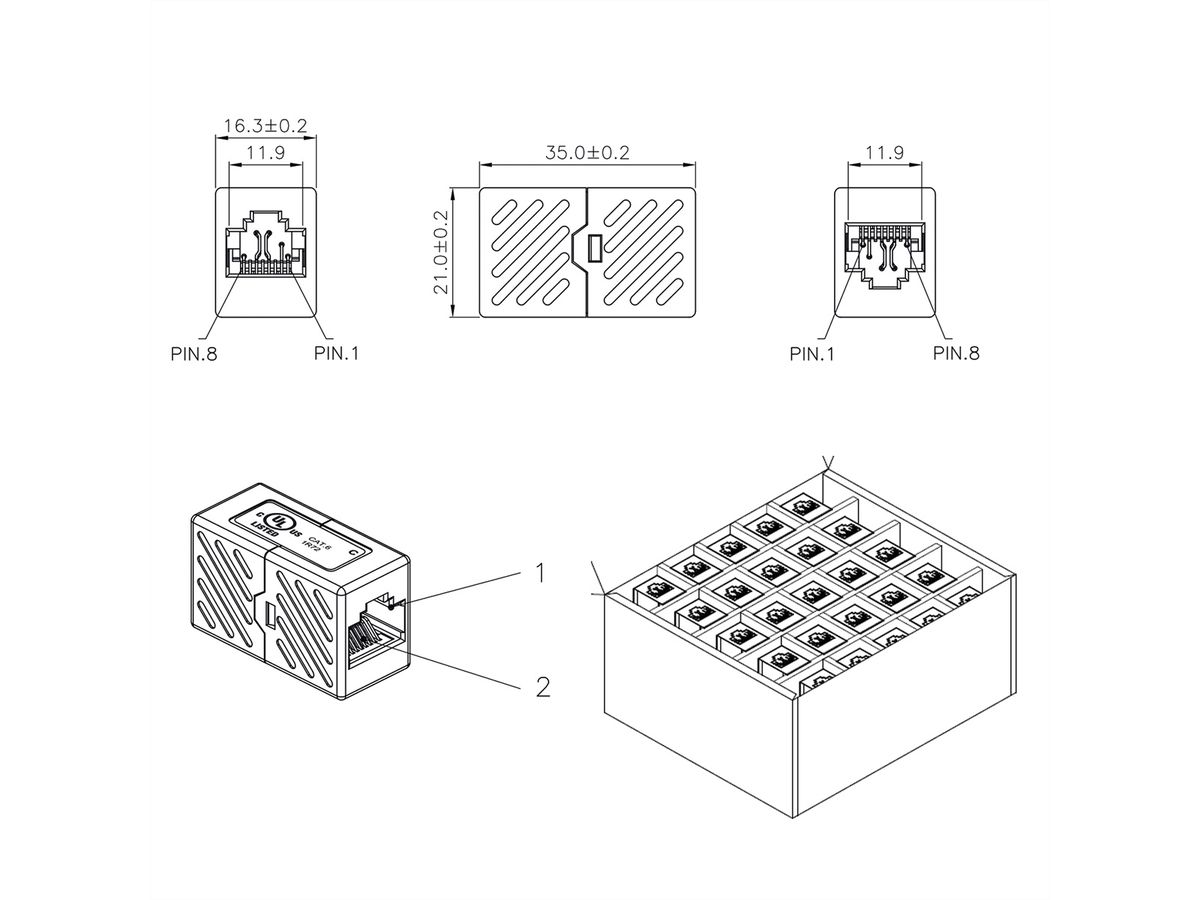

Dimensions (HxWxD)	21.0 x 16.3 x 35.0 mm
Technical particularity	1 : 1 connected
Operating temperature min.	-10 °C
Operating temperature max.	60 °C
Height	45 mm
Width	135 mm
Depth	130 mm
Weight	180 g
Height of packaging (single piece)	20 mm
Width of packaging (single piece)	20 mm
Depth of packaging (single piece)	20 mm
Package weight (single piece)	0.005 kg

Downloads

Product data sheet - English (45.8 KB)

Download

Manufacturer data sheet - English (668.7 KB)

Download
