Description

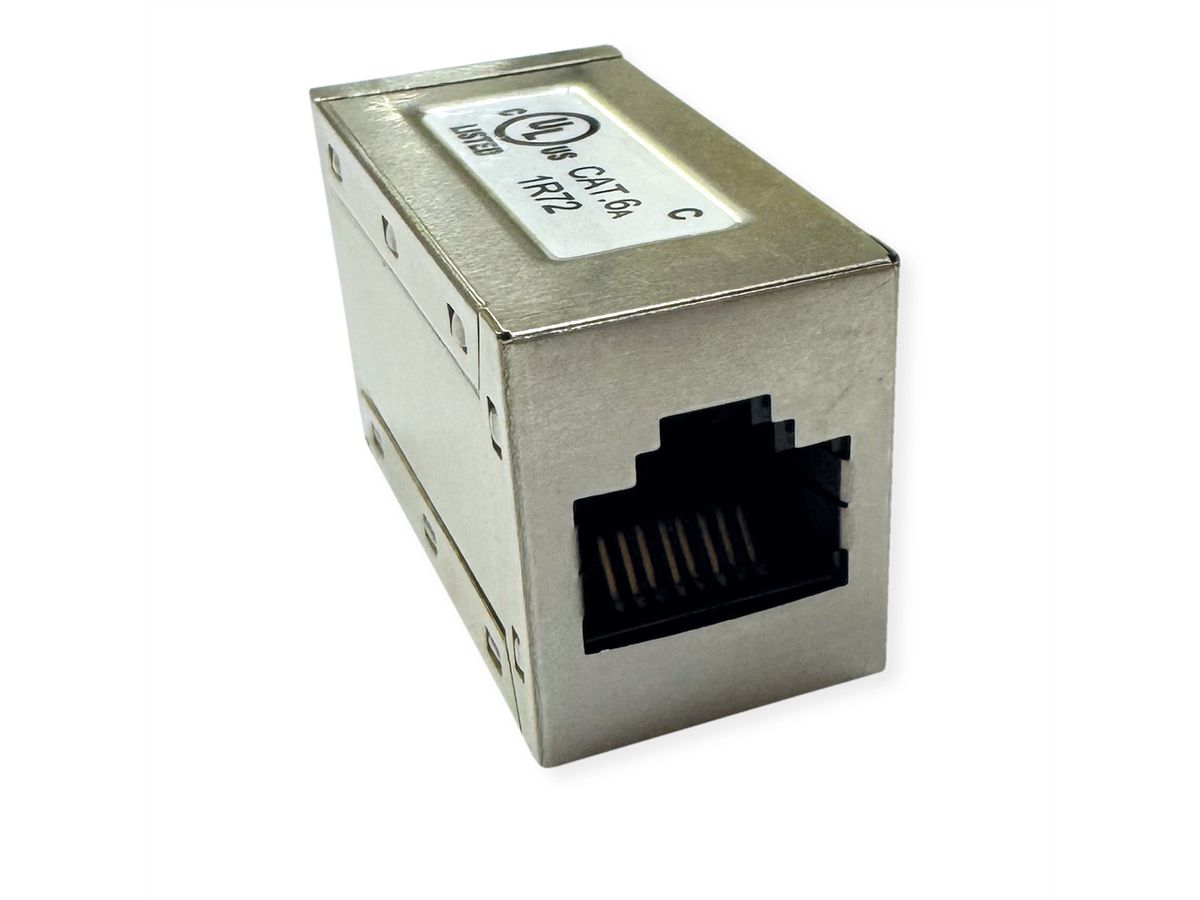

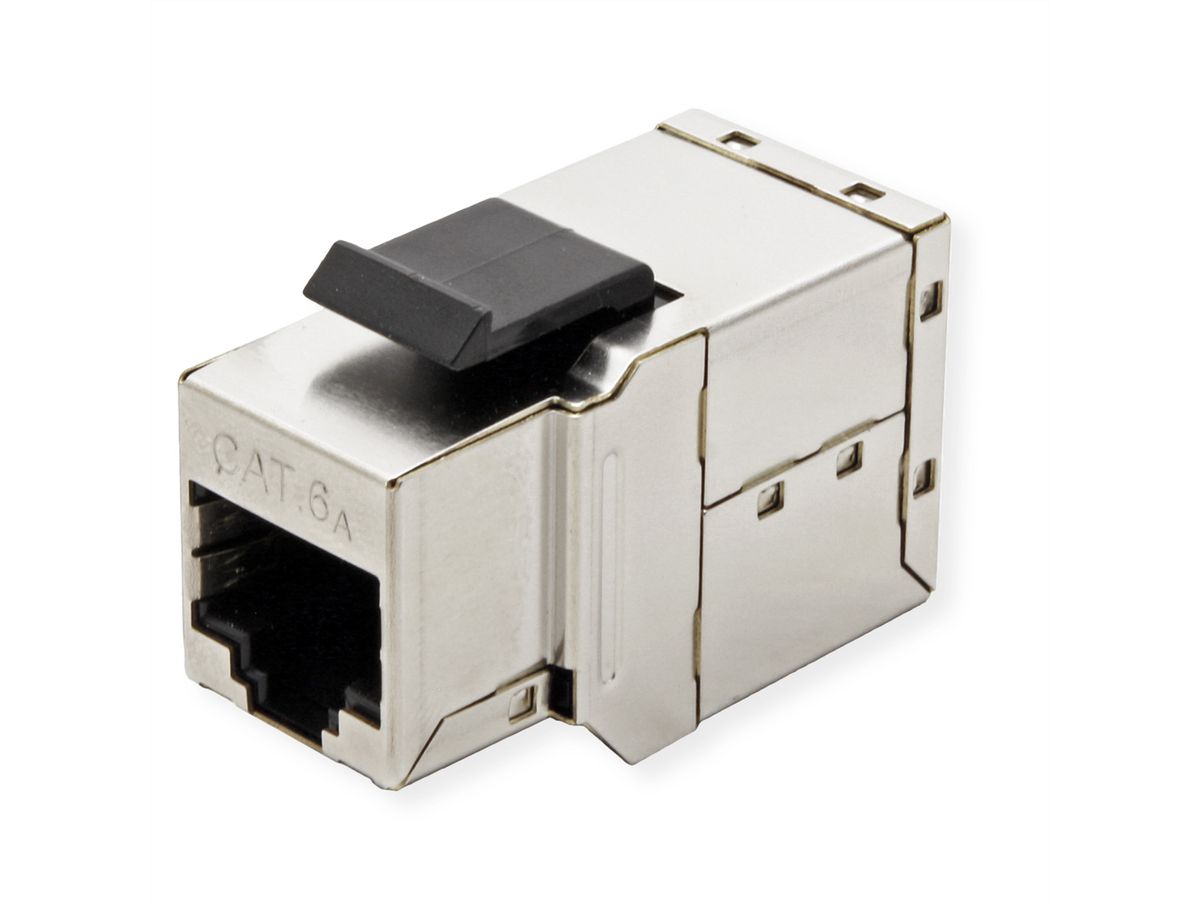

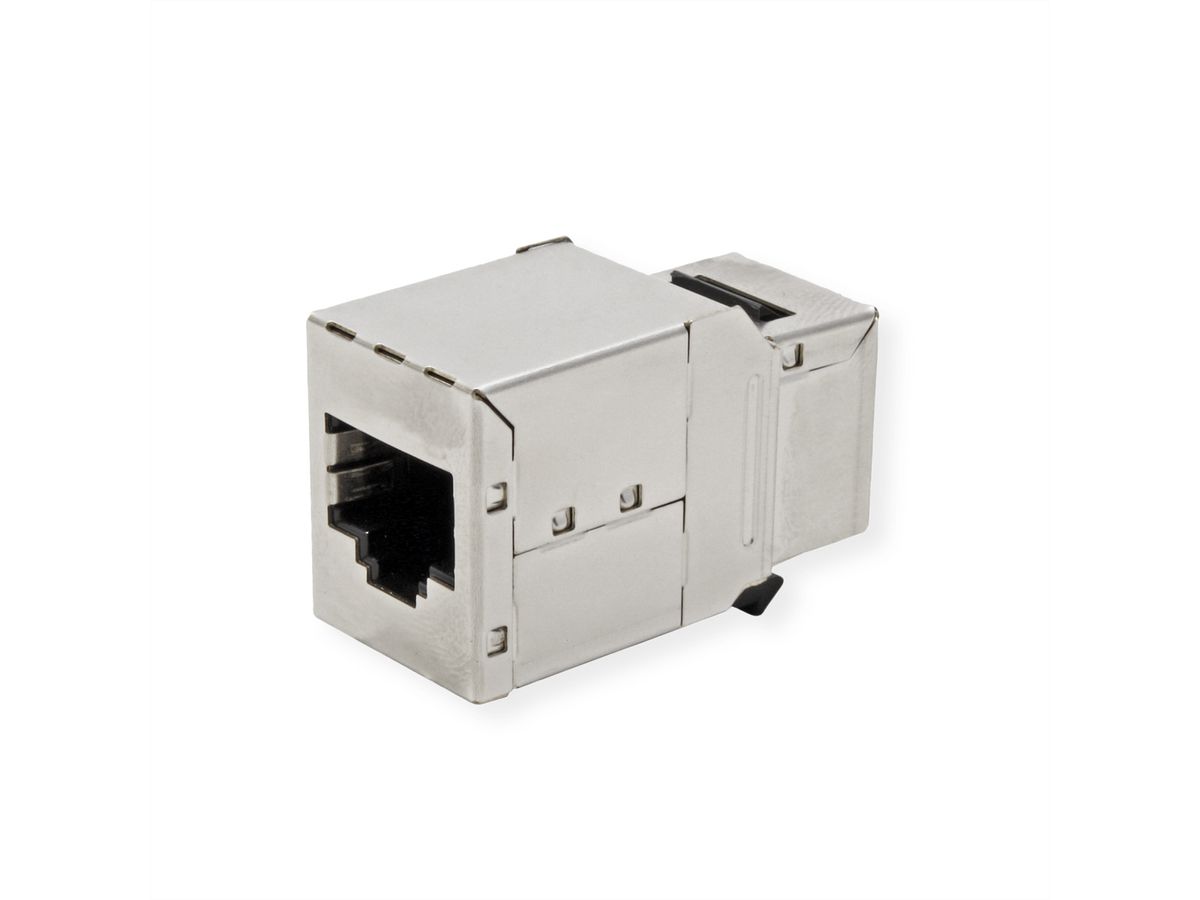

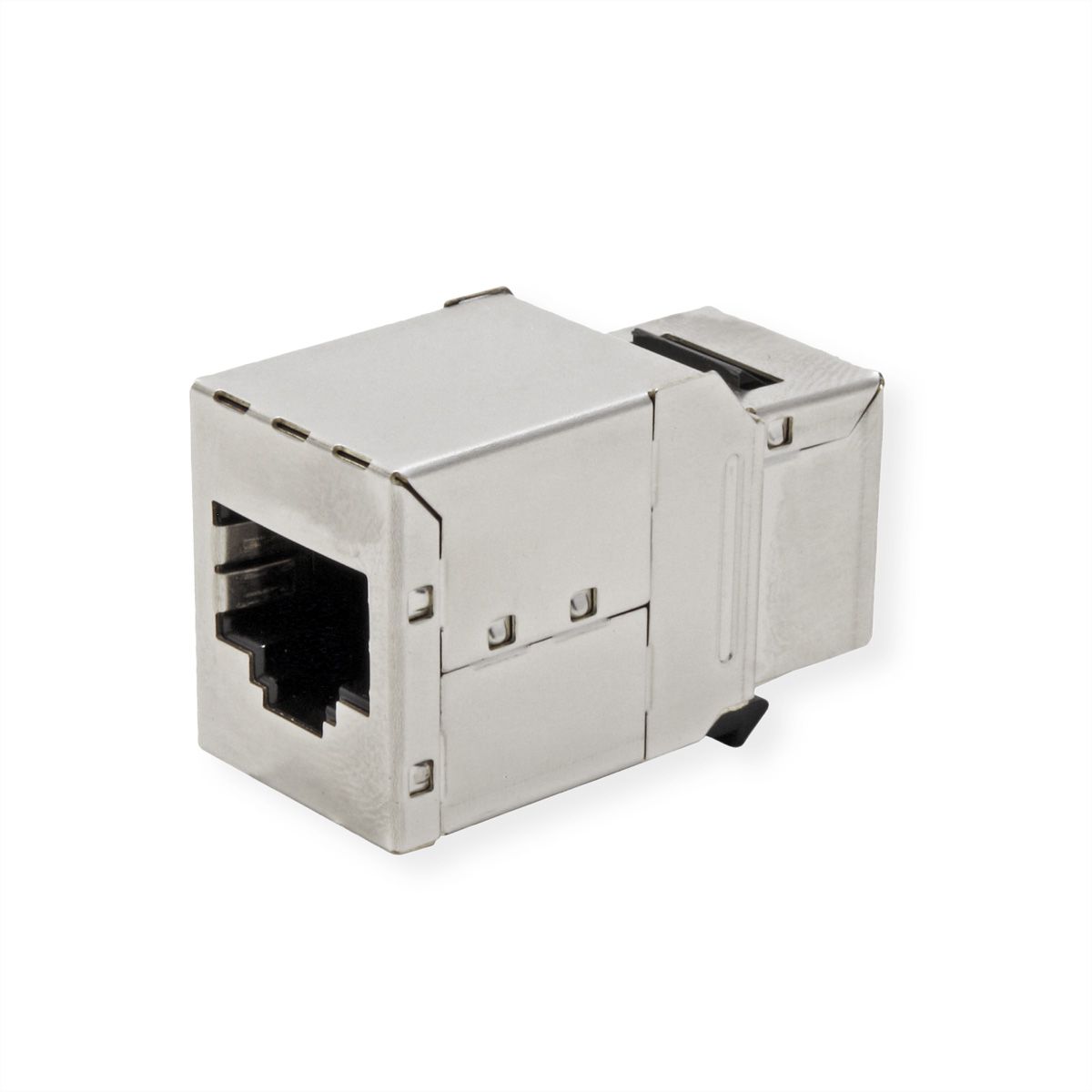

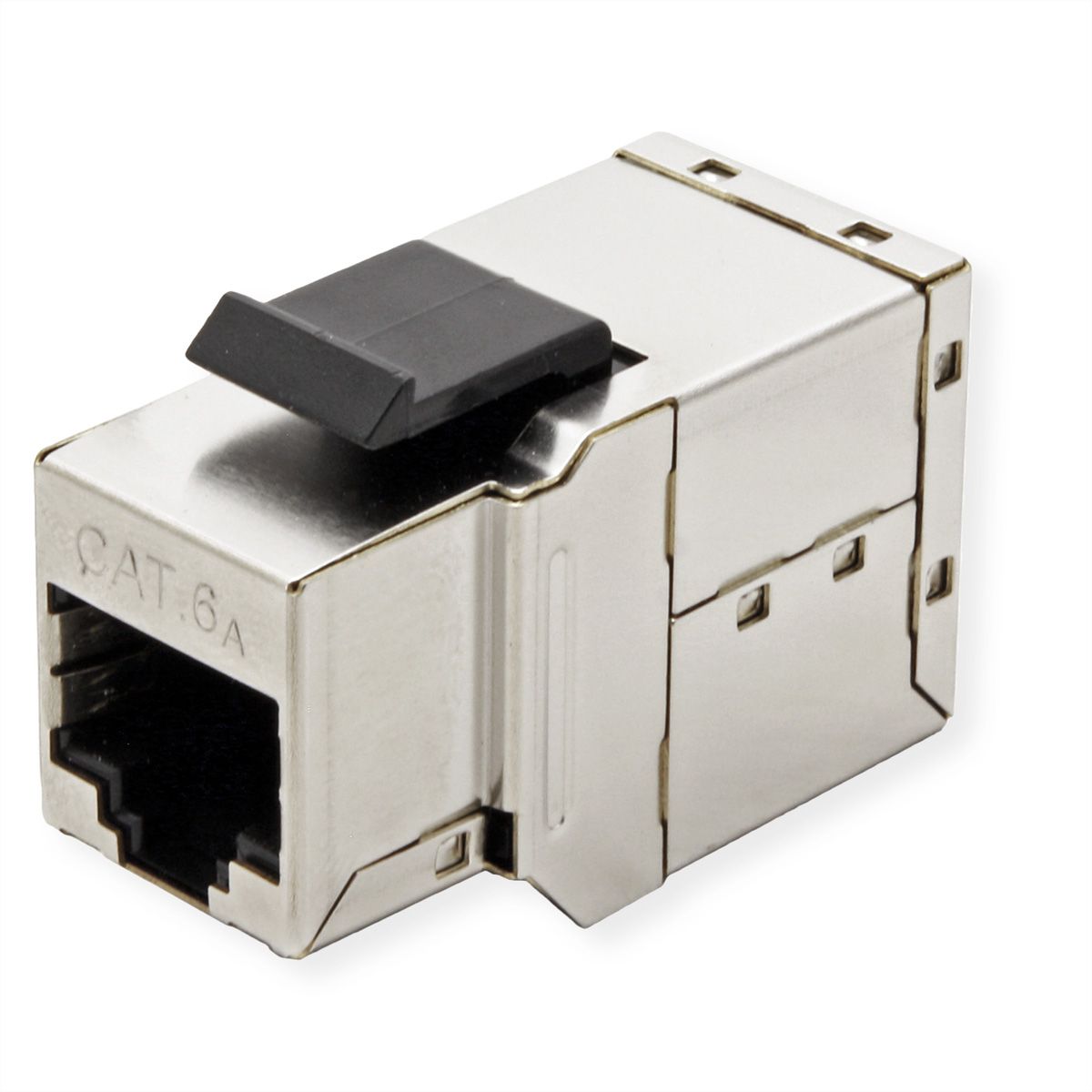

ROLINE Cat. 6A (Class EA) Coupler for the connection or extention of RJ-45 network cables.

• Shielded metal housing to safe the signals against electrical and magnetical interferences
• The coupler is able to extend Cat. 6A (Class EA) cables
• 8 contacts, 1:1 connected
• Colour: silver

Remark: Picture similar

Specifications

Manufacturer	ROLINE
Product group	Connection technology TP
Product type	RJ-45 Implementing clutch
Colour	silver
Scope of delivery	Modular Coupler
Shield type	Screened
Transfer quality	Cat6A / Class EA
Quantity of ports	1
Assignment	EIA/TIA 568A
Side 1 Connector Type	RJ-45
Side 1 Connector Gender	Female
Side 2 Connector Type	RJ-45
Side 2 Connector Gender	Female
Material (casing)	metal
Shield contacts	yes
separate strain relief	no
Connection direction	Straight
Dimensions (HxWxD)	22 x 18 x 36.5 mm
Technical particularity	1:1 connected
Operating temperature min.	-10 °C
Operating temperature max.	60 °C
Height	22 mm
Width	18 mm
Depth	36.5 mm
Weight	16.4 g
Height of packaging (single piece)	20 mm
Width of packaging (single piece)	20 mm
Depth of packaging (single piece)	40 mm
Package weight (single piece)	0.014 kg
