Description

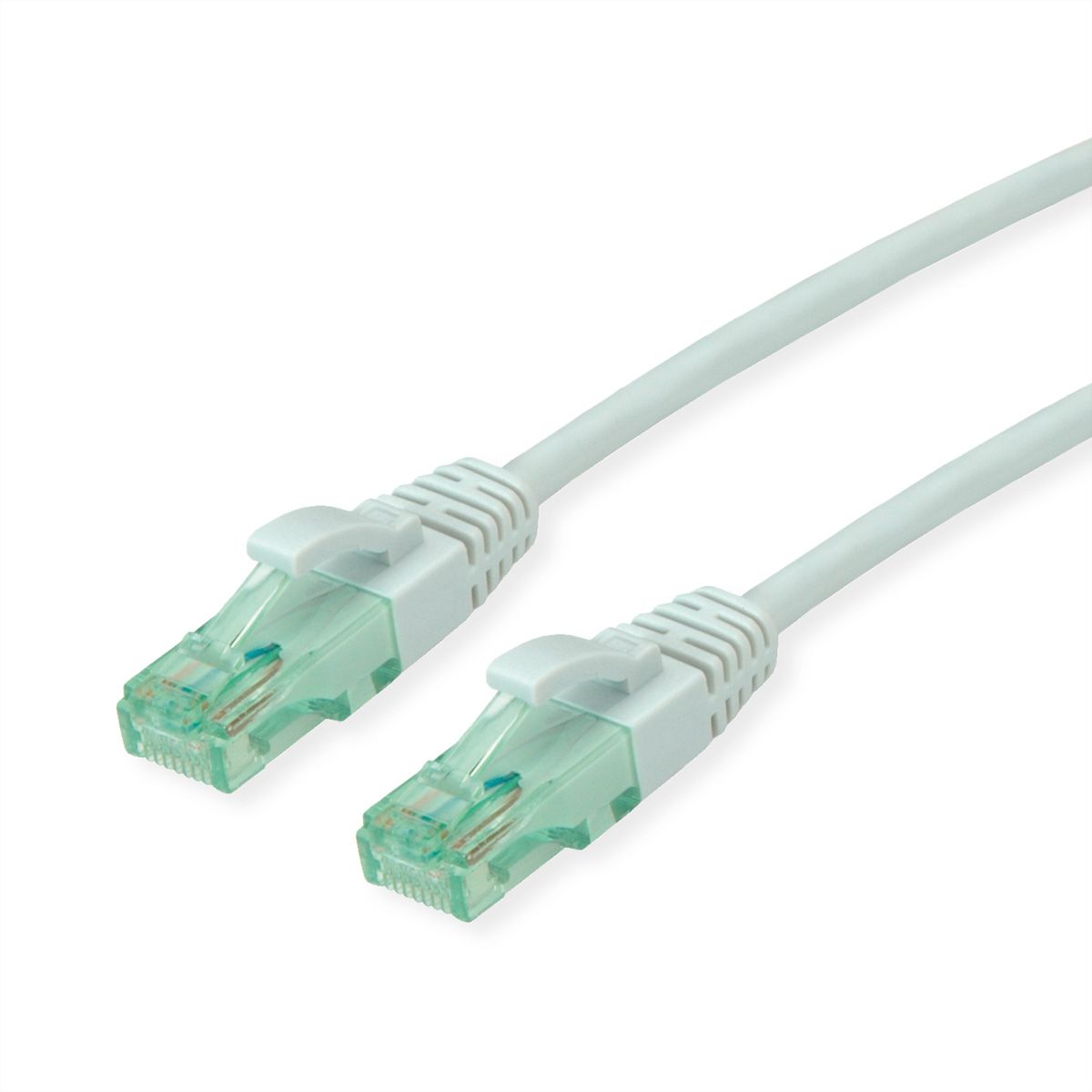

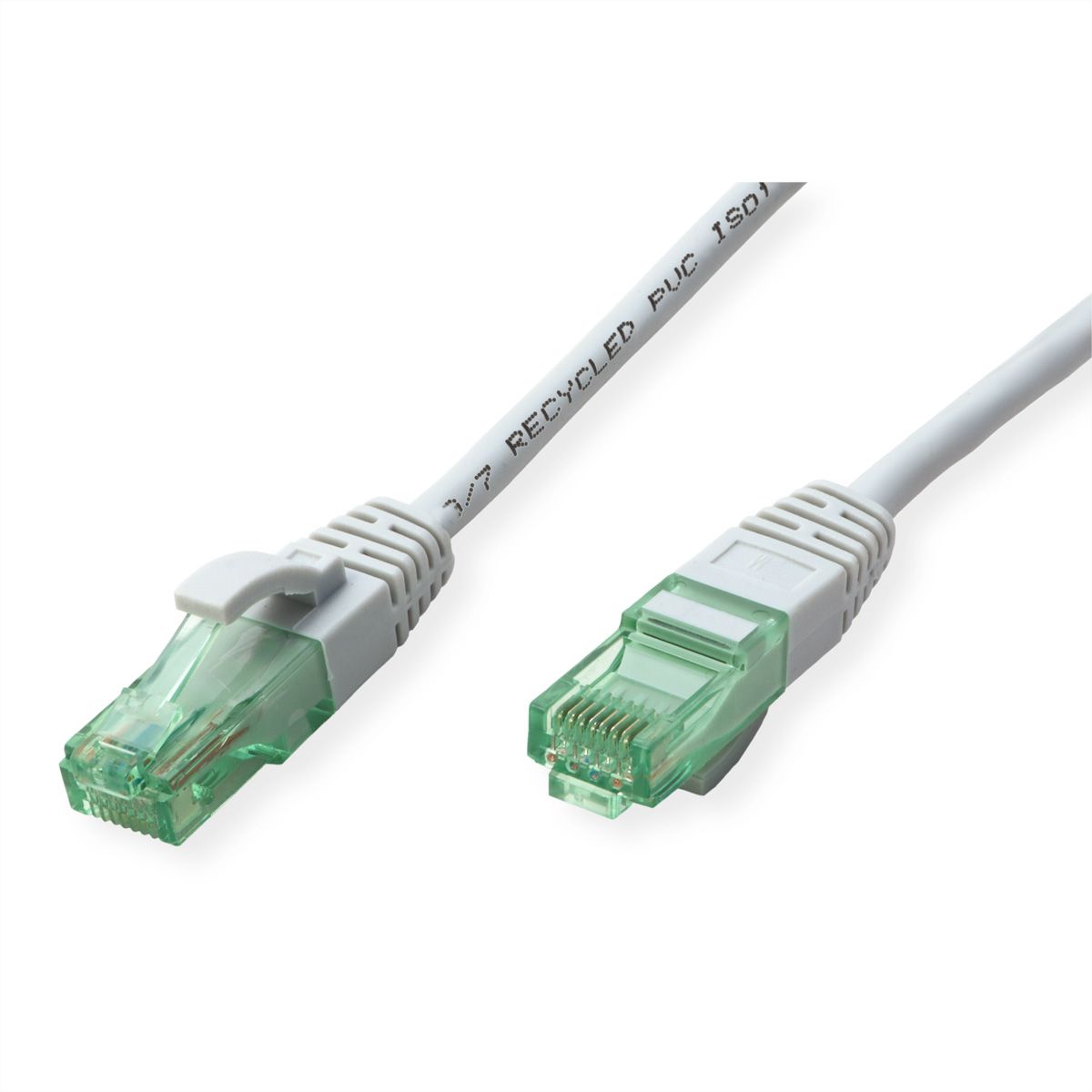

Unshielded, pre-assembled category 6A network cable with RJ-45 plugs at both ends. The patch cable from our ROLINE Recycled Material product line is suitable as a patch cable in patch panels or as a device connection cable and is intended for use in local networks.

• Patch cable for networking connections between devices
• Prepared unshielded Twisted Pair cable with RJ-45 connectors on both ends
• Durable due to moulded kink protection
• Flexible cable, suitable for narrow bending
• High quality plugs with gold plated contacts
• Contact settings 1:1, in accordance with the EIA/TIA 568 standard
• Construction: 4-pair stranded copper wire

ROLINE RECYCLED MATERIAL products consist of more than 50% recycled materials. The packaging is even made from 100% recycled material.

Specifications

Manufacturer	ROLINE RECYCLED MATERIAL
Product group	Twisted Pair Cable
Product type	U/UTP patch cord
Colour	grey
Length	15 m
Shield type	U/UTP
Transfer quality	Cat6A / Class EA
Component-Level certified	yes
Quantity of wires	8
Conductor cross section (AWG)	AWG 26
Conductor type	Stranded
Crossed	no
Locking lever	yes
Anti-kink sleeve	Moulded-on
Colour (Spout)	grey
Side 1 Connector Type	RJ-45
Side 1 Connector Gender	Male
Side 2 Connector Type	RJ-45
Side 2 Connector Gender	Male
Connector Type RJ45	Standard
Operating temperature min.	-20 °C
Operating temperature max.	75 °C
Storage temperature min.	-20 °C
Storage temperature max.	80 °C
Weight	341 g
Height of packaging (single piece)	60 mm
Width of packaging (single piece)	140 mm
Depth of packaging (single piece)	140 mm
Package weight (single piece)	0.38 kg

Downloads

Product data sheet - English (61.0 KB)

Download

Manufacturer data sheet - English (124.5 KB)

Download
