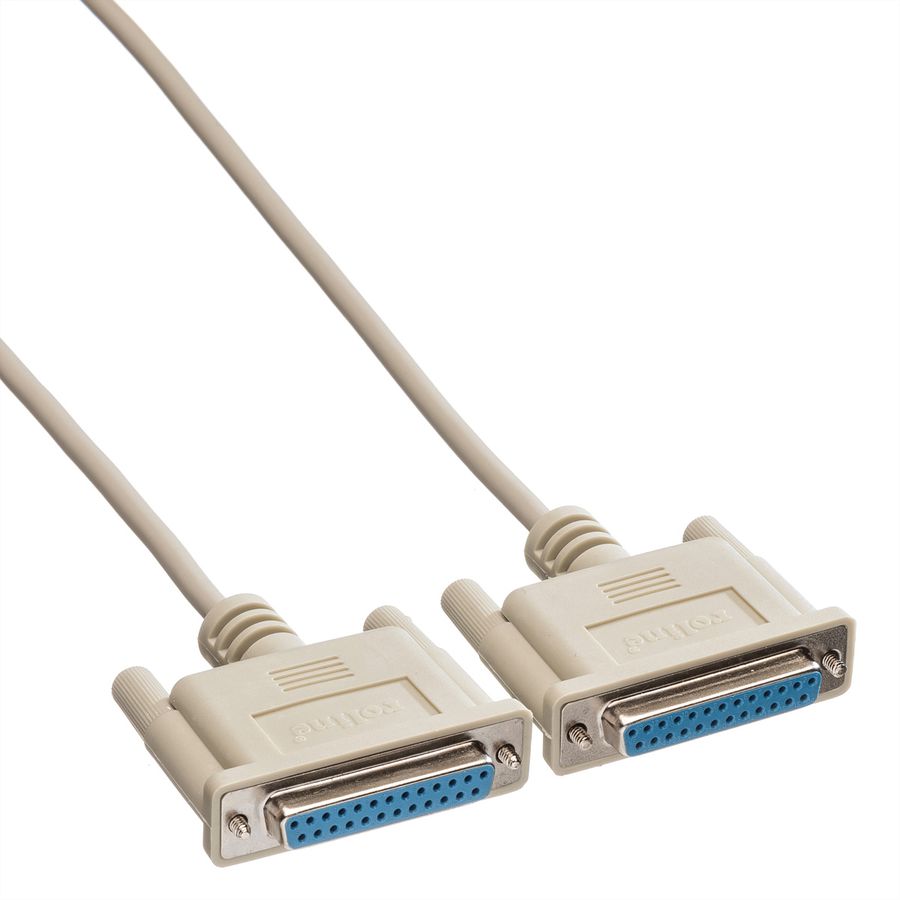

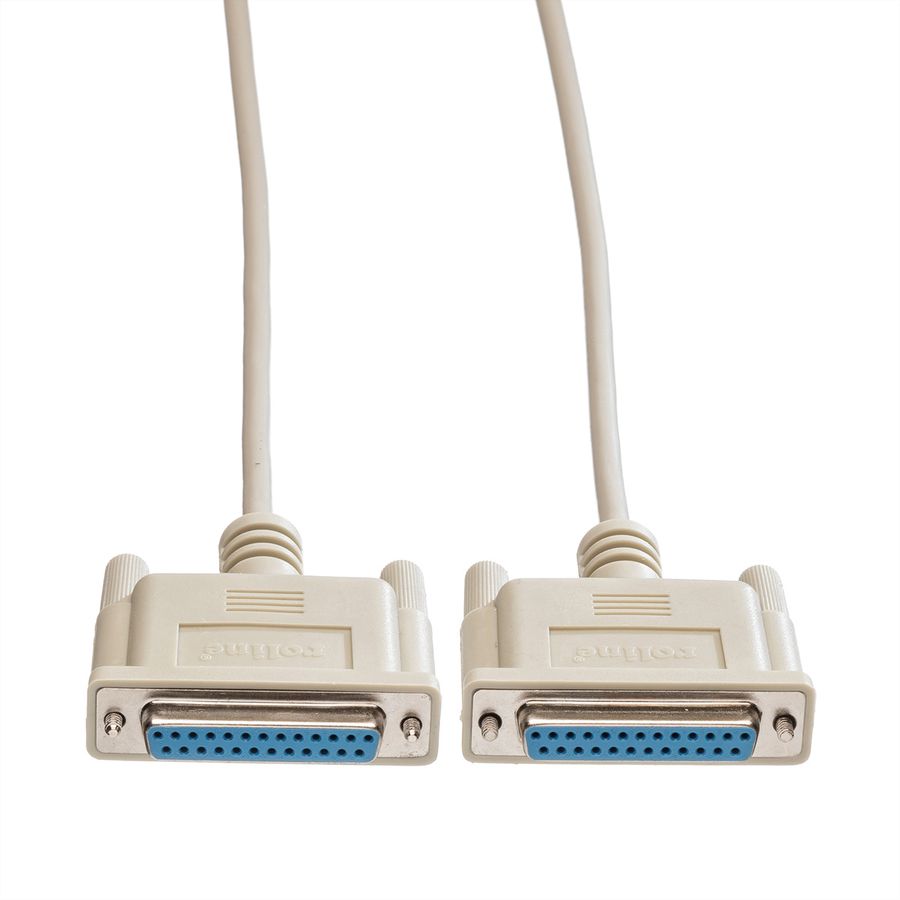

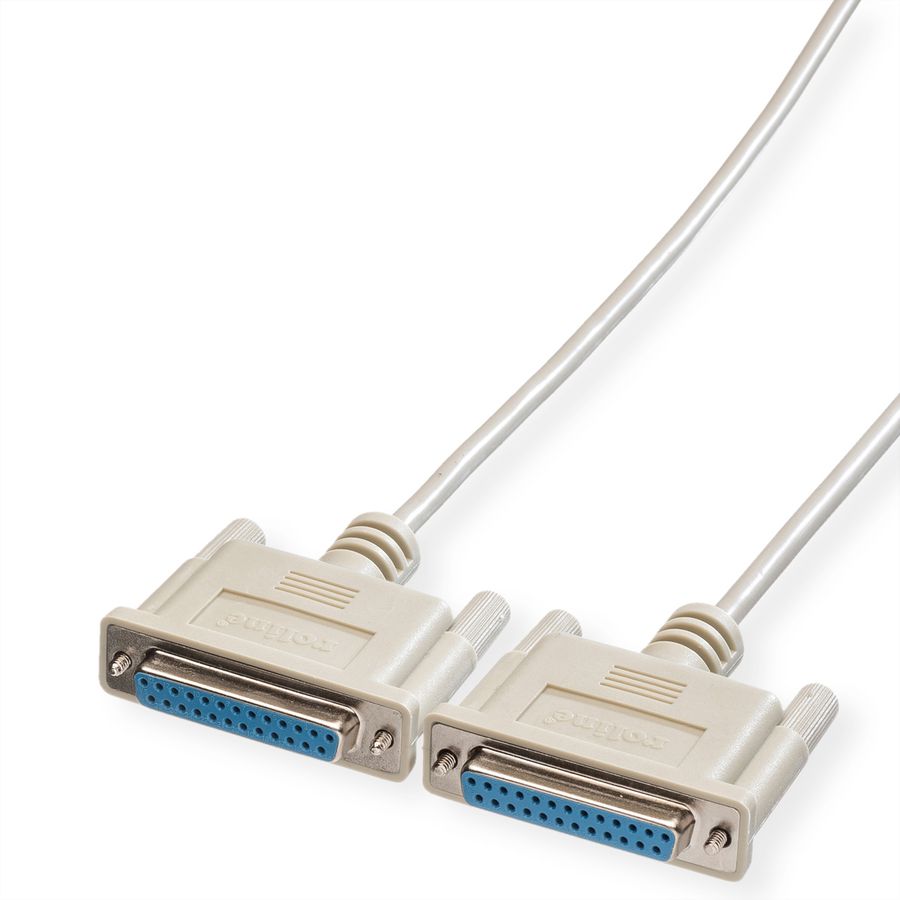

ROLINE RS232 Cable, F - F, 3 m

ROLINE RS232 Cable, F - F, 3 m

Please log in to be able to use the shopping cart and then complete orders.

Log in
Available
Ordered until 3 pm - usually dispatched on the same day
Item no. 11.01.3730-50
Brand / Manufacturer ROLINE
Manuf. no. 11.01.3730
EAN 7611990915224
Package weight 0.226 kg
Length
Connection ports

Description

  • Cable with two 25-pole D-Sub connectors
  • Connects a switchbox with a computer or two serial interfaces
  • 25 lines connected 1:1
  • Screen line connected to the cable foil screen and both connectors
  • Connector casing moulded with special plastic for best strain relief
  • Very good screening prevents data loss and electromagnetic inter- ference
  • Hand locking screws
  • Bronze contacts with gold coating

Specifications

Manufacturer ROLINE
Product group Cable
Product type 25pin 1: 1 cable / RS232
Colour grey
Length 3 m
Connection ports Female / Female
side 1 connector 25 pin Female
side 2 connector 25 pin Female
Side 1 Connector Type D-Sub 25-pin (DB-25)
Side 1 Connector Gender Female
Side 2 Connector Type D-Sub 25-pin (DB-25)
Side 2 Connector Gender Female
Cable shielding Screened
Hand locking screws yes
Weight 257.8 g
Height of packaging (single piece) 40 mm
Width of packaging (single piece) 130 mm
Depth of packaging (single piece) 200 mm
Package weight (single piece) 0.226 kg

Downloads

Product data sheet - English (42.8 KB)

Download

Manufacturer data sheet - English (119.4 KB)

Download

The products of our own brand ROLINE are designed for professional continuous operation.

With a 2-year functional guarantee, we stand by our performance promise.

ROLINE – Quality makes the difference.
