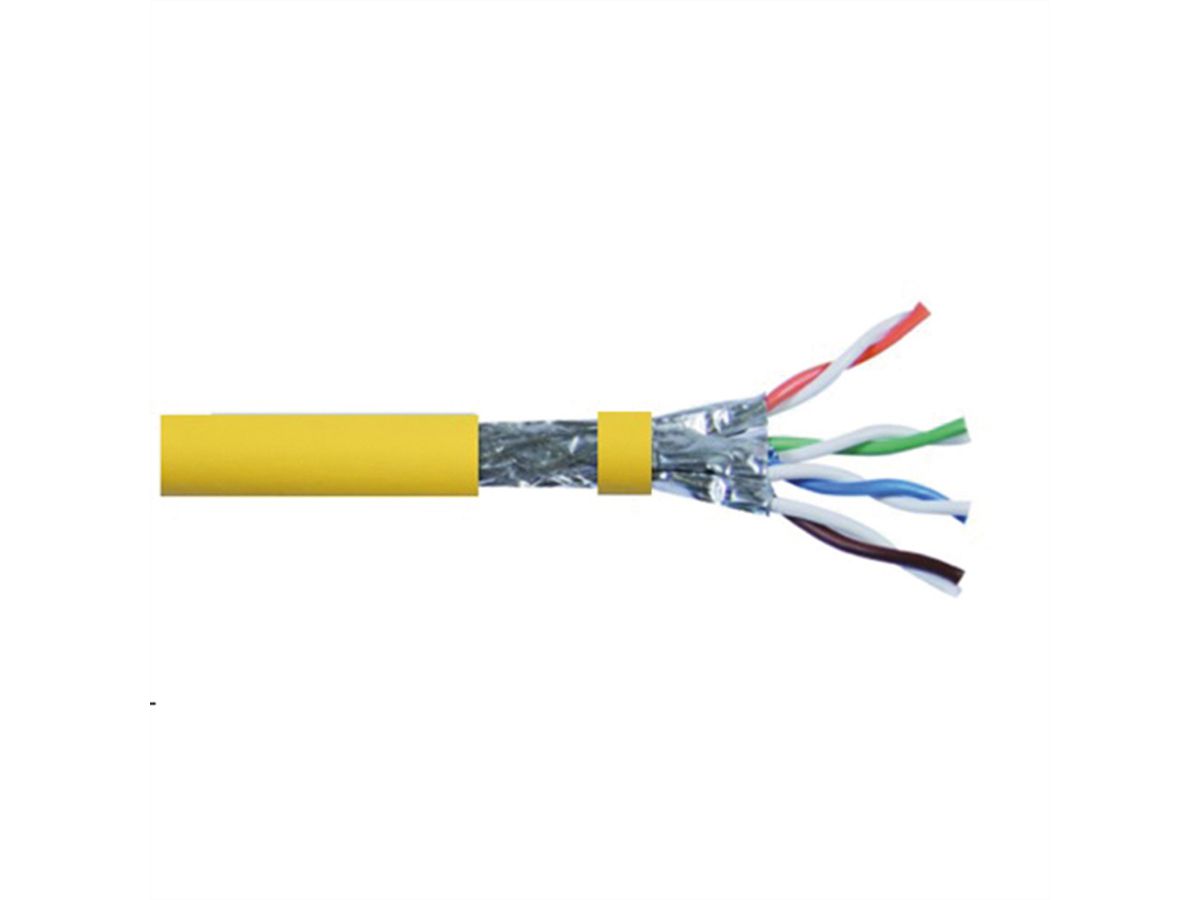

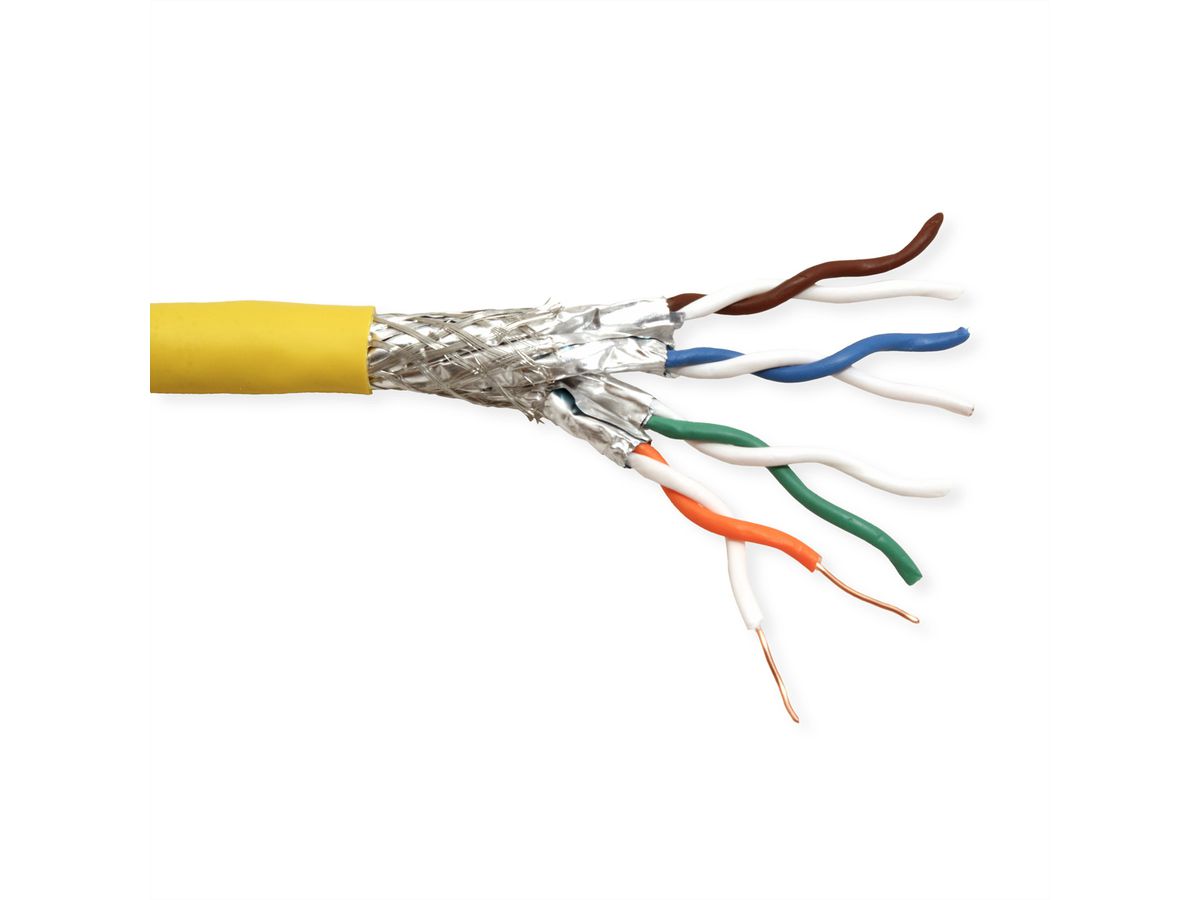

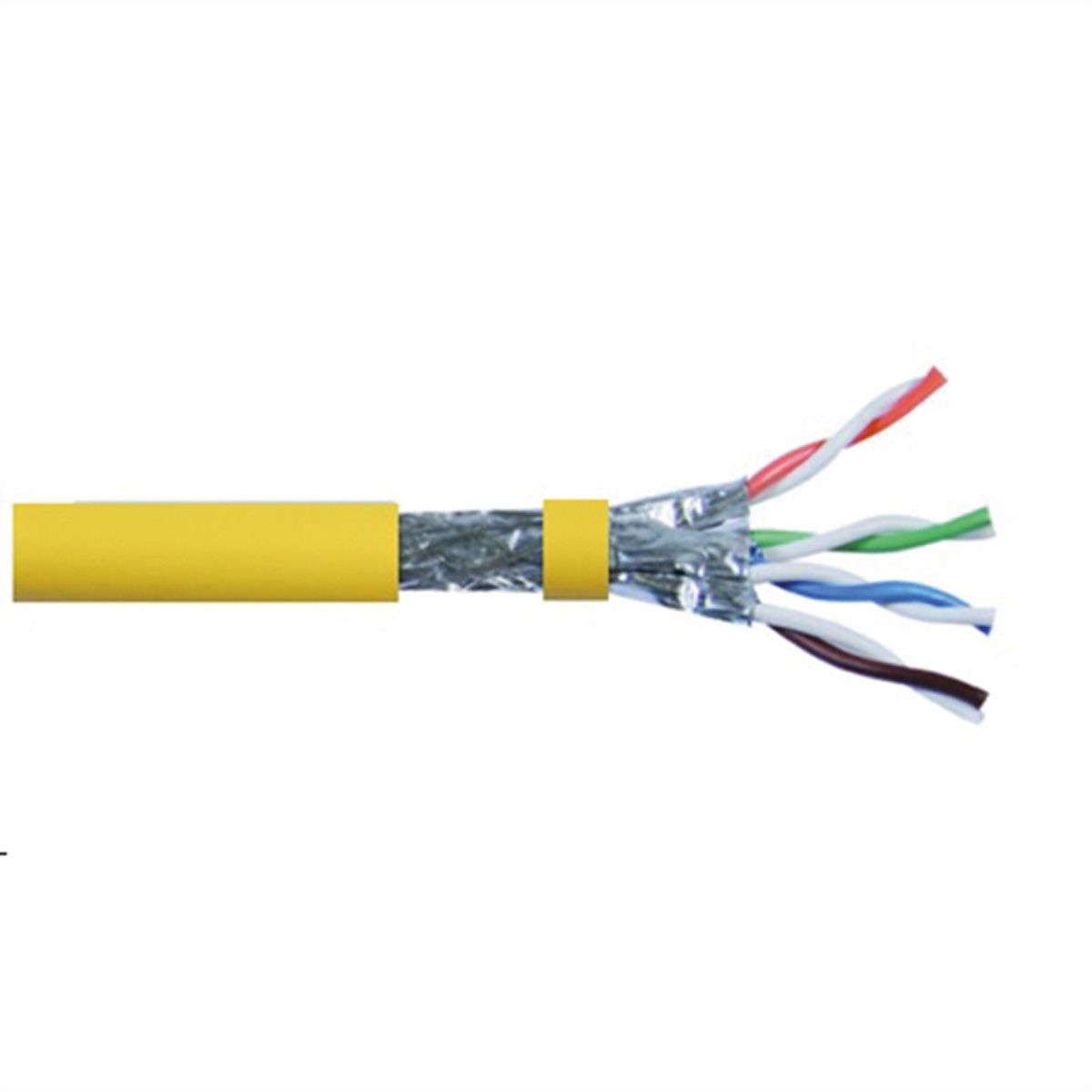

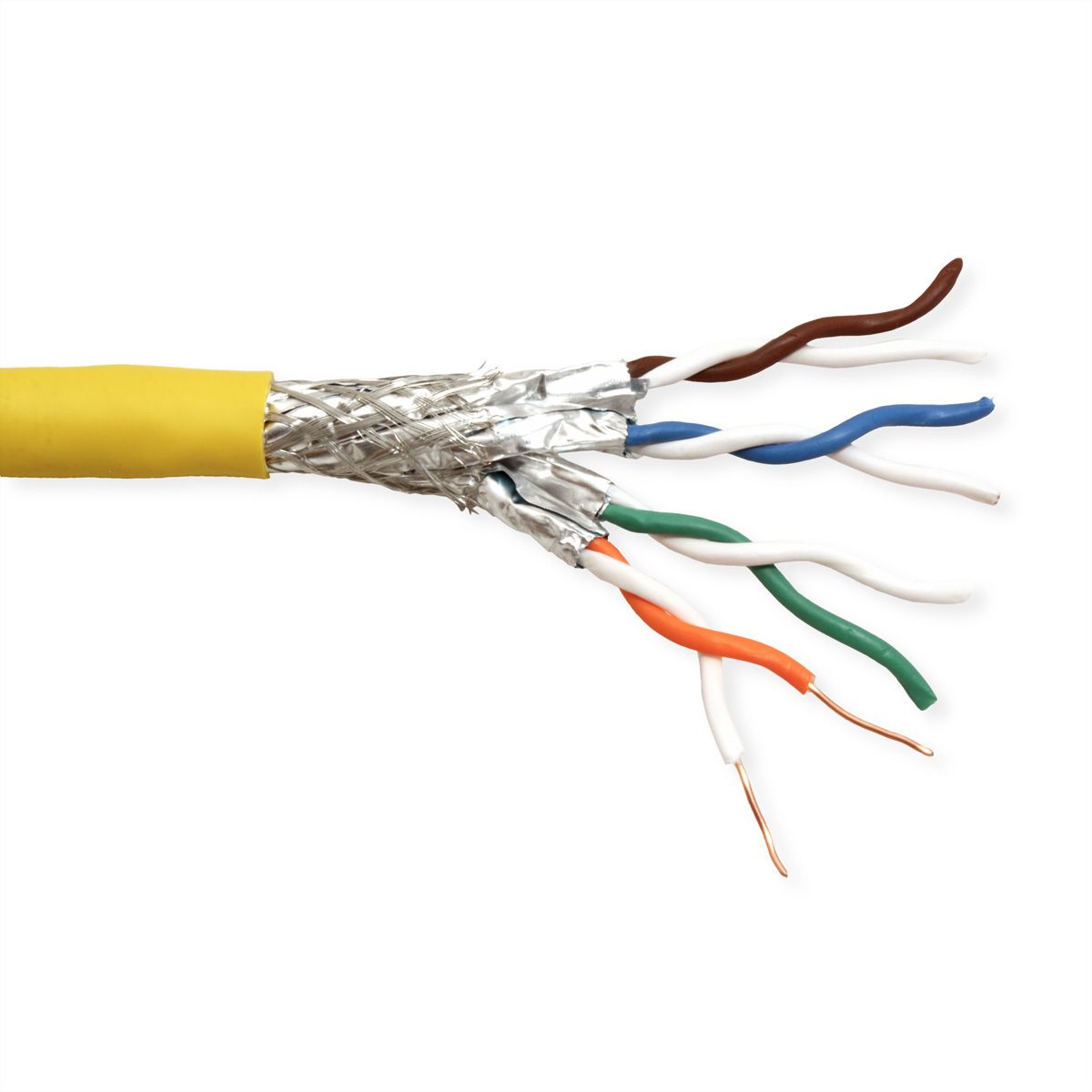

ROLINE S/FTP Cable Cat.8 (Class I), Solid Wire, LSOH, 100 m
Please log in to be able to use the shopping cart and then complete orders.
Log inDescription
Category 8, the standard for next-generation twisted-pair cabling, enables up to four times faster data transfer on the same cabling type and supports 25GBASE-T and 40GBASE-T short distance applications. Our Cat. 8 cables are not only halogen-free and flame-retardant (LSOH), but also GHMT certified for quality and performance.
- 100 meter / box
- Impedance: 100 Ohm

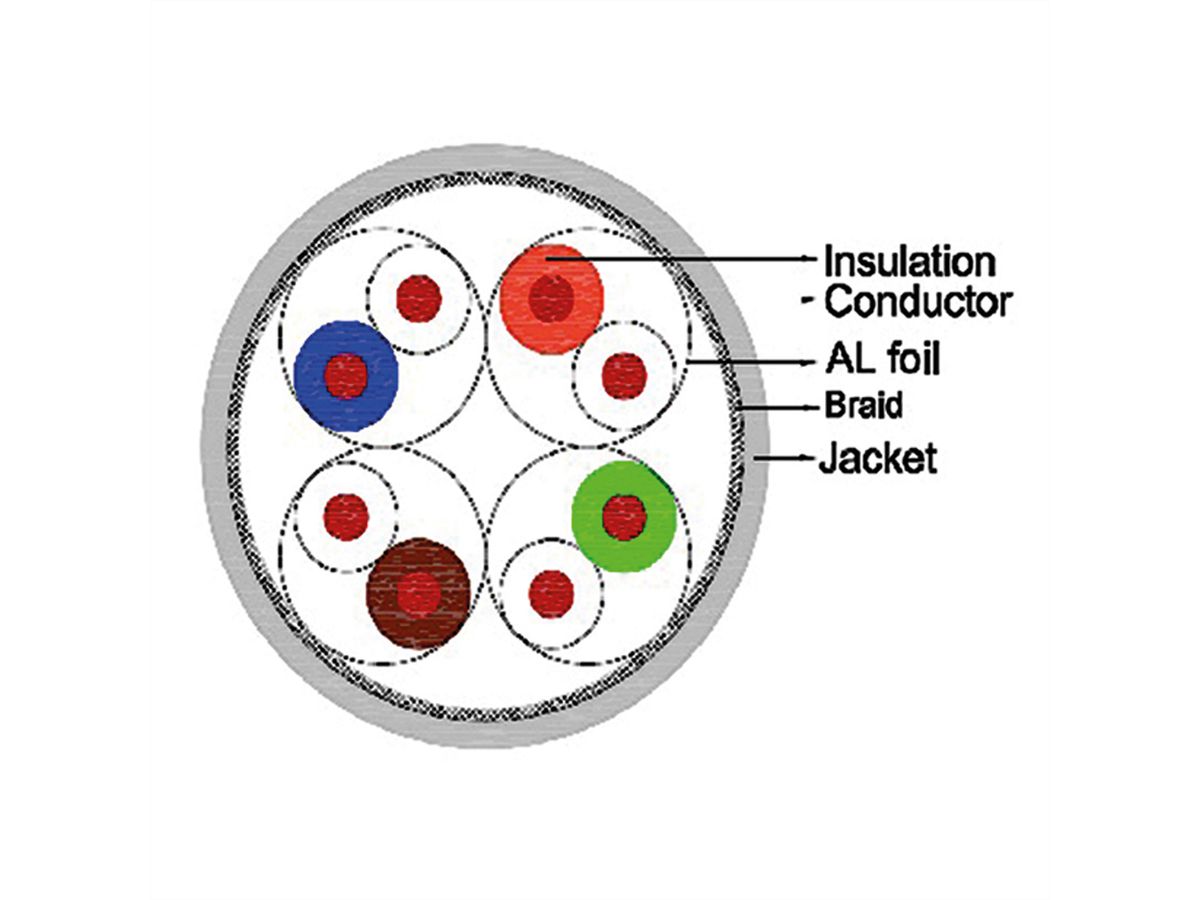

- Construction:
- pairs shielded with aluminium foil
- complete shielding in tinned copper braid
- Colour: yellow
For a Cat.8 channel link S/FTP Cabling we recommend to use the following components:
21.15.0005 ROLINE S/FTP Cable, Cat.8, Solid Wire, AWG22
26.11.0381 ROLINE Cat.8 RJ45 Keystone, Jack, toolless
21.17.3086 ROLINE Cat.8 Shielded Field Connector RJ45 plug
21.15.1851 to 21.15.1851 ROLINE S/FTP Patch Cable Solid Cat.8, Yellow (1m to 3m)
21.15.1861 to 21.15.1863 ROLINE S/FTP Patch Cable Stranded Cat.8, Yellow (1m to 3m)
For a structured cabling system we recommend to use the following components: 21.15.0005 ROLINE S/FTP Cable Cat.8, Solid Wire, LSOH, 24 m; 21.15.1853 ROLINE S/FTP Patch Cord Cat.8, solid, LSOH, yellow, 3 m; 21.15.1863 ROLINE S/FTP Patch Cord Cat.8, stranded, LSOH, yellow, 3 m; 26.11.0381 ROLINE C8 Shield RJ45 Keystone, toolless. The accredited German laboratory GHMT has tested and certified this product combination, in a 2 Connector Channel (30m), Copper, Class I up to 2 GHz; certificate no. c7794a-23.
Specifications
Manufacturer | ROLINE |
---|---|
Product group | Twisted Pair Cable |
Product type | Installation cable |
Colour | yellow |
Length | 100 m |
Contents | 100 m |
Shield type | SFTP |
Transfer quality | Cat8.1 / Class I |
Impedance | 100 Ohm |
Quantity of wires | 8 |
Conductor cross section (AWG) | AWG 22 |
Conductor type | Solid wire |
Colour (Cable) | yellow |
External cable diameter | 8.4mm |
Cable LSOH | yes |
Material (external cable mantle) | PVC, LSOH |
Fire protection class | Eca |
Weight | 7363.3 g |
Height of packaging (single piece) | 200 mm |
Width of packaging (single piece) | 320 mm |
Depth of packaging (single piece) | 370 mm |
Package weight (single piece) | 7.5 kg |
