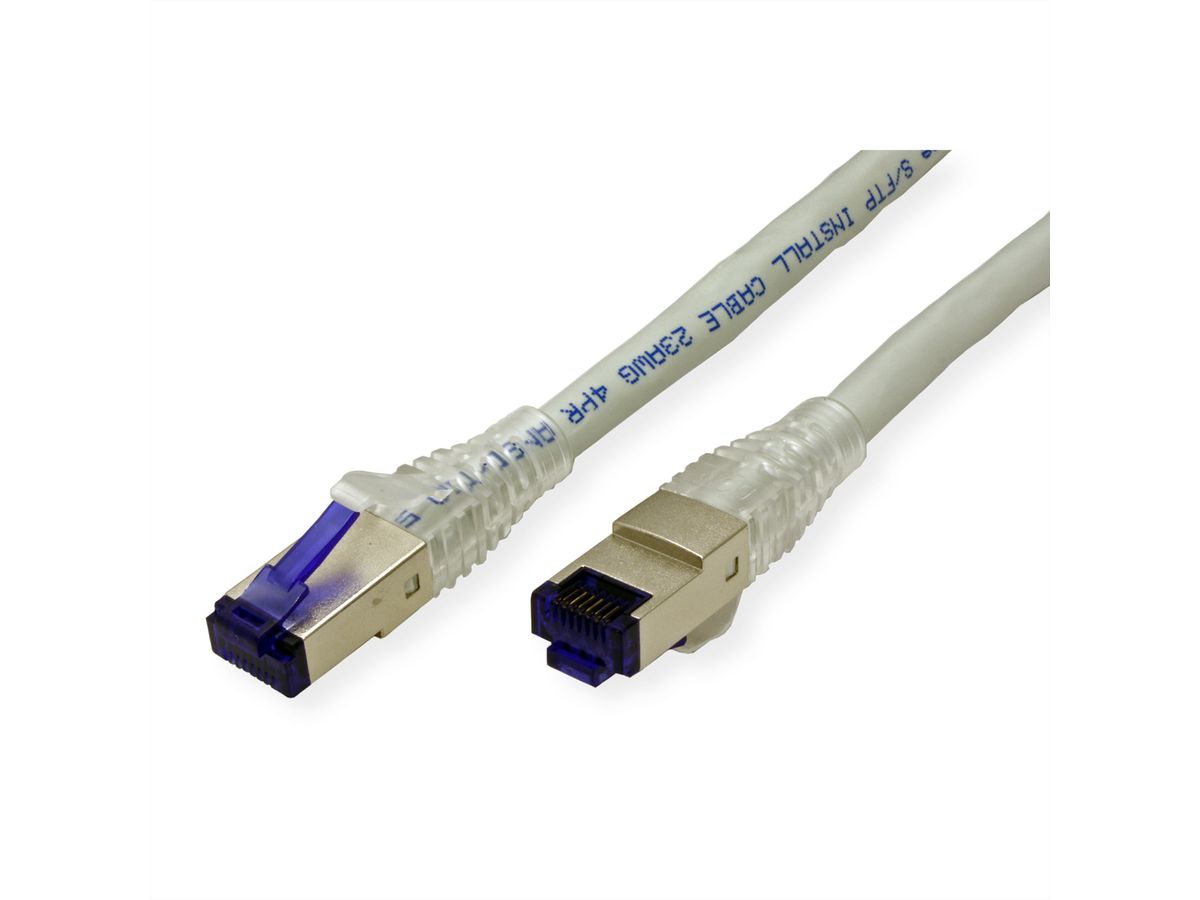

ROLINE S/FTP Patch Cord Cat.6A (Class EA), solid, grey, 20 m

Item no. 21.15.0870-5 Brand / Manufacturer ROLINE Manuf. no. 21.15.0870 EAN 7611990924127 Package weight 1 kg
ROLINE
Colour:
Length:

Please log in to be able to use the shopping cart and then complete orders.

Log in
Available
Ordered until 3 pm - usually dispatched on the same day

Description

Patch cable for networking connections between devices
  • Prepared double shielded Twisted Pair cable with screened RJ-45 connectors on both ends
  • Durable due to moulded kink protection
  • Suitable for PoE applications and multimedia applications were the extension is working over TP
  • High quality plugs with gold plated contacts
  • Contact settings 1:1, in accordance with the EIA/TIA 568 standard
  • Construction: 4-pair solid copper wire, complete braid shielding, pairs shielded with aluminium clad polyester foil

Specifications

Manufacturer
ROLINE
Product group
Twisted Pair Cable
Product type
S/FTP patch cord (PiMF)
Colour
grey
Length
20 m
Shield type
S/FTP (PiMF)
Transfer quality
Cat6A / Class EA
Quantity of wires
8
Conductor cross section (AWG)
AWG 23
Power over Ethernet (PoE)
yes
Inner conductor material
BC (Bare Copper)
Conductor type
Solid wire
Crossed
no
Locking lever
yes
Anti-kink sleeve
Moulded-on
Cable LSOH
no
Side 1 Connector Type
RJ-45
Side 1 Connector Gender
Male
Side 2 Connector Type
RJ-45
Side 2 Connector Gender
Male
Connector Type RJ45
Standard
Weight
1022 g
Height of packaging (single piece)
50 mm
Width of packaging (single piece)
250 mm
Depth of packaging (single piece)
250 mm
Package weight (single piece)
1 kg

Downloads

Product data sheet - English (90.7 KB) Manufacturer data sheet - English (167.3 KB)
