The products of our own brand ROLINE are designed for professional continuous operation.
With a 2-year functional guarantee, we stand by our performance promise.
ROLINE – Quality makes the difference.
:strip_icc():strip_exif()/bilder/s21/21511311_2025_m_0_hi.jpg "ROLINE S/FTP (PiMF) Patch Cord, Cat.6 (Class E), PoE, red, 5 m")
:strip_icc():strip_exif()/bilder/namenson/patchkabel_webgrafik_2026.jpg "ROLINE S/FTP (PiMF) Patch Cord, Cat.6 (Class E), PoE, red, 5 m")
:strip_icc():strip_exif()/bilder/s21/21511311_2025_p_0_hi.jpg "ROLINE S/FTP (PiMF) Patch Cord, Cat.6 (Class E), PoE, red, 5 m")

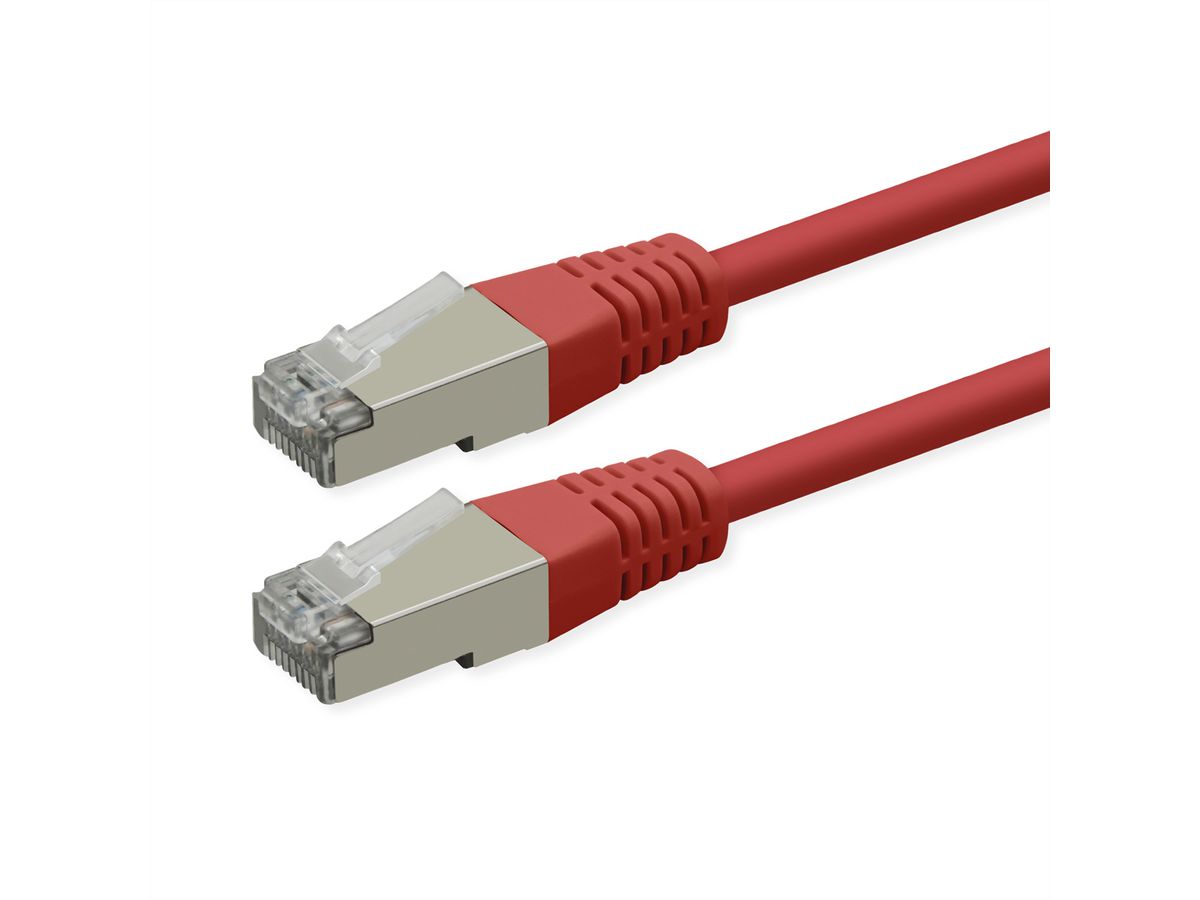

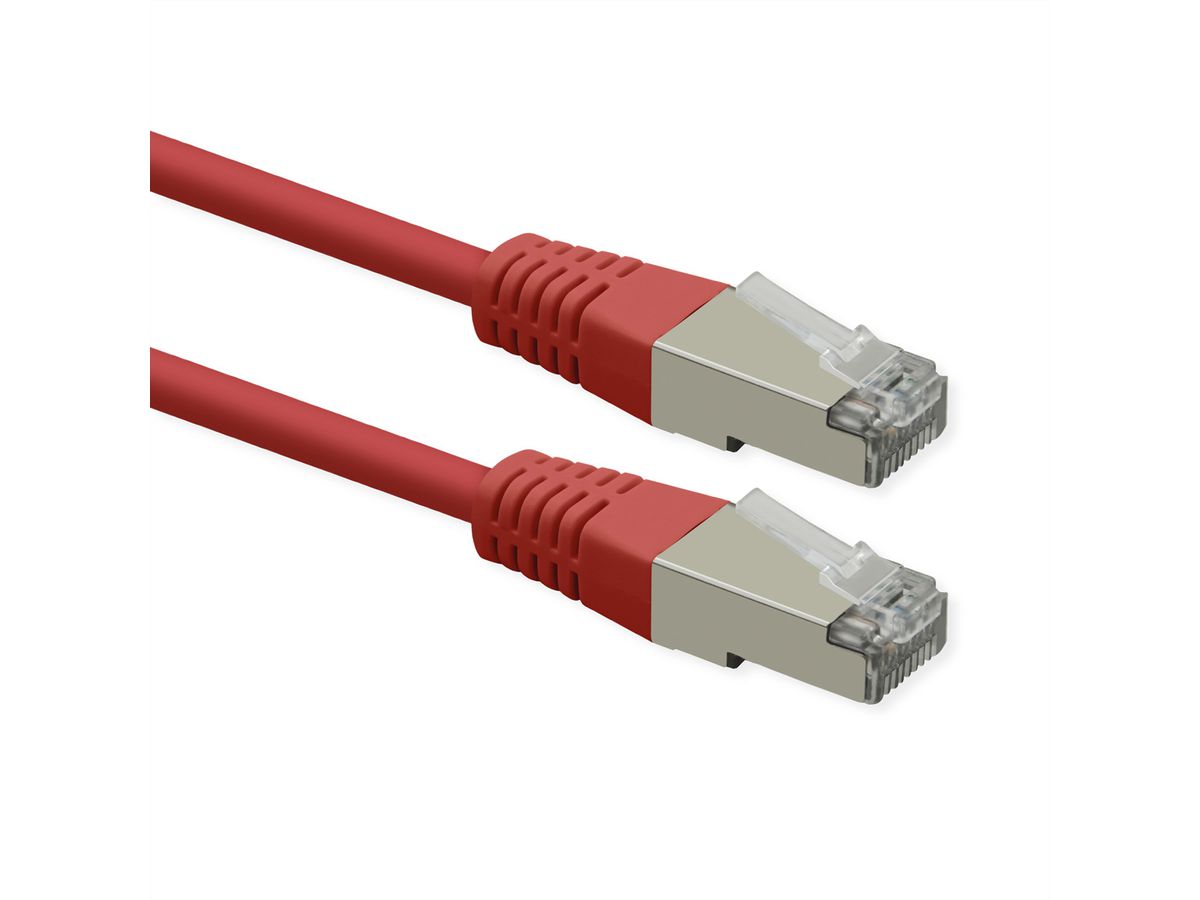

ROLINE S/FTP (PiMF) Patch Cord, Cat.6 (Class E), PoE, red, 5 m
Please log in to be able to use the shopping cart and then complete orders.
Log in| Item no. | 21.51.1361-50 |
|---|---|
| Brand / Manufacturer | ROLINE |
| Manuf. no. | 21.51.1361 |
| EAN | 7630049660038 |
| Package weight | 0.18 kg |
:strip_icc():strip_exif()/bilder/icons/icon_rj45_cat6.png){kind=icon}
:strip_icc():strip_exif()/bilder/icons/icon_rj45_sftp.png){kind=icon}
|
|
| Colour | |
| Length | |
:strip_icc():strip_exif()/logos/roline.png "ROLINE")
Description
Cat. 6 (Class E) S/FTP (PiMF) ROLINE PoE (Power over Ethernet) capable Patch Cord for networking connections between devices. Prepared shielded Twisted Pair cable with RJ-45 connectors on both ends. Durable due to moulded kink protection. Flexible cable, suitable for narrow bending. High quality plugs with gold plated contacts. Contact settings 1:1, in accordance with the EIA/TIA 568 standard. Construction: 4-pair stranded copper wire.
- Patch cable for networking connections between devices
- Suitable for PoE (Power over Ethernet)
- Bare copper wire with 26 AWG
- Prepared shielded (PiMF) Twisted Pair cable with RJ-45 connectors on both ends
- Durable due to moulded kink protection
- Flexible cable, suitable for narrow bending
- High quality plugs with gold plated contacts
- Contact settings 1:1, in accordance with the EIA/TIA 568 standard
- Construction: 4-pair stranded copper wire
For a structured cabling system we recommend to use the following components: ROLINE Cat.6 S/FTP Cable, Solid Wire, AWG23: 21.15.0890 (100 m), 21.15.0891 (300 m); ROLINE Cat.6 Flush Mount Wall Jack, shielded: 25.16.8492 (white), 25.16.8493 (ivory); ROLINE Cat.6 Surface Mount Wall Jack, shielded: 25.16.8392 (white), 25.16.8393 (ivory); ROLINE Cat.6 19" Patch Panel, 24 Ports, shielded: 26.11.0351 (light grey), 26.11.0361 (black); ROLINE Cat.6 S/FTP Patch Cord, grey, 5 m: 21.51.0835. Our in-house laboratory has tested this cable-plug combination, in a Channel of 100 meters, in compliance with Class E specifications.
Specifications
| Manufacturer | ROLINE |
|---|---|
| Product group | Twisted Pair Cable |
| Product type | S/FTP patch cord (PiMF) |
| Colour | red |
| Length | 5 m |
| Scope of delivery | Patch Cord |
| Shield type | S/FTP (PiMF) |
| Transfer quality | Cat6 / Class E |
| Impedance | 100 Ohm |
| Quantity of wires | 8 |
| Conductor cross section (AWG) | AWG 26 |
| Power over Ethernet (PoE) | yes |
| Inner conductor material | BC (Bare Copper) |
| Conductor type | Stranded |
| Crossed | no |
| Bend radius | 36 mm |
| Locking lever | no |
| Anti-kink sleeve | Moulded-on |
| Colour (Spout) | red |
| External cable diameter | 6.0 mm +/- 0.2 mm |
| Cable LSOH | no |
| Material (external cable mantle) | PVC |
| Side 1 Connector Type | RJ-45 |
| Side 1 Connector Gender | Male |
| Side 2 Connector Type | RJ-45 |
| Side 2 Connector Gender | Male |
| Connector Type RJ45 | Standard |
| Operating temperature min. | -10 °C |
| Operating temperature max. | 60 °C |
| Storage temperature min. | -20 °C |
| Storage temperature max. | 75 °C |
| Weight | 167 g |
| Height of packaging (single piece) | 30 mm |
| Width of packaging (single piece) | 100 mm |
| Depth of packaging (single piece) | 100 mm |
| Package weight (single piece) | 0.18 kg |
