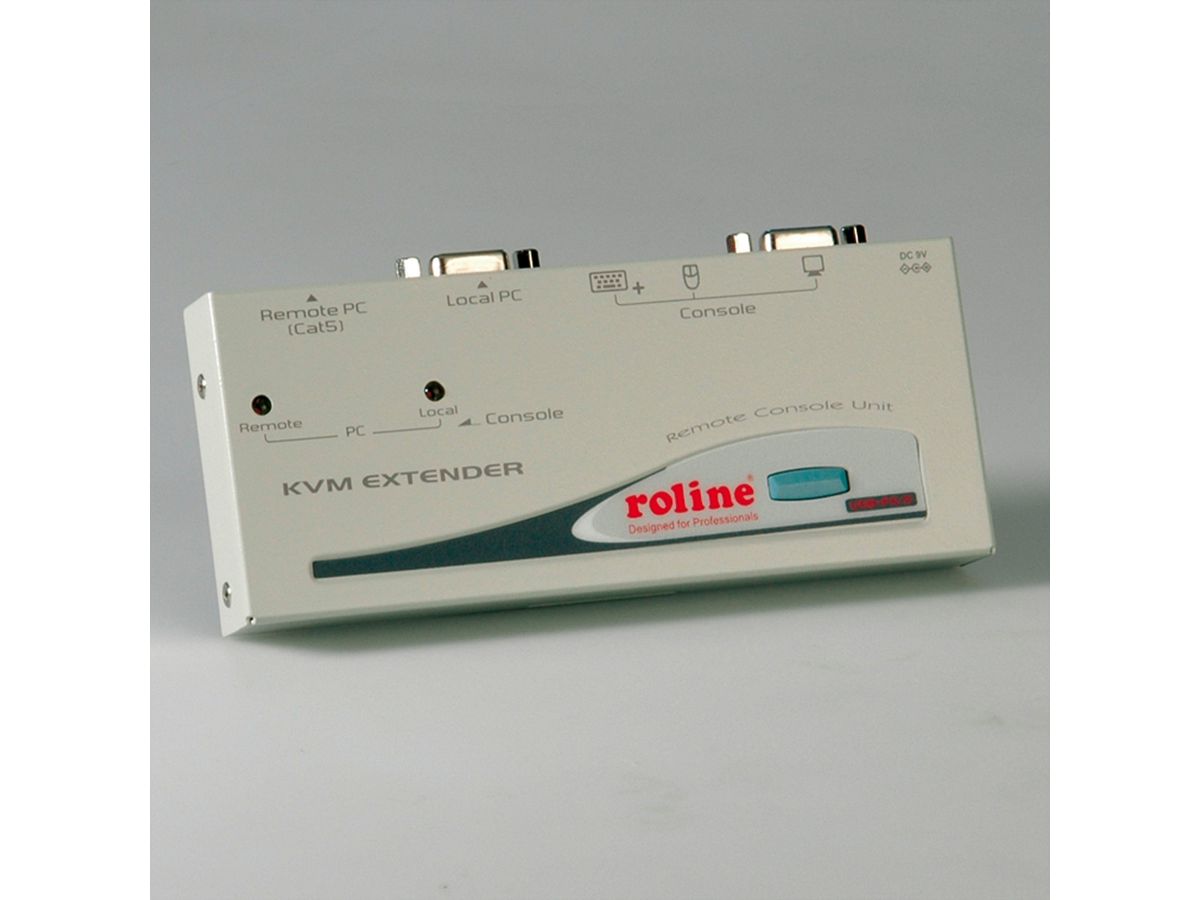

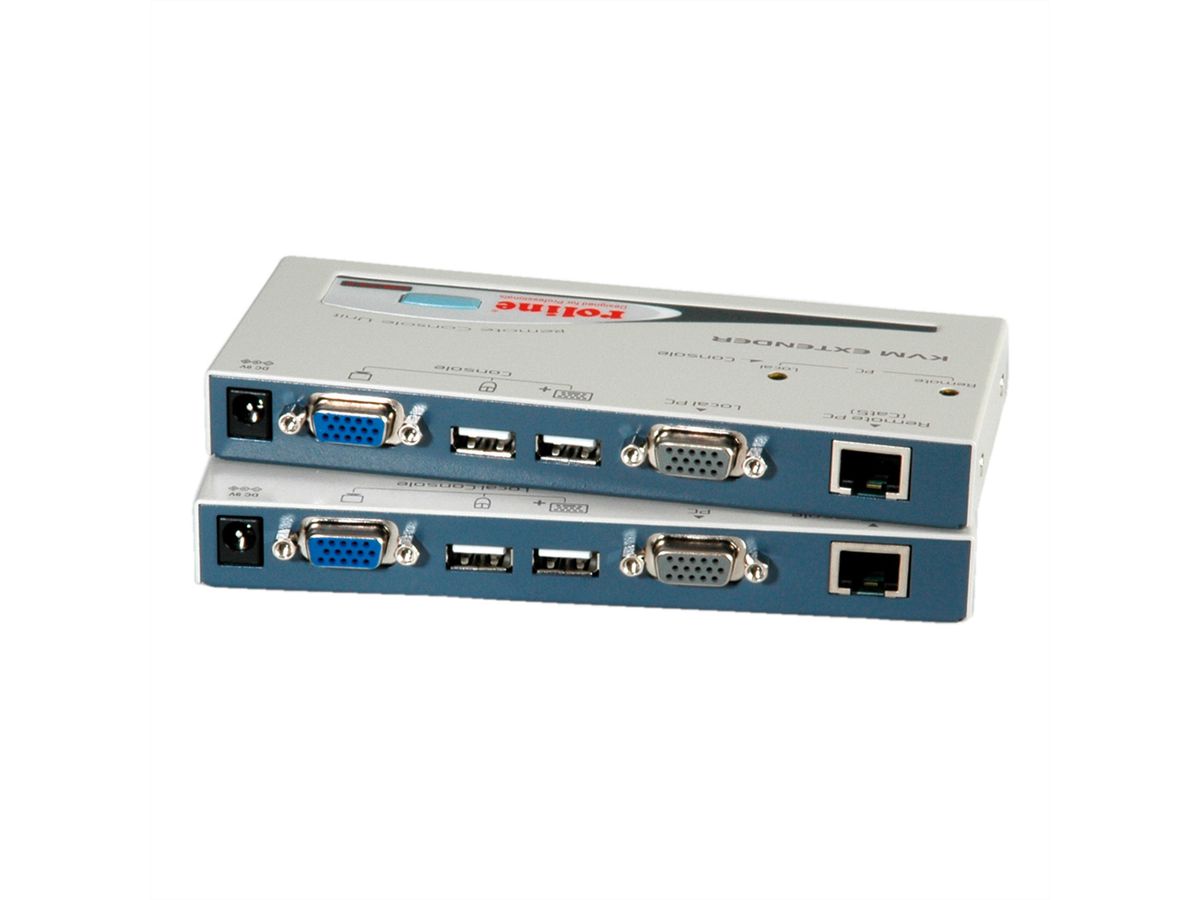

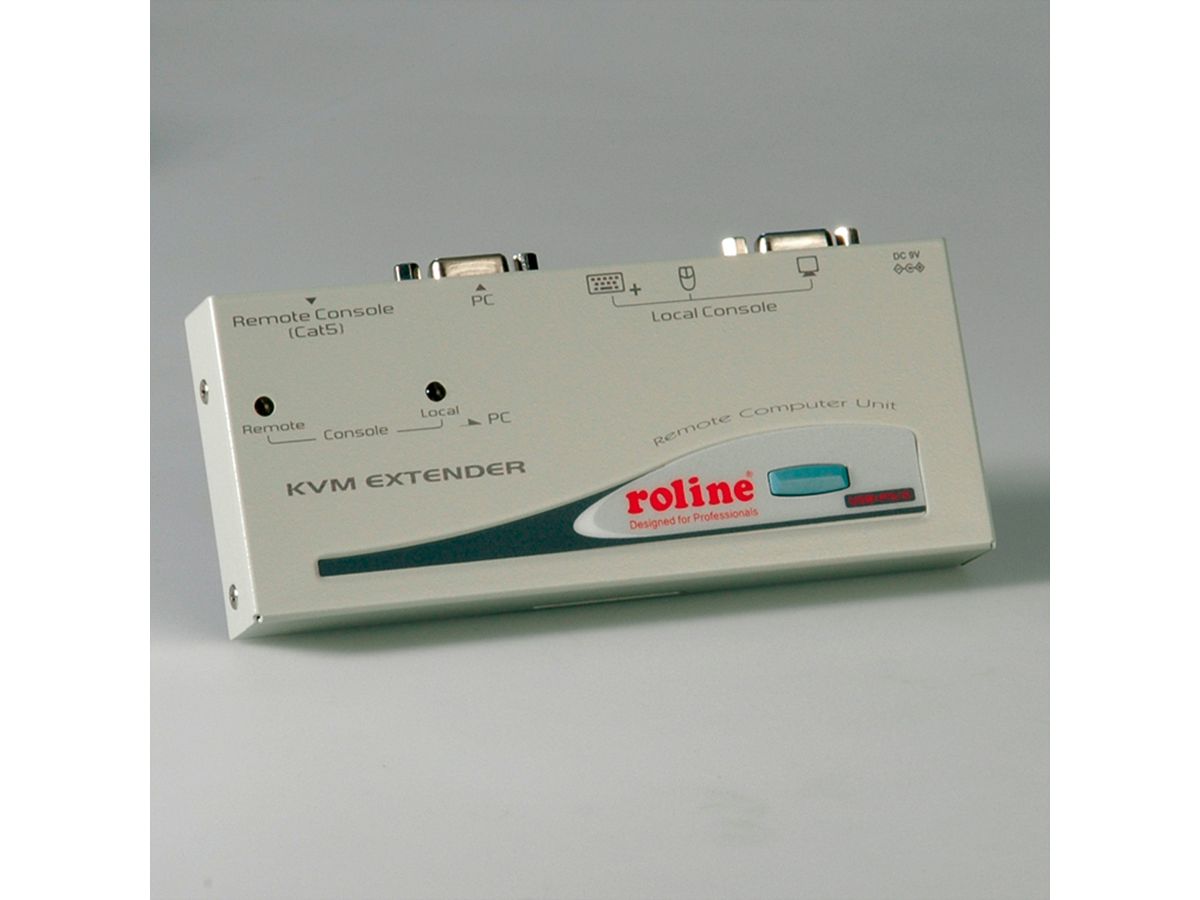

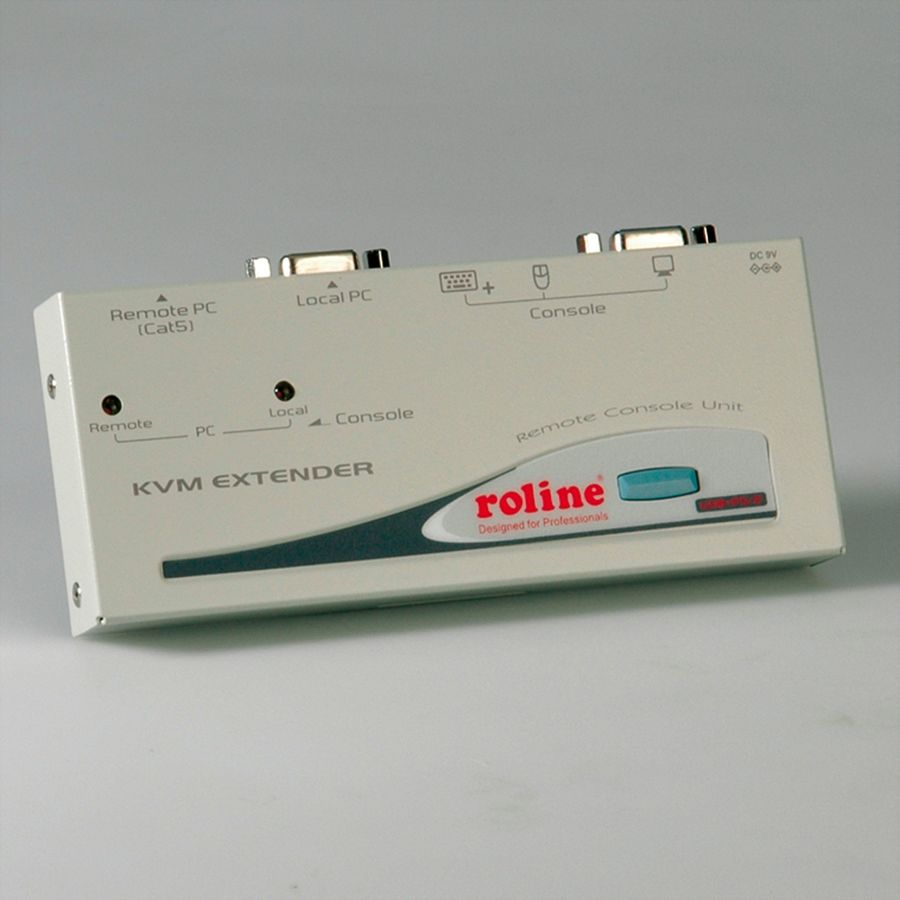

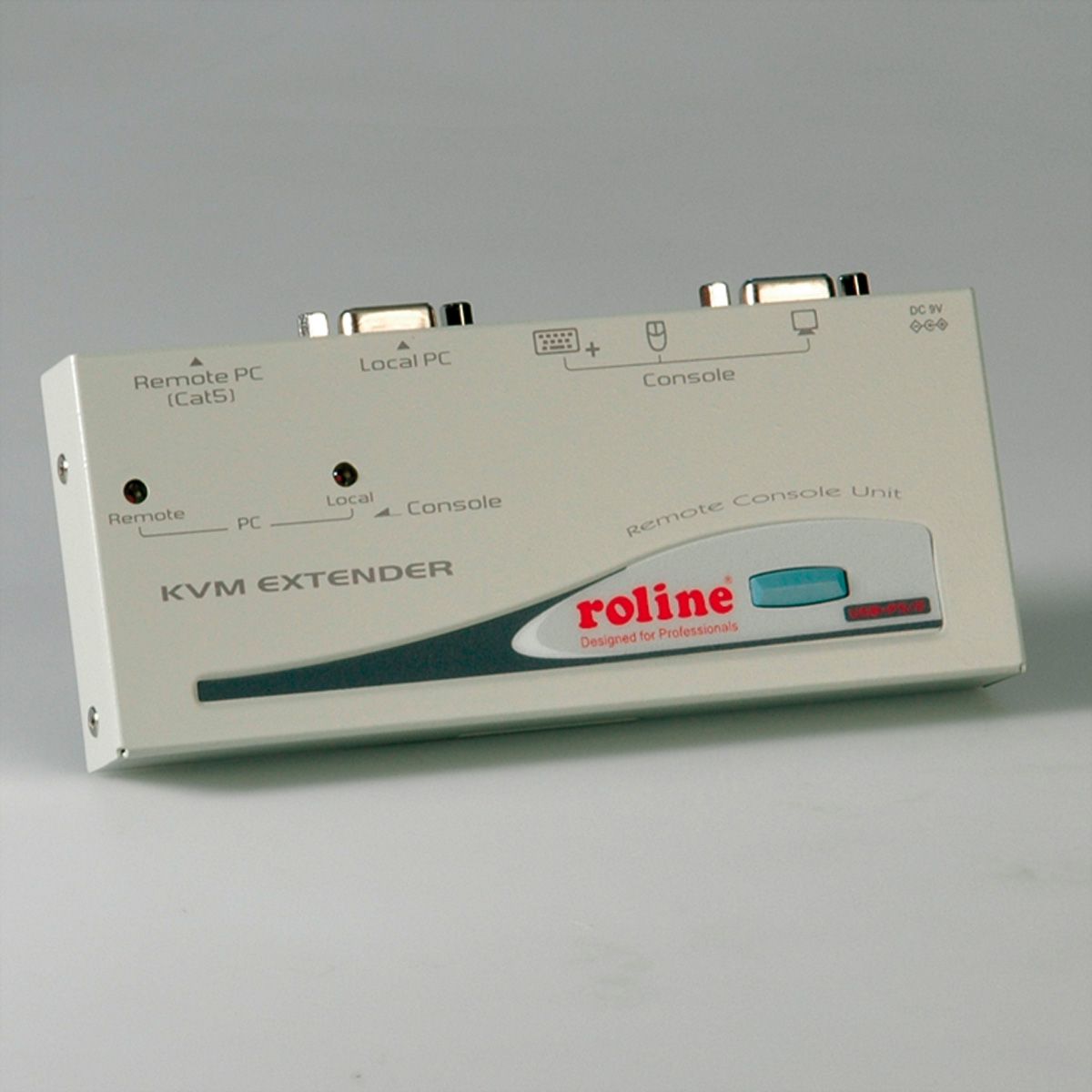

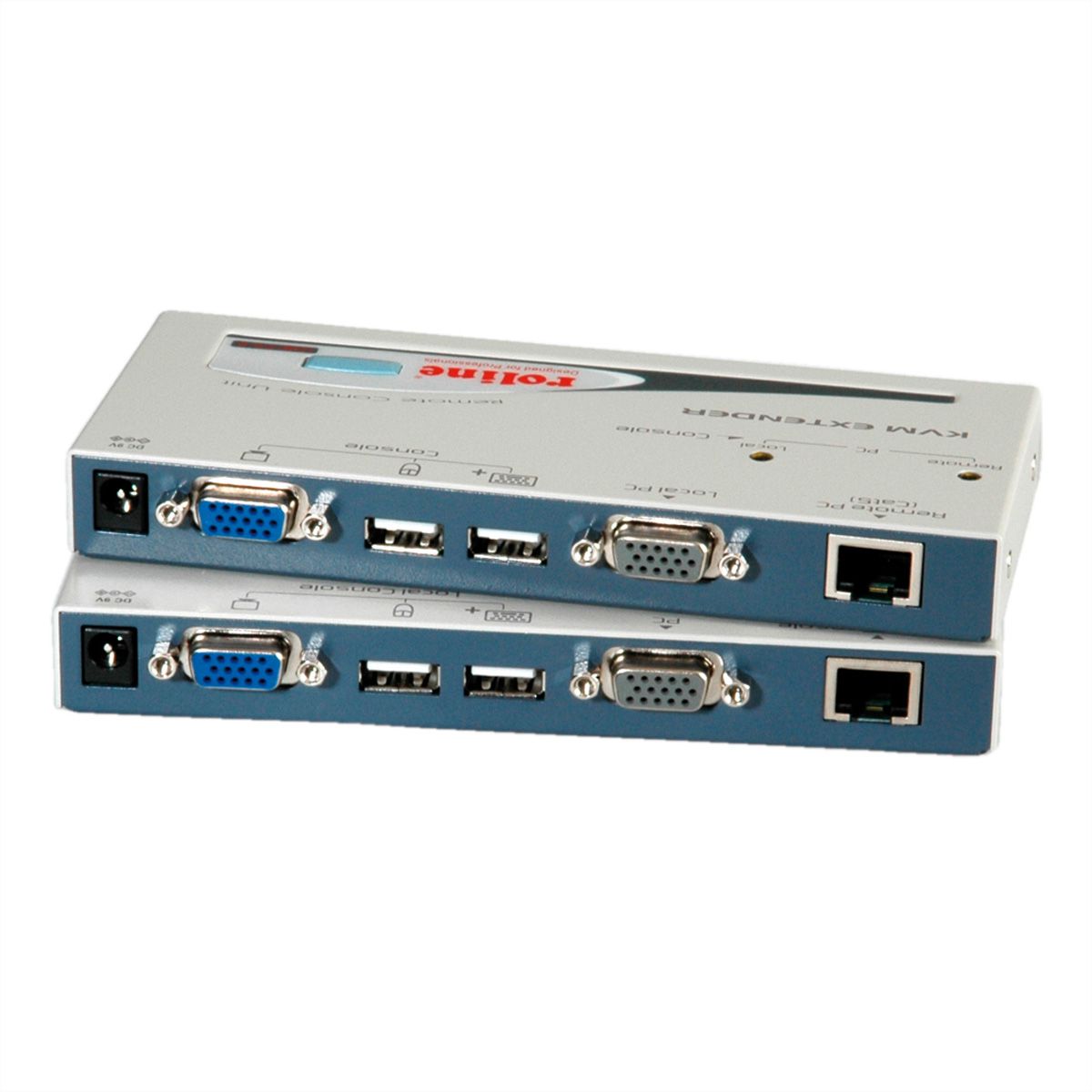

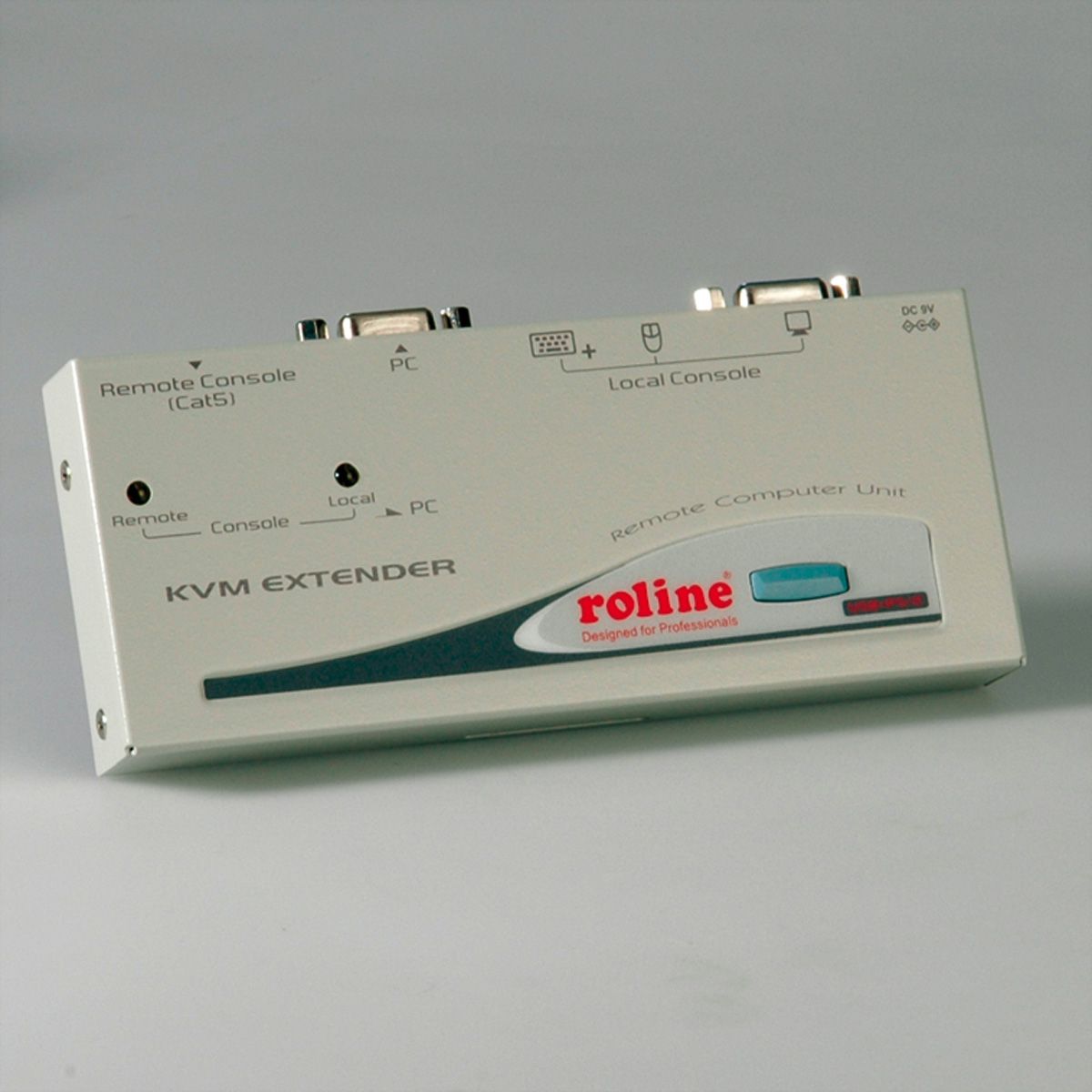

ROLINE Smart KVM Extender, USB
Please log in to be able to use the shopping cart and then complete orders.
Log in| Item no. | 14.01.3249-6 |
|---|---|
| Brand / Manufacturer | ROLINE |
| Manuf. no. | 14.01.3249 |
| EAN | 7611990980024 |
| Package weight | 1.585 kg |
:strip_icc():strip_exif()/logos/roline.png "ROLINE")
Description
Smart combination of KVM Extender (up to 150 m), KVM Switch and PC Share
- Remotely locates the keyboard, mouse and monitor up to 150 m away from a computer
- Connection of the Computer Unit and Station Unit via Cat. 5e TP cable
- Supports USB consoles
- Video compensation can be adjusted by hot key to ensure the optimum signal quality for any length of cable within the limit
- Locates the computer away from your desk and work area, saving you valuable space
- Allows two users to share one computer both in local and remote areas
- Beeps confirmation for key control makes the operation easier and cross-checked
- Easy installation
- Supports standard USB keyboards and mice
- Compatible with XGA, VGA and SVGA system

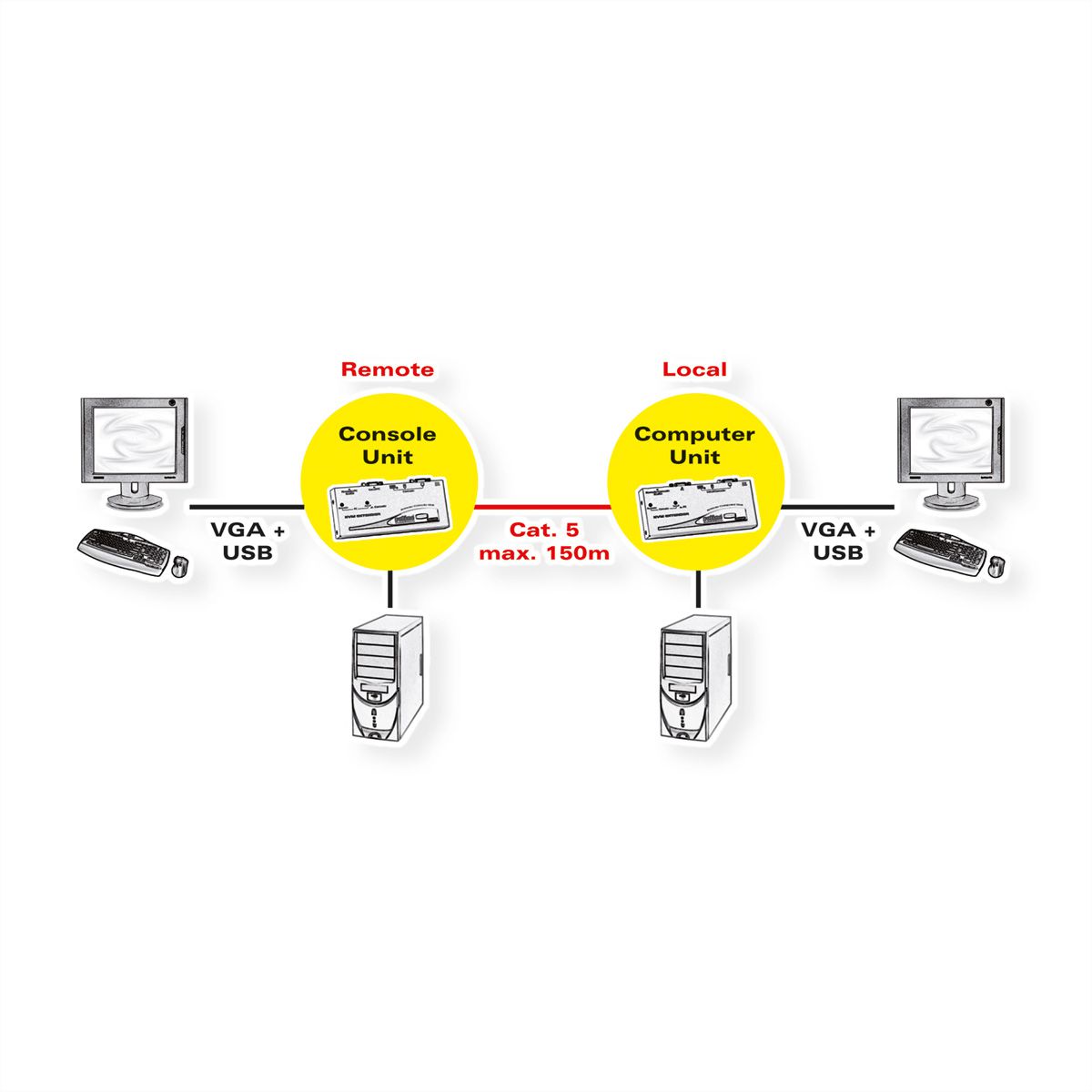

Example of use:

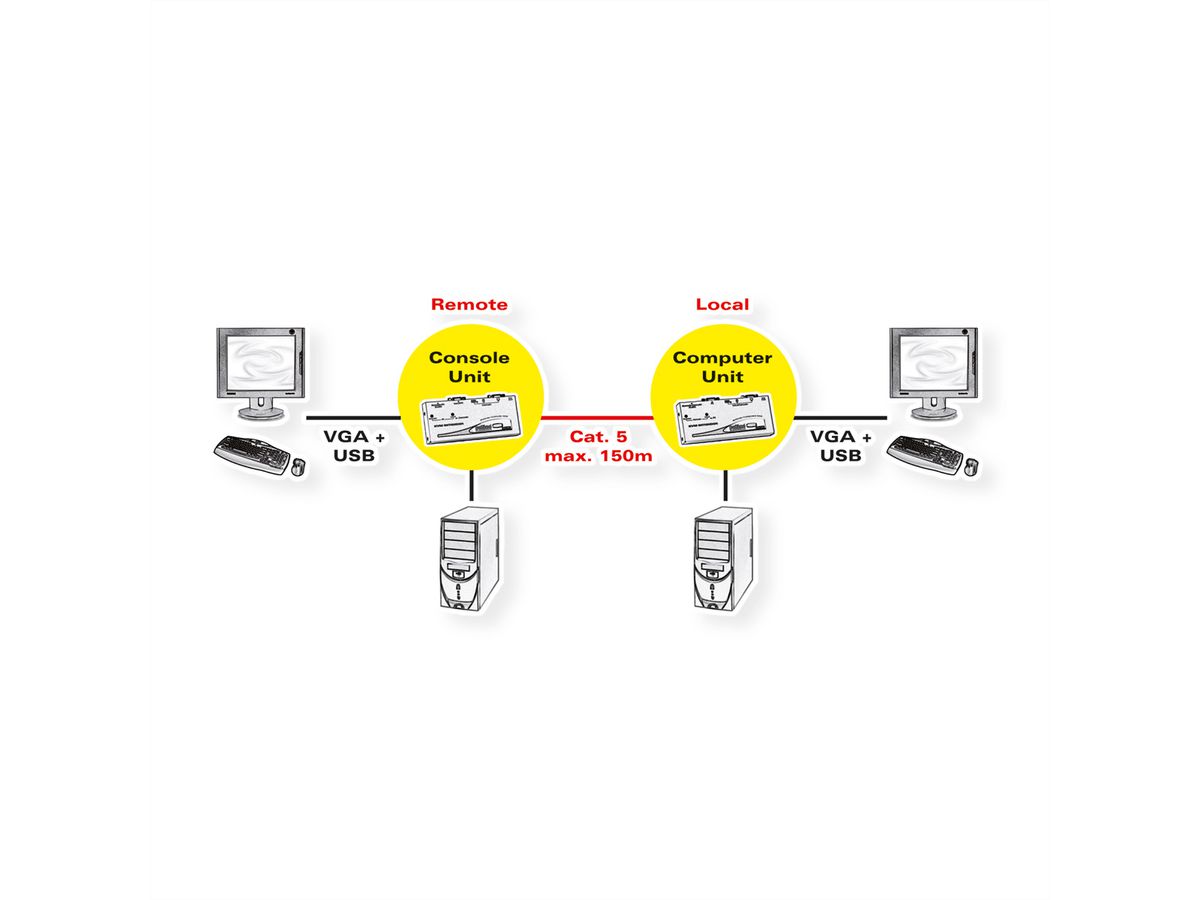

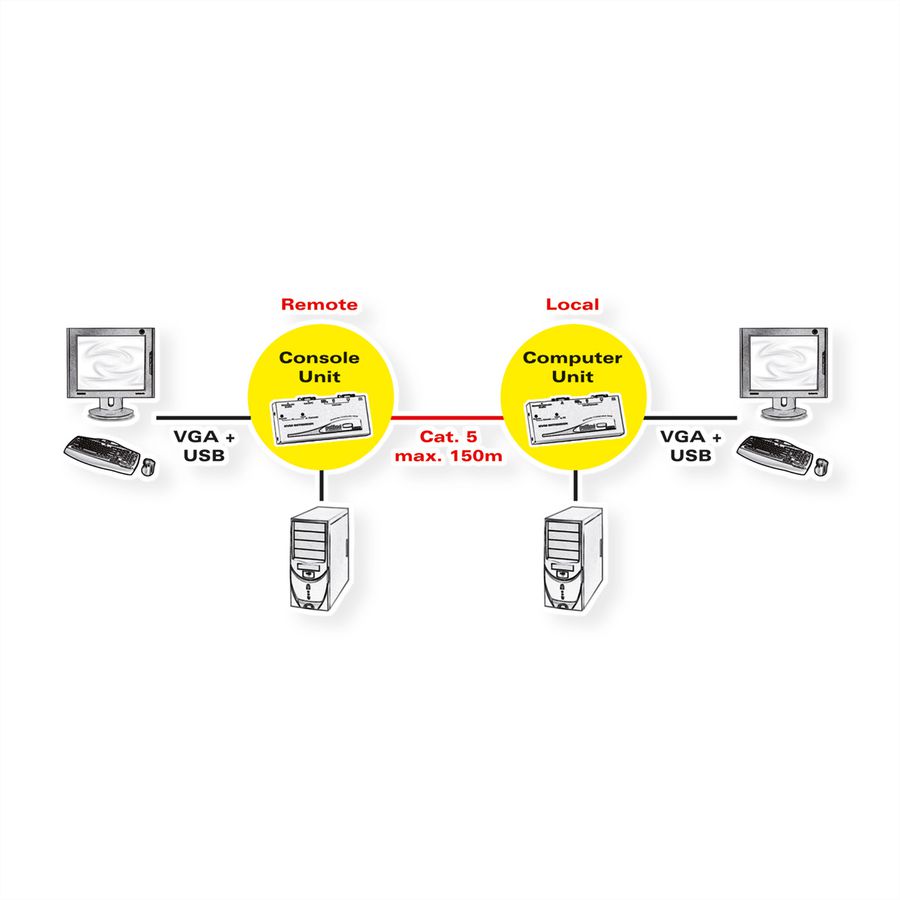

ROLINE KVM extension for remote operation of a workplace
The system provides a local, and a remote unit to connect another console. This can be operated via a Cat5 cable with remote VGA and USB control unit.
Up to 150 m away from the PC, the console can be placed in convenient access while the PC is installed themselves in a safe environment.
Specifications
| Manufacturer | ROLINE |
|---|---|
| Product group | KVM (IP) extensions |
| Product type | KVM-Extender, VGA |
| Colour | grey |

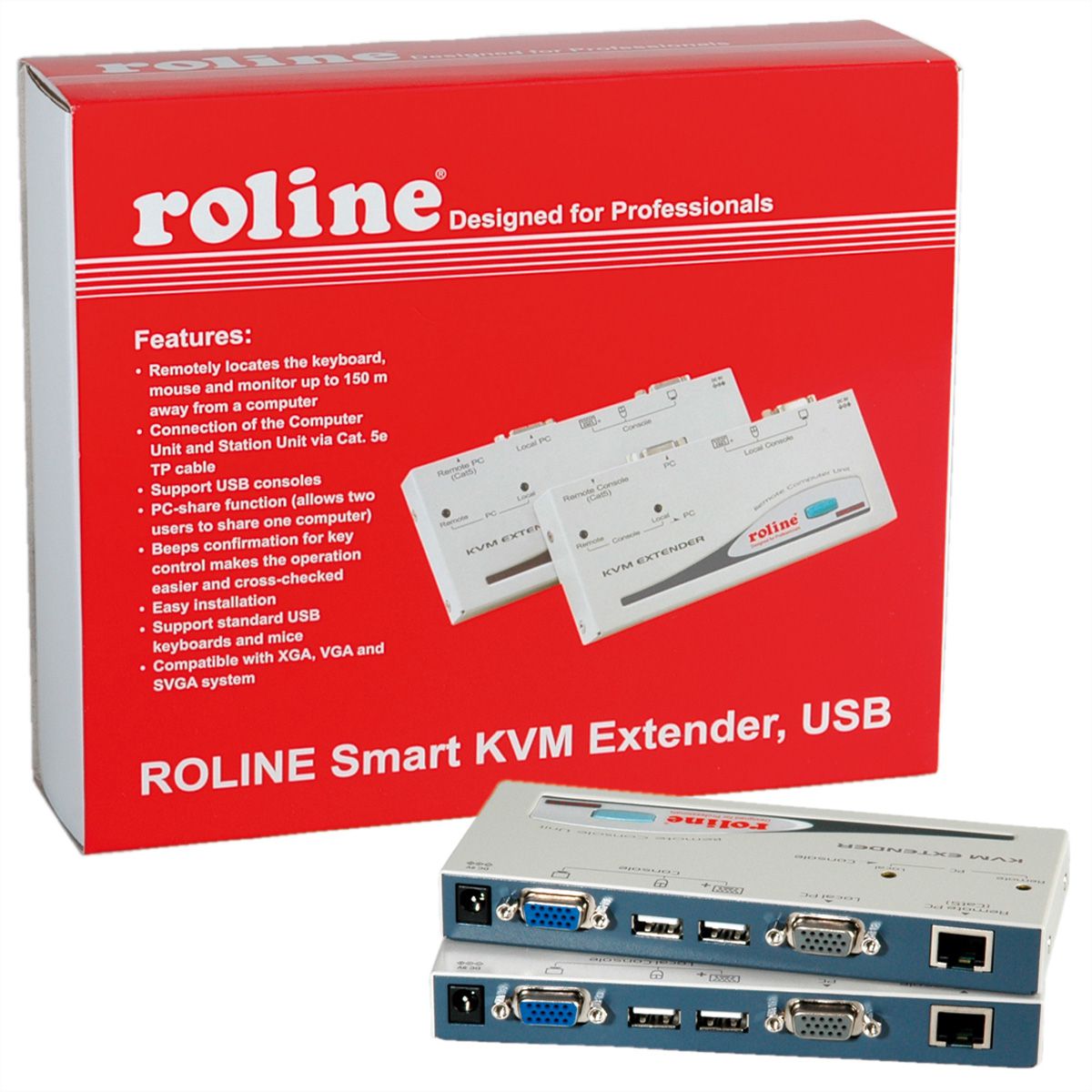

| Scope of delivery | Local unit with power supply unit, remote unit, manual |
| Supported PC-Systems | USB |
| PC/Switch: monitor connection | 1x HD15 F |
| PC/Switch: mouse/keyboard connection | 2x USB |
| PC/Switch: connection on moulded cables | no |
| Local Console connection | yes |
| Remote Console: Monitor connection | 1x HD15 F |
| Remote Console: Mouse/Keyboard connection | 2x USB |
| Remote console: Cable connector type | no |
| Network connection | RJ45 |
| Max. distance local-remote unit | up to 150 m |
| Max. resolution (nominal) | 1024 x 768 |
| Colour (Design profile) | beige |
| Material (casing) | metal |
| Dimensions (HxWxD) | each 20 x 156 x 65 mm |
| Power supply unit required | partially |
| Power supply output | 9V DC, 600mA |
| Technical particularity | Smart combination of KVM Extender (up to 150m), KVM Switch and PC Share |
| Mains connection | Appliance Europlug, Type-C |
| Operating temperature min. | 0 °C |
| Operating temperature max. | 40 °C |
| Weight | 605.5 g |
| Height of packaging (single piece) | 80 mm |
| Width of packaging (single piece) | 240 mm |
| Depth of packaging (single piece) | 300 mm |
| Package weight (single piece) | 1.585 kg |
