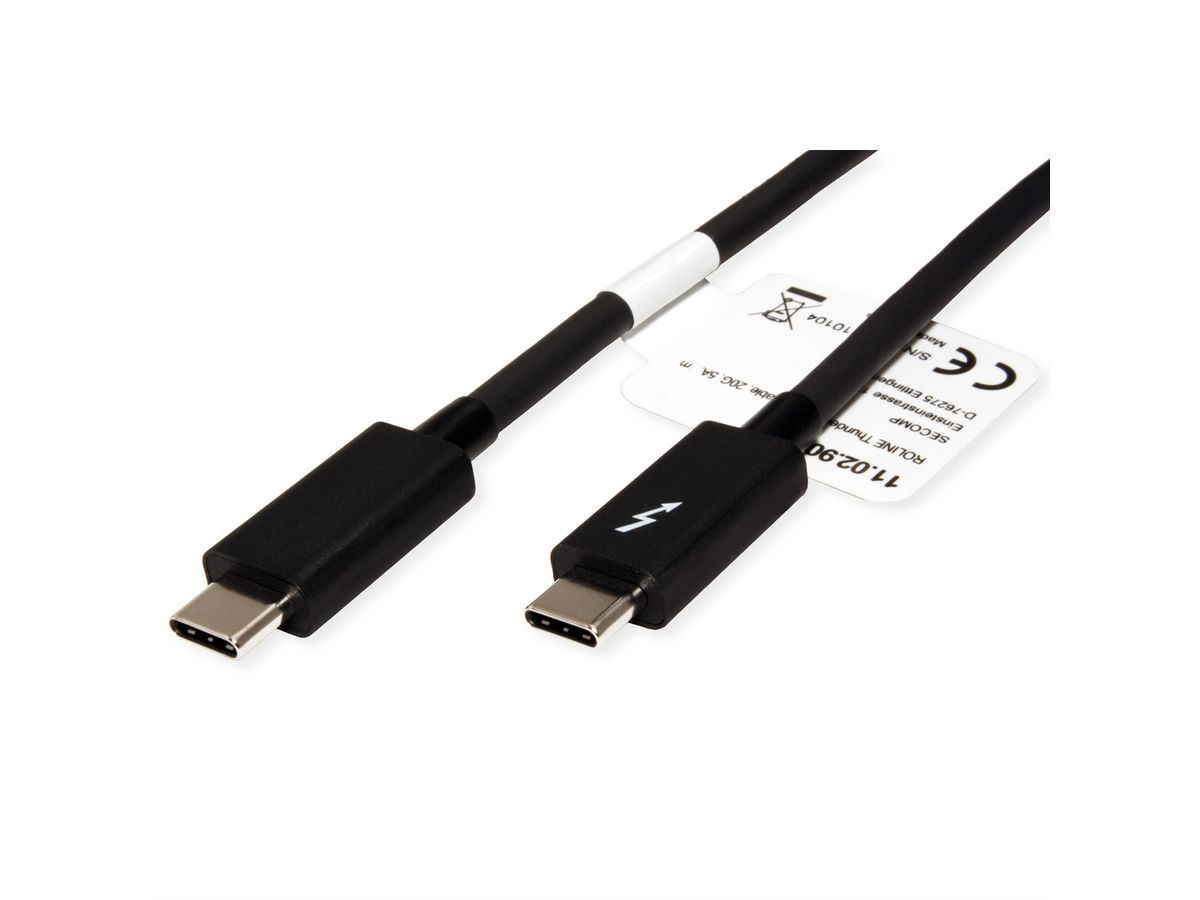

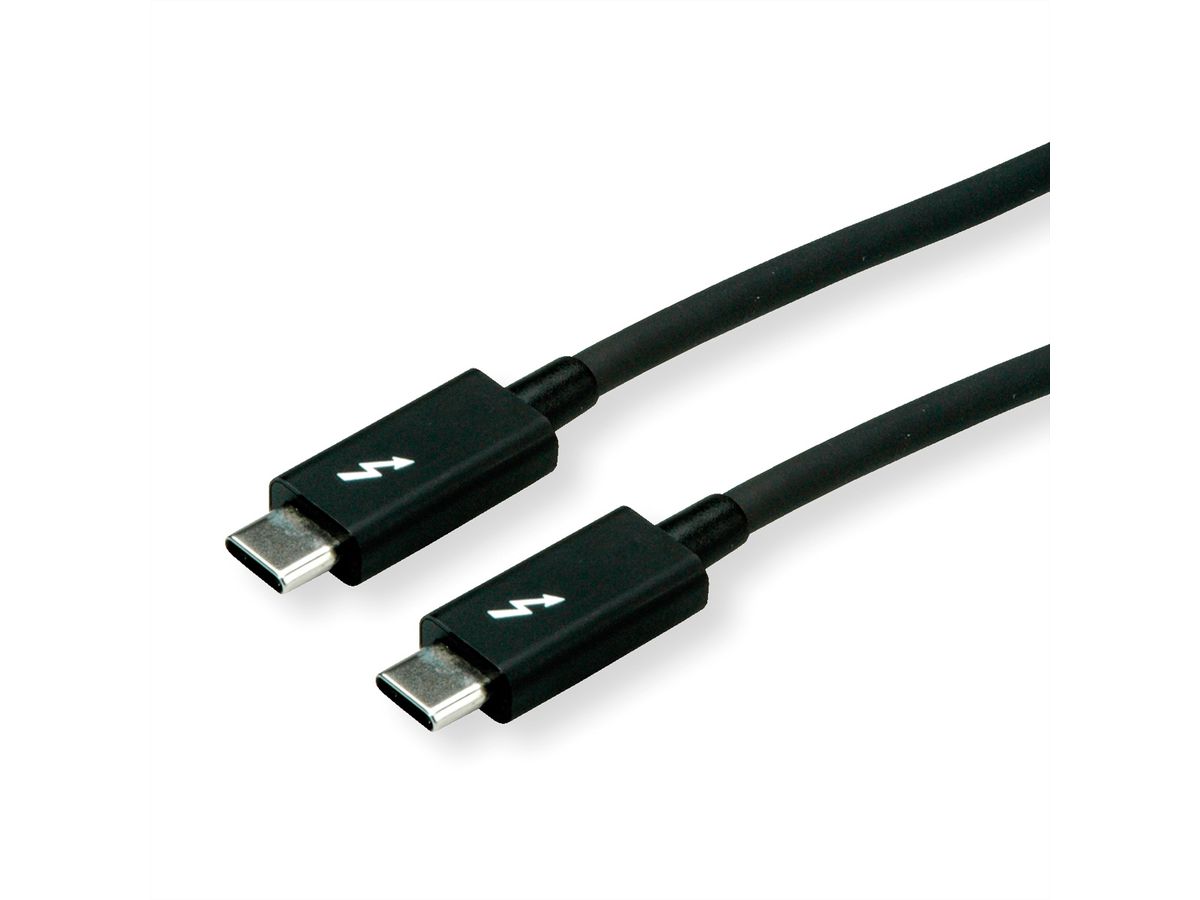

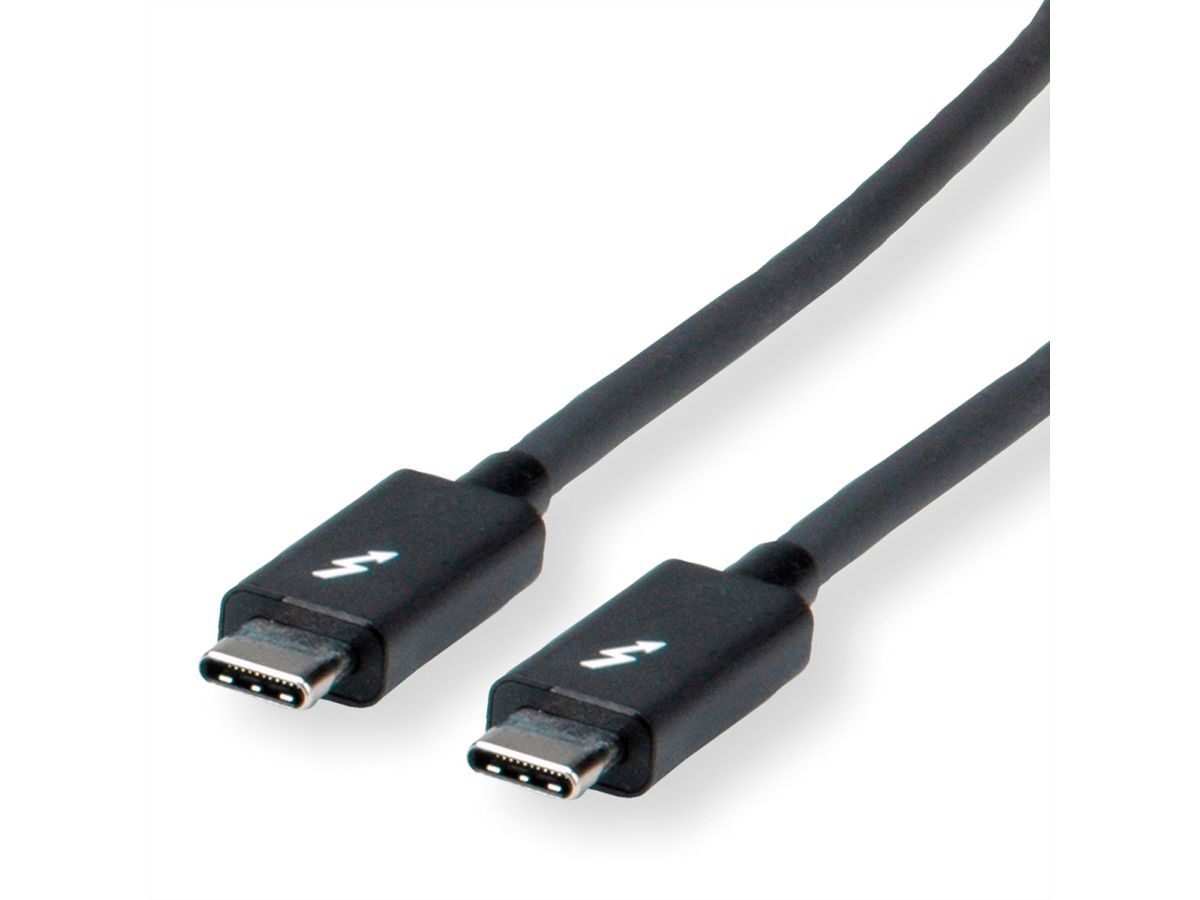

ROLINE Thunderbolt™ 3 Cable, 20GBit/s, 5A, M/M, black, 2 m

ROLINE Thunderbolt™ 3 Cable, 20GBit/s, 5A, M/M, black, 2 m

Please log in to be able to use the shopping cart and then complete orders.

Log in
Available
Ordered until 3 pm - usually dispatched on the same day
Item no. 11.02.9042-10
Brand / Manufacturer ROLINE
Manuf. no. 11.02.9042
EAN 7630049691490
Package weight 0.092 kg
Colour
Length

Description

Thunderbolt 3 cables with the USB Type C connector offer you the currently highest possible data transfer rate of up to 40GBit/s (20GBit/s for 1m and 2m) and full Power Delivery support (PD up to 20V 5A / 100W)! The cables also feature DP mode for particularly high-resolution image and sound transmission of up to 5120x2880 @60Hz (5K).

  • Thunderbolt protocols allow maximum data transfer rates of up to 40GBit/s (20GBit/s for 1m and 2m)
  • DP mode for connecting a monitor with USB Type C / Thunderbolt 3 connector, with a maximum resolution of 5120x2880 (5K)

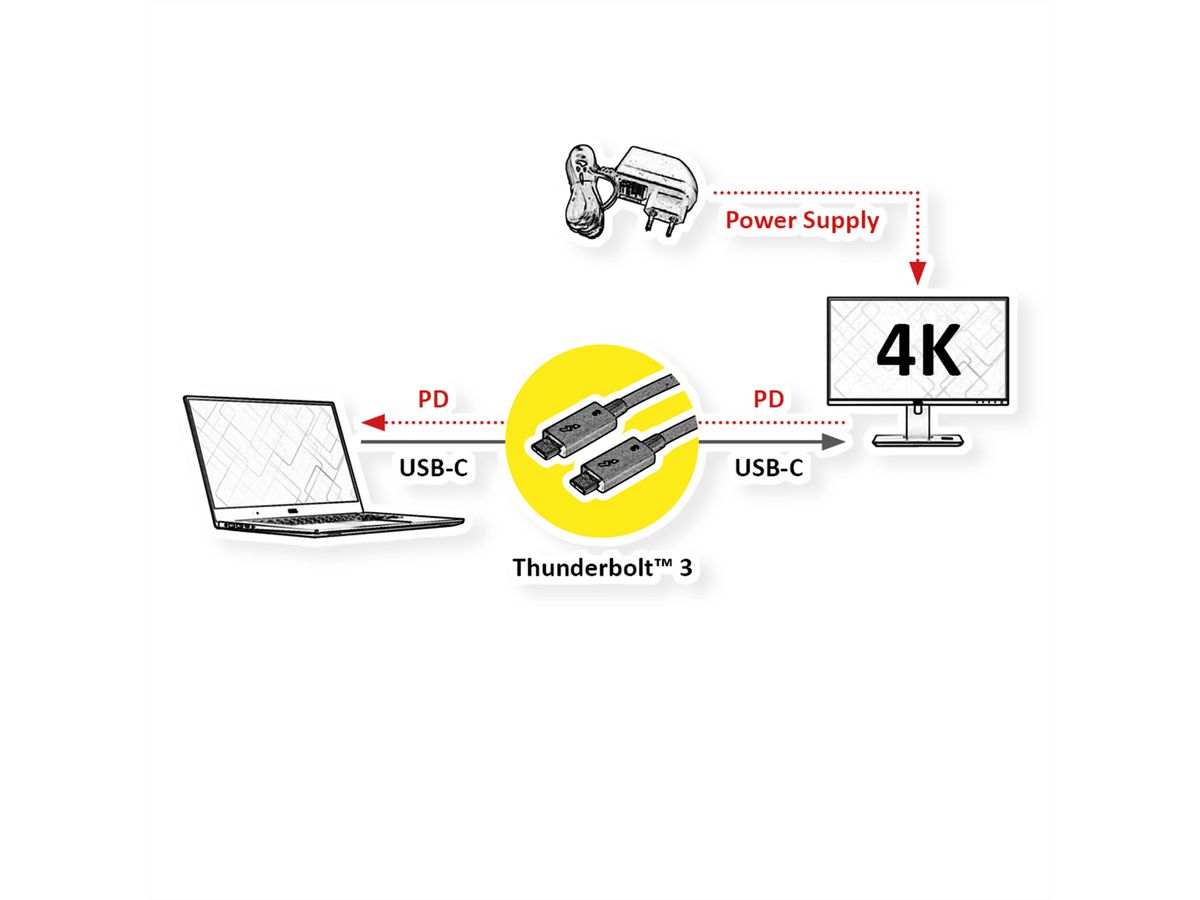

  • One of the best applications is to connect your Thunderbolt 3 cable with a Thunderbolt device like a corresponding MacBook and matching USB Type C monitor; If Thunderbolt 3 is supported, the full 5K resolution is possible (4K, 3840x2160 @60Hz with USB 3.1 support) and your device gets powered at the same time
  • Supports USB Power Delivery up to 20V 5A / 100W, for powering your Macbook, Ultrabook or notebook/laptop
  • High-quality cable with improved shielding
  • With reversible USB type C connector at both ends
  • Gold plated contacts for low wear at high mating cycles
  • Colour: black

Thunderbolt and the Thunderbolt logo are trademarks of Intel Corporation in the U.S. and/or other countries.

Specifications

Manufacturer ROLINE
Product group Cable
Product type Thunderbolt™ 3 Cable
Colour black
Length 2 m
Transfer quality Thunderbolt™ 3 - 20 Gbit/s
Connection ports USB Type C (USB-C) Male / USB Type C (USB-C) Male
Side 1 Connector Type USB Type C (USB-C)
Side 1 Connector Gender Male
Side 2 Connector Type USB Type C (USB-C)
Side 2 Connector Gender Male
Colour (Cable) black
Maximum data transfer rate 20 Gbit/s
Area of application External
Supported charging technology USB-PD - USB Power Delivery
Power (max.) 100 W
Cable shielding Screened
Hand locking screws no
Weight 86 g
Height of packaging (single piece) 20 mm
Width of packaging (single piece) 140 mm
Depth of packaging (single piece) 160 mm
Package weight (single piece) 0.092 kg

Downloads

Product data sheet - English (50.0 KB)

Download

Manufacturer data sheet - English (1.5 MB)

Download

The products of our own brand ROLINE are designed for professional continuous operation.

With a 2-year functional guarantee, we stand by our performance promise.

ROLINE – Quality makes the difference.
