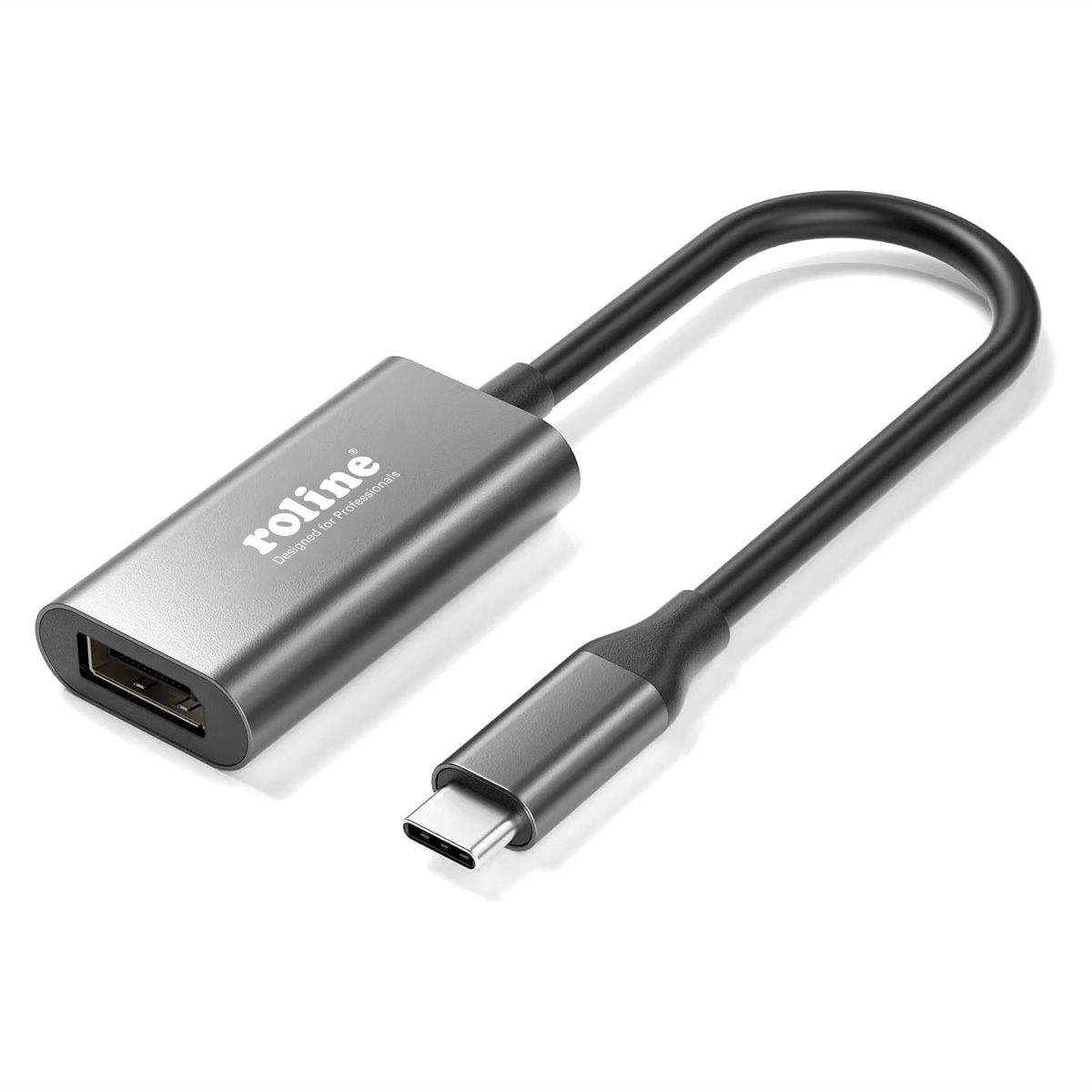

ROLINE Type C - DisplayPort Cableadapter, M/F, Bi-directional, 0.2 m

Item no. 11.04.5959-10 Brand / Manufacturer ROLINE Manuf. no. 11.04.5959 EAN 7630049663800 Package weight 0.025 kg
ROLINE
New products

Please log in to be able to use the shopping cart and then complete orders.

Log in
Available
Ordered until 3 pm - usually dispatched on the same day

Description

ROLINE USB Type-C to DP (DisplayPort) Cableadapter with a resolution of up to 8K @60 Hz – works bidirectional, means in both directions (Type-C to DP and DP to Type-C).

  • Bidirectional cableadapter - works in BOTH signal directions (Type-C to DP and DP to Type-C)
  • Max. resolution: 7680 x 4320 @60Hz
  • Connectors: DisplayPort female and Type C male
  • Converter is bus powered, this makes the integration within installations easy, with no additional need for external power supplies or outlets
  • Plug & Play
  • Requires DisplayPort Alternate Mode on the USB Type C port (laptop / PC / monitor)
  • Cable length: approx. 0.2 m

Remark: Support of "Alternate Mode (DP Alt Mode)" required

Specifications

Manufacturer
ROLINE
Product group
Adapters, Terminators, Converters
Product type
USB-DisplayPort Adapter
Colour
black
Length
0.2 m
Scope of delivery
Cableadapter
Max. resolution
7680 x 4320 @60Hz (8K, UHD-2)
Side 1 Connector Type
USB Type C (USB-C)
Side 1 Connector Gender
Male
Side 2 Connector Type
DisplayPort
Side 2 Connector Gender
Female
Active / Passive
Active
Conversion direction
Bidirectional
Colour (Cable)
black
Area of application
External
Dimensions (HxWxD)
9 x 21 x 200 mm
Material
Aluminium housing
Technical particularity
DisplayPort Version 1.4
Height
9 mm
Width
21 mm
Depth
200 mm
Weight
16 g
Height of packaging (single piece)
10 mm
Width of packaging (single piece)
100 mm
Depth of packaging (single piece)
100 mm
Package weight (single piece)
0.025 kg

Downloads

Product data sheet - English (43.6 KB)

The products of our own brand ROLINE are designed for professional continuous operation.

With a 2-year functional guarantee, we stand by our performance promise.

ROLINE – Quality makes the difference.
