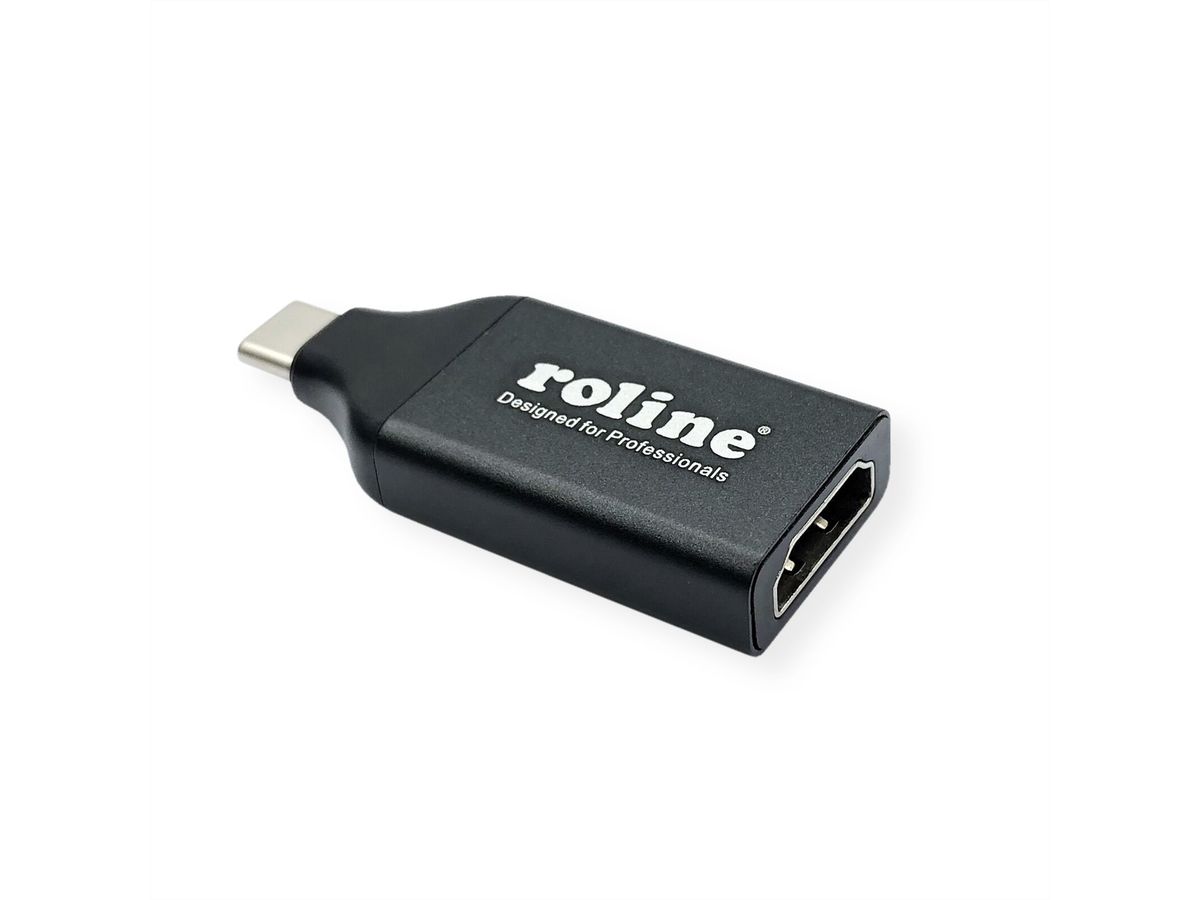

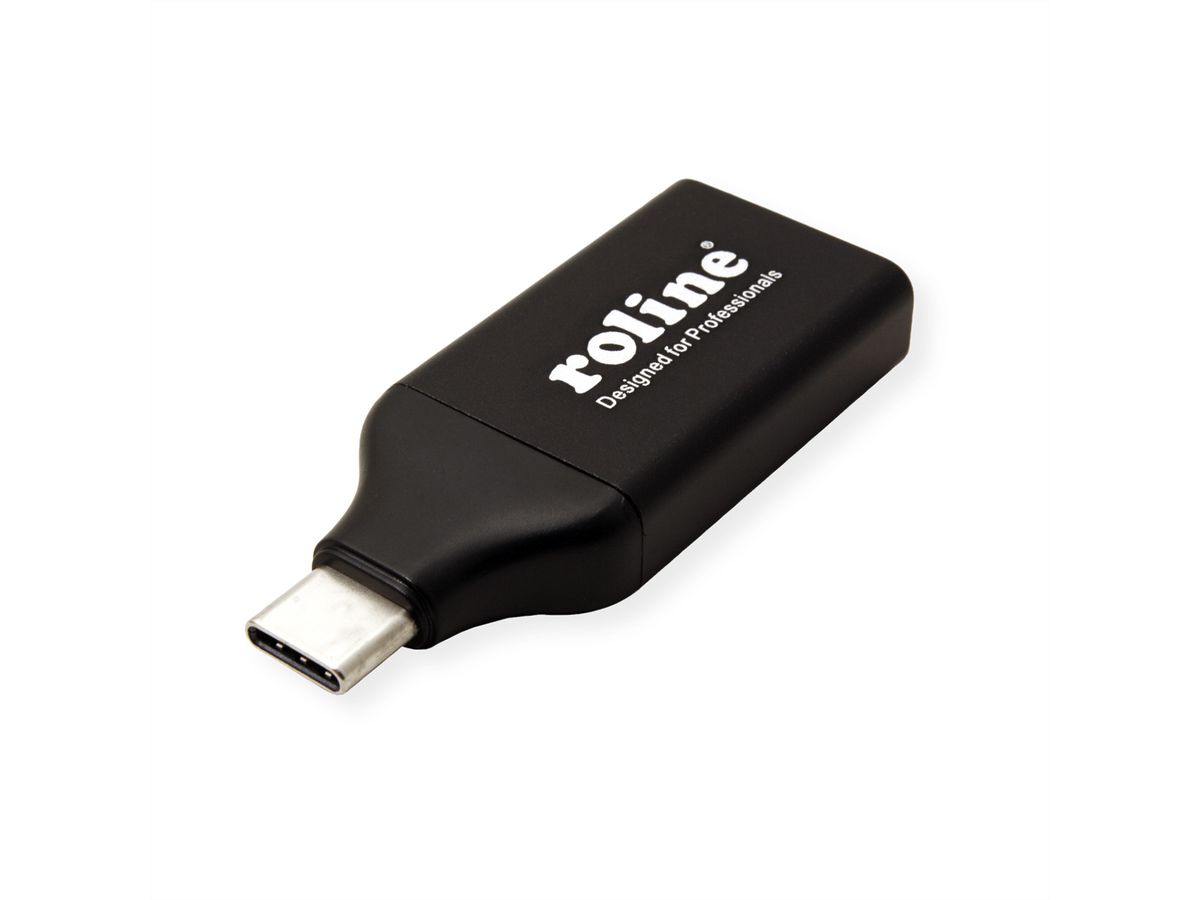

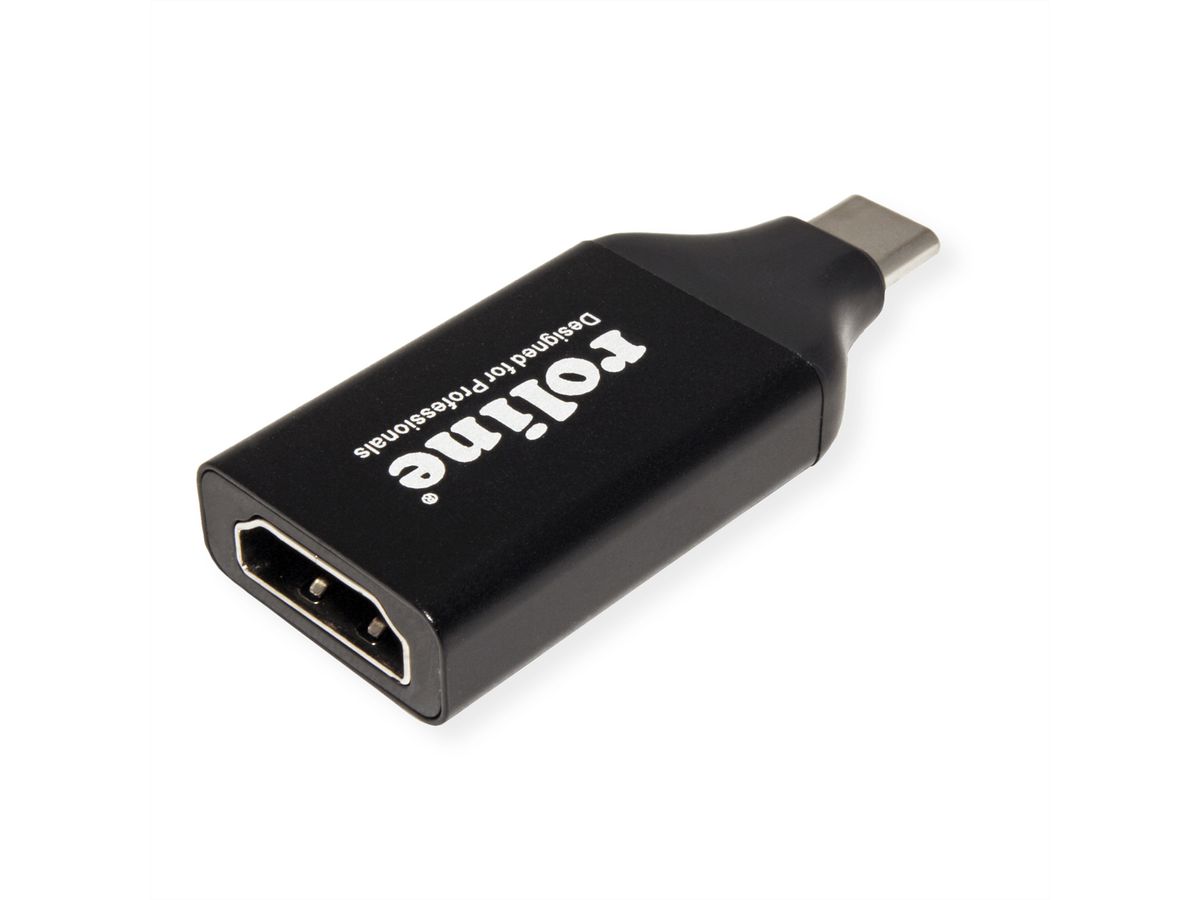

ROLINE Type C - HDMI Display Adapter, M/F

ROLINE Type C - HDMI Display Adapter, M/F

Please log in to be able to use the shopping cart and then complete orders.

Log in
Available
Ordered until 3 pm - usually dispatched on the same day
Item no. 12.03.3226-10
Brand / Manufacturer ROLINE
Manuf. no. 12.03.3226
EAN 7630049698765
Package weight 0.014 kg

Description

Connect a TV, monitor or projector via HDMI to your MacBook, Ultrabook, notebook/laptop, PC or mobile device with USB Type C connection (such as an Android phone or Apple iPad Pro) - with resolutions of up to 3840x2160 @60Hz!

  • USB 3.1 / USB 3.2 Gen 2 Type C to HDMI adapter
  • To mirror or expand your screen to a TV, monitor or beamer/projector
  • Maximum resolution: 3840x2160 @60Hz
  • Plug-in adapter with minimal form factor and solid aluminium housing
  • No additional power supply required
  • Connections: HDMI socket and USB type C connector
  • HDMI supports standard, enhanced or high-definition video, plus multi-channel digital audio on a single cable

Note: According to the current specifications of USB.org we have adapted the technical data of our USB 3 products. The new designation for the already known USB specifications has been changed to USB 3.2 Gen 1 (formerly USB 3.0 / USB 3.1 Gen 1) and USB 3.2 Gen 2 (formerly USB 3.1 / USB 3.1 Gen 2).

Specifications

Manufacturer ROLINE
Product group Adapters, Terminators, Converters
Product type USB-HDMI Adapter
Colour black
Scope of delivery adapter
Max. resolution 3840 x 2160 @60Hz (4K, UHD-1)
Side 1 connection (PC) Typ C Male
Side 2 connection (Peripherals) HDMI Female
Side 1 Connector Type USB Type C (USB-C)
Side 1 Connector Gender Male
Side 2 Connector Type HDMI Type A
Side 2 Connector Gender Female
Area of application External
Height 21.5 mm
Width 9 mm
Depth 52.5 mm
Weight 8.7 g
Height of packaging (single piece) 30 mm
Width of packaging (single piece) 120 mm
Depth of packaging (single piece) 200 mm
Package weight (single piece) 0.014 kg

Downloads

Product data sheet - English (44.0 KB)

Download

Manufacturer data sheet - English (189.2 KB)

Download

The products of our own brand ROLINE are designed for professional continuous operation.

With a 2-year functional guarantee, we stand by our performance promise.

ROLINE – Quality makes the difference.
