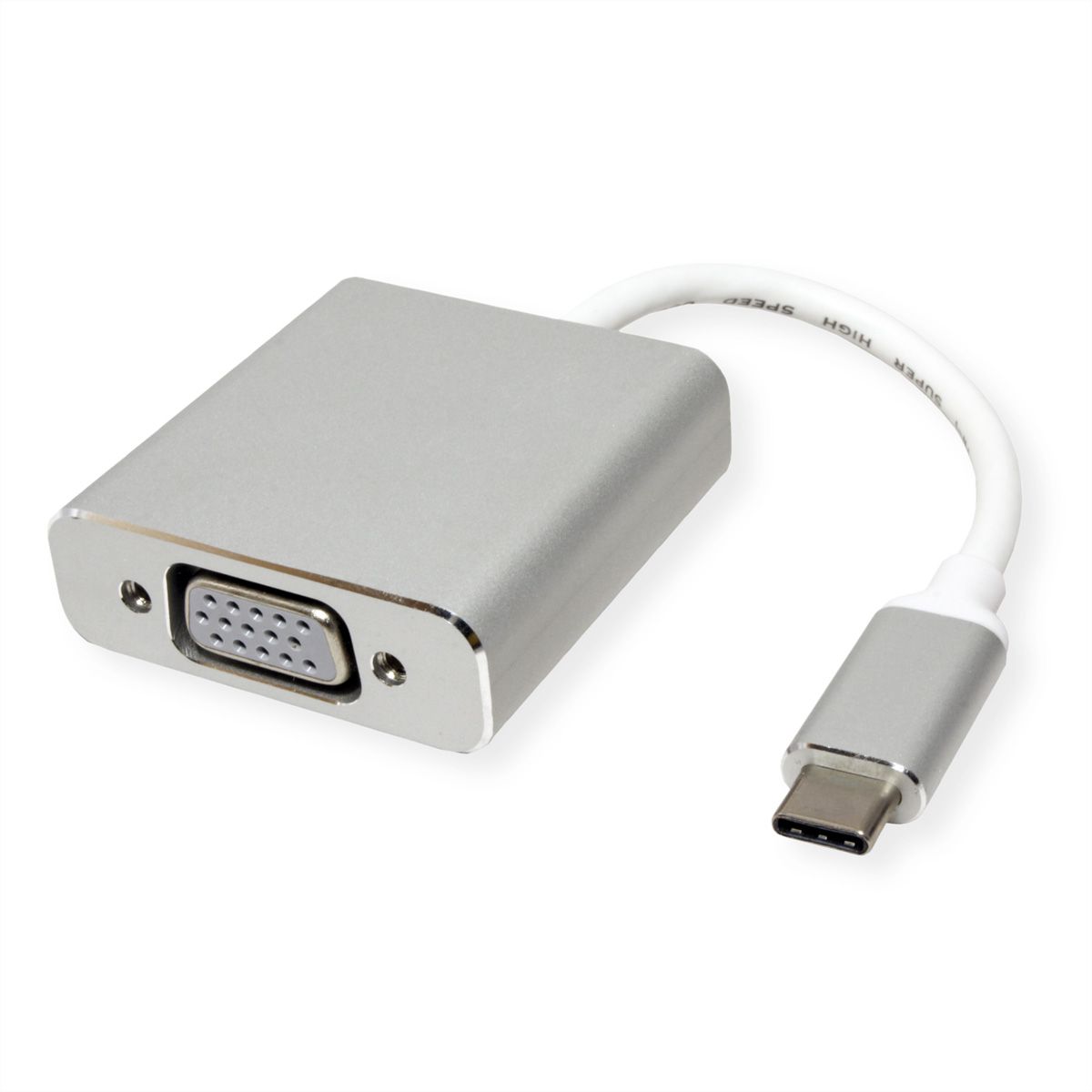

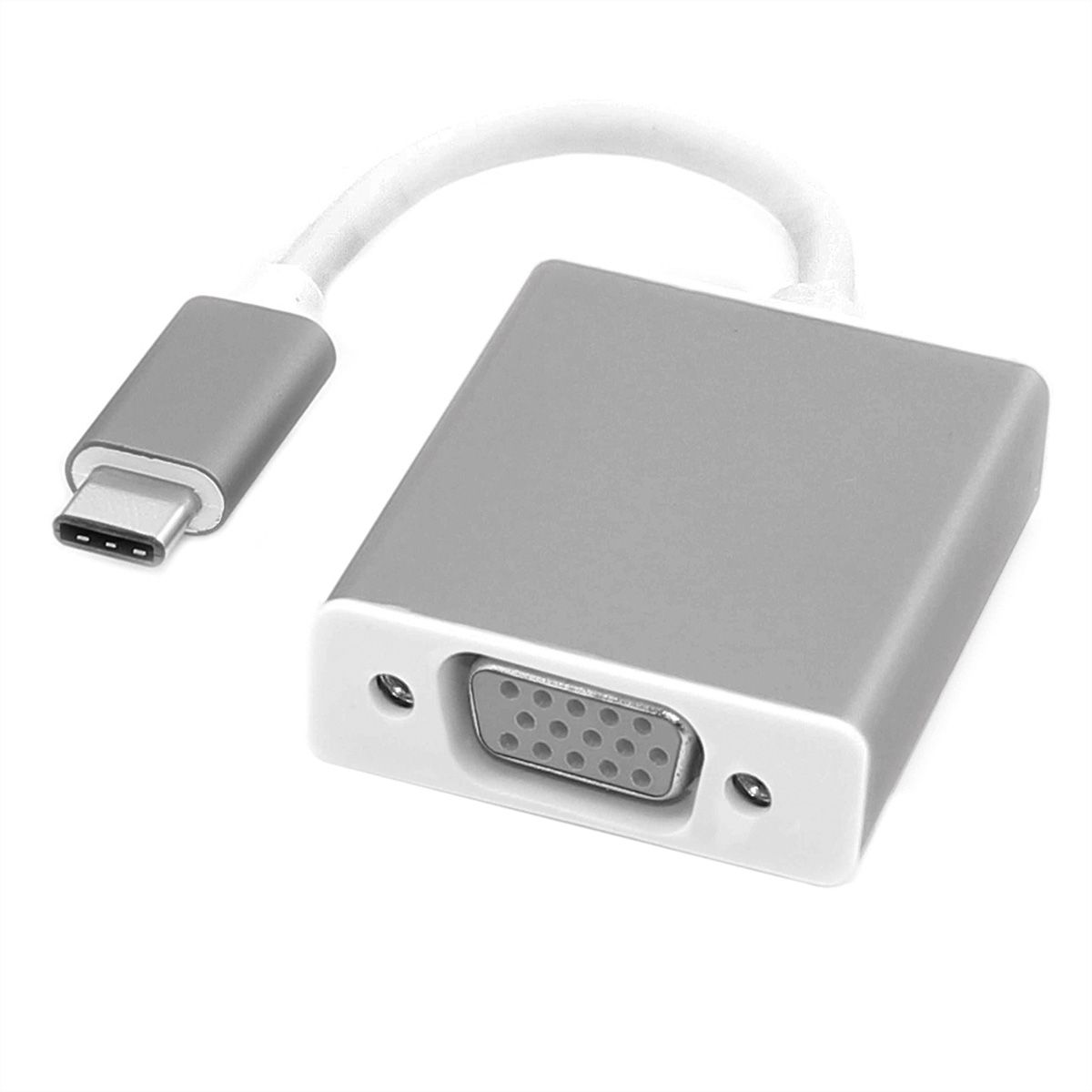

ROLINE Type C - VGA Adapter, M/F
Please log in to be able to use the shopping cart and then complete orders.
Log inDescription
Mirror or expand the screen of your device to any monitor or projector/beamer with VGA connection - with a resolution of up to 1920x1080 @60Hz!
- USB 3.1 / USB 3.2 Gen 2 Type C to VGA cable adapter

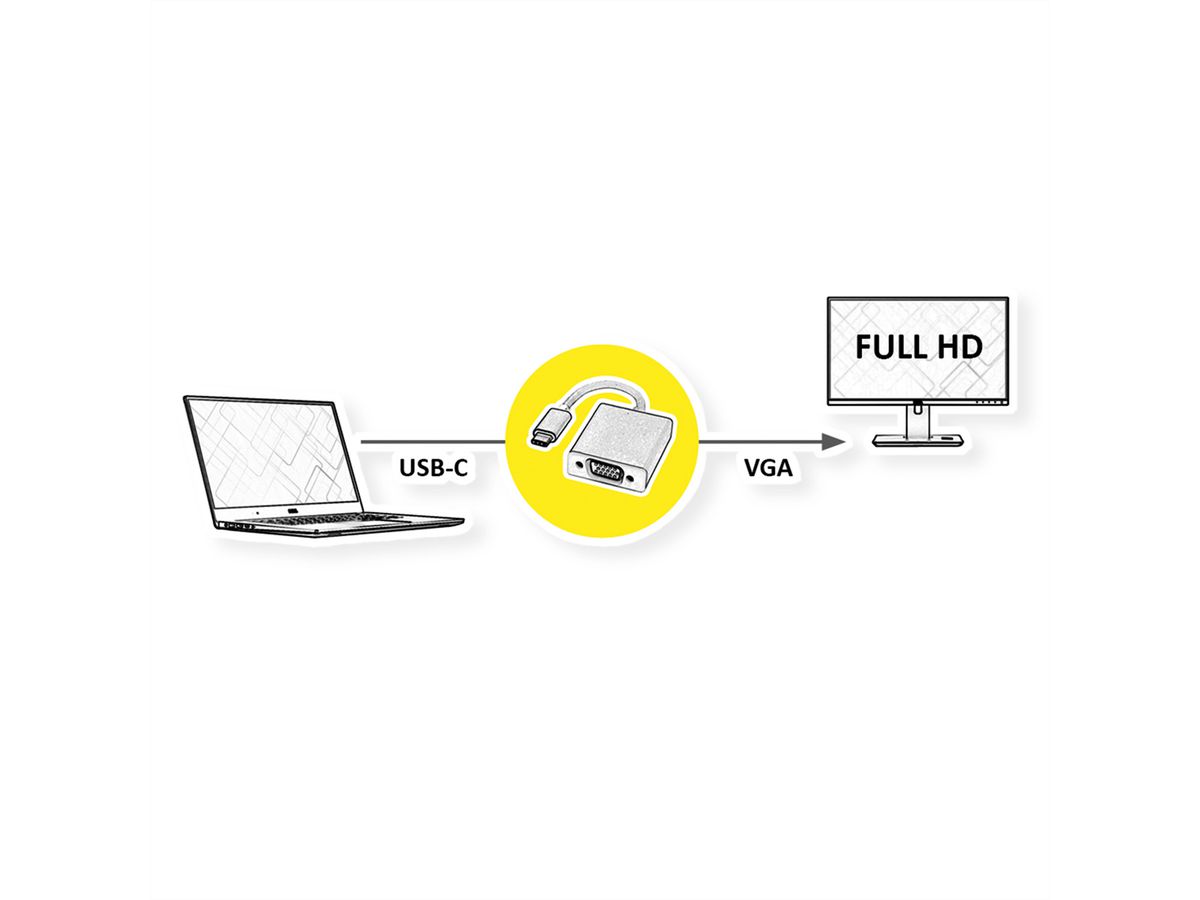

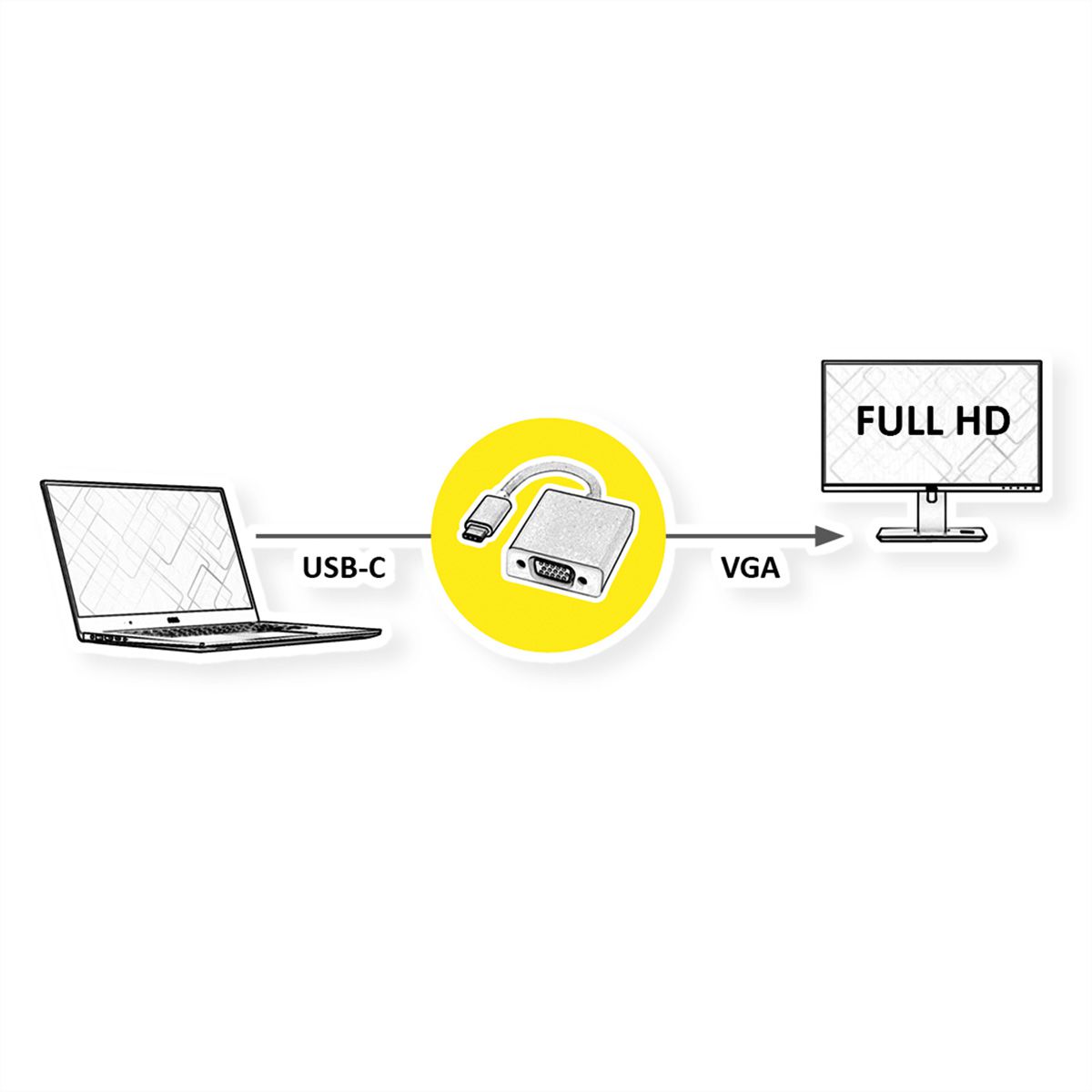

- Connect any monitor or beamer/projector with VGA connection to your Macbook, Ultrabook, notebook/laptop or mobile device with USB Type C connection.
- To mirror or expand your display to another display device

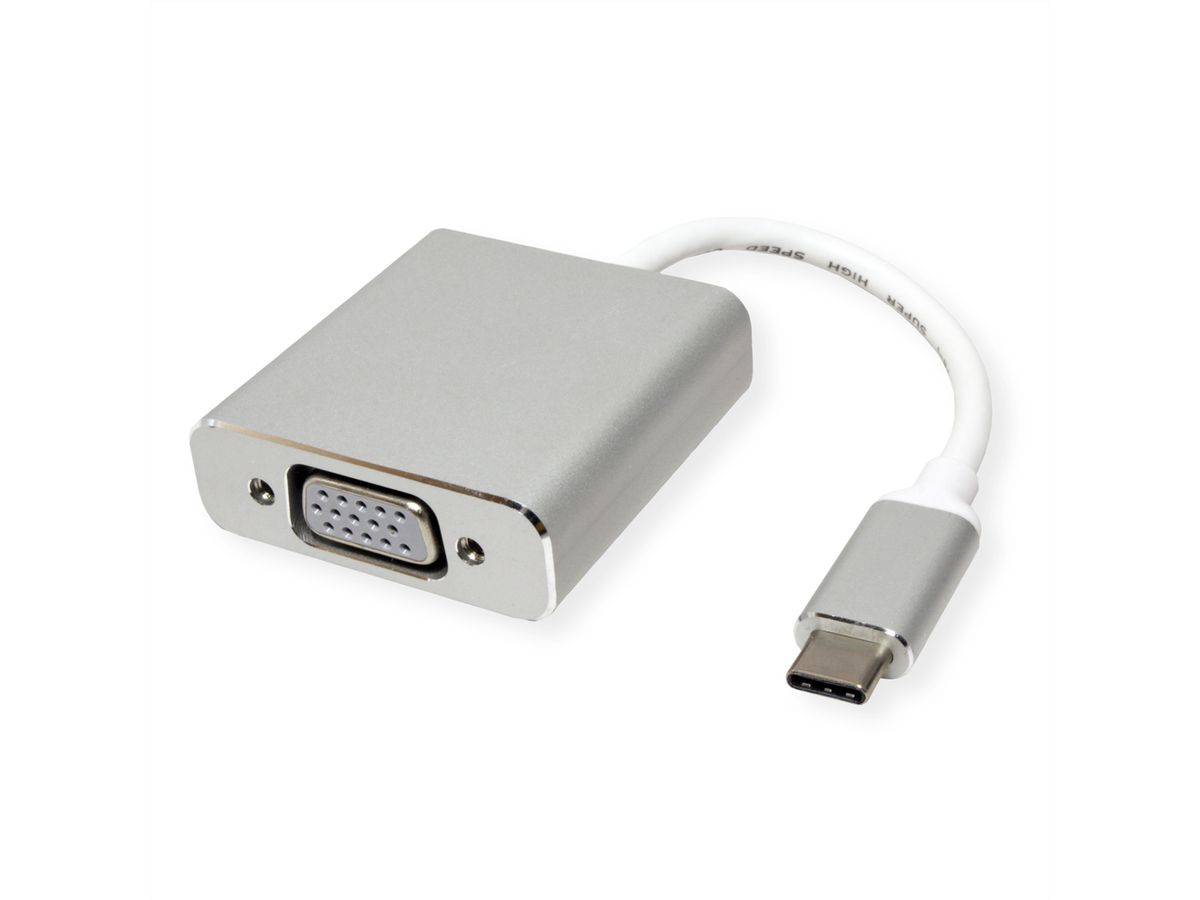

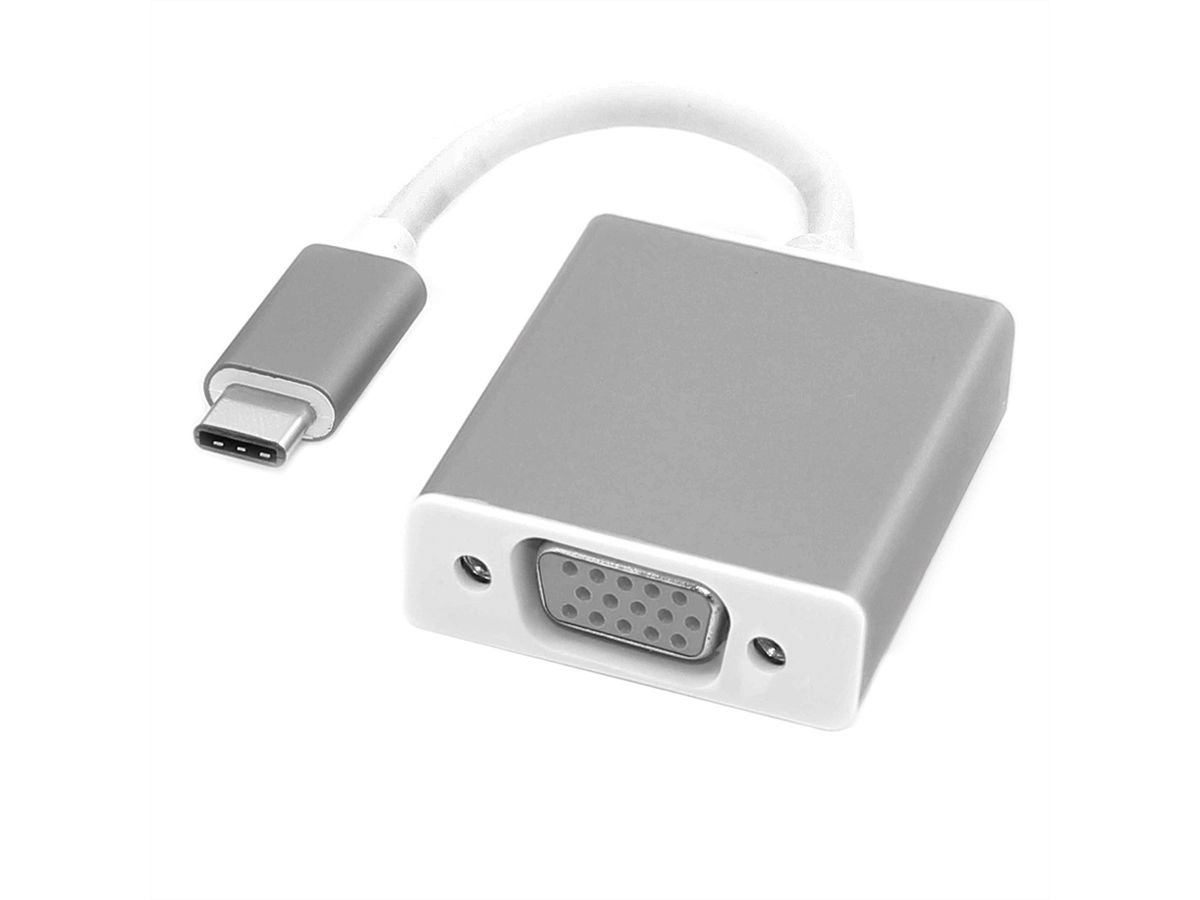

- Compact aluminium housing
- No power supply required
- Connections: VGA socket and type C plug
- Cable length: approx. 10 cm
Remark: Support of "Alternate Mode (DP Alt Mode)" required
Note: According to the current specifications of USB.org we have adapted the technical data of our USB 3 products. The new designation for the already known USB specifications has been changed to USB 3.2 Gen 1 (formerly USB 3.0 / USB 3.1 Gen 1) and USB 3.2 Gen 2 (formerly USB 3.1 / USB 3.1 Gen 2).
Specifications
Manufacturer | ROLINE |
---|---|
Product group | Adapters, Terminators, Converters |
Product type | USB-VGA Adapter |
Colour | silver |
Length | 0.1 m |
Max. resolution | 1920 x 1080 @60Hz (2K, Full HD) |
Side 1 connection (PC) | Typ C Male |
Side 2 connection (Peripherals) | VGA Female |
Side 1 Connector Type | USB Type C (USB-C) |
Side 1 Connector Gender | Male |
Side 2 Connector Type | HD D-Sub 15-pin (HD-15), VGA |
Side 2 Connector Gender | Female |
Area of application | External |
Height | 13.8 mm |
Width | 43.6 mm |
Depth | 172 mm |
Weight | 29.8 g |
Height of packaging (single piece) | 20 mm |
Width of packaging (single piece) | 50 mm |
Depth of packaging (single piece) | 50 mm |
Package weight (single piece) | 0.02 kg |
