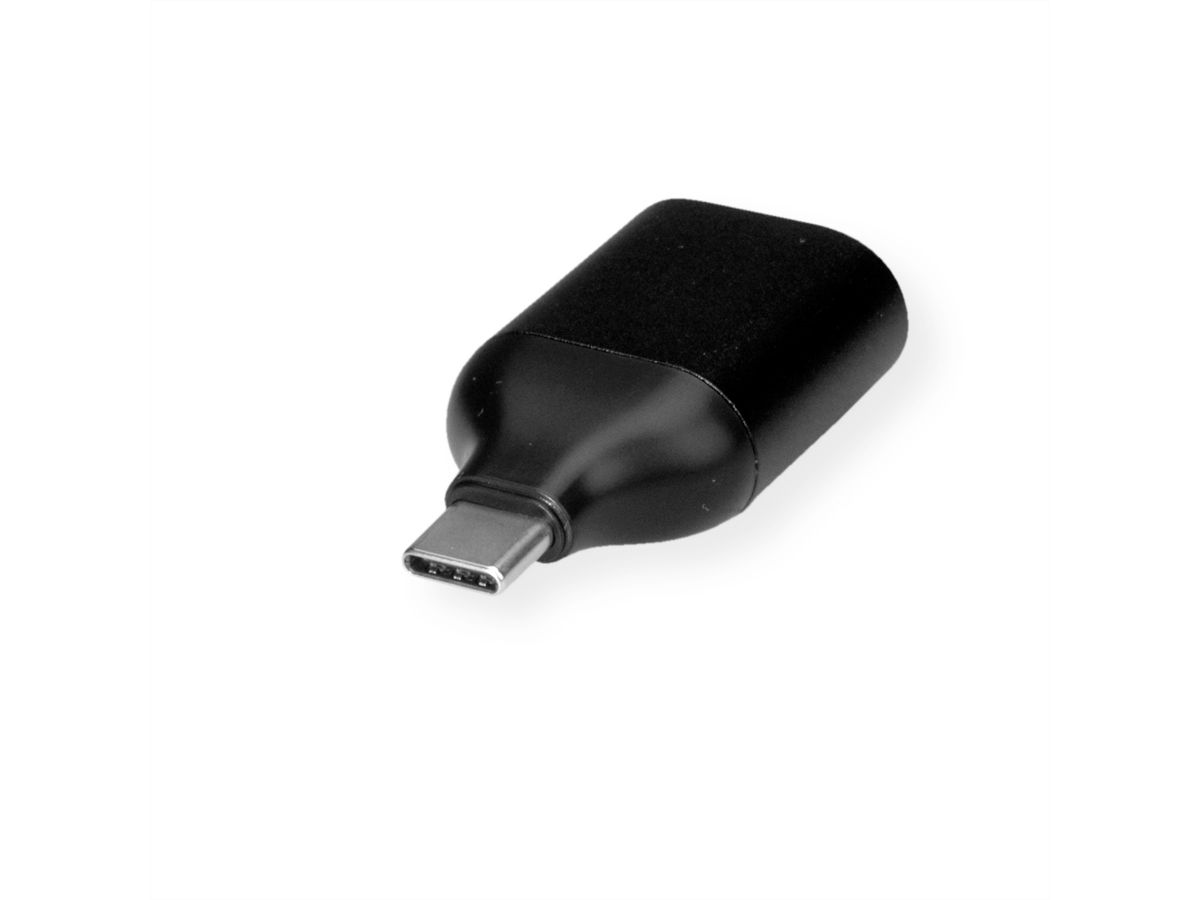

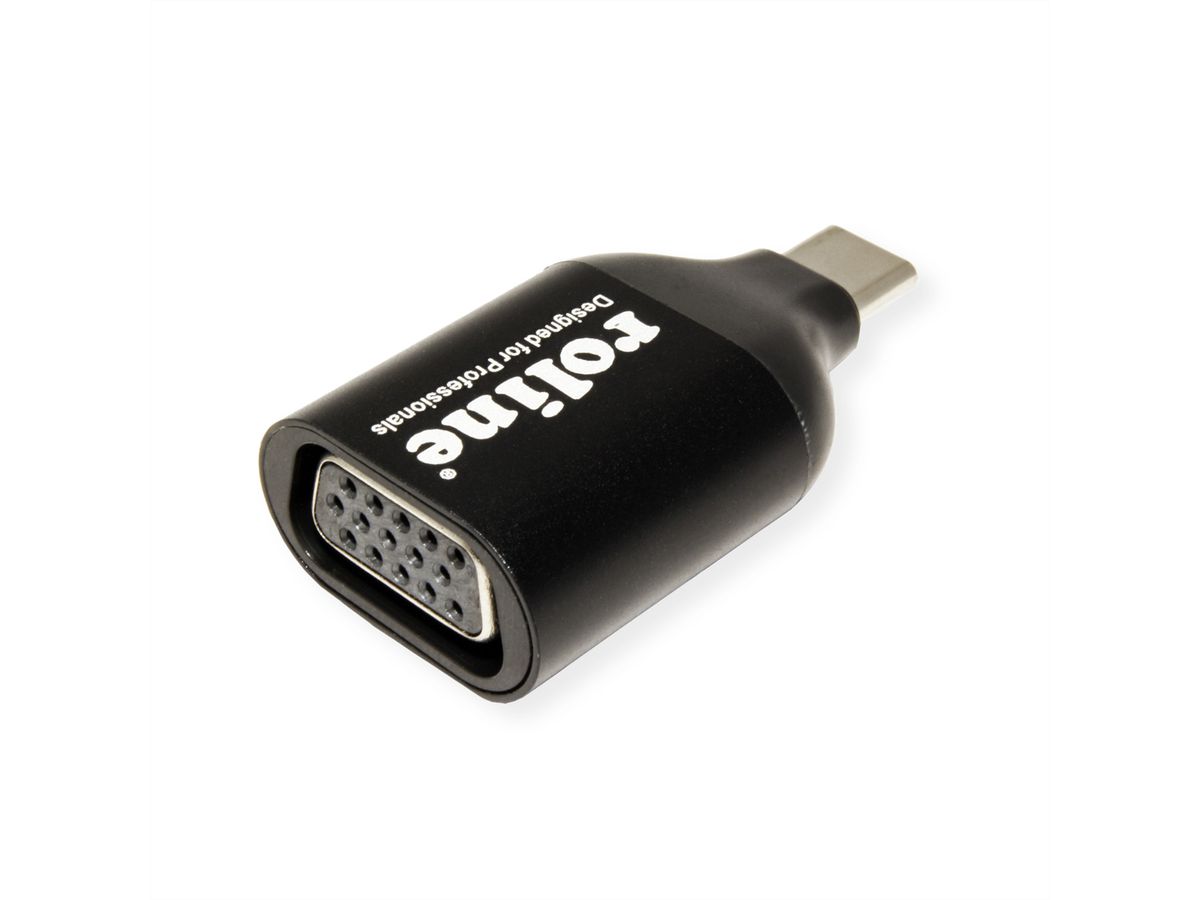

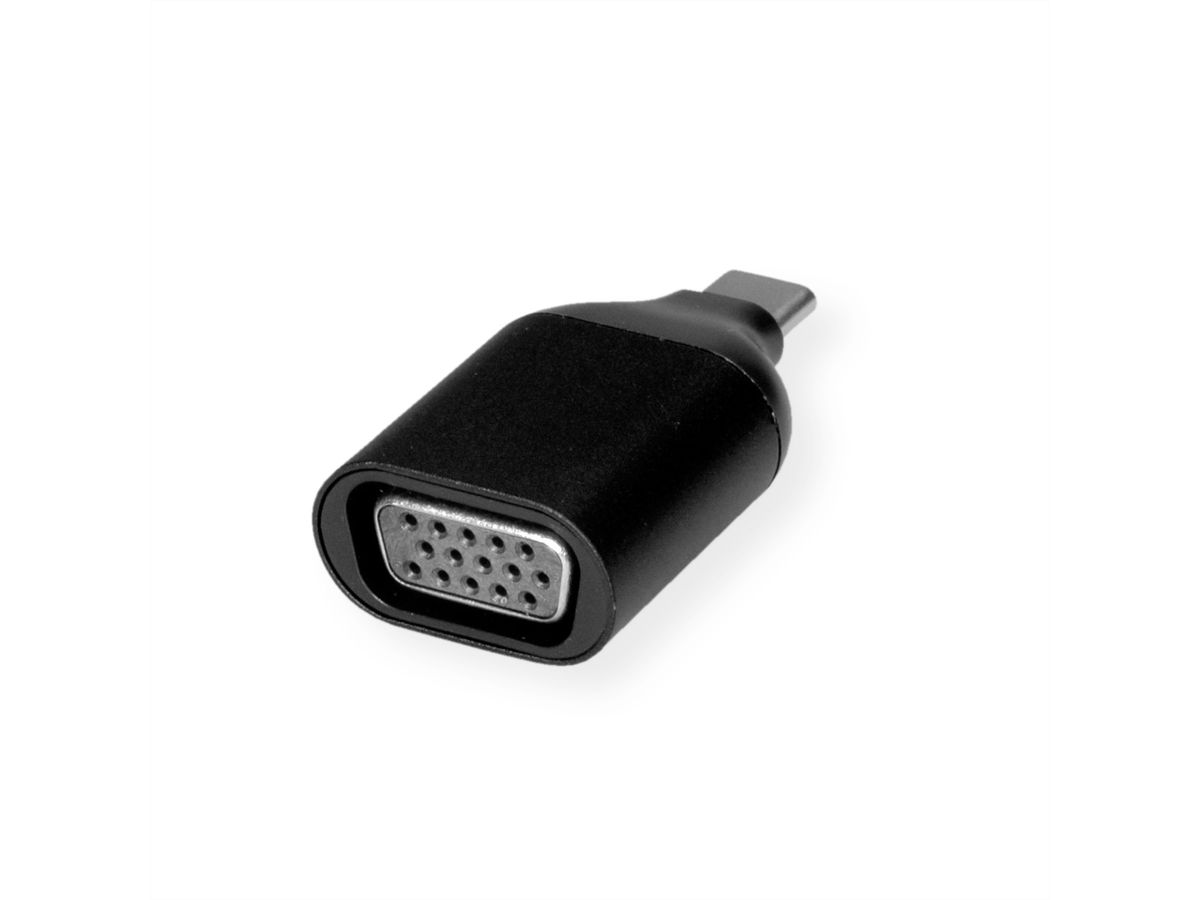

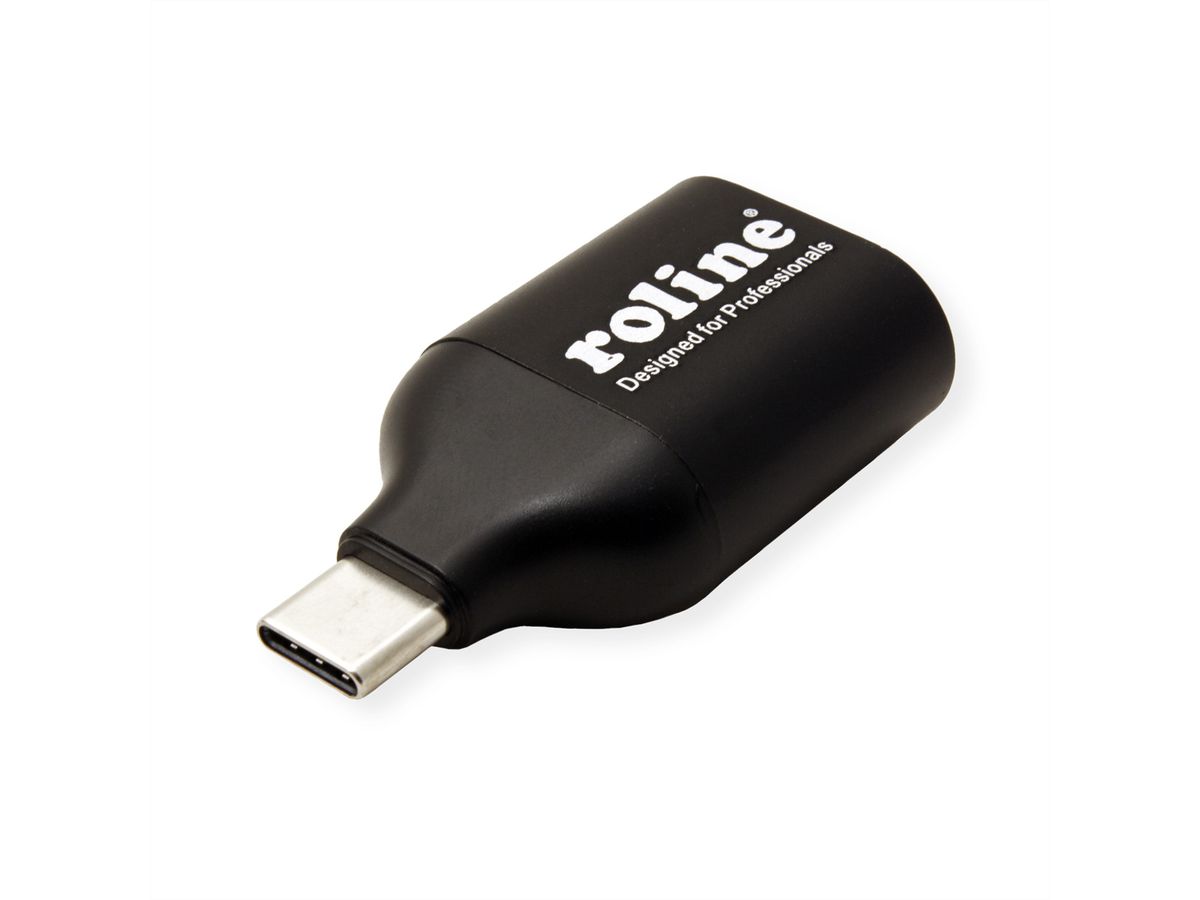

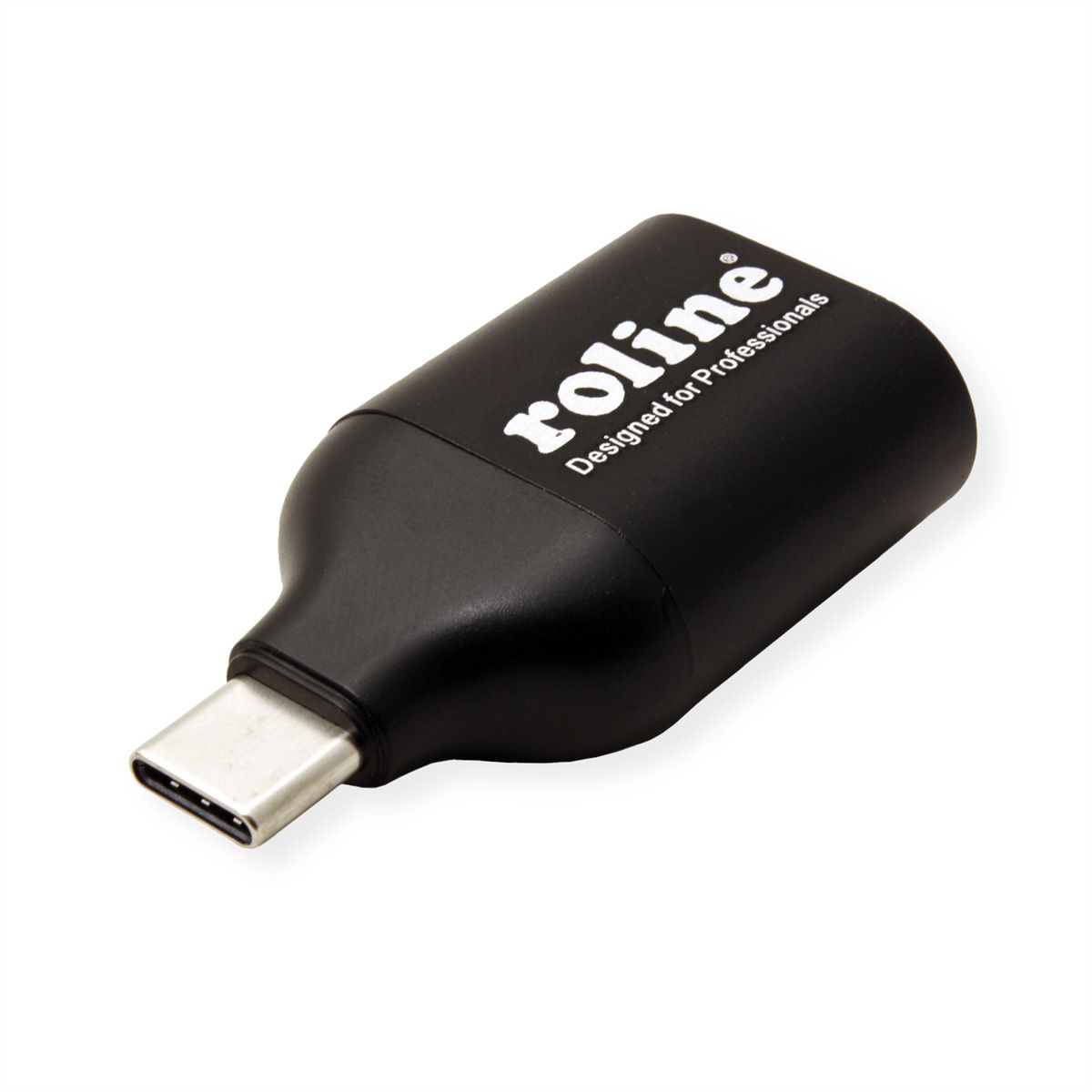

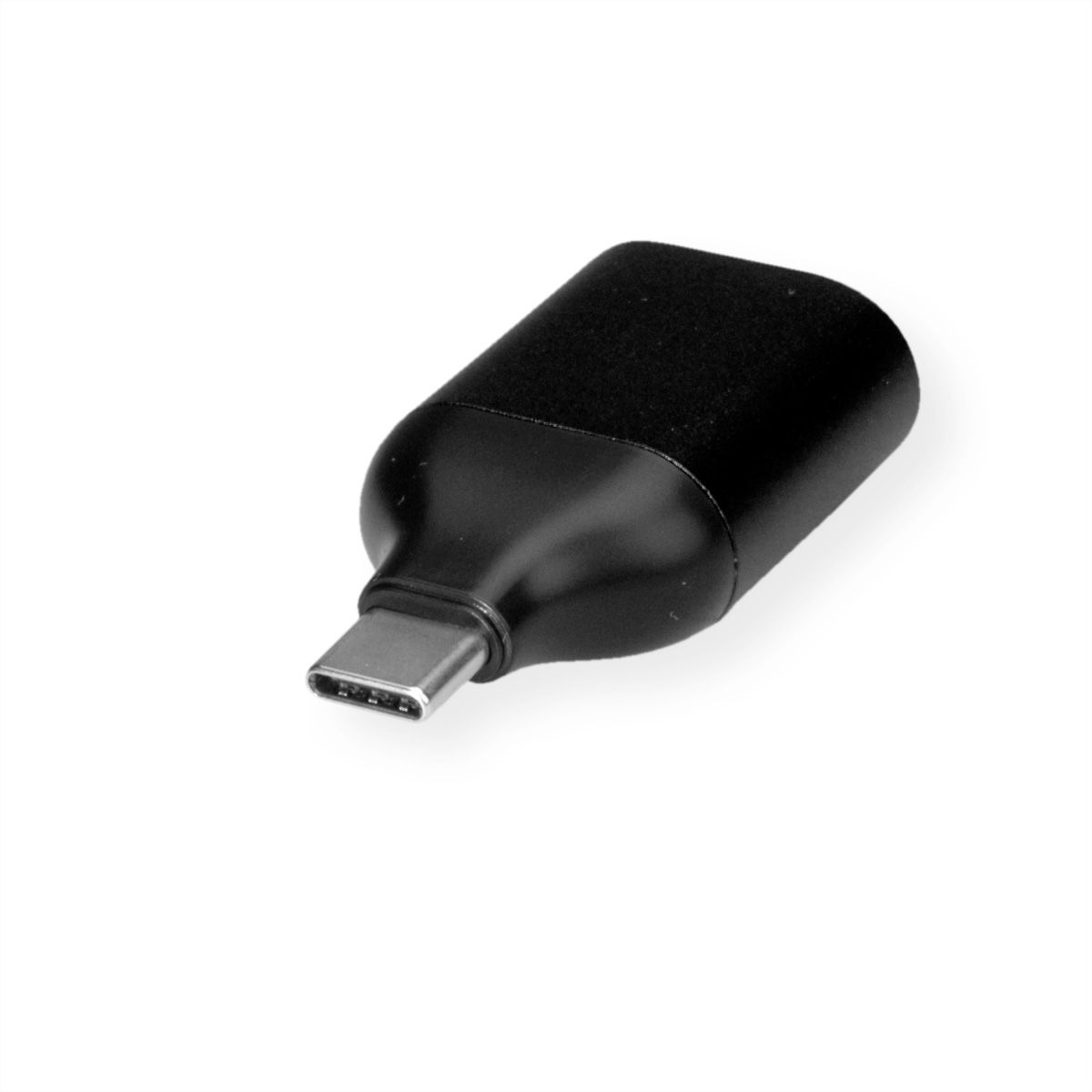

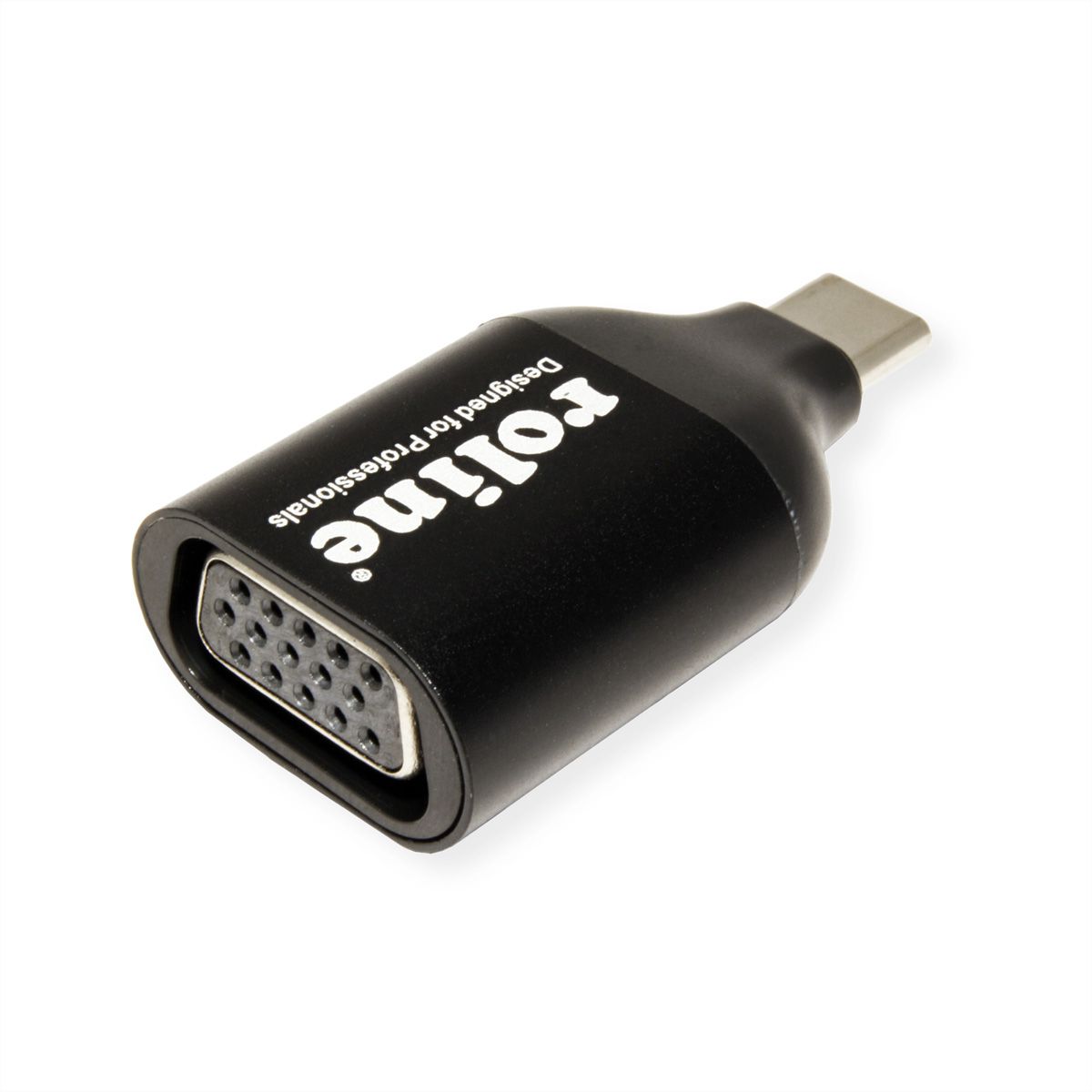

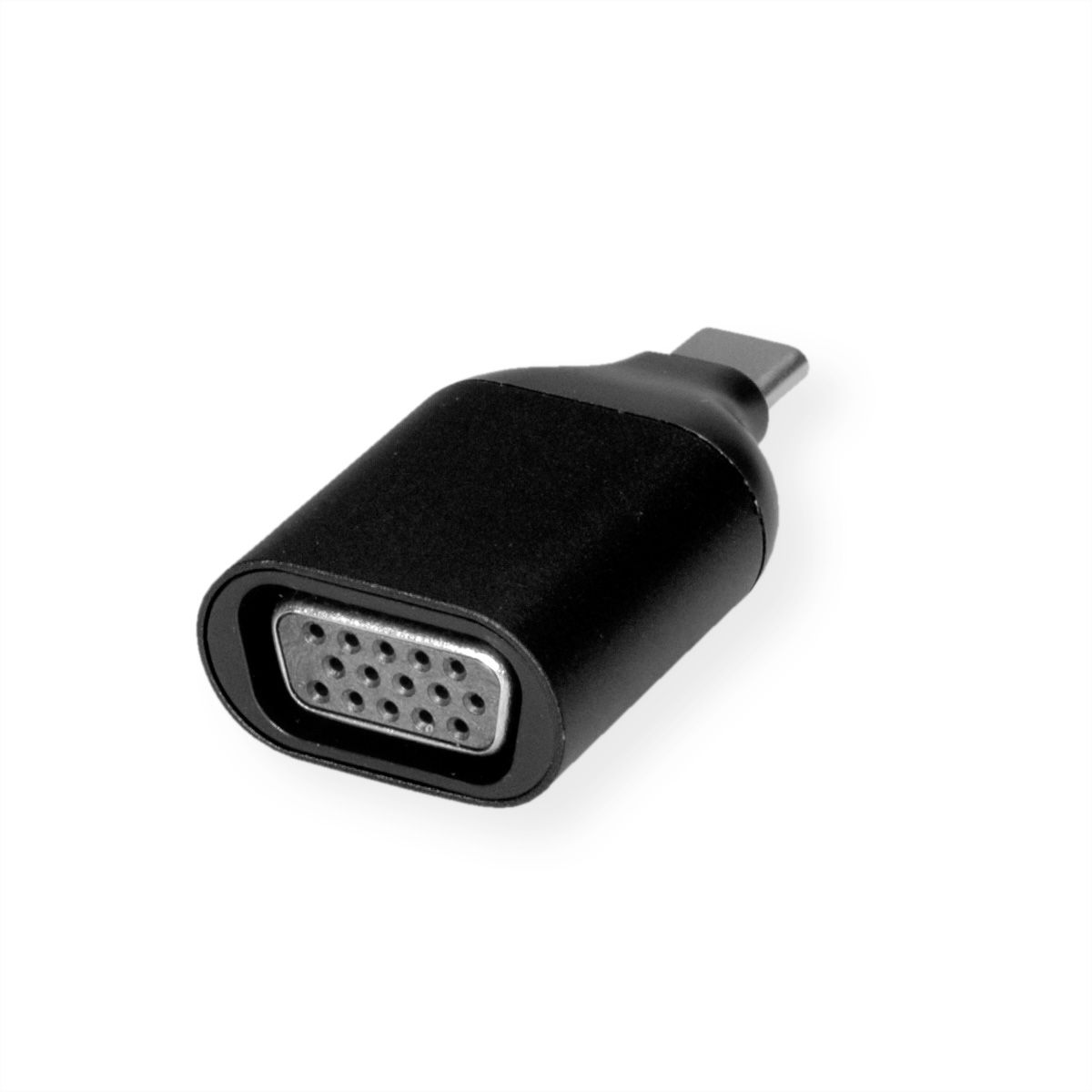

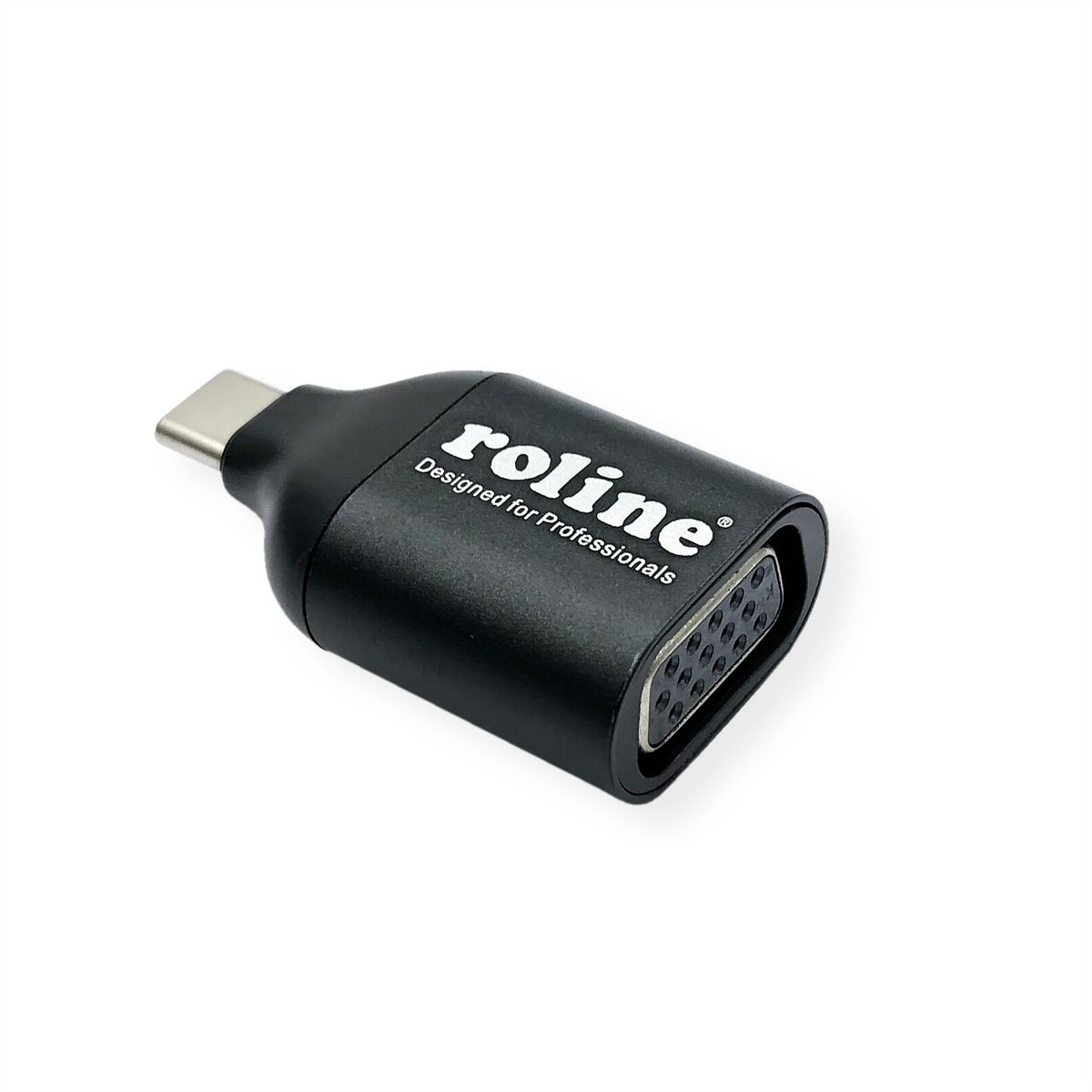

ROLINE Type C - VGA Display Adapter, M/F

ROLINE Type C - VGA Display Adapter, M/F

Please log in to be able to use the shopping cart and then complete orders.

Log in
Available
Ordered until 3 pm - usually dispatched on the same day
Item no. 12.03.3228-10
Brand / Manufacturer ROLINE
Manuf. no. 12.03.3228
EAN 7630049698758
Package weight 0.02 kg

Description

Mirror or expand the screen of your device to any monitor or projector/beamer with VGA connection - with a resolution of up to 1920x1080 @60Hz!

  • USB 3.1 / USB 3.2 Gen 2 Type C to VGA cable adapter

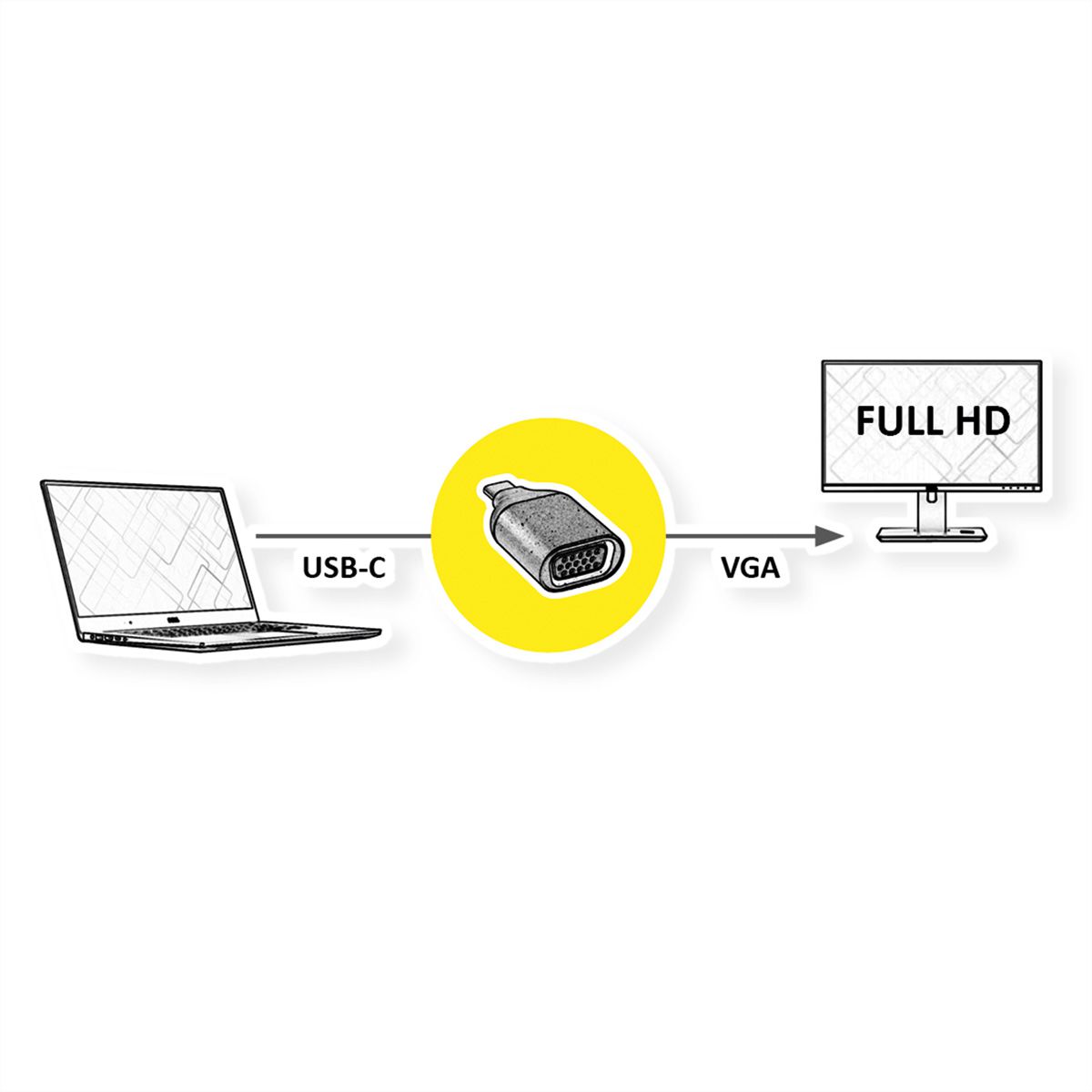

  • Connect any monitor or beamer/projector with VGA connection to your Macbook, Ultrabook, notebook/laptop or mobile device with USB Type C connection.
  • To mirror or expand your display to another display device
  • Compact aluminium housing
  • No power supply required
  • Connections: VGA socket and type C plug

Remark: Support of "Alternate Mode (DP Alt Mode)" required

Note: According to the current specifications of USB.org we have adapted the technical data of our USB 3 products. The new designation for the already known USB specifications has been changed to USB 3.2 Gen 1 (formerly USB 3.0 / USB 3.1 Gen 1) and USB 3.2 Gen 2 (formerly USB 3.1 / USB 3.1 Gen 2).

Specifications

Manufacturer ROLINE
Product group Adapters, Terminators, Converters
Product type USB-VGA Adapter
Colour black
Max. resolution 1920 x 1080 @60Hz (2K, Full HD)
Side 1 connection (PC) Typ C Male
Side 2 connection (Peripherals) VGA Female
Side 1 Connector Type USB Type C (USB-C)
Side 1 Connector Gender Male
Side 2 Connector Type HD D-Sub 15-pin (HD-15), VGA
Side 2 Connector Gender Female
Area of application External
Height 24.2 mm
Width 13.2 mm
Depth 38 mm
Weight 8.6 g
Height of packaging (single piece) 20 mm
Width of packaging (single piece) 50 mm
Depth of packaging (single piece) 100 mm
Package weight (single piece) 0.02 kg

Downloads

Product data sheet - English (43.7 KB)

Download

Manufacturer data sheet - English (193.0 KB)

Download

The products of our own brand ROLINE are designed for professional continuous operation.

With a 2-year functional guarantee, we stand by our performance promise.

ROLINE – Quality makes the difference.
