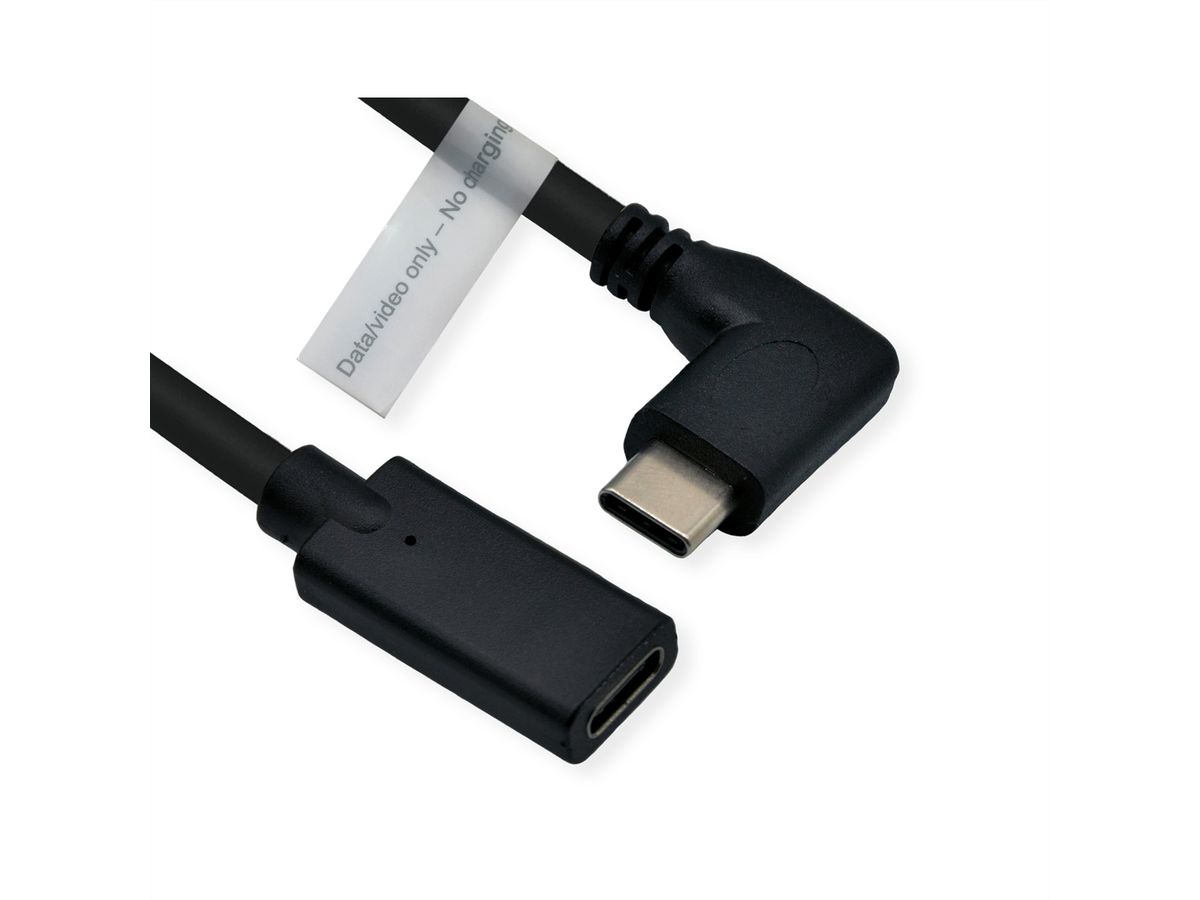

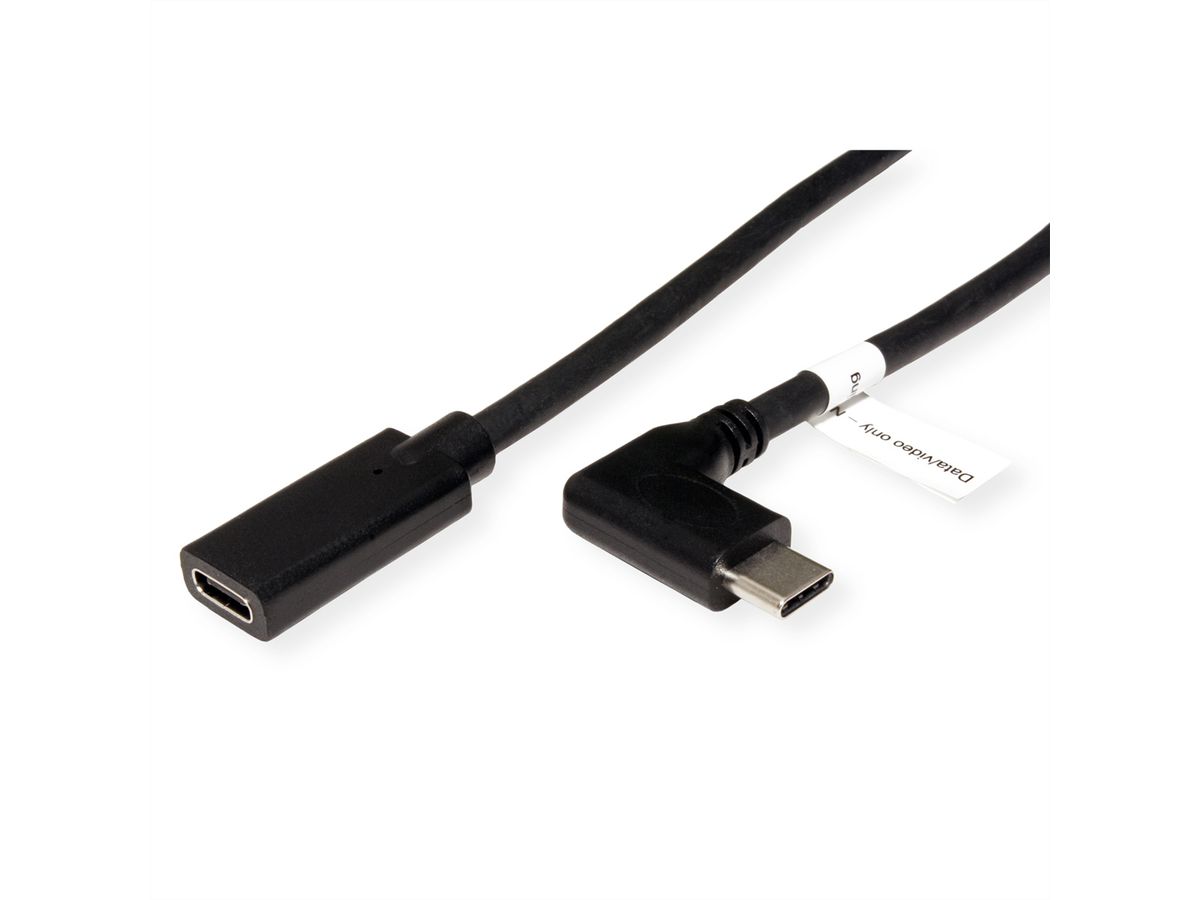

ROLINE Type C Video Cable, USB-C (DP Alt Mode) Extension Cable C-C, M/F, black, 2 m

ROLINE Type C Video Cable, USB-C (DP Alt Mode) Extension Cable C-C, M/F, black, 2 m

Please log in to be able to use the shopping cart and then complete orders.

Log in
Available
Ordered until 3 pm - usually dispatched on the same day
Item no. 11.04.5496-10
Brand / Manufacturer ROLINE
Manuf. no. 11.04.5496
EAN 7630049681132
Package weight 0.075 kg

Description

For screen transmissions in excellent quality with resolutions of up to 3840x2160 / 4096x2560 @60Hz!

What is a USB-C DisplayPort (DP Alt Mode) Cable?
  • Cables with Type-C connector can offer DisplayPort technology via an alternative mode (Alt mode).
  • Alt Mode allows USB-C ports to transfer data/video via multiple interfaces, including DisplayPort video interface
  • The USB-C ports capable of transferring DisplayPort signals are called USB-C DisplayPort or DP Alt Mode

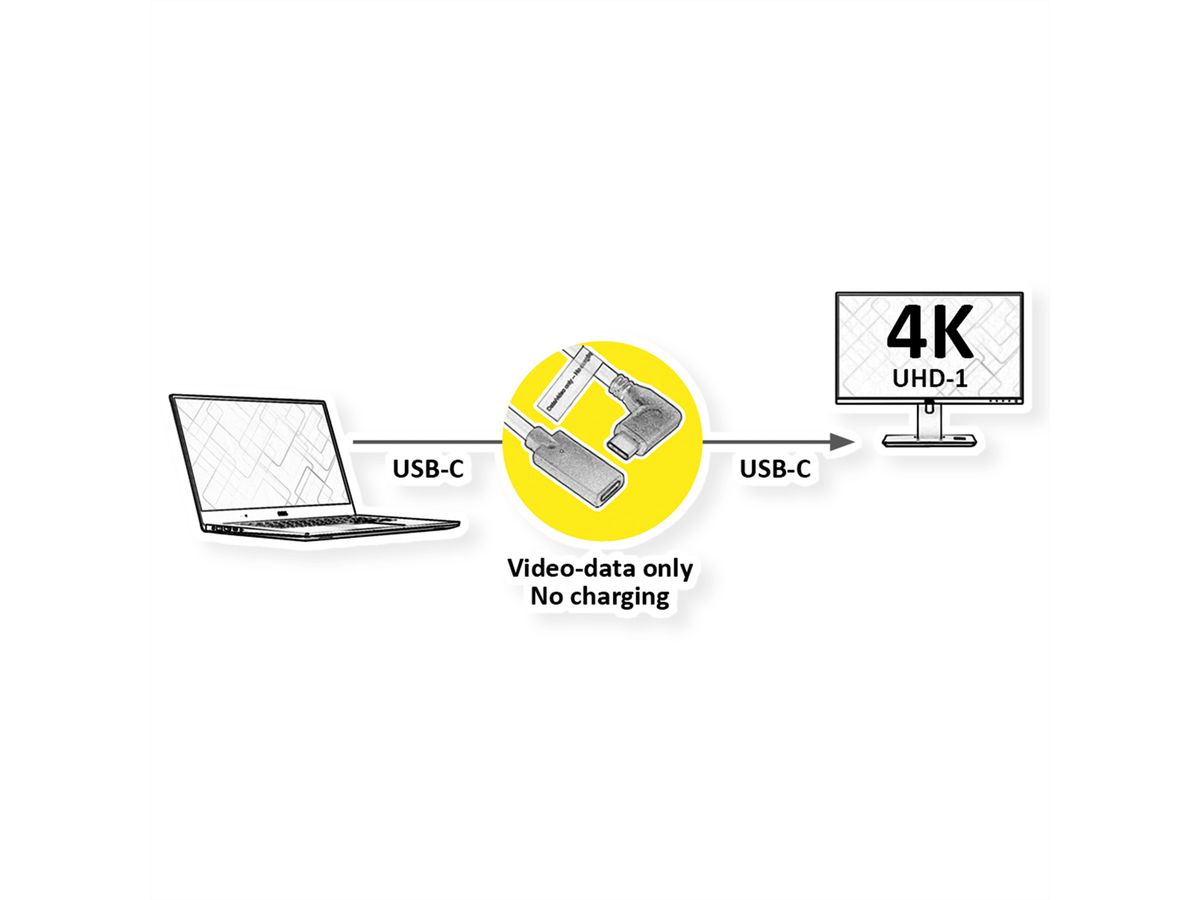

  • Allow to connect video sources (e.g. PCs, Blu-Ray players, etc.) and display devices (e.g. TVs, projectors, etc.) that support DisplayPort to each other via their USB-C ports
  • The main confusion over USB-C DisplayPort cables emerges because not all USB-C ports, available on the hardware (e.g. notebooks…) features the DisplayPort Alt Mode functionality
  • For screen transmissions in excellent quality with resolutions of up to 3840x2160 / 4096x2560 @60Hz!
  • Angled 90° at one end

Remark: Support of "Alternate Mode (DP Alt Mode)" required

Specifications

Manufacturer ROLINE
Product group Cable
Product type USB-C-Display cable
Colour black
Length 2 m
Transfer quality DisplayPort v1.2
Max. resolution 3840 x 2160 @60Hz (4K, UHD-1)
side 1 connector DisplayPort M
side 2 connector DisplayPort M
Side 1 Connector Type USB Type C (USB-C)
Side 1 Connector Gender Male
Side 2 Connector Type USB Type C (USB-C)
Side 2 Connector Gender Female
Area of application External
Cable shielding Screened
Weight 66.4 g
Height of packaging (single piece) 20 mm
Width of packaging (single piece) 100 mm
Depth of packaging (single piece) 100 mm
Package weight (single piece) 0.075 kg
