ROLINE USB 2.0 Extender over RJ-45, max. 50m

ROLINE USB 2.0 Extender over RJ-45, max. 50m

Please log in to be able to use the shopping cart and then complete orders.

Log in
Available
Ordered until 3 pm - usually dispatched on the same day
Item no. 12.04.1100-5
Brand / Manufacturer ROLINE
Manuf. no. 12.04.1100
EAN 7611990921850
Package weight 0.38 kg

Description

  • Extend your USB port over RJ-45 (up to 50 meters)
  • For example to connect an USB printer in another room with your PC
  • Supports USB 2.0, downwards compatible with USB 1.1/1.0
  • Hot plug
  • No additional software for extender required
  • Connection via Cat.5e/Cat. 6 Twisted Pair cable
  • Transmitter: USB A Male connector/RJ-45, Receiver: USB A Female connector/RJ-45
  • Supports data rates up to 480Mbit/s

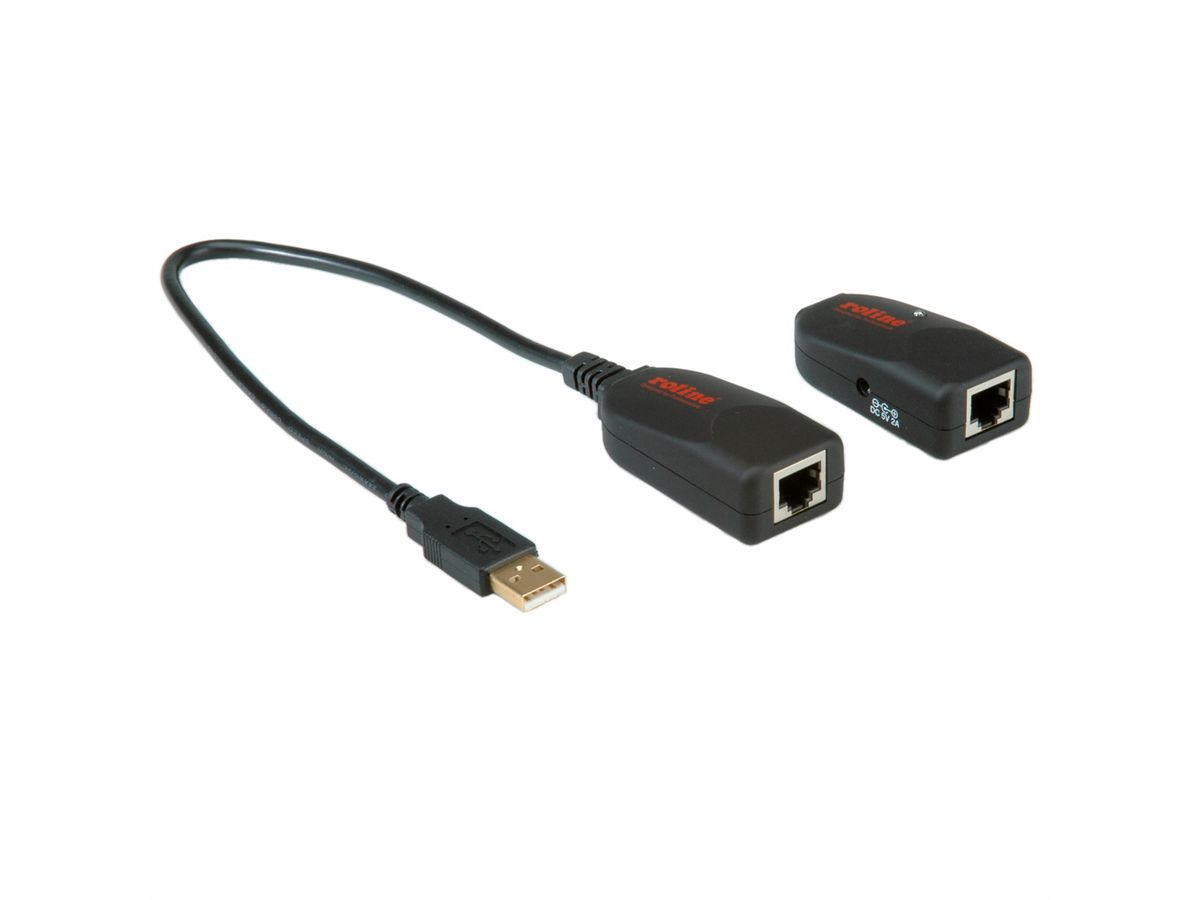

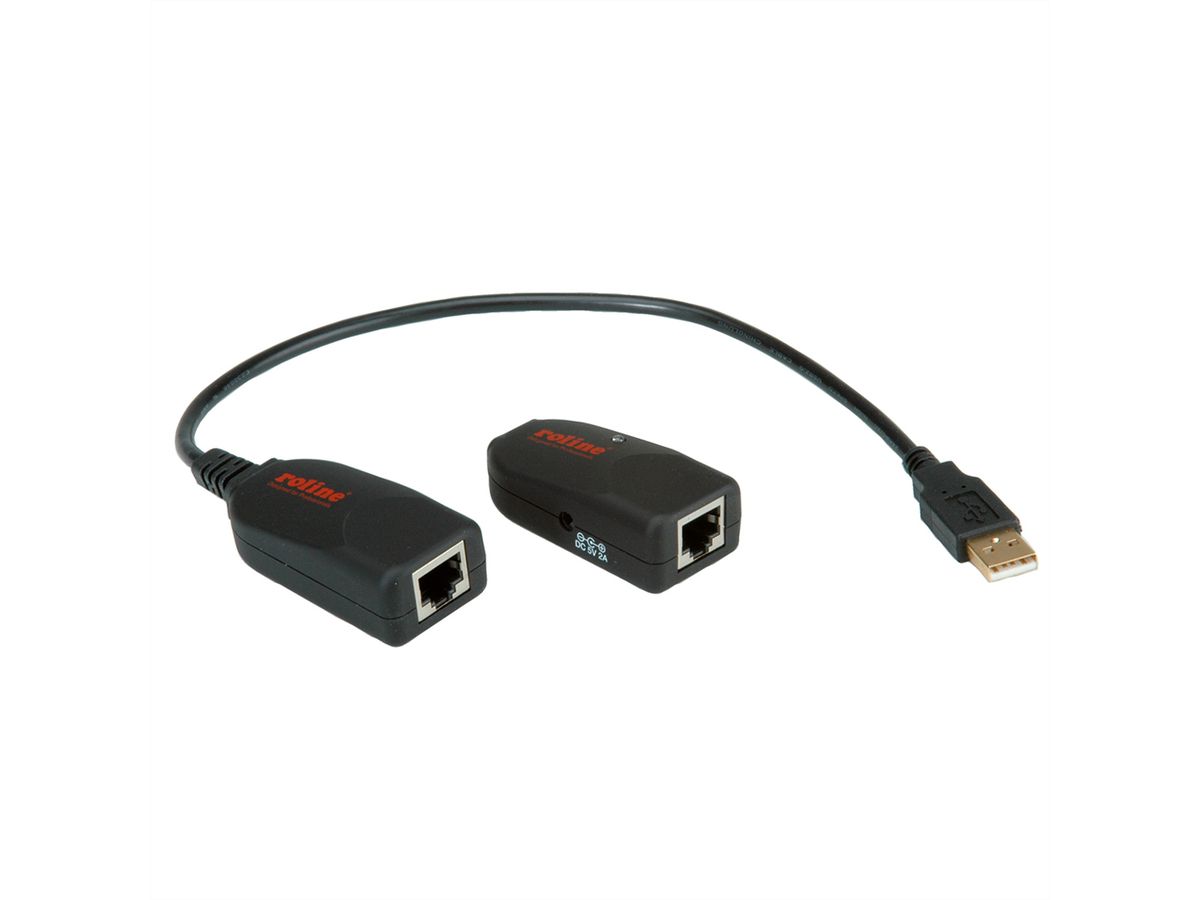

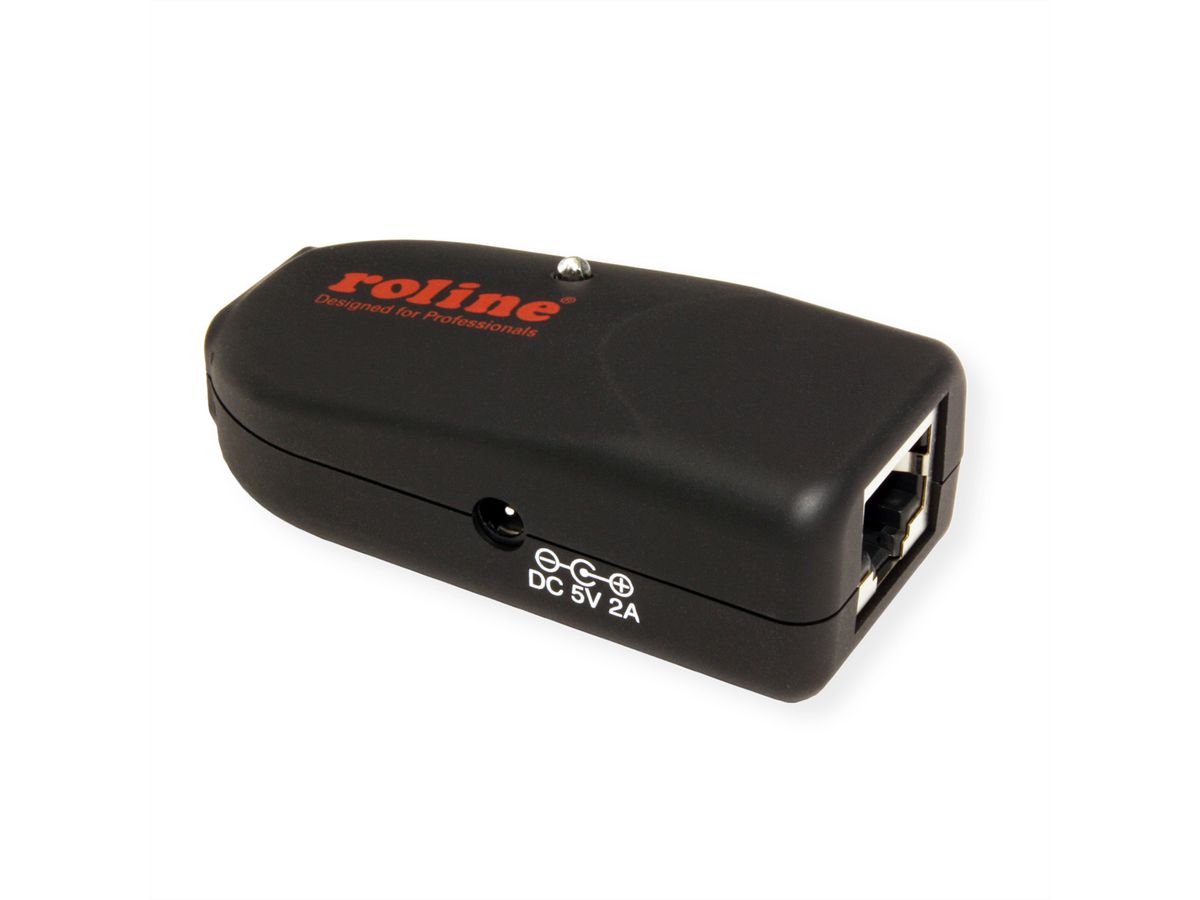

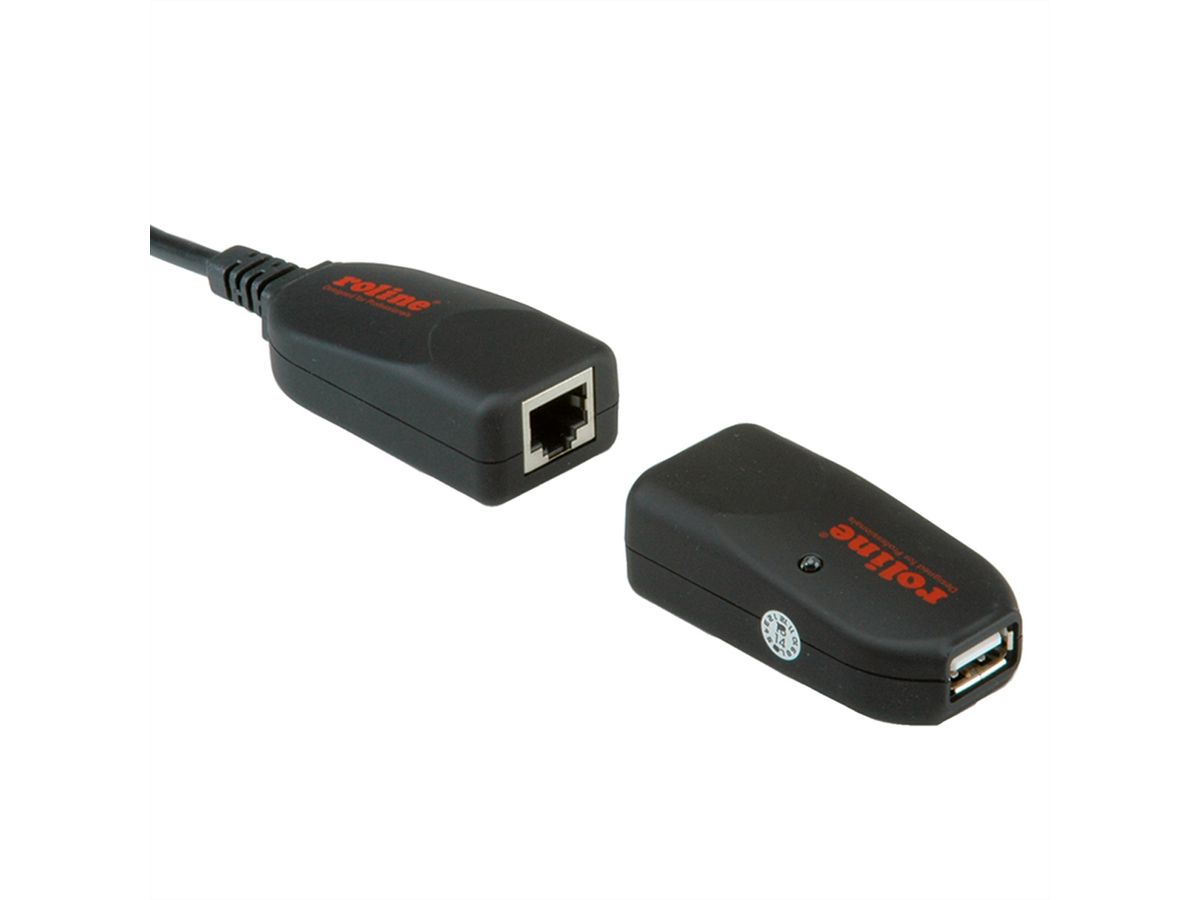

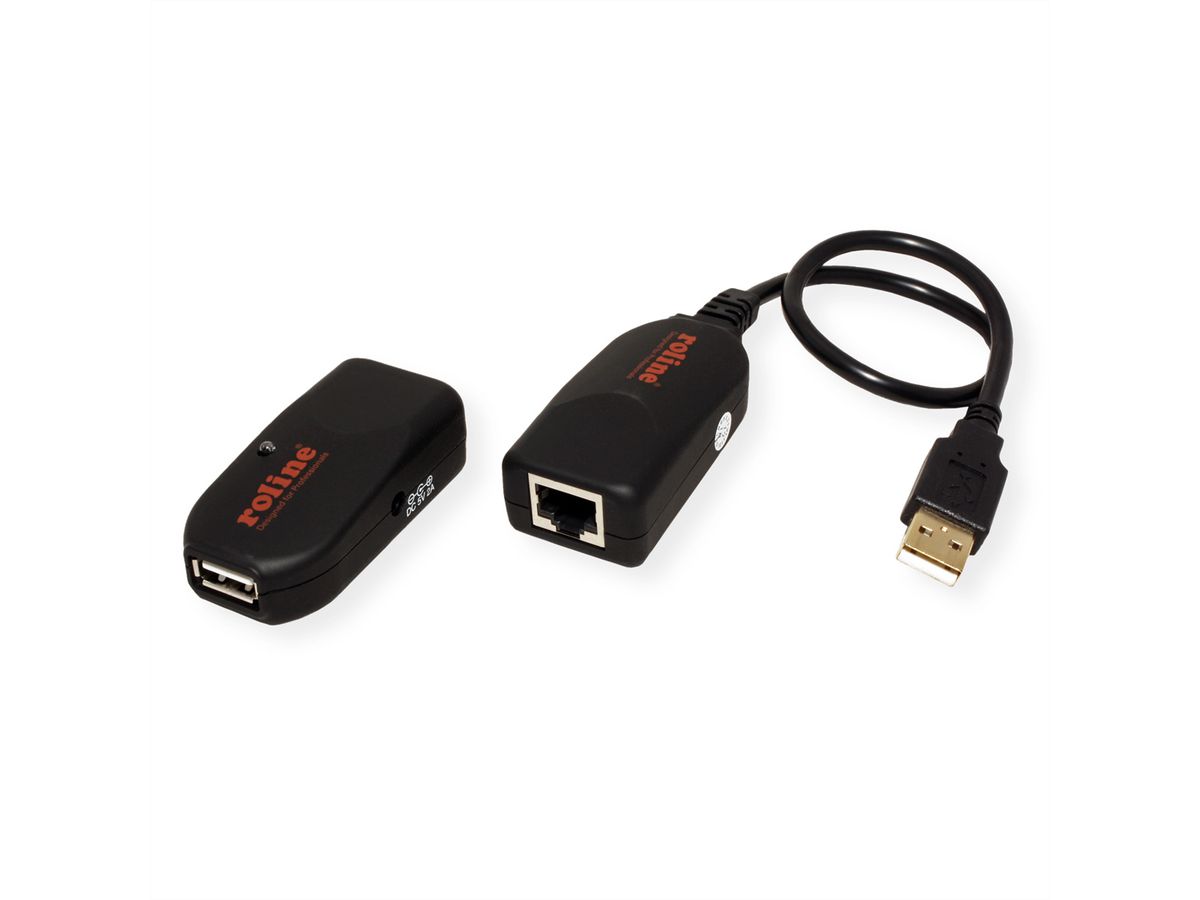

  • Contents: Master unit (RJ-45 Female; USB Type A Male with 28 cm cable), remote unit (RJ-45 Female; USB Type A Female), power supply (5VDC, 2A)

Specifications

Manufacturer ROLINE
Product group Adapters, Terminators, Converters
Product type USB extension
Colour black
Scope of delivery Master unit (RJ45F, USB Type A M with 28cm cable), Remote unit (RJ45F, USB Type A F)
Transfer quality USB 2.0 Hi-Speed 480 Mbit/s
Side 1 connection (PC) USB A Male
Side 2 connection (Peripherals) USB A Female
Side 1 Connector Type USB 2.0 Type A
Side 1 Connector Gender Male
Side 2 Connector Type USB 2.0 Type A
Side 2 Connector Gender Female
Conversion direction USB - TP - USB
Area of application External
Technical particularity Connection over Twisted Pair Cable
Weight 64.8 g
Height of packaging (single piece) 66 mm
Width of packaging (single piece) 205 mm
Depth of packaging (single piece) 235 mm
Package weight (single piece) 0.38 kg

Downloads

Product data sheet - English (45.5 KB)

Download

Manufacturer data sheet - English (543.7 KB)

Download

User manual - Deutsch (302.2 KB)

Download

User manual - English (298.5 KB)

Download

User manual - Français (62.4 KB)

Download

The products of our own brand ROLINE are designed for professional continuous operation.

With a 2-year functional guarantee, we stand by our performance promise.

ROLINE – Quality makes the difference.
