ROLINE USB 2.0 Extender over RJ-45, PoC, 1x USB, max. 50m

ROLINE USB 2.0 Extender over RJ-45, PoC, 1x USB, max. 50m

Please log in to be able to use the shopping cart and then complete orders.

Log in
Deliverable approx. 10/08/2024
Item no. 12.04.1102-4
Brand / Manufacturer ROLINE
Manuf. no. 12.04.1102
EAN 7611990946624
Package weight 0.55 kg

Description

  • Extends your USB Port over RJ45 (up to 50 meters) and allows the connection of one (1x) USB2.0 device (hub functionality)

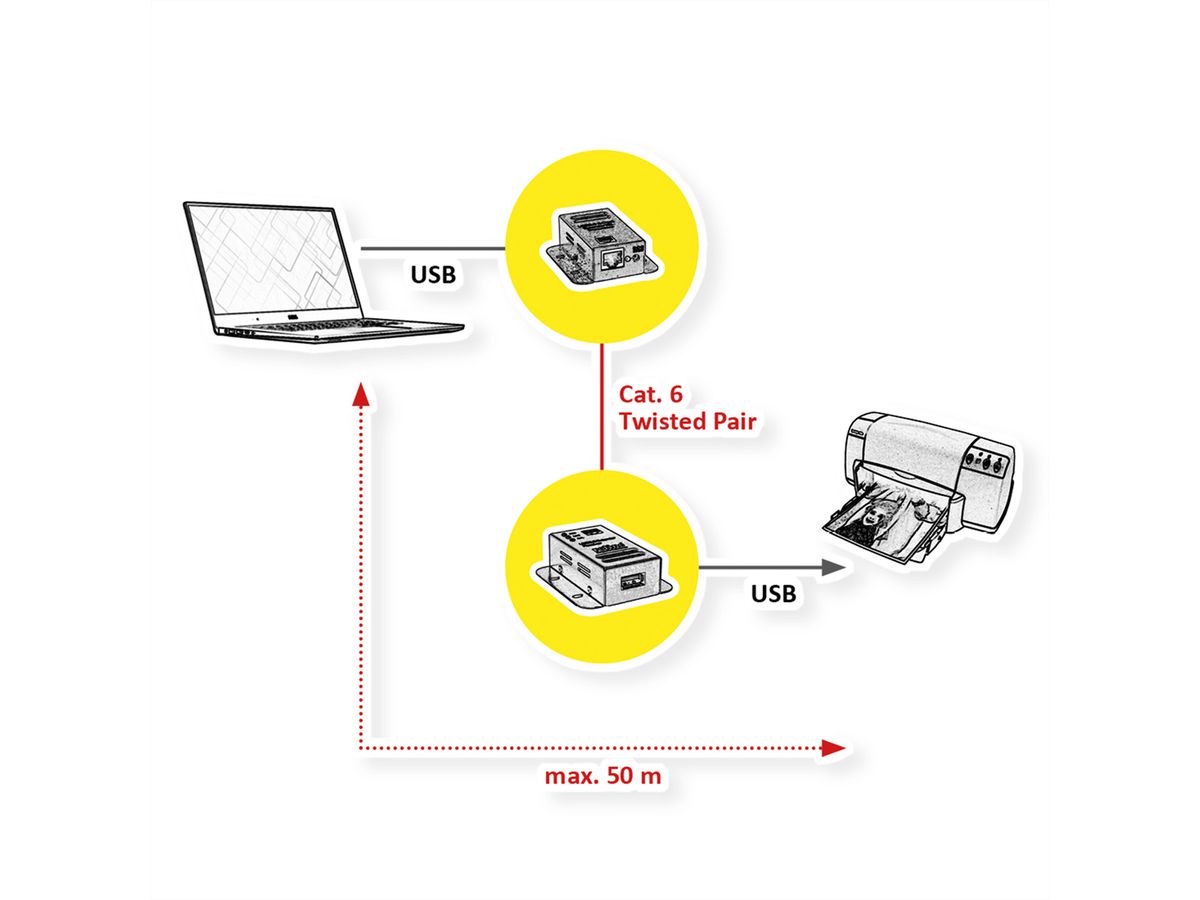

  • For example to connect an USB printer in another room with your PC
  • Supports USB 2.0, downwards compatible with USB 1.1/1.0
  • Hot plug
  • No additional software for extender required
  • Connection via Cat.5e/Cat. 6 Twisted Pair cable
  • Supports data rates up to 480Mbit/s
  • Transmitter: USB A Male connector / RJ45
  • Receiver: 1x USB A Female connector / RJ45
  • Supports PoC (Power over Cable)
  • External power supply is needed for transmitter (included, 24 VDC, 0.5A)
  • Metal case, wall mounting option

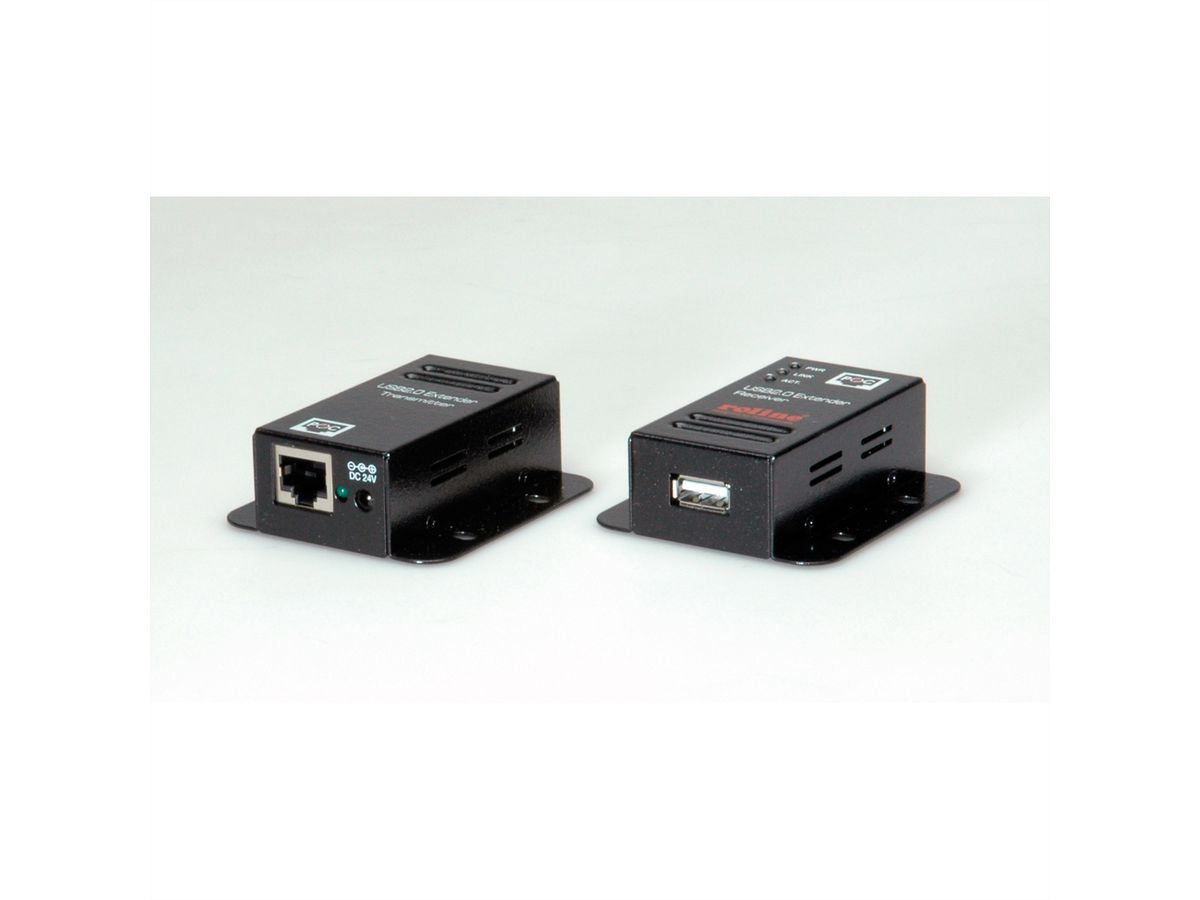

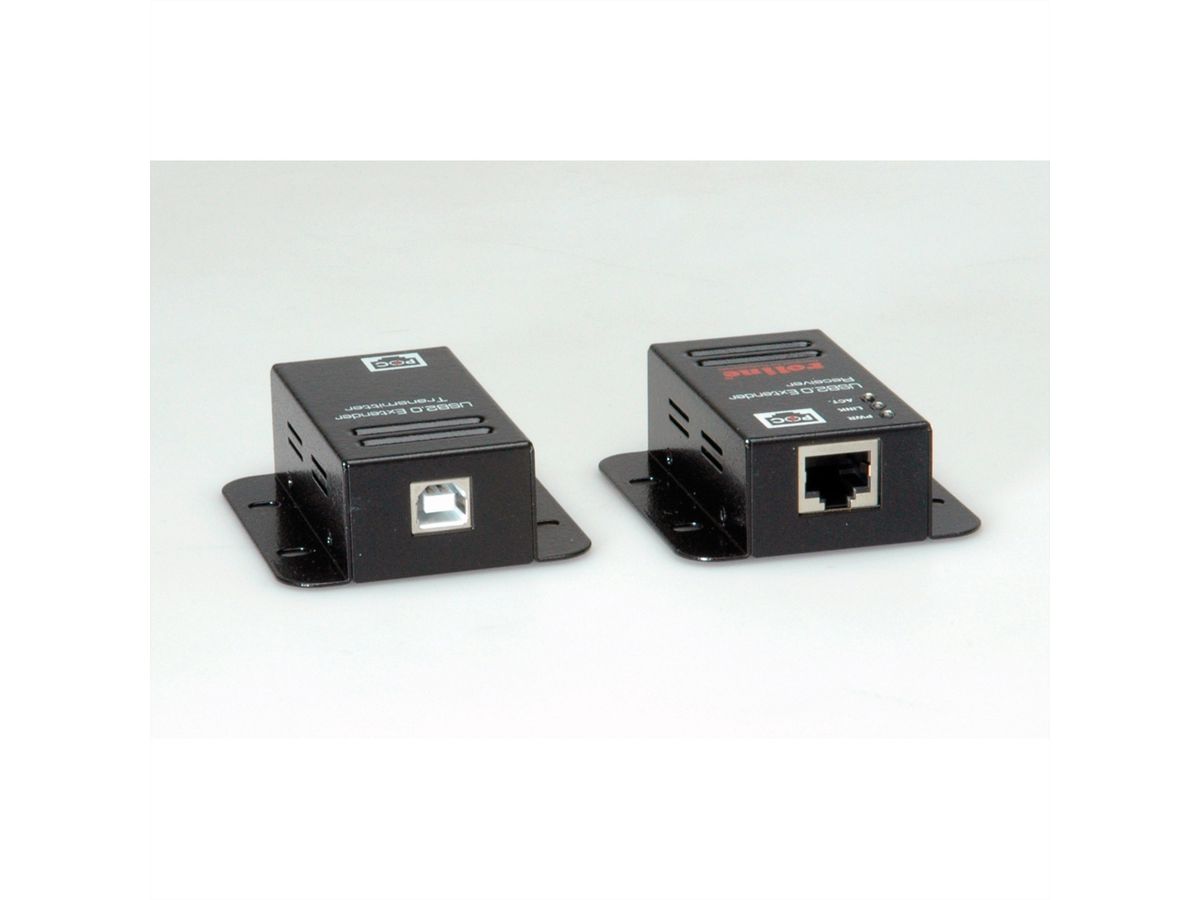

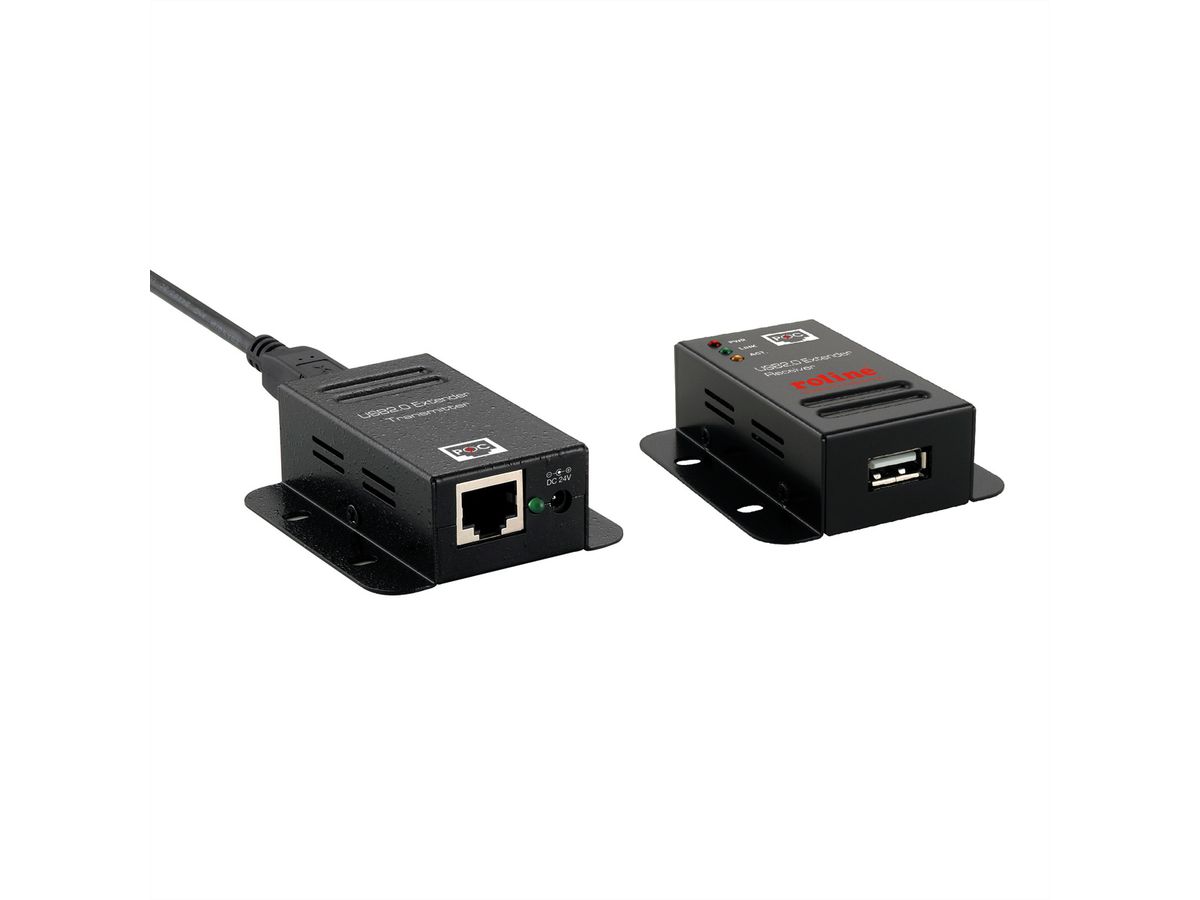

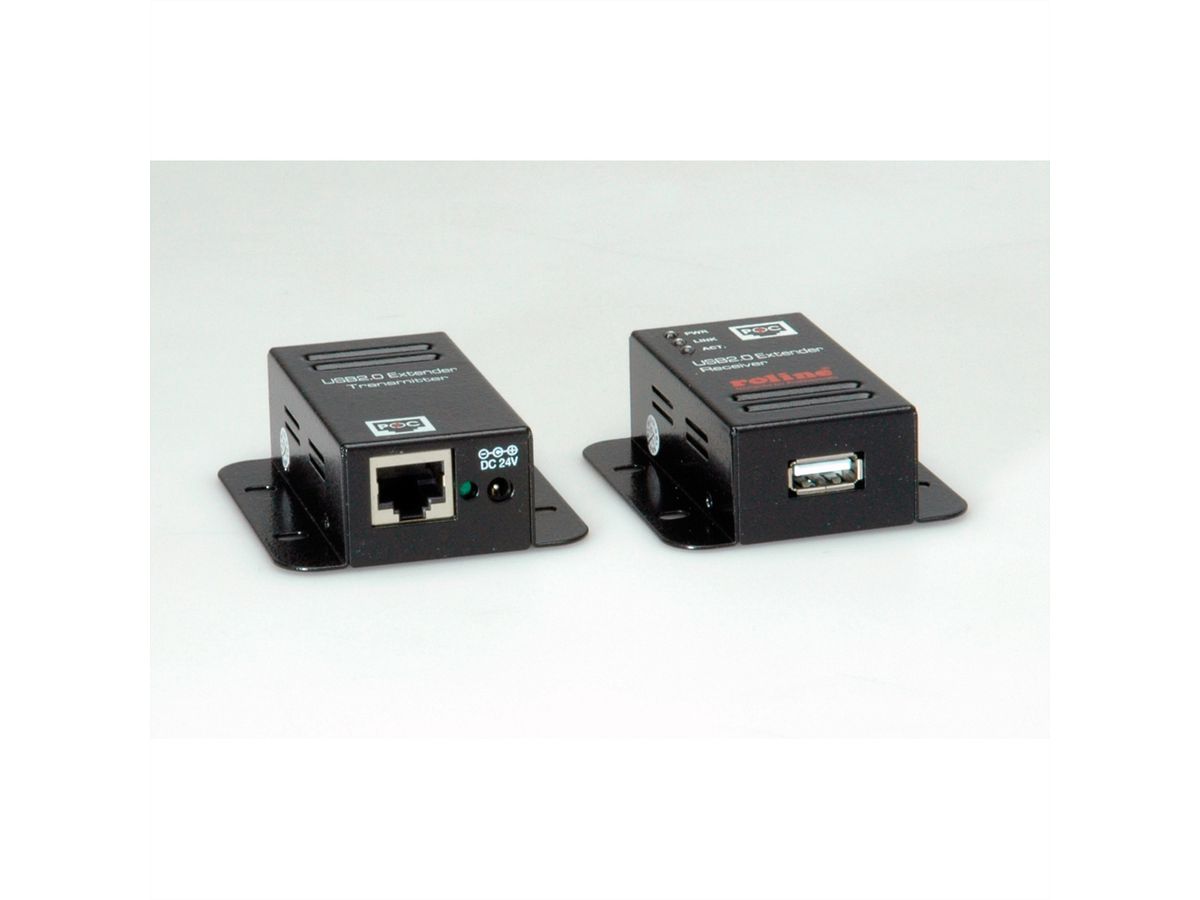

  • Contents: Master unit (RJ45 Female; USB Type A Male), remote unit (RJ45 Female; USB Type A Female), power supply (24 VDC, 0.5A)

Specifications

Manufacturer ROLINE
Product group Adapters, Terminators, Converters
Product type USB extension
Colour black
Scope of delivery Master unit (RJ45F, USB Type A M with 28cm cable), Remote unit (RJ45F, USB Type A F)
Transfer quality USB 2.0 Hi-Speed 480 Mbit/s
Side 1 connection (PC) USB A Male
Side 2 connection (Peripherals) USB A Female
Side 1 Connector Type USB 2.0 Type B
Side 1 Connector Gender Female
Side 2 Connector Type USB 2.0 Type A
Side 2 Connector Gender Female
Conversion direction USB - TP - USB
Area of application External
Technical particularity Connection over Twisted Pair Cable
Weight 354.7 g
Height of packaging (single piece) 70 mm
Width of packaging (single piece) 200 mm
Depth of packaging (single piece) 240 mm
Package weight (single piece) 0.55 kg
