The products of our own brand ROLINE are designed for professional continuous operation.
With a 2-year functional guarantee, we stand by our performance promise.
ROLINE – Quality makes the difference.
:strip_icc():strip_exif()/bilder/s12/12021003_a_102.jpg "ROLINE USB 2.0 to RS232 Adapter, for DIN Rail, 4 Ports")
:strip_icc():strip_exif()/bilder/s12/12021003_2019_d_0_hi.jpg "ROLINE USB 2.0 to RS232 Adapter, for DIN Rail, 4 Ports")
:strip_icc():strip_exif()/bilder/s12/12021003_b_102.jpg "ROLINE USB 2.0 to RS232 Adapter, for DIN Rail, 4 Ports")

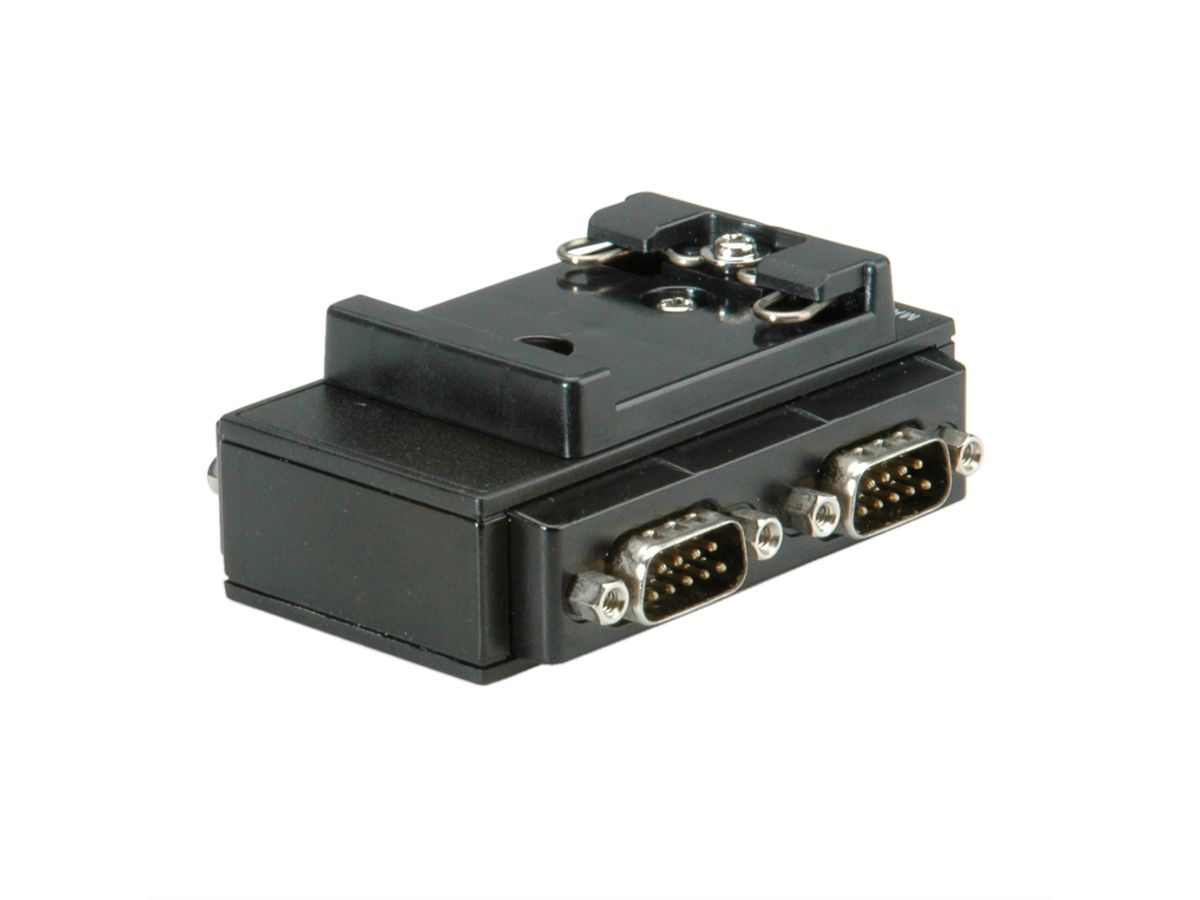

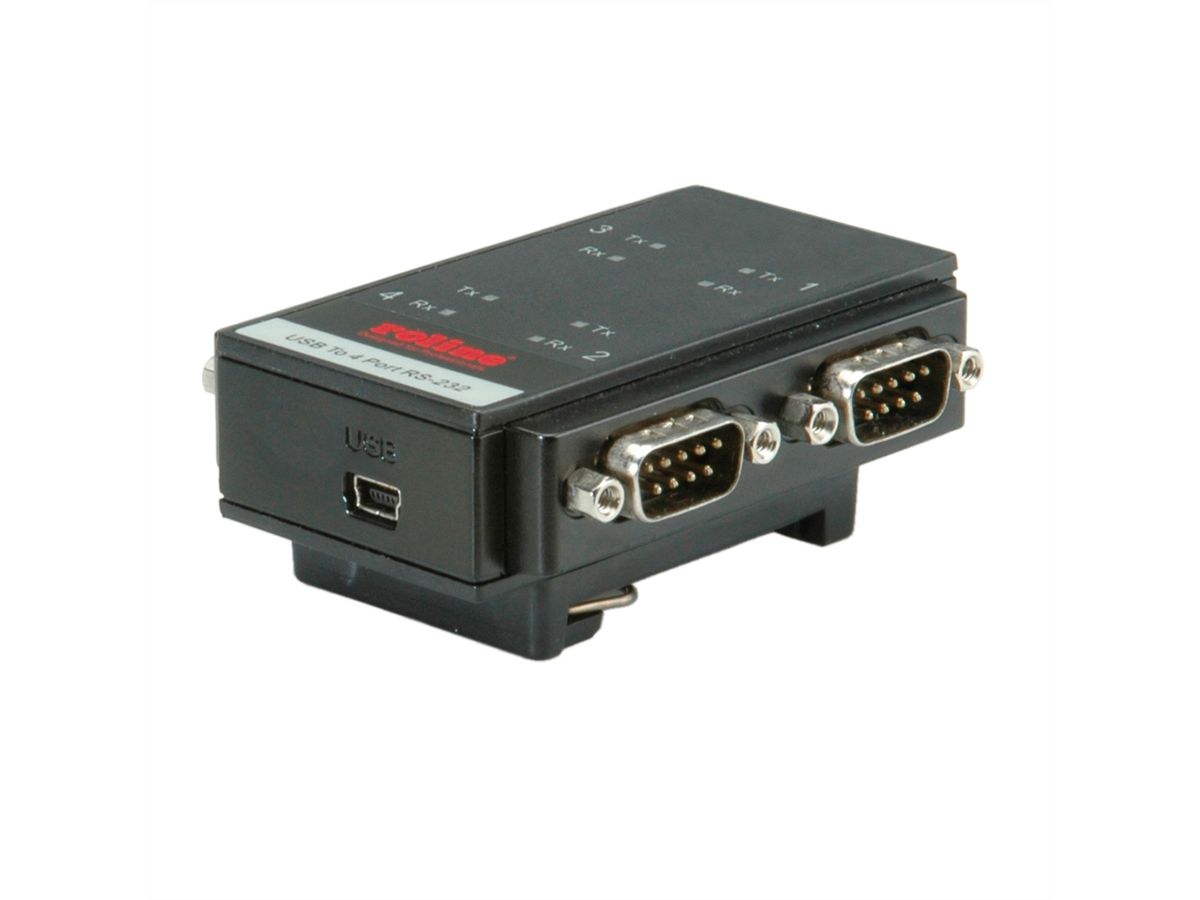

ROLINE USB 2.0 to RS232 Adapter, for DIN Rail, 4 Ports
Please log in to be able to use the shopping cart and then complete orders.
Log in| Item no. | 12.02.1003-4 |
|---|---|
| Brand / Manufacturer | ROLINE |
| Manuf. no. | 12.02.1003 |
| EAN | 7611990994830 |
| Package weight | 0.22 kg |
:strip_icc():strip_exif()/logos/roline.png "ROLINE")
Description

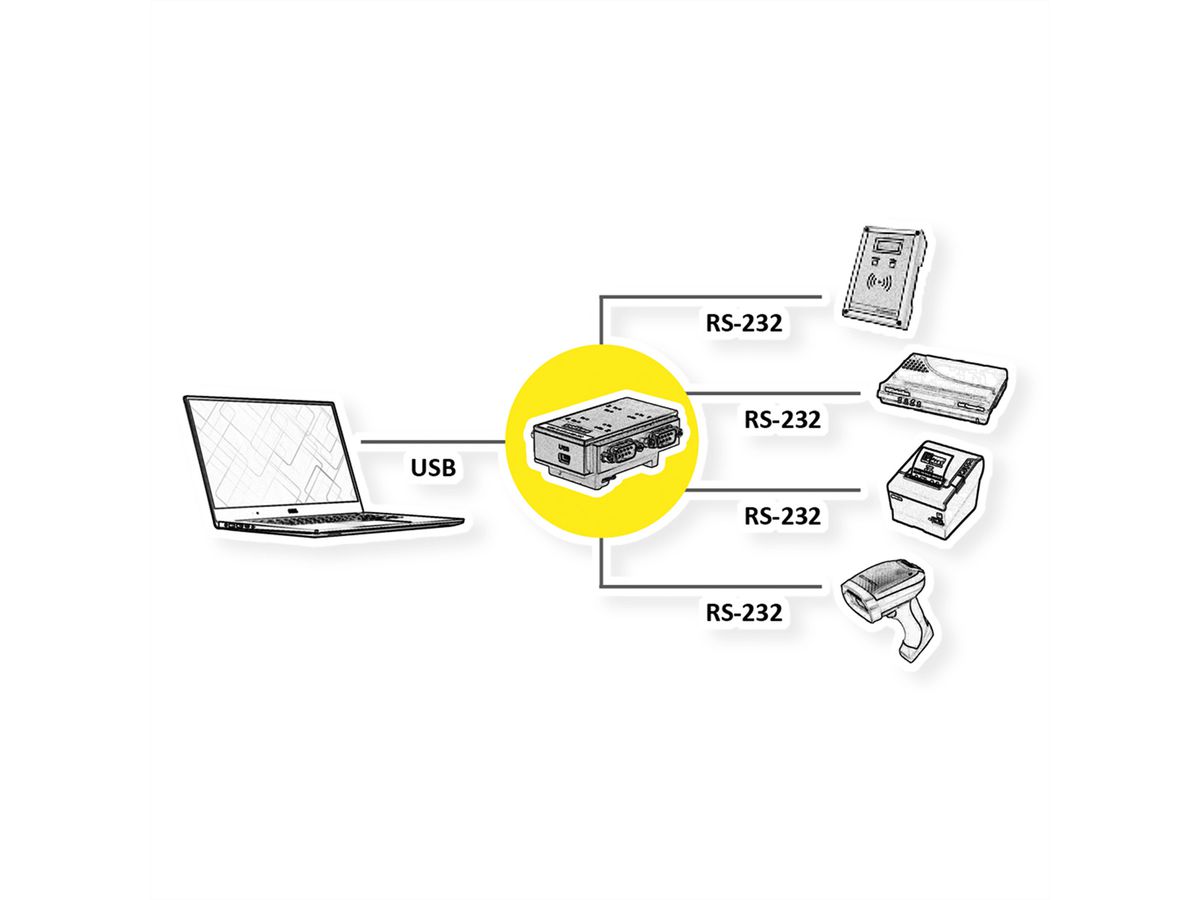

Converter to connect serial devices to a USB port on your PC- Compatible with USB 2.0, USB 1.1, USB 1.0
- Data transfer rate of up to 115 Kbit/s
- 15 KV ESD protection for all RS232 ports
- Connectors: 4x DB9 Male, 1x Mini USB type B
- For DIN Rail mounting
- Windows 98SE/ME/2000/Server 2003/XP/Server 2008/XP/Vista/7
- Power supply over Mini USB type B connector (40mA)
Specifications
| Manufacturer | ROLINE |
|---|---|
| Product group | Adapters, Terminators, Converters |
| Product type | USB - Serial Converter |
| Colour | black |
| Scope of delivery | converter, driver CD, manual |
| Side 1 connection (PC) | 1x USB Typ A Stecker |
| Side 2 connection (Peripherals) | 4 x DB9 Male |
| Side 1 Connector Type | USB 2.0 Type A |
| Side 1 Connector Gender | Male |
| Side 2 Connector Type | D-Sub 9-pin (DE-9) |
| Side 2 Connector Gender | Male |
| Conversion direction | serial - USB |
| Area of application | External |
| Dimensions (HxWxD) | 22,5 x 63,5 x 80,5 mm |
| Technical particularity | for DIN Rail |
| Height | 22.5 mm |
| Width | 63.5 mm |
| Depth | 80.5 mm |
| Weight | 149.3 g |
| Height of packaging (single piece) | 45 mm |
| Width of packaging (single piece) | 140 mm |
| Depth of packaging (single piece) | 190 mm |
| Package weight (single piece) | 0.22 kg |
