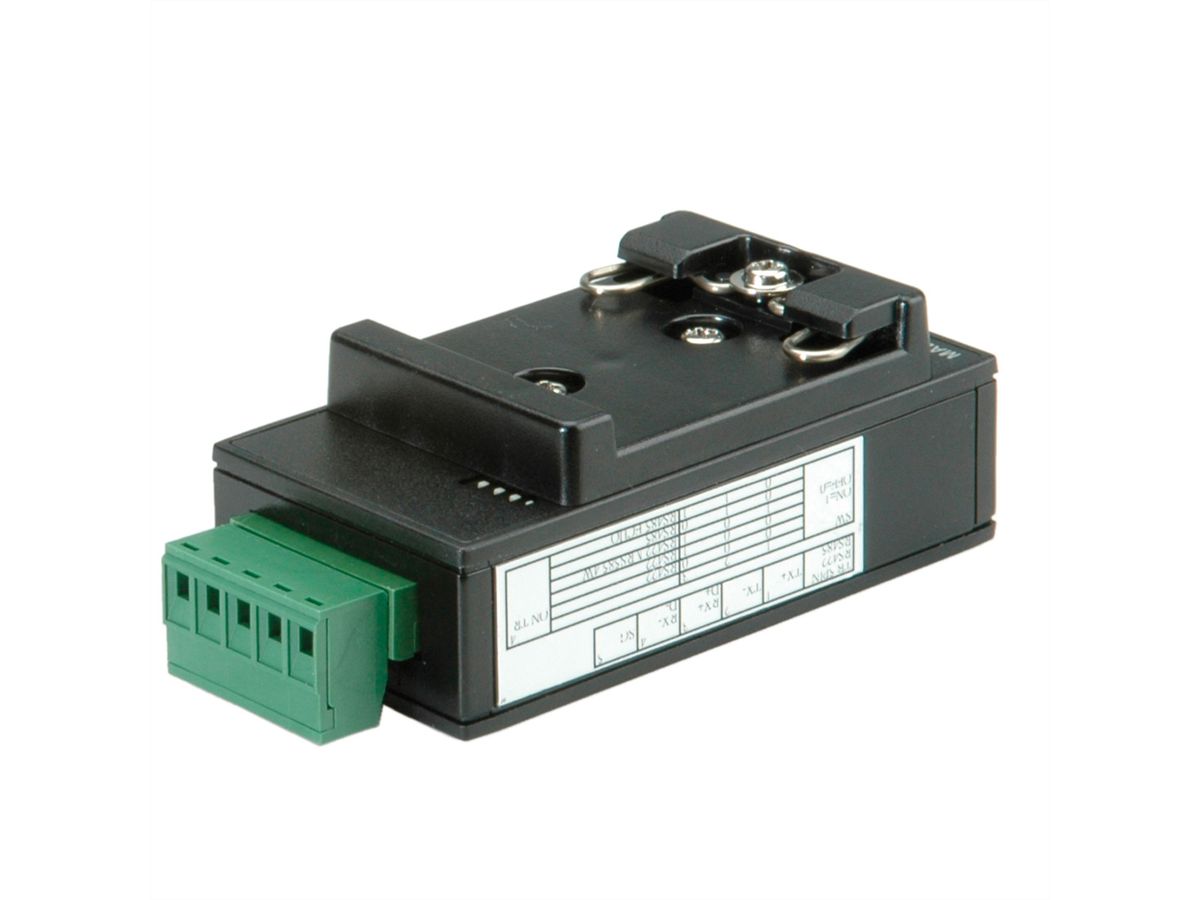

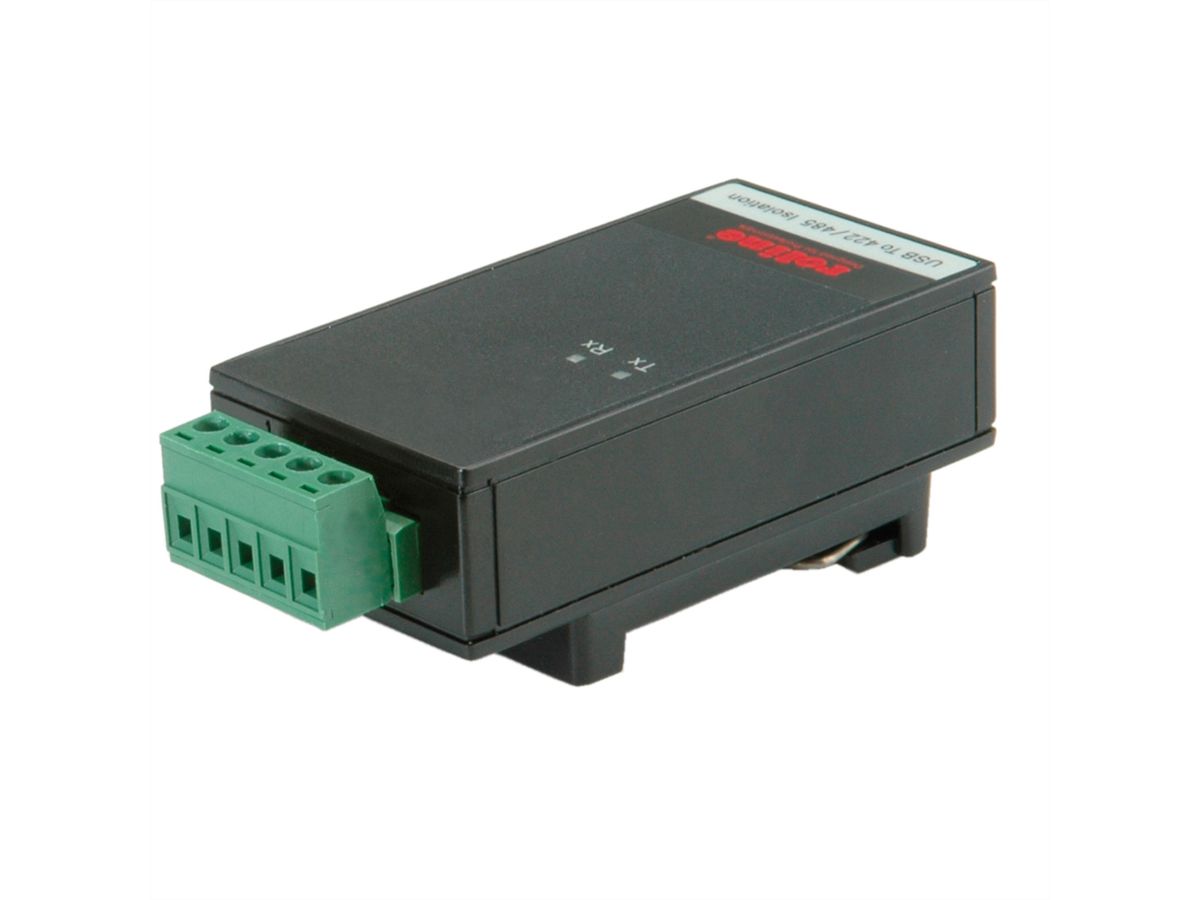

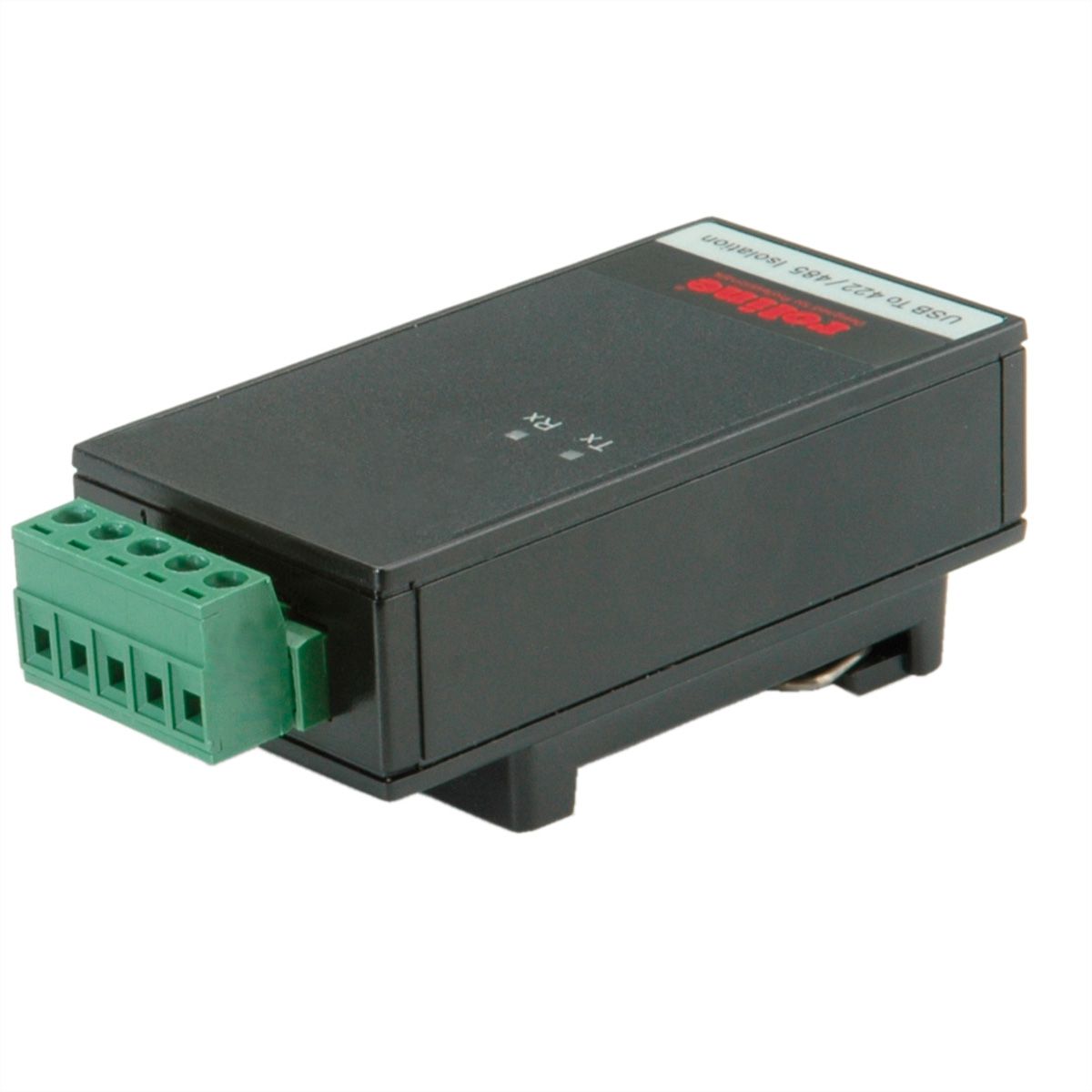

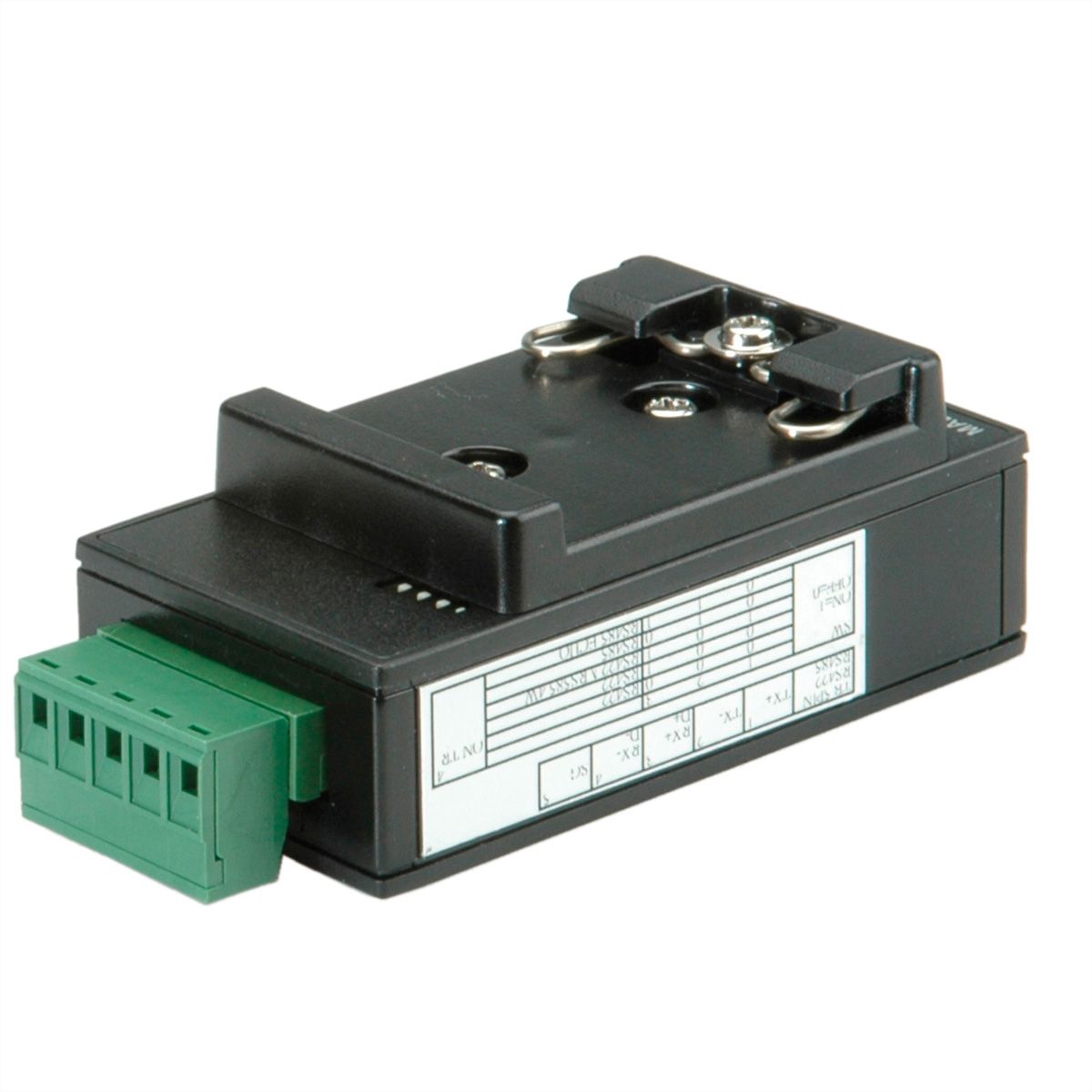

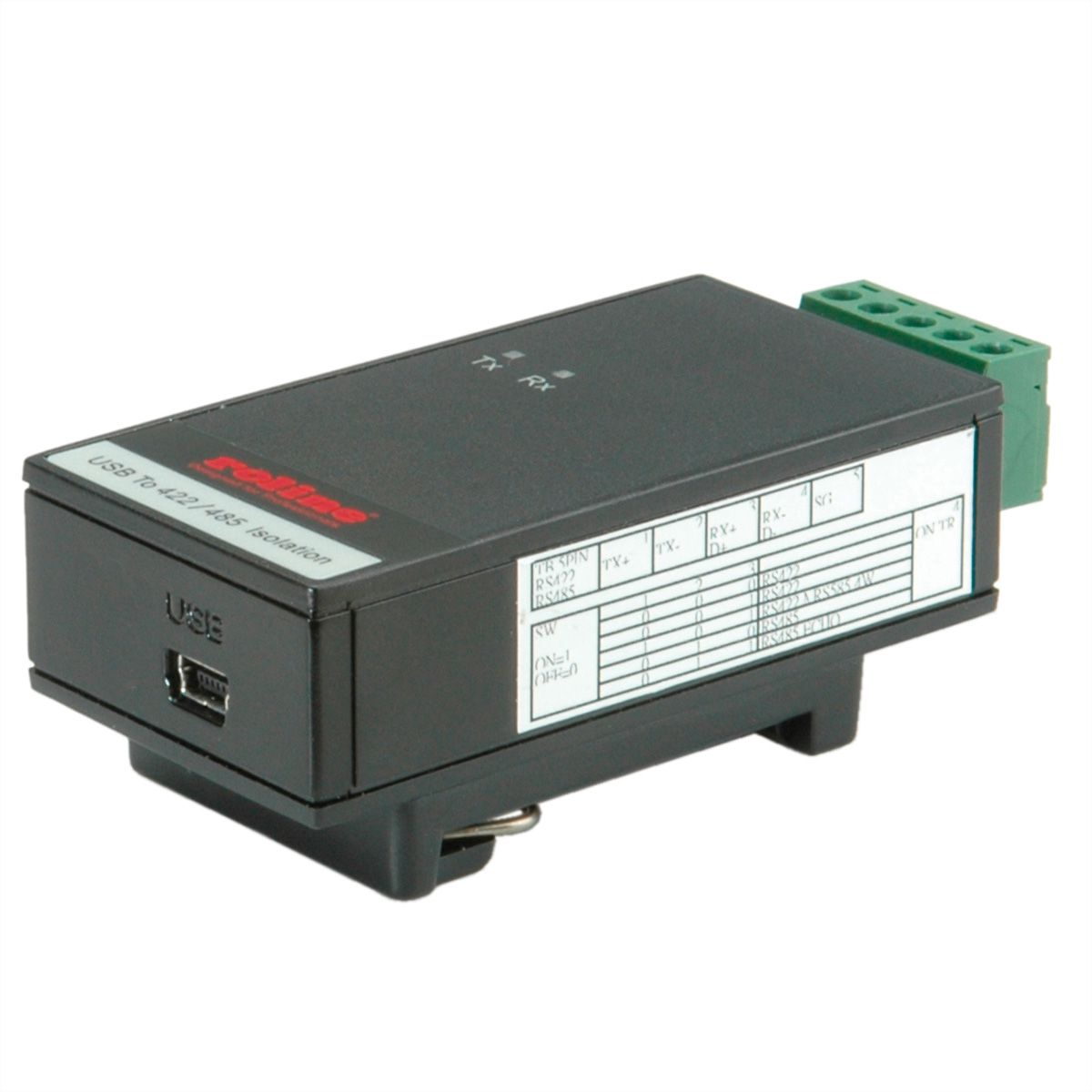

ROLINE USB 2.0 to RS422/485 Adapter, with Isolation, for DIN Rail

Item no. 12.02.1004-4 Brand / Manufacturer ROLINE Manuf. no. 12.02.1004 EAN 7611990994847 Package weight 0.2 kg
ROLINE

Please log in to be able to use the shopping cart and then complete orders.

Log in
Available
Ordered until 3 pm - usually dispatched on the same day

Description

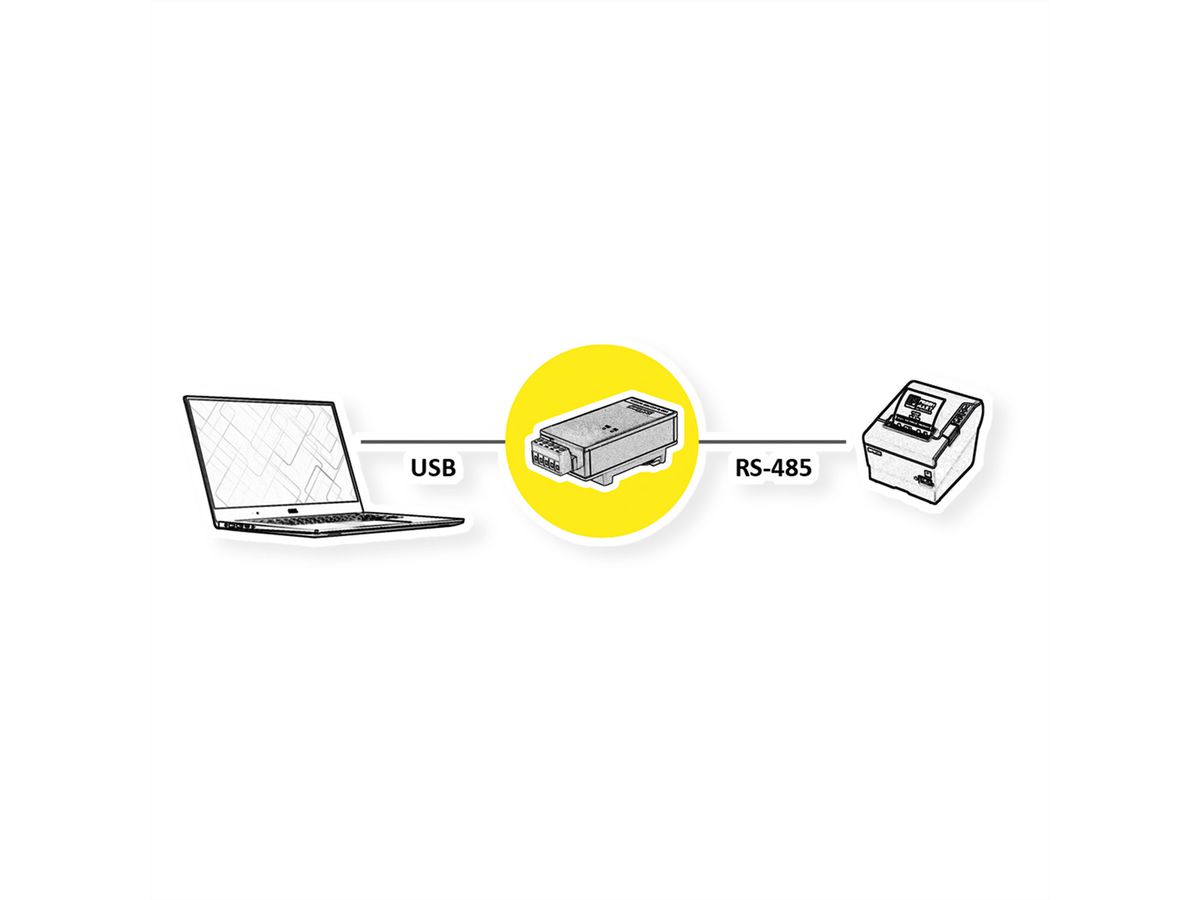

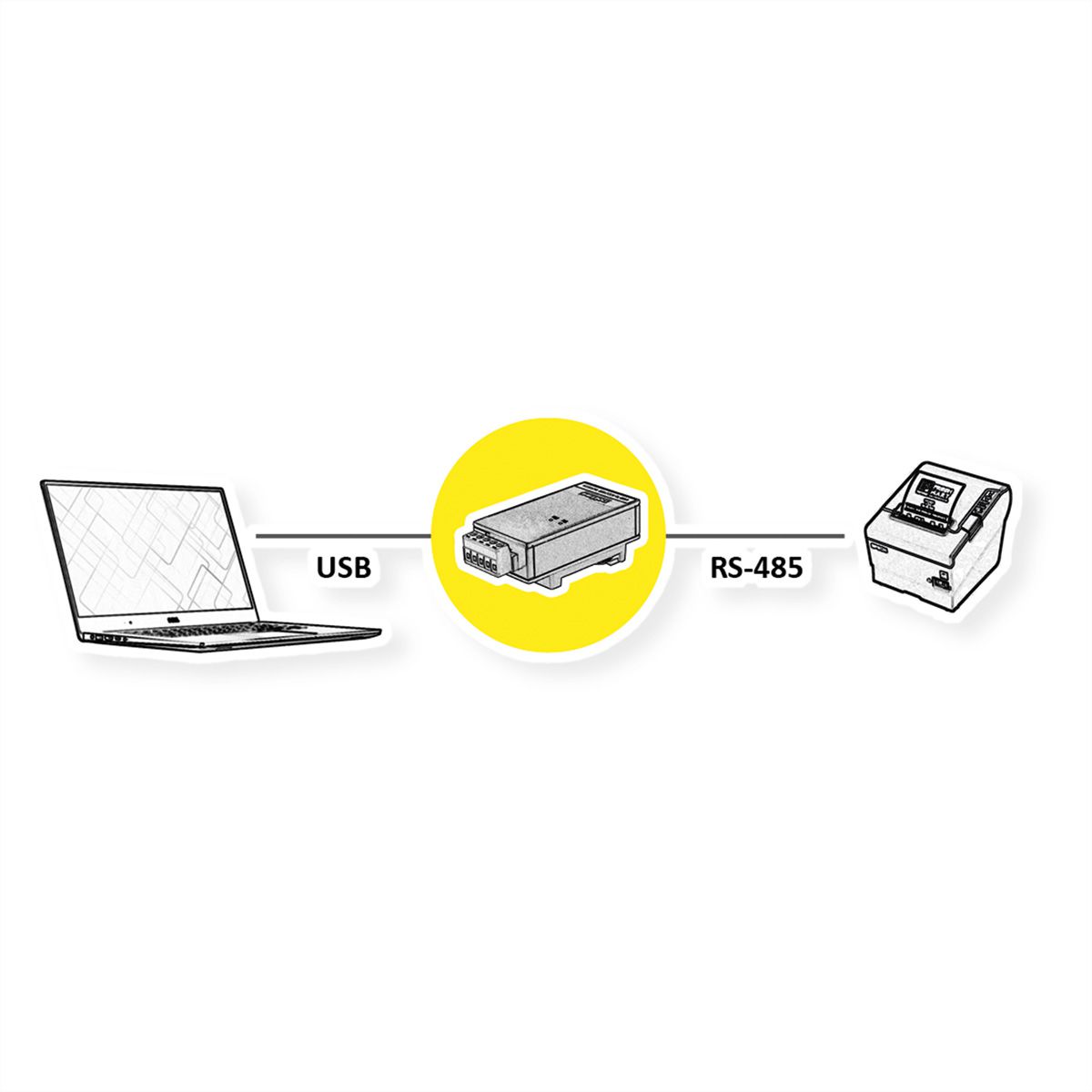

  • Converter to connect serial devices to a USB port on your PC
  • Mode: Asynchronous serial communication
  • Compatible with USB 2.0, USB 1.1, USB 1.0
  • Isolation 3000 VDC (optical)
  • Connectors: 5-pin terminal block, 1x Mini USB type B
  • Data transfer rate of up to 115 Kbit/s
  • Terminal resistance and Echo mode
  • DIP switches for terminal settings
  • Signals: TX+, TX-, RX+, RX-, SGND
  • Protection: 15 KV ESD protection for all signals, RS-422/485 signals surge protection
  • Status LEDs
  • For DIN rail mounting
  • Power supply over Mini USB type B connector (54 mA)
  • Windows ME/2000/Server 2003/XP/Server 2008/XP/Vista/7/10/11

Specifications

Manufacturer
ROLINE
Product group
Adapters, Terminators, Converters
Product type
USB - Serial Converter
Colour
black
Scope of delivery
Converter, USB cable, driver CD, manual
Side 1 connection (PC)
Mini USB
Side 2 connection (Peripherals)
Terminal block
Side 1 Connector Type
USB 2.0 Type A
Side 1 Connector Gender
Male
Side 2 Connector Type
Terminal block, 5-pin
Side 2 Connector Gender
Female
Conversion direction
RS422/RS485- USB
Area of application
External
Dimensions (HxWxD)
22 x 42 x 92 mm
Technical particularity
DIN Rail
Height
22 mm
Width
42 mm
Depth
92 mm
Weight
96.8 g
Height of packaging (single piece)
45 mm
Width of packaging (single piece)
140 mm
Depth of packaging (single piece)
190 mm
Package weight (single piece)
0.2 kg

Downloads

Product data sheet - English (43.9 KB) Manufacturer data sheet - English (643.8 KB) User manual - Deutsch (288.0 KB) User manual - English (285.9 KB) User manual - Français (26.7 KB)
