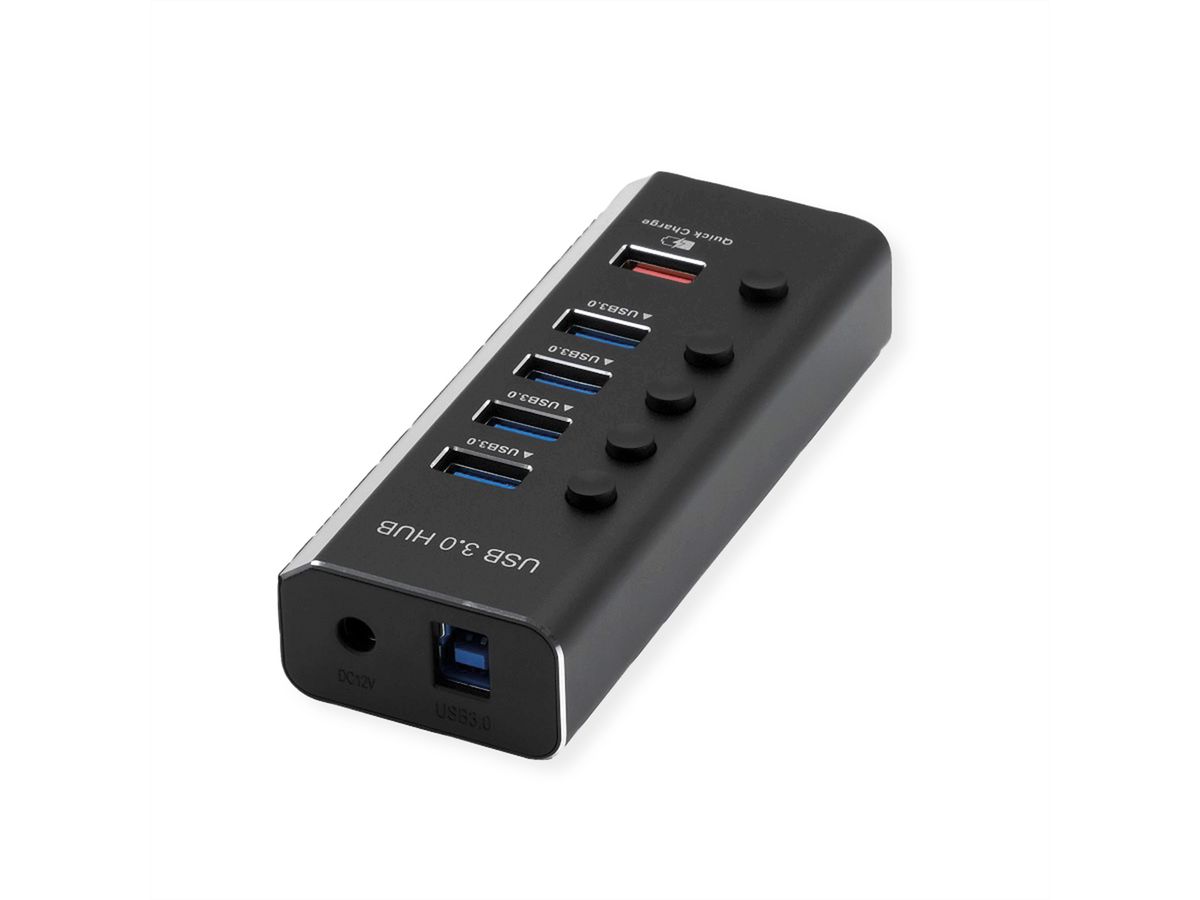

ROLINE USB 3.2 Gen 1 Hub, 4 Ports + 1x Charging Port, Switchable

Item no. 14.02.5058-5 Brand / Manufacturer ROLINE Manuf. no. 14.02.5058 EAN 7630049681514 Package weight 0.356 kg
ROLINE

Please log in to be able to use the shopping cart and then complete orders.

Log in
Deliverable approx. 03/15/2027

Description

This hub can connect up to four USB devices with SuperSpeed

  • Data transfer rates of up to 5 Gbit/s
  • Fully backwards compatible with USB 2.0, USB 1.1
  • PC connection: 1x USB 3.0 Type B
  • Input: 4 USB 3.0 Type A SuperSpeed ports
  • Hot-swappable
  • Colour: Black

Note: According to the current specifications of USB.org we have adapted the technical data of our USB 3 products. The new designation for the already known USB specifications has been changed to USB 3.2 Gen 1 (formerly USB 3.0 / USB 3.1 Gen 1) and USB 3.2 Gen 2 (formerly USB 3.1 / USB 3.1 Gen 2).

Specifications

Manufacturer
ROLINE
Product group
Hubs
Product type
USB Hub
Colour
black
Scope of delivery
Hub, power supply, USB 3.0 cable (A- B, 1m)
Device connection
4x USB Typ A
Transfer quality
USB 3.2 Gen 1 SuperSpeed 5 Gbit/s (USB 3.1 Gen 1, USB 3.0)
Side 1 Connector Type
USB 3 Type B
Side 1 Connector Gender
Female
Side 2 Connector Type
USB 3 Type A
Side 2 Connector Gender
Female
Quantity of ports
4
Area of application
External
Material (casing)
Aluminium
Dimensions (HxWxD)
24 x 33 x 133 mm
Power supply unit required
yes
Power supply included
yes
Height
24 mm
Width
33 mm
Depth
133 mm
Weight
131.7 g
Height of packaging (single piece)
0 mm
Width of packaging (single piece)
0 mm
Depth of packaging (single piece)
0 mm
Package weight (single piece)
0.356 kg

Downloads

Product data sheet - English (50.8 KB) User manual - Deutsch (454.0 KB) User manual - English (450.2 KB)
