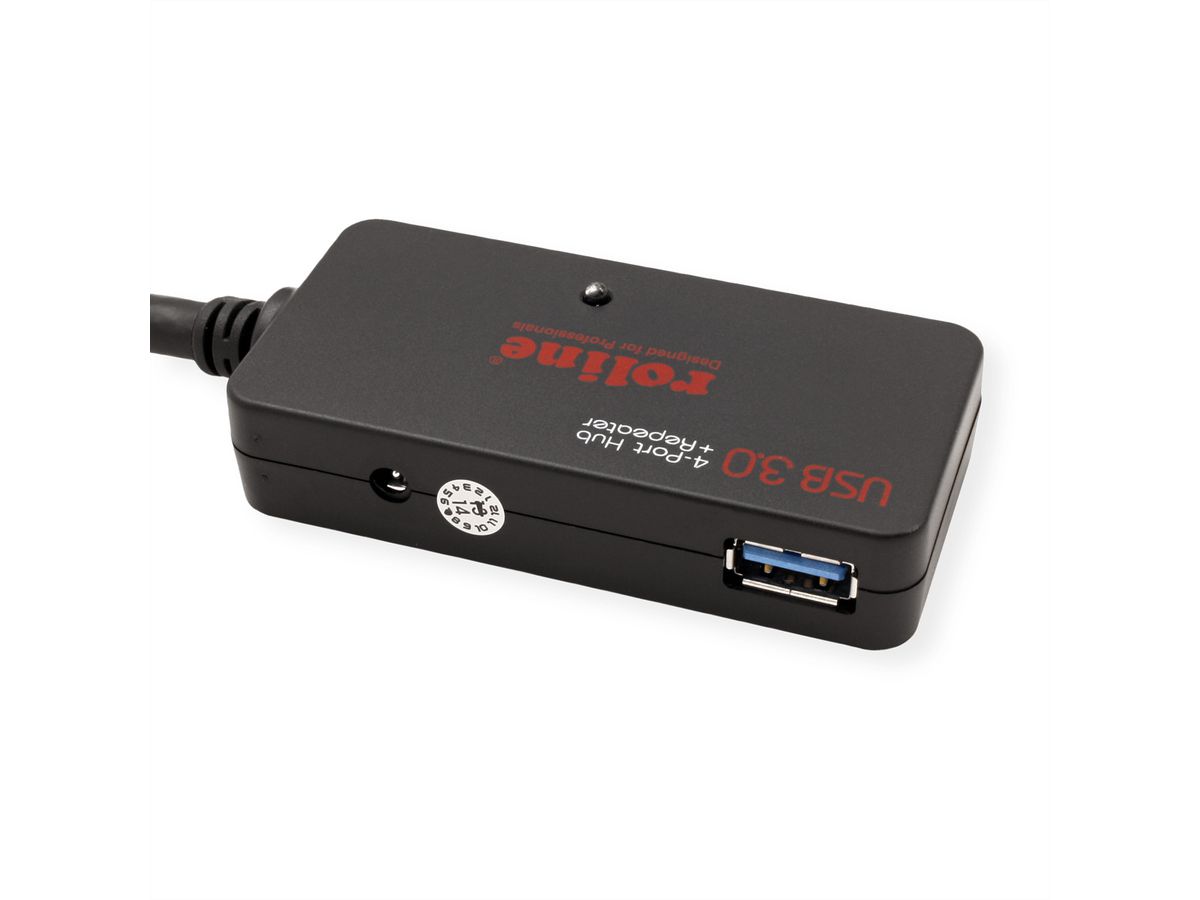

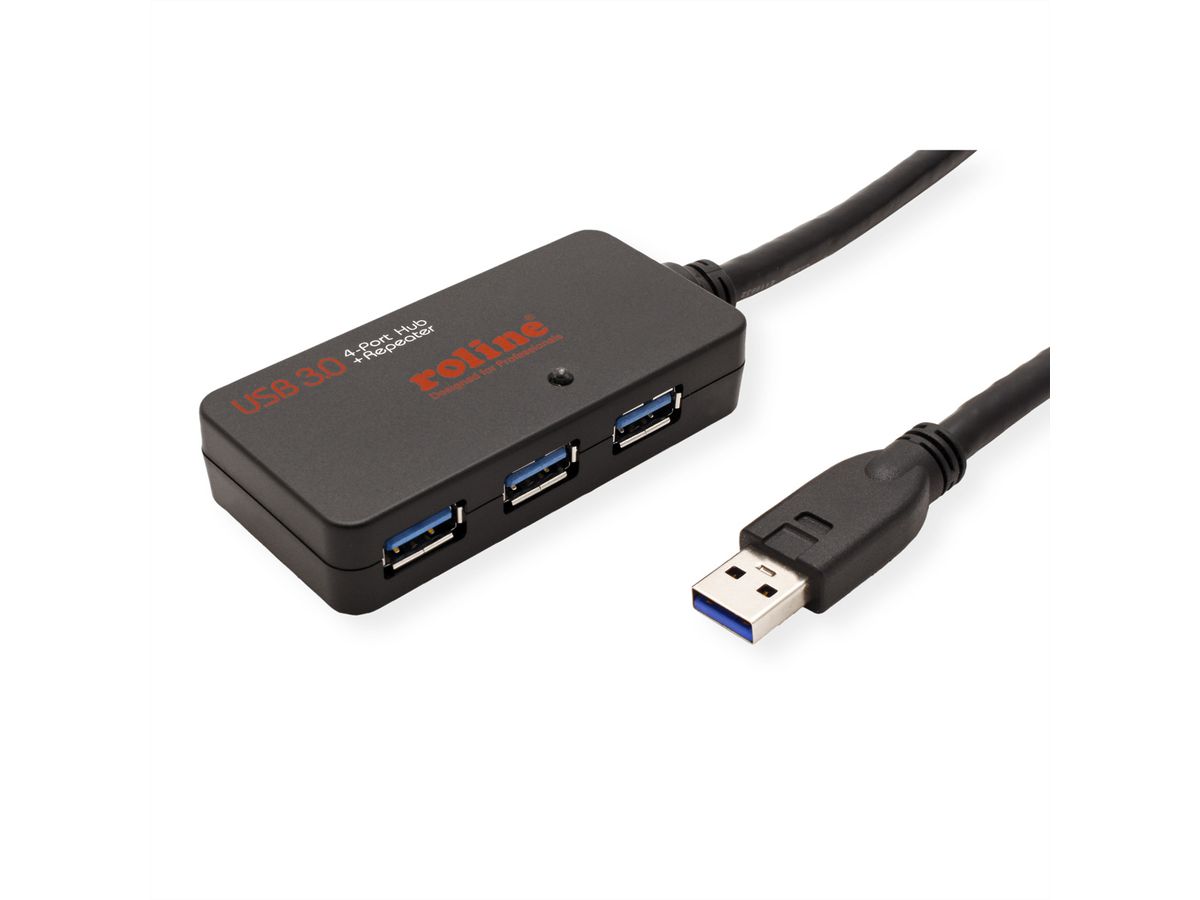

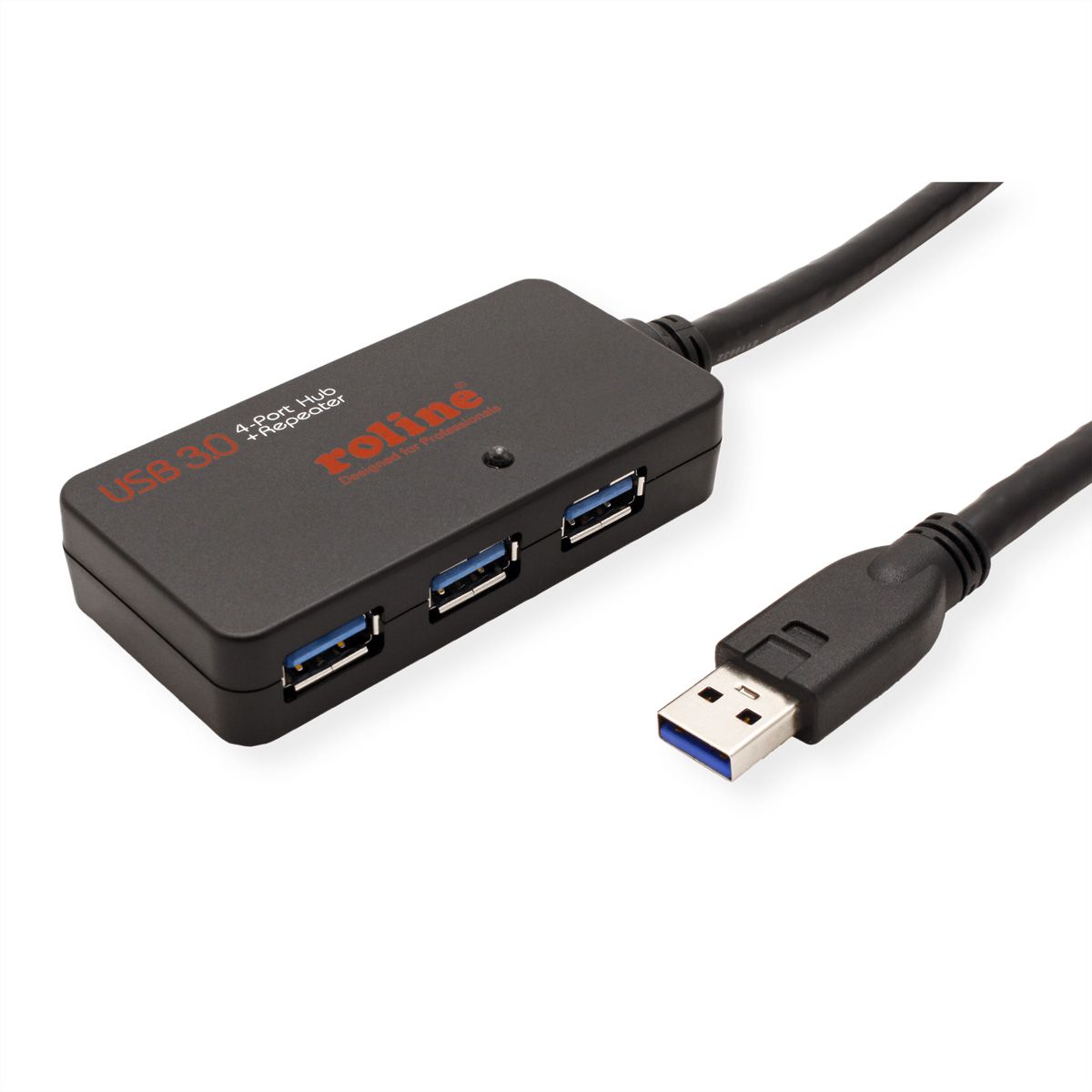

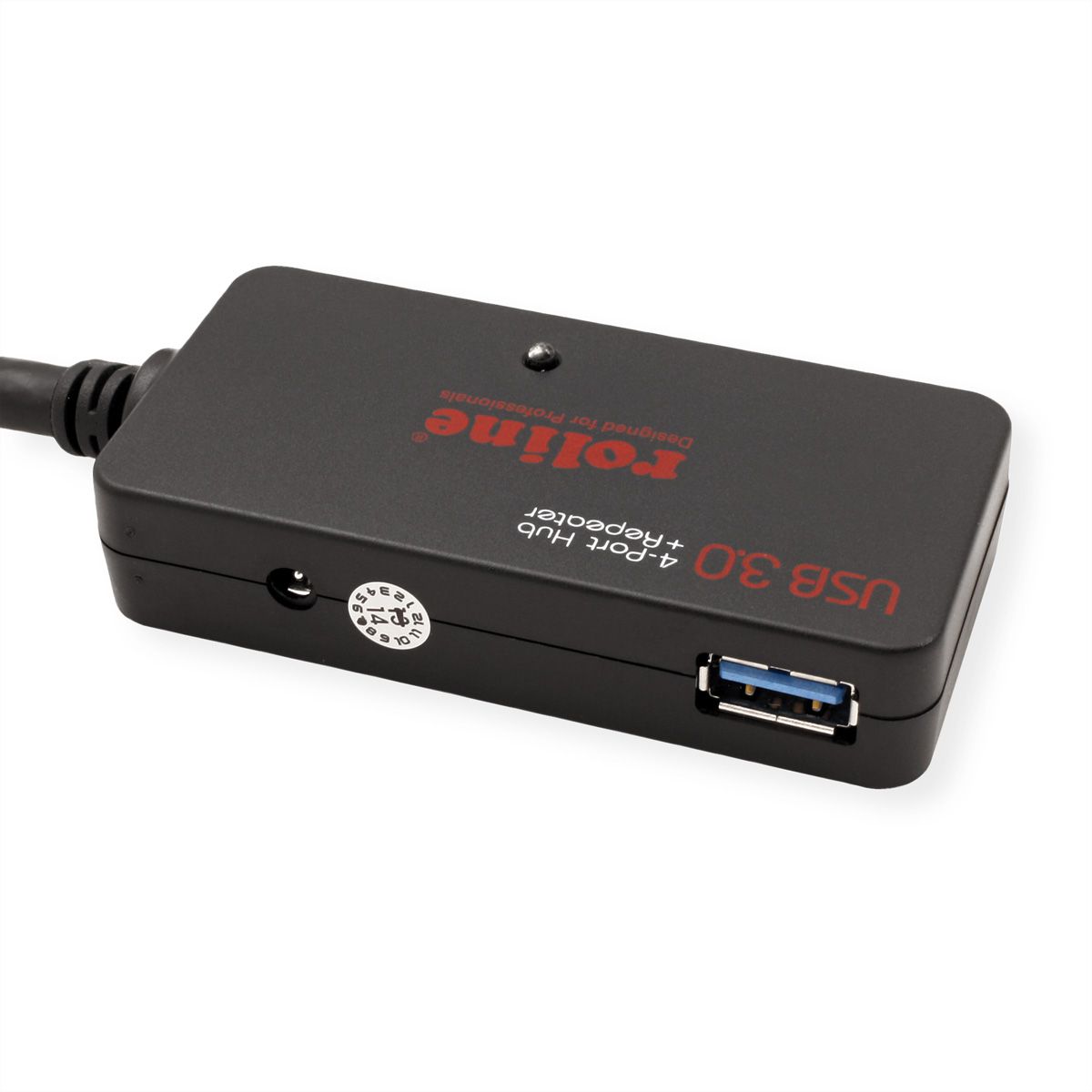

ROLINE USB 3.2 Gen 1 Hub, 4 Ports, with Repeater, black, 10 m

Item no. 12.04.1098-4 Brand / Manufacturer ROLINE Manuf. no. 12.04.1098 EAN 7630049699960 Package weight 1 kg
ROLINE

Please log in to be able to use the shopping cart and then complete orders.

Log in
Available
Ordered until 3 pm - usually dispatched on the same day

Description

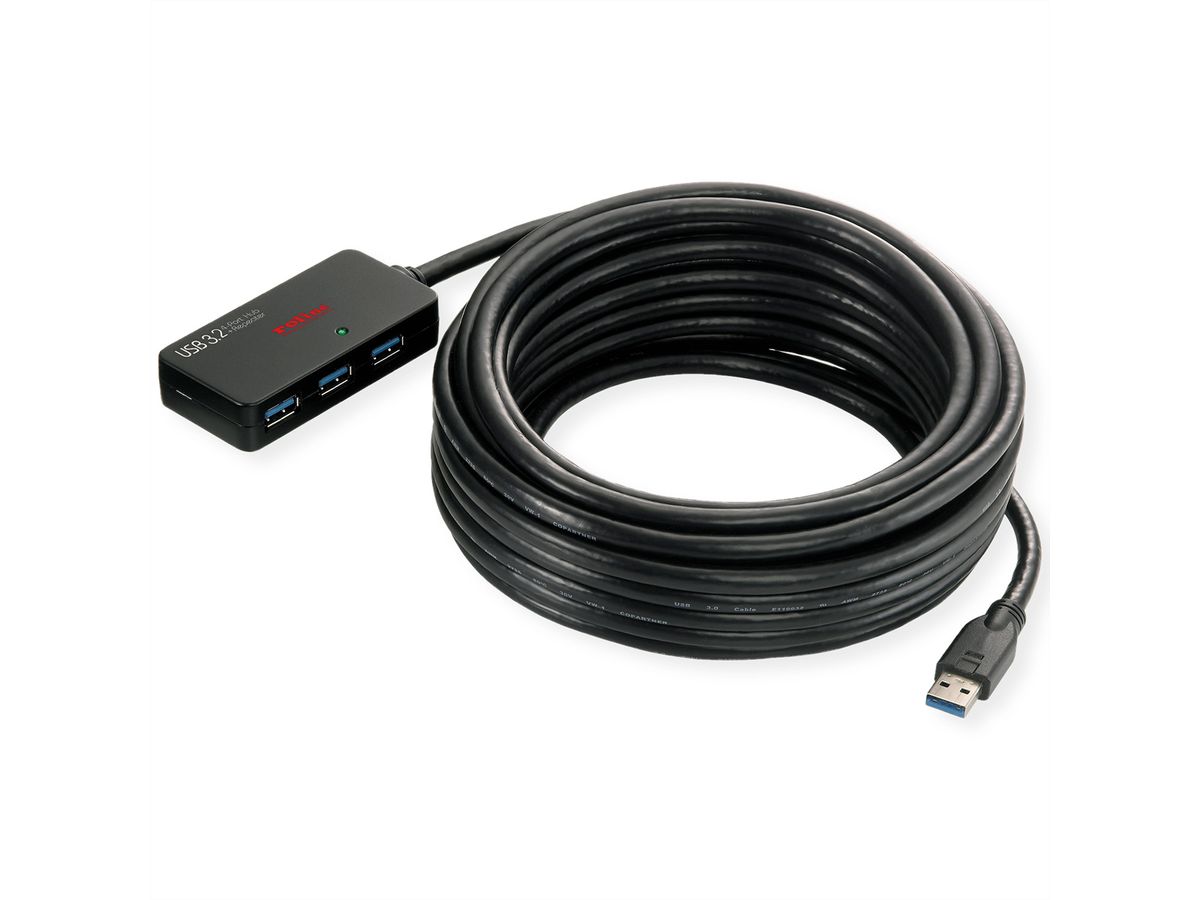

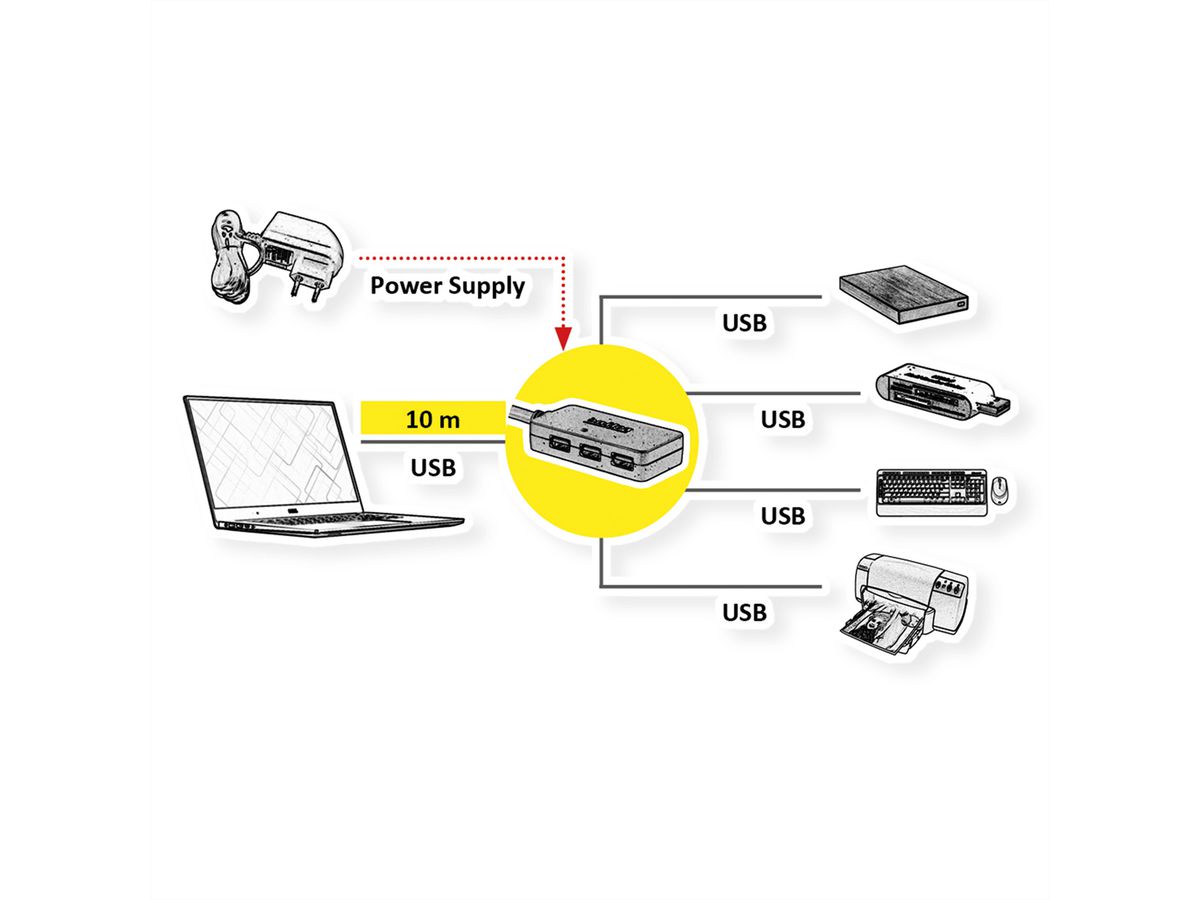

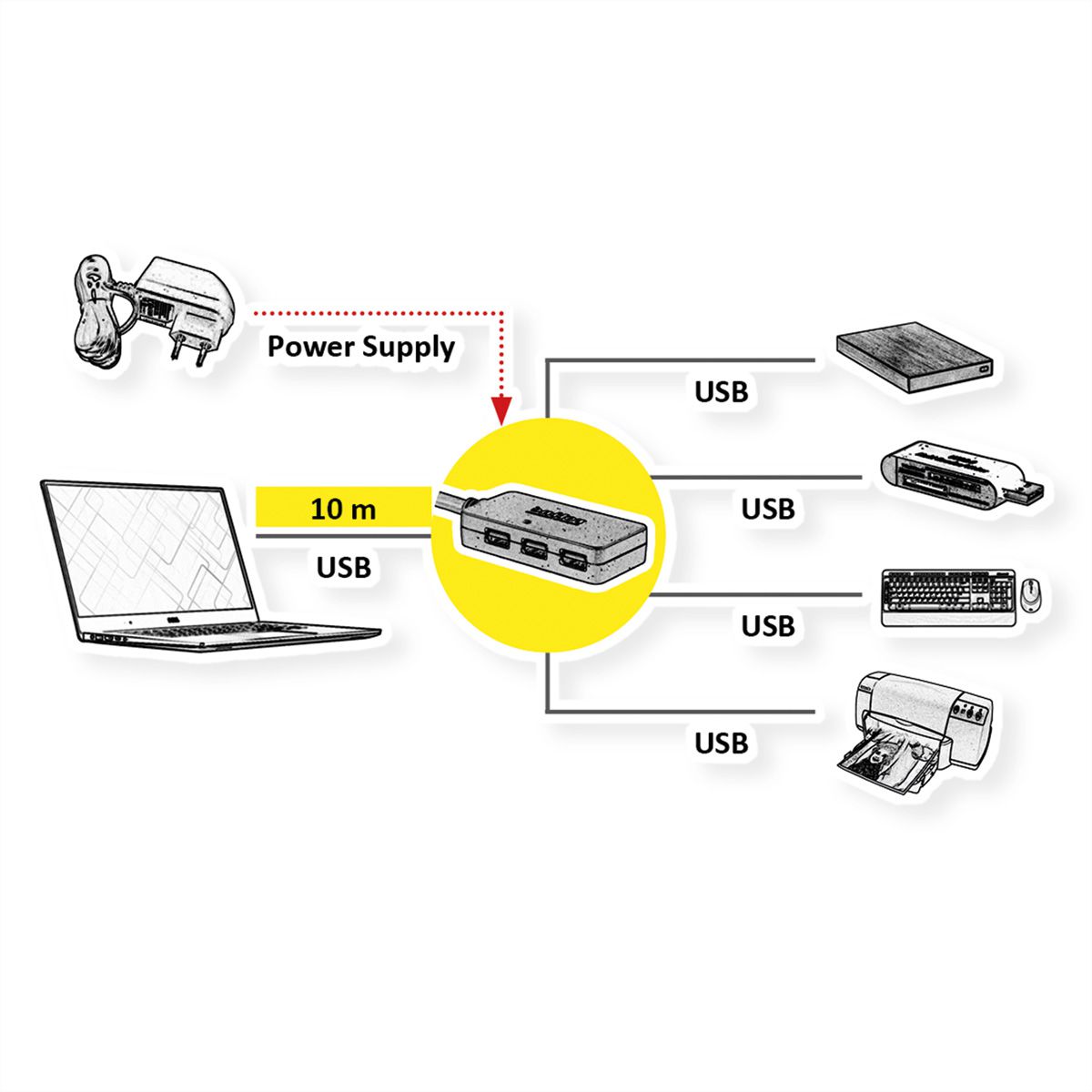

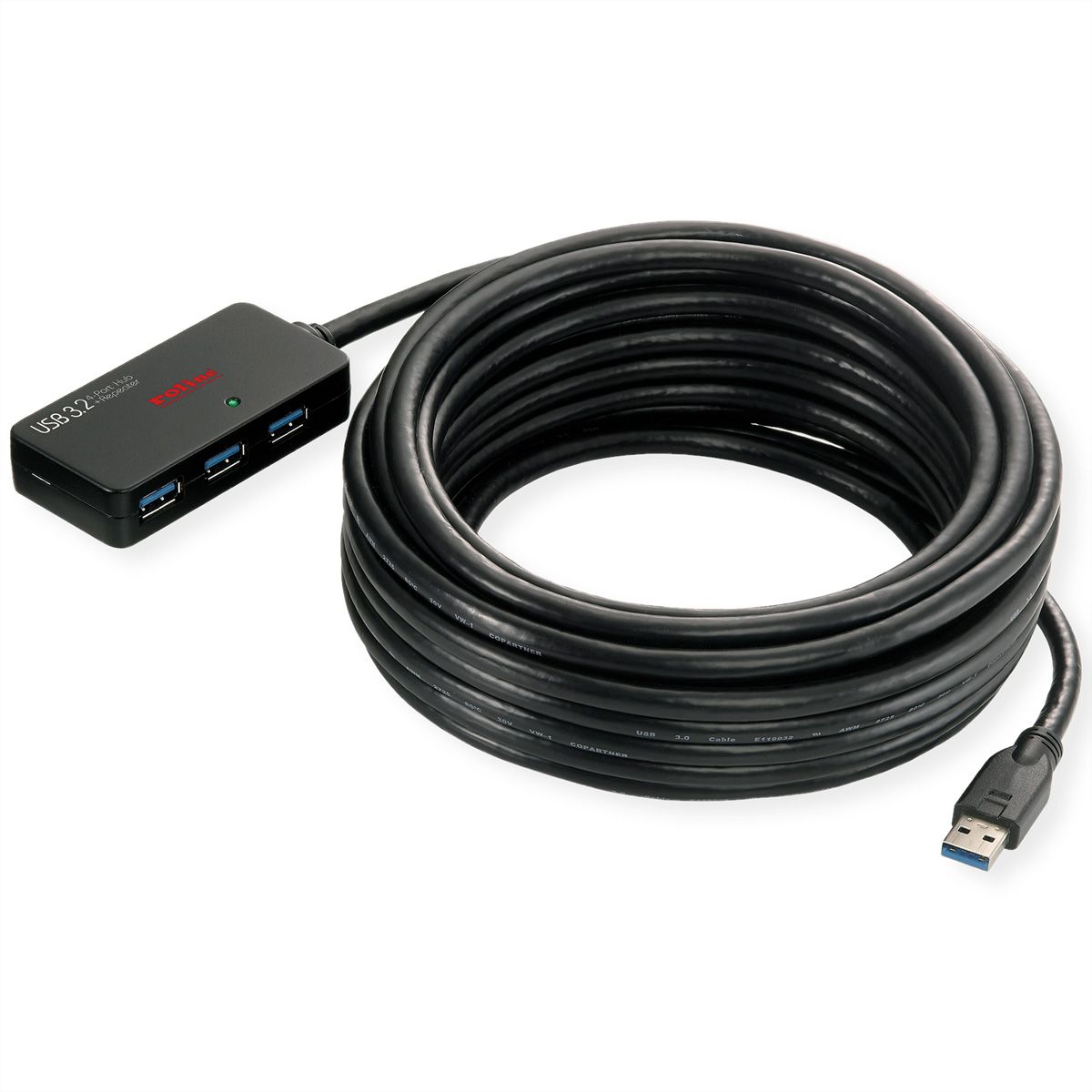

The handy hub with 10m long USB connection cable allows the connection of up to four USB peripherals at a greater distance from the PC. This makes the user almost independent of the location of the devices to be connected (e.g. printer). Power is supplied from the PC via the USB interface, but a power supply unit (5VDC, 3.5A) can also be connected as an option.

This hub with an active repeater cable extends the distance between the hub and the computer up to 10 m.

  • 4x USB 3.0 ports
  • Full compliance with USB 2.0 / 1.1 specification
  • Plug & play. no additional drivers required
  • USB Bus powered
  • Cable length: 10 m
  • Housing dimensions: 81 x 40 x 17 mm
  • Connectors: 1x USB Type A Male and 4x USB Type A Female
  • Supports Windows XP / 7

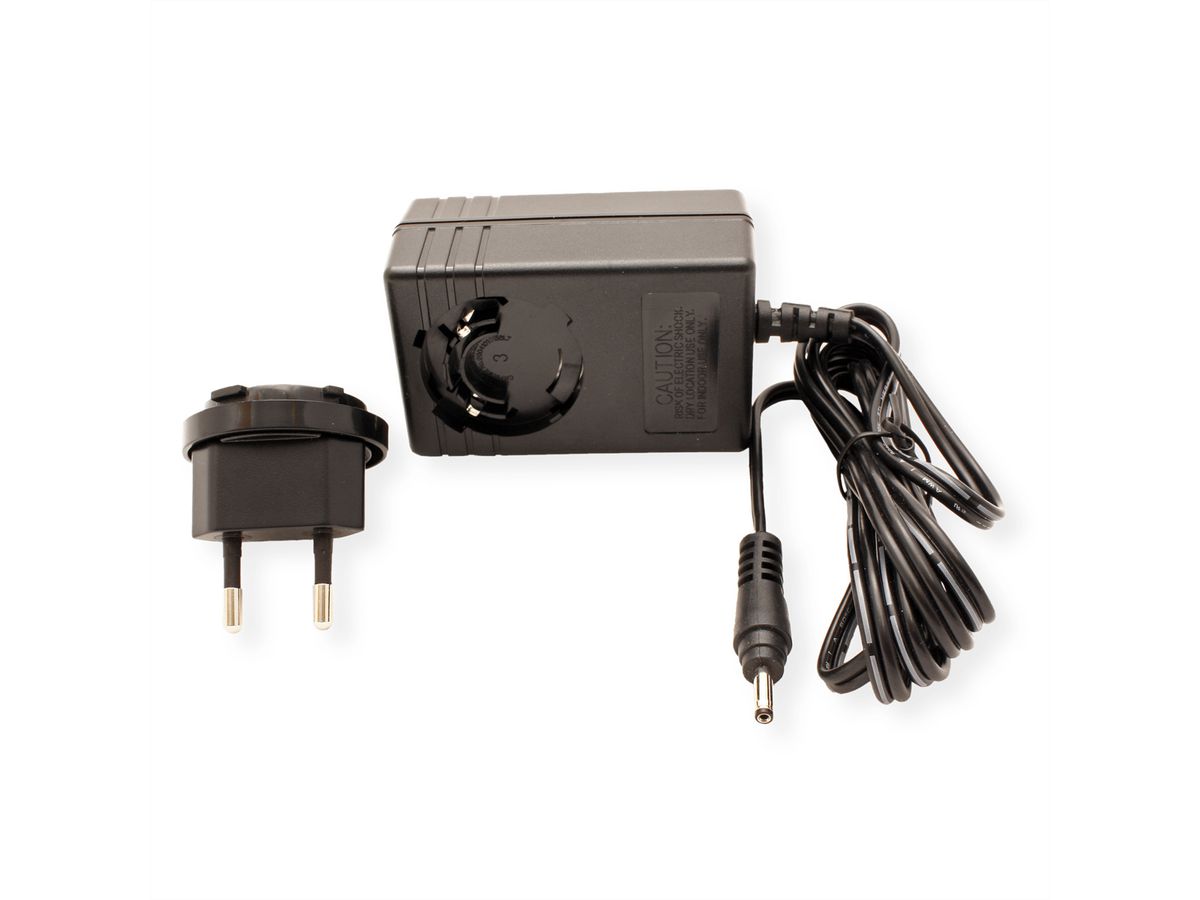

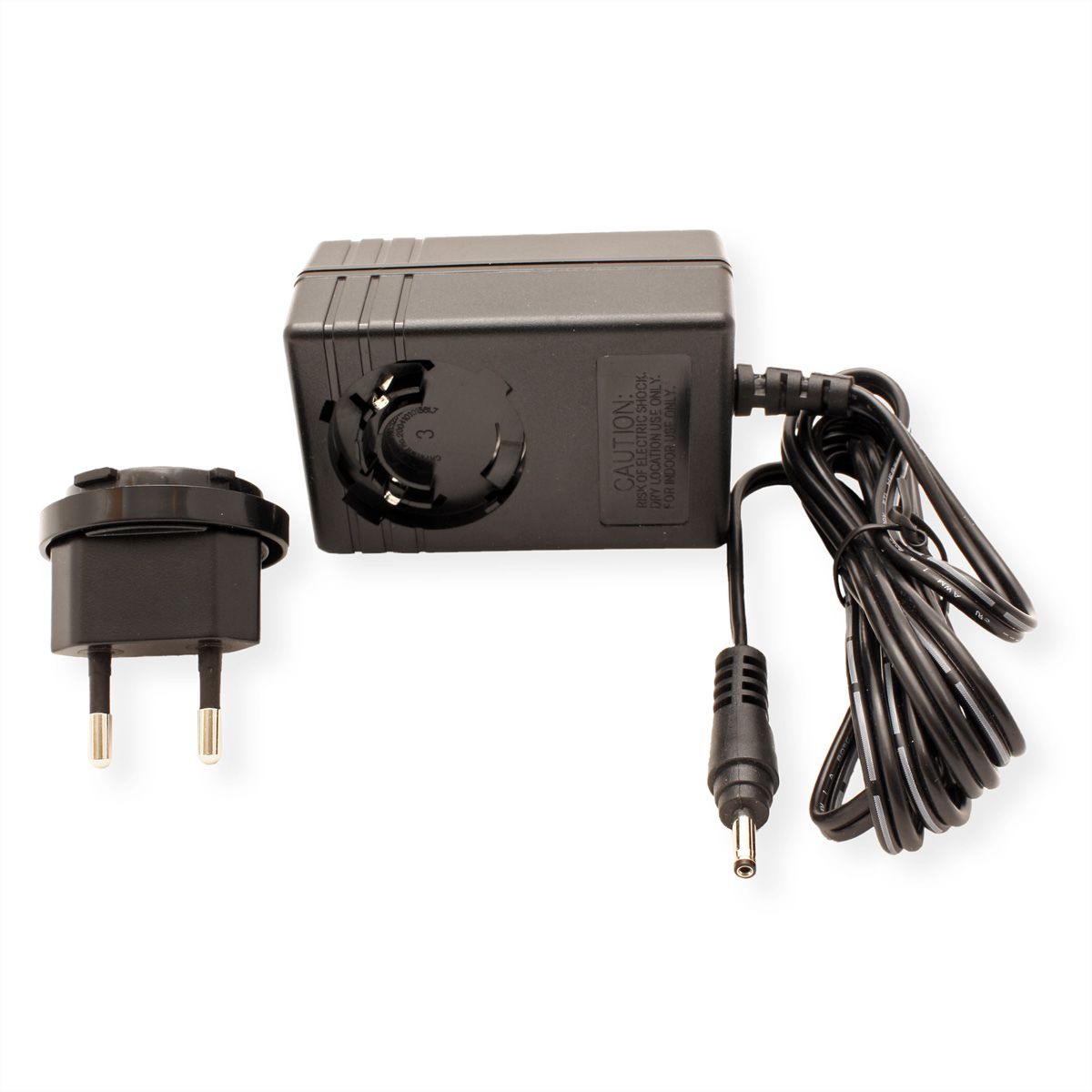

  • Power adapter (5V/3.5A, included) for heavy poweconsumption devices

Note: According to the current specifications of USB.org we have adapted the technical data of our USB 3 products. The new designation for the already known USB specifications has been changed to USB 3.2 Gen 1 (formerly USB 3.0 / USB 3.1 Gen 1) and USB 3.2 Gen 2 (formerly USB 3.1 / USB 3.1 Gen 2).

Specifications

Manufacturer
ROLINE
Product group
Hubs
Product type
USB Hub
Colour
black
Length
10 m
Scope of delivery
Cable
Transfer quality
USB 3.2 Gen 1 SuperSpeed 5 Gbit/s (USB 3.1 Gen 1, USB 3.0)
Side 1 Connector Type
USB 3 Type A
Side 1 Connector Gender
Male
Side 2 Connector Type
USB 3 Type A
Side 2 Connector Gender
Female
Quantity of ports
4
Area of application
External
Dimensions (HxWxD)
17 x 40 x81 mm
Power supply unit required
yes
Power supply included
yes
Height
17 mm
Width
40 mm
Depth
81 mm
Weight
761 g
Height of packaging (single piece)
50 mm
Width of packaging (single piece)
230 mm
Depth of packaging (single piece)
200 mm
Package weight (single piece)
1 kg

Downloads

Product data sheet - English (50.9 KB) Manufacturer data sheet - English (81.2 KB)
