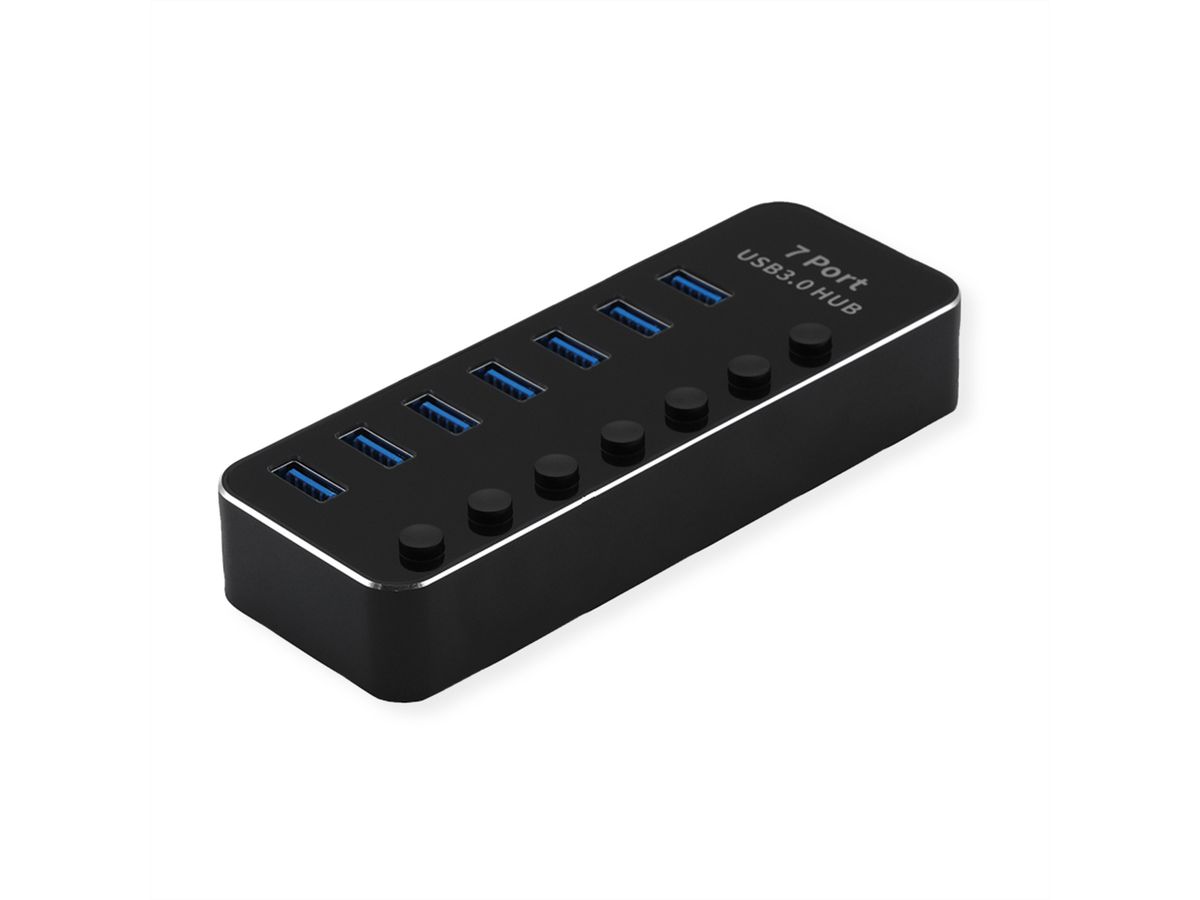

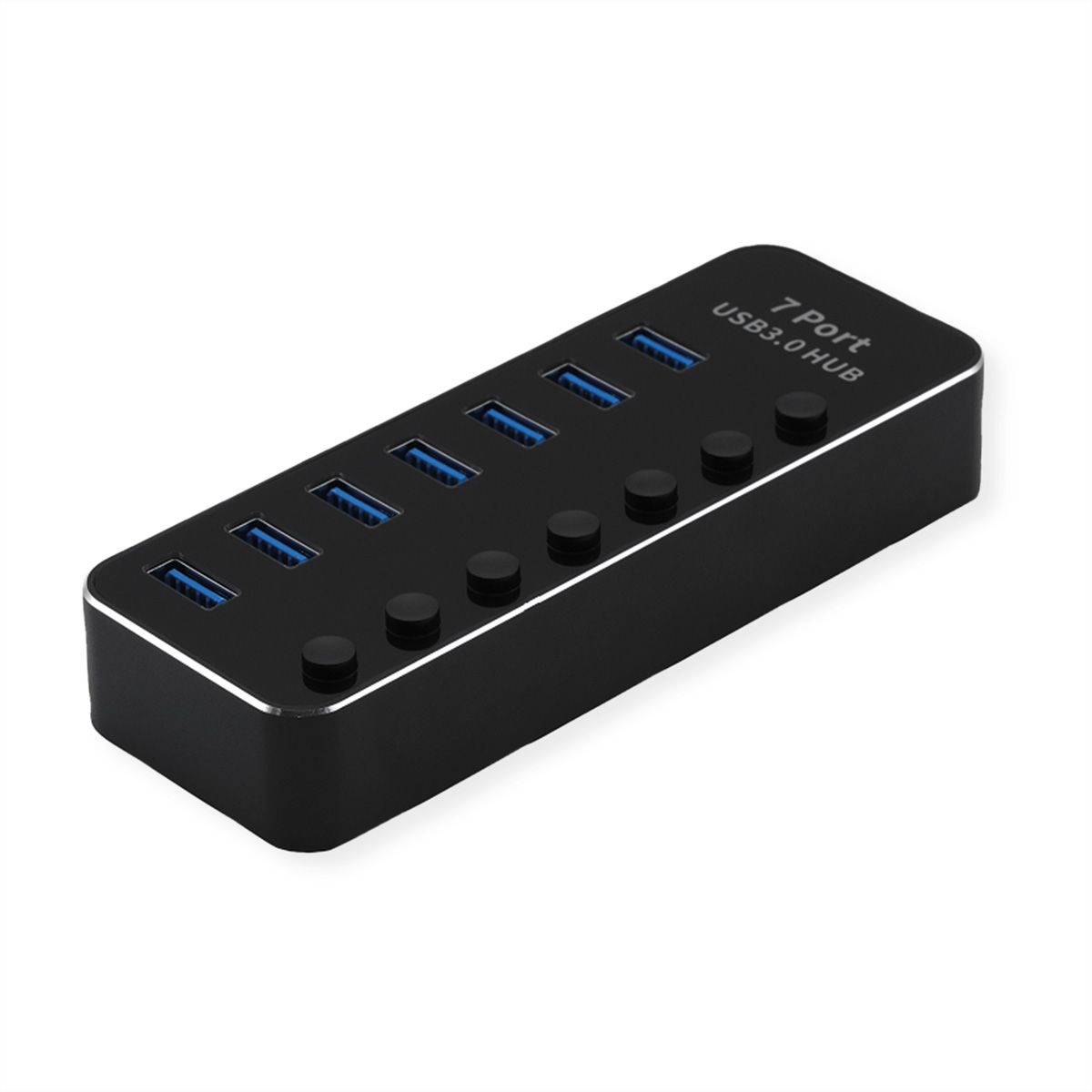

ROLINE USB 3.2 Gen 1 Hub, 7 Ports, switchable

ROLINE USB 3.2 Gen 1 Hub, 7 Ports, switchable

Please log in to be able to use the shopping cart and then complete orders.

Log in
Available
Ordered until 3 pm - usually dispatched on the same day
Item no. 14.02.5057-5
Brand / Manufacturer ROLINE
Manuf. no. 14.02.5057
EAN 7630049681538
Package weight 0.2 kg

Description

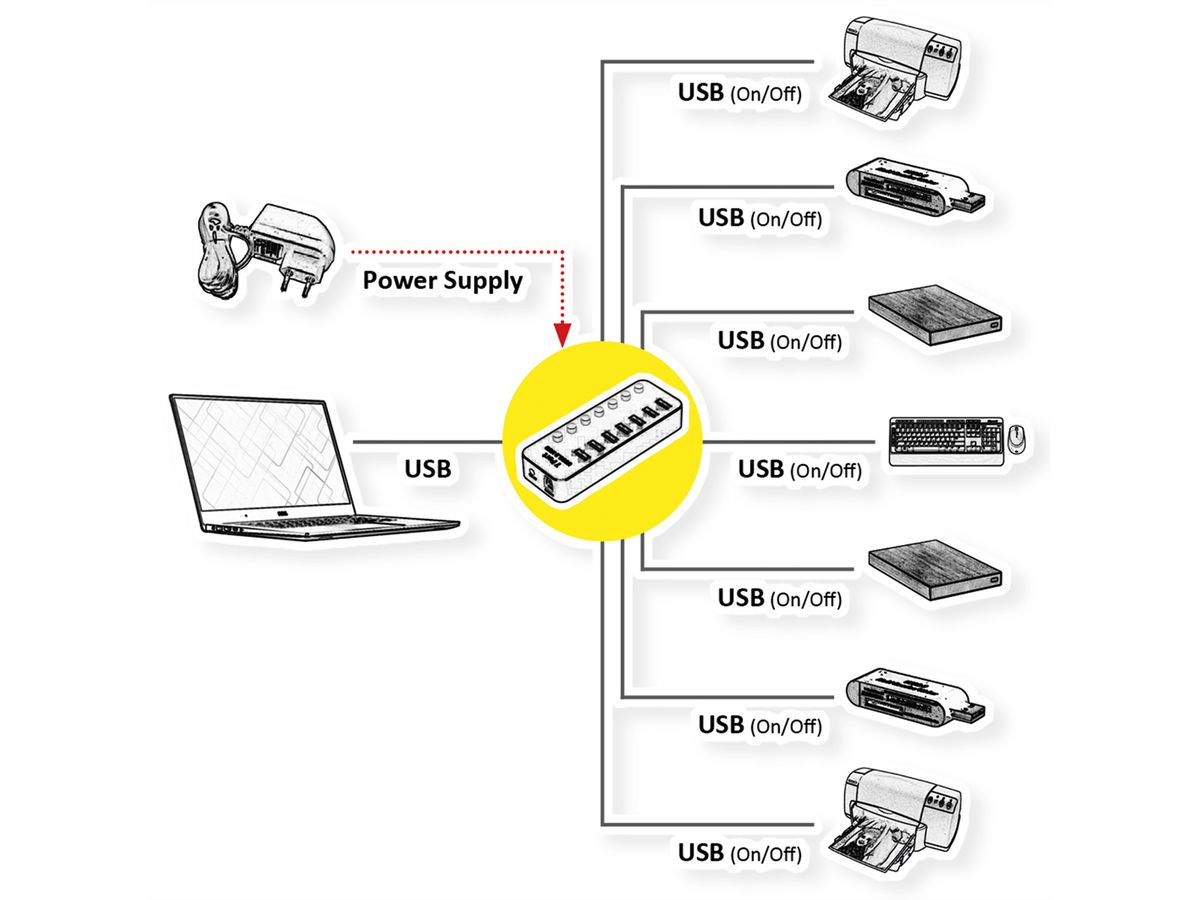

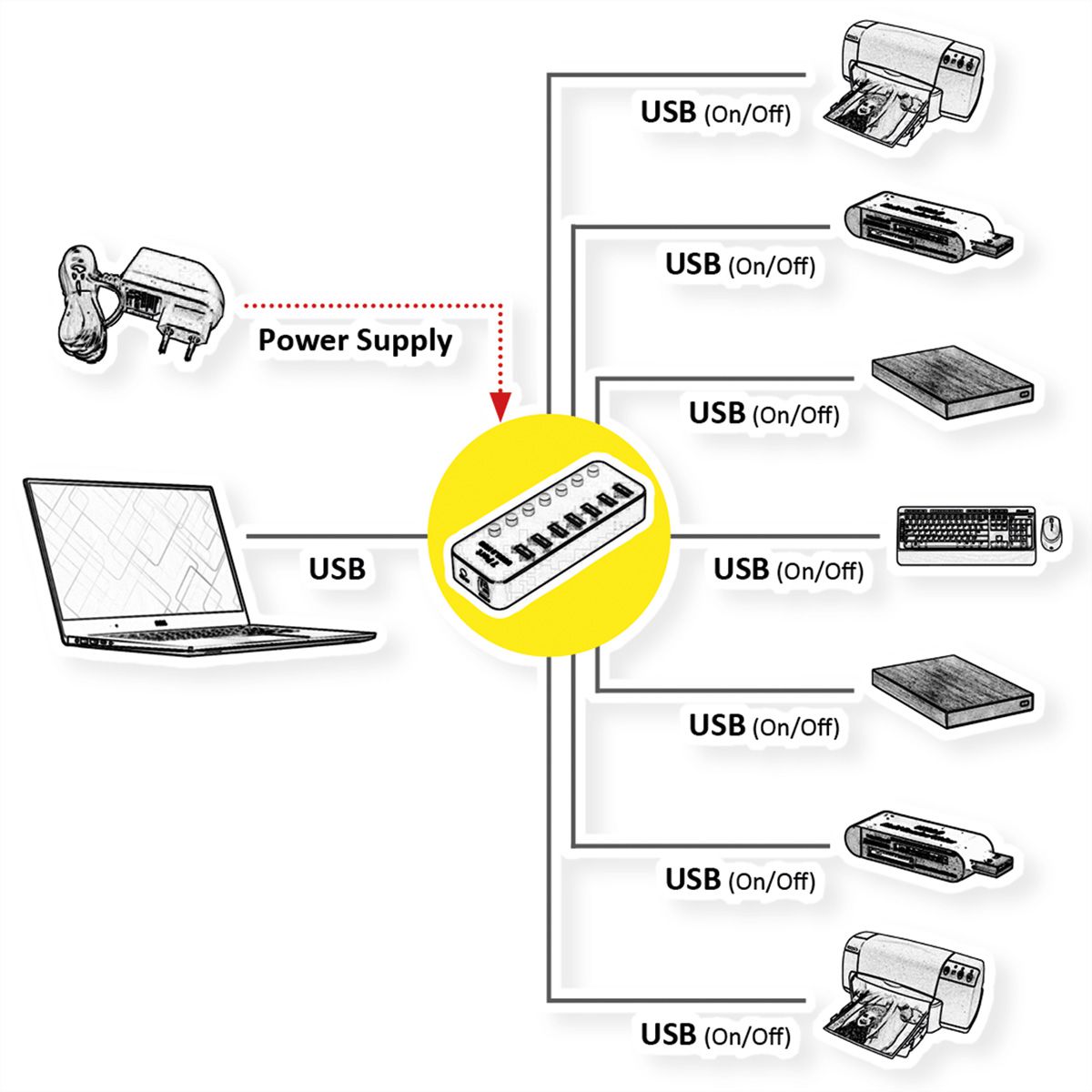

This hub can connect up to seven USB devices with SuperSpeed

  • Data transfer rates of up to 5 Gbit/s
  • Fully backwards compatible with USB 2.0, USB 1.1
  • PC connection: 1x USB 3.0 Type A
  • Input: 7 USB 3.0 Type A SuperSpeed ports
  • LED status indicator for each port
  • Individual power switch and blue LED indicators controlling each port.
  • Supports auto switching between self-power and bus-power mode
  • Hot-swappable
  • Housing: aluminum
  • Colour: Black

Note: According to the current specifications of USB.org we have adapted the technical data of our USB 3 products. The new designation for the already known USB specifications has been changed to USB 3.2 Gen 1 (formerly USB 3.0 / USB 3.1 Gen 1) and USB 3.2 Gen 2 (formerly USB 3.1 / USB 3.1 Gen 2).

Specifications

Manufacturer ROLINE
Product group Hubs
Product type USB Hub
Colour black
Scope of delivery Hub, power supply, USB 3.0 cable (A-B, 1m)
Device connection 7x USB Typ A
Transfer quality USB 3.2 Gen 1 SuperSpeed 5 Gbit/s (USB 3.1 Gen 1, USB 3.0)
Side 1 Connector Type USB 3 Type B
Side 1 Connector Gender Female
Side 2 Connector Type USB 3 Type A
Side 2 Connector Gender Female
Quantity of ports 7
Area of application External
Material (casing) Metal
Dimensions (HxWxD) 22 x 46 x 128 mm
Power supply unit required yes
Technical particularity Individual power switch and blue LED indicators controlling each port
Height 22 mm
Width 46 mm
Depth 128 mm
Weight 105.4 g
Height of packaging (single piece) 40 mm
Width of packaging (single piece) 120 mm
Depth of packaging (single piece) 150 mm
Package weight (single piece) 0.2 kg

Downloads

Product data sheet - English (52.6 KB)

Download

User manual - Deutsch (453.1 KB)

Download

User manual - English (450.0 KB)

Download
