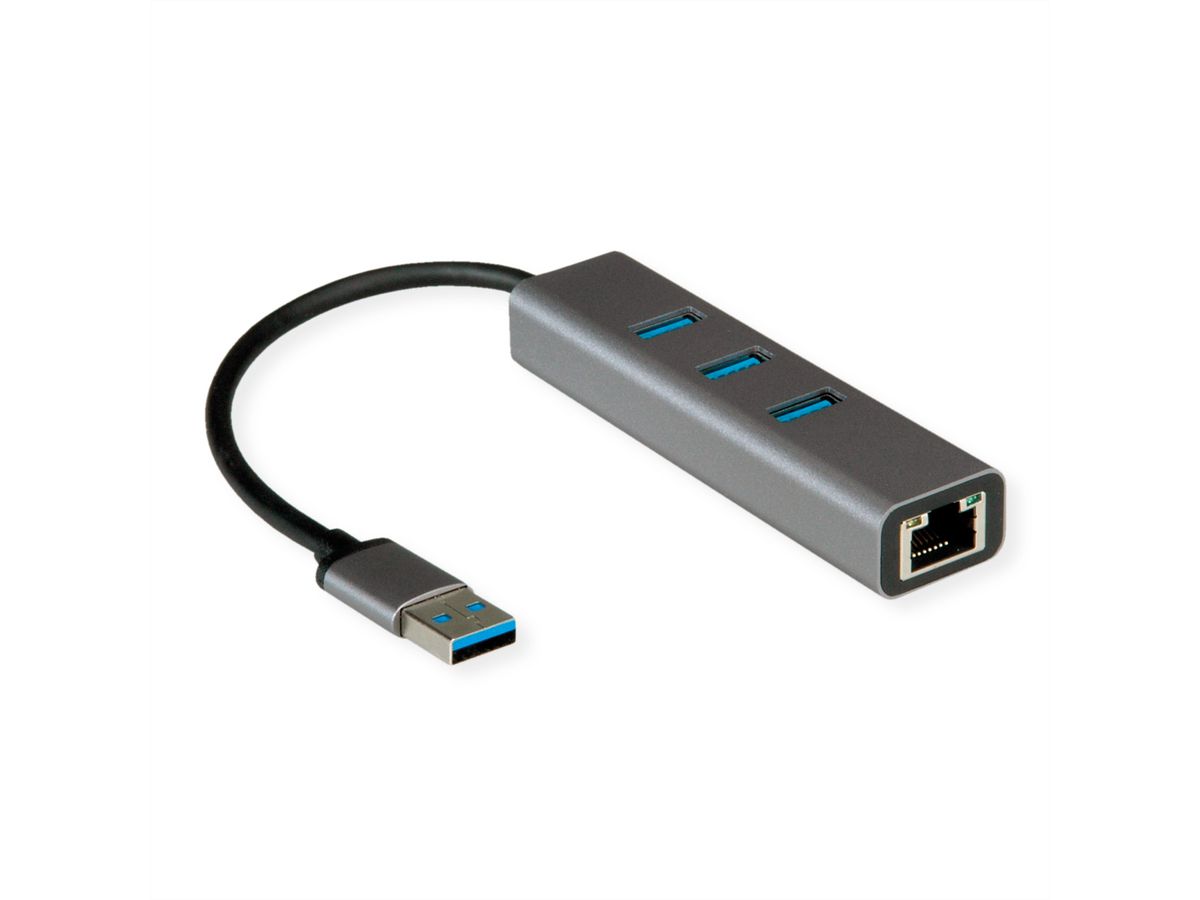

ROLINE USB 3.2 Gen 1 to Gigabit Ethernet Converter + Hub 3x

ROLINE USB 3.2 Gen 1 to Gigabit Ethernet Converter + Hub 3x

Please log in to be able to use the shopping cart and then complete orders.

Log in
Deliverable approx. 08/01/2024
Item no. 12.02.1112-10
Brand / Manufacturer ROLINE
Manuf. no. 12.02.1112
EAN 7630049688674
Package weight 0.02 kg

Description

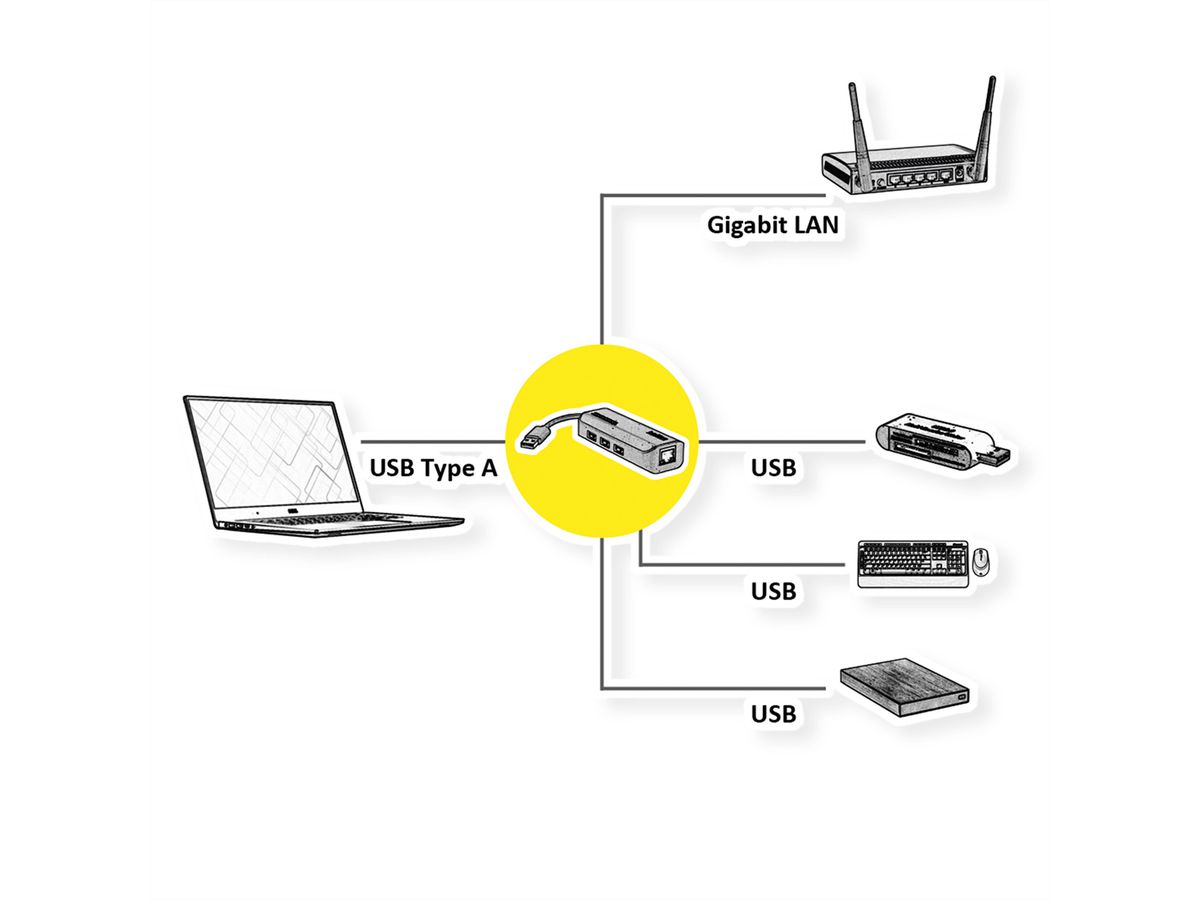

With this converter you can connect your PC or notebook with USB 3.0 / USB 3.2 Gen 1 interface to a Gigabit Ethernet network.

This converter is a cost effective solution to convert a USB 3.0 / USB 3.2 Gen 1 port into a 10/100/1000Base-T Ethernet port
  • Supports USB 3.0 / USB 3.2 Gen 1, compatible with USB 2.0 and 1.1
  • Bus powered
  • Supports Gigabit Ethernet with auto-negotiation, auto-MDI/MDIX and half/full duplex
  • Hub function, 3x ports
  • Plug and Play

Note: According to the current specifications of USB.org we have adapted the technical data of our USB 3 products. The new designation for the already known USB specifications has been changed to USB 3.2 Gen 1 (formerly USB 3.0 / USB 3.1 Gen 1) and USB 3.2 Gen 2 (formerly USB 3.1 / USB 3.1 Gen 2).

Specifications

Manufacturer ROLINE
Product group Network adapters
Product type Gigabit Ethernet Converter
Colour grey
Length 10 cm
Scope of delivery Converter
BUS system USB
LAN (Mbps) 10/100/1000
Quantity of ports 1
Connection ports 1x RJ-45 F, 1x USB 3.2 Gen 1 Type A M, 3x USB 3.2 Gen 1 Type A F
Side 1 Connector Type USB 3 Type A
Side 1 Connector Gender Male
Side 2 Connector Type RJ-45
Side 2 Connector Gender Female
Full duplex yes
Wake on LAN no
Network topology Ethernet
Operating System Windows XP / 7 / 8, Mac OS 10
Technical particularity LED for Link and Gigabit Mode
Dimensions (HxWxD) 16 x 24 x 96 mm
Height 16 mm
Width 24 mm
Depth 96 mm
Weight 40 g
Height of packaging (single piece) 20 mm
Width of packaging (single piece) 20 mm
Depth of packaging (single piece) 90 mm
Package weight (single piece) 0.02 kg
