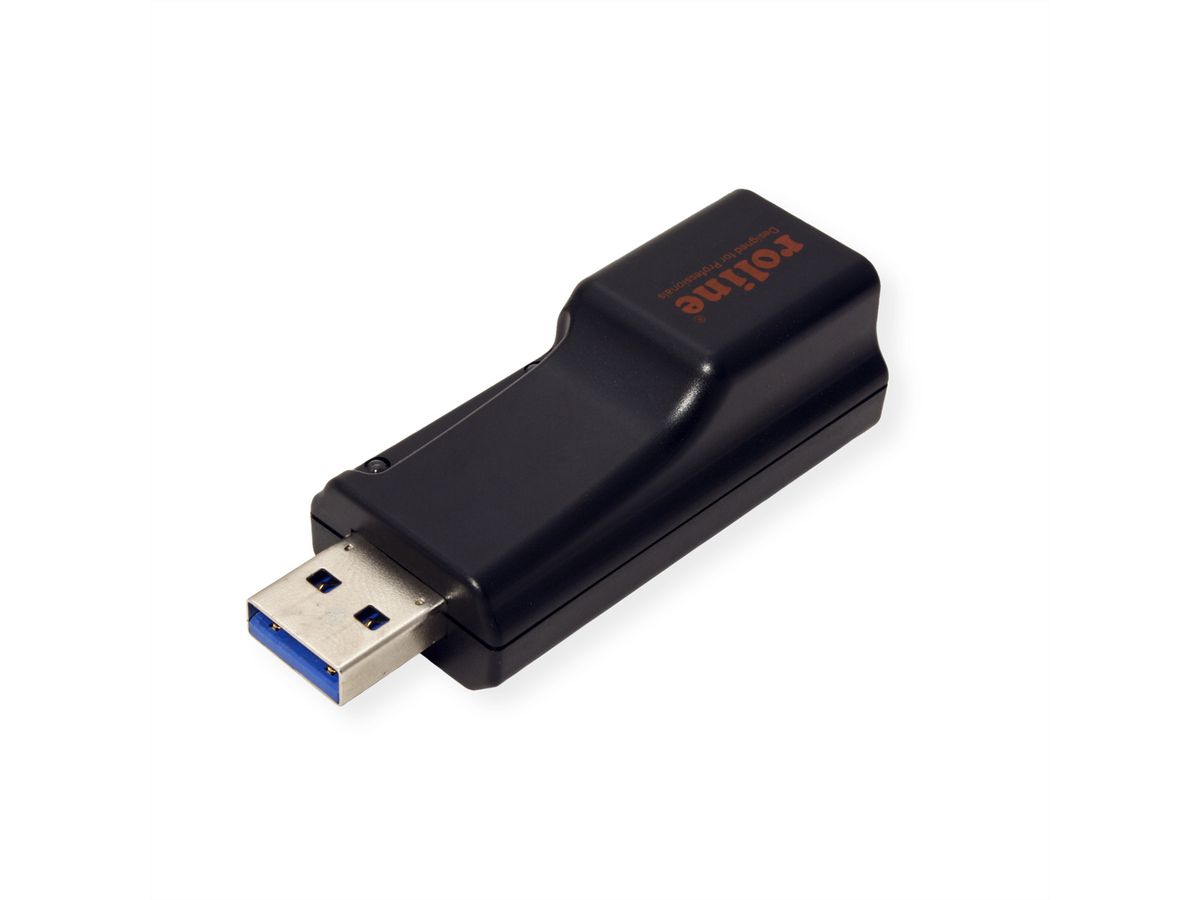

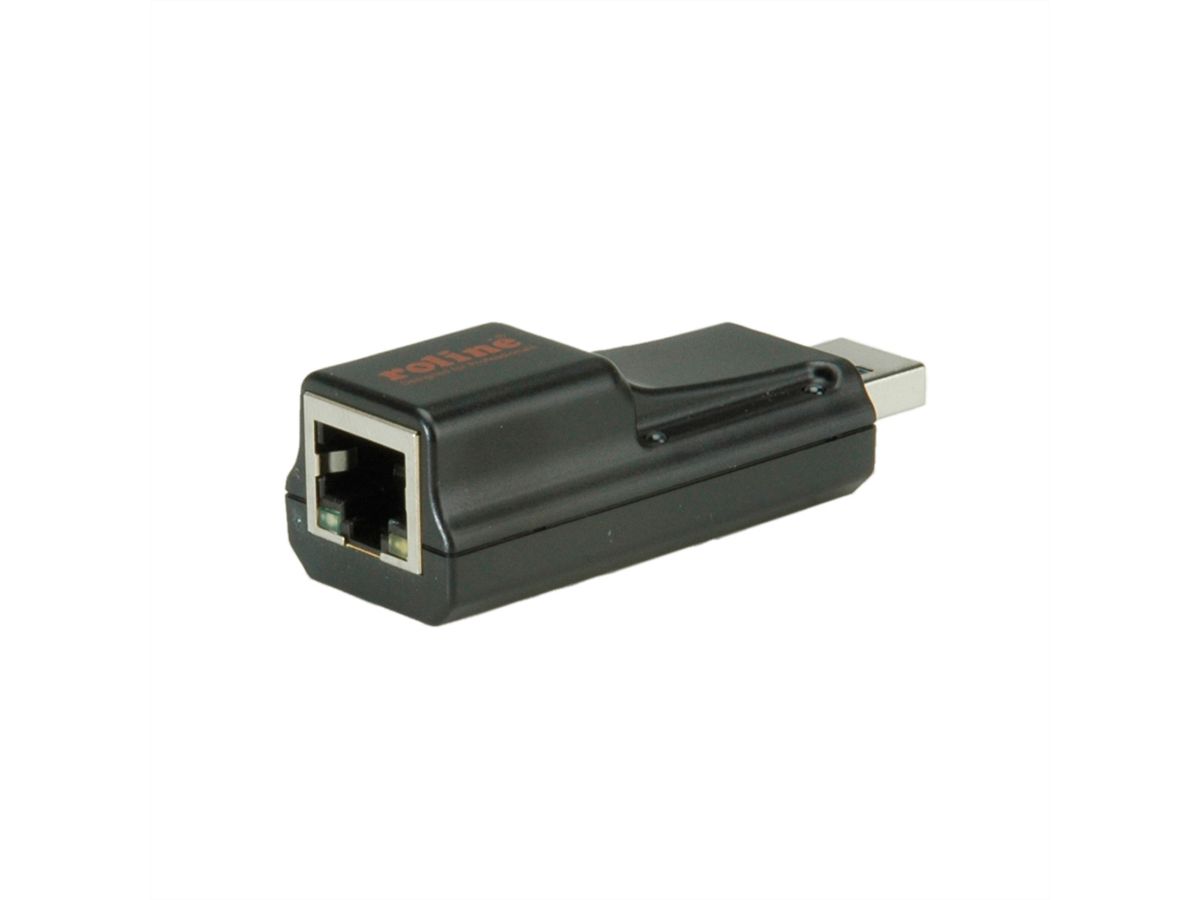

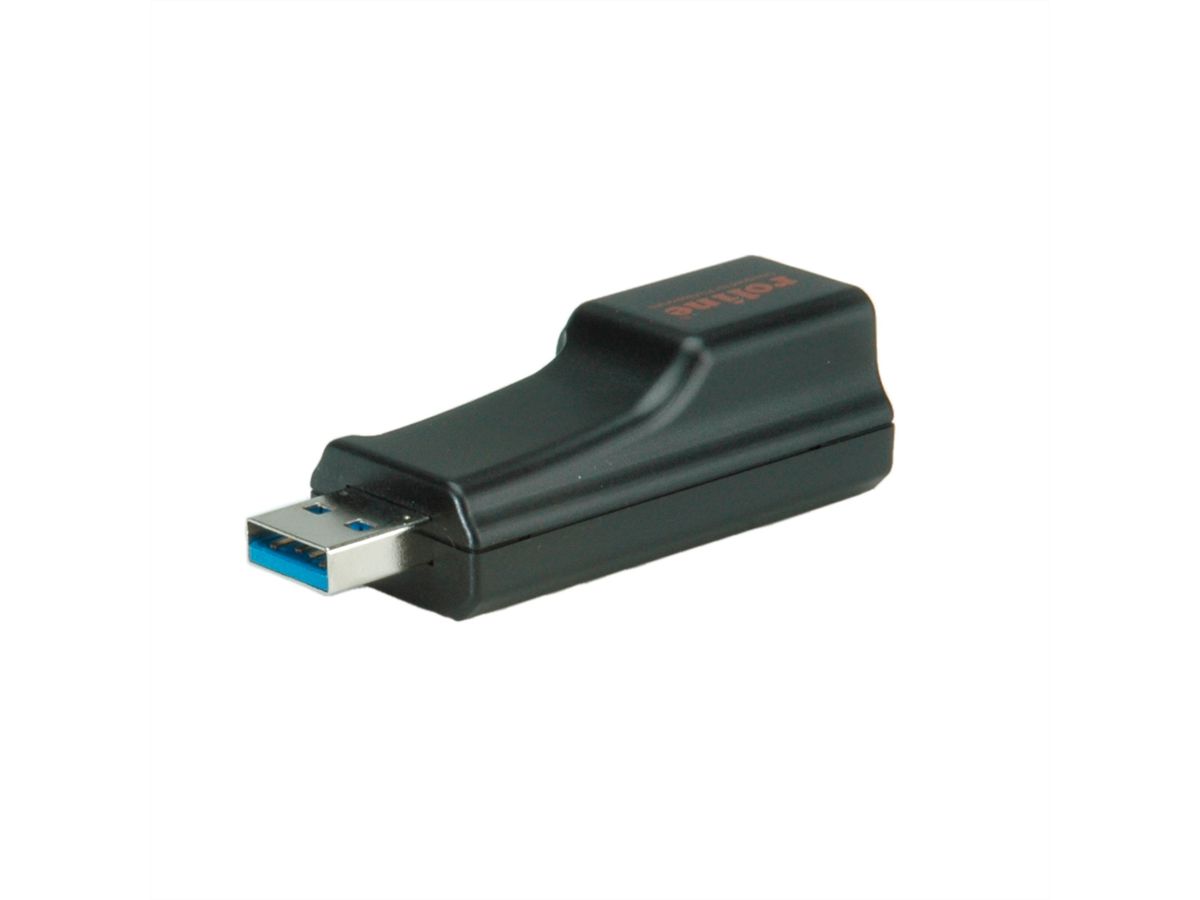

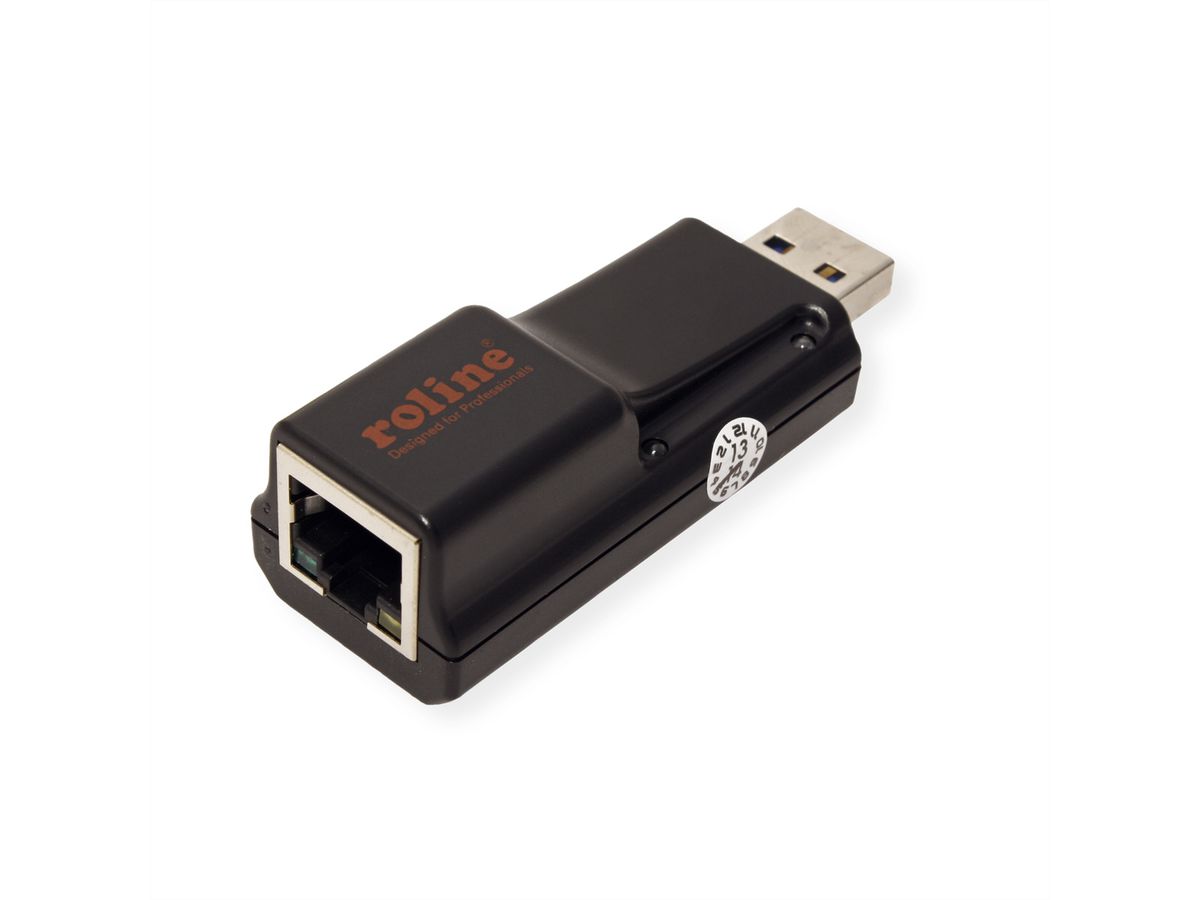

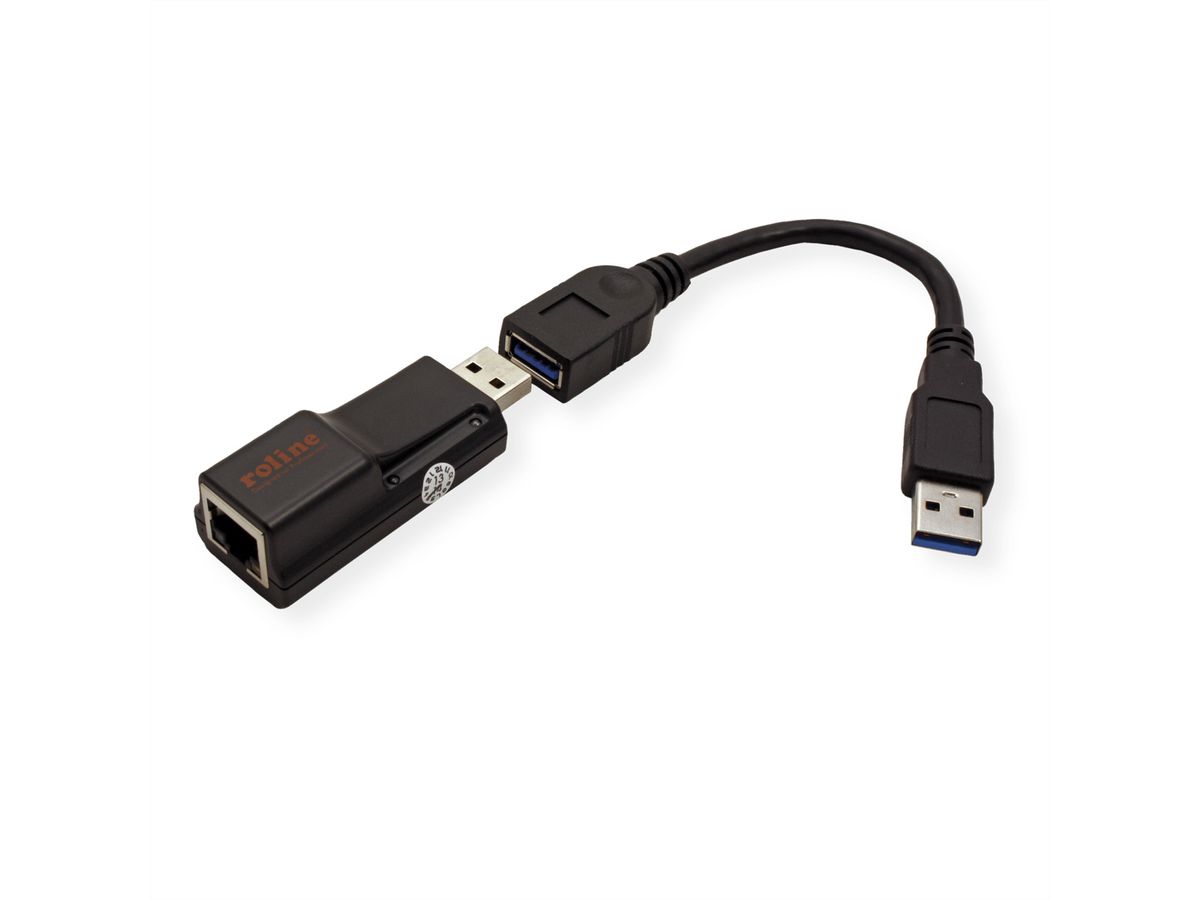

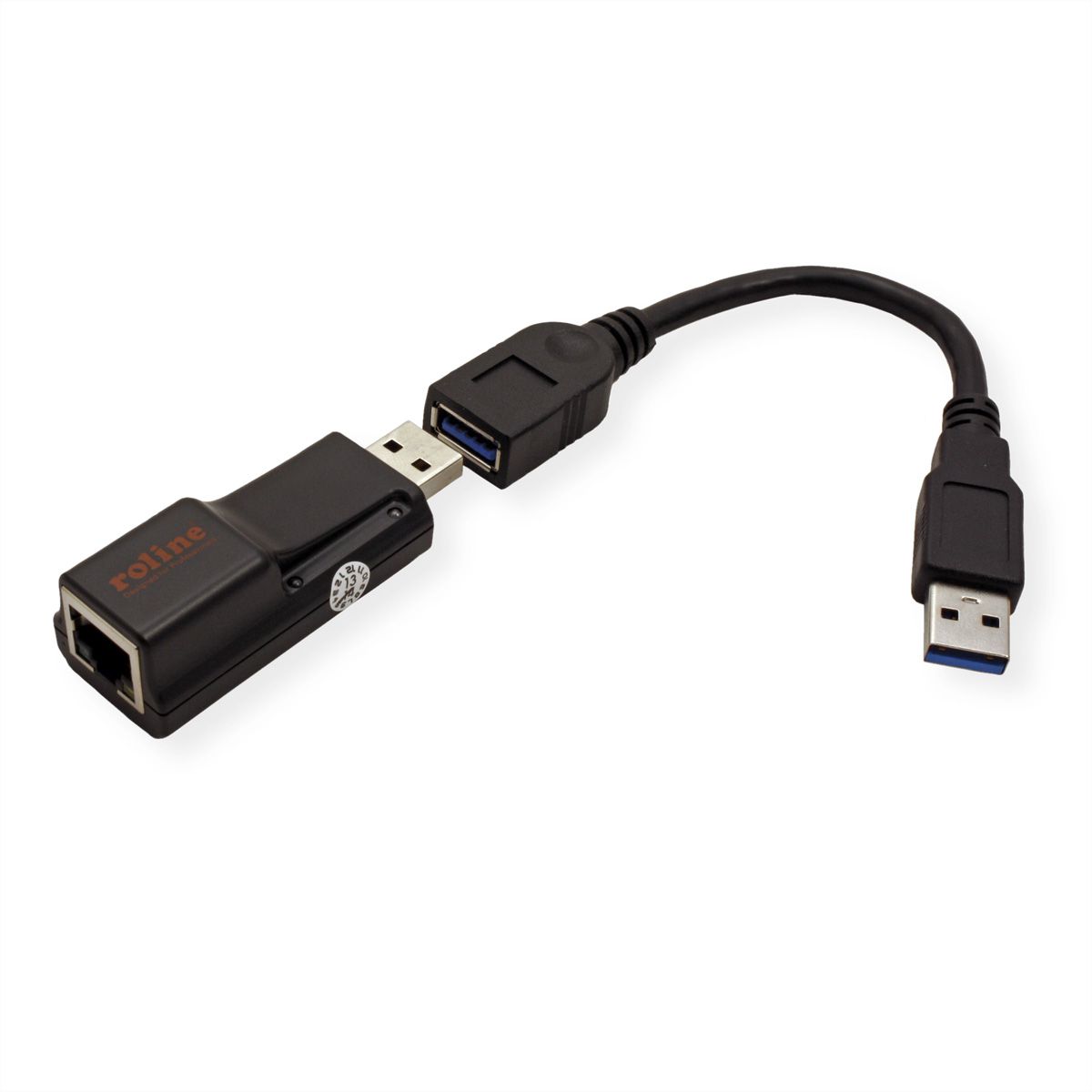

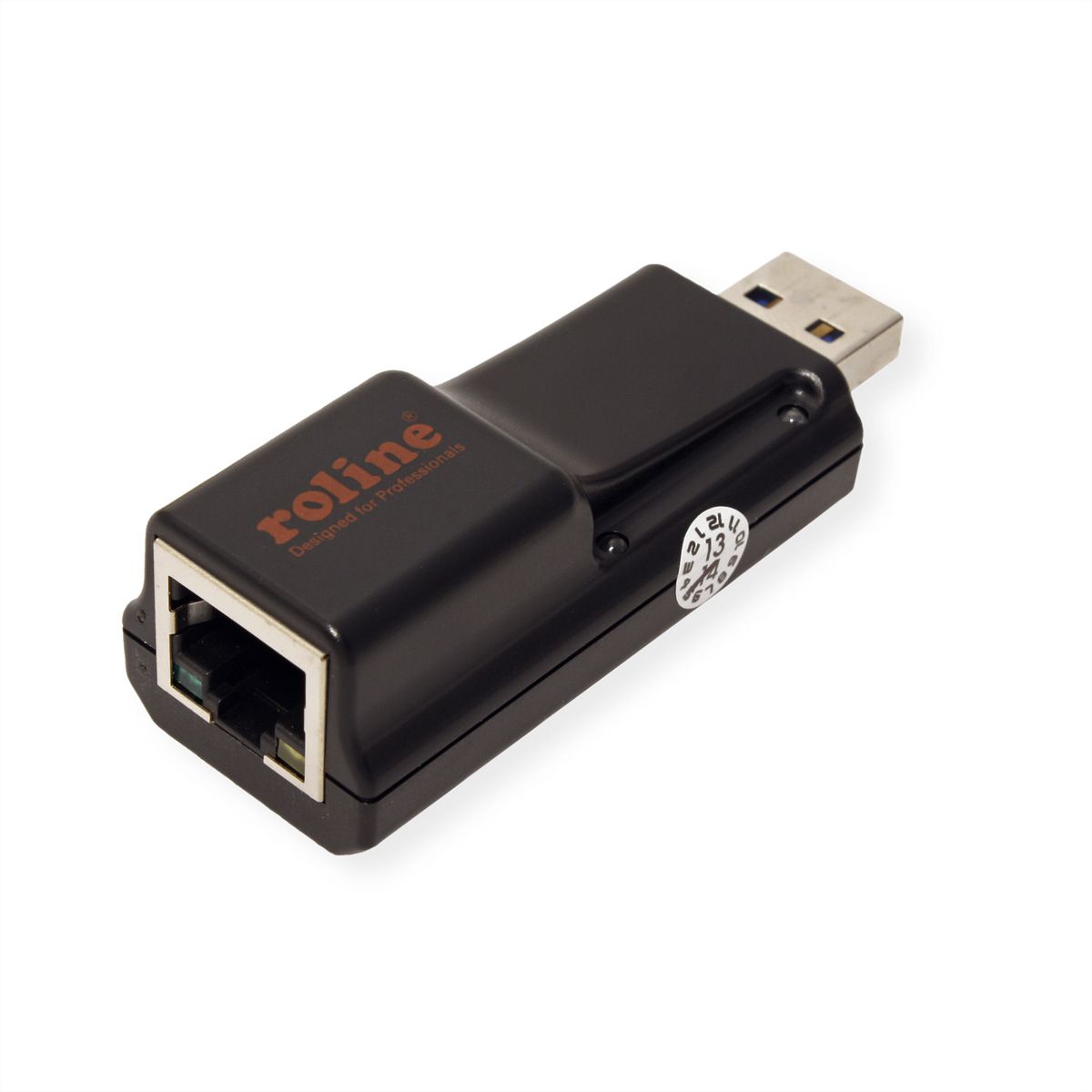

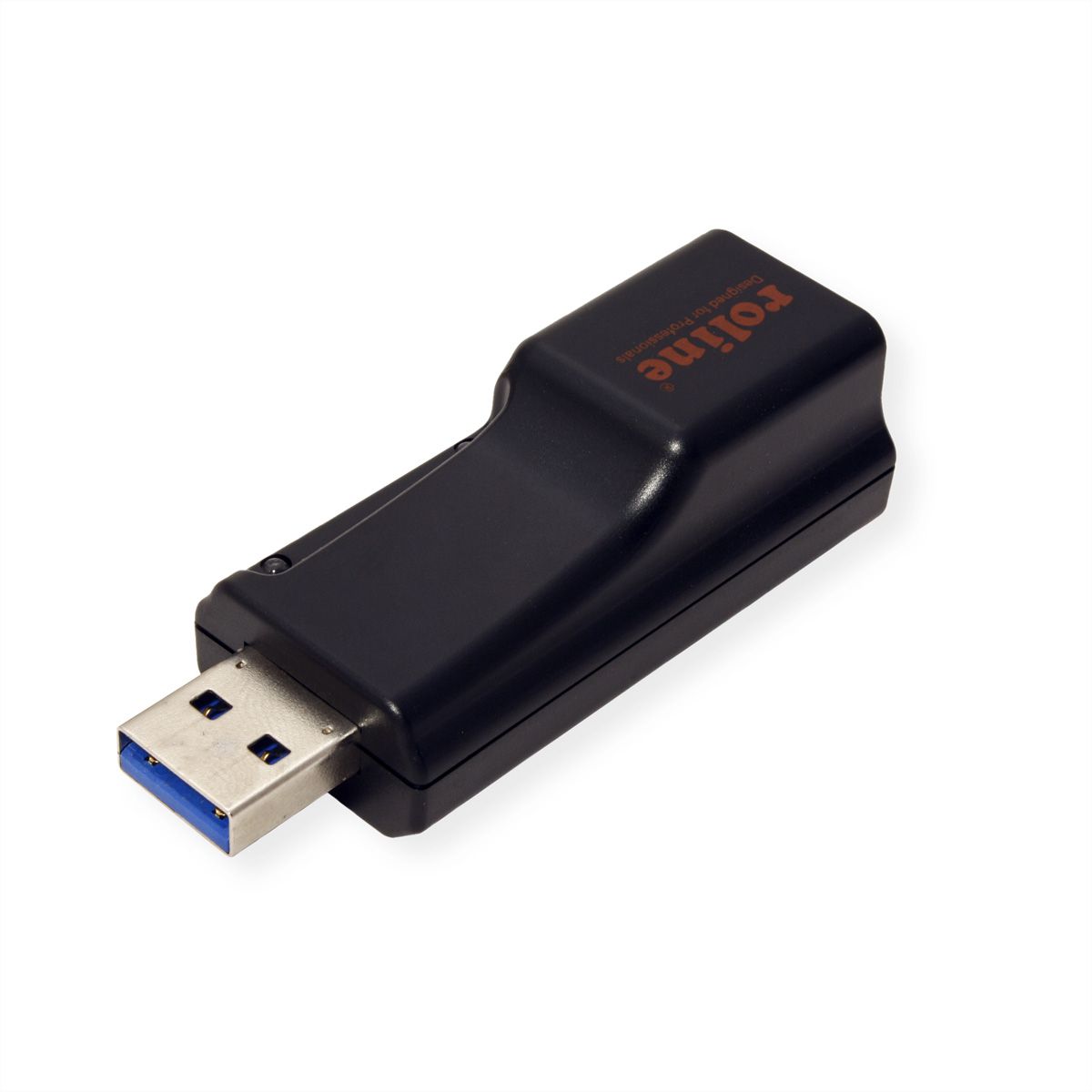

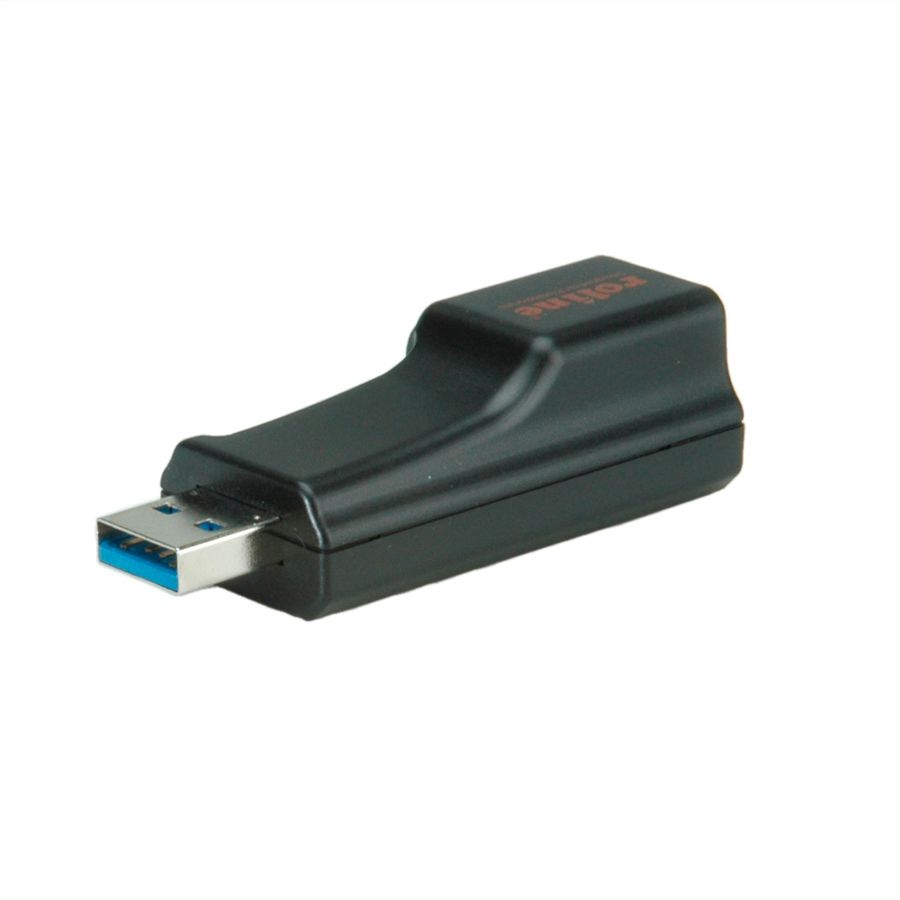

ROLINE USB 3.2 Gen 1 to Gigabit Ethernet Converter

ROLINE USB 3.2 Gen 1 to Gigabit Ethernet Converter

Please log in to be able to use the shopping cart and then complete orders.

Log in
Deliverable approx. 10/14/2024
Item no. 12.02.1106-10
Brand / Manufacturer ROLINE
Manuf. no. 12.02.1106
EAN 7611990919864
Package weight 0.15 kg

Description

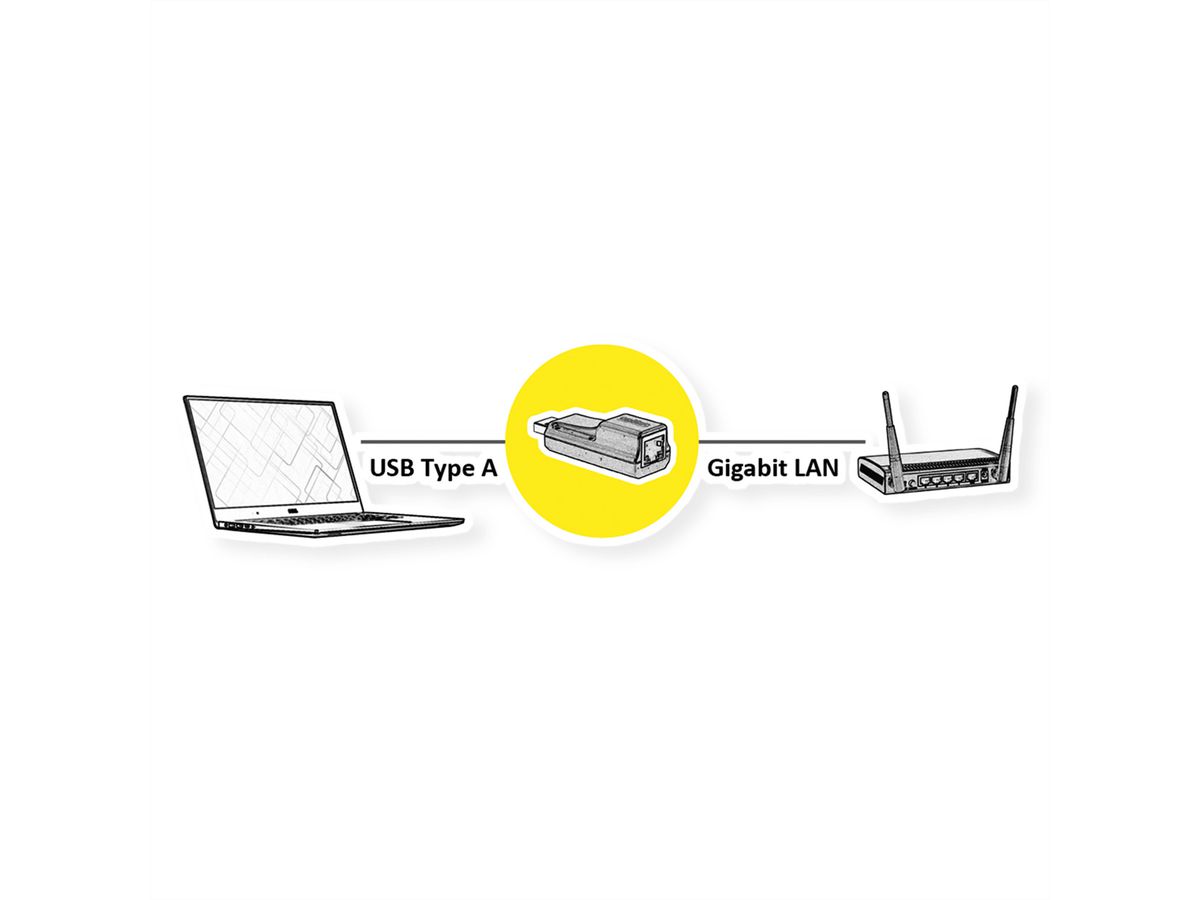

With this converter you connect your PC or notebook with USB 3.0 / USB 3.2 Gen 1 interface to a Gigabit Ethernet network.

This converter is a cost effective solution to convert a USB 3.0 / USB 3.2 Gen 1 port into a 10/100/1000Base-T Ethernet port
  • Supports 10/100/1000 Mbit/s auto-sensing capability
  • Supports USB 3.0 / USB 3.2 Gen 1
  • Bus powered
  • Supports both full-duplex and half-duplex operation in Gigabit Ethernet
  • Supports Windows XP/7, Mac OS X

Note: According to the current specifications of USB.org we have adapted the technical data of our USB 3 products. The new designation for the already known USB specifications has been changed to USB 3.2 Gen 1 (formerly USB 3.0 / USB 3.1 Gen 1) and USB 3.2 Gen 2 (formerly USB 3.1 / USB 3.1 Gen 2).

Specifications

Manufacturer ROLINE
Product group Network adapters
Product type Network adapters
Colour black
Scope of delivery Converter, driver CD
BUS system USB
LAN (Mbps) 10/100/1000
Quantity of ports 1
Connection ports 1x RJ-45 F, 1x USB Type A M
Side 1 Connector Type USB 3 Type A
Side 1 Connector Gender Male
Side 2 Connector Type RJ-45
Side 2 Connector Gender Female
Full duplex yes
Wake on LAN no
Transfer quality USB 3.2 Gen 1 SuperSpeed 5 Gbit/s (USB 3.1 Gen 1, USB 3.0)
Operating System Windows, Mac OS 10
Technical particularity LED for Link and Gigabit Mode
Dimensions (HxWxD) 24 x 20 x 65 mm
Height 24 mm
Width 20 mm
Depth 65 mm
Weight 20 g
Height of packaging (single piece) 30 mm
Width of packaging (single piece) 140 mm
Depth of packaging (single piece) 210 mm
Package weight (single piece) 0.15 kg

Downloads

Product data sheet - English (40.7 KB)

Download

Manufacturer data sheet - English (1.5 MB)

Download

Quick Installation Guide - Deutsch (319.7 KB)

Download

Quick Installation Guide - English (339.9 KB)

Download

Quick Installation Guide - Français (126.4 KB)

Download

The products of our own brand ROLINE are designed for professional continuous operation.

With a 2-year functional guarantee, we stand by our performance promise.

ROLINE – Quality makes the difference.
