ROLINE USB 3.2 Gen 1 to SATA 6Gb/s Adapter, 0.15 m

Item no. 12.02.1043-10 Brand / Manufacturer ROLINE Manuf. no. 12.02.1043 EAN 7611990917488 Package weight 0.1 kg
ROLINE
Product recommendations

Please log in to be able to use the shopping cart and then complete orders.

Log in
Available
Ordered until 3 pm - usually dispatched on the same day

Description

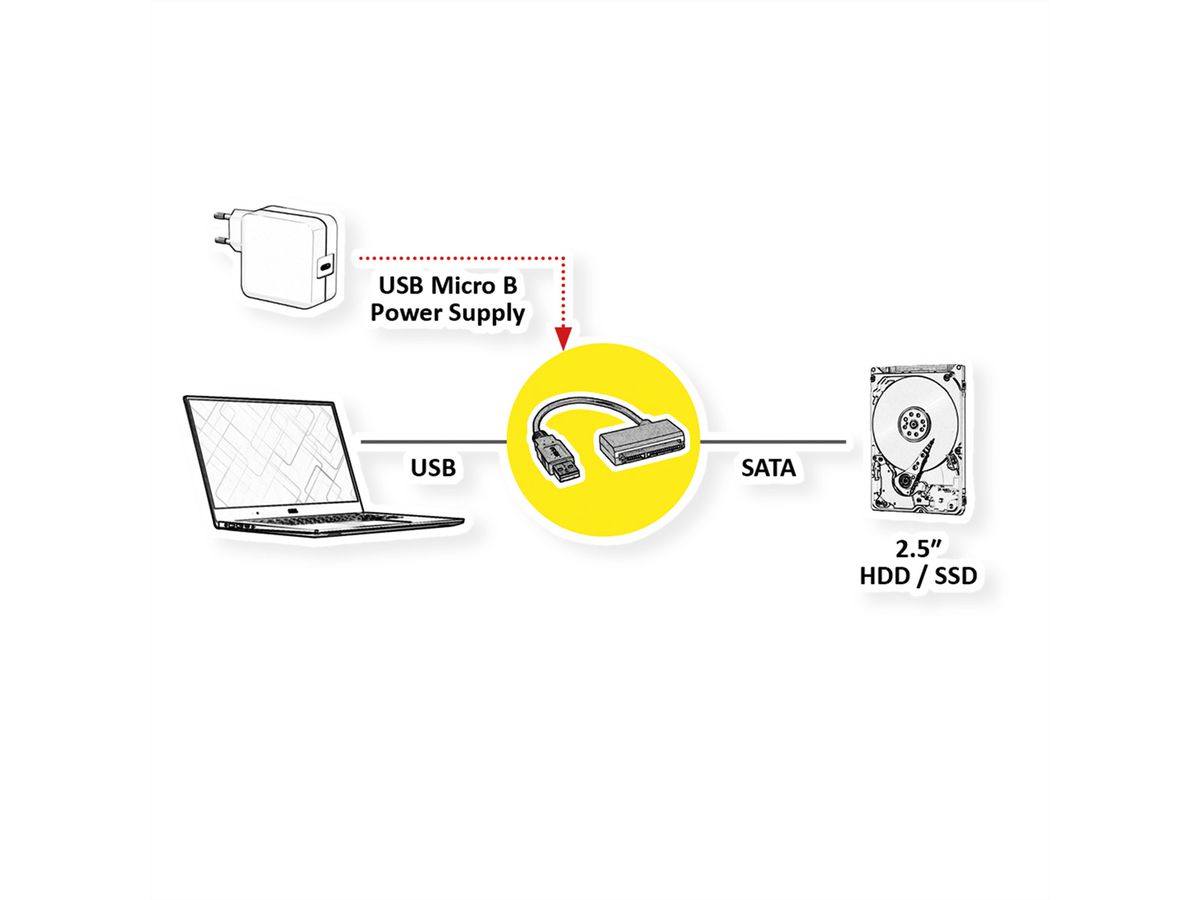

The easy way to connect a SATA 6.0 Gbit/s hard drive to a computer or notebook via SuperSpeed USB 3.0 / USB 3.2 Gen 1 Port

  • Easy way to connect a SATA 6.0 Gbit/s hard disk to a computer or notebook over a SuperSpeed USB 3.0 / USB 3.2 Gen 1 port
  • Suitable for type 2.5 Serial ATA HDD/SSD
  • Compliant with USB 3.0 / USB 3.2 Gen 1, USB 2.0, USB 1.1
  • Compliant with SATA 6.0 Gbit/s, SATA 3.0 Gbit/s, SATA 1.5 Gbit/s
  • Supports transfer rates of up to 5.0 Gbit/s
  • Connection to computer: USB 3.0 / USB 3.2 Gen 1
  • Connection to HDD: 15-pin SATA power + 7-pin SATA data
  • Hot-swappable, plug & play
  • Length USB cable: 0.15 m
  • Supported Operating Systems: 2000/XP/Vista/7/8/10

Note: According to the current specifications of USB.org we have adapted the technical data of our USB 3 products. The new designation for the already known USB specifications has been changed to USB 3.2 Gen 1 (formerly USB 3.0 / USB 3.1 Gen 1) and USB 3.2 Gen 2 (formerly USB 3.1 / USB 3.1 Gen 2).

Specifications

Manufacturer
ROLINE
Product group
Adapters, Terminators, Converters
Product type
SATA-Adapter
Colour
black
Length
0.15 m
Scope of delivery
Adapter, manual
Side 1 connection (PC)
USB 3.0 / USB 3.2 Gen 1 Type A Male
Side 2 connection (Peripherals)
SATA
Side 1 Connector Type
USB 3 Type A
Side 1 Connector Gender
Male
Side 2 Connector Type
SATA 22-pin (Data+Power)
Side 2 Connector Gender
Male
Area of application
Internal/External
Technical particularity
SATAIII
Weight
23.2 g
Height of packaging (single piece)
75 mm
Width of packaging (single piece)
25 mm
Depth of packaging (single piece)
270 mm
Package weight (single piece)
0.1 kg

Downloads

Product data sheet - English (44.2 KB) Manufacturer data sheet - DATA SHEET - English (99.5 KB)
