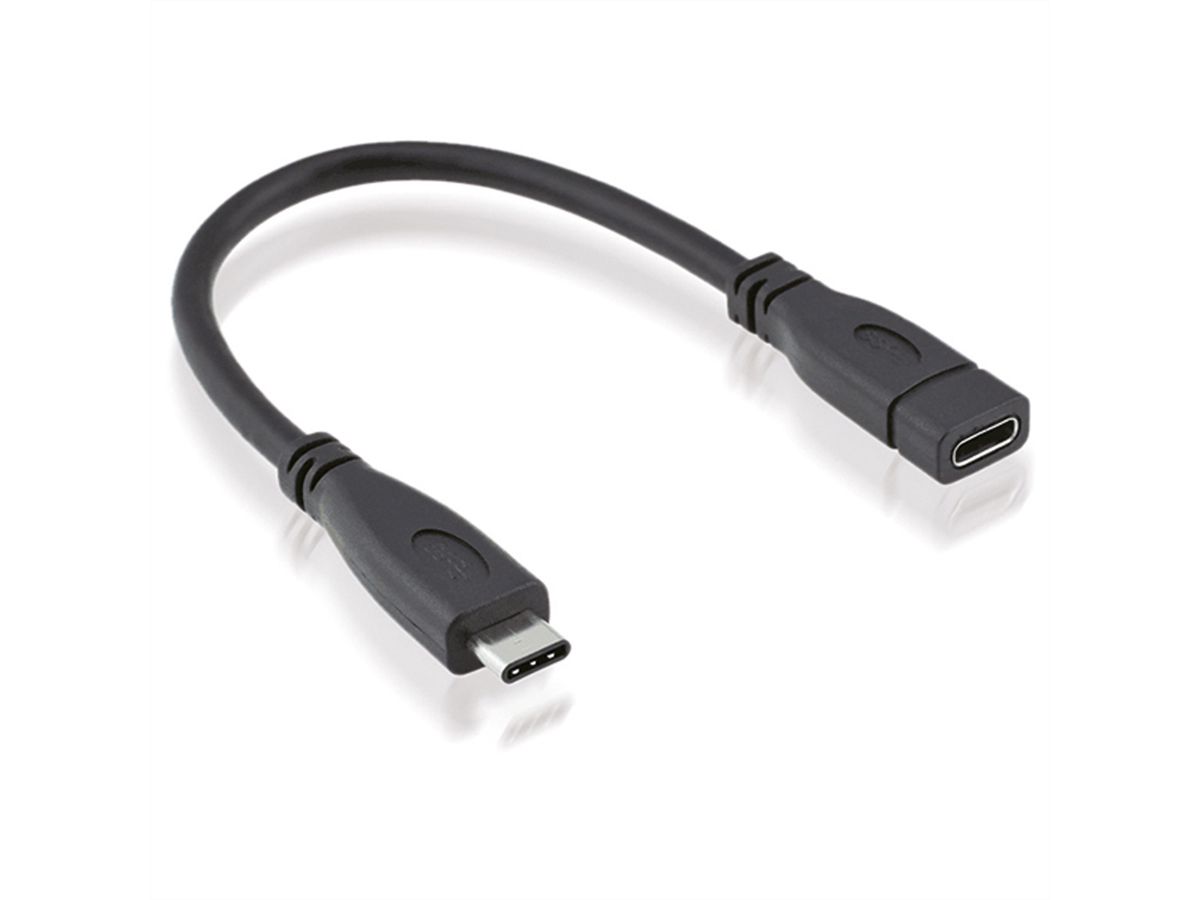

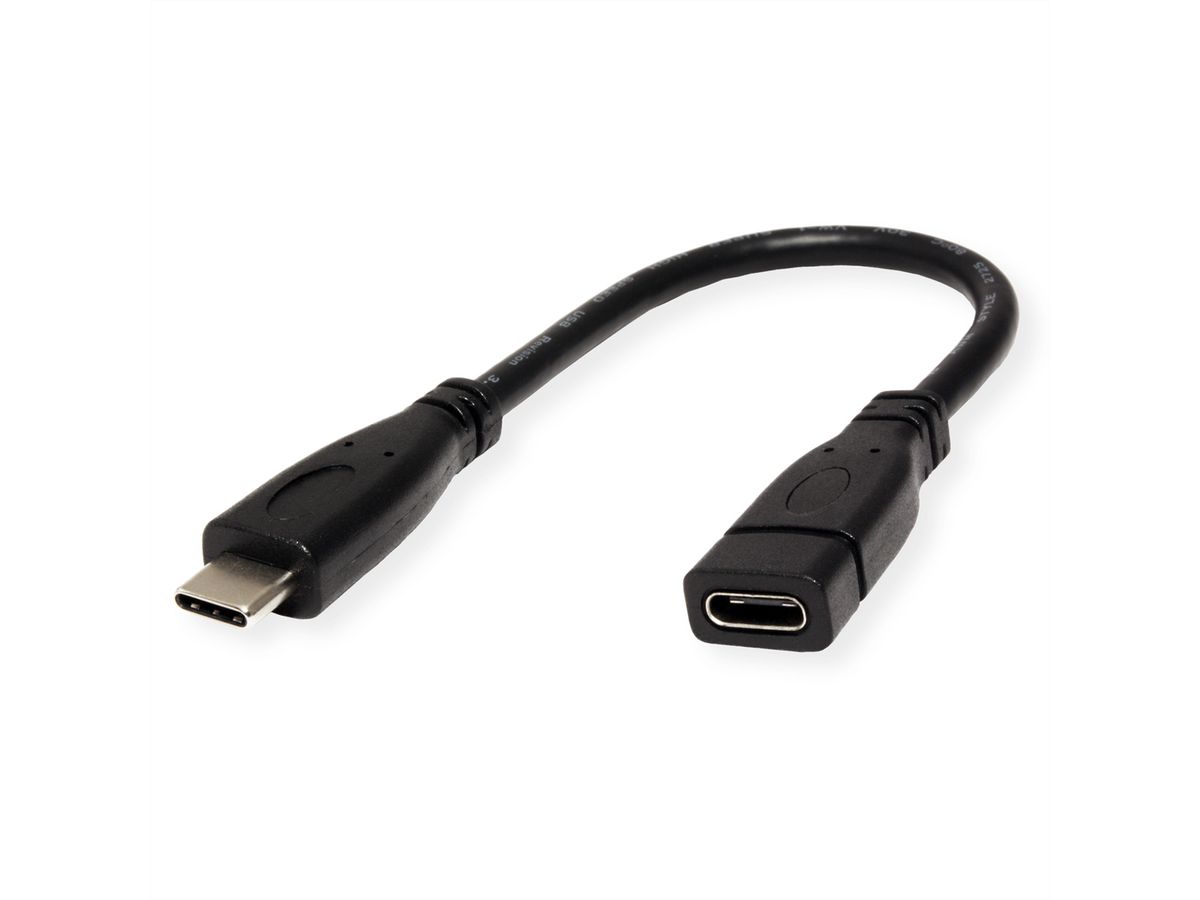

ROLINE USB 3.2 Gen 2 Type C Cable, C-C, M/F, black, 0.15 m

ROLINE USB 3.2 Gen 2 Type C Cable, C-C, M/F, black, 0.15 m

Please log in to be able to use the shopping cart and then complete orders.

Log in
Available
Ordered until 3 pm - usually dispatched on the same day
Item no. 11.02.9015-10
Brand / Manufacturer ROLINE
Manuf. no. 11.02.9015
EAN 7611990951451

Description

The SuperSpeed+ USB 10 Gbit/s (USB 3.1 / USB 3.2 Gen 2) specification adds a 10 Gbit/s speed mode that uses a more efficient data encoding and will deliver more than twice the effective data through-put performance of existing SuperSpeed USB over enhanced, fully backward compatible USB connectors and cables.

  • High quality USB 3.1 / USB 3.2 Gen 2 cable with improved shielding
  • With the new reversible Type C connectors at both ends
  • Gold-plated contacts for low wear at high plugging cycles
  • Reduces wear and tear on your Type C connector or your Type C device
  • Serves as a high-quality, durable USB Type C extension cable
  • Suitable for data transfer rates of up to 10 Gbit/s

Note: According to the current specifications of USB.org we have adapted the technical data of our USB 3 products. The new designation for the already known USB specifications has been changed to USB 3.2 Gen 1 (formerly USB 3.0 / USB 3.1 Gen 1) and USB 3.2 Gen 2 (formerly USB 3.1 / USB 3.1 Gen 2).

Specifications

Manufacturer ROLINE
Product group Cable
Product type USB 3.2 Cable
Colour black
Length 0.15 m
Transfer quality USB 3.2 Gen 2 SuperSpeed 10 Gbit/s (USB 3.1 Gen 2, USB 3.1)
Connection ports USB Type C (USB-C) Male / USB Type C (USB-C) Female
Side 1 Connector Type USB Type C (USB-C)
Side 1 Connector Gender Male
Side 2 Connector Type USB Type C (USB-C)
Side 2 Connector Gender Female
Maximum data transfer rate 10 Gbit/s
Area of application External
Supported charging technology USB-PD - USB Power Delivery
Power (max.) 100 W
Cable shielding Screened
Hand locking screws no
Weight 13.6 g
Height of packaging (single piece) 20 mm
Width of packaging (single piece) 20 mm
Depth of packaging (single piece) 120 mm
Package weight (single piece) 0.02 kg

Downloads

Product data sheet - English (36.6 KB)

Download

Manufacturer data sheet - English (302.3 KB)

Download

Technical drawing - English (302.3 KB)

Download
