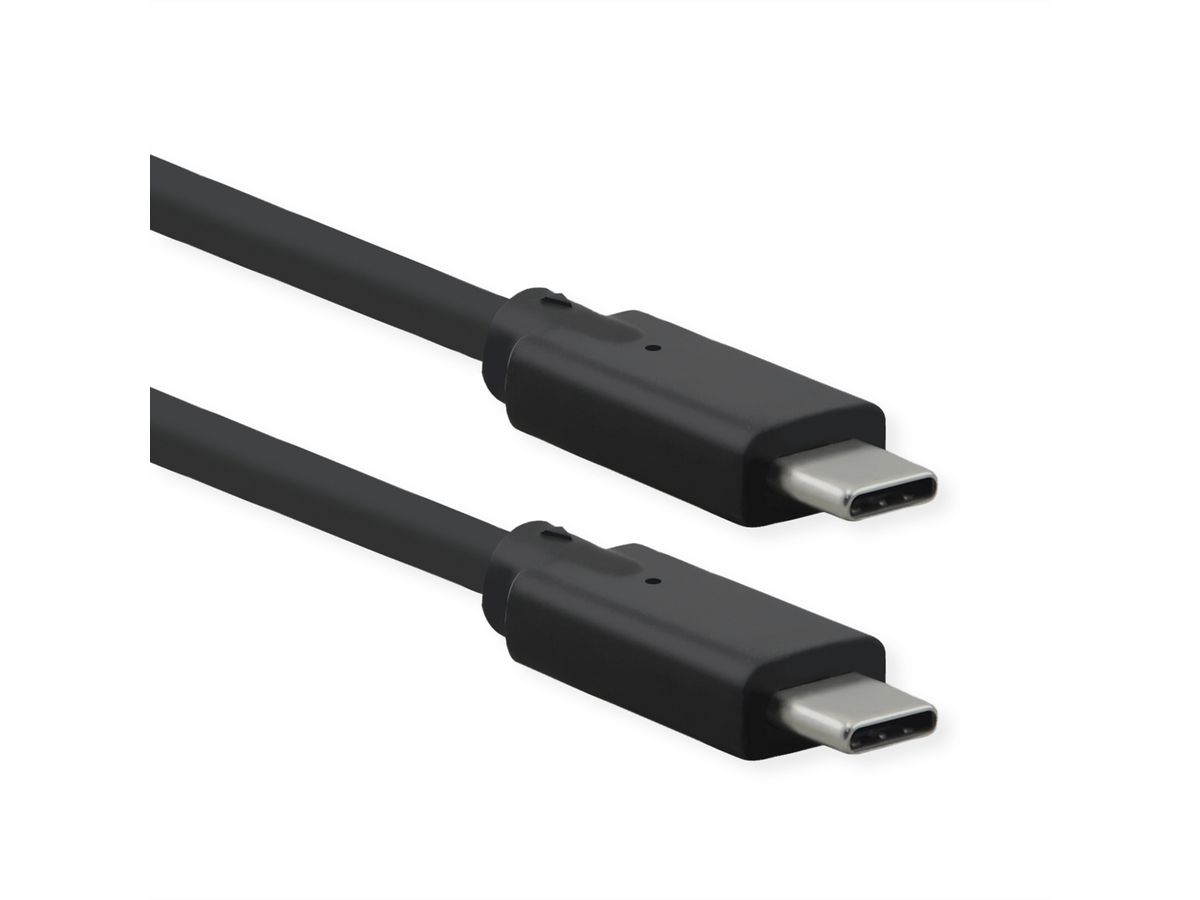

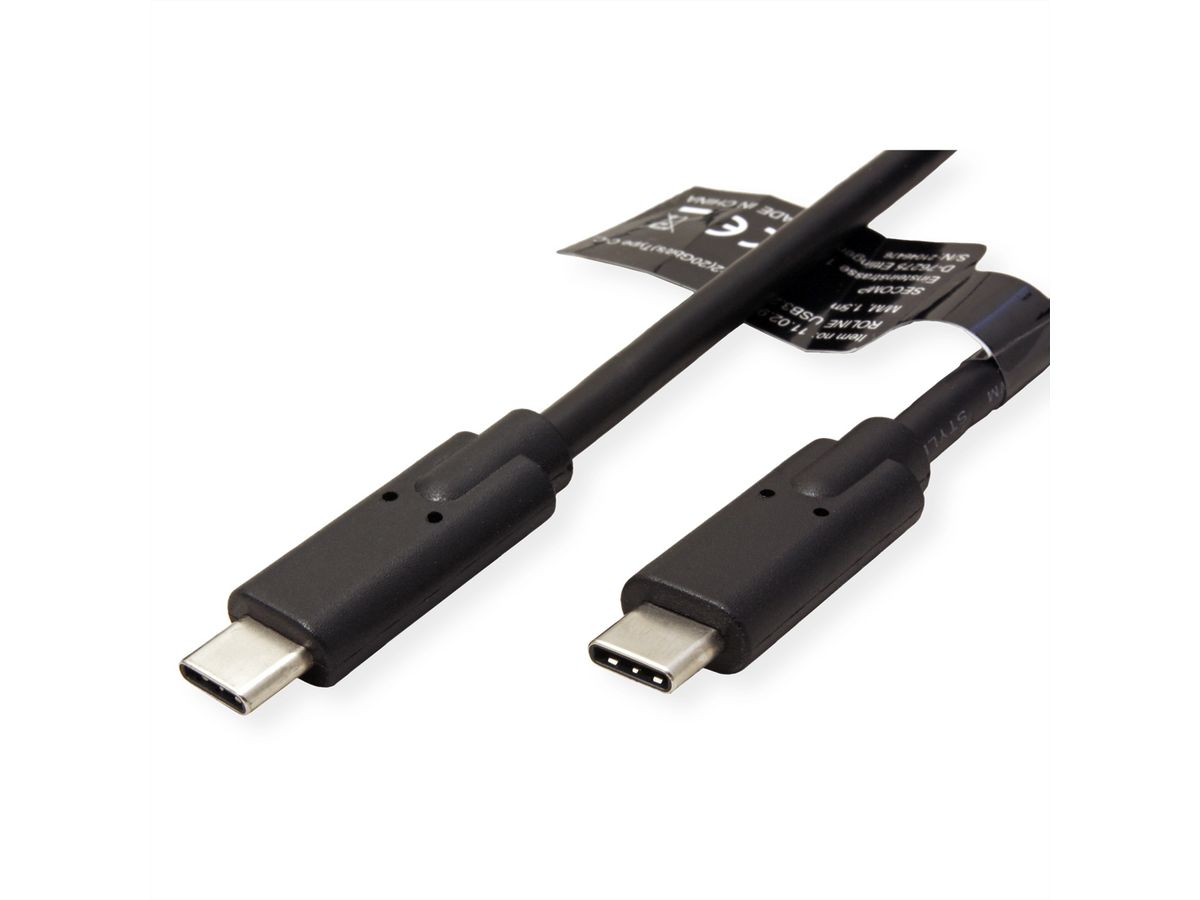

ROLINE USB 3.2 Gen 2x2 Cable, PD (Power Delivery) 20V5A, with Emark, C-C, M/M, 20 Gbit/s, black, 1 m

ROLINE USB 3.2 Gen 2x2 Cable, PD (Power Delivery) 20V5A, with Emark, C-C, M/M, 20 Gbit/s, black, 1 m

Please log in to be able to use the shopping cart and then complete orders.

Log in
Available
Ordered until 3 pm - usually dispatched on the same day
Item no. 11.02.9071-10
Brand / Manufacturer ROLINE
Manuf. no. 11.02.9071
EAN 7630049699250
Colour
Length

Description

USB 3.2 Gen 2x2 cable with up to 20 Gbit/s speed mode that uses a more efficient data encoding and will deliver more than twice the effective data through-put performance of existing, fully backward compatible USB connectors and cables.

  • High quality USB 3.1 / USB 3.2 Gen 2x2 cable with improved shielding
  • With the reversible Type C connectors at both ends
  • Gold-plated contacts for low wear at high plugging cycles
  • Suitable for data transfer rates of up to 20 Gbit/s

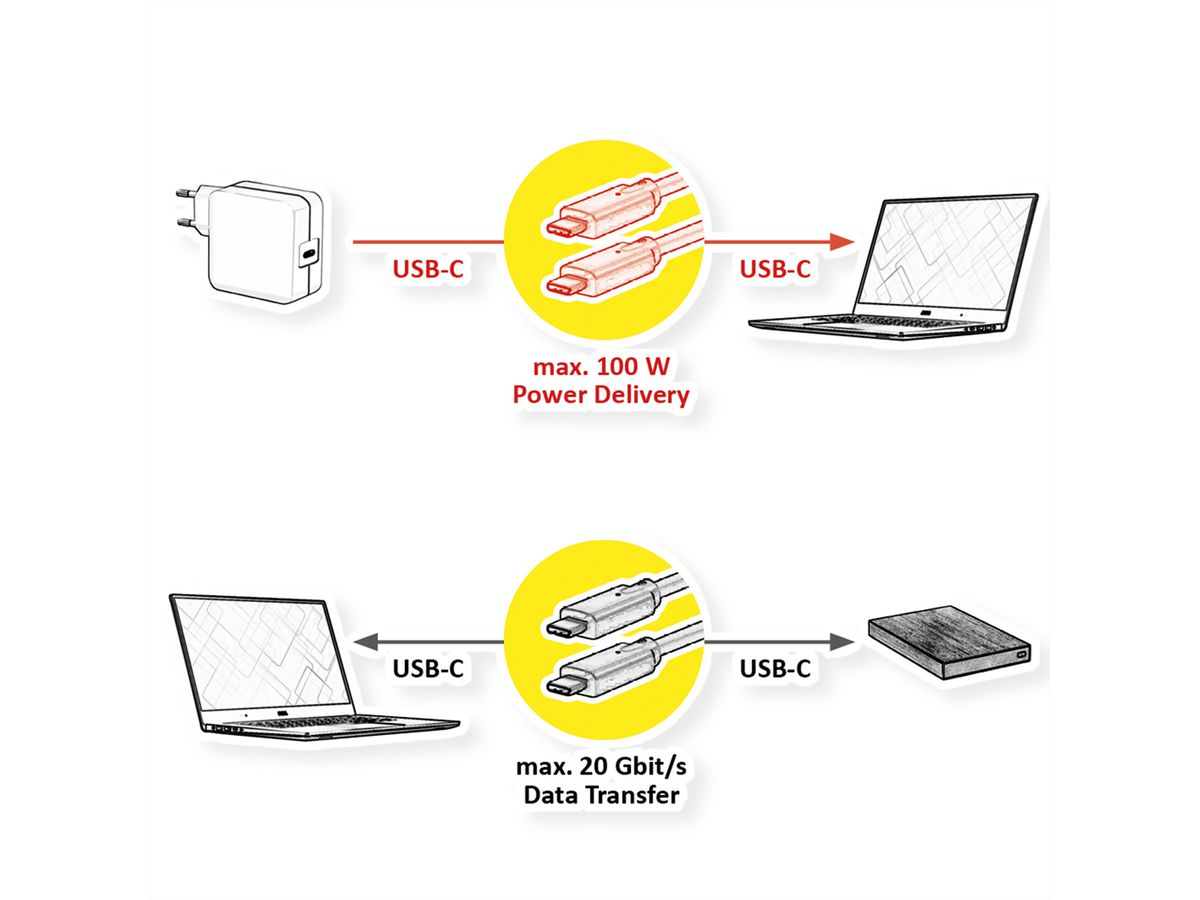

  • Supports USB Power Delivery to 20V / 5A

Note: According to the current specifications of USB.org we have adapted the technical data of our USB 3 products. The new designation for the already known USB specifications has been changed to USB 3.2 Gen 1 (formerly USB 3.0 / USB 3.1 Gen 1) and USB 3.2 Gen 2 (formerly USB 3.1 / USB 3.1 Gen 2).

Specifications

Manufacturer ROLINE
Product group Cable
Product type USB 3.2 Cable
Colour black
Length 1 m
Transfer quality USB 3.2 Gen 2x2 SuperSpeed 20 Gbit/s
Connection ports USB Type C (USB-C) Male / USB Type C (USB-C) Male
Side 1 Connector Type USB Type C (USB-C)
Side 1 Connector Gender Male
Side 2 Connector Type USB Type C (USB-C)
Side 2 Connector Gender Male
Maximum data transfer rate 20 Gbit/s
Area of application External
Supported charging technology USB-PD - USB Power Delivery
Power (max.) 100 W
Cable shielding Screened
Hand locking screws no
Weight 44.1 g
Height of packaging (single piece) 20 mm
Width of packaging (single piece) 50 mm
Depth of packaging (single piece) 50 mm
Package weight (single piece) 0.051 kg

Downloads

Product data sheet - English (66.4 KB)

Download

Manufacturer data sheet - English (99.3 KB)

Download

The products of our own brand ROLINE are designed for professional continuous operation.

With a 2-year functional guarantee, we stand by our performance promise.

ROLINE – Quality makes the difference.
