ROLINE USB-C - DisplayPort AdapterCable, M/F, Bi-directional, 0.2 m

Item no. 11.04.5957-10 Brand / Manufacturer ROLINE Manuf. no. 11.04.5957 EAN 7630049685147 Package weight 0.04 kg
ROLINE

Please log in to be able to use the shopping cart and then complete orders.

Log in
Available
Ordered until 3 pm - usually dispatched on the same day
Download PDF

Description

  • Reversible cableadapter which enables the connection between devices with USB Type-C and DisplayPort connectors
  • Bidirectional cableadapter - works in BOTH signal directions with USB Type-C and DisplayPort connectors
  • Requires the support of DisplayPort Alternate Mode on the USB Type C connection (laptop / PC / monitor)

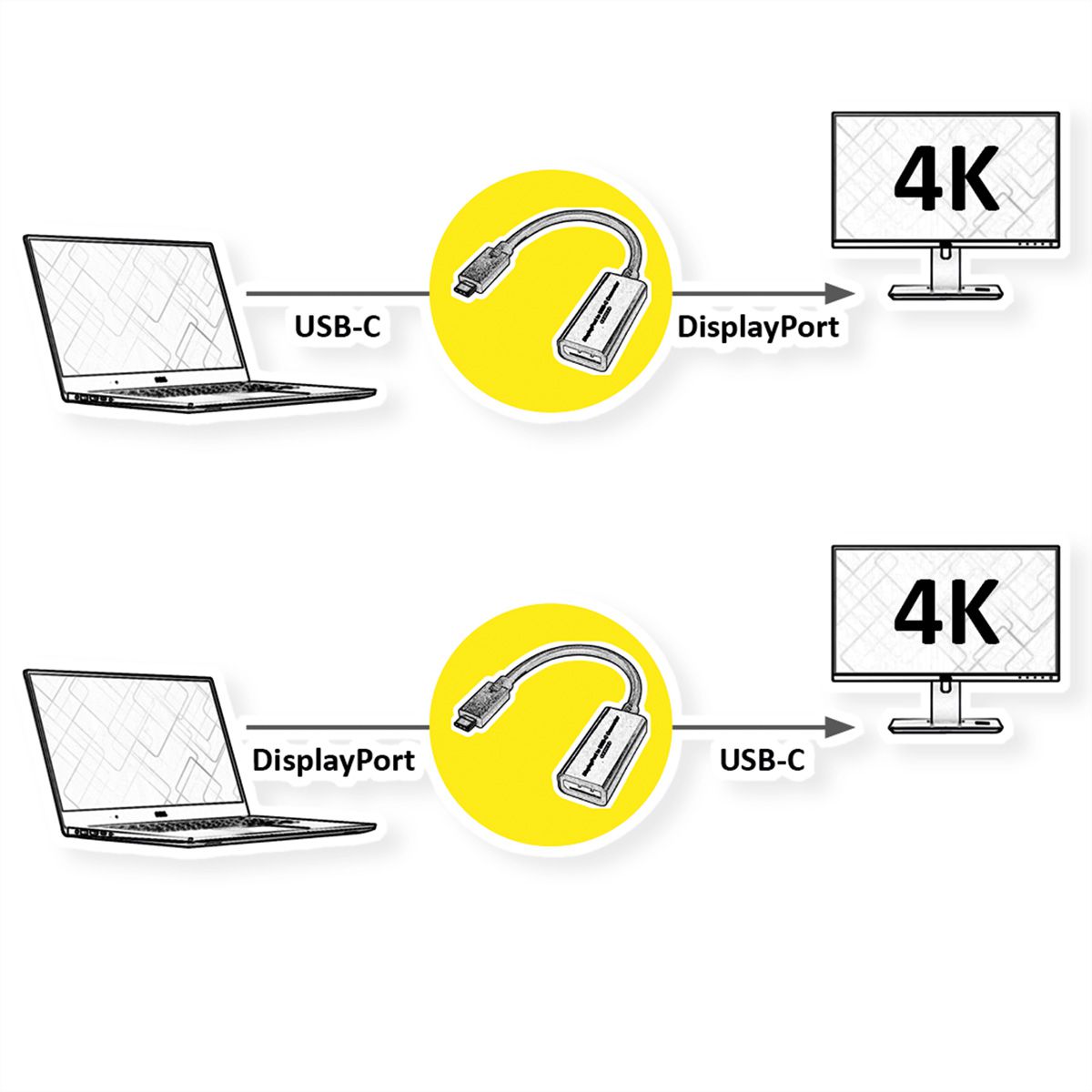

  • Offers a variety of possible applications
- monitor or TV connection with DisplayPort socket to a laptop/smartphone with USB Type-C port.
- connection of an USB Type-C monitor to a device with DisplayPort output (notebook/PC...)
  • Plug & Play
  • Converter is bus powered, this makes the integration within installations easy, with no additional need for external power supplies or outlets
  • Max. resolution: 3840 x2160 @60Hz
  • Connectors: DisplayPort female and Type C Male
  • Cable length: 0.2 m

Remark: Support of "Alternate Mode (DP Alt Mode)" required

Specifications

Manufacturer
ROLINE
Product group
Adapters, Terminators, Converters
Product type
USB-DisplayPort Adapter
Colour
black
Length
0.2 m
Max. resolution
3840 x 2160 @60Hz (4K, UHD-1)
Side 1 connection (PC)
Typ C Male
Side 2 connection (Peripherals)
DisplayPort Male
Side 1 Connector Type
USB Type C (USB-C)
Side 1 Connector Gender
Male
Side 2 Connector Type
DisplayPort
Side 2 Connector Gender
Female
Area of application
External
Technical particularity
DisplayPort Version 1.2
Height
12.2 mm
Width
21 mm
Depth
174 mm
Weight
19.9 g
Height of packaging (single piece)
20 mm
Width of packaging (single piece)
20 mm
Depth of packaging (single piece)
60 mm
Package weight (single piece)
0.04 kg

Downloads

Product data sheet - English (49.1 KB) Manufacturer data sheet - English (372.5 KB)

The products of our own brand ROLINE are designed for professional continuous operation.

With a 2-year functional guarantee, we stand by our performance promise.

ROLINE – Quality makes the difference.

More about ROLINE
