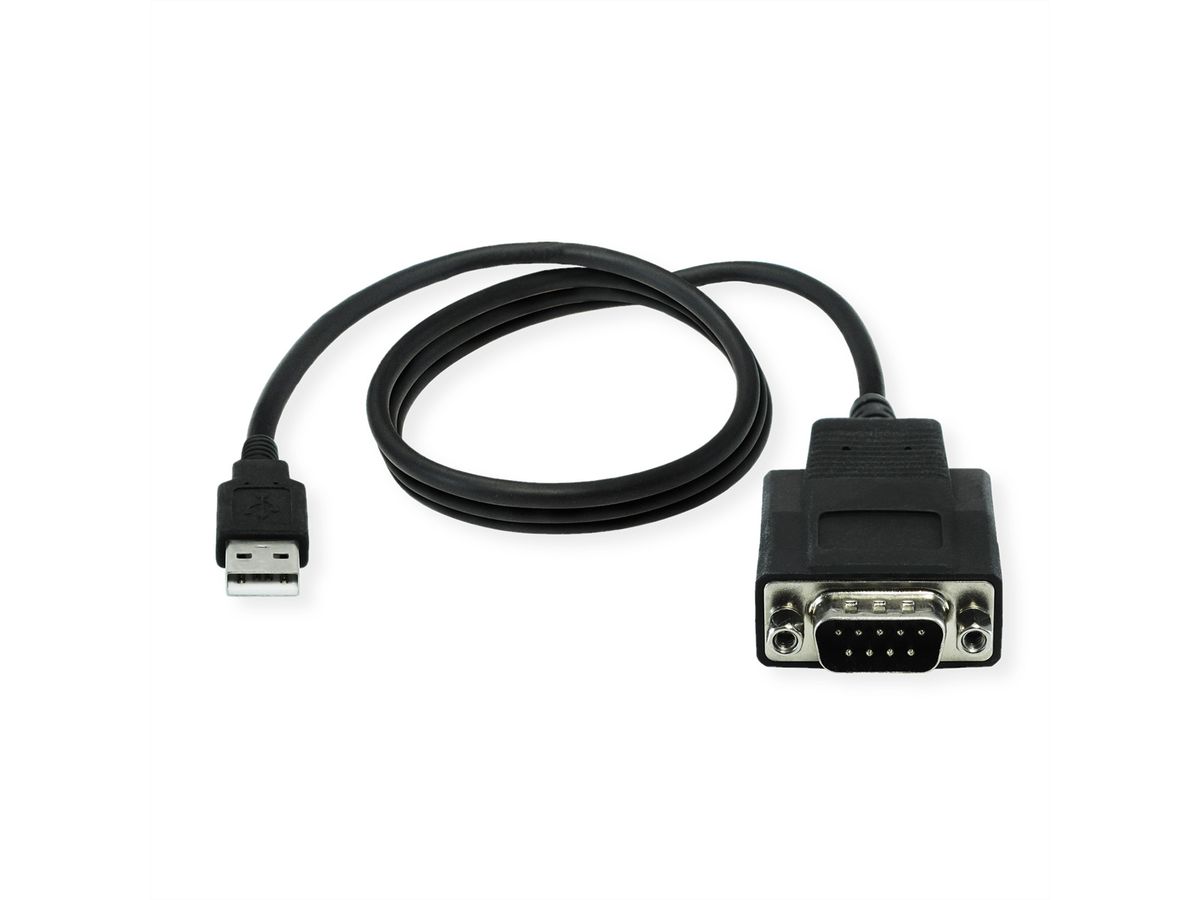

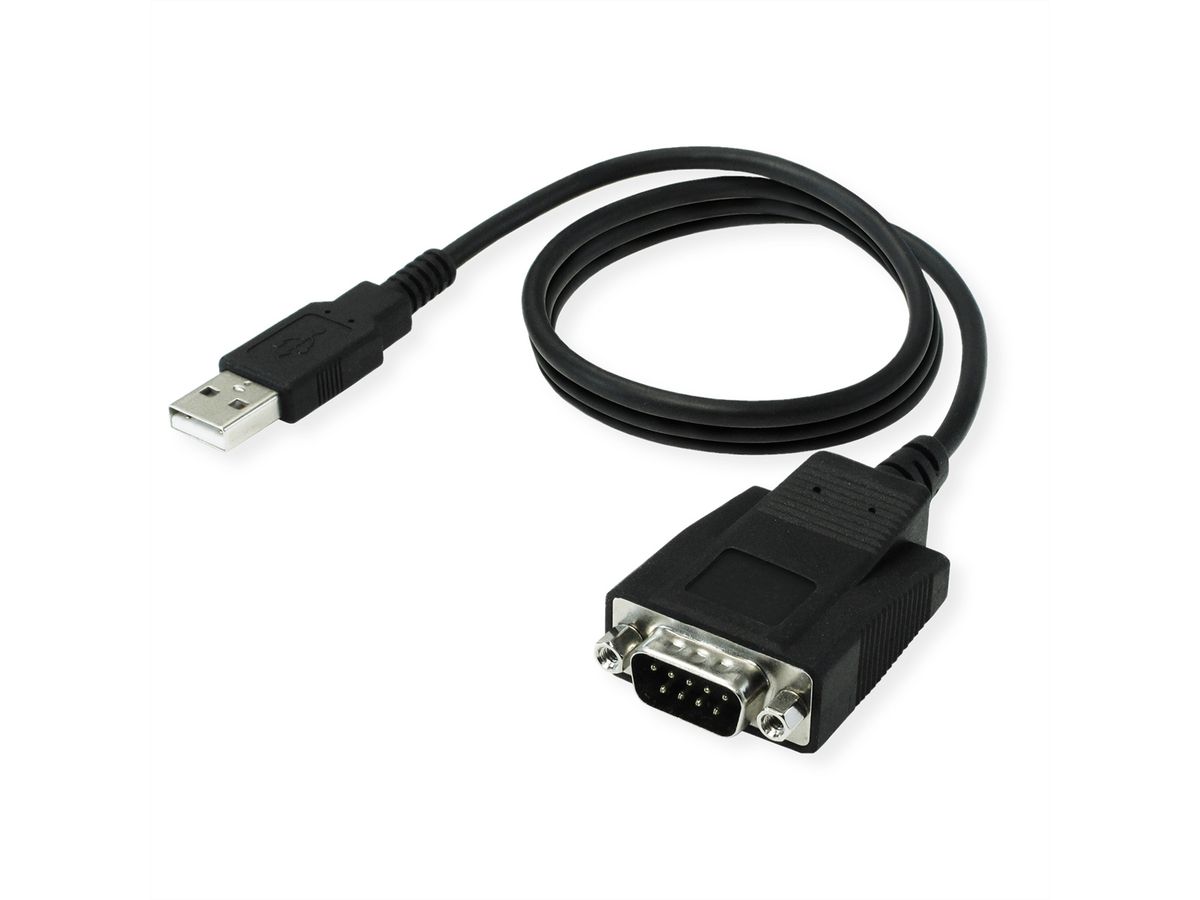

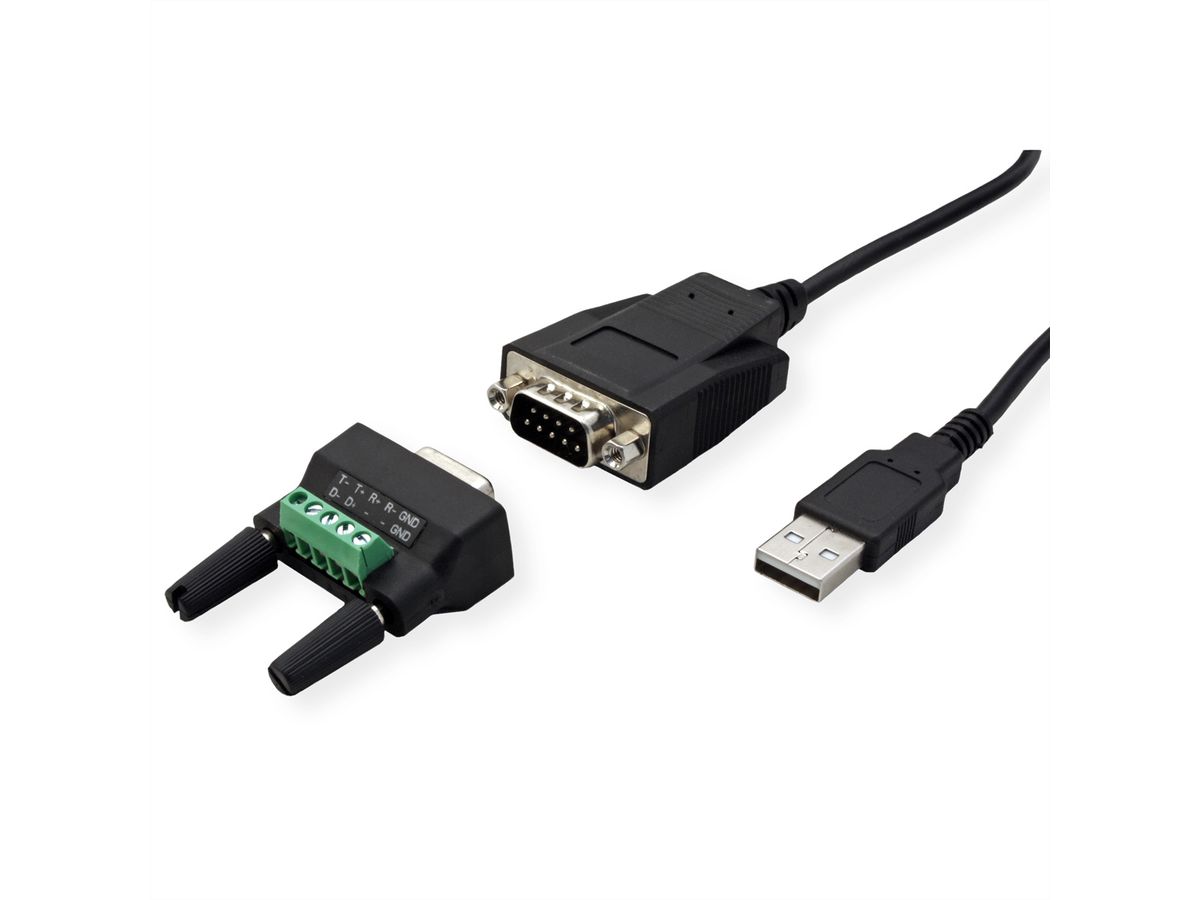

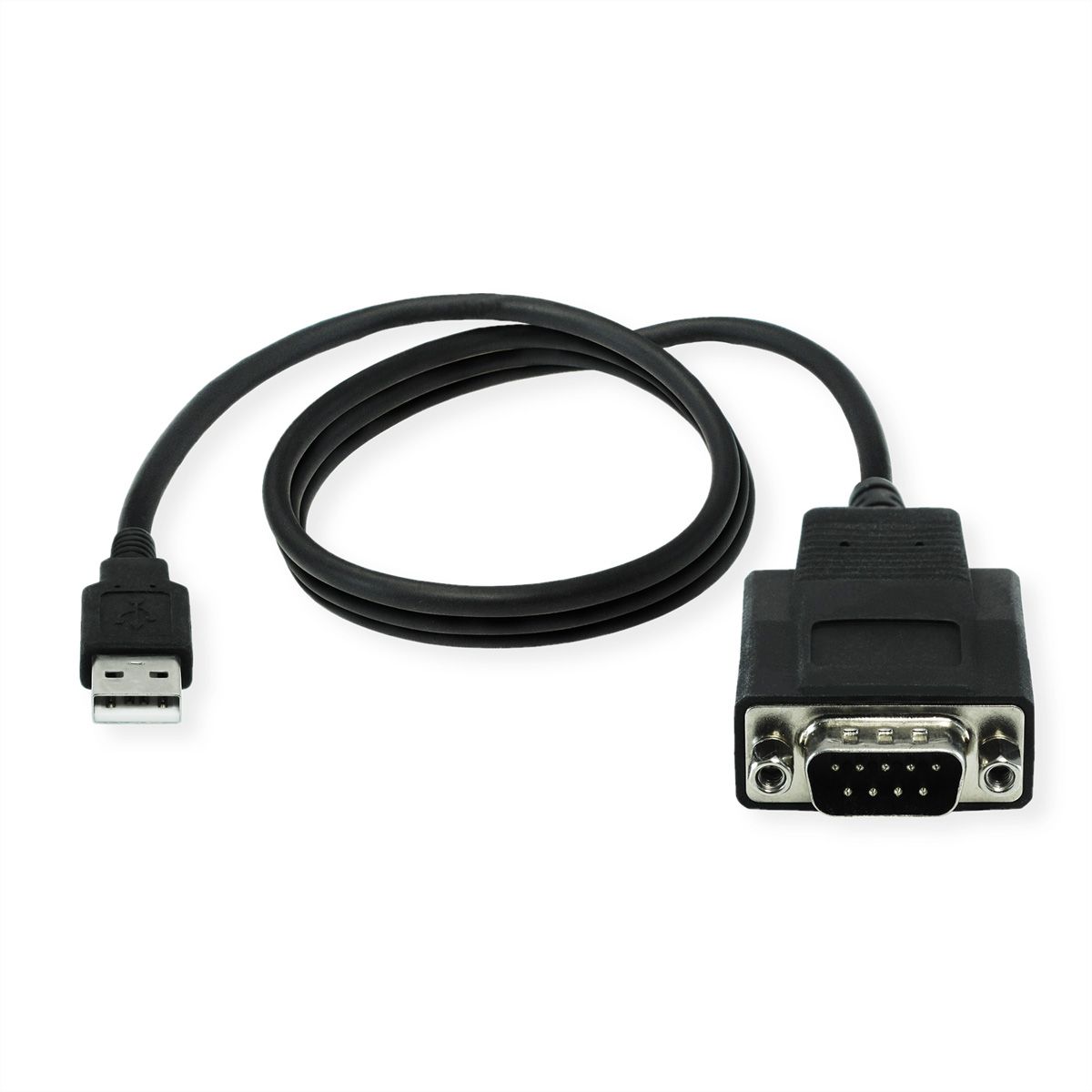

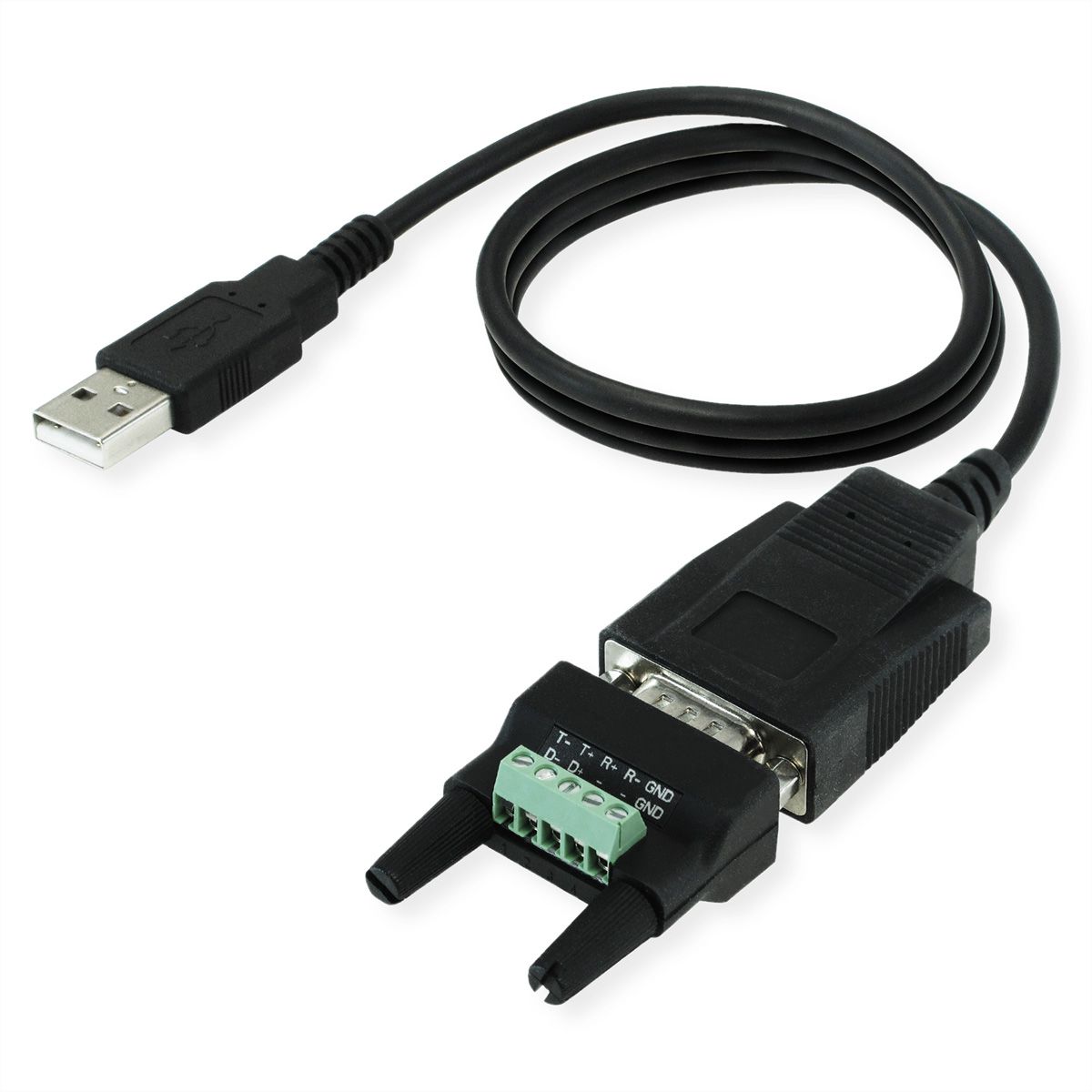

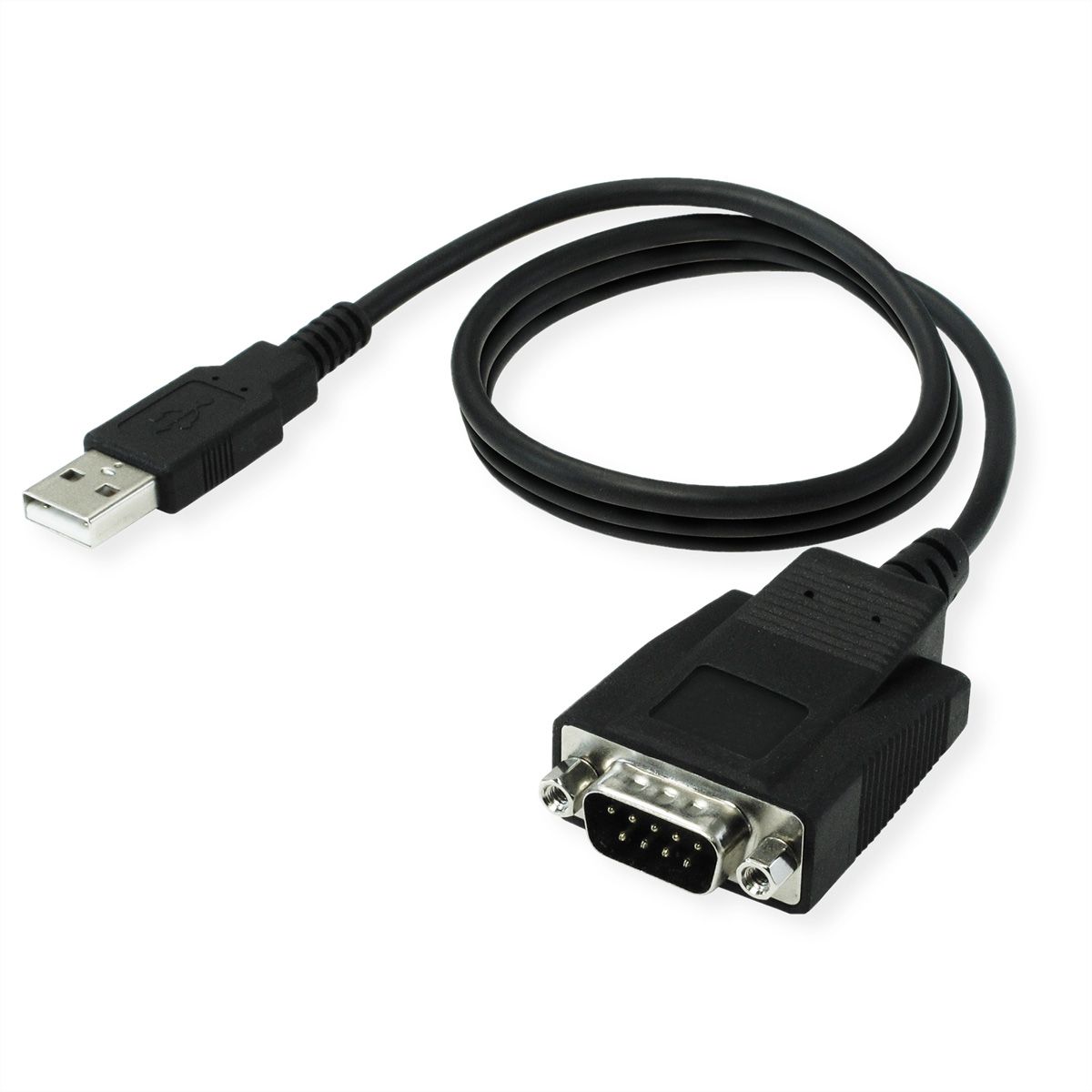

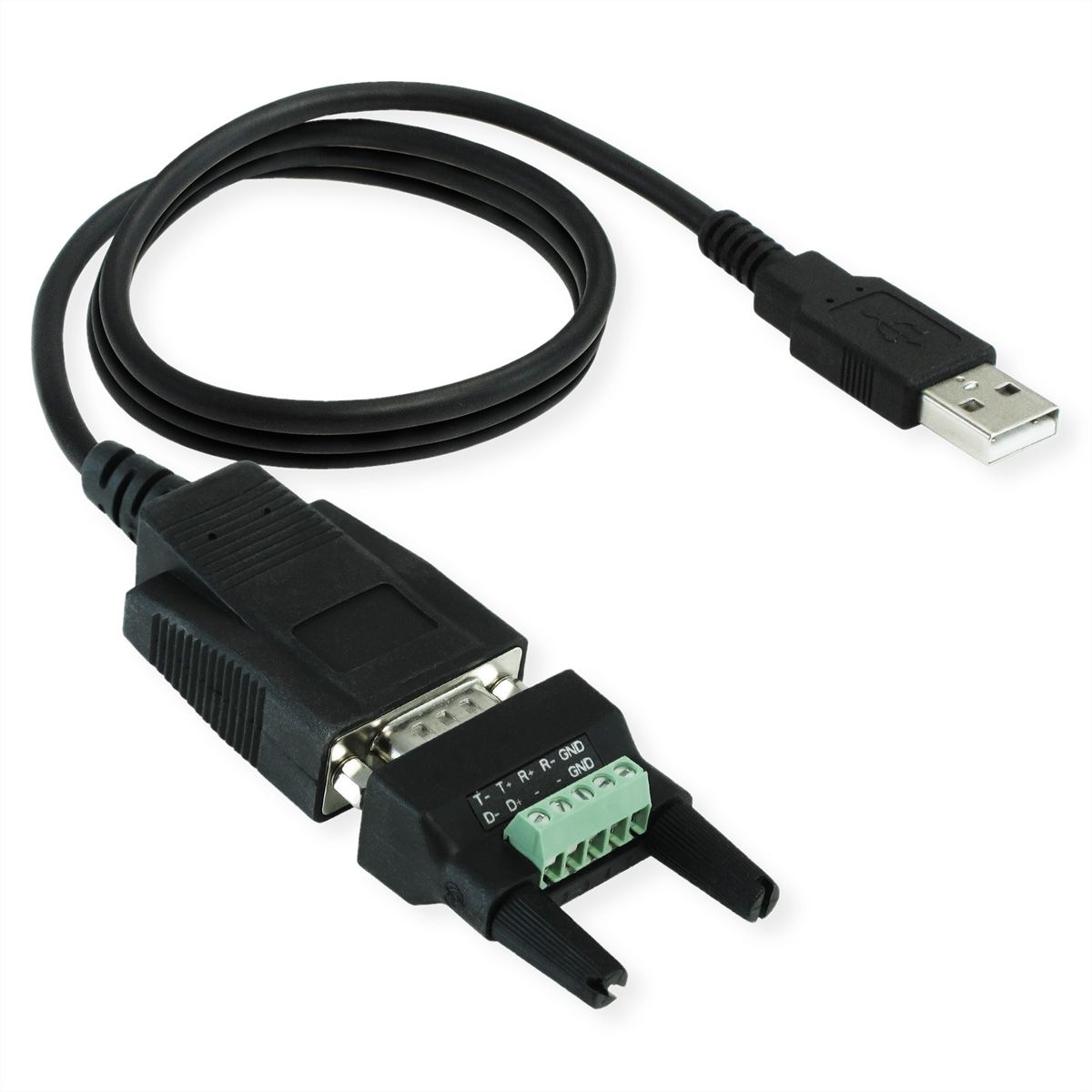

ROLINE USB to RS-422/485 Converter

ROLINE USB to RS-422/485 Converter

Please log in to be able to use the shopping cart and then complete orders.

Log in
Available
Ordered until 3 pm - usually dispatched on the same day
Item no. 12.02.1174-5
Brand / Manufacturer ROLINE
Manuf. no. 12.02.1174
EAN 7630049674325
Package weight 0.25 kg

Description

USB-to-serial converter for use with computers without a serial interface and mobile devices, which often only offer USB interfaces.

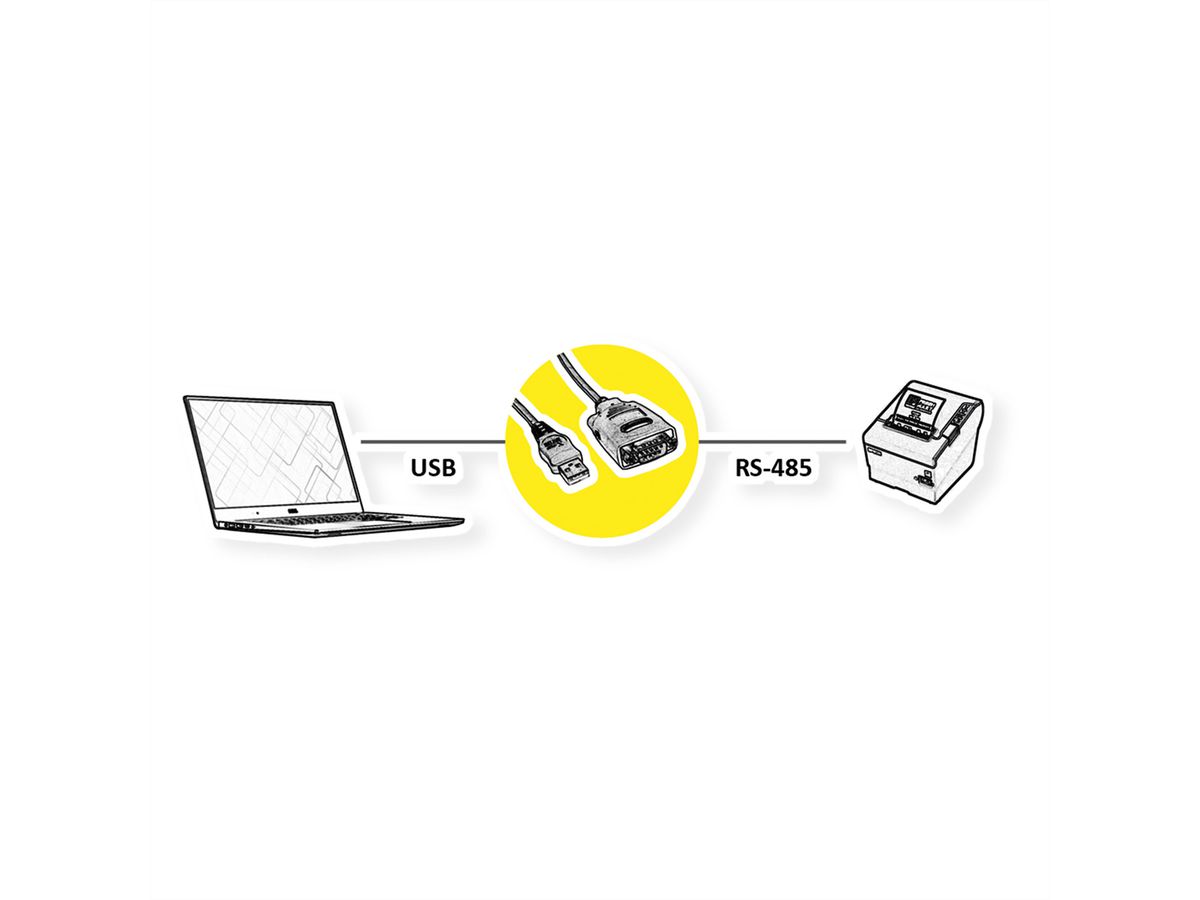

This converter provides an extra Serial RS-422/485 port via USB connection

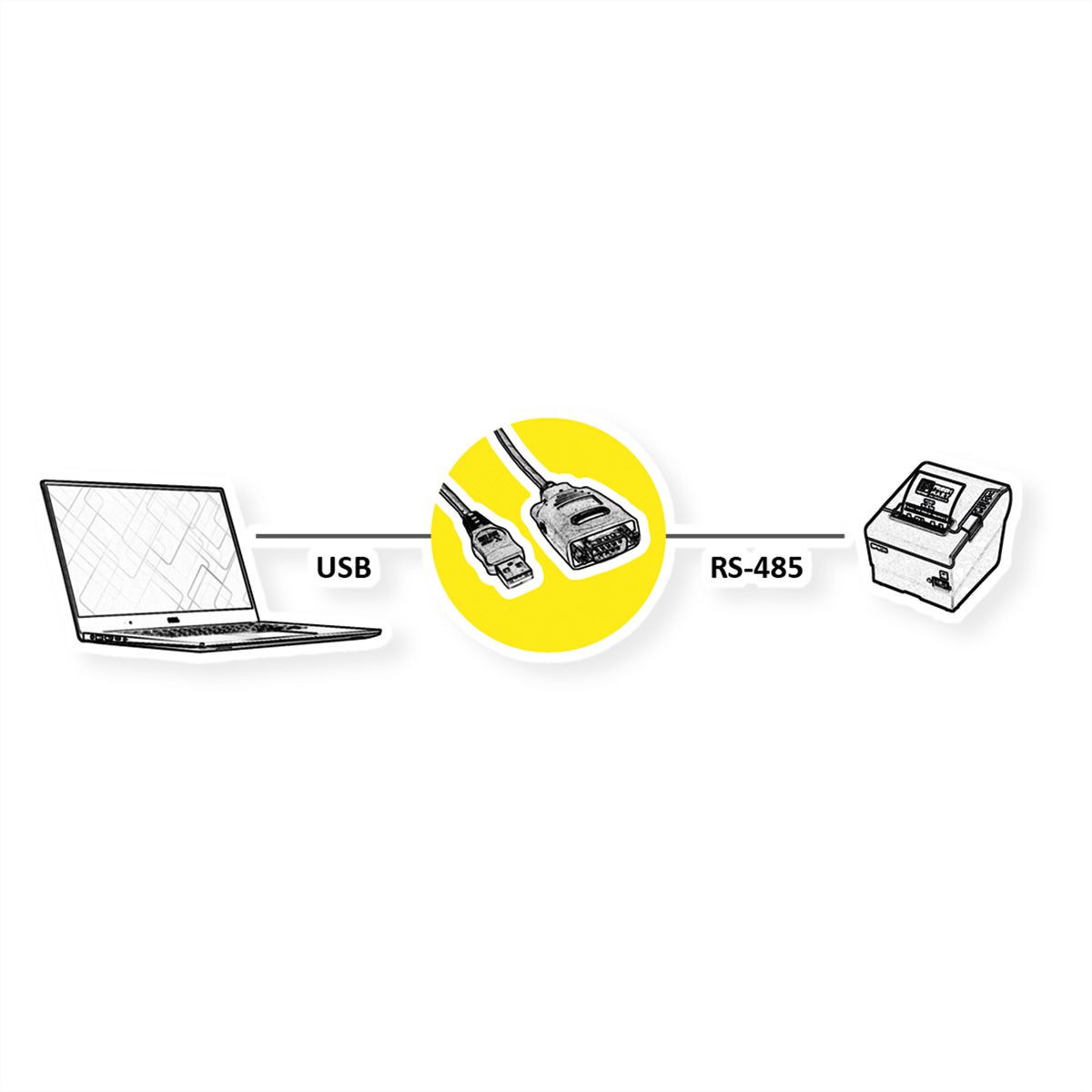

  • To connect serial devices (e.g. modem) to one USB port
  • Built-in +/- 15 KV ESD protection

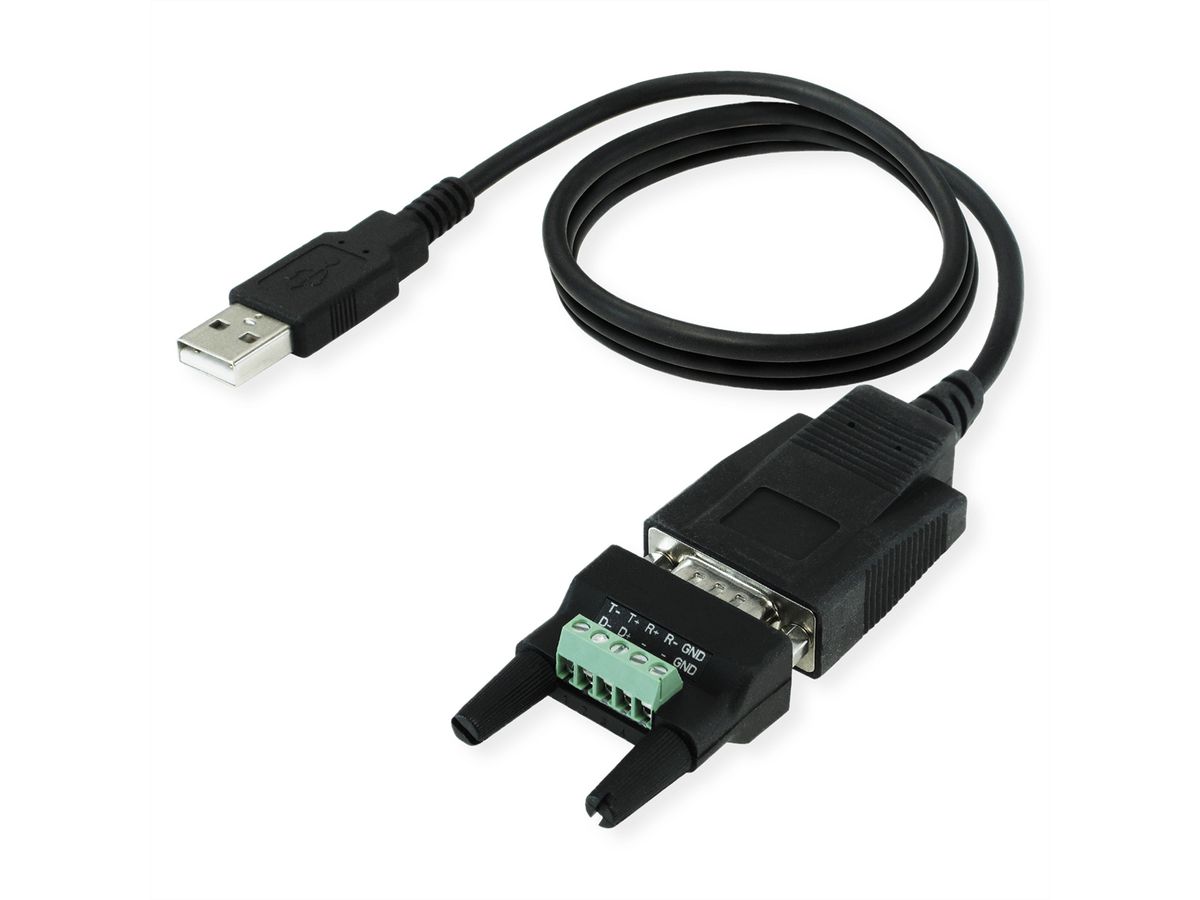

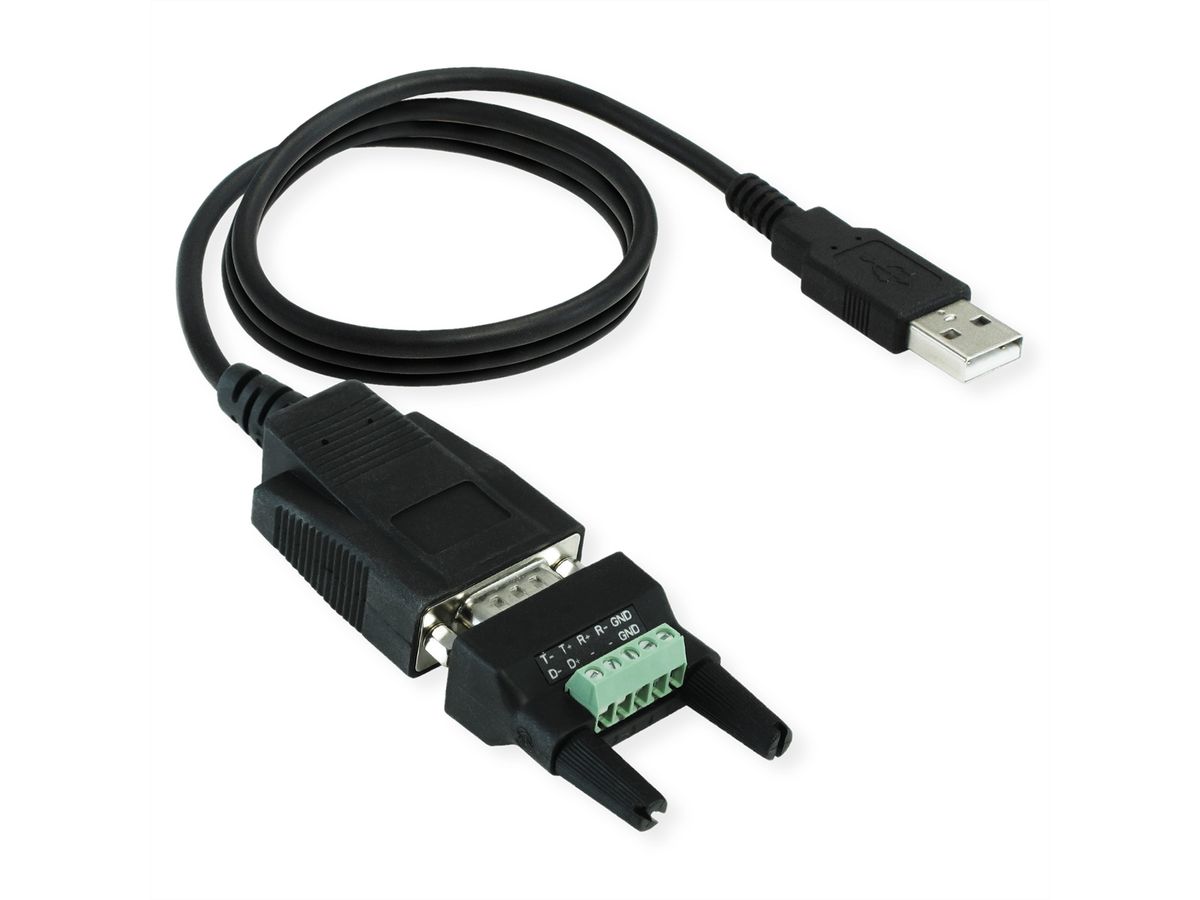

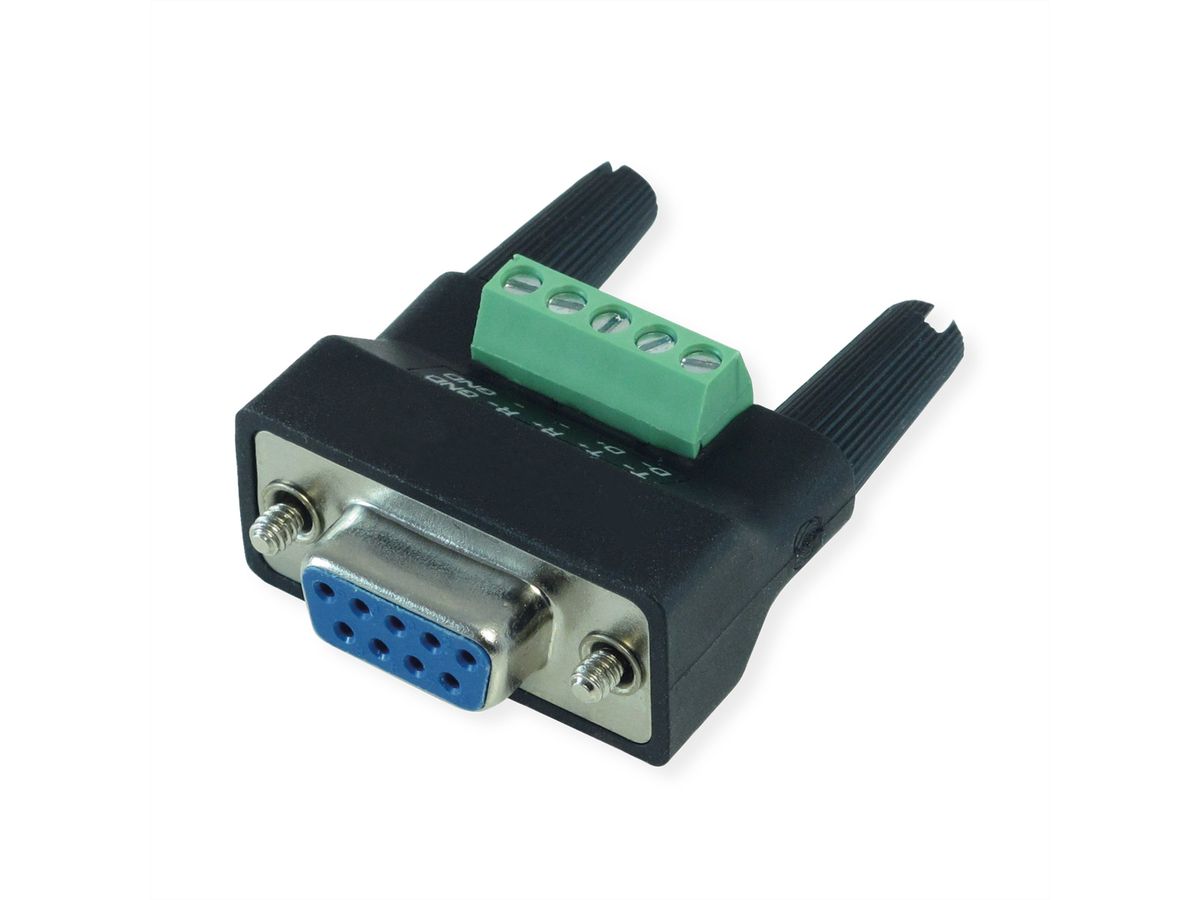

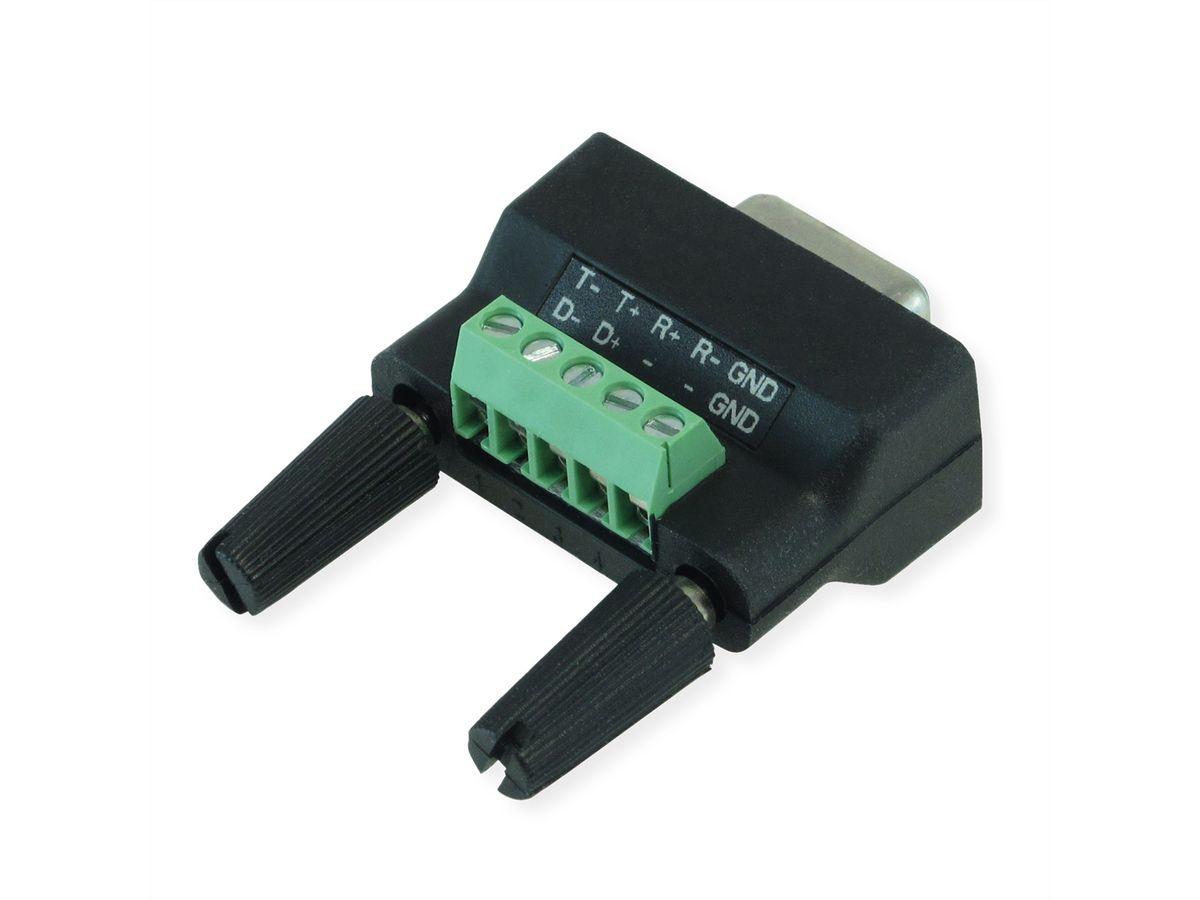

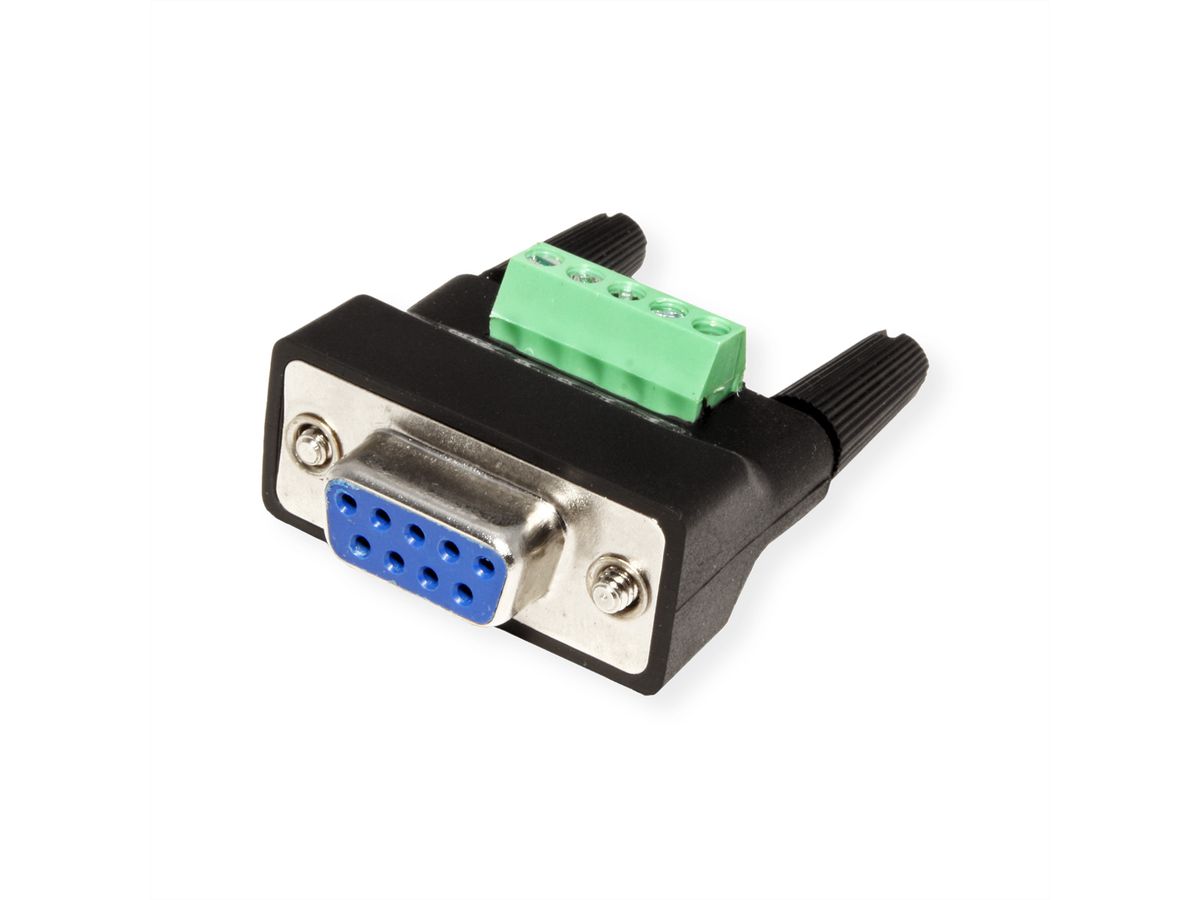

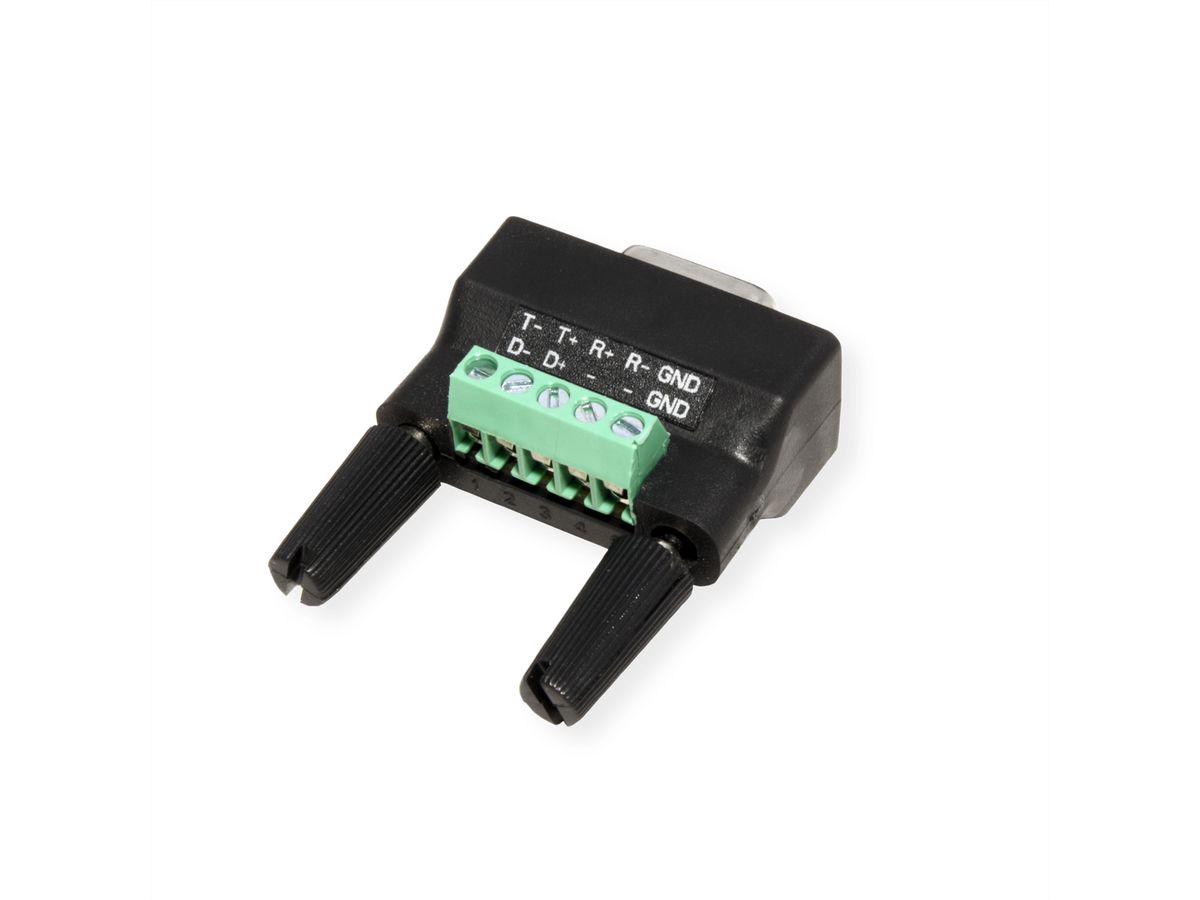

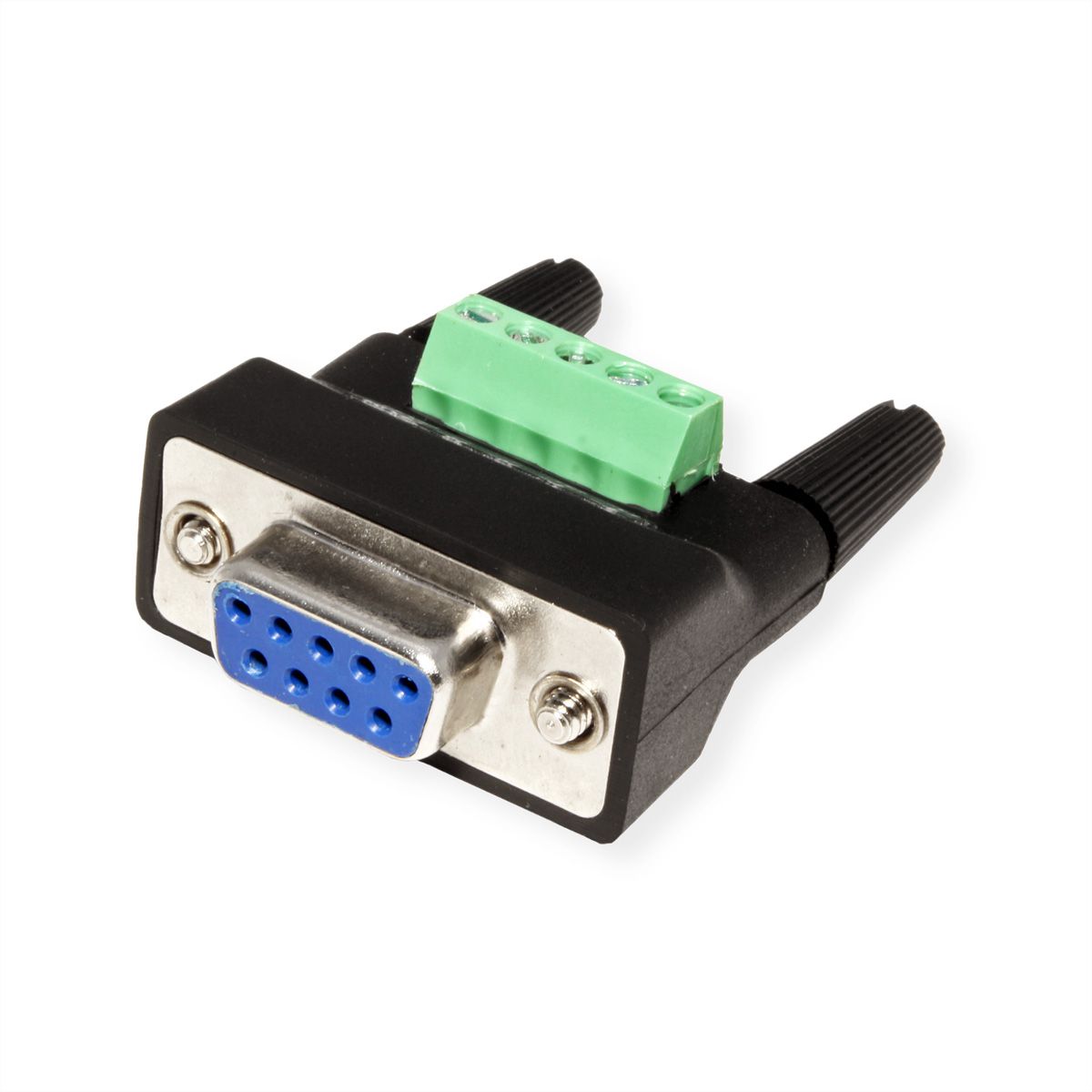

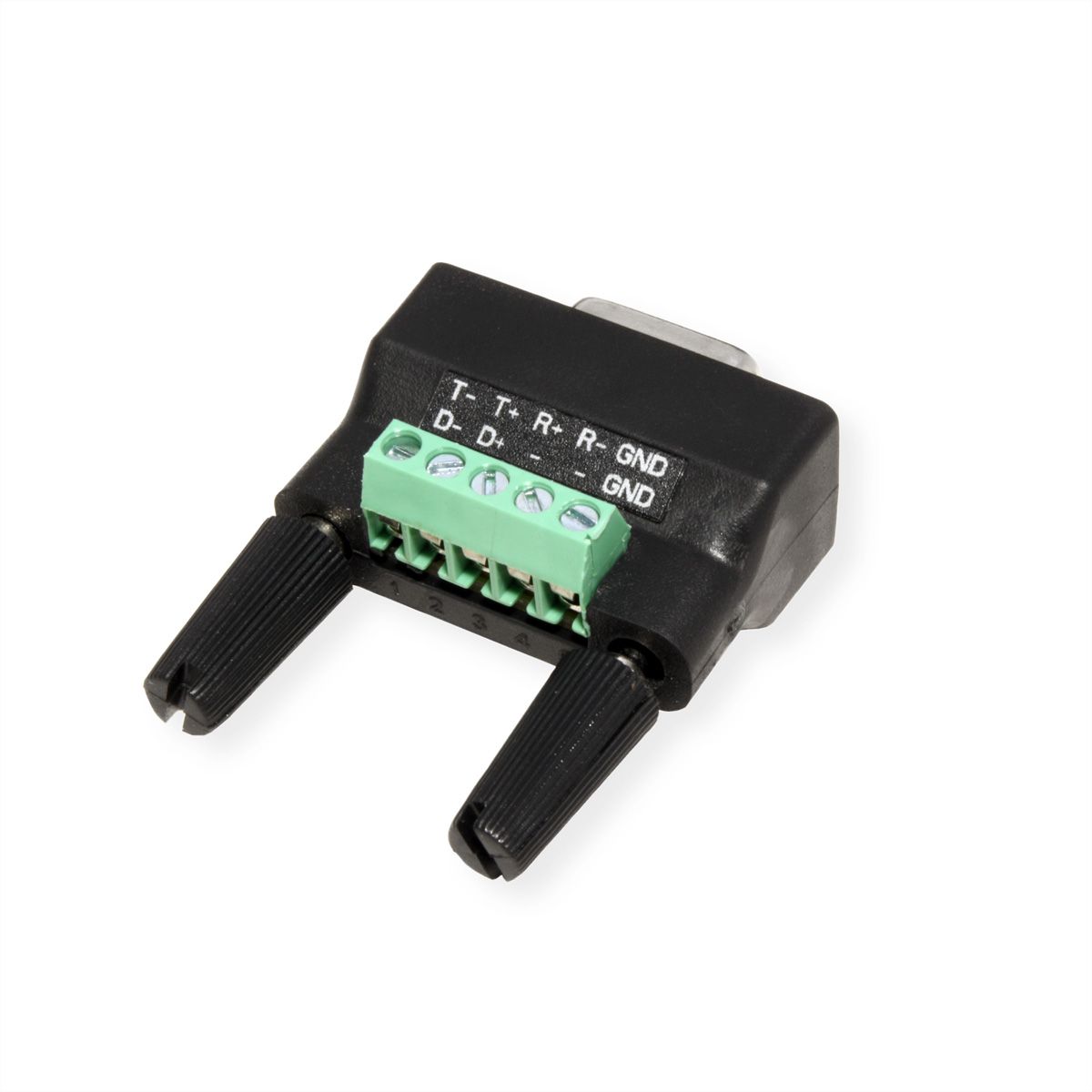

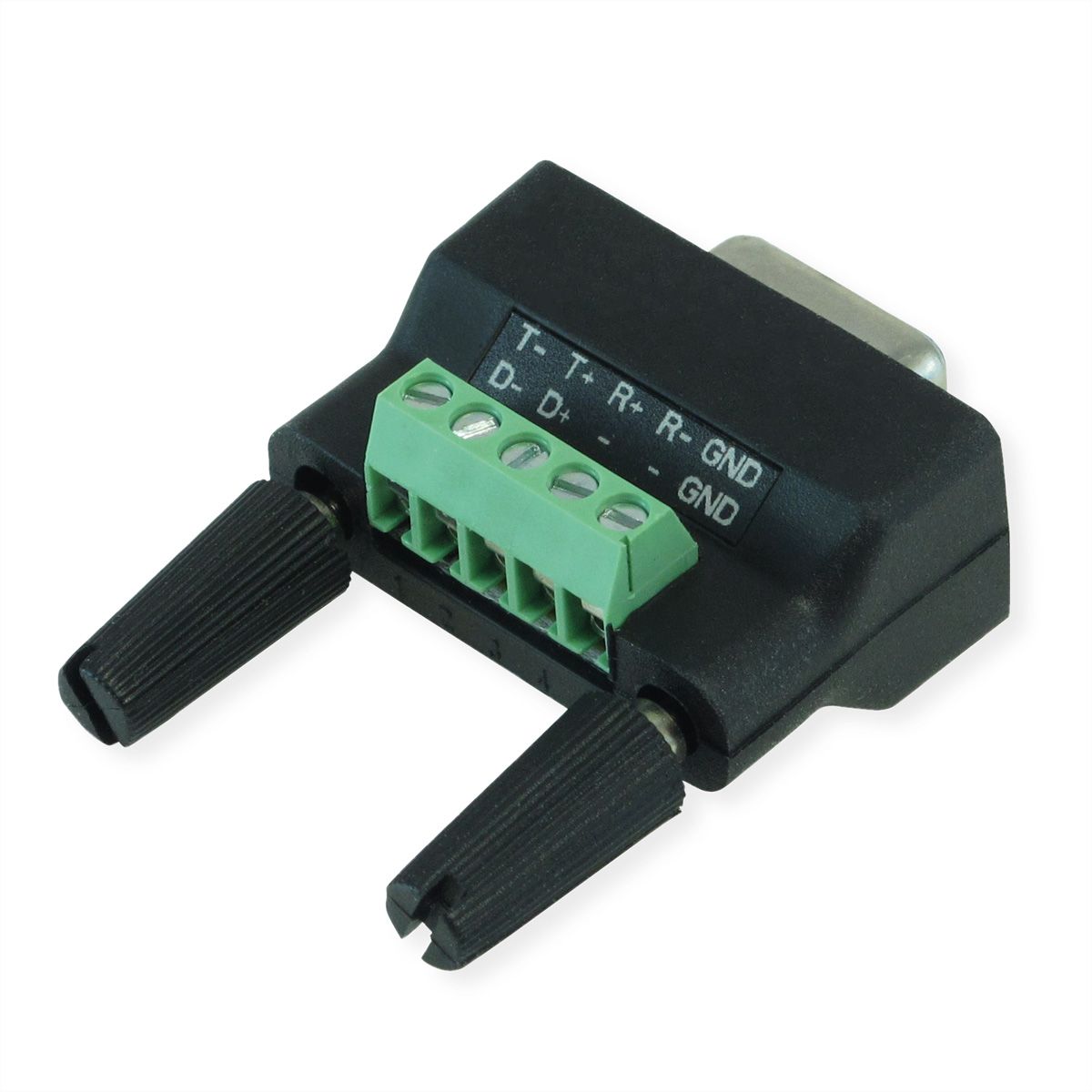

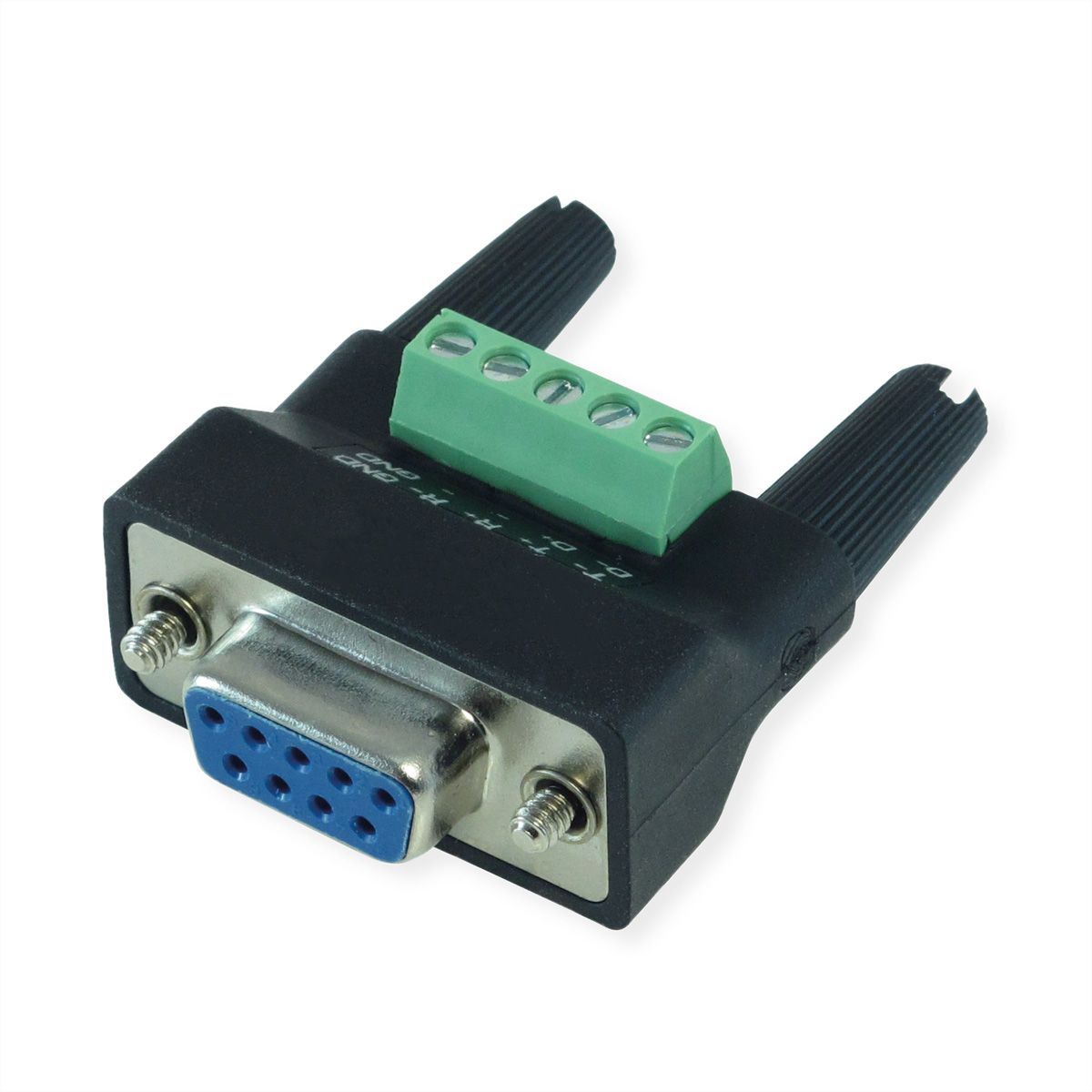

  • DB9 female to 5 pin terminal block adapter included
  • Supports data transfer rates of up to 921.6 kbit/s
  • Power supply via USB interface from PC / notebook
  • Plug & play
  • Supports Microsoft Windows and Linux

Specifications

Manufacturer ROLINE
Product group Adapters, Terminators, Converters
Product type USB - Serial Converter
Colour black
Length 1.2 m

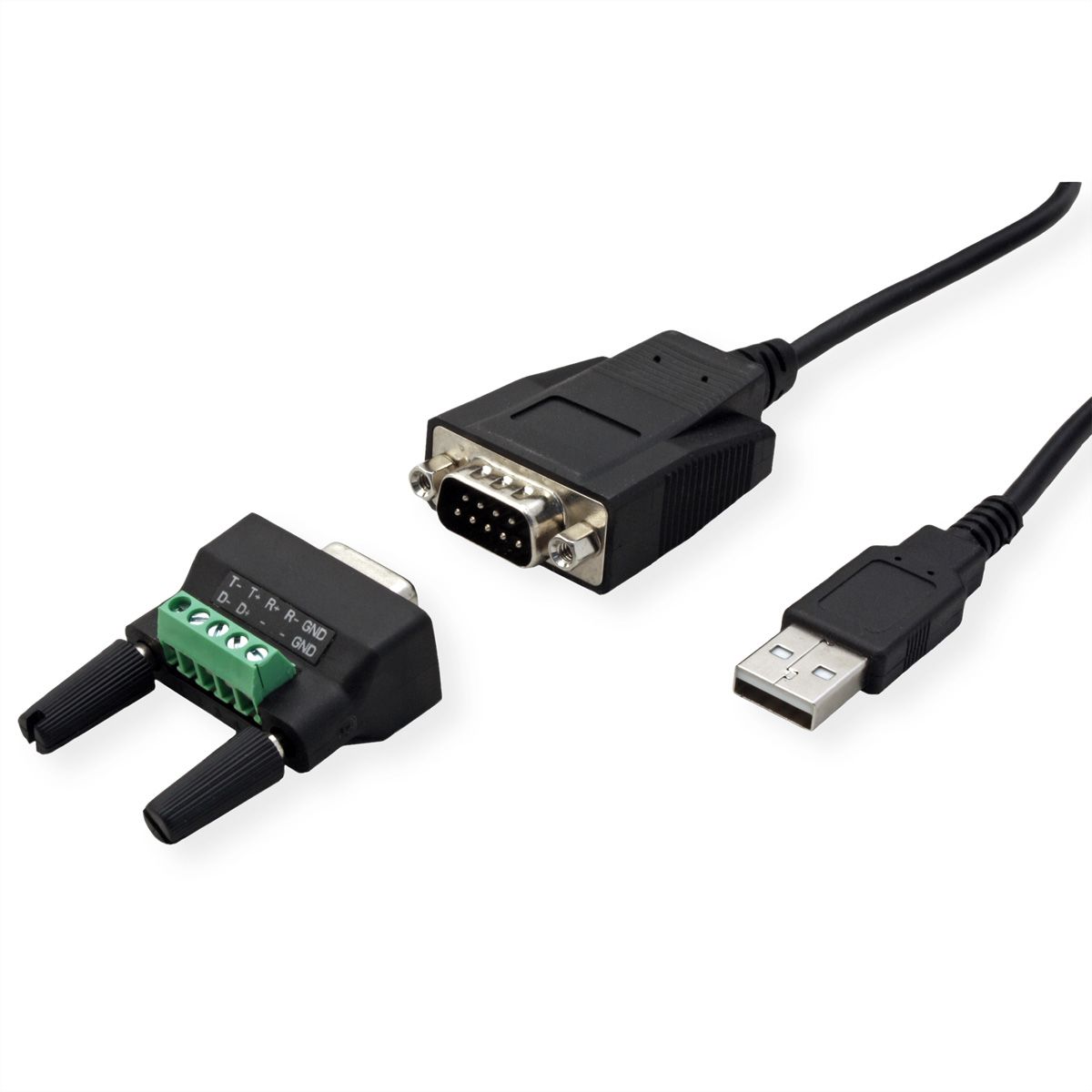

Scope of delivery Converter Cable, DB9 Female - to 5 Pin Terminal Block Adapter, User Manual
Side 1 connection (PC) USB A Male
Side 2 connection (Peripherals) DB9 Male
Side 1 Connector Type USB 2.0 Type A
Side 1 Connector Gender Male
Side 2 Connector Type D-Sub 9-pin (DE-9)
Side 2 Connector Gender Male
Conversion direction USB - RS422/485
Colour (Cable) black
Area of application External
Hand locking screws yes
Technical particularity Windows 7 / 8 / 10 / 11 and Linux 2.6.x or later
Operating temperature min. 0 °C
Operating temperature max. 60 °C
Storage temperature min. -30 °C
Storage temperature max. 85 °C
Height 15 mm
Width 33 mm
Depth 45 mm
Weight 81 g
Height of packaging (single piece) 20 mm
Width of packaging (single piece) 100 mm
Depth of packaging (single piece) 200 mm
Package weight (single piece) 0.25 kg

Downloads

Product data sheet - English (47.5 KB)

Download

User manual - Deutsch (675.0 KB)

Download

User manual - English (671.2 KB)

Download

User manual - Français (673.4 KB)

Download
