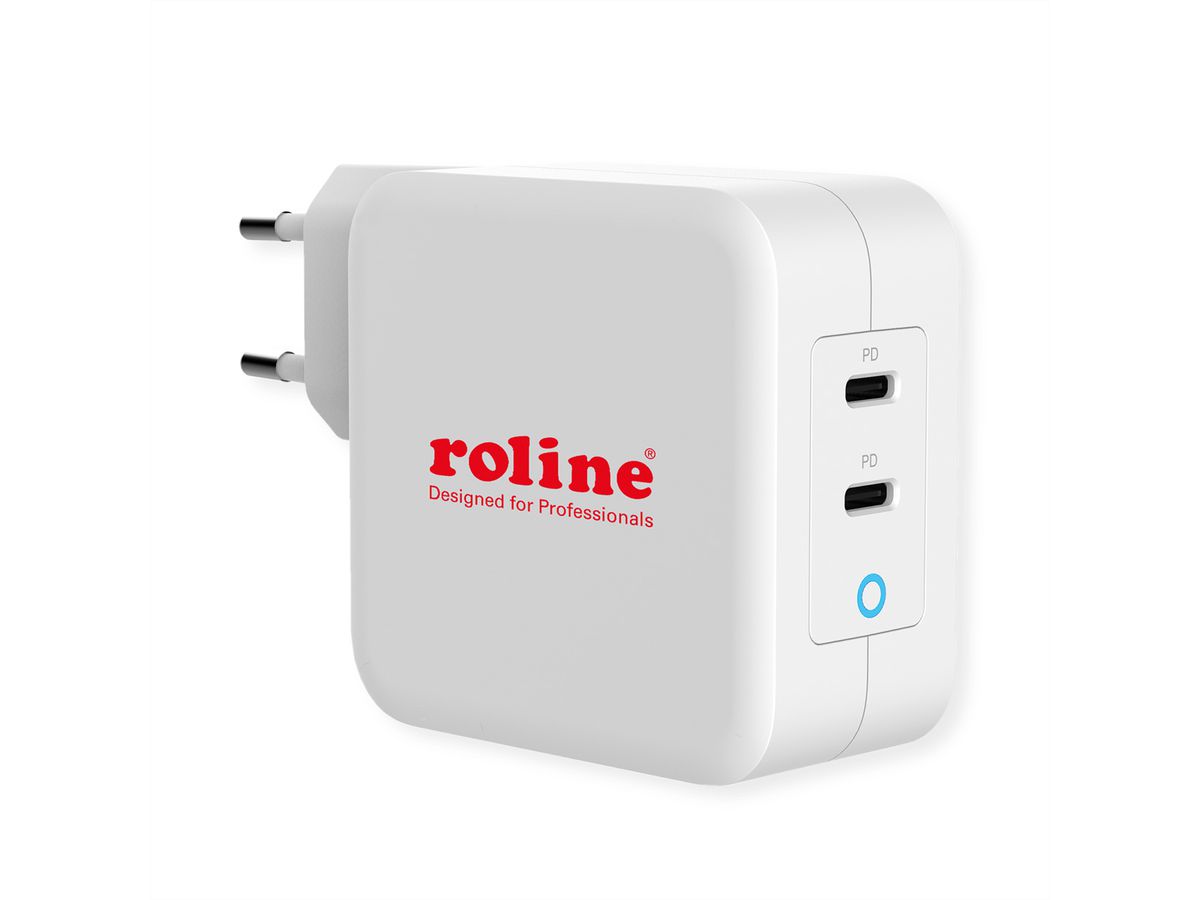

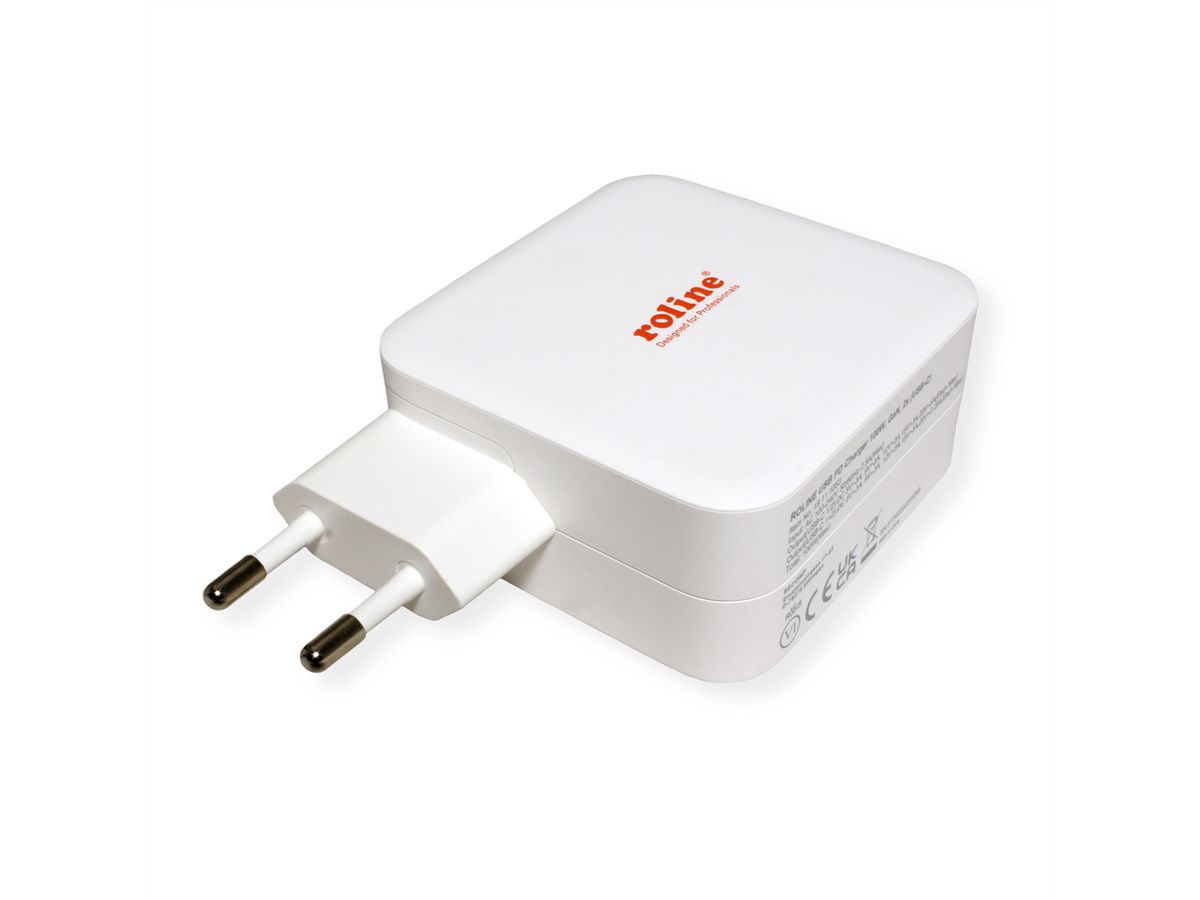

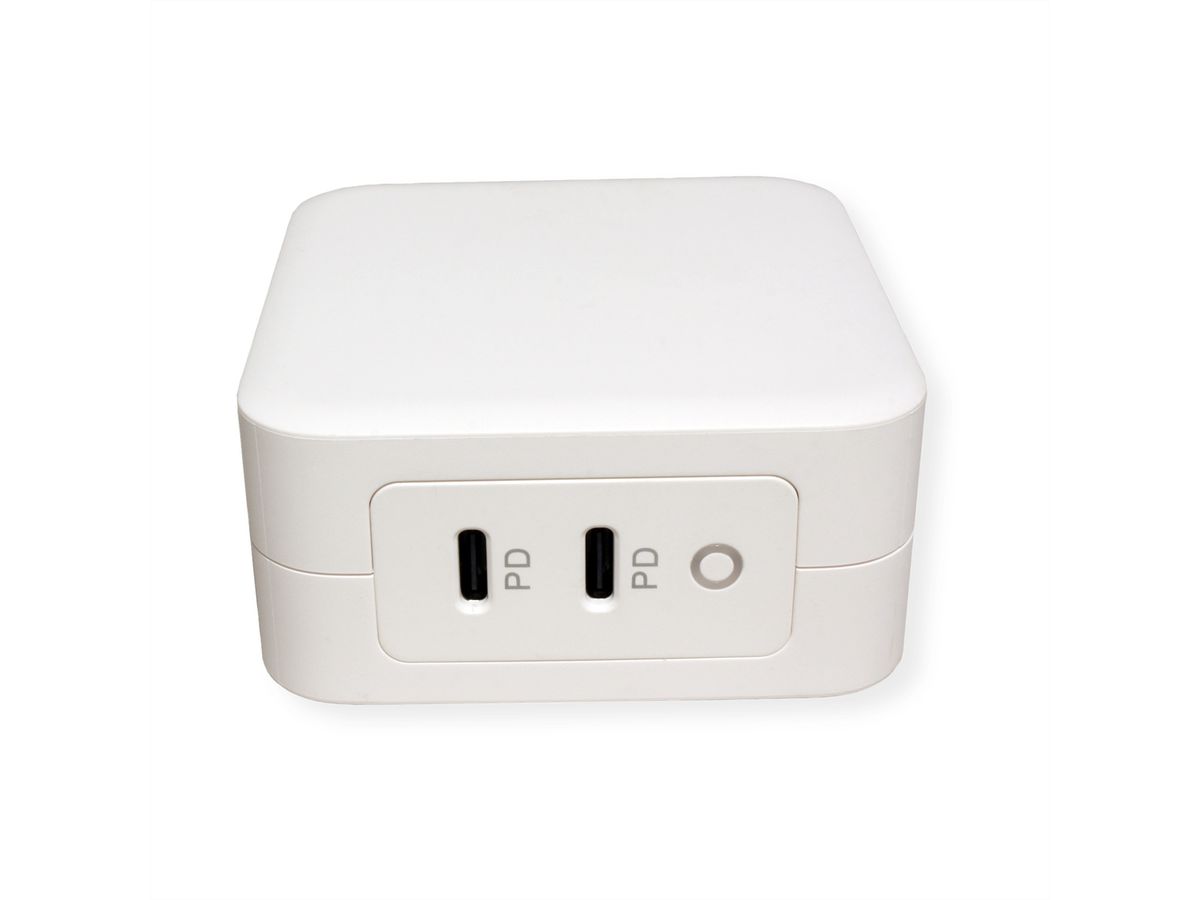

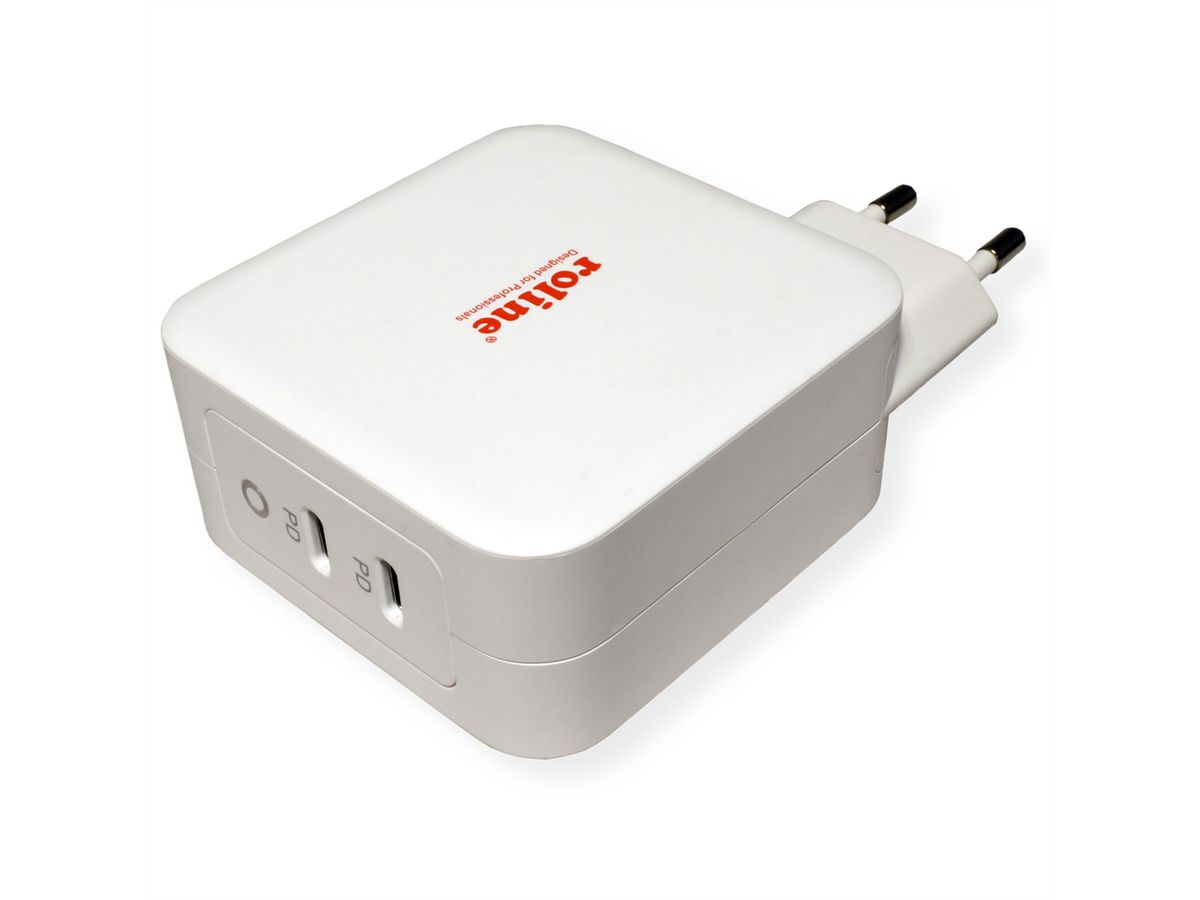

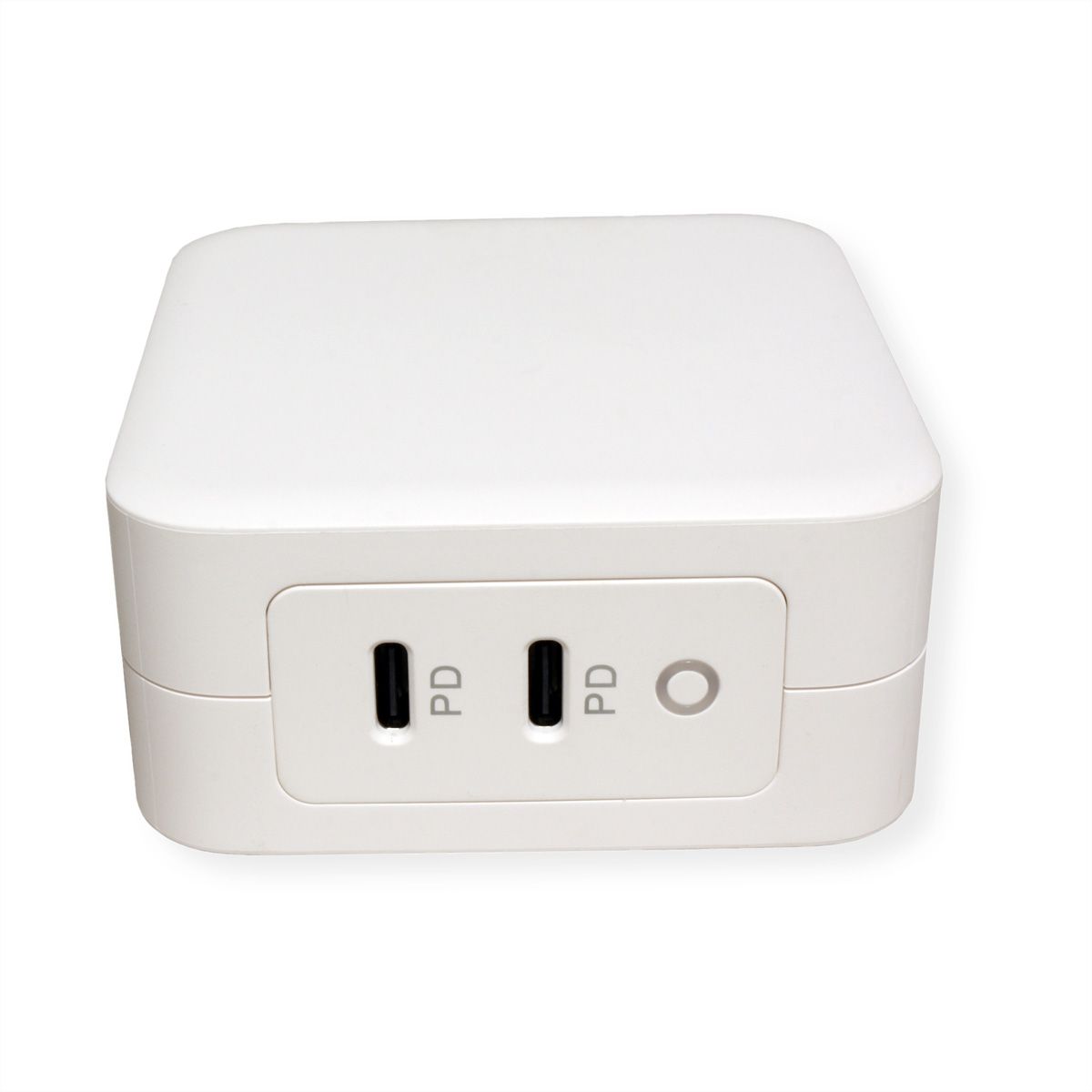

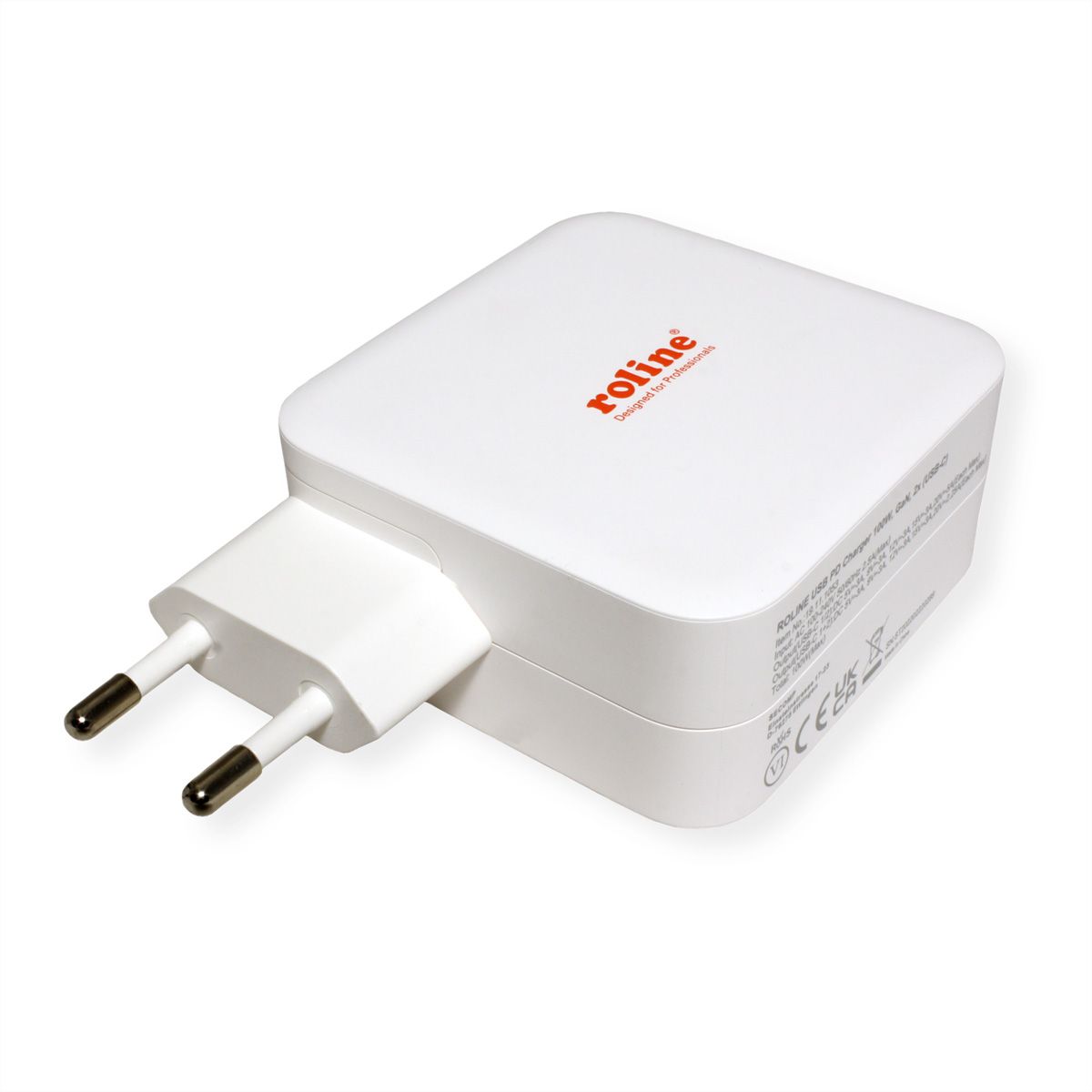

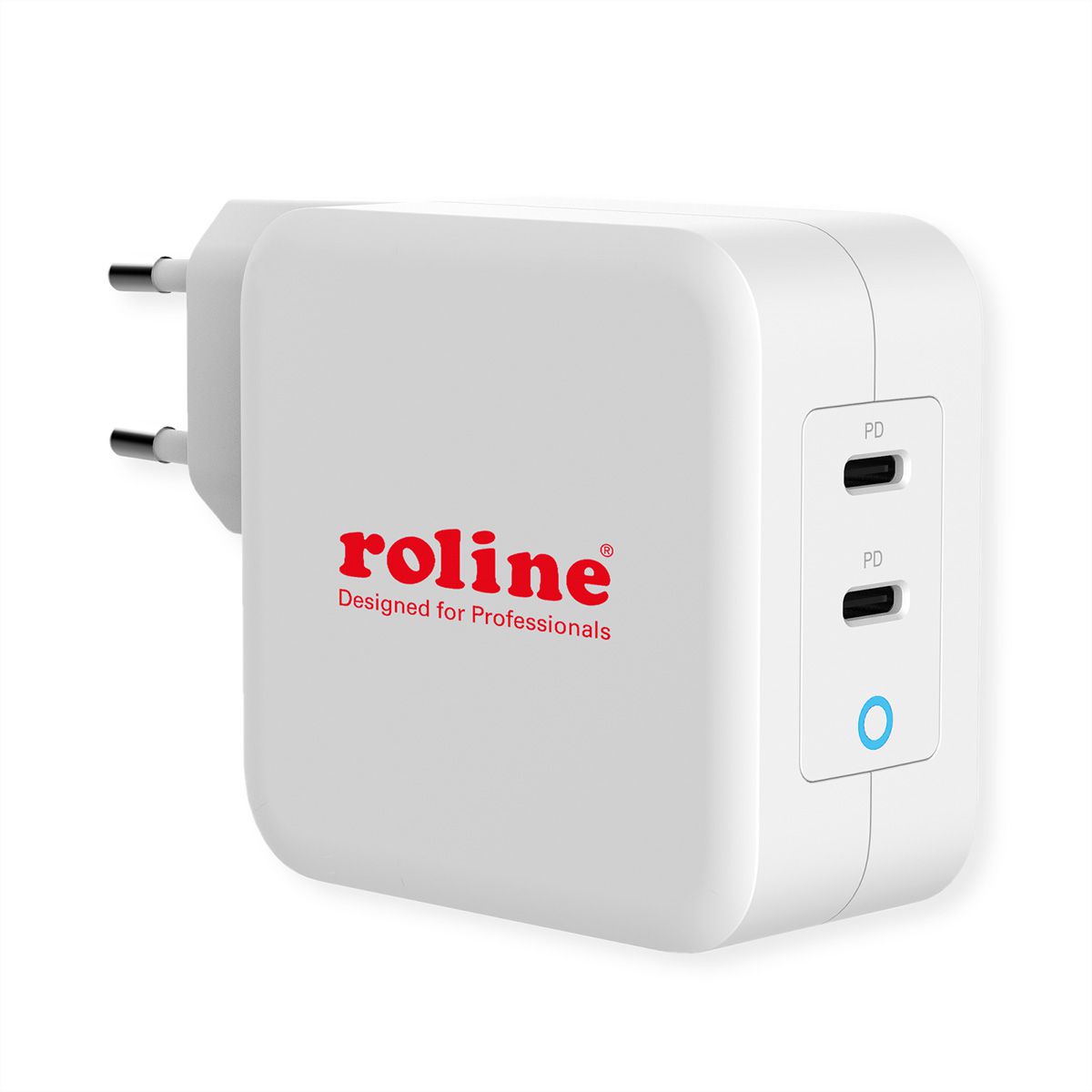

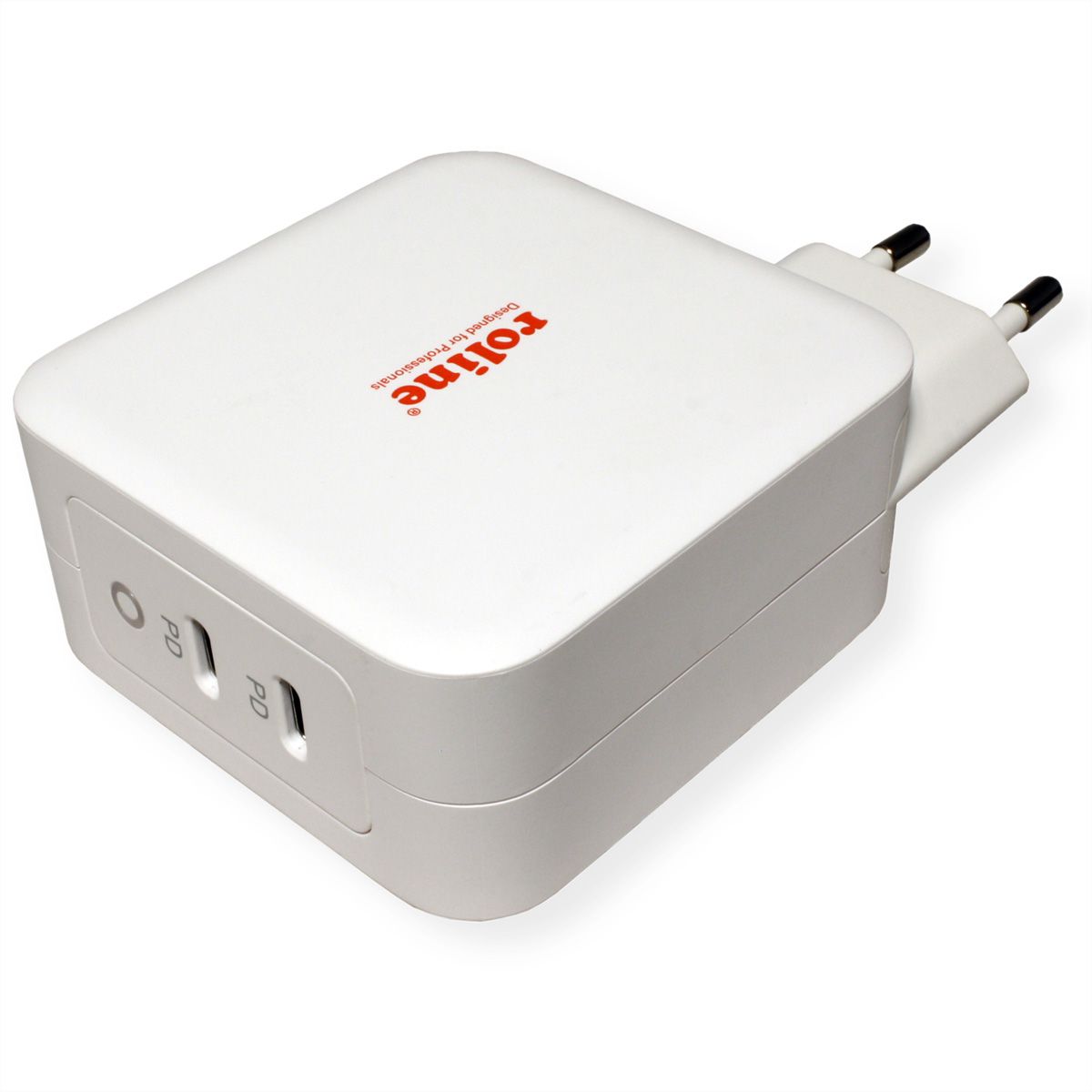

ROLINE USB Wall Charger Euro Plug, 2 Ports, 2x C (PD), 100W, GaN

Item no. 19.11.1053-10 Brand / Manufacturer ROLINE Manuf. no. 19.11.1053 EAN 7630049681279 Package weight 0.217 kg
ROLINE

Please log in to be able to use the shopping cart and then complete orders.

Log in
Available
Ordered until 3 pm - usually dispatched on the same day
Download PDF

Description

2-port USB charger, 2x Type C with maximum 100W for the power supply (smartphones, tablets) of several devices simultaneously

  • For charging of mobile devices (tablets / smartphones)
  • Quick Charge 3.0 / Type C (PD) supported
  • Multi-Protection: Over Current / Short Circuit / Over Voltage Protection
  • Compact Design
  • Power IQ technology - identifies what kind of device is plugged in and delivers the proper voltage/amperage
  • Input: 100 - 240 V AC, 50 - 60 Hz
  • Output Type C (PD):DC 5V / 3A, 9V / 3A, 12V / 3A / 15V / 3A / 20V / 5A (one port charging) 20V / 2.25 A (two port charging)
  • Total output: max. 100W
Advantages of GaN technology
  • GaN or gallium nitride - crystalline material with more advantageous properties compared to silicon
  • Powerful, efficient power supply
  • Enables more compact charger design
  • Low heat generation
  • Allows a higher density of electronic components

Specifications

Manufacturer
ROLINE
Product group
Voltage converter
Product type
USB charger
Colour
white
Input
100-240 VAC
Output
DC 5V / 3A, 9V / 3A, 12V / 3A / 15V / 3A / 20V / 5A (one port charging) 20V / 2.25 A (two port charging)
Output
100W
Dimensions (HxWxD)
66 x 32 x 104 mm
Input connector
Euro Plug
Output connector
2x Type C
Supported charging technology
  • GaN
  • Power Delivery
Technical particularity
GaN Technology
Regional use
Europe except Ireland, Malta, Cyprus, United Kingdom
Mains connection
Euro plug, Type-C
Height
66 mm
Width
32 mm
Depth
104 mm
Weight
211.9 g
Height of packaging (single piece)
30 mm
Width of packaging (single piece)
90 mm
Depth of packaging (single piece)
110 mm
Package weight (single piece)
0.217 kg

Downloads

Product data sheet - English (39.5 KB) Manufacturer data sheet - English (162.3 KB) Safety instructions - English - Deutsch - Français - Italiano - Español (75.7 KB)
