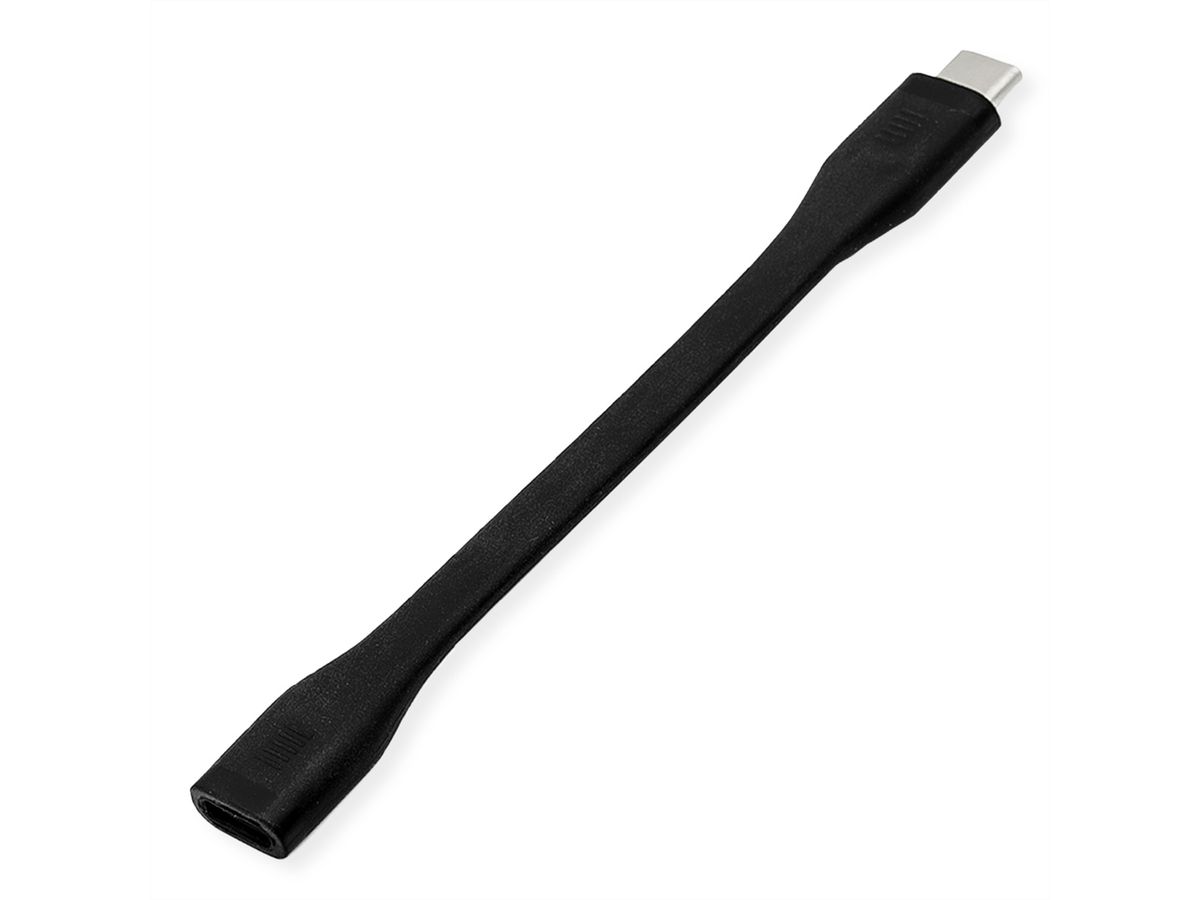

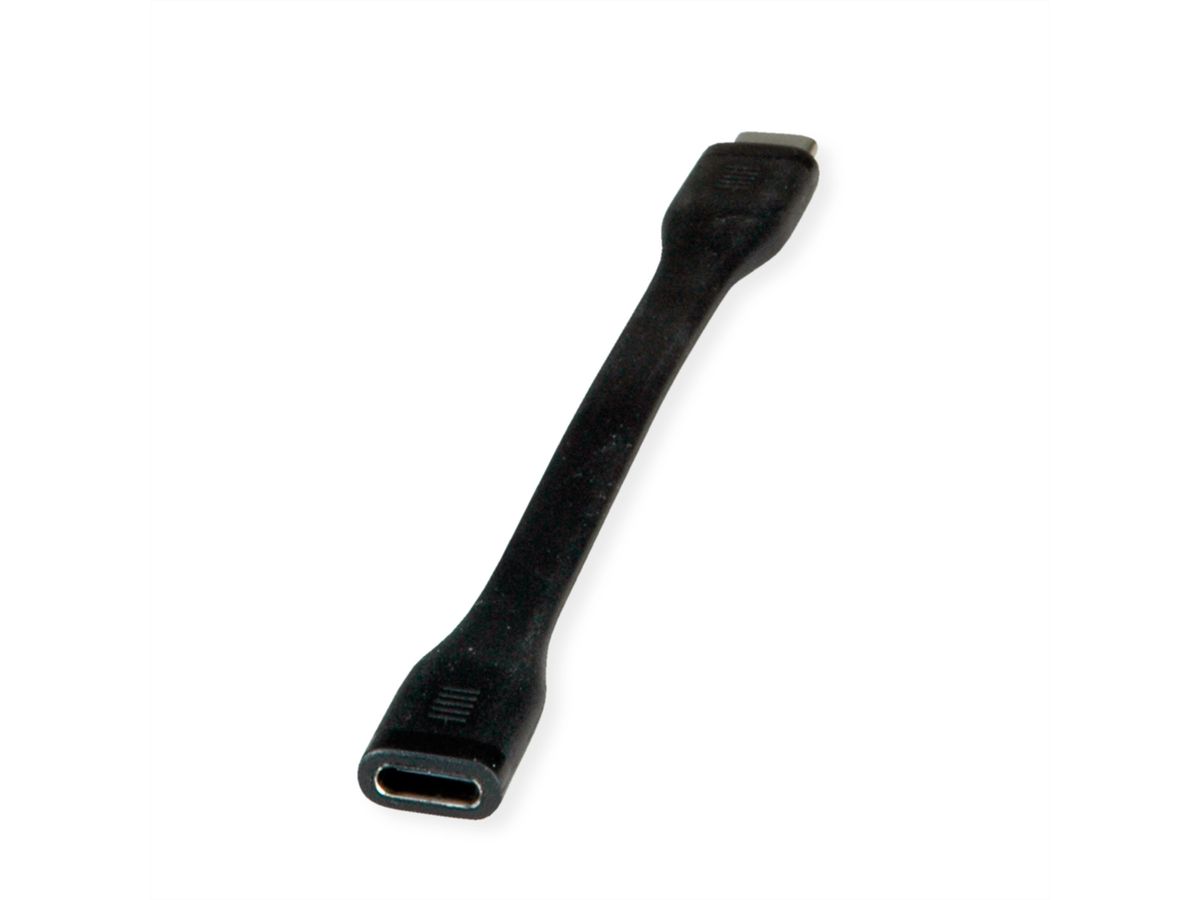

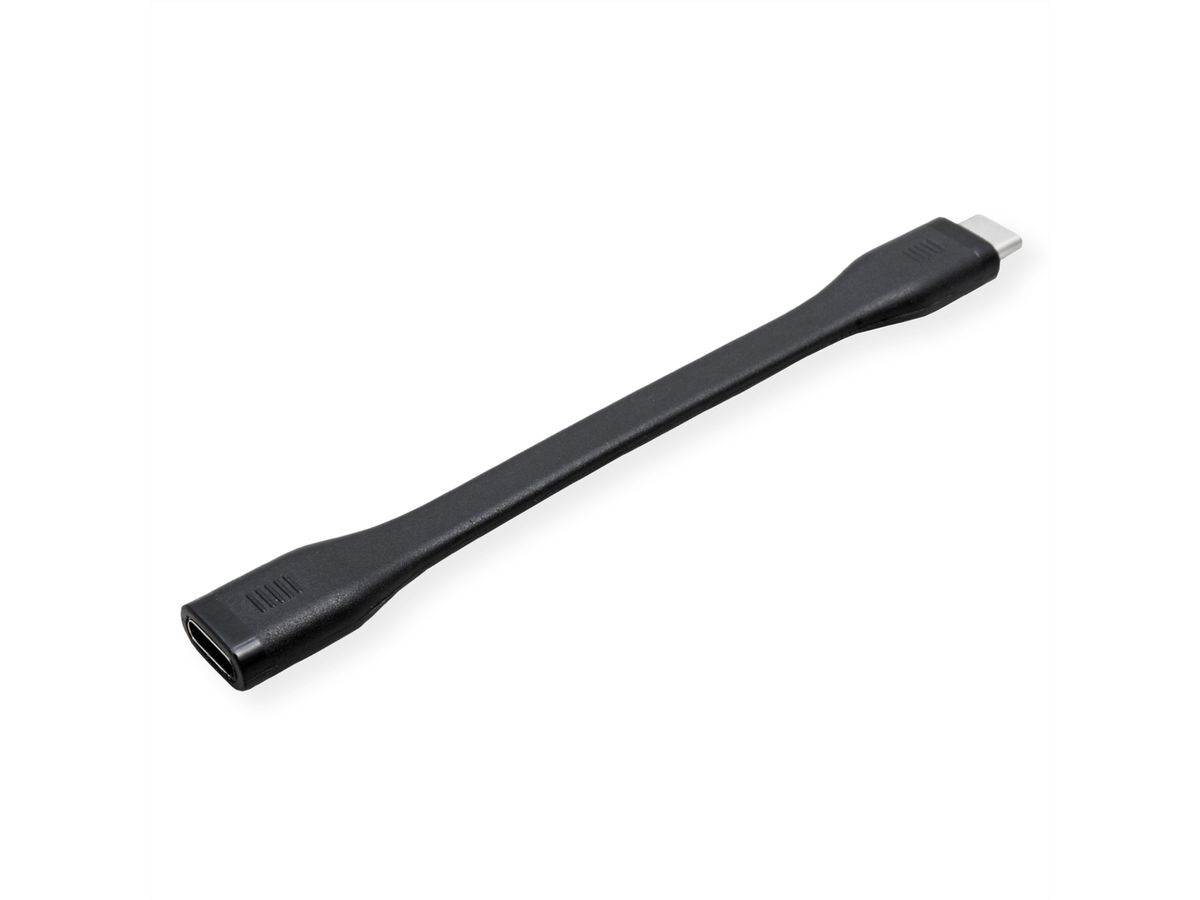

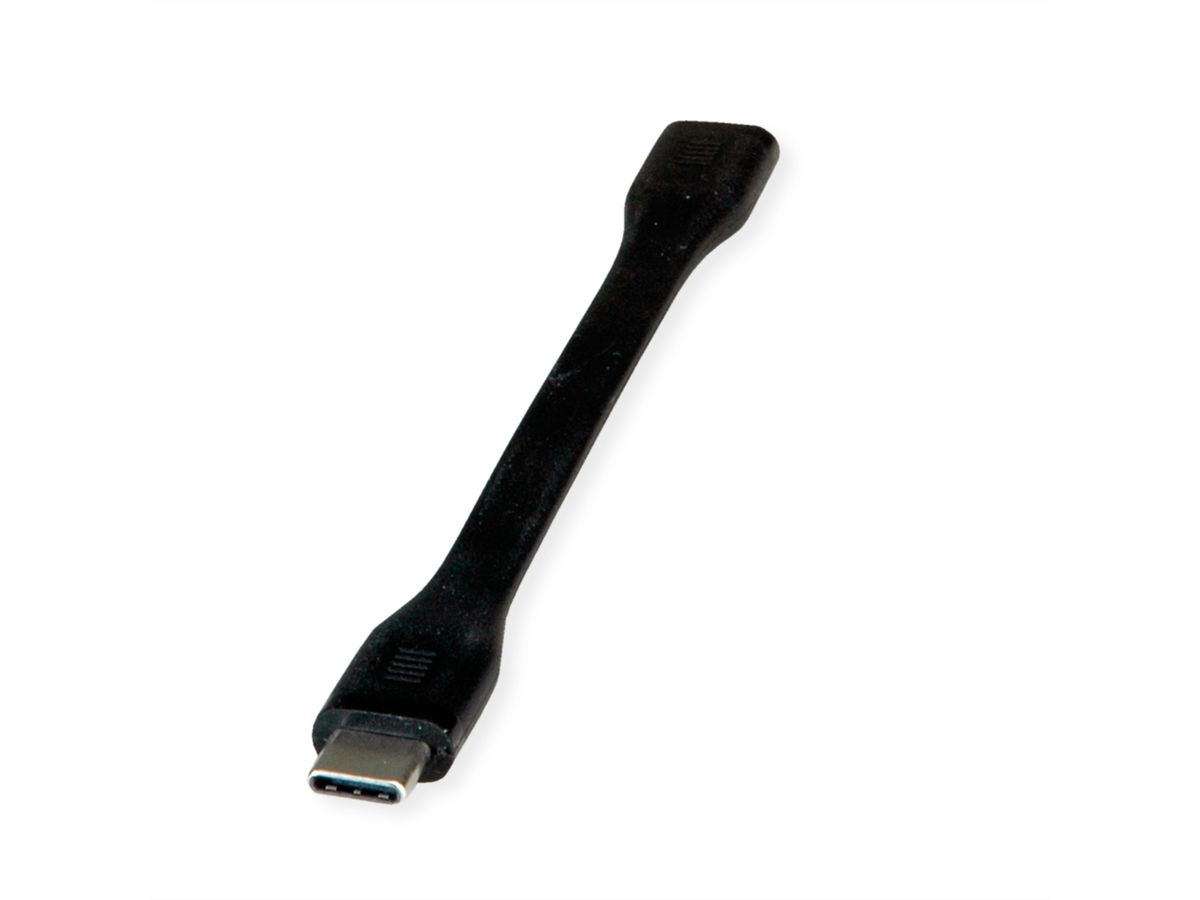

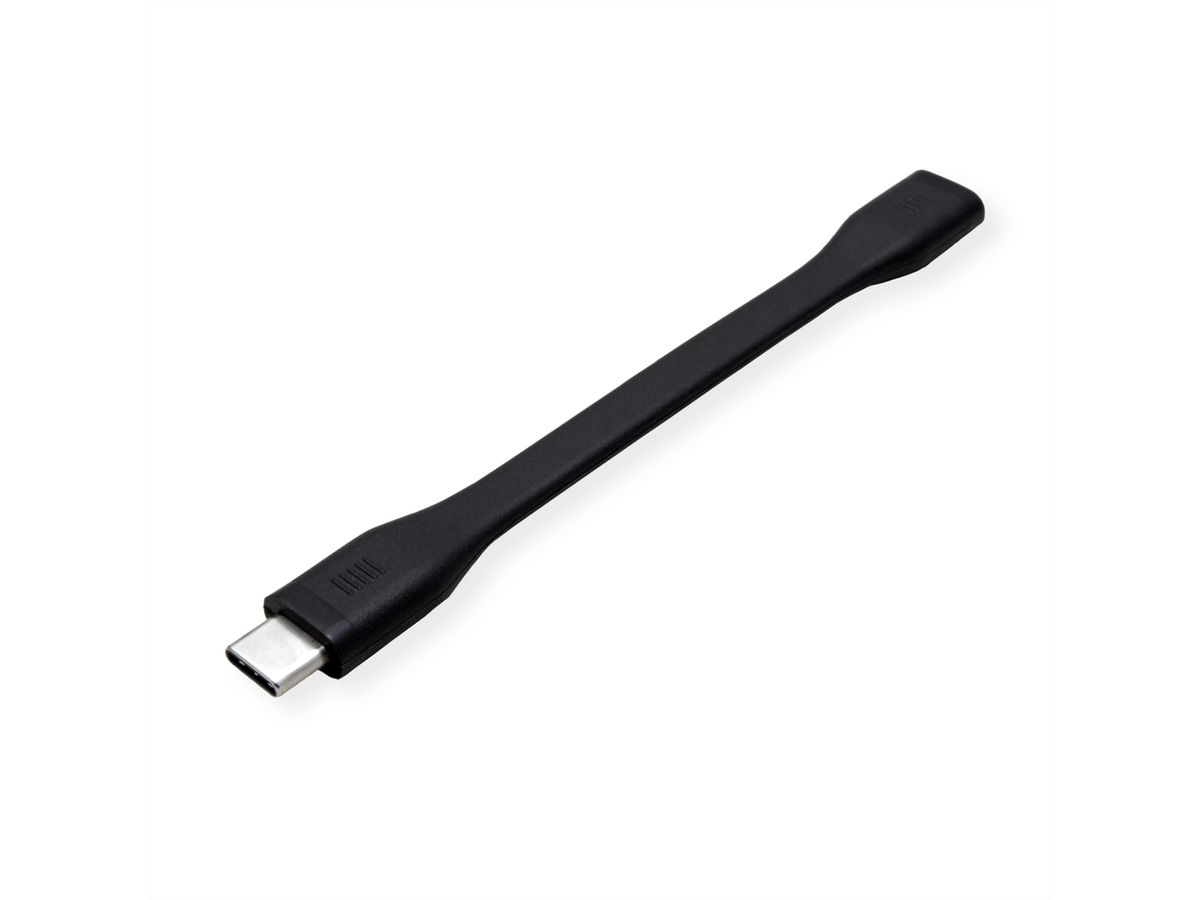

ROLINE USB4 Gen3x2 Cable, PD (Power Delivery) 20V5A, with Emark, C-C, M/F, black, 11.5 cm

ROLINE USB4 Gen3x2 Cable, PD (Power Delivery) 20V5A, with Emark, C-C, M/F, black, 11.5 cm

Please log in to be able to use the shopping cart and then complete orders.

Log in
Available
Ordered until 3 pm - usually dispatched on the same day
Item no. 11.02.9079-10
Brand / Manufacturer ROLINE
Manuf. no. 11.02.9079
EAN 7630049688605
Package weight 0.017 kg

Description

ROLINE USB4 flat silicone cable extension with data transfer rates of up to 40 Gbit/s and support of PD (Power Delivery) at up to 20V5A. The silicone-sheathed flat cable not only looks great, but also allows extremely flexible use thanks to its small bending radius.

  • USB4 extension cable in high quality
  • With USB type C connectors on both sides (M/F)
  • Suitable for data transfer rates of up to 40 Gbit/s
  • USB power supply with up to 20V5A
  • Rugged aluminum plugs and a flexible, flat silicone cable for optimal durability
  • Supports video transfer
  • Colour: black

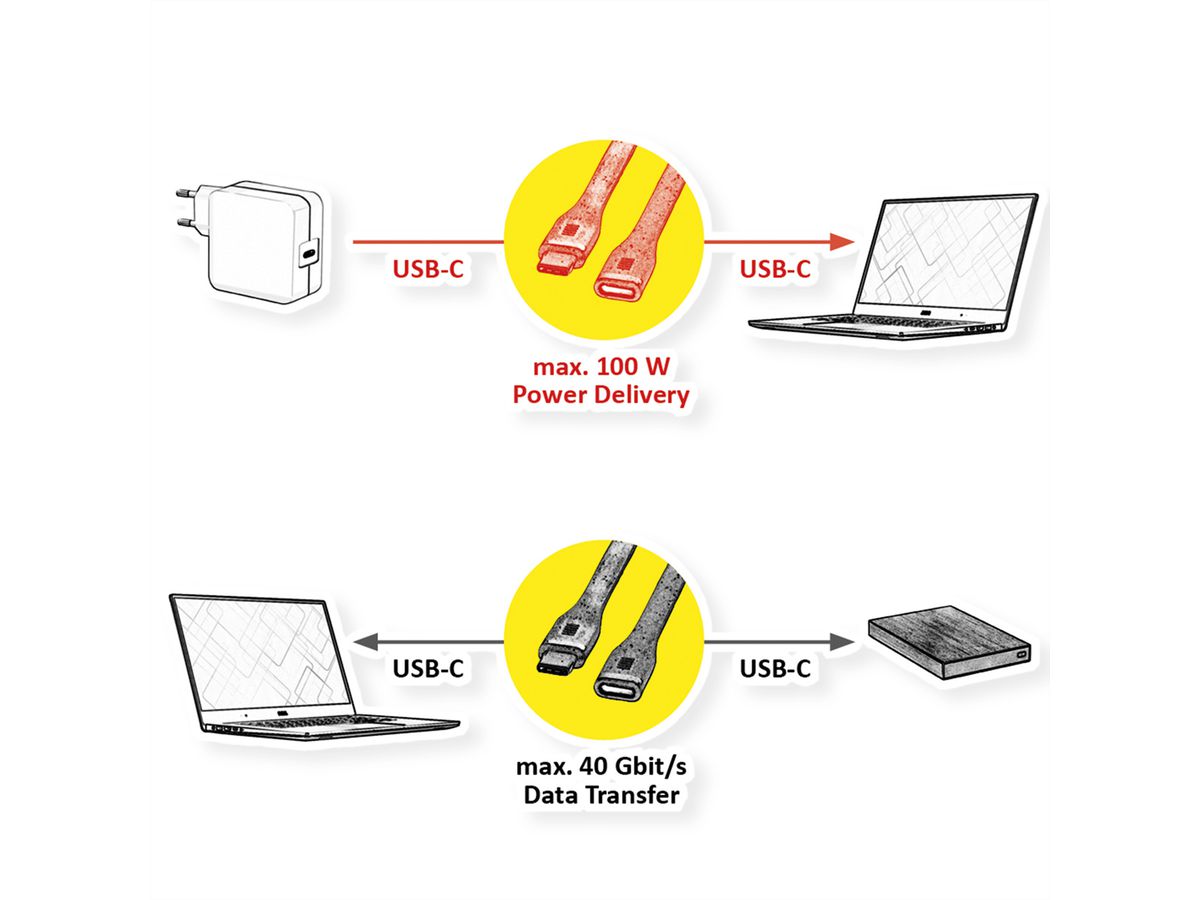

ROLINE USB4 extension for Charging and data cable for Smartphones, Tablets, MacBooks or Ultrabooks/Notebooks

The major benefits of the USB4 includes faster transfer speeds (up to 40 Gbit/s), a better management of video bandwidth (using a process called "protocol tunneling" that sends DisplayPort, PCIe and USB packets at the same time while allocating bandwidth accordingly) and optional compatibility with Thunderbolt 3 products.

Specifications

Manufacturer ROLINE
Product group Cable
Product type USB4 Cable
Colour black
Length 11.5 cm
Transfer quality USB4 Gen3x2 40 Gbit/s
Connection ports USB Type C (USB-C) Male / USB Type C (USB-C) Female
Side 1 Connector Type USB Type C (USB-C)
Side 1 Connector Gender Male
Side 2 Connector Type USB Type C (USB-C)
Side 2 Connector Gender Female
Colour (Cable) black
Ribbon cable yes
Maximum data transfer rate 40 Gbit/s
Area of application External
Supported charging technology USB-PD - USB Power Delivery
Power (max.) 100 W
Hand locking screws no
Depth 110 mm
Weight 9 g
Height of packaging (single piece) 10 mm
Width of packaging (single piece) 10 mm
Depth of packaging (single piece) 100 mm
Package weight (single piece) 0.017 kg

Downloads

Product data sheet - English (44.2 KB)

Download

The products of our own brand ROLINE are designed for professional continuous operation.

With a 2-year functional guarantee, we stand by our performance promise.

ROLINE – Quality makes the difference.
