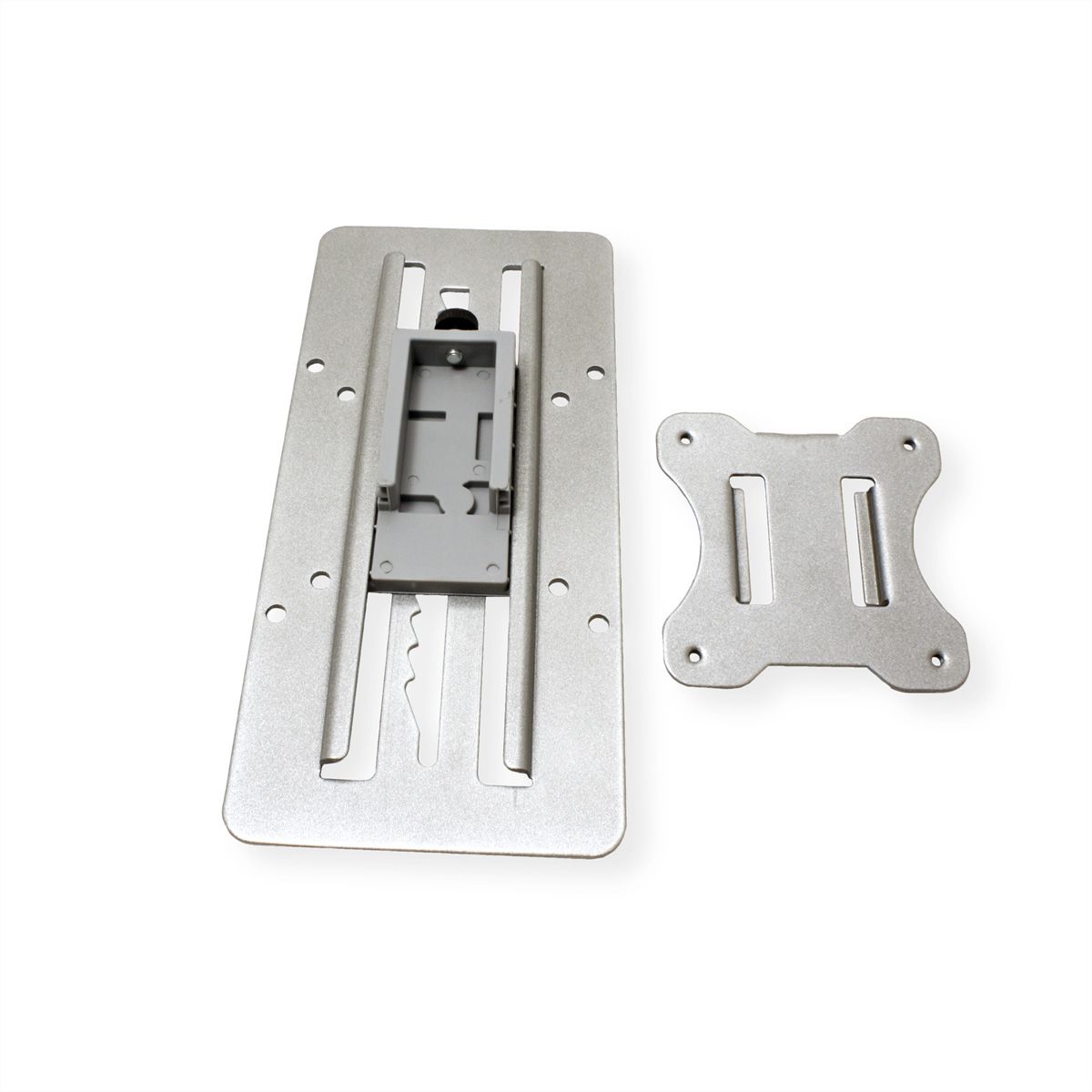

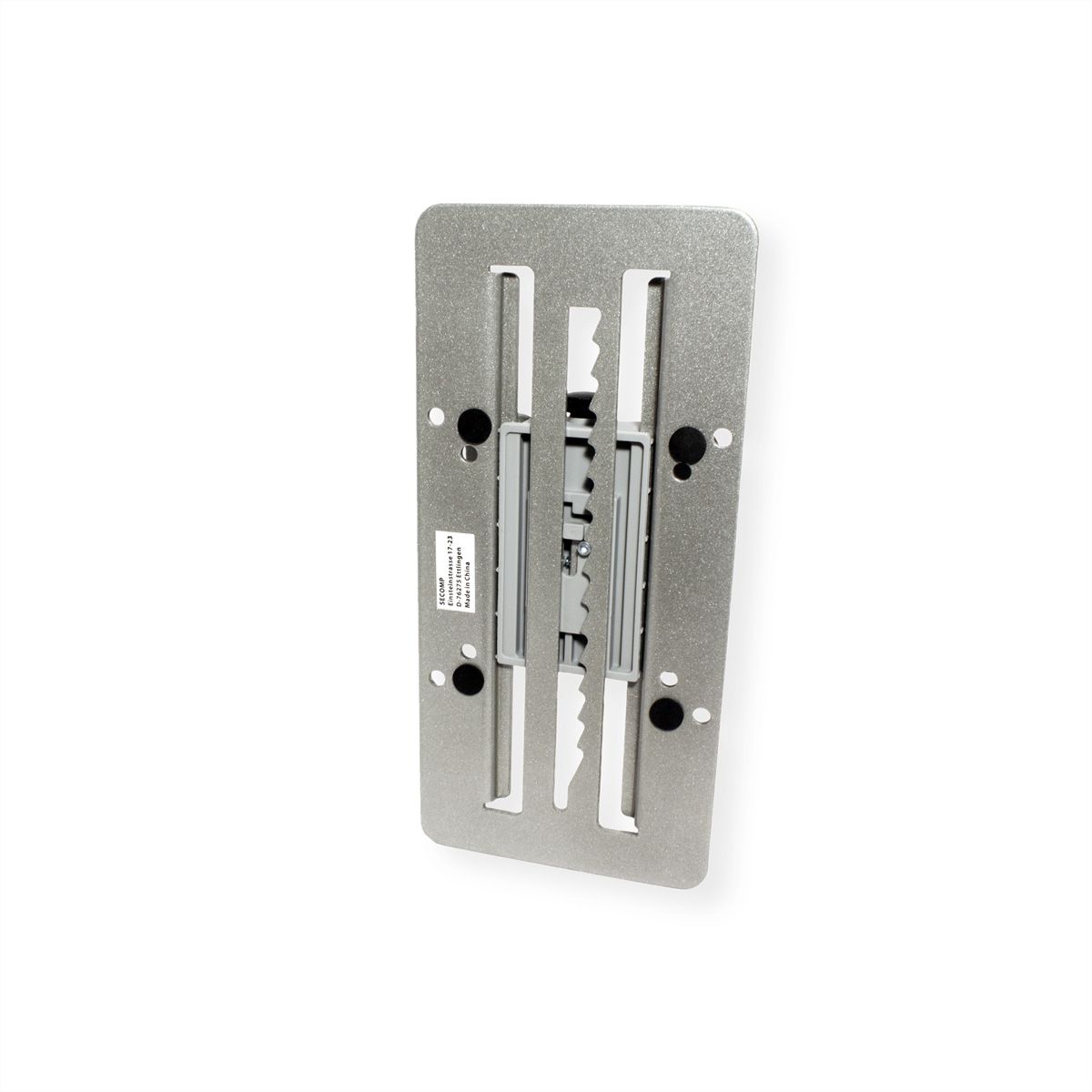

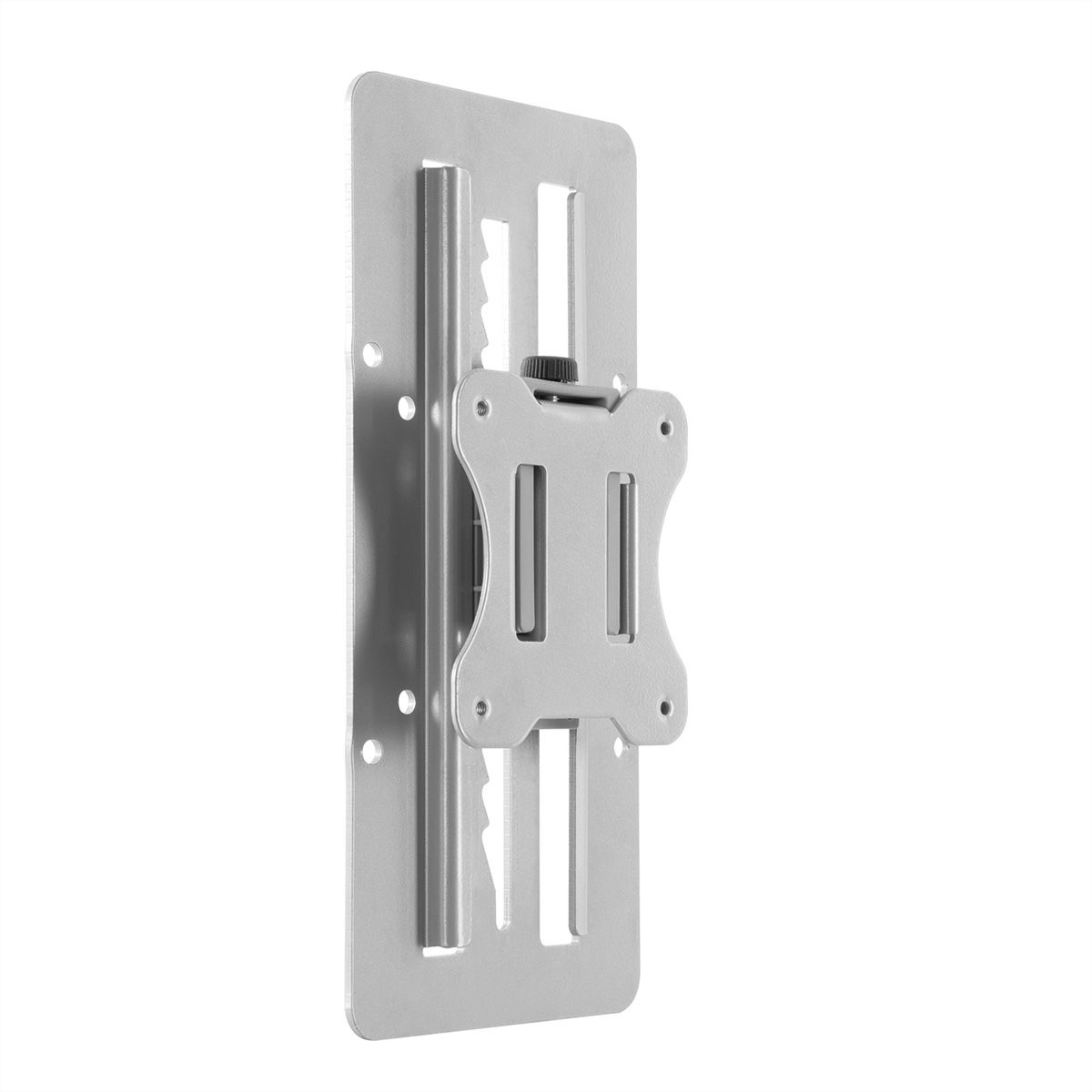

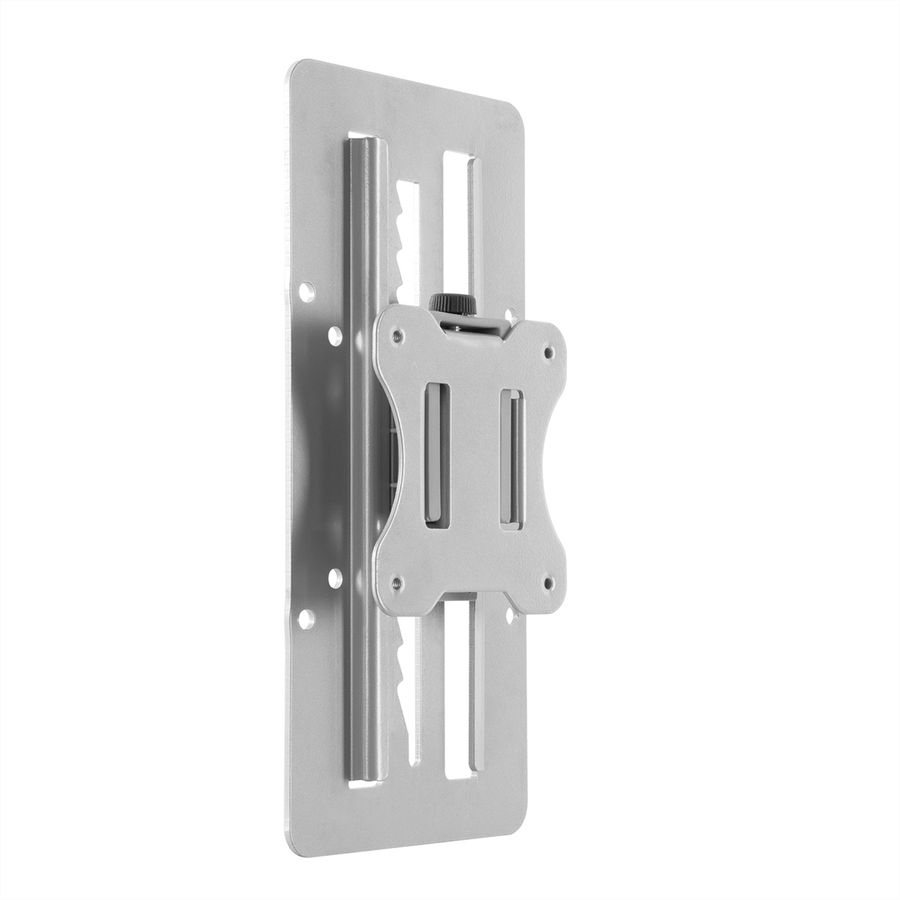

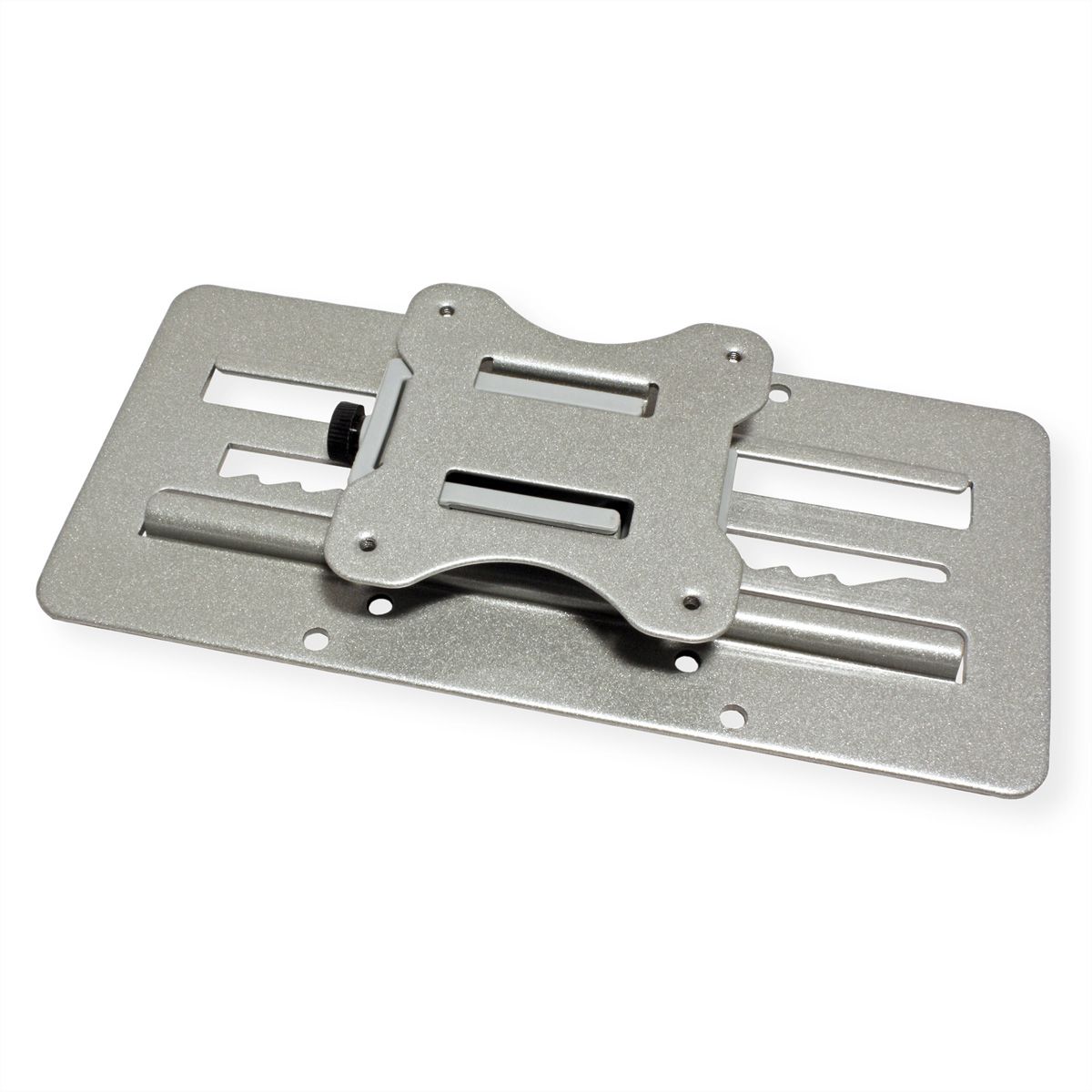

ROLINE Vertical VESA adjustment plate

ROLINE Vertical VESA adjustment plate

Please log in to be able to use the shopping cart and then complete orders.

Log in
Ordered until 3 pm - usually dispatched on the same day
Item no. 17.03.1101-16
Brand / Manufacturer ROLINE
Manuf. no. 17.03.1101
EAN 7611990948451
Package weight 0.65 kg

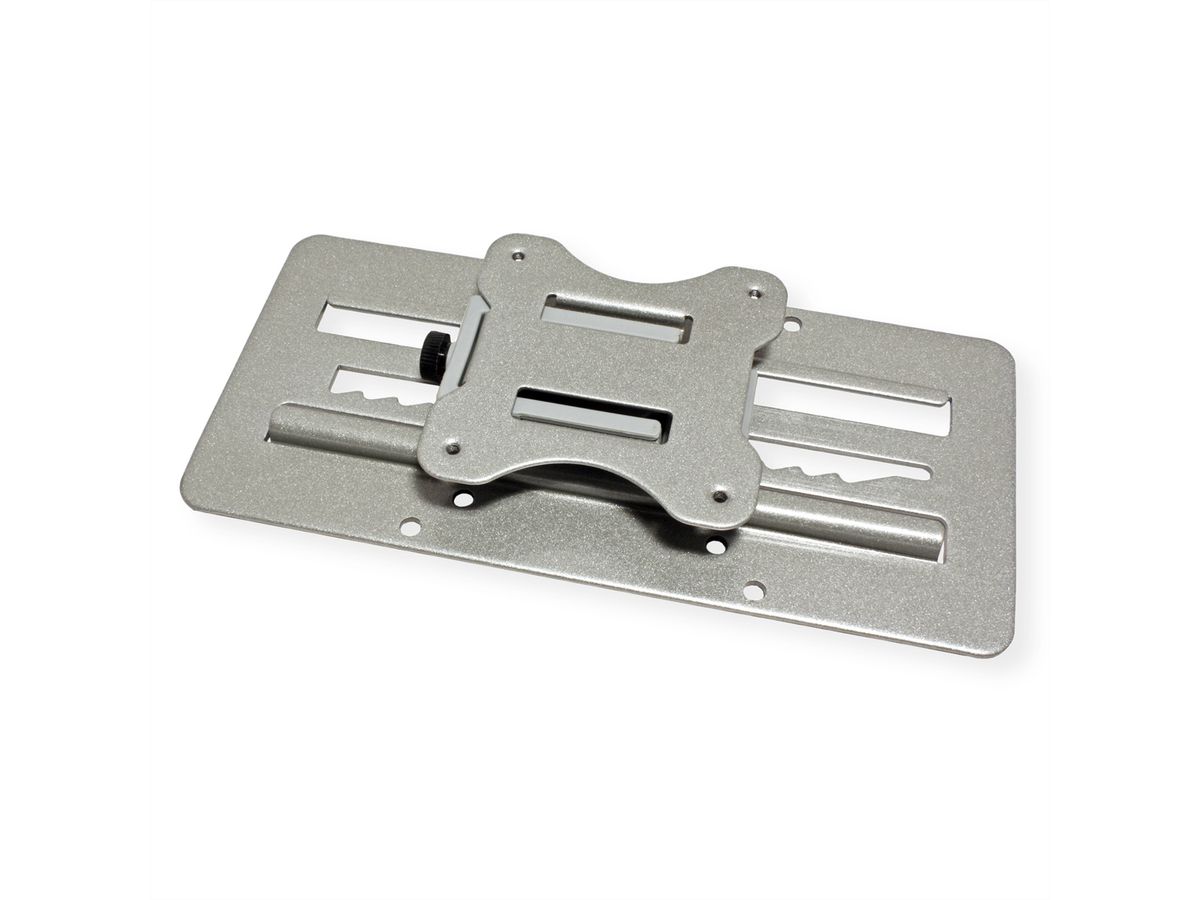

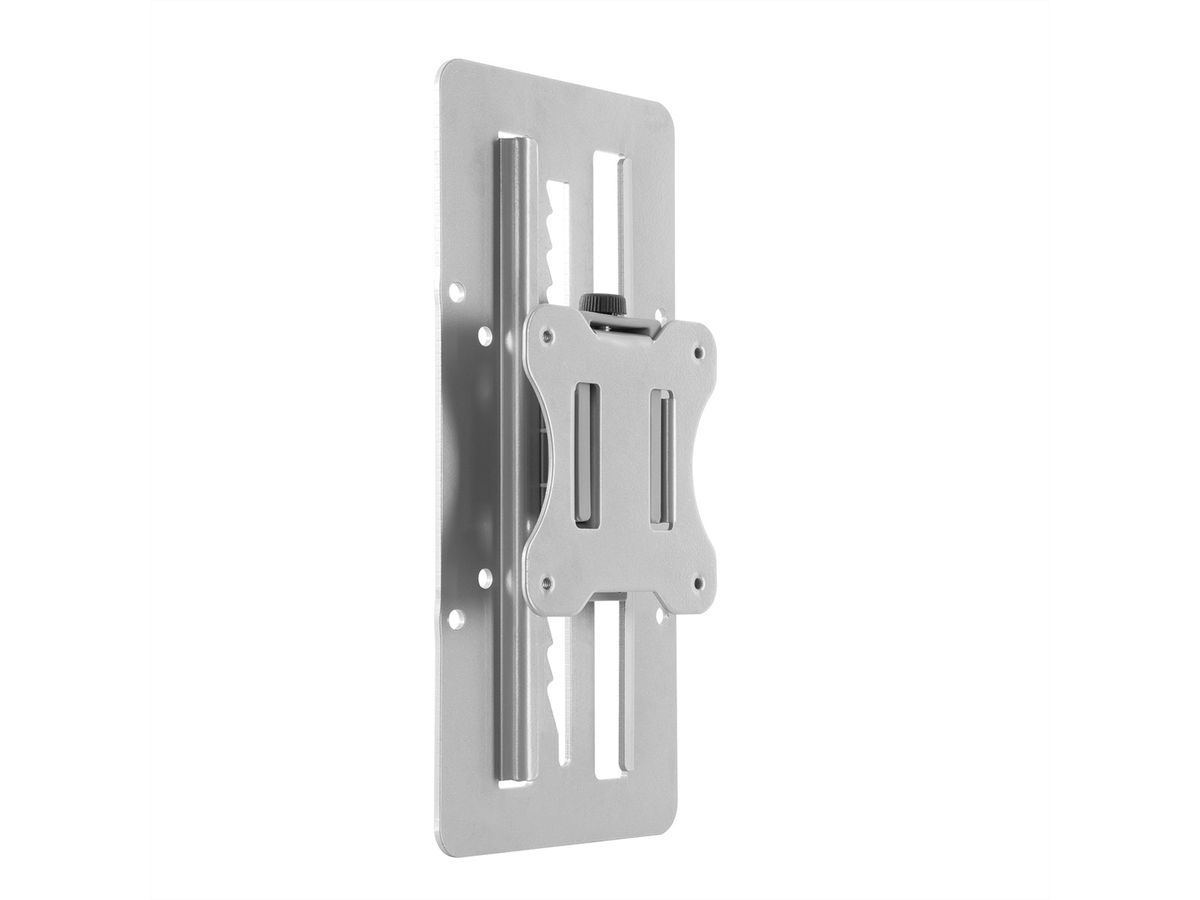

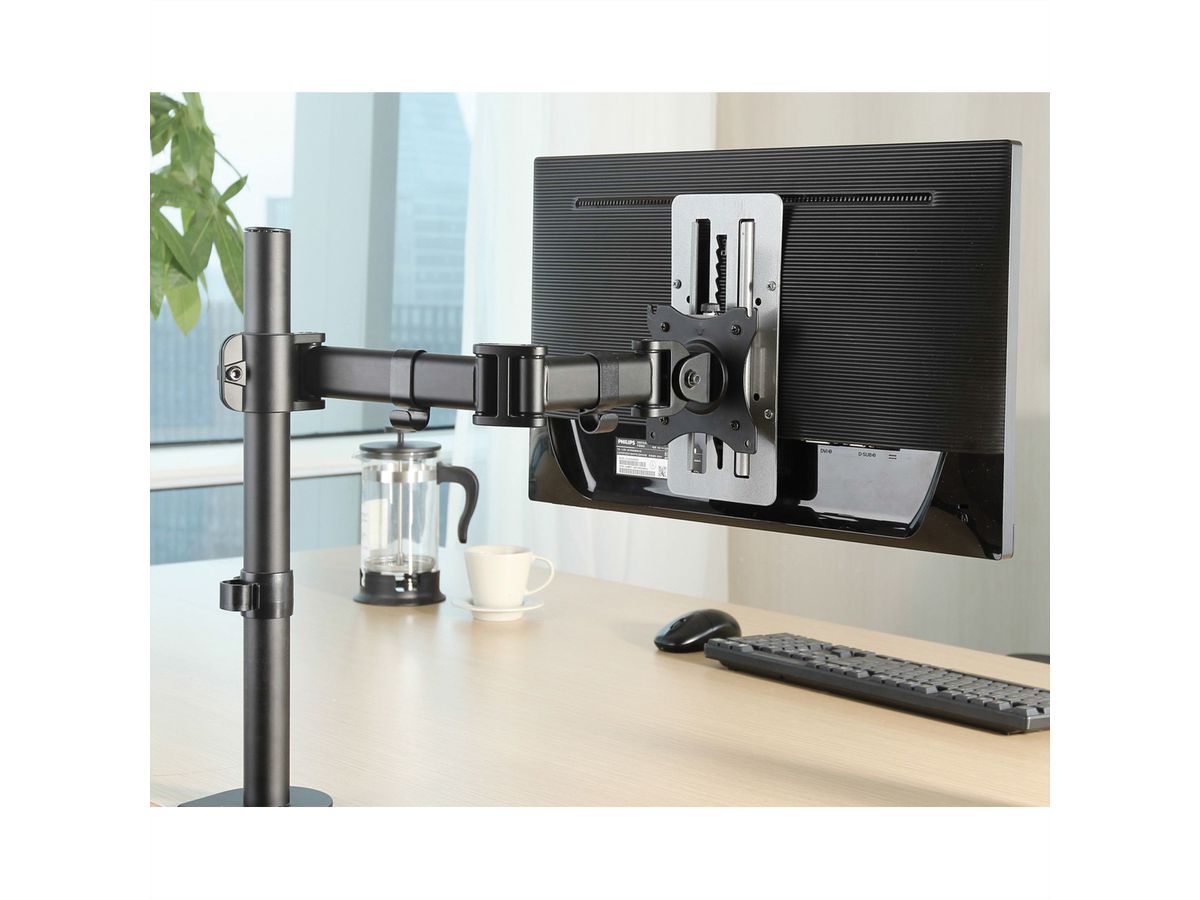

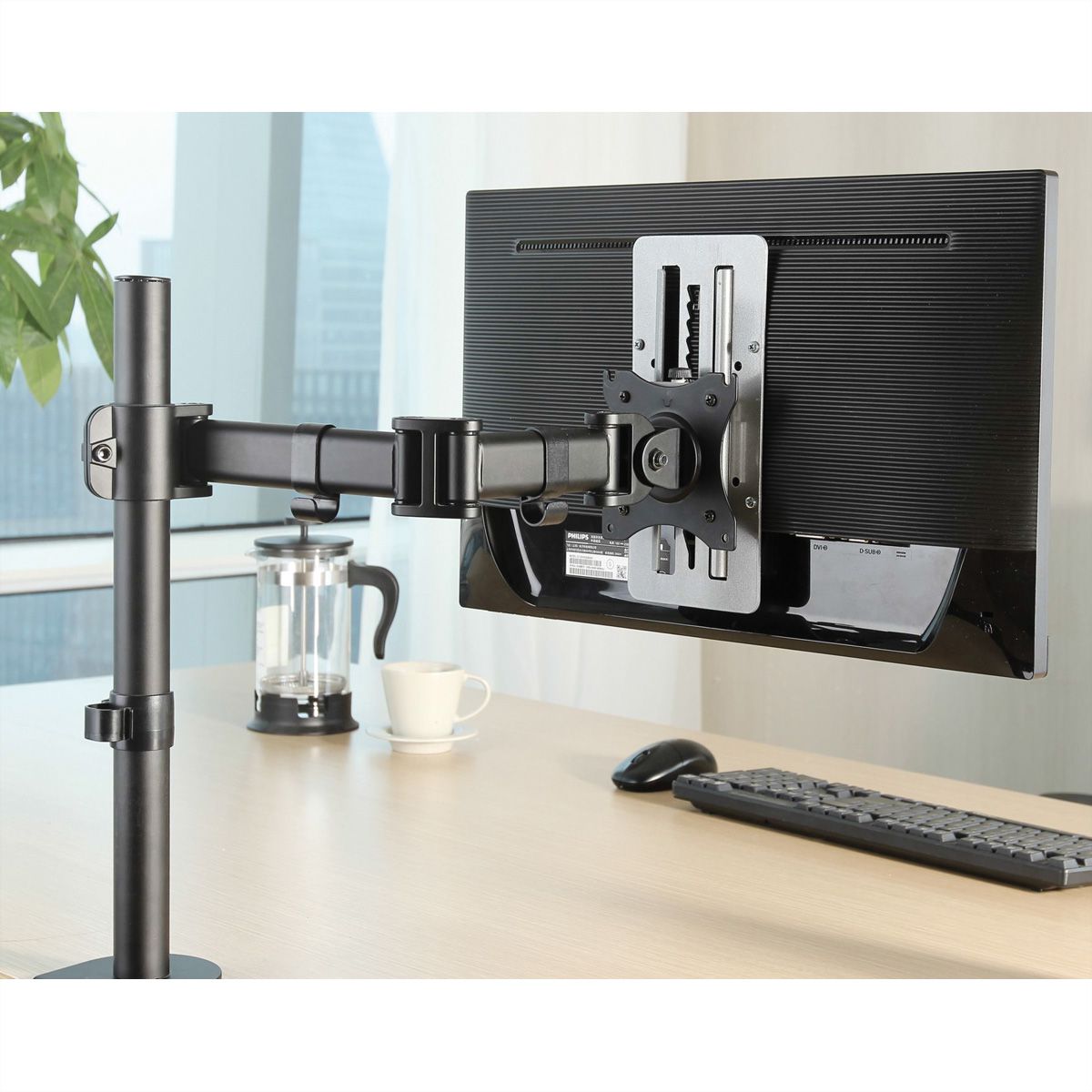

Adapter for enhancing the VESA holder of your screen or TV mount. Especially recommended for a perfect height adjustment of two monitors placed beside to each other (e.g. on a monitor bridge).

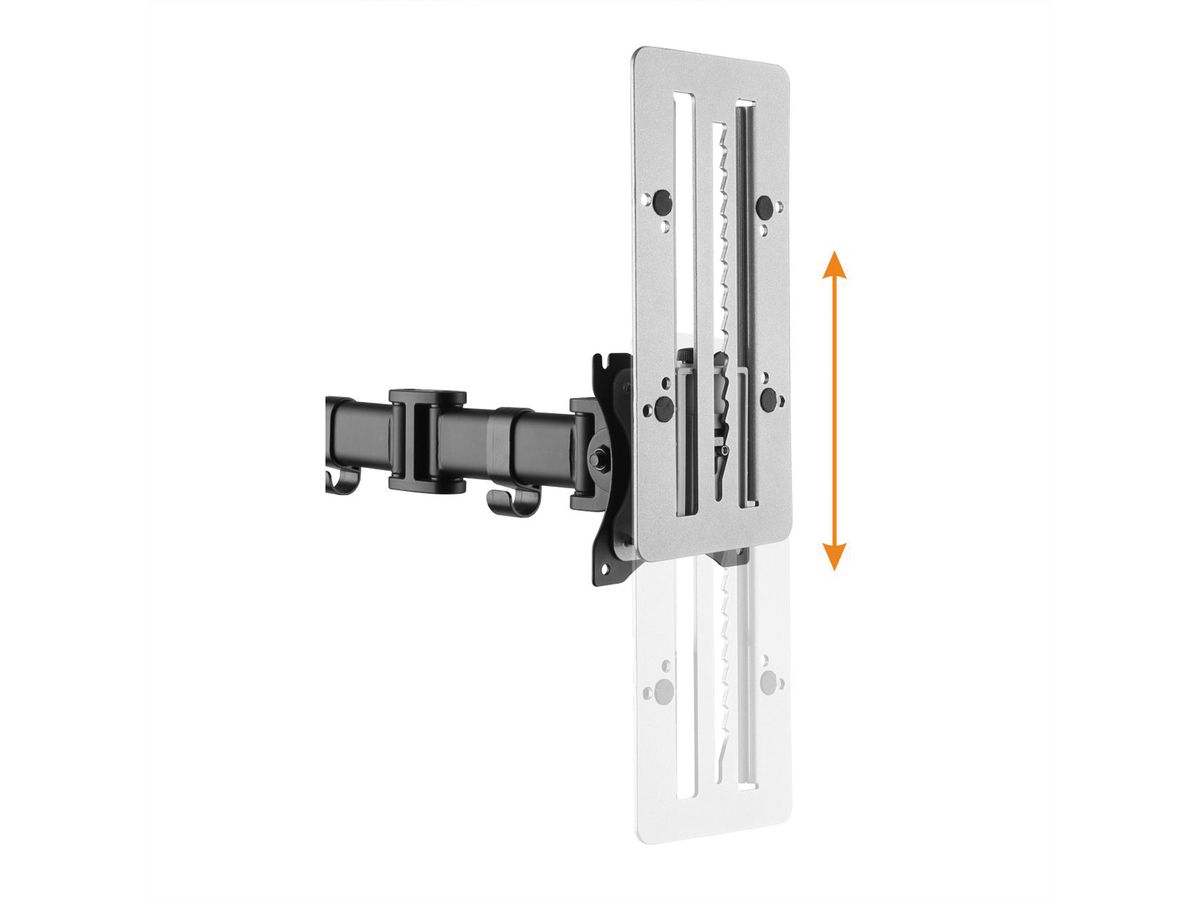

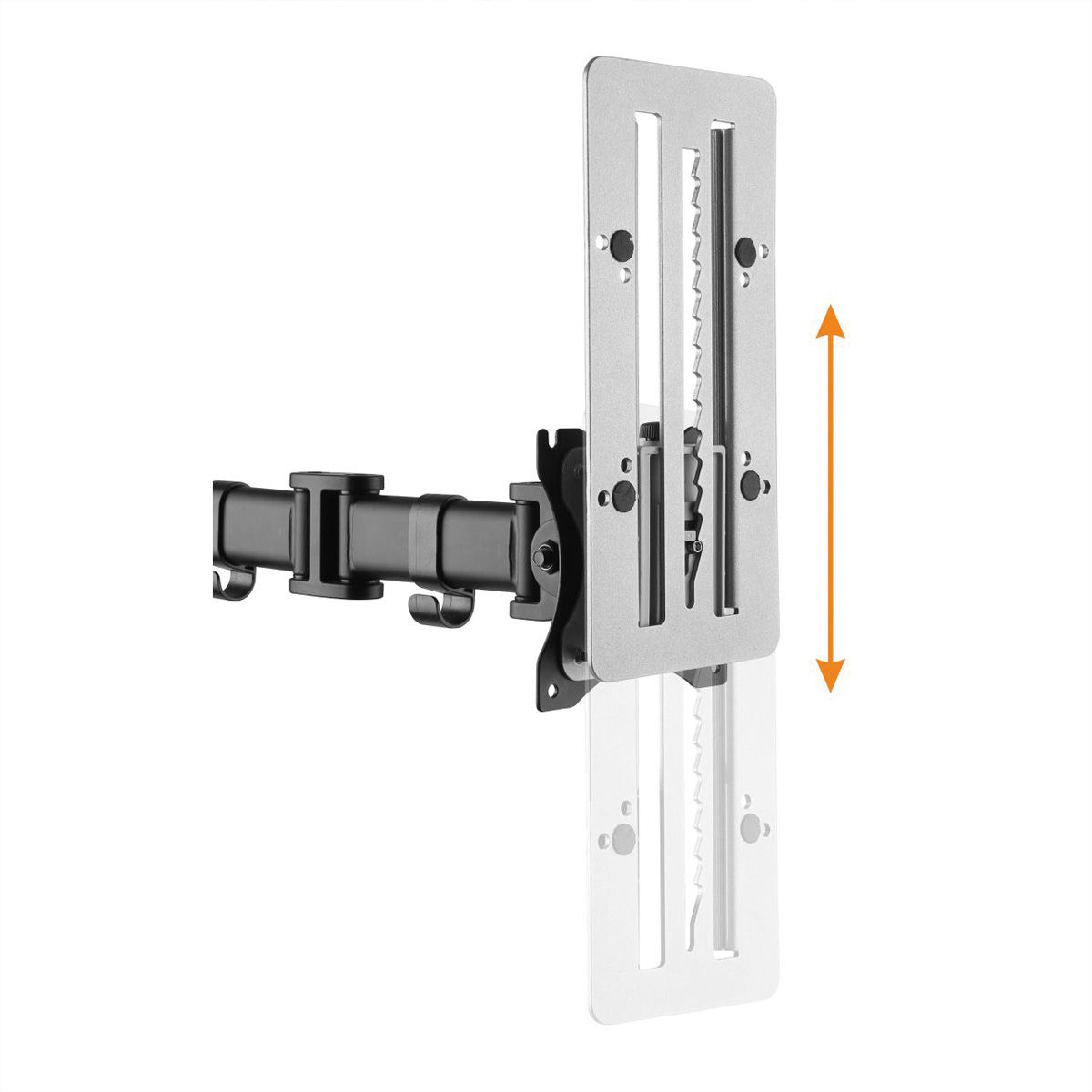

  • Perfect option to add more VERTICAL adjustability (15 cm mobility to go up and down) to an existing monitor mount

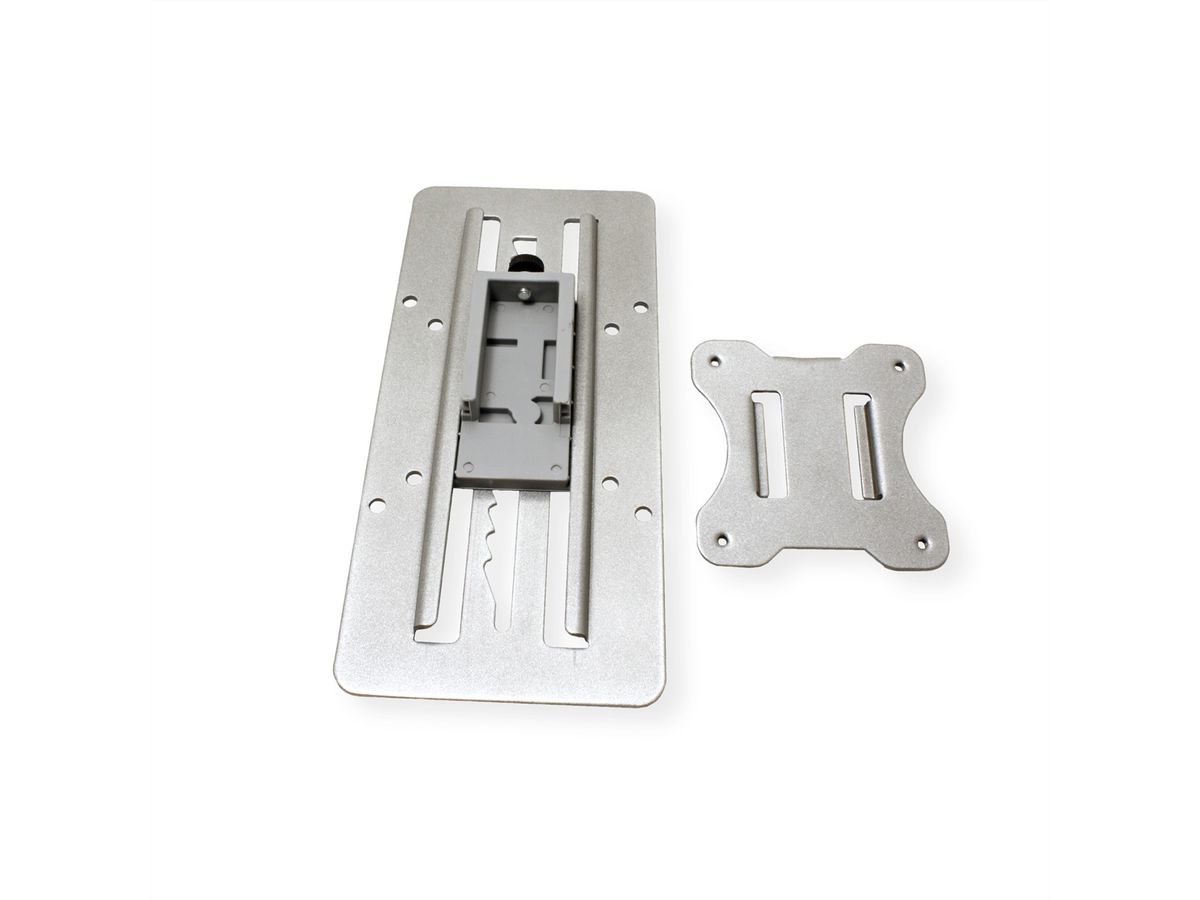

  • Track-mounted monitor holder
  • perfect to e.g. adjust two different monitors to the same height on an LCD bridge

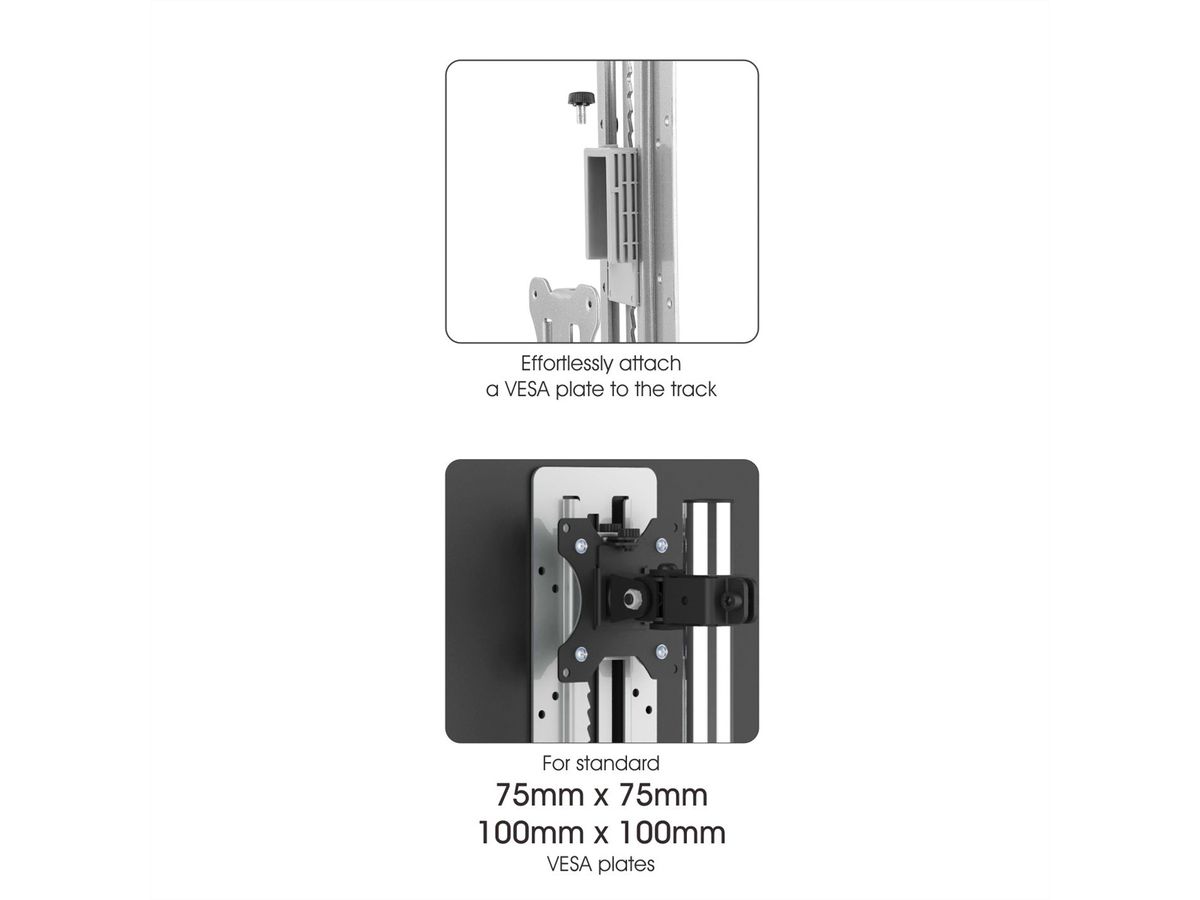

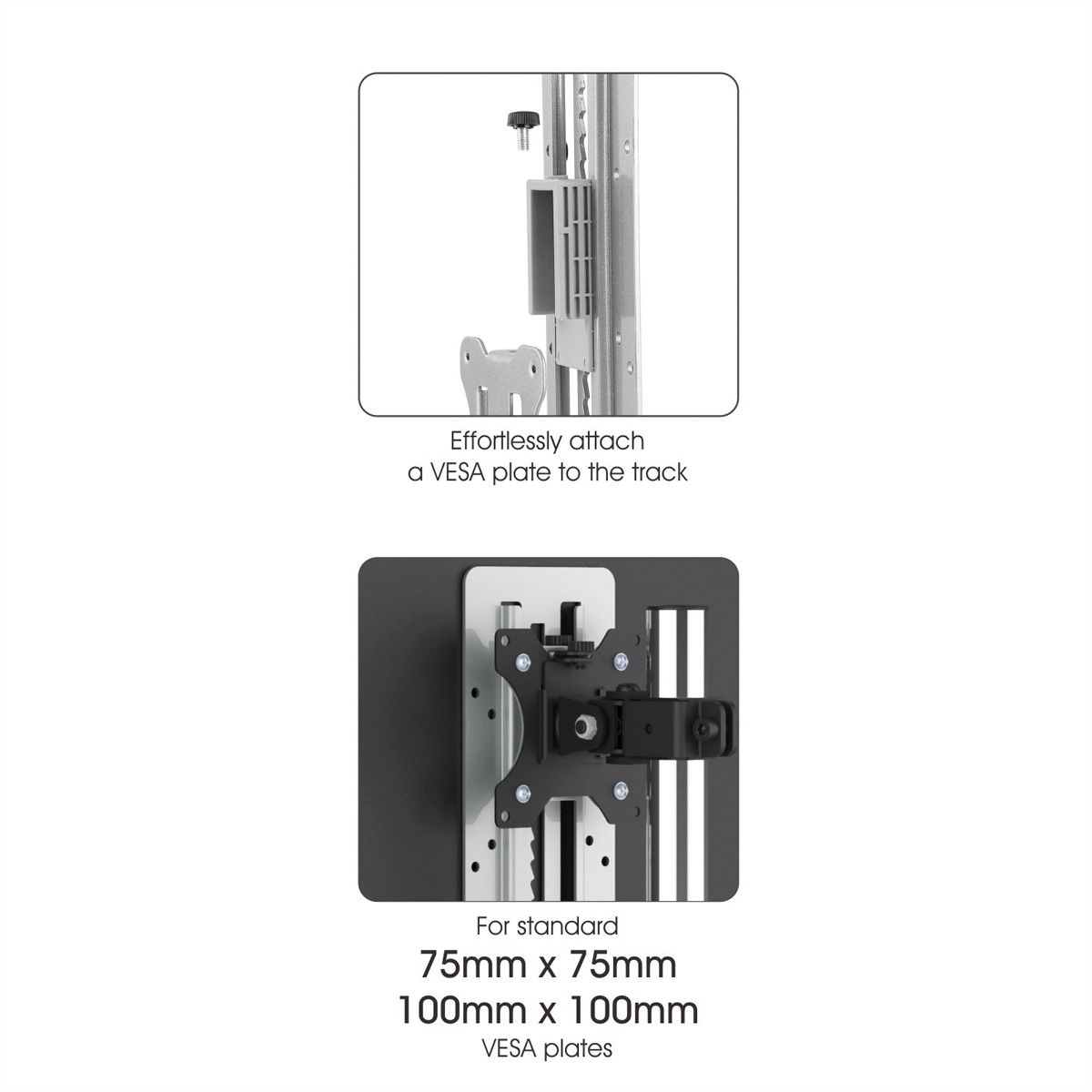

  • Easy installation on most monitor mounts with standard VESA plates (75mm x 75mm/100mm x 100mm)

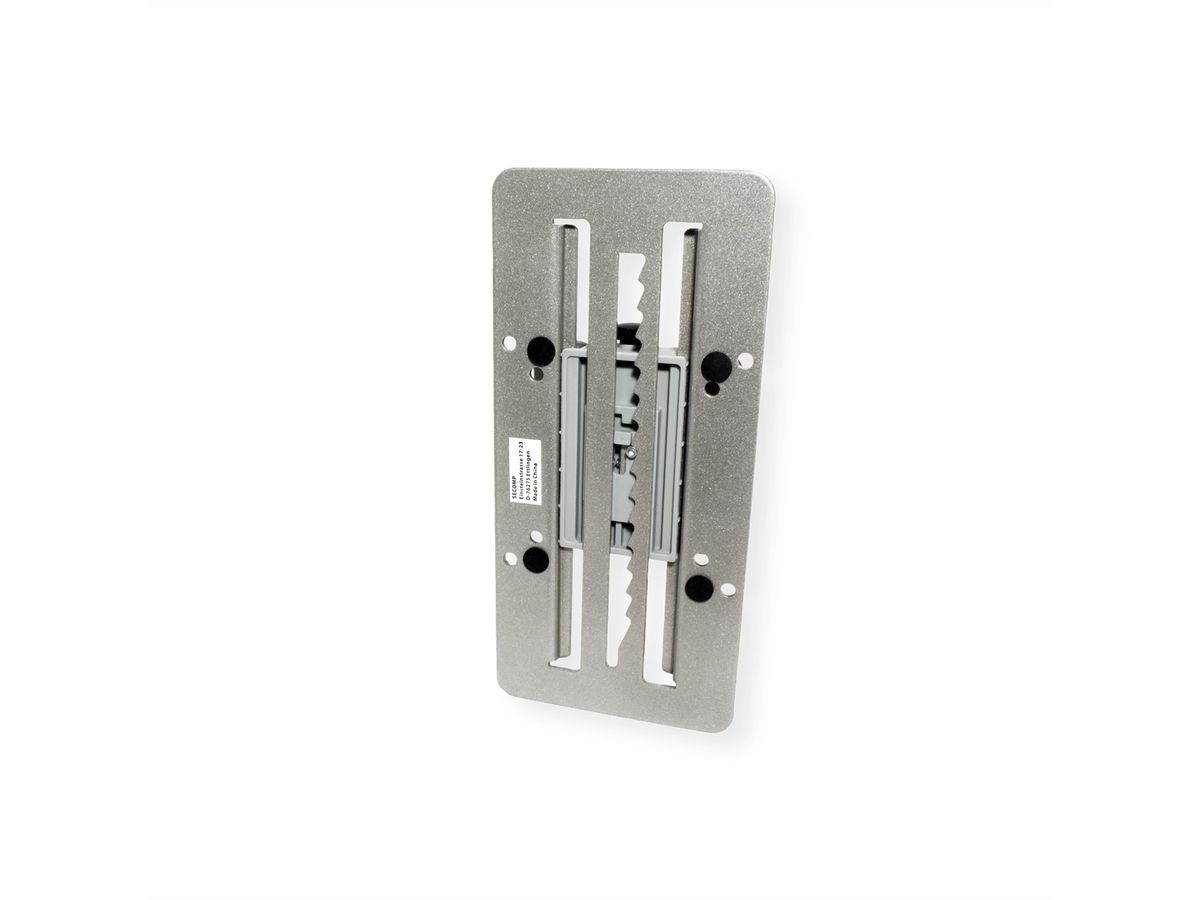

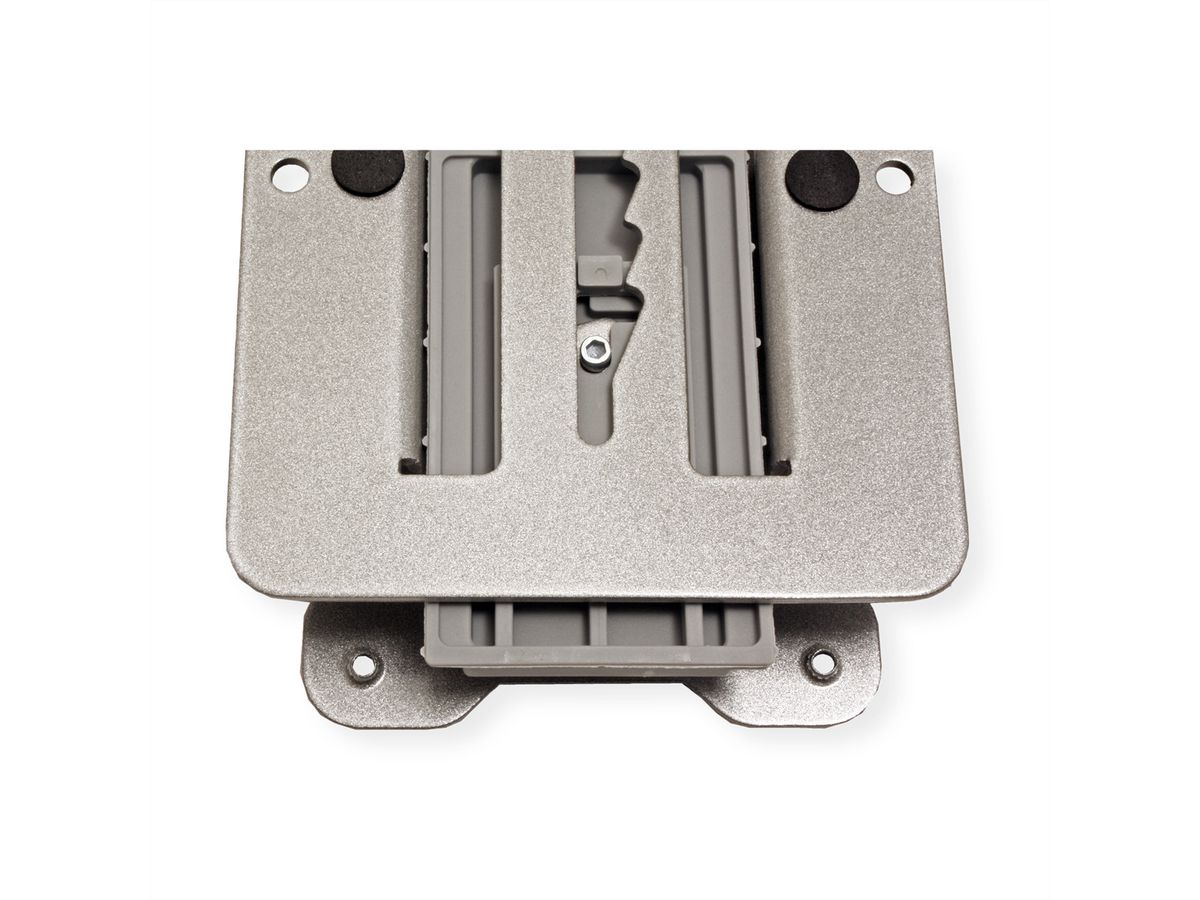

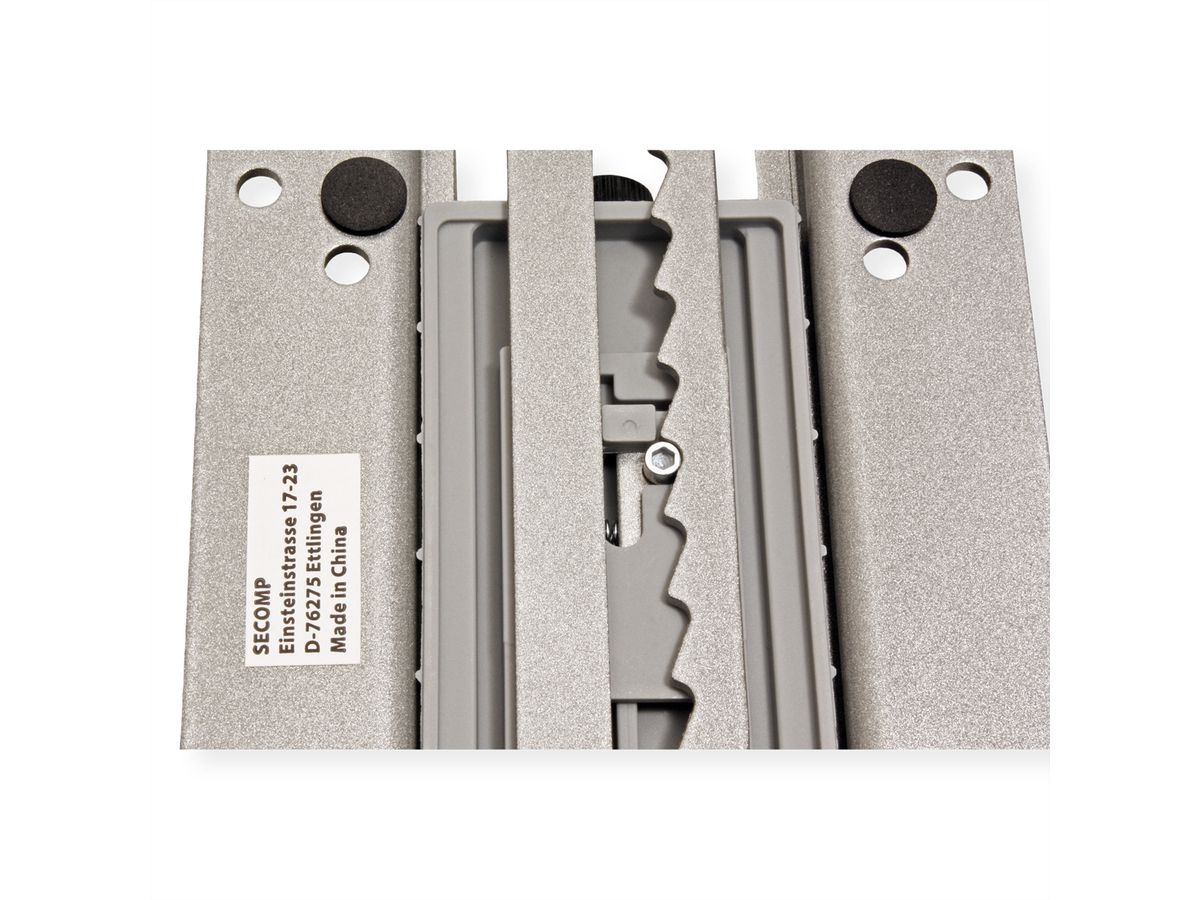

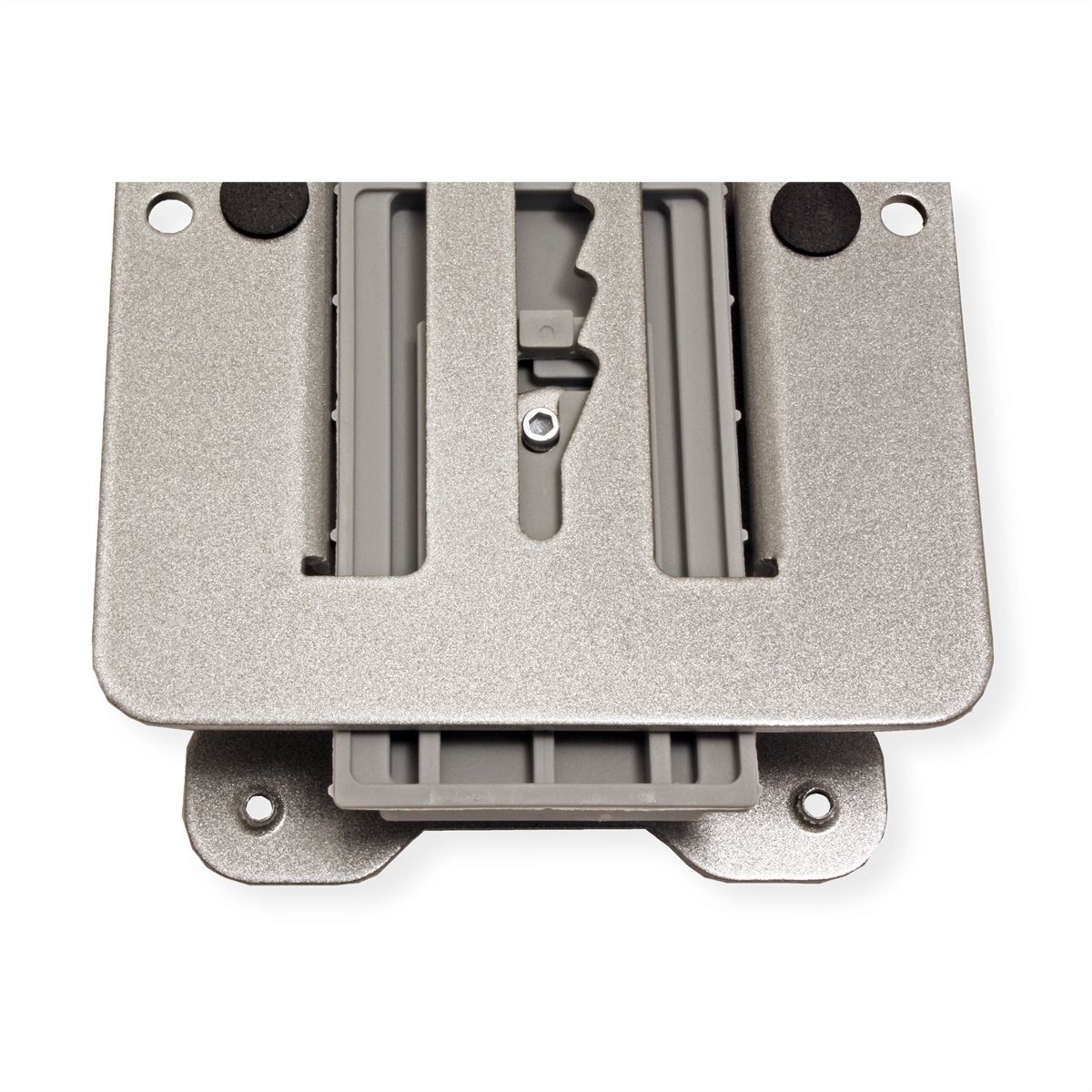

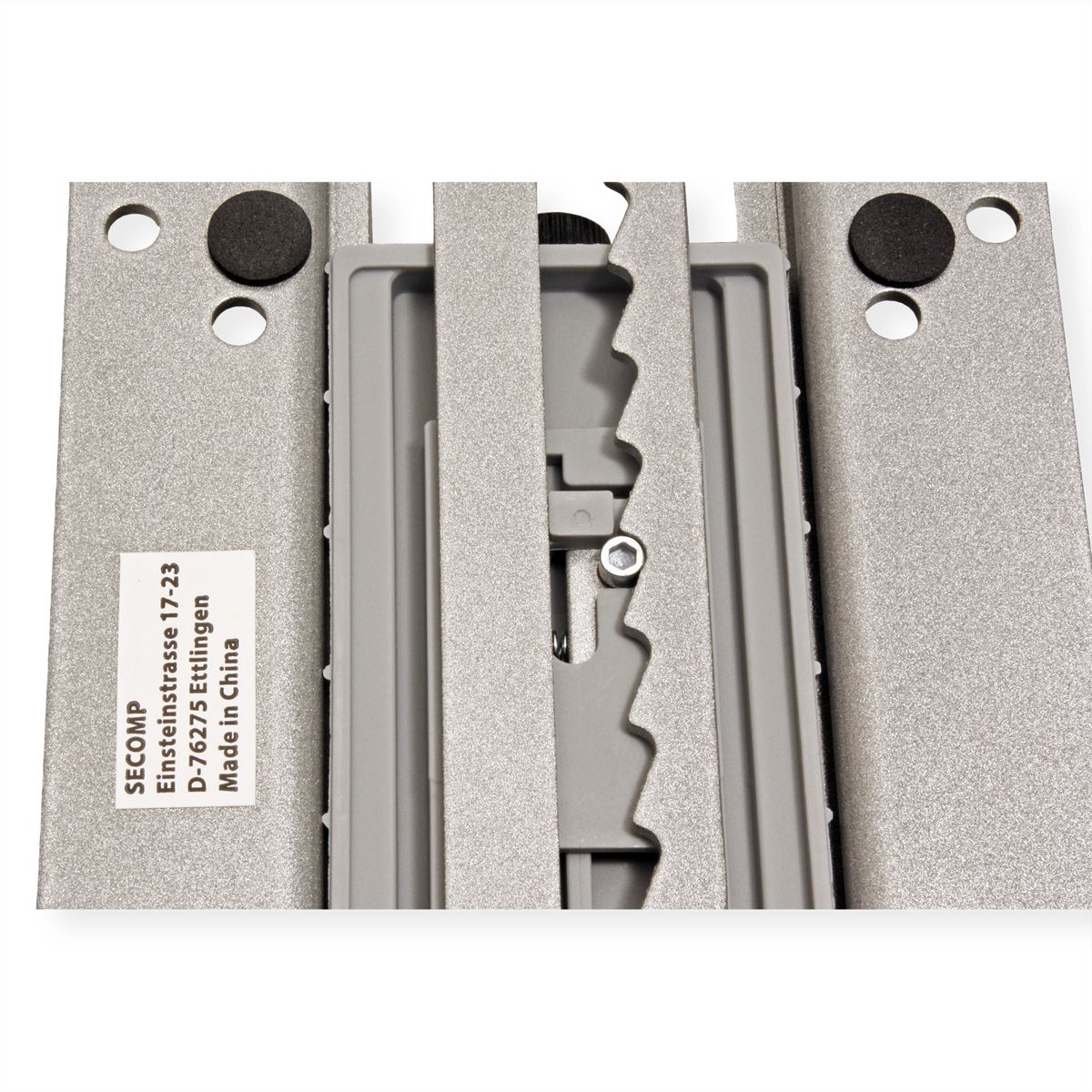

  • The toothed track keeps the adjustment smooth and stable
  • Maximum load up to 8 kg
  • Check the mounting position of the VESA mount on your monitor. If the VESA mount of the monitor is positioned too far up or down, the product may protrude at the top or bottom.
  • Centrally positioned monitor ports could be covered by this mount. In these cases, we recommend that cabling is done before installation.
  • Recessed VESA mounts on the monitors may require longer mounting screws (not included.) Please note: Screws that are too long could damage the display!


Manufacturer ROLINE
Product group LCD-Monitor arms
Product type VESA Adapters
Colour silver
Maximum weight capacity 8 kg
Fixing VESA 75 to VESA 100
Adjustments Adjustable spring gauge
Number of monitors 1
Max. Screen diagonal (cm) 68.58 cm
Max. Screen diagonal (inch) 27 inch
VESA 75 x 75 mm yes
VESA 100 x 100 mm yes
Material group metal
Technical particularity inc. fixation screws
Weight 664.9 g
Height of packaging (single piece) 40 mm
Width of packaging (single piece) 120 mm
Depth of packaging (single piece) 260 mm
Package weight (single piece) 0.65 kg


Product data sheet - English (45.5 KB)


User manual - English (5.3 MB)

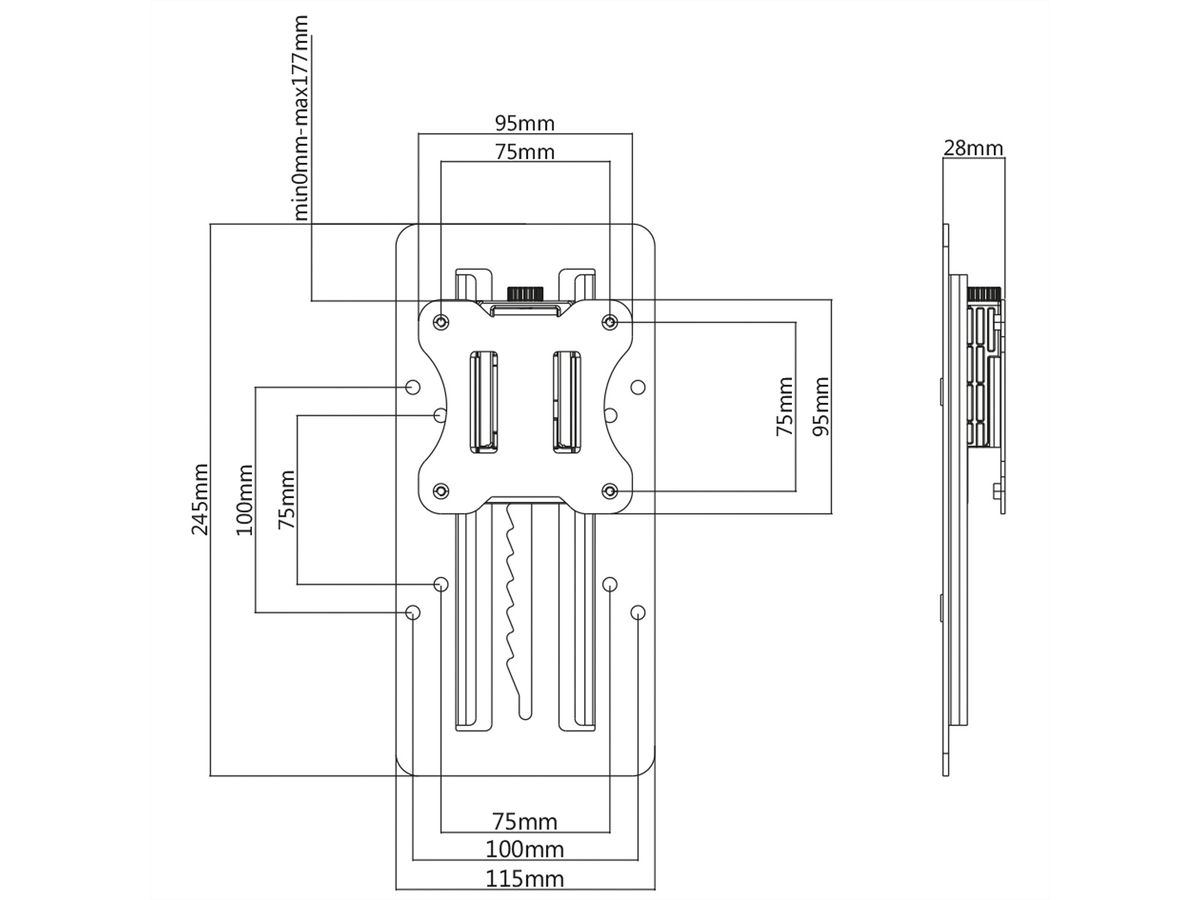

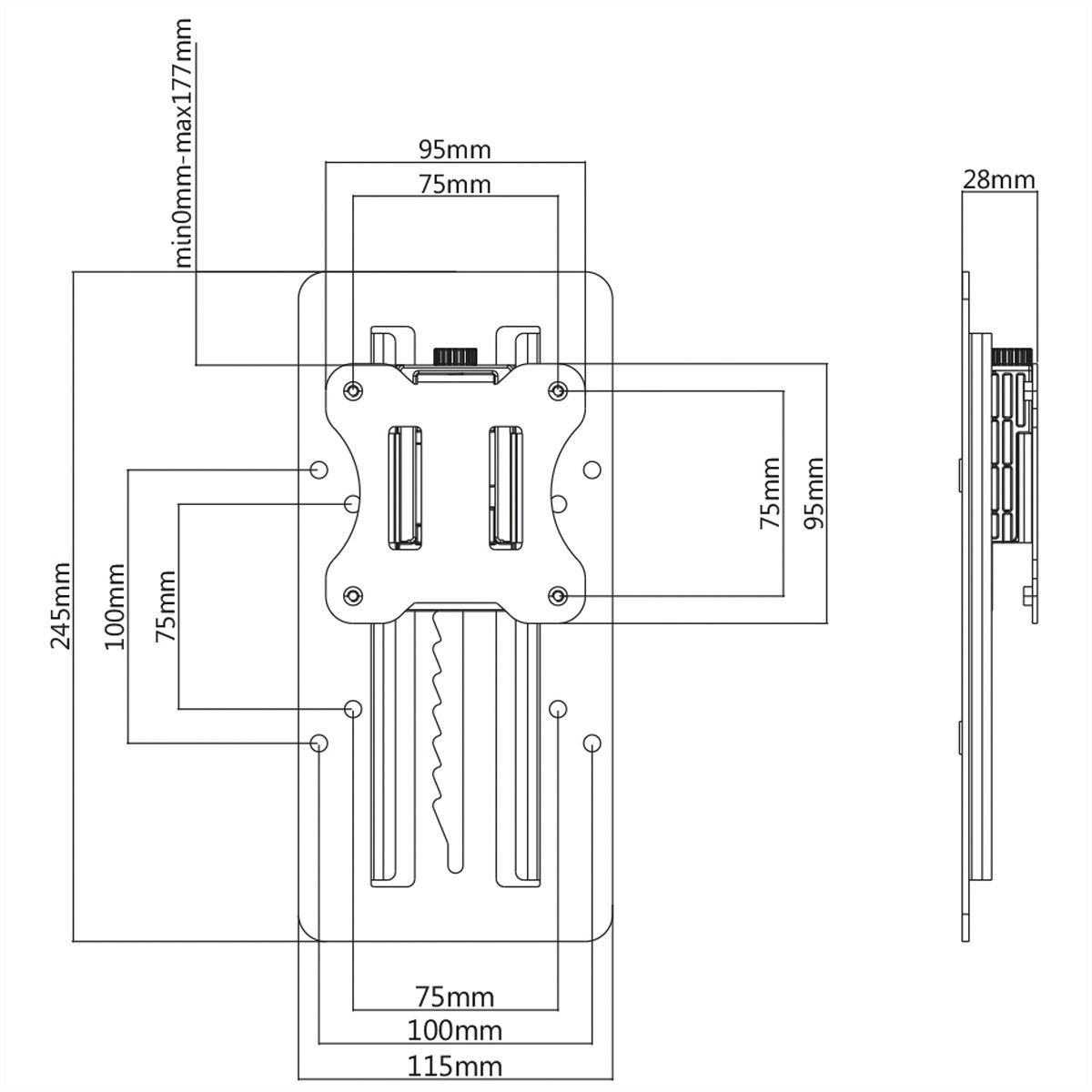

Technical drawing - English (497.2 KB)


The products of our own brand ROLINE are designed for professional continuous operation.

With a 2-year functional guarantee, we stand by our performance promise.

ROLINE – Quality makes the difference.
