Description

• Applications

- High Quality Multimedia Presentations
- Video Conferencing
- Education
- Public Broadcasting Systems
- Demos

Features

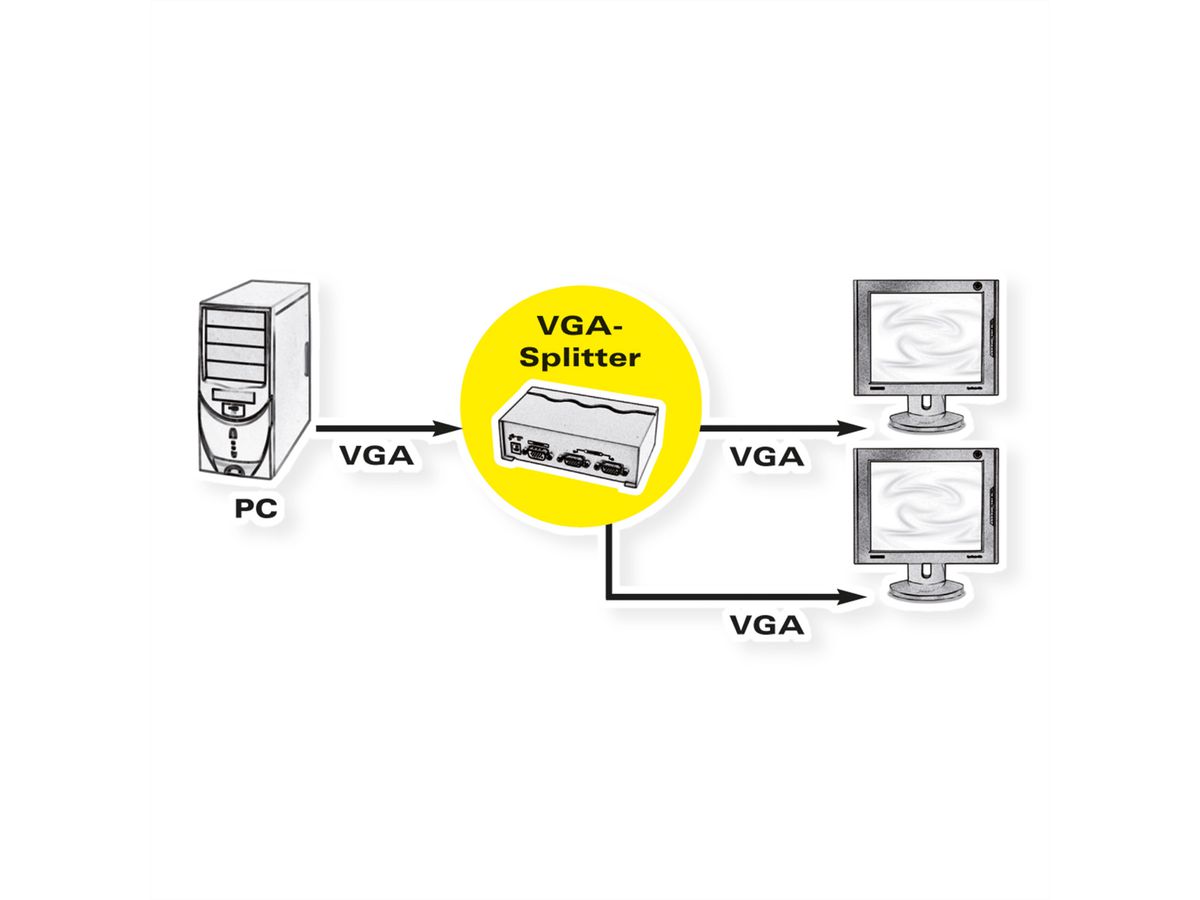

• Duplicates one video signal to two outputs
• Supports 450 MHz bandwidth
• Max. resolution (nominal): 1920 x 1440
• DDC compatible
• USB Bus powered (USB power cable included)
• Cascadable
• Plastic casing

Specifications

Manufacturer	ROLINE
Product group	Splitters and selectors
Product type	VGA-Video- Splitter
Colour	black
Scope of delivery	Splitter, USB power cable (1.1m)
Interface	VGA
Inputs	1
Outputs	2
Max. bandwidth	450 MHz
Video input	1x HD 15pin M
Video output	2x HD 15pin F
Video band width	450 MHz
Max. resolution (nom.)	1920 x 1080
Dimensions (HxWxD)	25 x 70 x 66 mm
Height	25 mm
Width	70 mm
Depth	66 mm
Weight	101.4 g
Height of packaging (single piece)	30 mm
Width of packaging (single piece)	100 mm
Depth of packaging (single piece)	130 mm
Package weight (single piece)	0.15 kg

Downloads

Product data sheet - English (46.5 KB)

Download

Manufacturer data sheet - English (1.3 MB)

Download

The products of our own brand ROLINE are designed for professional continuous operation.

With a 2-year functional guarantee, we stand by our performance promise.

ROLINE – Quality makes the difference.
