ROLINE Wireless Extender Set, TX+RX, C-HDMI, 1080p, 20 m

ROLINE Wireless Extender Set, TX+RX, C-HDMI, 1080p, 20 m

Please log in to be able to use the shopping cart and then complete orders.

Log in
Available
Ordered until 3 pm - usually dispatched on the same day
Item no. 14.01.3418-5
Brand / Manufacturer ROLINE
Manuf. no. 14.01.3418
EAN 7630049675285
Package weight 0.01 kg

Description

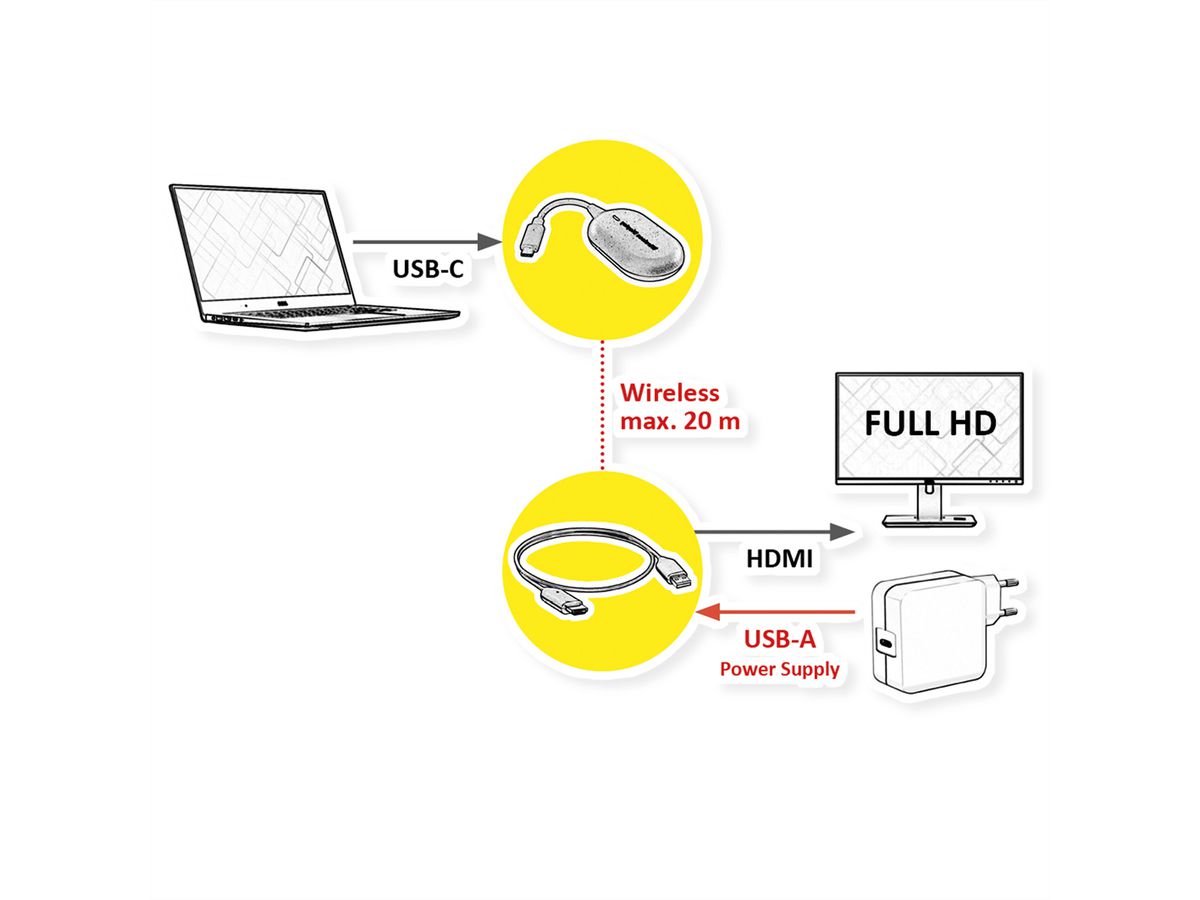

This ROLINE C-HDMI Wireless Extender mirrors and extends the display of a device such as a notebook in a Full HD resolution of 1920x1080 @60Hz and up to 20m (in open space)!

  • Mirrors and extends a display wirelessly with Full HD (1920x1080 @60Hz) up to 20m (in open space).

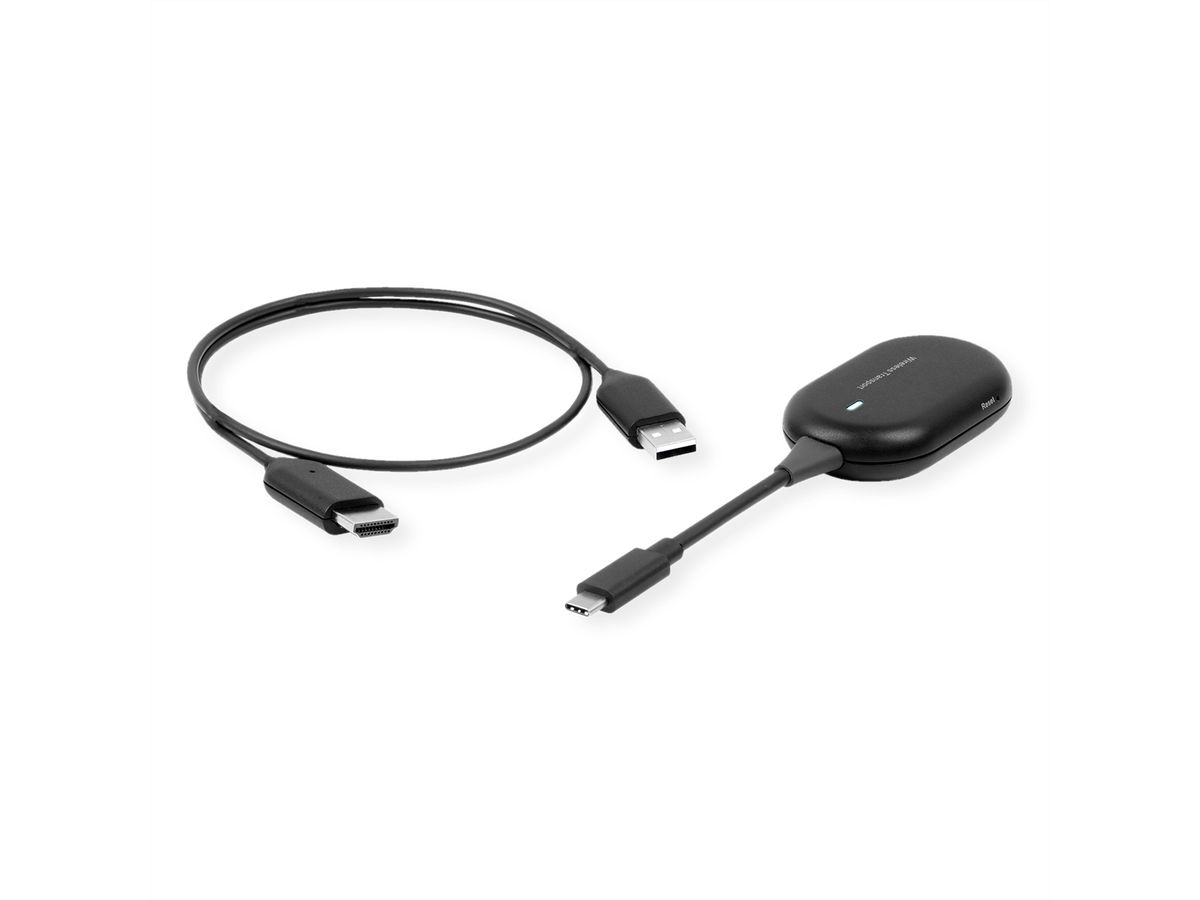

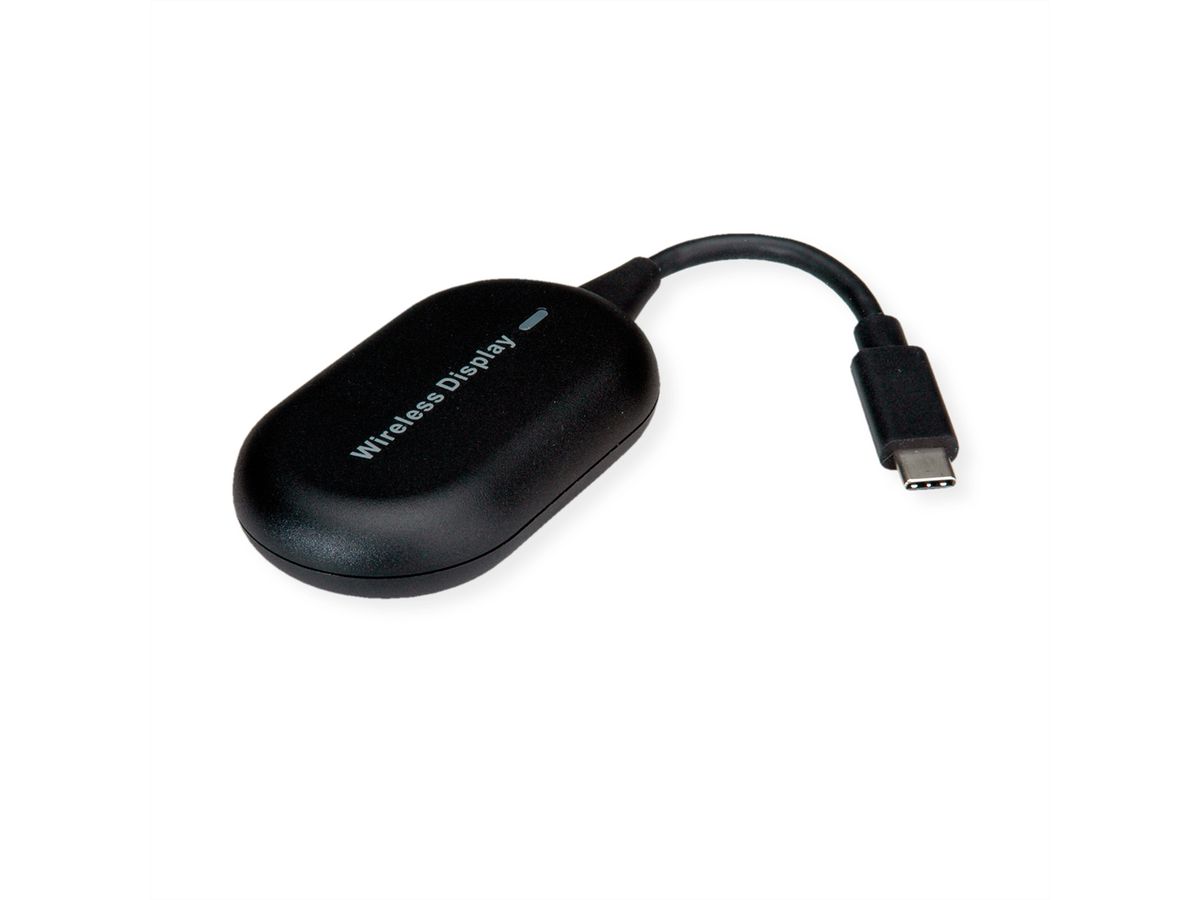

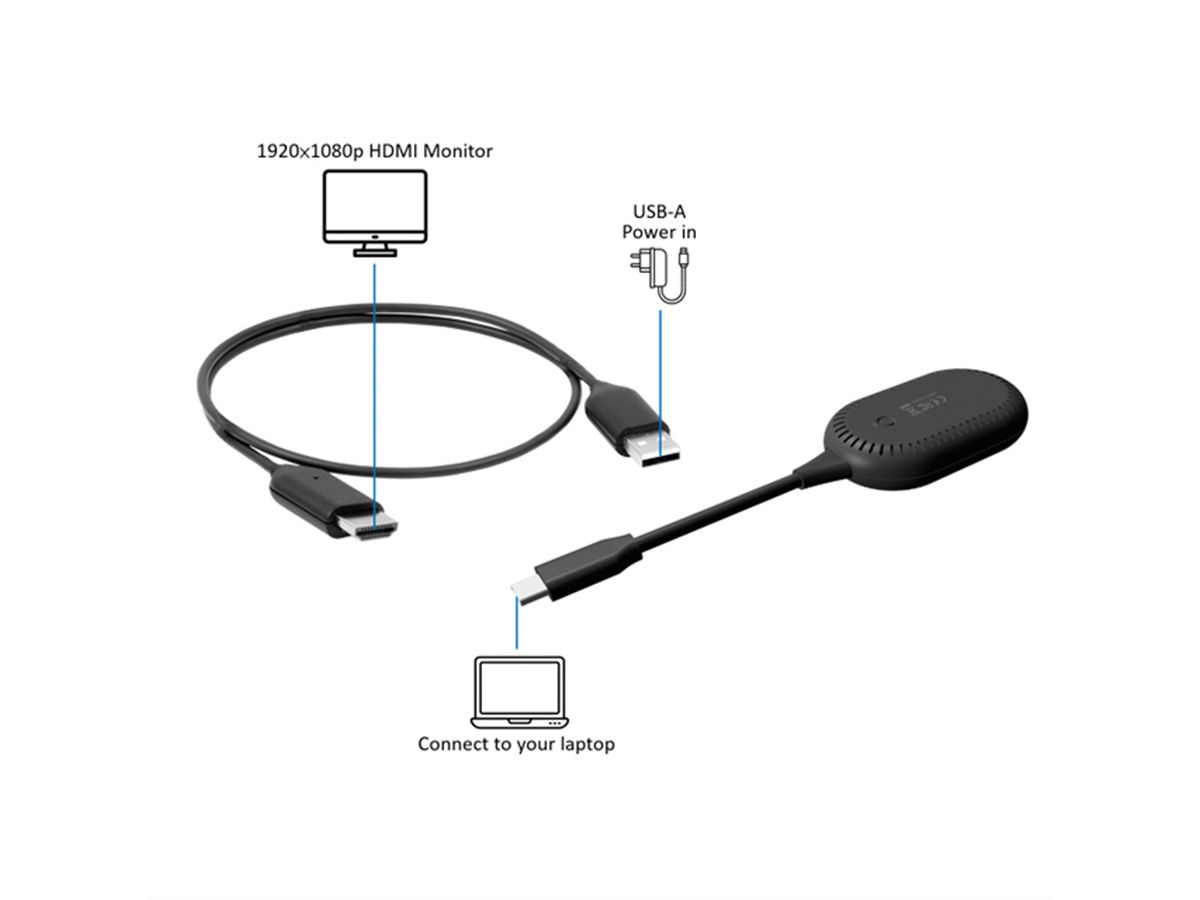

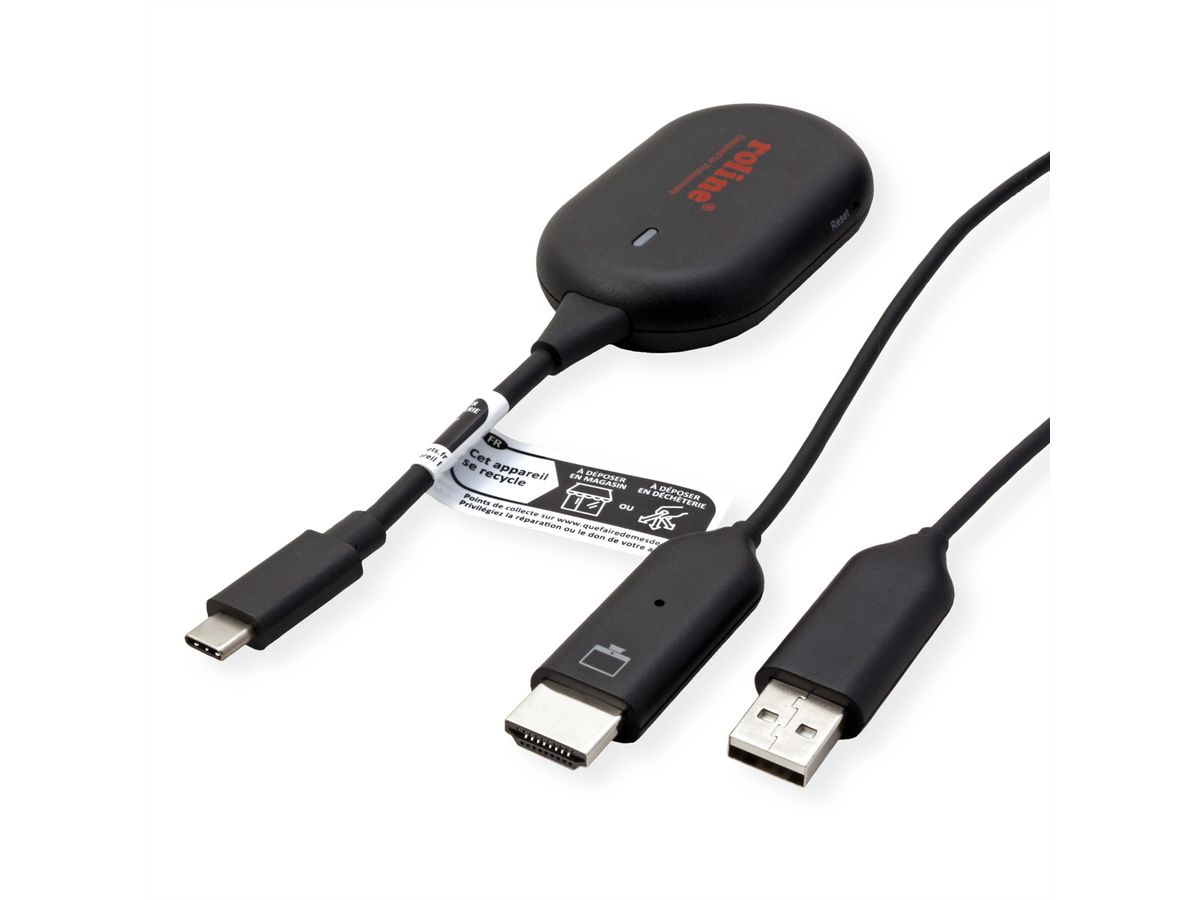

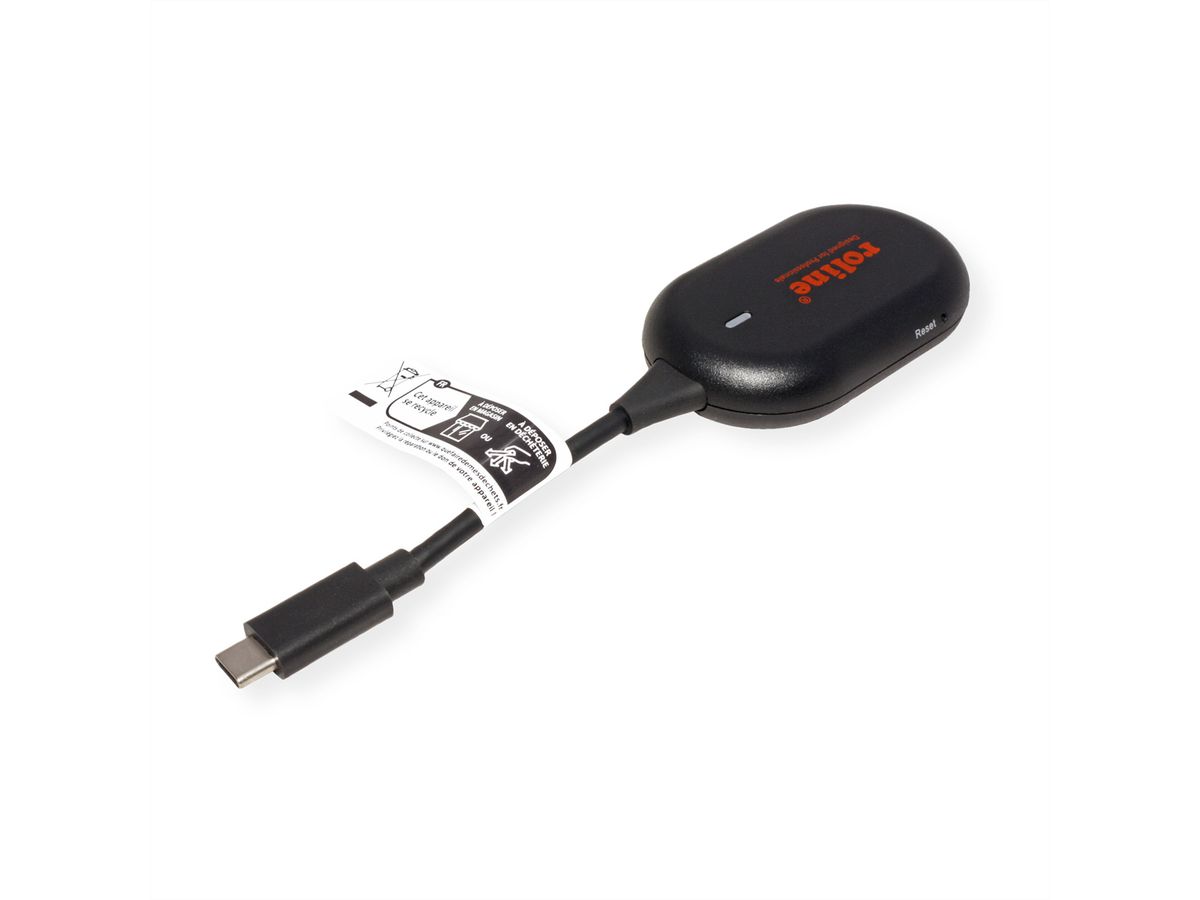

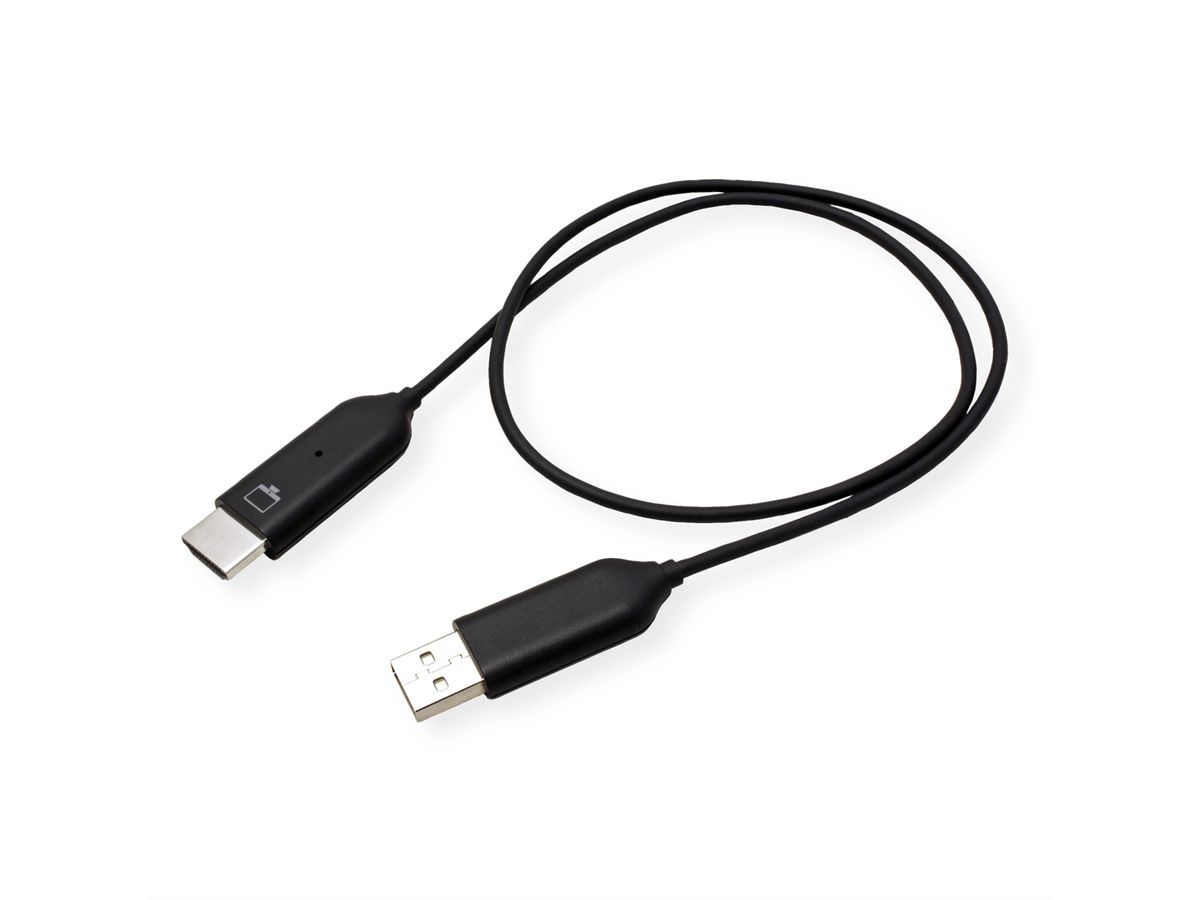

  • The set consists of a transmitter with an USB Type-C connector and a receiver. The receiver is shaped like a cable with a HDMI-connector (with integrated receiver) and an USB Type-A connector for power supply (5V DC).

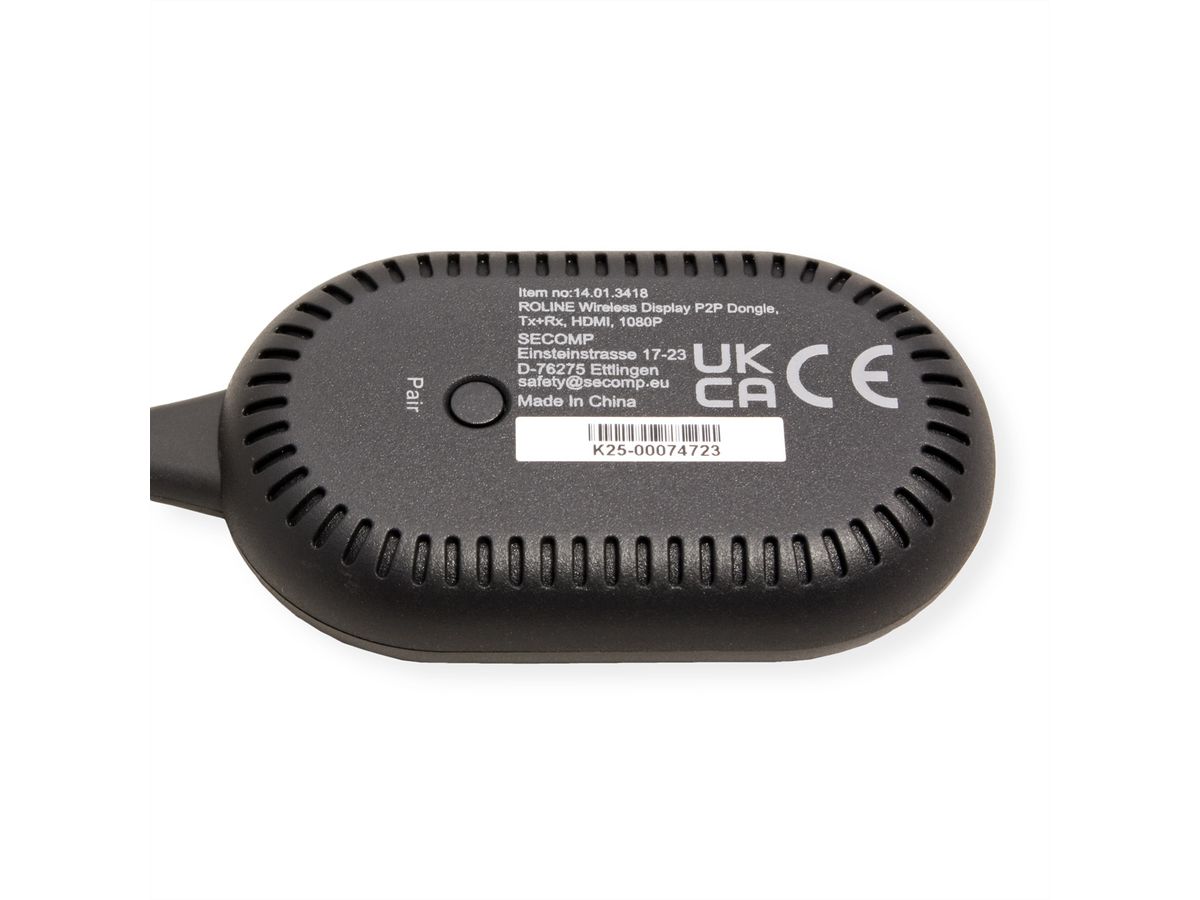

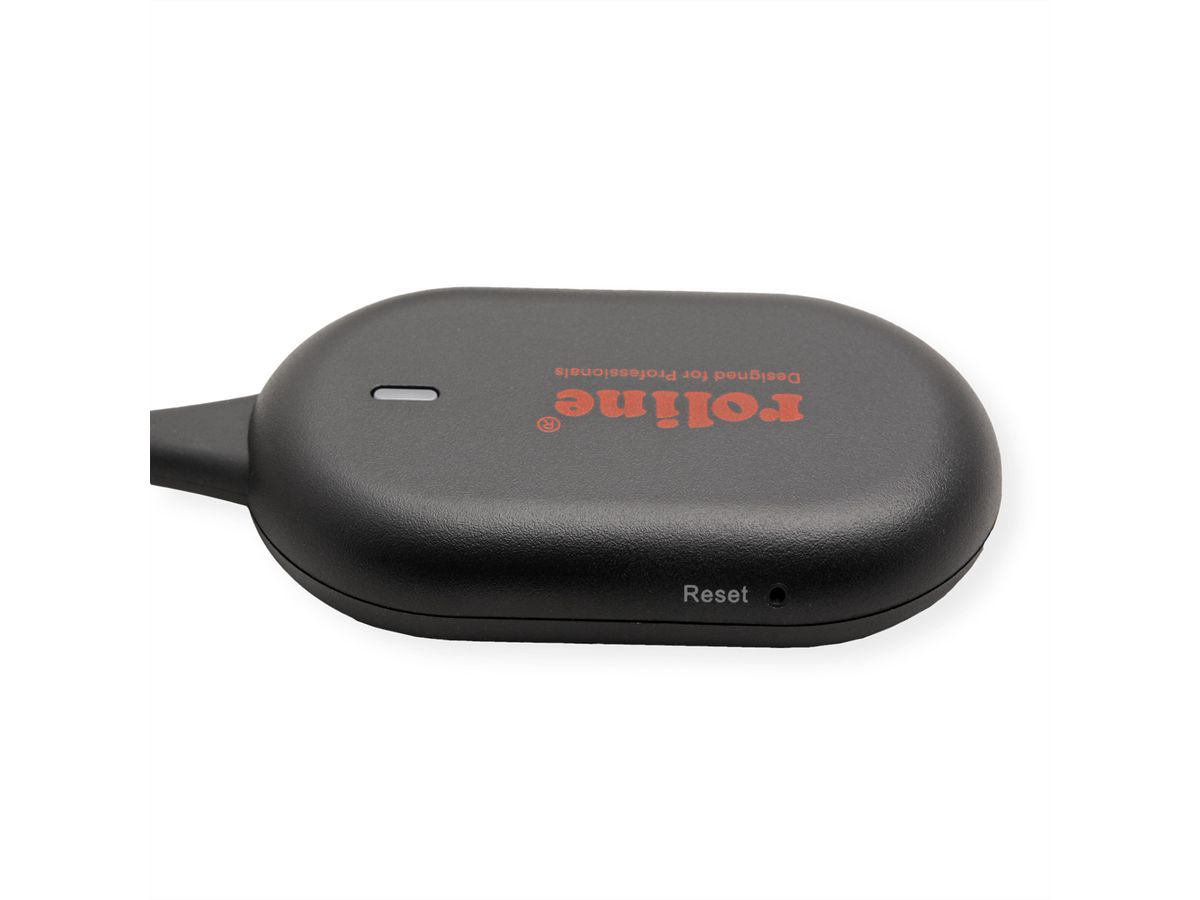

  • If connection problems occur, simply press the reset button on the transmitter.
  • Connection to the notebook via USB Type-C (requires support of DP Alt mode).
  • Supports Full HD (1920x1080 @60Hz).
  • Weight: Transmitter: 39g, Receiver: 21g
  • Color: black

Specifications

Manufacturer ROLINE
Product group Splitters and selectors
Product type HDMI Extender
Colour black
Length 20 m
Scope of delivery Transmitter, Receiver, Manual
Interface HDMI
Max. distance 20 m
Video input USB-C DP Alt Mode
Audio input USB-C DP Alt Mode
Video output HDMI
Audio output HDMI
Max. resolution 1920 x 1080 @60Hz (2K, Full HD)
Dimensions (HxWxD) 15 x 45 x 175 mm
Height 15 mm
Width 45 mm
Depth 175 mm
Weight 60 g
Height of packaging (single piece) 10 mm
Width of packaging (single piece) 150 mm
Depth of packaging (single piece) 100 mm
Package weight (single piece) 0.01 kg

Downloads

Product data sheet - English (54.1 KB)

Download

User manual - Deutsch (1.5 MB)

Download

User manual - English (1.6 MB)

Download

User manual - Français (1.5 MB)

Download

The products of our own brand ROLINE are designed for professional continuous operation.

With a 2-year functional guarantee, we stand by our performance promise.

ROLINE – Quality makes the difference.
