Description

Use modern notebooks with HDMI output on displays with a VGA input!

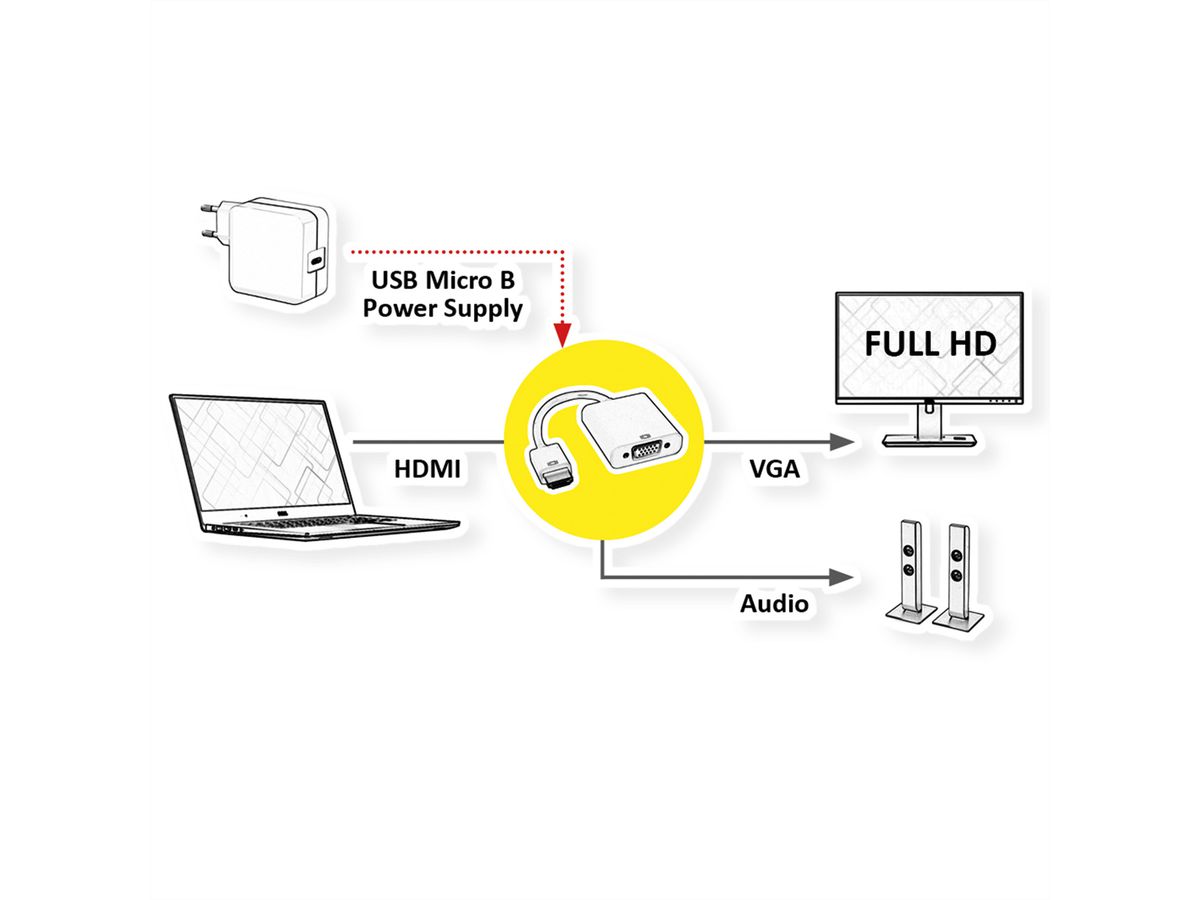

• Simple and easy solution to connect media and display devices
• Ideal for projectors, presentations or any other audio/visual project you may have
• Supports both video and audio, 1080p resolution
• The audio signal from the HDMI source is transmitted to the audio input via a 3.5mm plug
• The cable adapter is equipped with a MicroB USB port for connection to a USB power source (connection required)
• Maximum resolution: 1920 x 1080 (1080p)
• Colour: silver / black
• Length: 0.23 m (HDMI)

Note: this adapter only works in one direction from HDMI to VGA

Note: this adapter only works in one direction from HDMI to VGA

Specifications

Manufacturer	SECOMP
Product group	Adapters, Terminators, Converters
Product type	HDMI-VGA Adapter
Colour	black
Length	0.23 m
Max. resolution	1920 x 1080 / 1920 x 1200 @60Hz (2K, Full HD)
Side 1 connection (PC)	VGA Female
Side 2 connection (Peripherals)	HDMI Male
Side 1 Connector Type	HDMI Type A
Side 1 Connector Gender	Male
Side 2 Connector Type	HD D-Sub 15-pin (HD-15), VGA Mini Phone Stereo 3.5 mm, 3-pin
Side 2 Connector Gender	Female
Conversion direction	HDMI-VGA
Area of application	External
Height	15.4 mm
Width	45 mm
Depth	231 mm
Weight	63.1 g
Height of packaging (single piece)	20 mm
Width of packaging (single piece)	60 mm
Depth of packaging (single piece)	60 mm
Package weight (single piece)	0.04 kg
