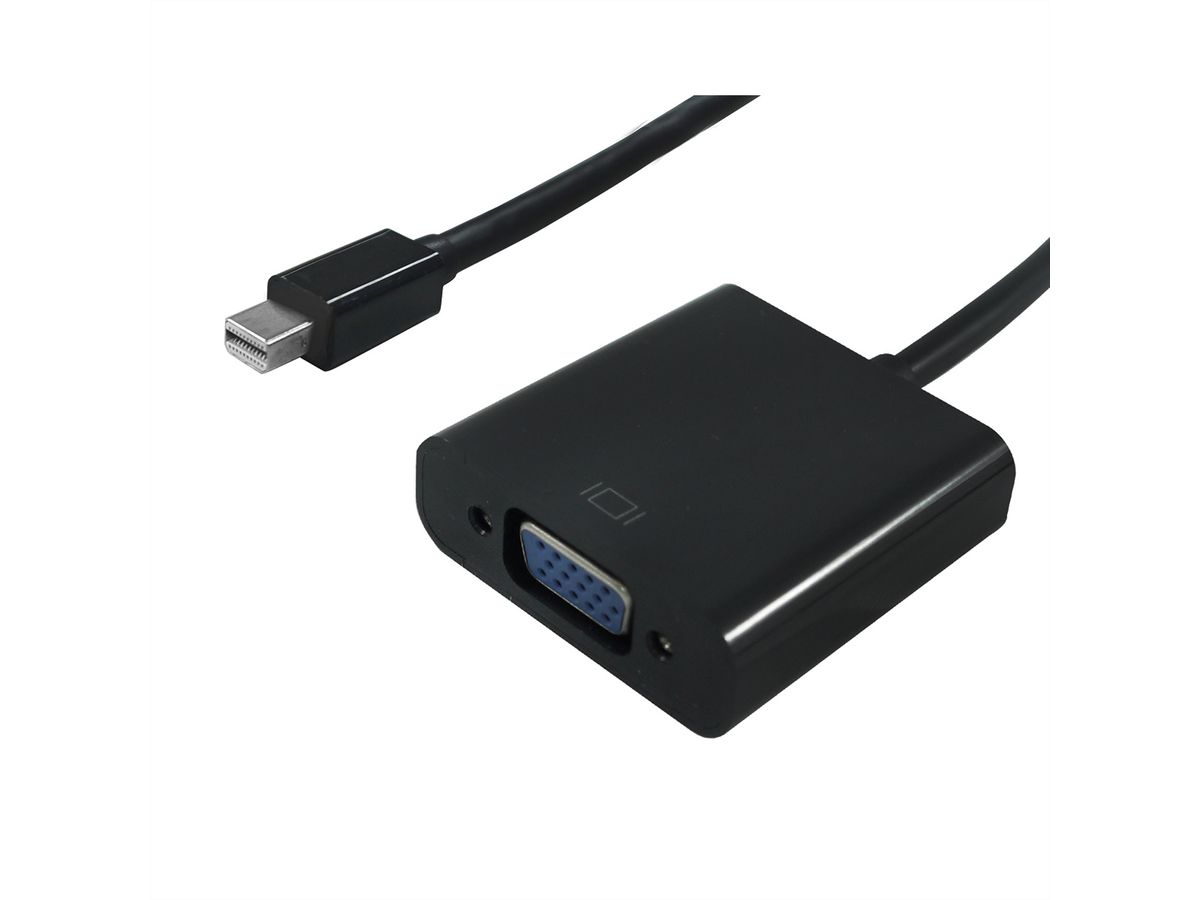

STANDARD Cableadapter, Mini DP M - VGA F
Item no.
S3205-10
Brand / Manufacturer
SECOMP
Manuf. no.
S3205
EAN
7611990943401
:strip_icc():strip_exif()/logos/secomp.png "SECOMP")
:strip_icc():strip_exif()/bilder/icons/icon_resolution_2k.png){kind=icon}
:strip_icc():strip_exif()/bilder/icons/icon_hdmi_1080p_fhd.png){kind=icon}
Please log in to be able to use the shopping cart and then complete orders.
Log in
Available
Ordered until 3 pm - usually dispatched on the same day
Description
Mini DisplayPort to VGA cable adapter for connecting a graphics card with Mini DP to a monitor with VGA connector - with a resolution of up to 1920x1080 / 1920x1200 @60Hz!
- For connecting a graphic card with Mini DisplayPort connector to a VGA monitor by using a VGA M-M cable
- Connectors: Mini DisplayPort Male and VGA Female
- Cable length: ca. 20 cm
- Remark: The Mini DisplayPort-VGA adapter is only working in one direction: the DisplayPort plug has to be connected to the source device (e.g. graphic card)
Specifications
- Manufacturer
- SECOMP
- Product group
- Adapters, Terminators, Converters
- Product type
- Mini DisplayPort-VGA Adapter
- Colour
- black
- Length
- 0.15 m
- Max. resolution
- 1920 x 1080 / 1920 x 1200 @60Hz (2K, Full HD)
- Side 1 connection (PC)
- Mini DisplayPort Male
- Side 2 connection (Peripherals)
- VGA Female
- Side 1 Connector Type
- Mini DisplayPort
- Side 1 Connector Gender
- Male
- Side 2 Connector Type
- HD D-Sub 15-pin (HD-15), VGA
- Side 2 Connector Gender
- Female
- Area of application
- External
- Height
- 14 mm
- Width
- 44 mm
- Depth
- 44 mm
- Weight
- 27.3 g
- Height of packaging (single piece)
- 20 mm
- Width of packaging (single piece)
- 20 mm
- Depth of packaging (single piece)
- 100 mm
- Package weight (single piece)
- 0.02 kg
Downloads
Technical drawing (113.8 KB)Product security
