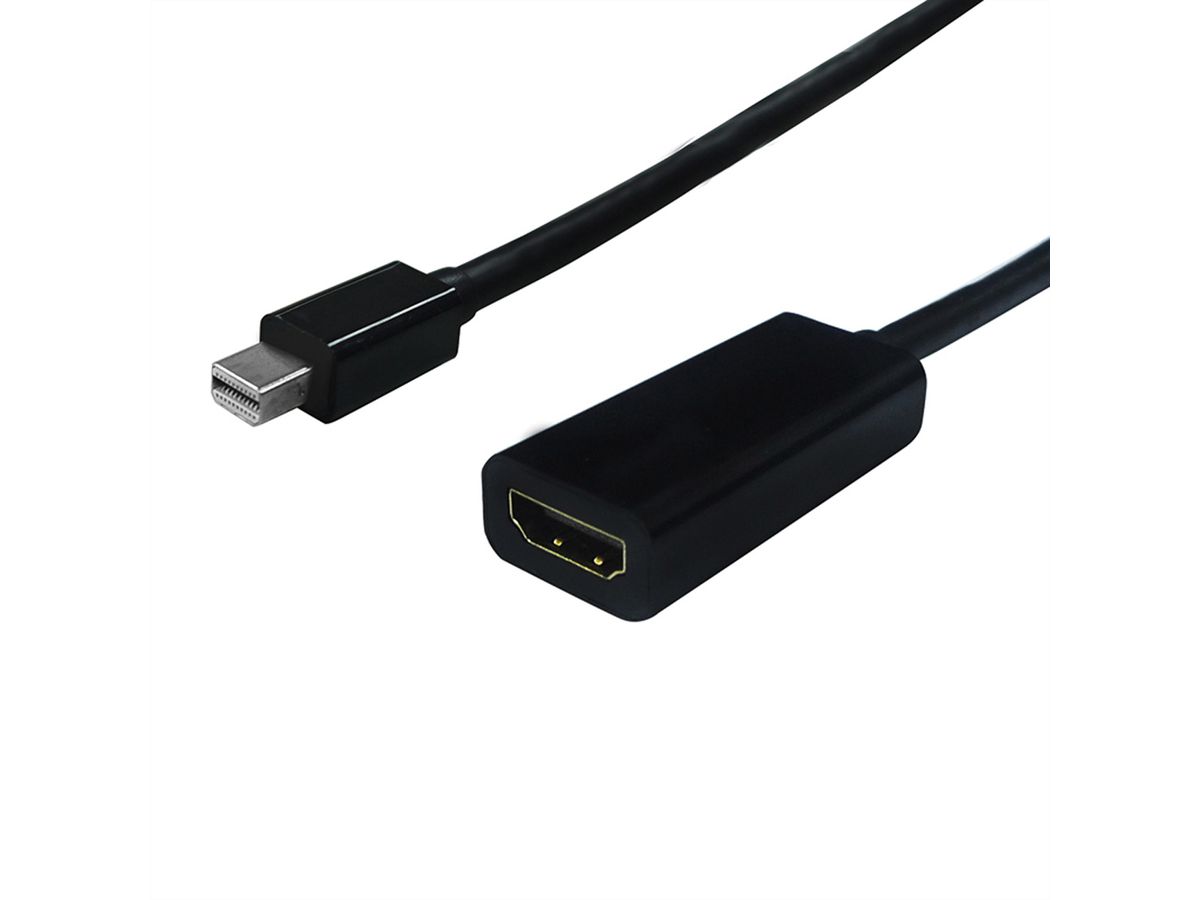

STANDARD Cableadapter, v1.2, MiniDP M - HDMI F

Item no. S3206-10 Brand / Manufacturer SECOMP Manuf. no. S3206 EAN 7611990943418
SECOMP

Please log in to be able to use the shopping cart and then complete orders.

Log in
Available
Ordered until 3 pm - usually dispatched on the same day
Download PDF

Description

Mini DisplayPort to HDMI cable adapter for connecting a graphics card with Mini DP to a monitor with HDMI connection - with a resolution of up to 3840x2160 @30Hz!

  • For connecting a graphic card with Mini DisplayPort connector to a HDMI monitor by using a HDMI M-M cable
  • Connectors: Mini DisplayPort Male, HMDI Female
  • Length: ca. 10 cm
  • DisplayPort Version 1.2 allows increased resolutions, higher refresh rates, and greater color depth
  • Remark: The DisplayPort-HDMI adapter is only working in one direction: the DisplayPort plug has to be connected to the source device (e.g. graphic card)

Specifications

Manufacturer
SECOMP
Product group
Adapters, Terminators, Converters
Product type
Mini DisplayPort-HDMI Adapter
Colour
black
Length
0.15 m
Max. resolution
3840 x 2160 @30Hz (4K, Full HD)
Side 1 connection (PC)
Mini DisplayPort Male
Side 2 connection (Peripherals)
HDMI Female
Side 1 Connector Type
Mini DisplayPort
Side 1 Connector Gender
Male
Side 2 Connector Type
HDMI Type A
Side 2 Connector Gender
Female
Area of application
External
Technical particularity
DisplayPort Version 1.2
Height
14 mm
Width
44 mm
Depth
44 mm
Weight
17.5 g
Height of packaging (single piece)
60 mm
Width of packaging (single piece)
150 mm
Depth of packaging (single piece)
250 mm
Package weight (single piece)
0.3 kg

Downloads

Technical drawing (199.2 KB)

Product security

Information in accordance with the EU Product Safety Regulation, (GPSR):


SECOMP Electronic Components GmbH
Einsteinstrasse 17-23, 76275 Ettlingen, Germany
