Description

• Easy and simple solution to connect media and display devices
• Ideal for projectors, presentations or any other audio/visual project (e.g. multimedia presentation) you may have

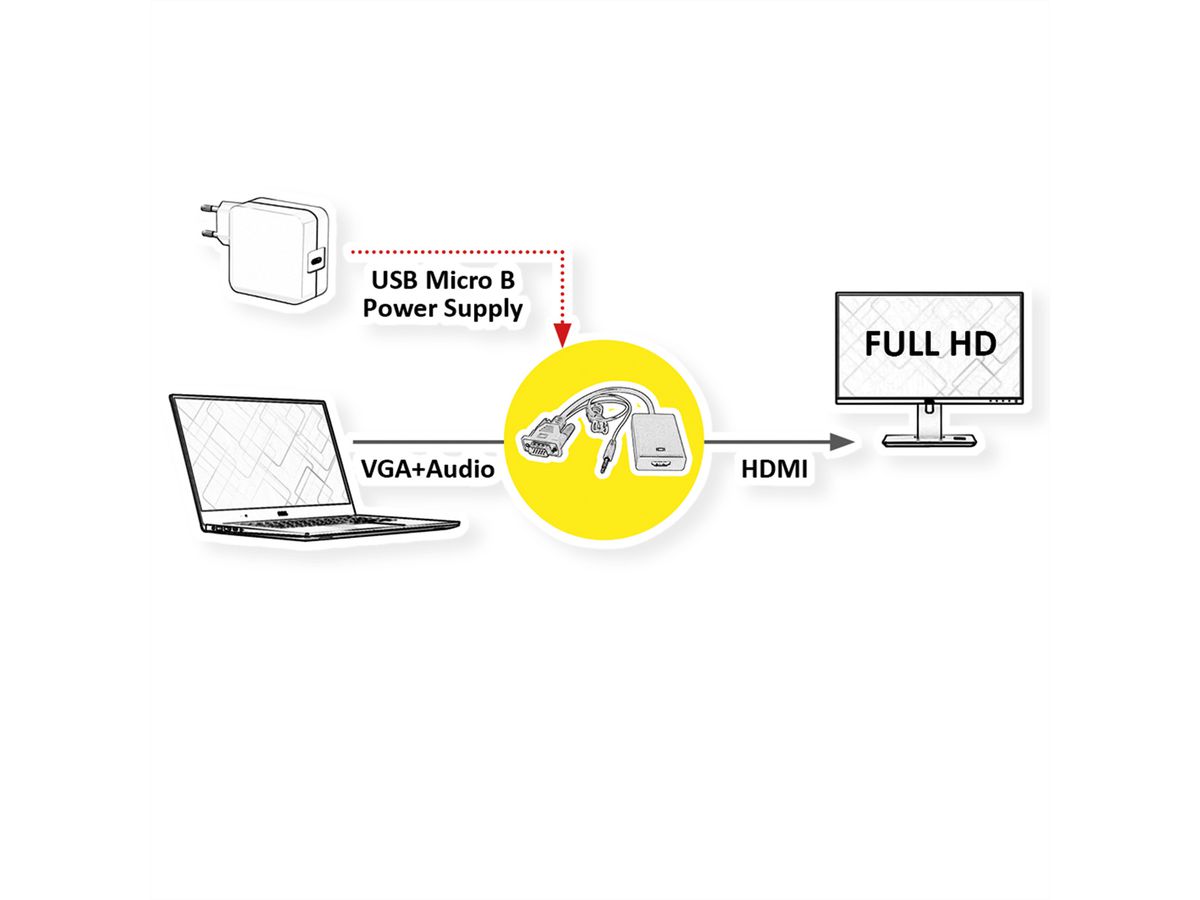

• Allows the upscaling of analog VGA signals to digital HDMI signals, ideal for connecting PCs and laptops to HDMI displays such as HDTVs
• Supports both video and audio, 1080p resolution
• The converter takes audio from the computer via 3.5mm connector and embeds it to the HDMI output along with the video
• The cableadapter features a MicroB USB port for an connection to a USB power source (connection is required)
• VGA cable adapter: 0.23m Audio cable length: 0.5m USB cable length: 0.5m
• Maximum resolution: 1920 x 1080
• Color: black

Specifications

Manufacturer	SECOMP
Product group	Adapters, Terminators, Converters
Product type	VGA-HDMI Adapter
Colour	black
Length	0.23 m
Max. resolution	1920 x 1080 / 1920 x 1200 @60Hz (2K, Full HD)
Side 1 connection (PC)	VGA Male
Side 2 connection (Peripherals)	HDMI Female
Side 1 Connector Type	HD D-Sub 15-pin (HD-15), VGA
Side 1 Connector Gender	Male
Side 2 Connector Type	HDMI Type A
Side 2 Connector Gender	Female
Conversion direction	VGA-HDMI
Area of application	External
Hand locking screws	yes
Height	14 mm
Width	44 mm
Depth	234 mm
Weight	74.7 g
Height of packaging (single piece)	30 mm
Width of packaging (single piece)	70 mm
Depth of packaging (single piece)	80 mm
Package weight (single piece)	0.04 kg

Downloads

Manufacturer data sheet - English (222.0 KB)

Download
