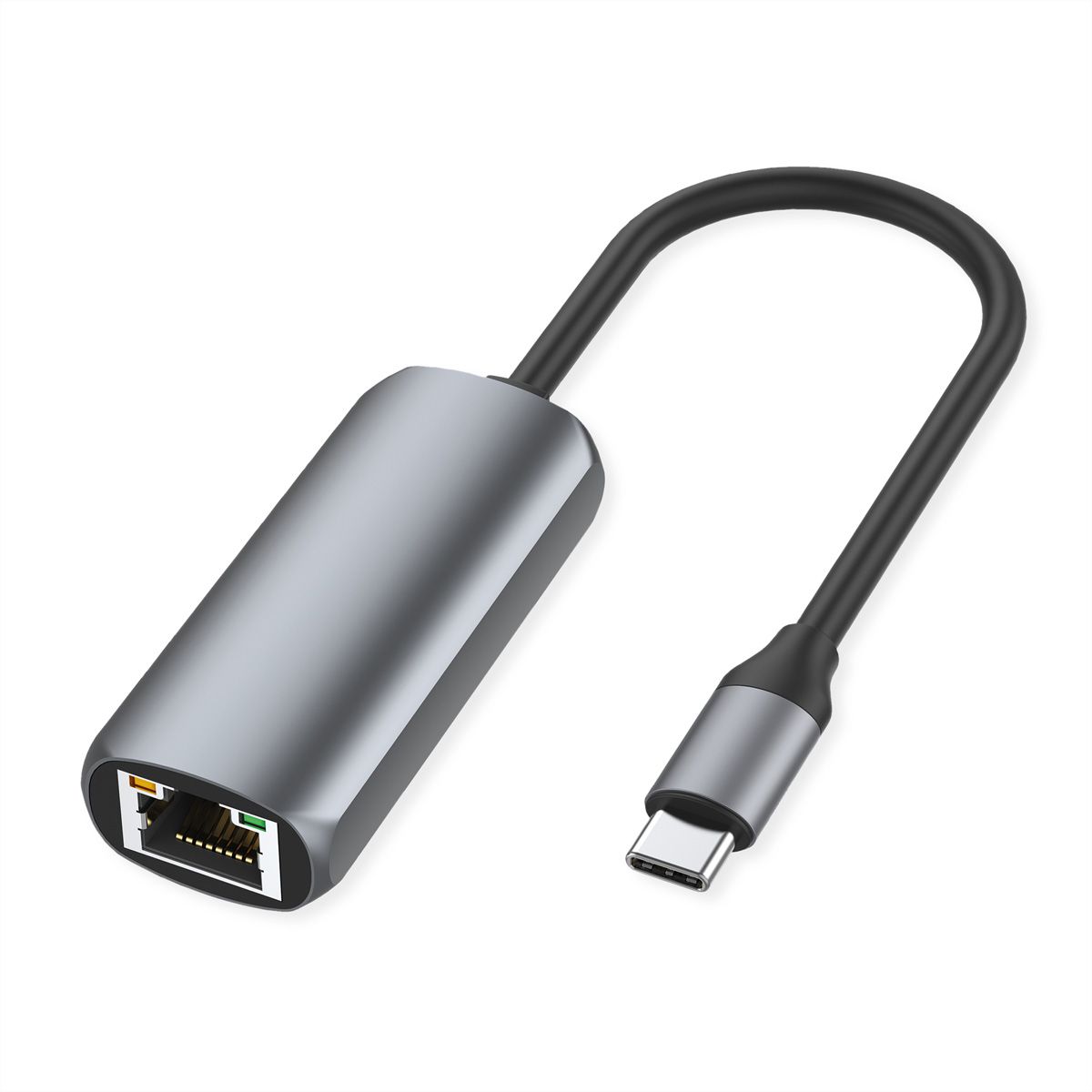

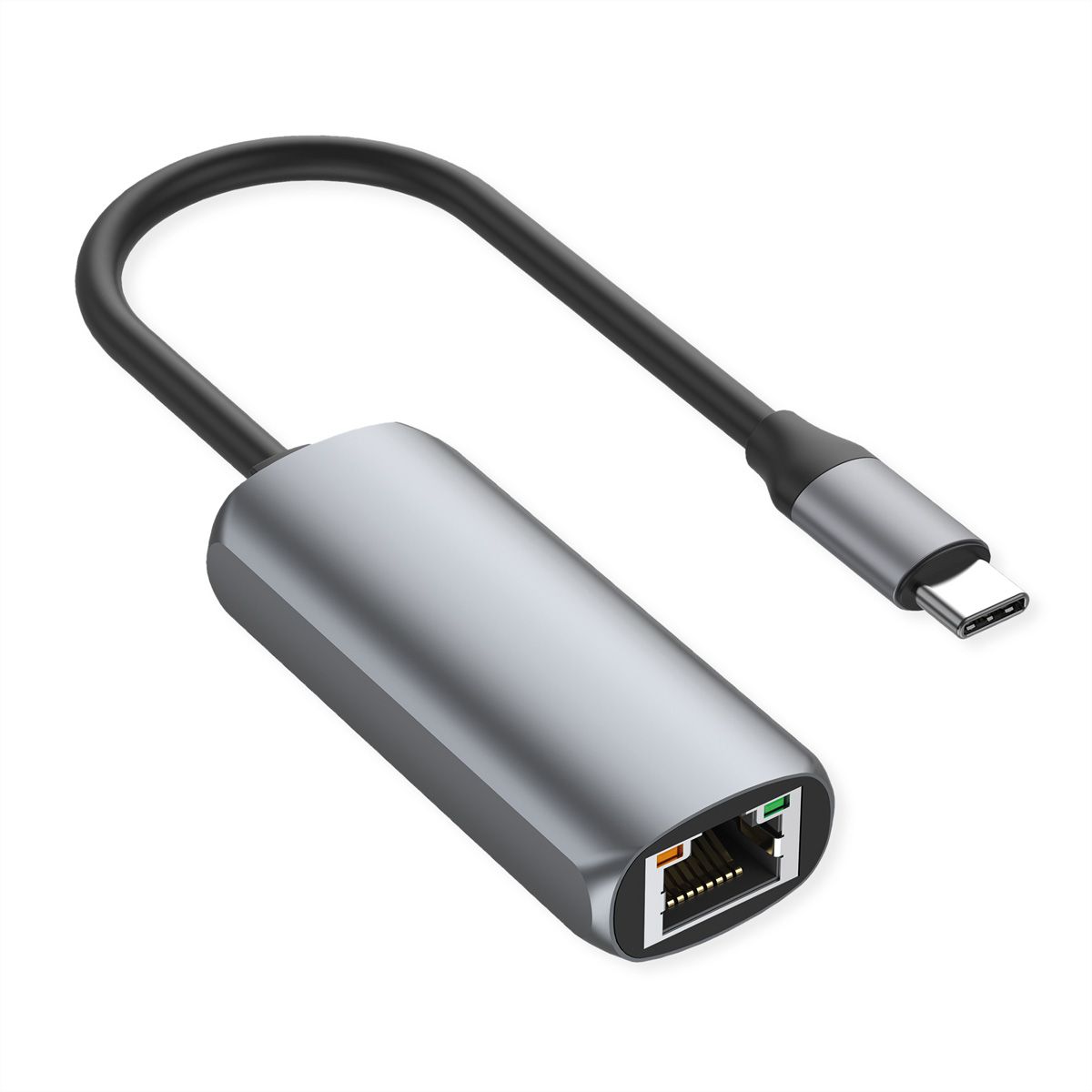

STANDARD USB 3.2 Gen 1 Type C to Gigabit Ethernet Converter
Item no.
11.55.1432-10
Brand / Manufacturer
SECOMP
Manuf. no.
11.55.1432
EAN
7630049663886
Package weight
0.035 kg
:strip_icc():strip_exif()/logos/secomp.png "SECOMP")
Please log in to be able to use the shopping cart and then complete orders.
Log in
Deliverable approx. 03/01/2027
Description

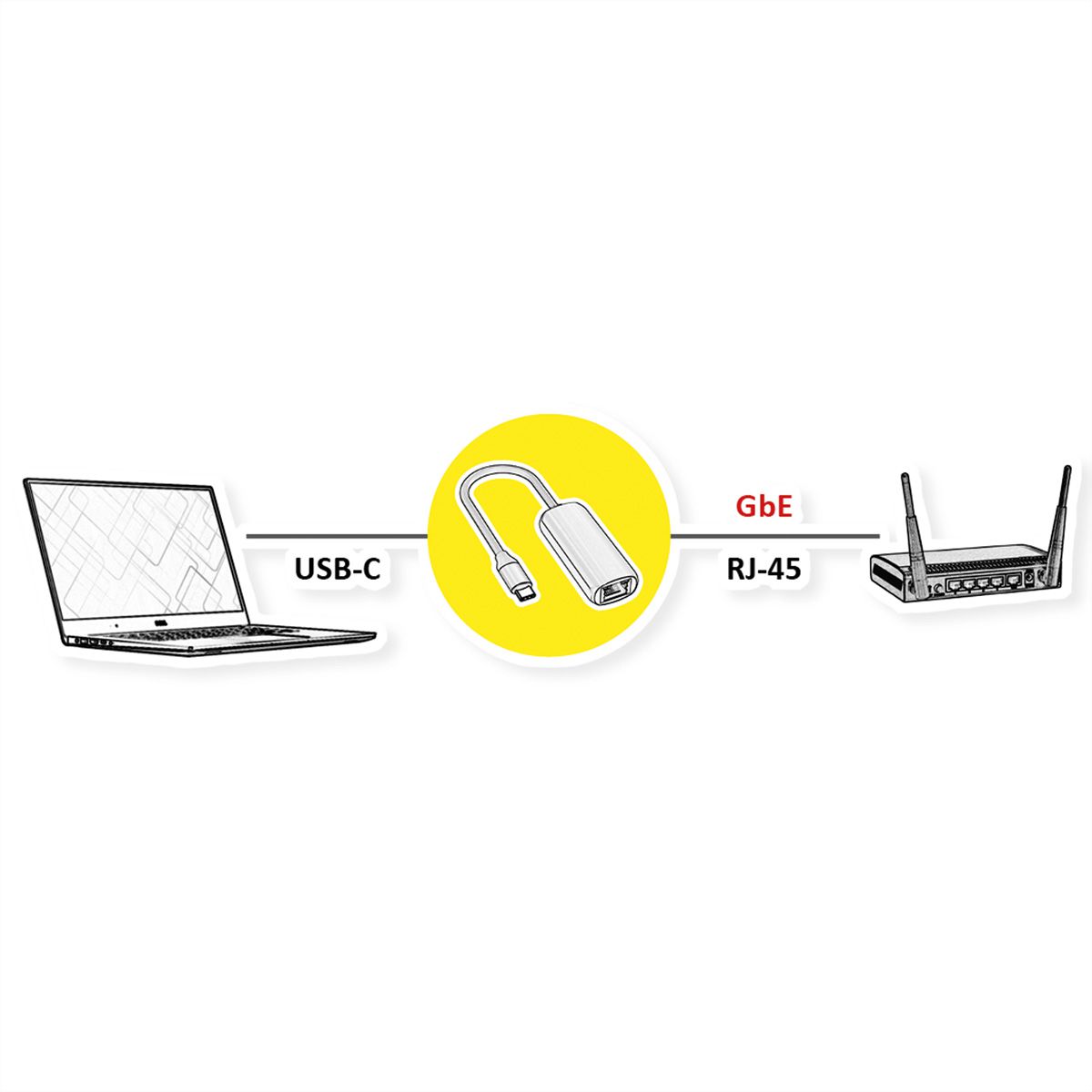

With this converter you can connect your PC or notebook with USB Type C interface to a network with up to Gigabit Ethernet.
- Supports USB 3.0 / USB 3.2 Gen 1, backwards compatible to USB 2.0
- Easy installation - just plug the converter into the USB port, connect the LAN cable - done!
- Supports 10/100/1000 Mbps, with auto-sensing capability
- Bus powered, no additional power supply needed
- USB Type C Connector
- Cable length approx. 180 mm
- Supports both full-duplex and half-duplex operation in Gigabit Ethernet
Note: According to the current specifications of USB.org we have adapted the technical data of our USB 3 products. The new designation for the already known USB specifications has been changed to USB 3.2 Gen 1 (formerly USB 3.0 / USB 3.1 Gen 1) and USB 3.2 Gen 2 (formerly USB 3.1 / USB 3.1 Gen 2).
Specifications
- Manufacturer
- SECOMP
- Product group
- Network adapters
- Product type
- Gigabit Ethernet Converter
- Colour
- black
- Scope of delivery
- Converter with USB Type-C cable
- BUS system
- USB
- Network standard
- Gigabit Ethernet
- LAN (Mbps)
- 10/100/1000
- Quantity of ports
- 1
- Connection ports
- 1x RJ-45 F, 1x USB 3.0 / 3.2 Gen 1 Type C M
- Side 1 Connector Type
- USB Type C (USB-C)
- Side 1 Connector Gender
- Male
- Side 2 Connector Type
- RJ-45
- Side 2 Connector Gender
- Female
- Full duplex
- yes
- Network topology
- Ethernet
- Operating System
- Windows 11/10/8/7/XP and Mac OS 10.2 and above
- Technical particularity
- LED for Link and Gigabit Mode
- Dimensions (HxWxD)
- 15 x 25 x 80 mm
- Power supply
- Power supply via USB
- Height
- 15 mm
- Width
- 25 mm
- Depth
- 80 mm
- Weight
- 26 g
- Height of packaging (single piece)
- 10 mm
- Width of packaging (single piece)
- 60 mm
- Depth of packaging (single piece)
- 150 mm
- Package weight (single piece)
- 0.035 kg
