Description

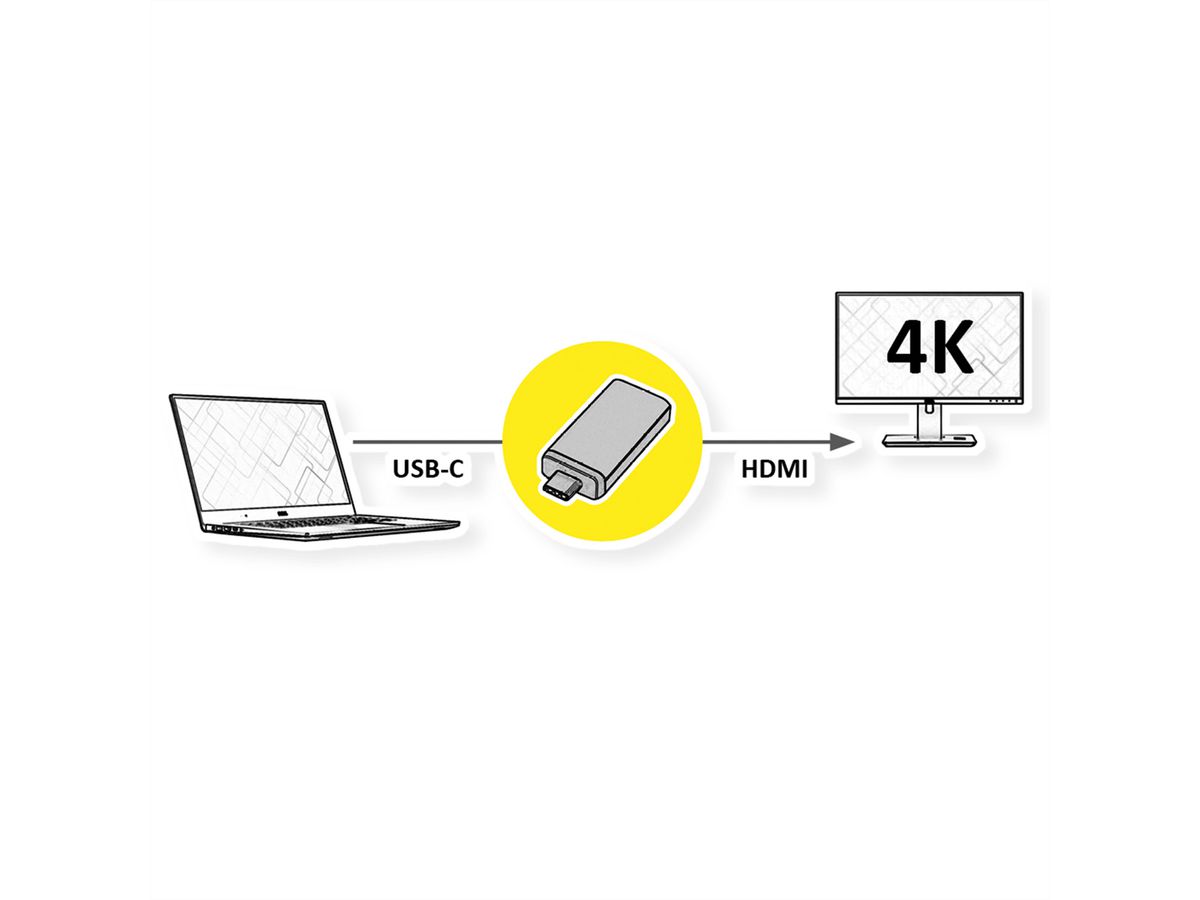

Connect your MacBook, Ultrabook, Notebook/Laptop or PC with USB Type C connector to any monitor or projector/beamer with HDMI Port connector.

• USB 3.1 / USB 3.2 Gen 2 Type C to HDMI adapter for Macbook, Ultrabook, Notebook/Laptop or PC
• Connect your device with USB Type C port to any HDMI enabled display or projector
• This adapter allows you to mirror or extend the display of your device to any HDMI enabled TV or display
• No power adapter required
• Connectors: HDMI Port Female and USB Type C Male
• Maximum resolution: 3840 x 2160 @60Hz

Remark: Support of "Alternate Mode (DP Alt Mode)" required

Note: According to the current specifications of USB.org we have adapted the technical data of our USB 3 products. The new designation for the already known USB specifications has been changed to USB 3.2 Gen 1 (formerly USB 3.0 / USB 3.1 Gen 1) and USB 3.2 Gen 2 (formerly USB 3.1 / USB 3.1 Gen 2).

Specifications

Manufacturer	SECOMP
Product group	Adapters, Terminators, Converters
Product type	USB-HDMI Adapter
Colour	black
Max. resolution	3840 x 2160 @60Hz (4K, UHD-1)
Side 1 connection (PC)	Typ C Male
Side 2 connection (Peripherals)	HDMI Female
Side 1 Connector Type	USB Type C (USB-C)
Side 1 Connector Gender	Male
Side 2 Connector Type	HDMI Type A
Side 2 Connector Gender	Female
Area of application	External
Height	9 mm
Width	19 mm
Depth	45 mm
Weight	12.3 g
Height of packaging (single piece)	10 mm
Width of packaging (single piece)	20 mm
Depth of packaging (single piece)	50 mm
Package weight (single piece)	0.02 kg

Downloads

Manufacturer data sheet (172.3 KB)

Download

Product security

Information in accordance with the EU Product Safety Regulation, (GPSR):

SECOMP Electronic Components GmbH
Einsteinstrasse 17-23, 76275 Ettlingen, Germany
