Description

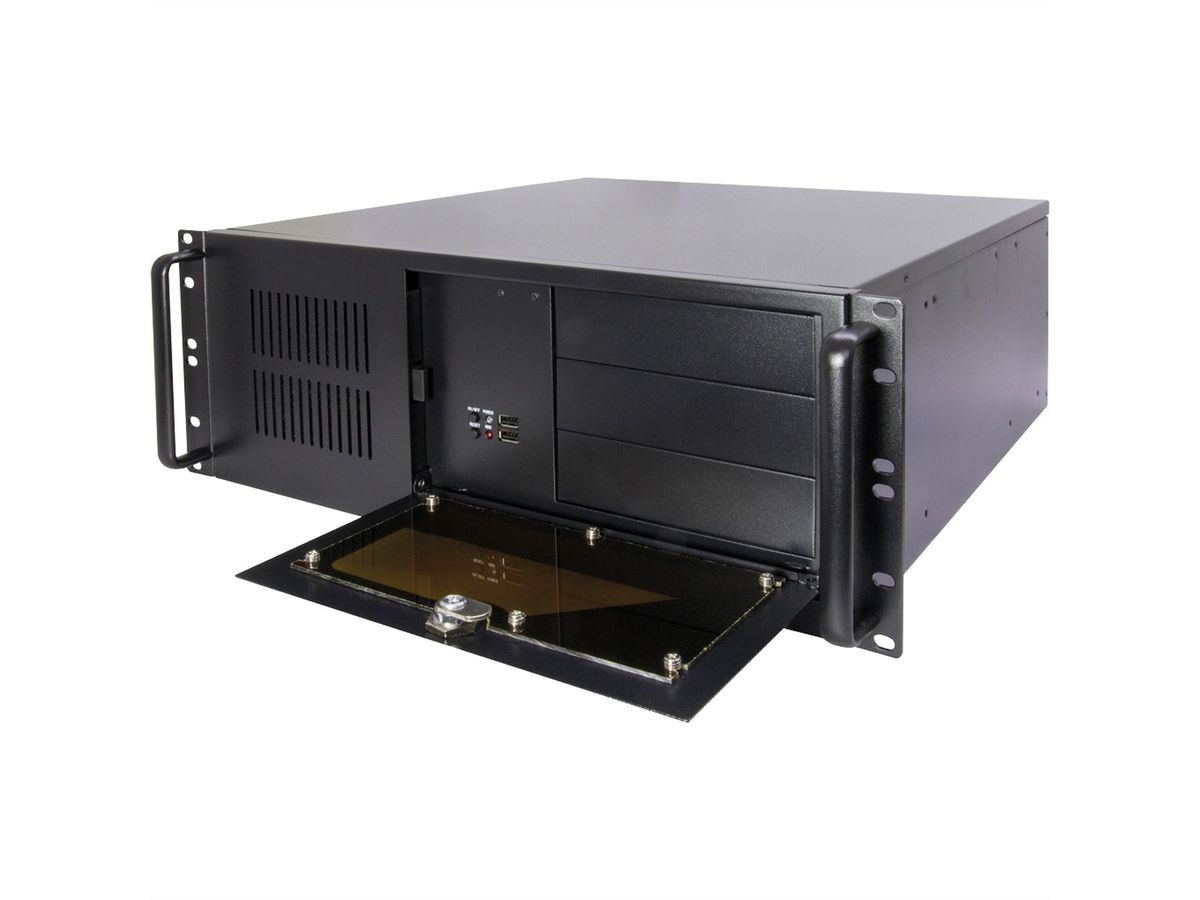

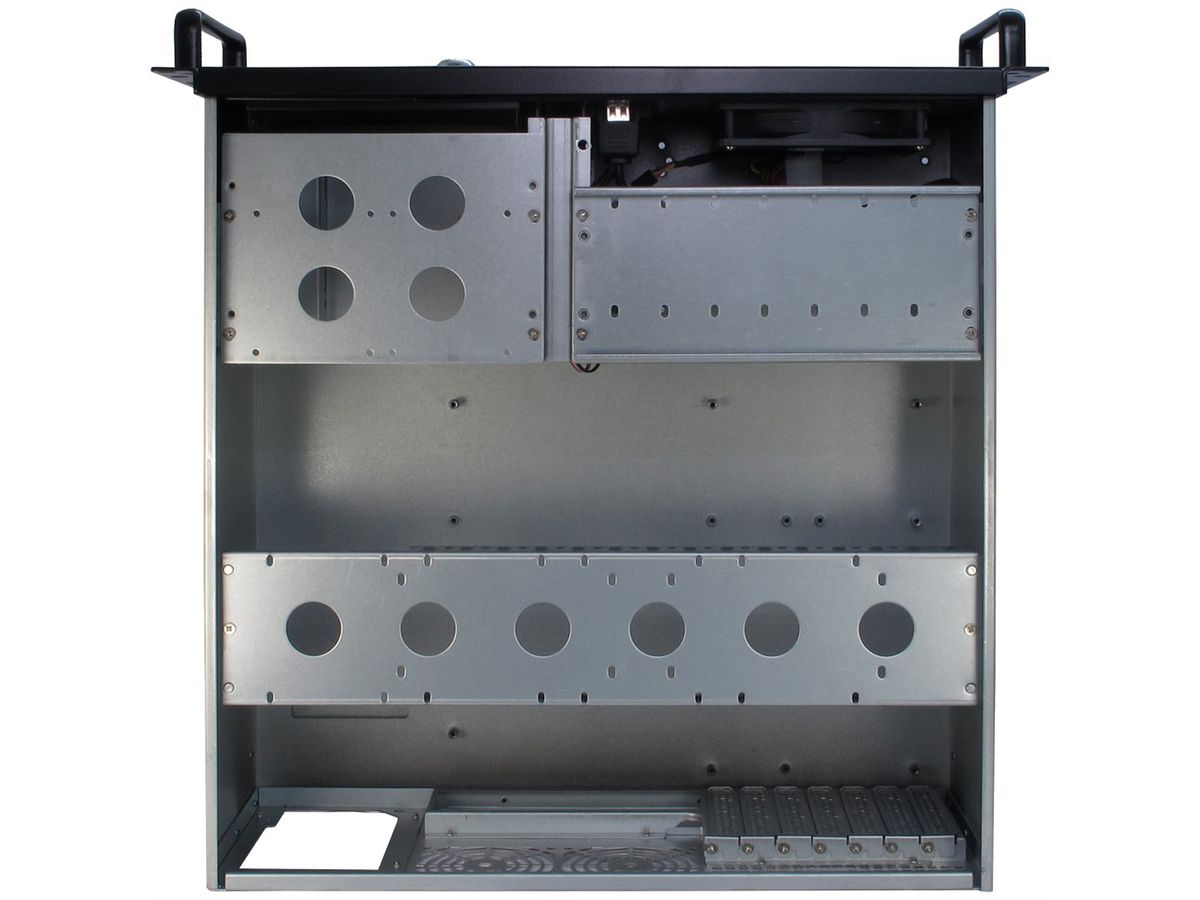

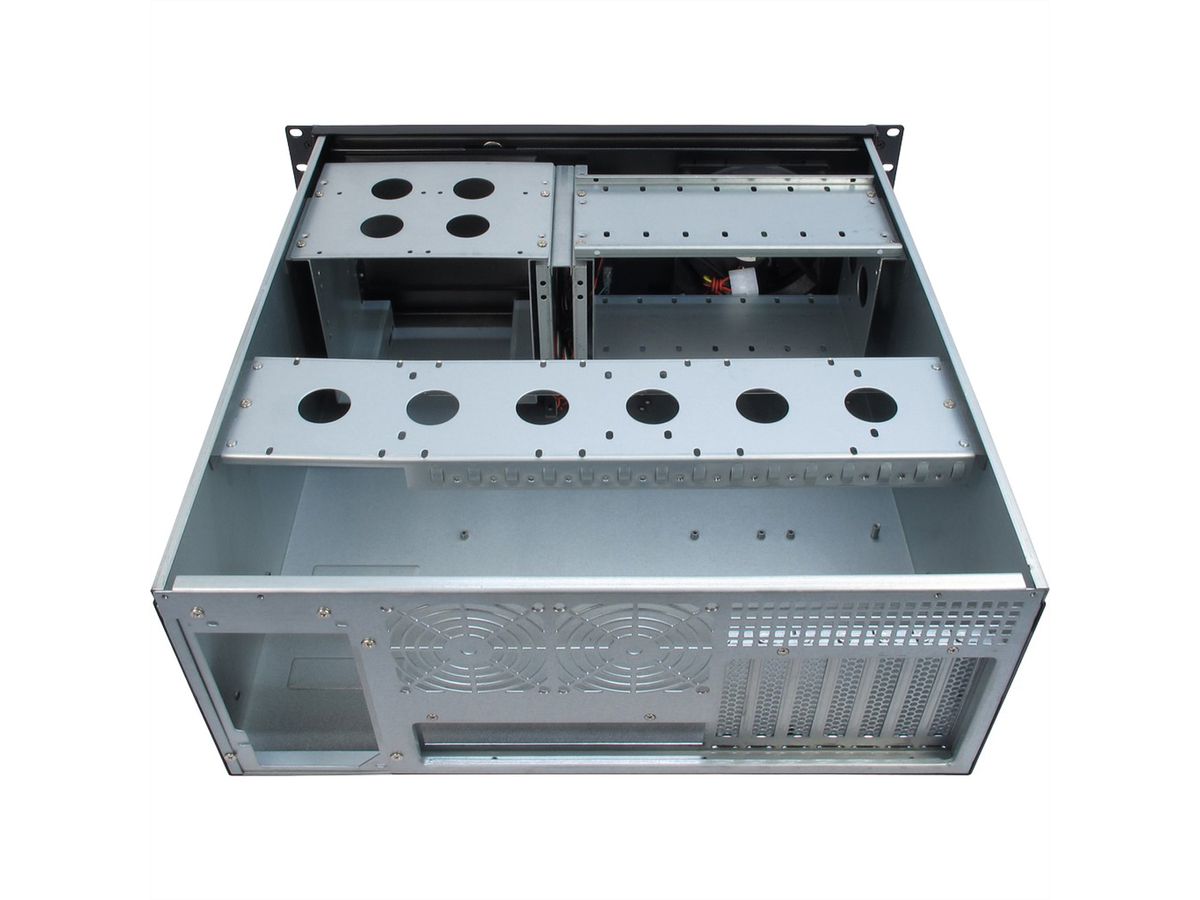

The 4U 4088-S - Classic 19" Rack with a lot of space for different drives. You can remove the HDD cages with a few steps for easy mounting of internal devices. You can mount 4x 2.5" Hard drives on a crossbeam inside the case. The crossbeam is also equipped with a slot card holder to ensure a safe usage. The lockable doors in front of the slots prevent, unauthorized access.

• Versatile 4U 19" industrial PC housing
• Rugged construction and design for harsh industrial environment
• Supports ATX/Baby AT motherboard
• Hold-Down clamp design to protect plug-in cards from vibration
• Shock resistant drive bracket exposed

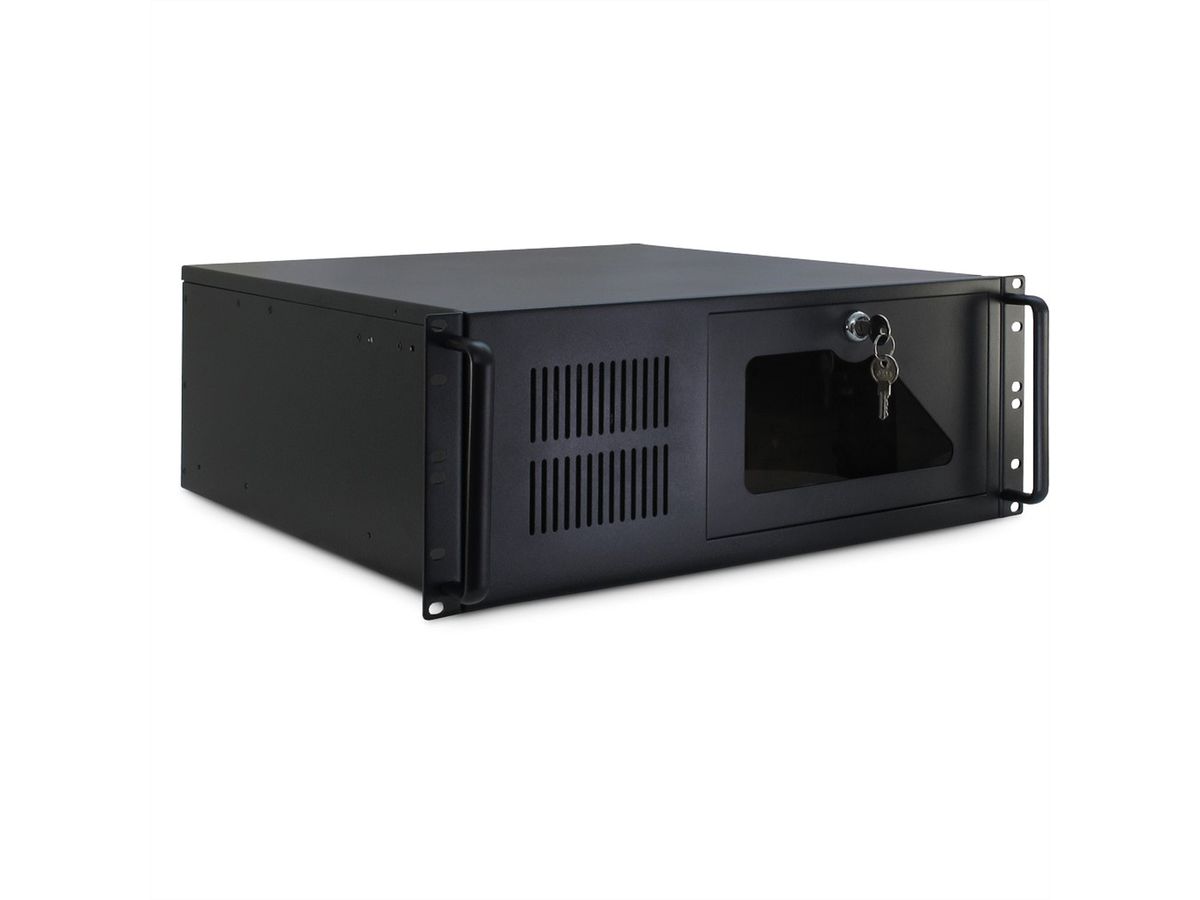

• A lockable front door for dust-proof integrity and running security

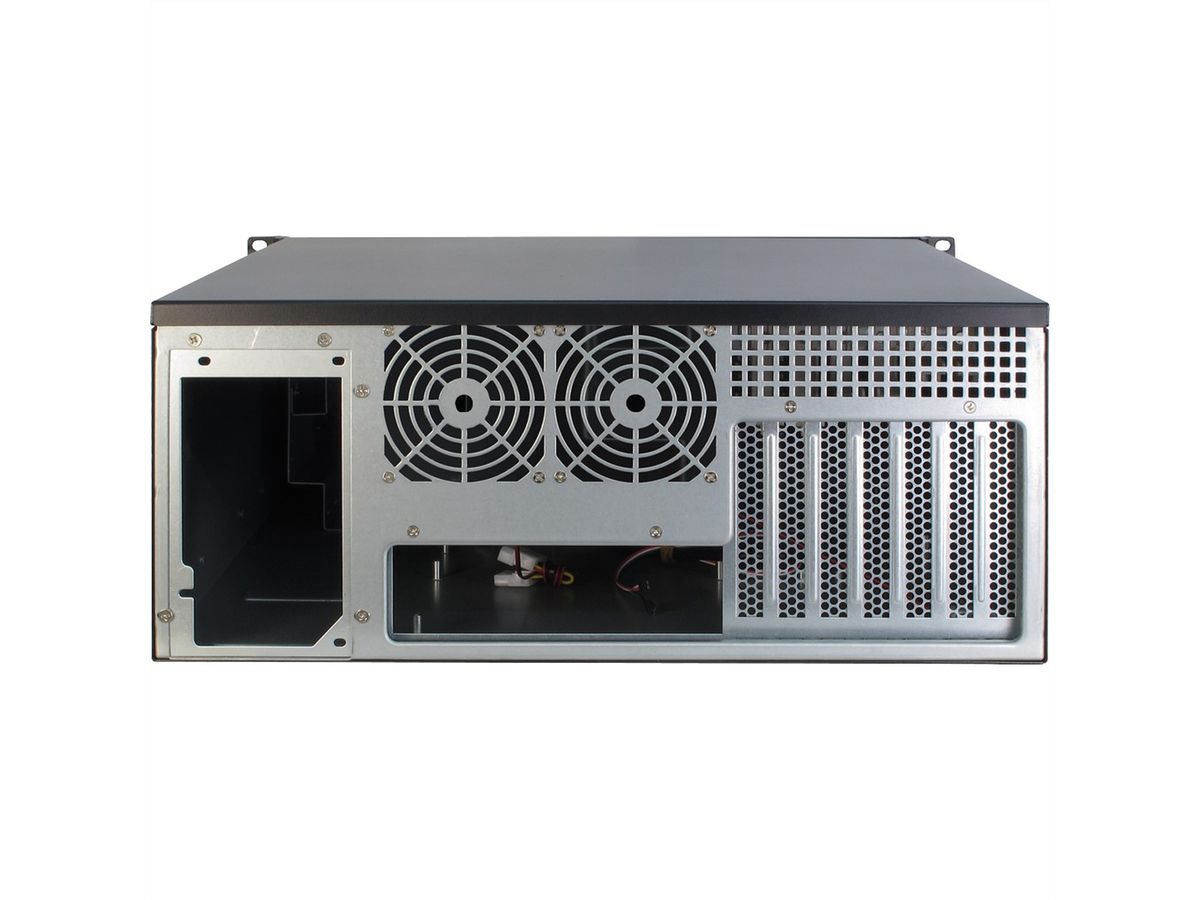

• 12x12 cm ball bearing fan with replaceable air filter on the front for a better ventilation, rear space for the installation of two fans à 80x80 mm
• Space for installation of an ATX power supply (not included in delivery)
• Max Mainboard Size:. 305x270 mm (12" x 10,6")
• Color: Black
• Optional accessories: Telescope rail 19.99.0114

Specifications

Manufacturer	Inter-Tech
Product group	PC casing
Product type	Industrial PC casing
Colour	black
Scope of delivery	Casing, screws
5.25 slots	3x extern
3.5 slots	8x intern (HDD)
Dimensions (HxWxD)	178 x 485 x 483 mm
Front connectors	2x USB 2.0
Power supply unit	without PSU (ATX standard)
Fan front	120 mm, built-in
Fan back side	2x 80mm
Height	178 mm
Width	485 mm
Depth	483 mm
Weight	10 kg
Height of packaging (single piece)	220 mm
Width of packaging (single piece)	550 mm
Depth of packaging (single piece)	610 mm
Package weight (single piece)	11.694 kg
