The own brand VALUE stands for attractive prices and tested quality.
With the VALUE products you get the best possible price in terms of quality and product features.

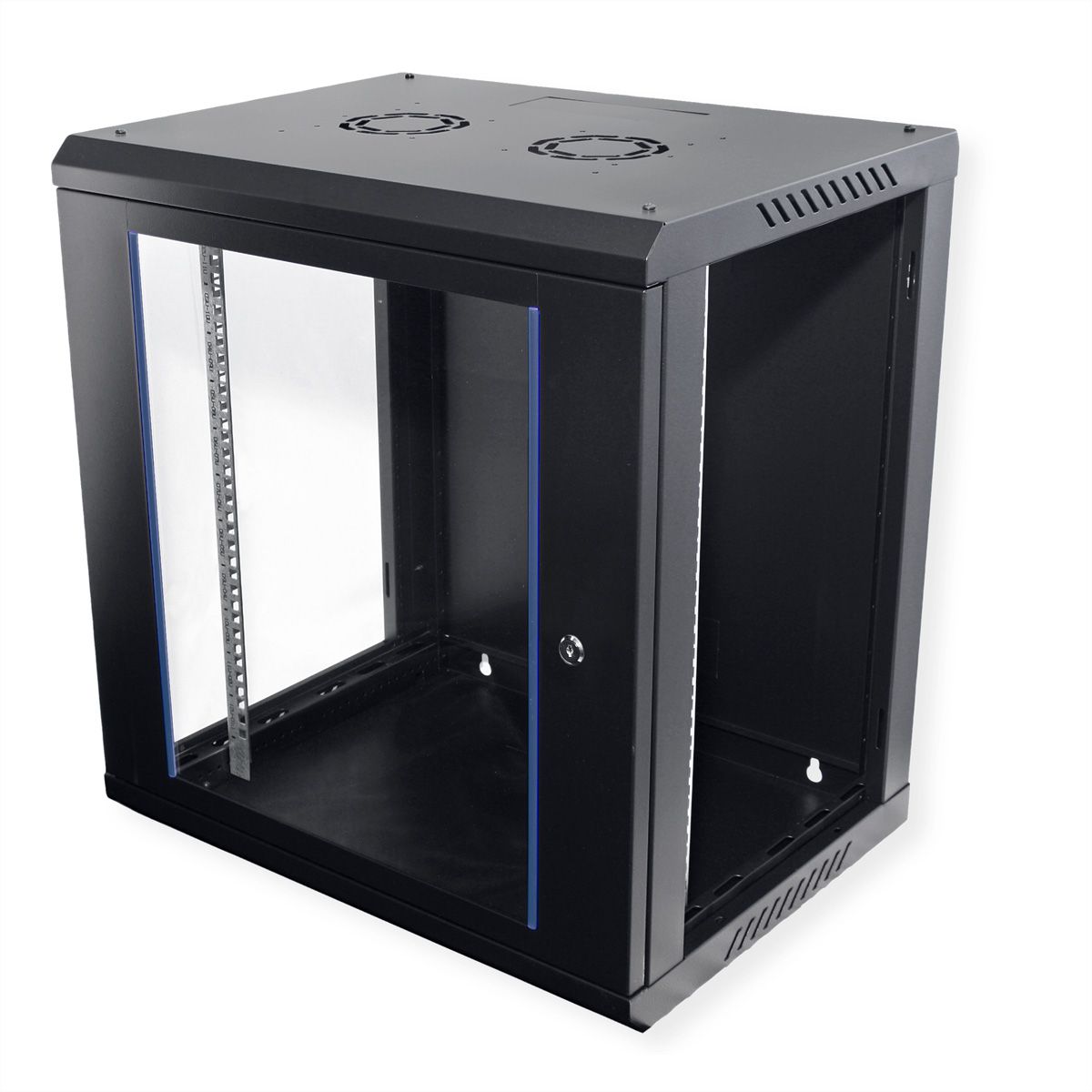

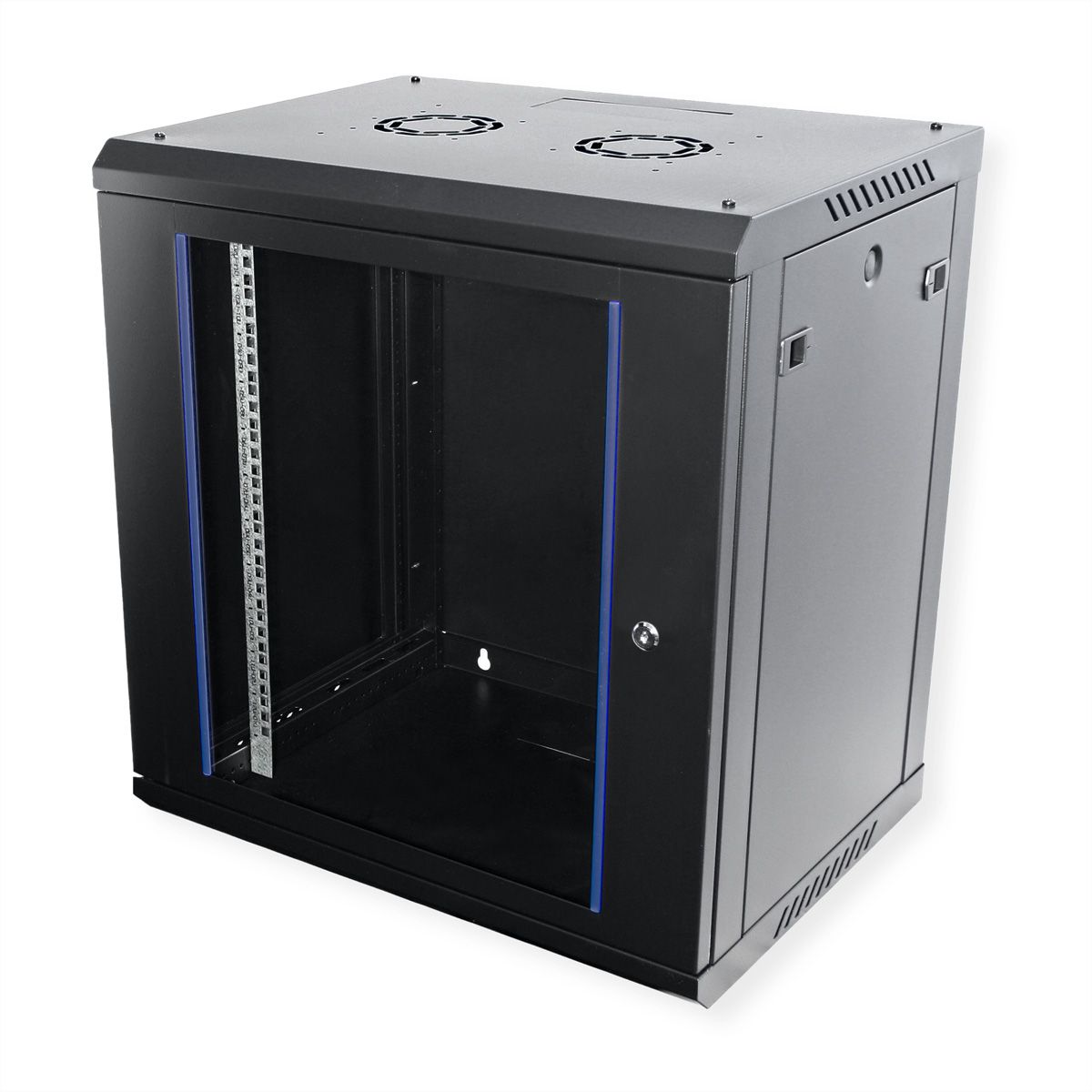

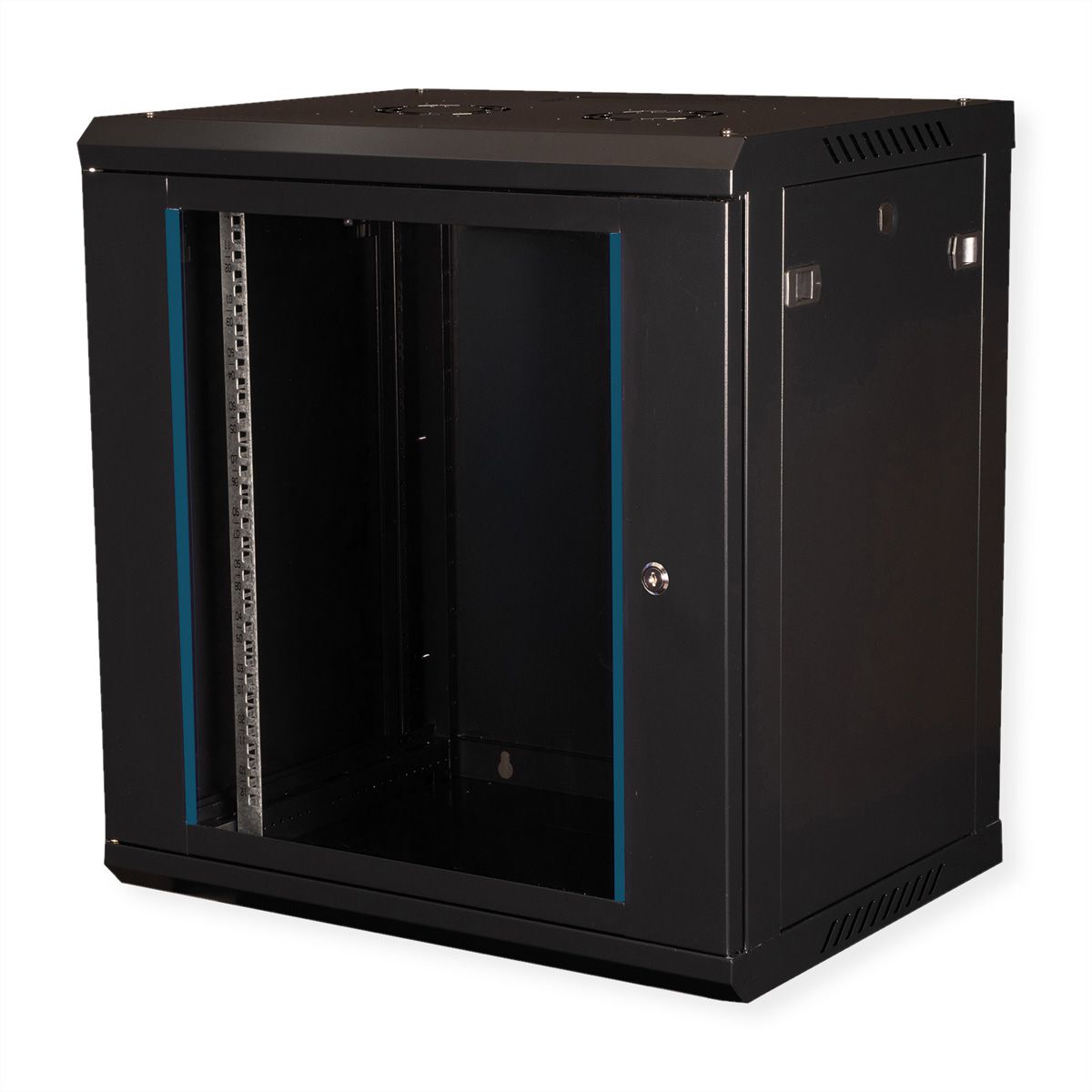

VALUE 19" Wall Cabinet 12U , 600x450mm, black
Item no.
26.99.0825
Brand / Manufacturer
VALUE
Manuf. no.
26.99.0825
EAN
7630049603288
Package weight
19 kg
:strip_icc():strip_exif()/logos/value.png "VALUE")
Please log in to be able to use the shopping cart and then complete orders.
Log in
Available
Ordered until 3 pm - usually dispatched on the same day
Description
VALUE wall-mounted enclosures are designed for flexible network cabling and feature punched cable inlets in the bottom and top as well as fan preparation. The robust steel construction is powder-coated and equipped with removable side panels with quick-release fasteners. Optional locks can be integrated for added security. The cabinet is delivered as a kit and can be assembled quickly and easily.

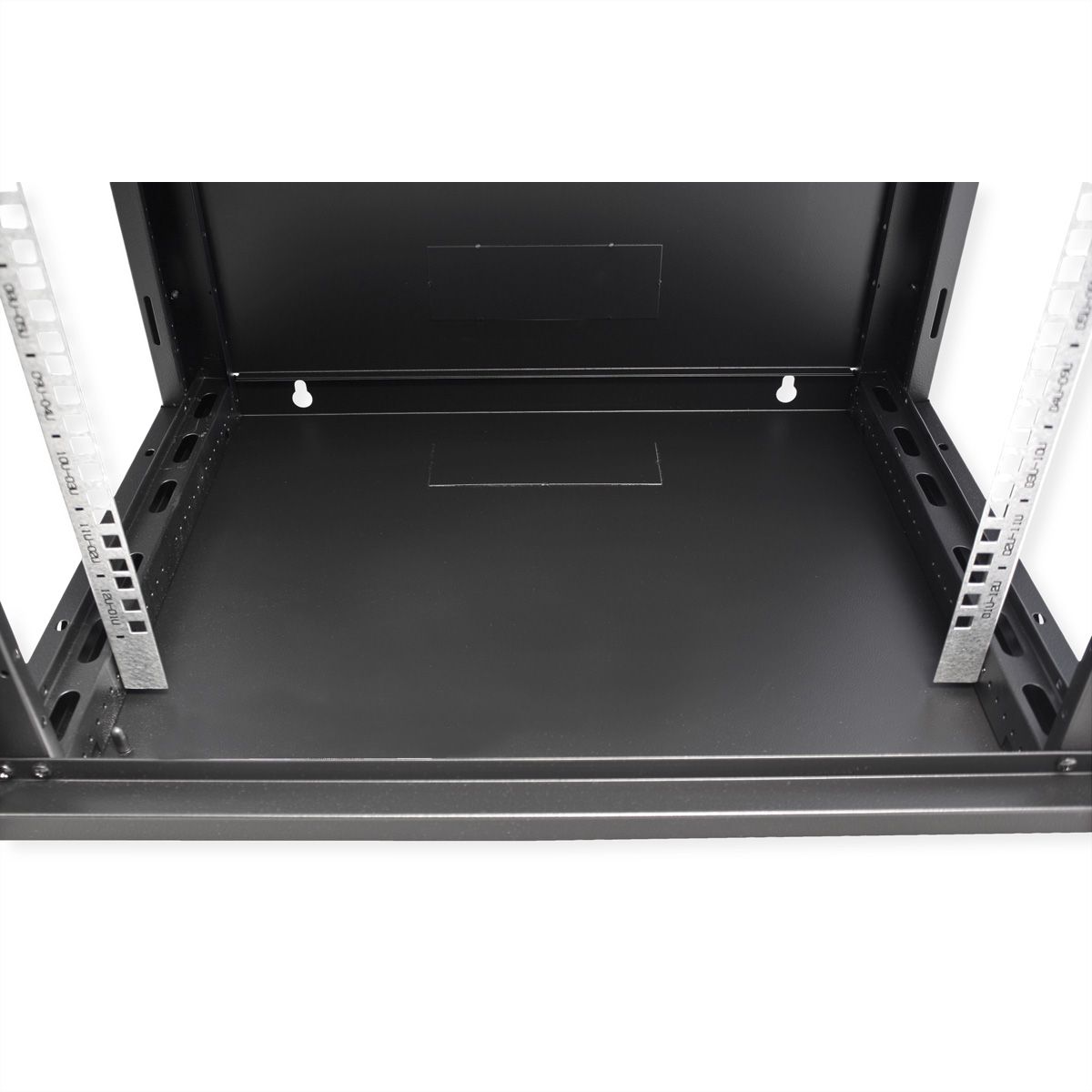

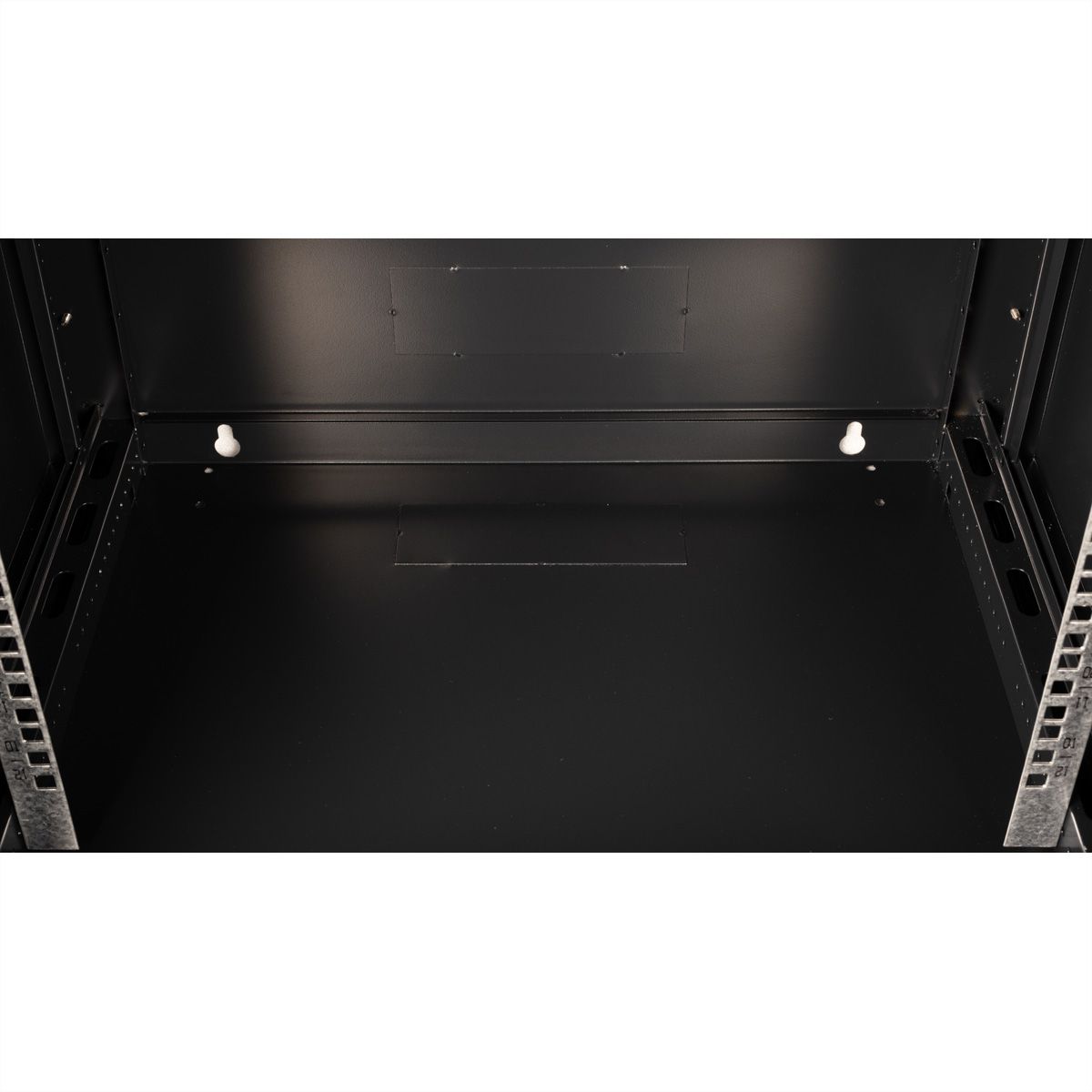

The VALUE wall-mounted enclosures have been specially developed for flexible network cabling. Both the base plate and the roof are equipped with punched cable inlets. In addition, there is a punched area in the roof to accommodate a fan module.
Inside, there is a pair of galvanized profile rails with 483 mm (19") height units, which are also adjustable in depth. An additional pair of profile rails can be retrofitted. The robust steel construction is made of high-quality sheet steel and is available in black (RAL 9005) powder coating.

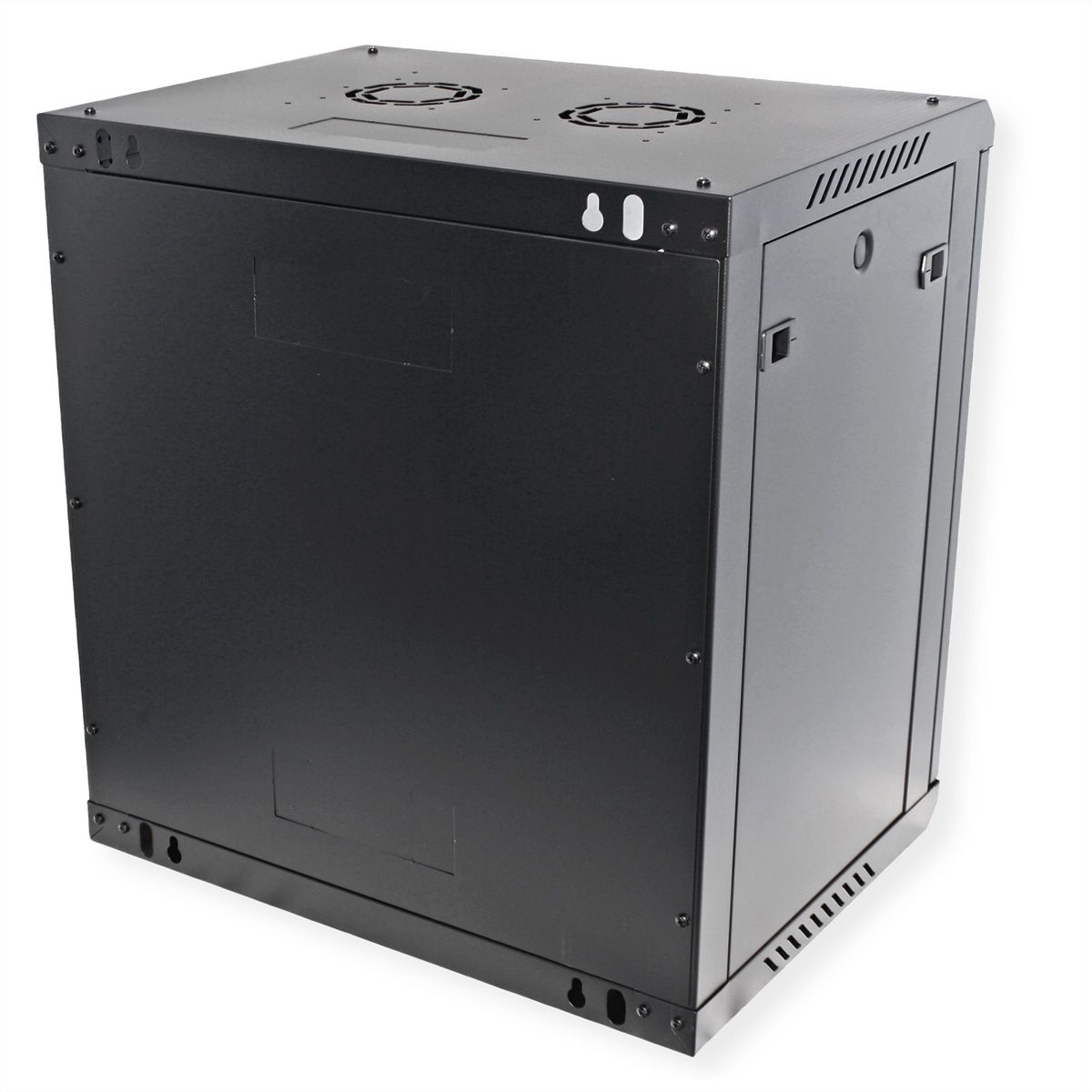

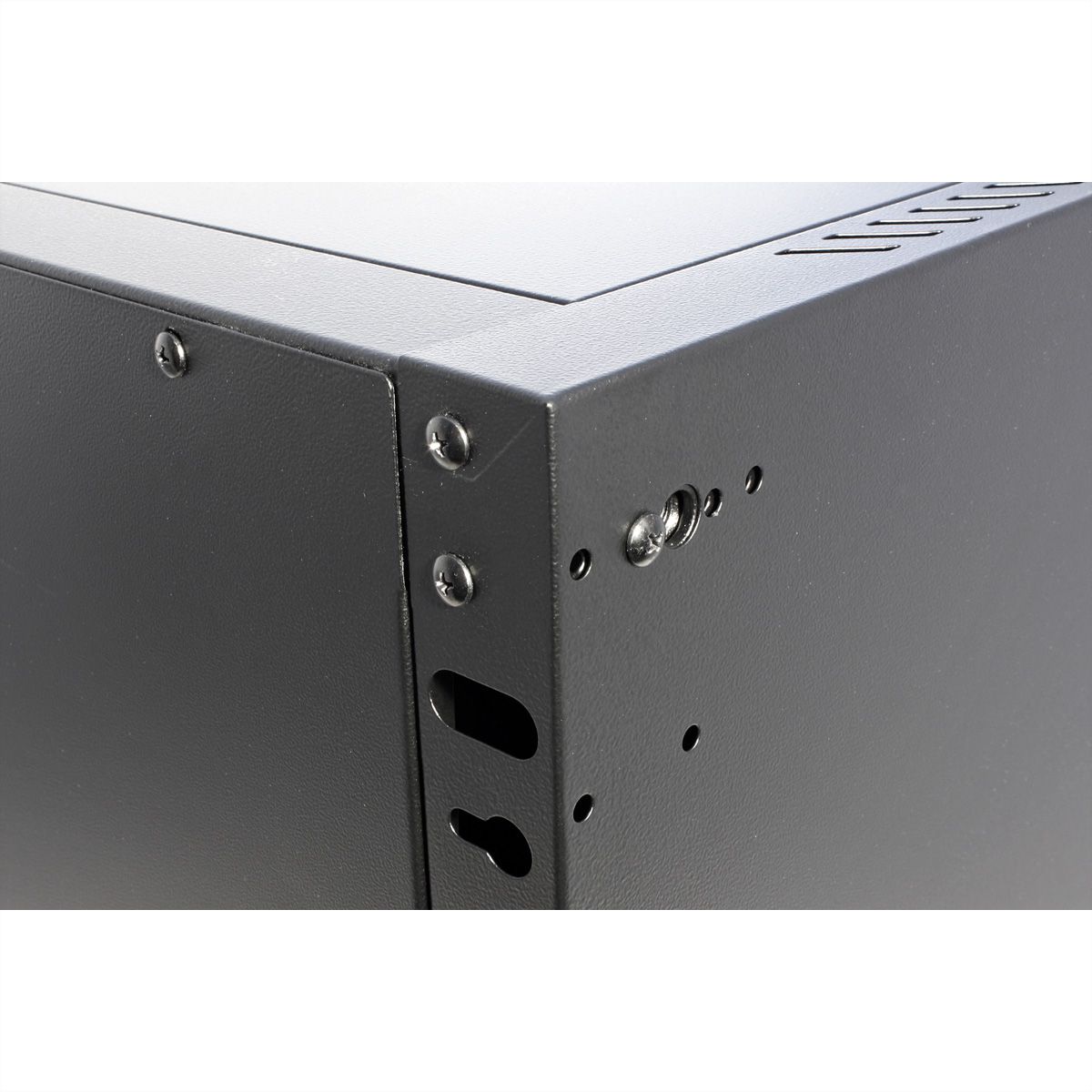

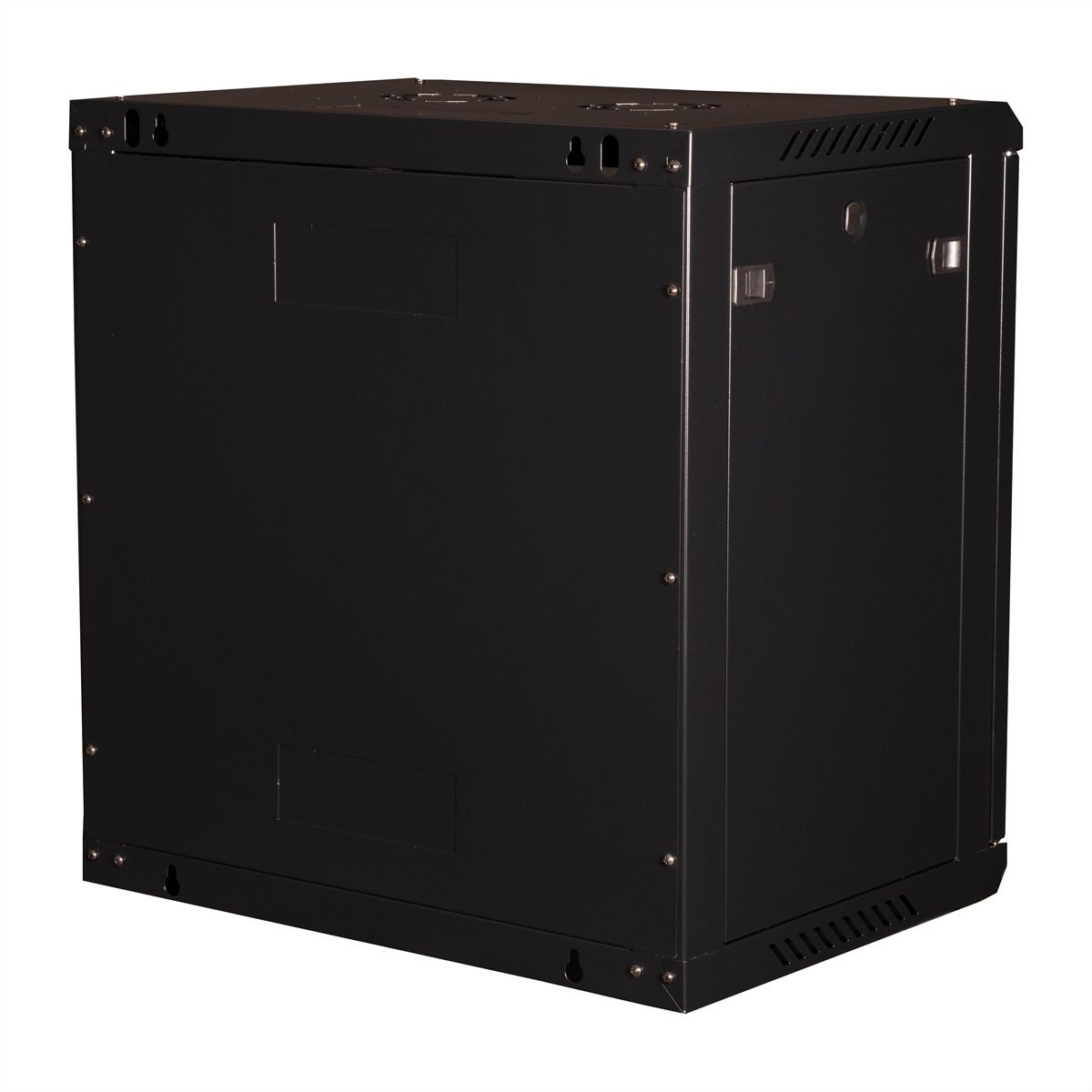

The side panels are equipped with a quick-release fastener and are removable, which significantly facilitates accessibility during operation. Locks can be integrated into the side panels as an option. Wall mounting is carried out in two simple steps: first, the rear panel is attached to the wall, then the enclosure is mounted. Leveling feet or casters can be attached as an option to allow the enclosure to be used as a free-standing unit.
- Load capacity: 80 kg

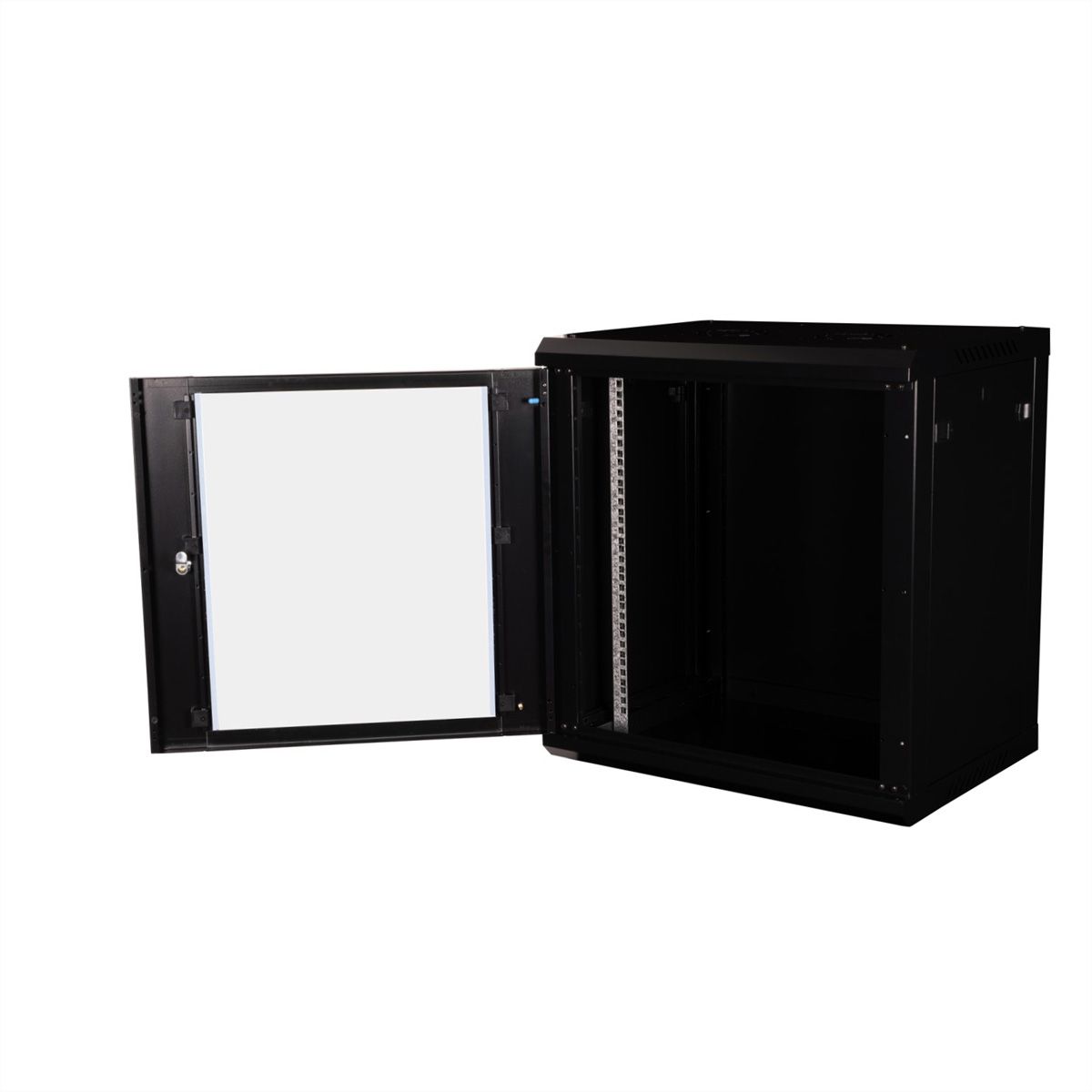

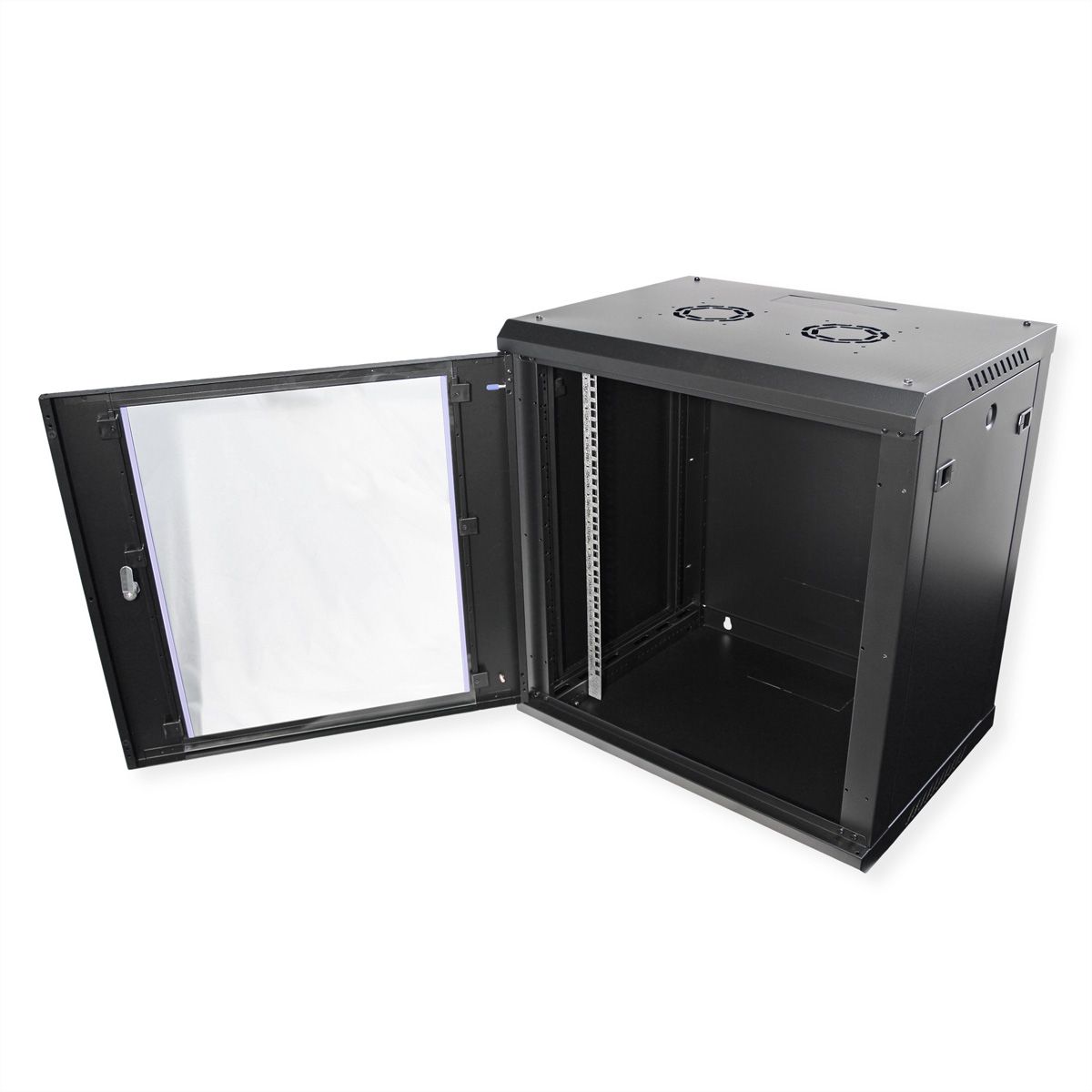

- Front door made of tempered glass, lockable
- Side panels are equipped with quick-release fasteners and are removable

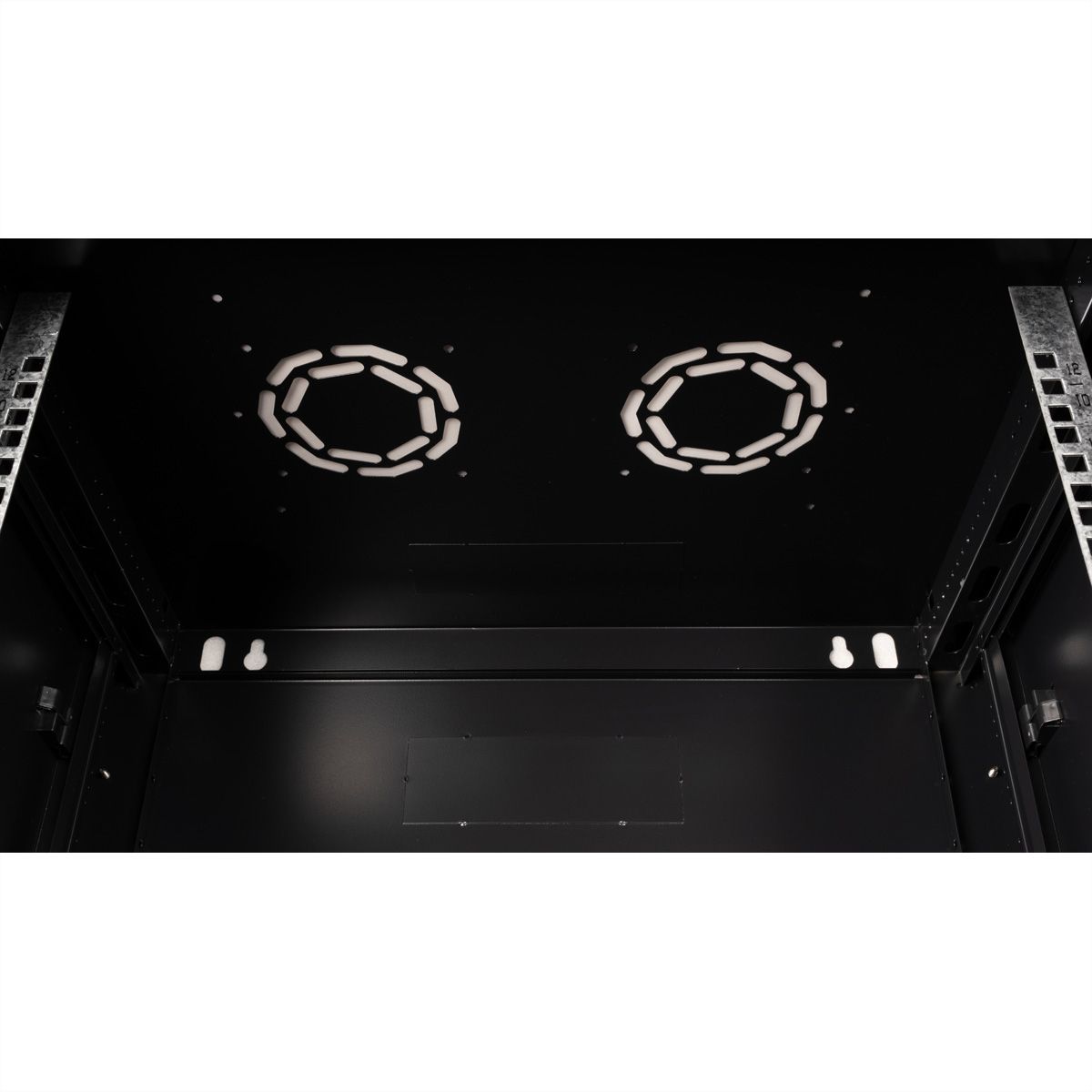

- Roof with cut-out for fan modules
- Cable entry possible at roof and floor
- Ventilation slots for passive ventilation
- Includes mounting hardware
- Protection class: IP20
- Delivery: flatpack
Specifications
- Manufacturer
- VALUE
- Product group
- 19"-/10"-Cabinet
- Product type
- 19"-wall housing
- Colour
- black
- Scope of delivery
- VALUE wall housing (flatpack), grounding cable set, 2x keys, installation instructions
- Type of profile rail
- L-shaped
- Modular spacing
- 482.6 mm (19 inch)
- Height units
- 12 U
- Minimum rack depth supported
- 305 mm
- Maximum rack depth supported
- 350 mm
- Delivery condition
- Flatpack, disassembled
- Demountable
- yes
- Material group
- Steel
- Material front door
- Glass
- Wall mountable
- yes
- Adjustable feets
- no
- Maximum weight capacity
- 80 kg
- Protection class (IP Code)
- IP20
- Number of doors
- 1
- With front door
- yes
- With backside door
- no
- With glazed door
- yes
- Front
- Glass door
- Rack rails
- yes
- 19" level
- Ahead
- Side panels included
- yes
- Removeable side panels
- yes
- Removable front door
- yes
- Removable back door
- no
- Ventilation
- Passive
- Fan ready
- yes
- RAL colour
- RAL 9005 Jet black
- Height
- 645 mm
- Width
- 600 mm
- Depth
- 450 mm
- Weight
- 15.6 kg
- Height of packaging (single piece)
- 660 mm
- Width of packaging (single piece)
- 600 mm
- Depth of packaging (single piece)
- 240 mm
- Package weight (single piece)
- 19 kg
