VALUE Adapter, DP M - DVI F

VALUE Adapter, DP M - DVI F

Please log in to be able to use the shopping cart and then complete orders.

Log in
Available
Ordered until 3 pm - usually dispatched on the same day
Item no. 12.99.3157-10
Brand / Manufacturer VALUE
Manuf. no. 12.99.3157
EAN 7630049695498
Package weight 0.05 kg

Description

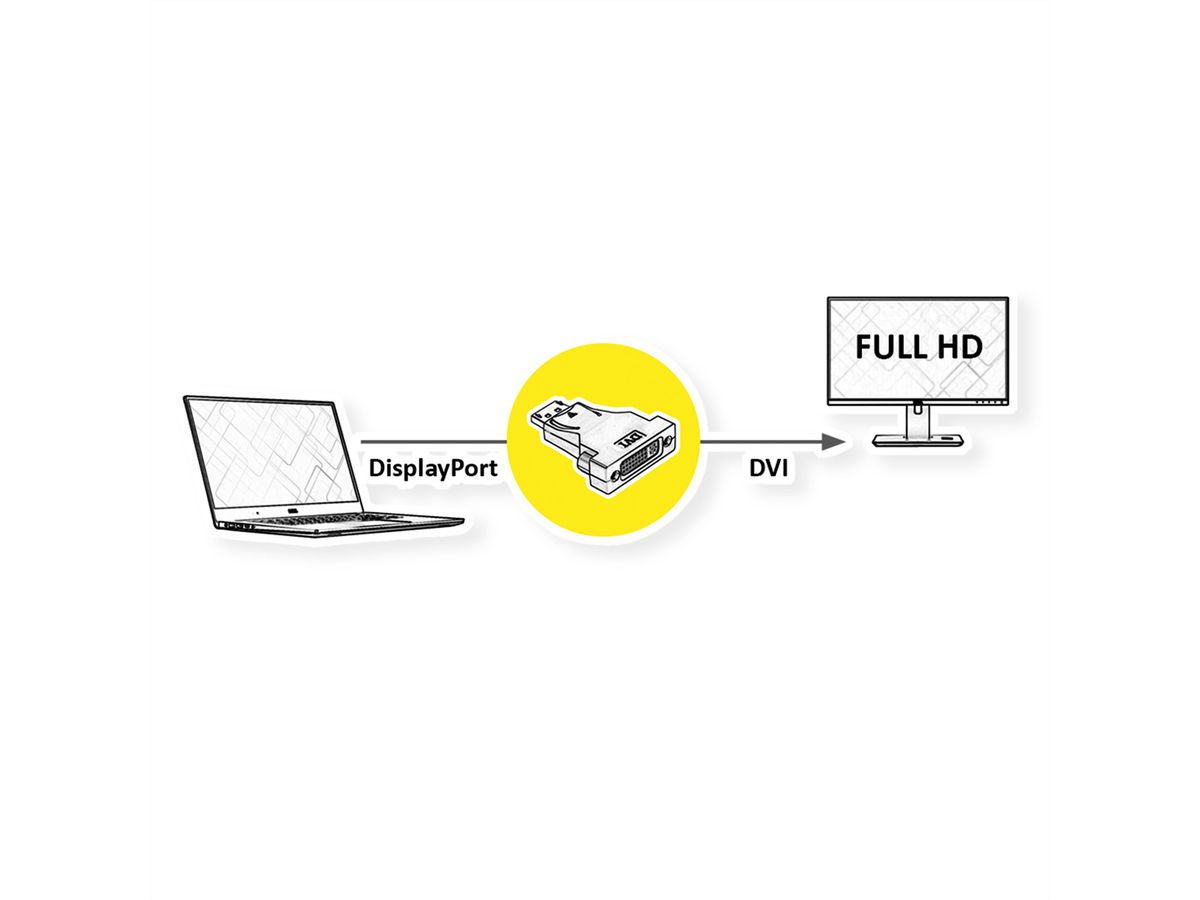

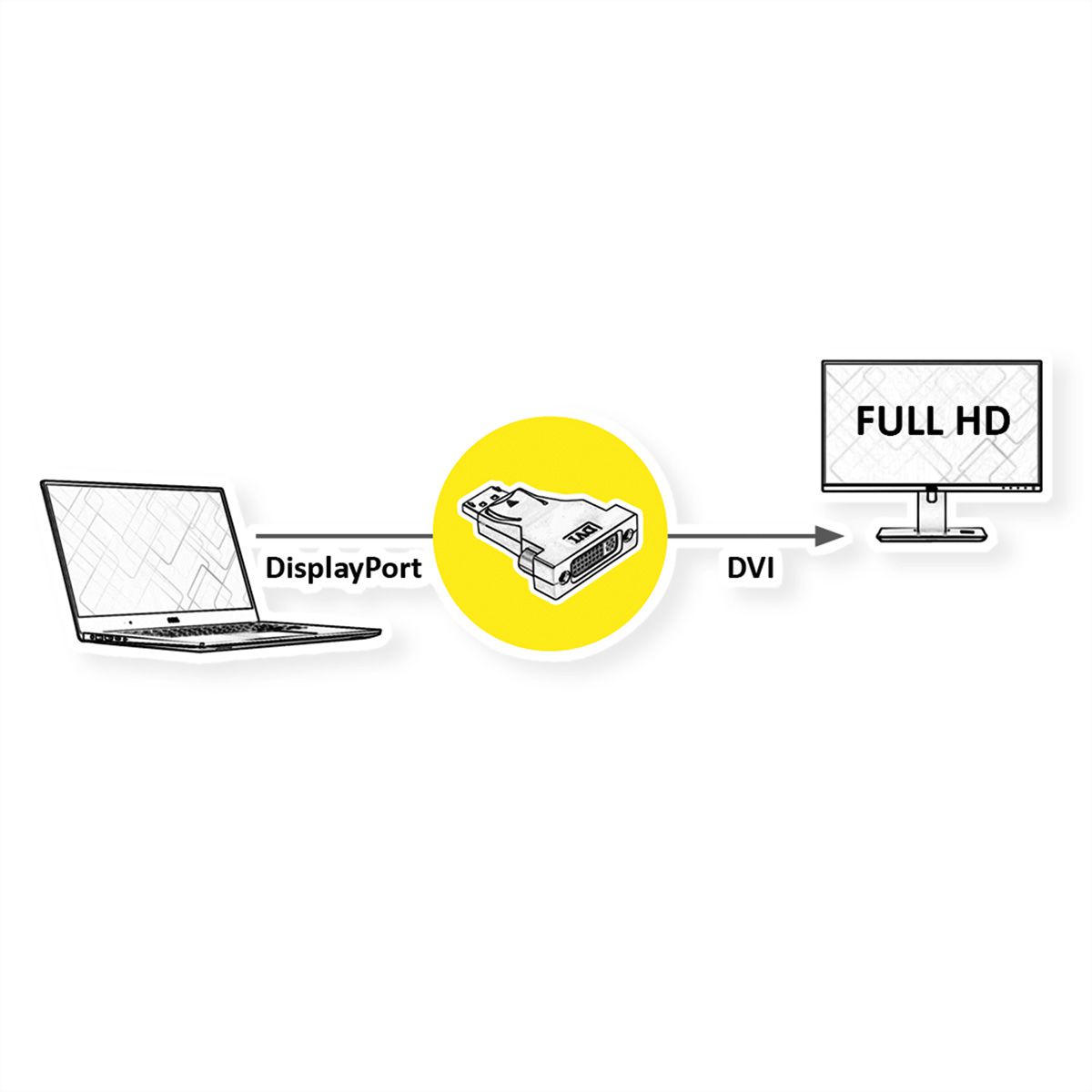

DisplayPort to DVI adapter for connecting a graphics card with DP to a monitor with DVI connection - with a resolution of up to 1920x1080 / 1920x1200 @60Hz!

  • If you want to connect a graphic card with DisplayPort Female to a monitor by using a DVI cable, you need this DisplayPort to DVI adapter
  • Connectors: DisplayPort Male, DVI Female
  • Max. resolution: 1920x1080 @60Hz

  • Remark: The DisplayPort-DVI adapter is only working in one direction: the DisplayPort plug has to be connected to the source device (e.g. graphic card)

Specifications

Manufacturer VALUE
Product group Adapters, Terminators, Converters
Product type DisplayPort-DVI Adapter
Colour black
Length 0.15 m
Scope of delivery 1x Adapter
Max. resolution 1920 x 1080 / 1920 x 1200 @60Hz (2K, Full HD)
Side 1 connection (PC) DisplayPort Stecker
Side 2 connection (Peripherals) DVI F
Side 1 Connector Type DisplayPort
Side 1 Connector Gender Male
Side 2 Connector Type DVI-D 24+1, Dual-Link
Side 2 Connector Gender Female
Active / Passive Passive
Area of application External
Dimensions (HxWxD) 14 x 44 x 44 mm
Height 14 mm
Width 44 mm
Depth 44 mm
Weight 19.7 g
Height of packaging (single piece) 20 mm
Width of packaging (single piece) 40 mm
Depth of packaging (single piece) 60 mm
Package weight (single piece) 0.05 kg

Downloads

Product data sheet - English (54.4 KB)

Download

Manufacturer data sheet - English (110.1 KB)

Download

The own brand VALUE stands for attractive prices and tested quality.

With the VALUE products you get the best possible price in terms of quality and product features.
