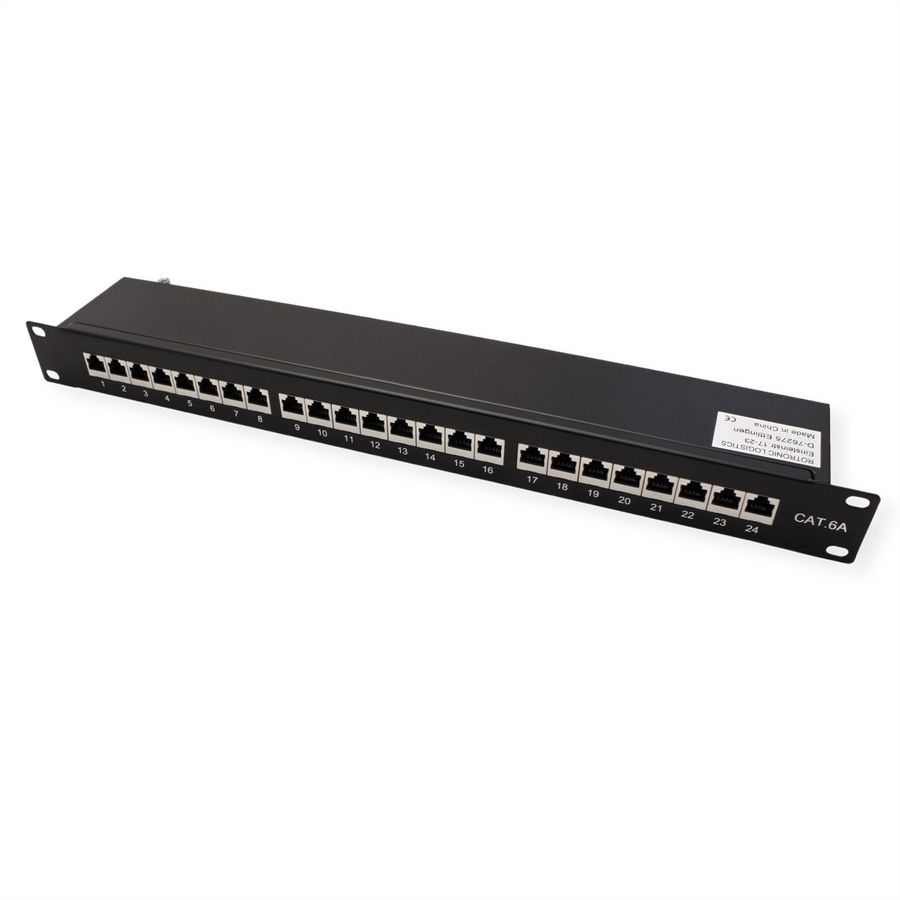

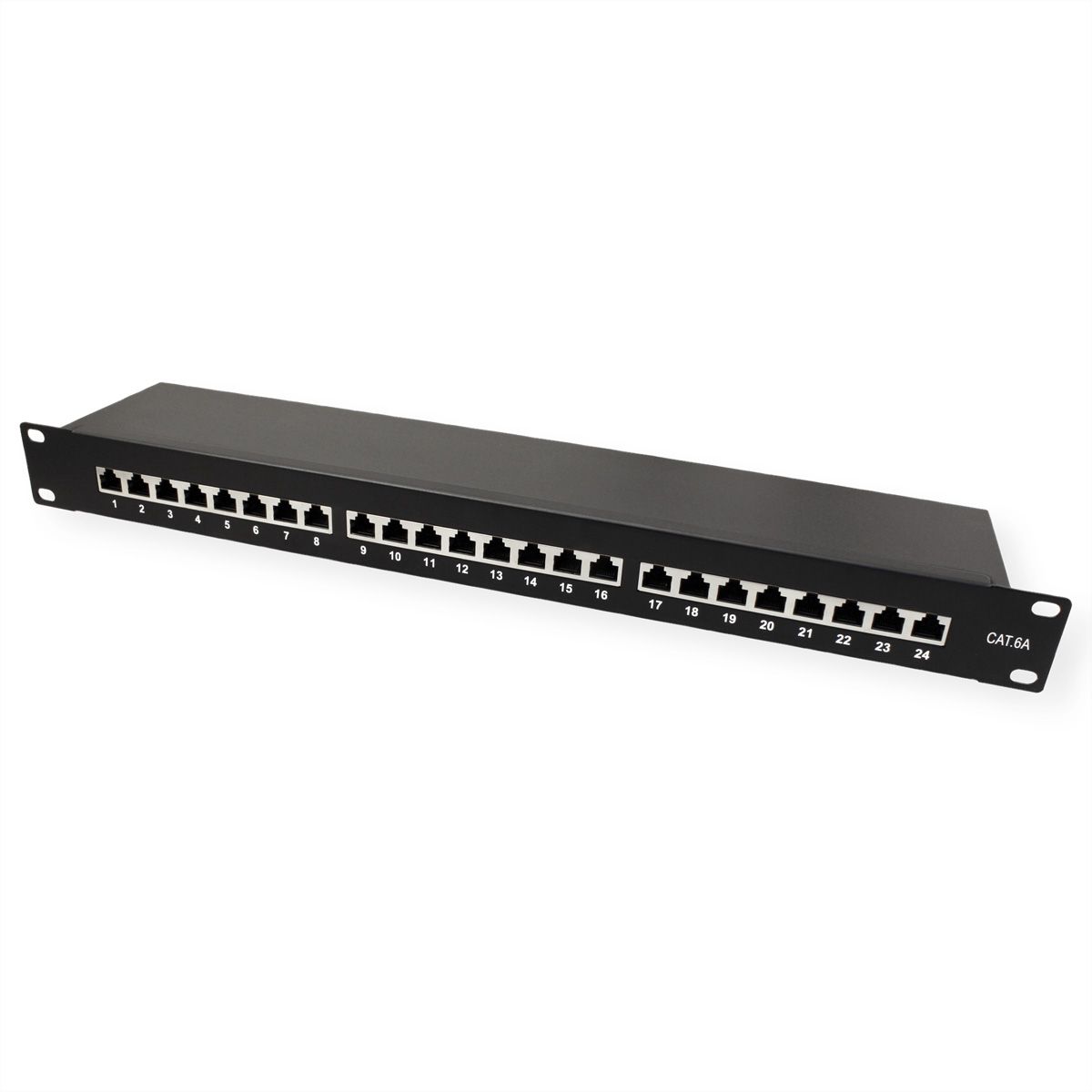

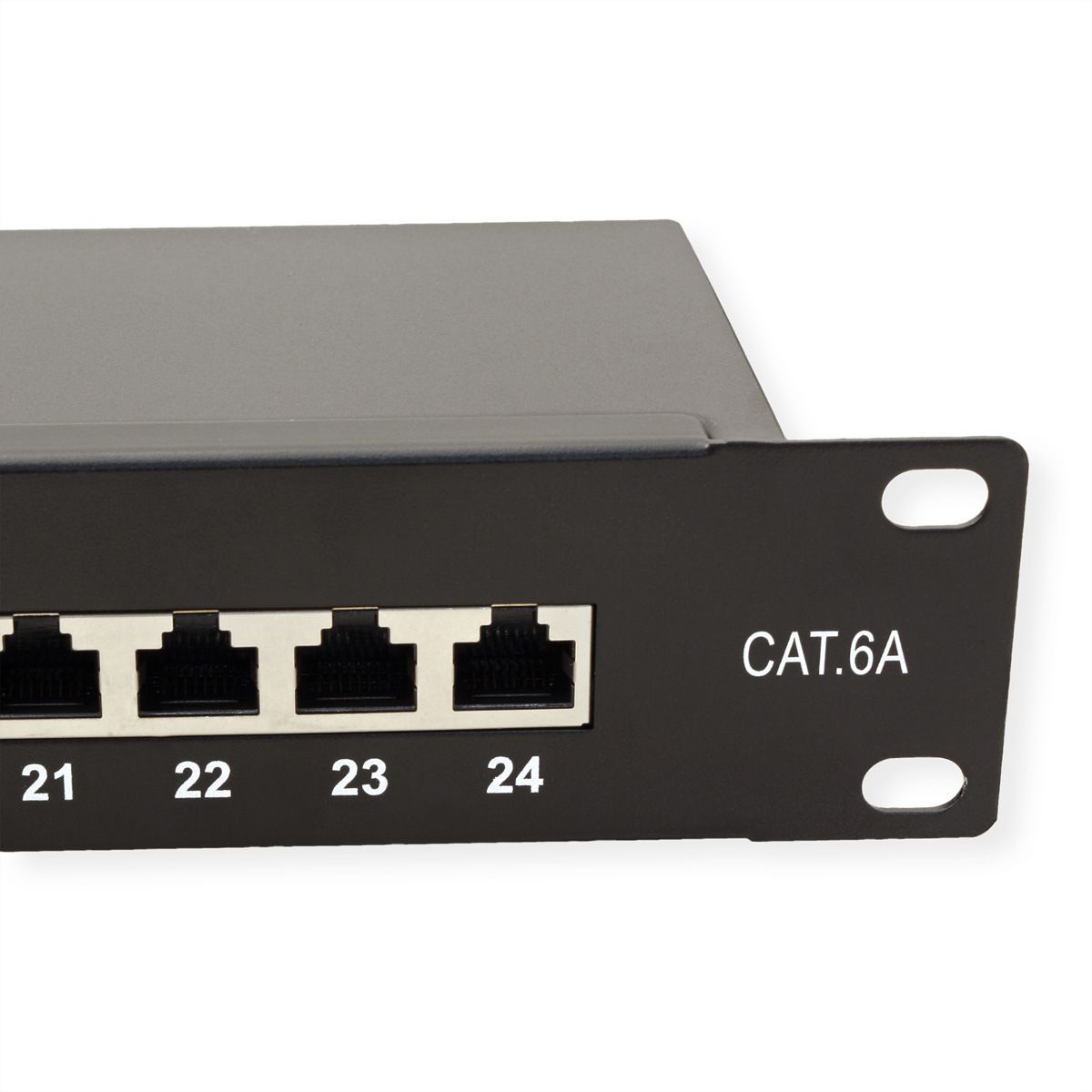

VALUE Cat.6A (Class EA) 19" Patch Panel, 24 Ports, shielded, black

Item no. 26.99.0364-5 Brand / Manufacturer VALUE Manuf. no. 26.99.0364 EAN 7630049688711 Package weight 1.7 kg

Please log in to be able to use the shopping cart and then complete orders.

Available

Ordered until 3 pm - usually dispatched on the same day

Description

This VALUE Cat. 6A 19" patch panel fulfisl the Cat. 6A/Class E permanent link standard and is ideal for use 10 Gigabit Ethernet networks
Sheet steel housing
Shielded

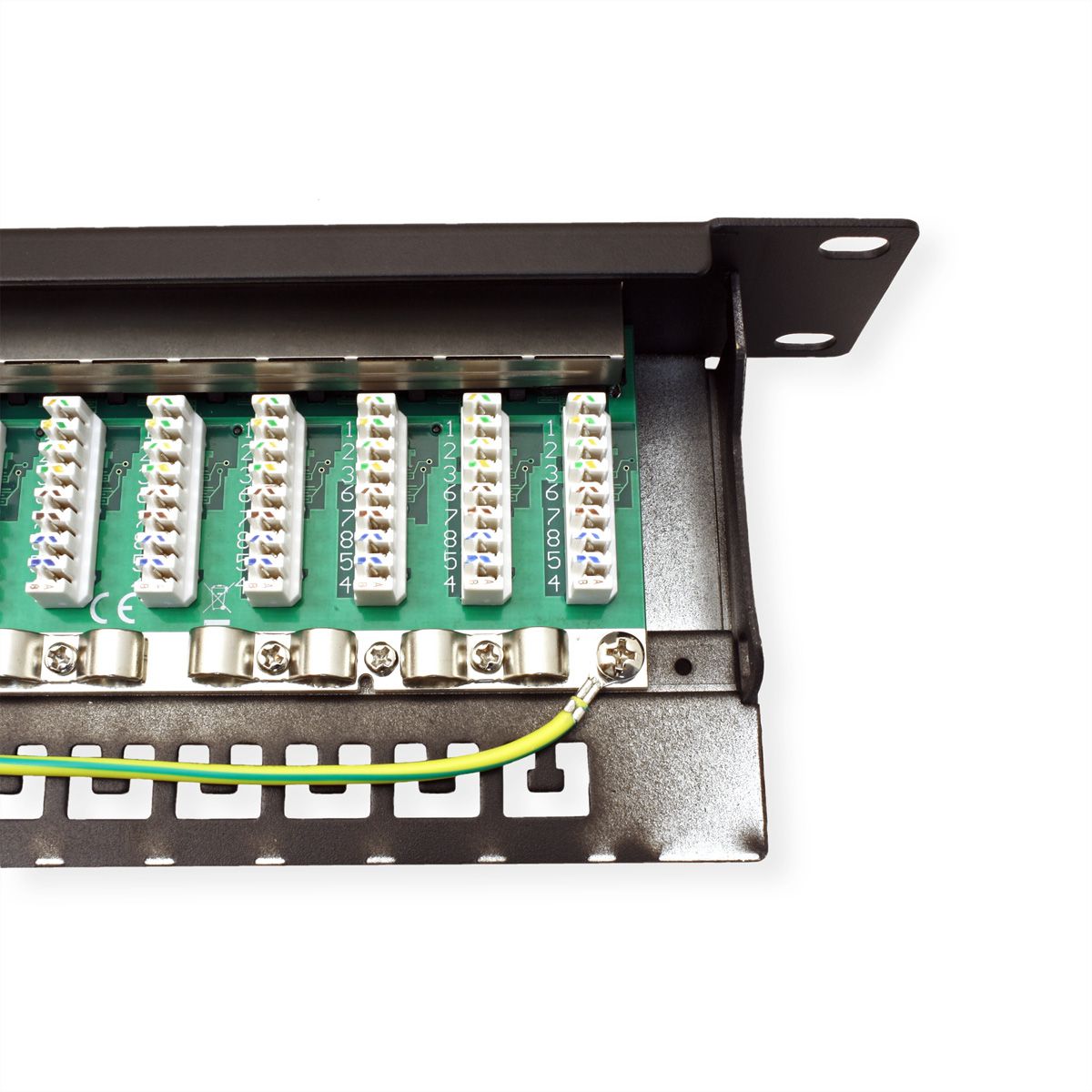

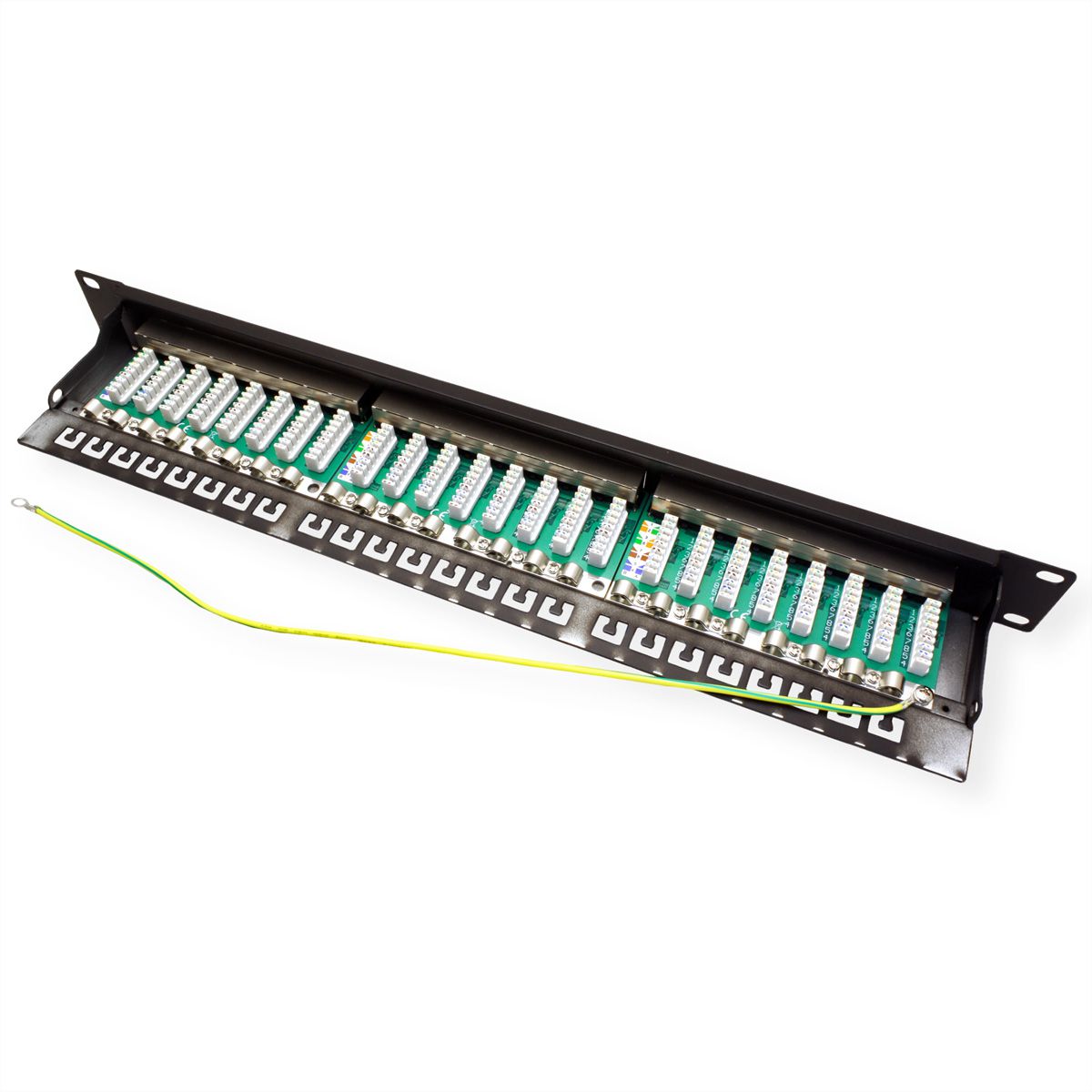

Cable assembly takes place using LSA plus piercing terminals with colour coding on the top in accordance with EIA/TIA 568A

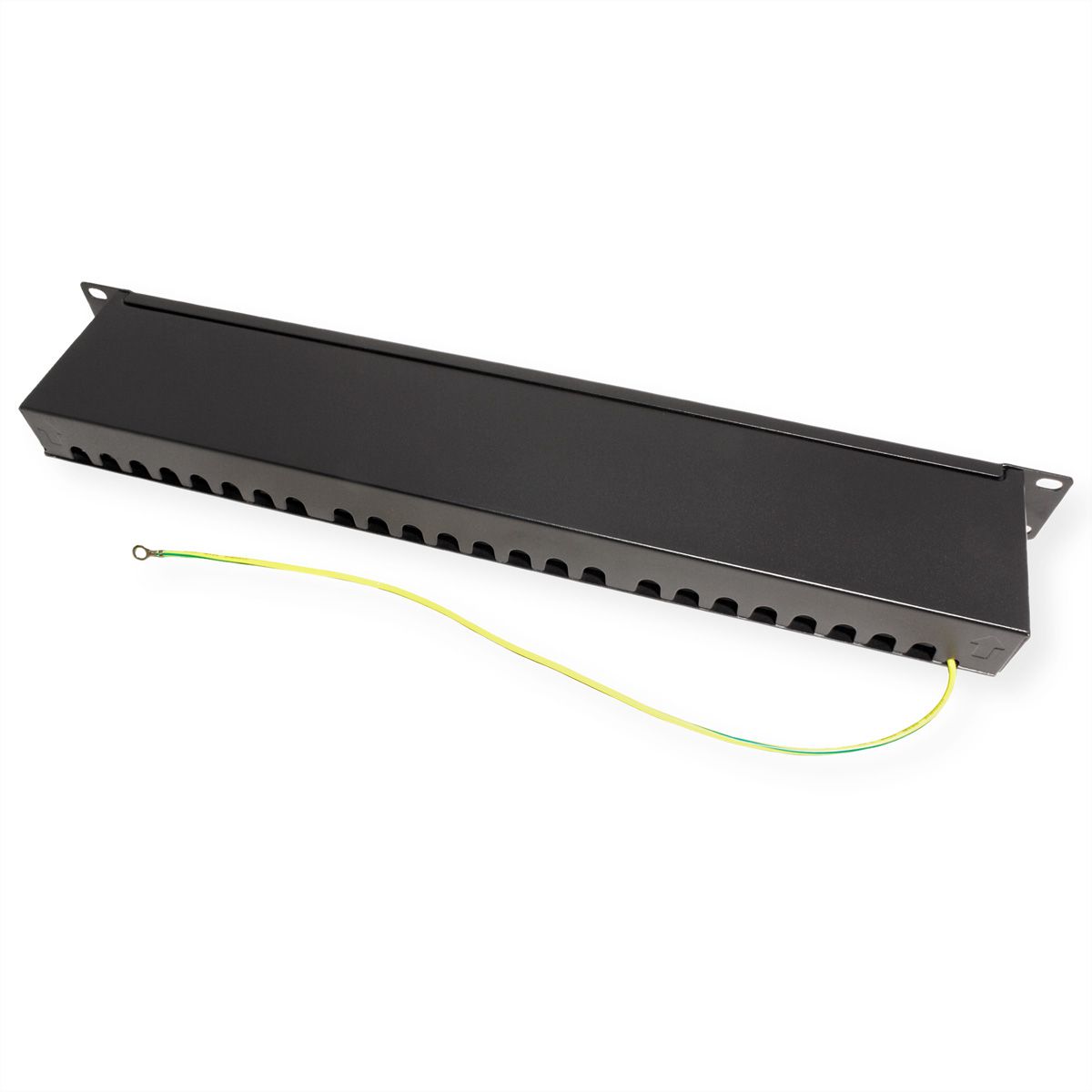

Separate strain relief
For 22-26 AWG Cable
Colour: black

Manufacturer: VALUE
Product group: Connection technology TP
Product type: Patchpanel Cat.6A / Class EA
Colour: black
Scope of delivery: Patch Panel, Mounting Material, Installation Instructions
Shield type: Screened
Transfer quality: Cat6A / Class EA
Cabinet system: 19"-Technique
Quantity of ports: 24
Assembly cable connection: Krone LSAplus
Assignment: EIA/TIA 568A & 568B
Material (casing): Metal
separate strain relief: yes
Dimensions (HxWxD): 44,2 x 482,6 x 88 mm
Height units: 1 U
RAL colour: RAL 9005 Jet black
Operating temperature min.: -10 °C
Operating temperature max.: 60 °C
Storage temperature min.: -40 °C
Storage temperature max.: 70 °C
Height: 44.2 mm
Width: 482.6 mm
Depth: 88 mm
Weight: 1510 g
Height of packaging (single piece): 50 mm
Width of packaging (single piece): 140 mm
Depth of packaging (single piece): 500 mm
Package weight (single piece): 1.7 kg

The own brand VALUE stands for attractive prices and tested quality.

With the VALUE products you get the best possible price in terms of quality and product features.
