Description

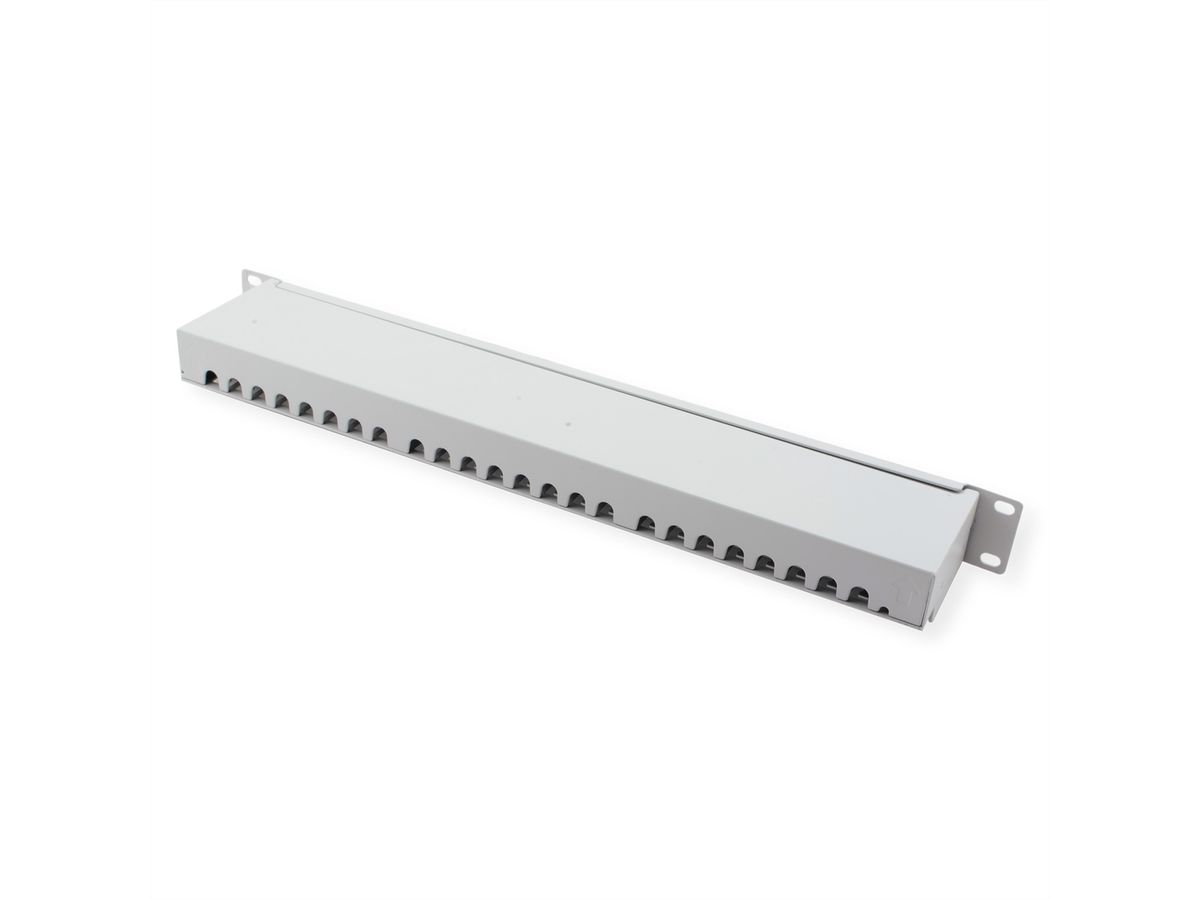

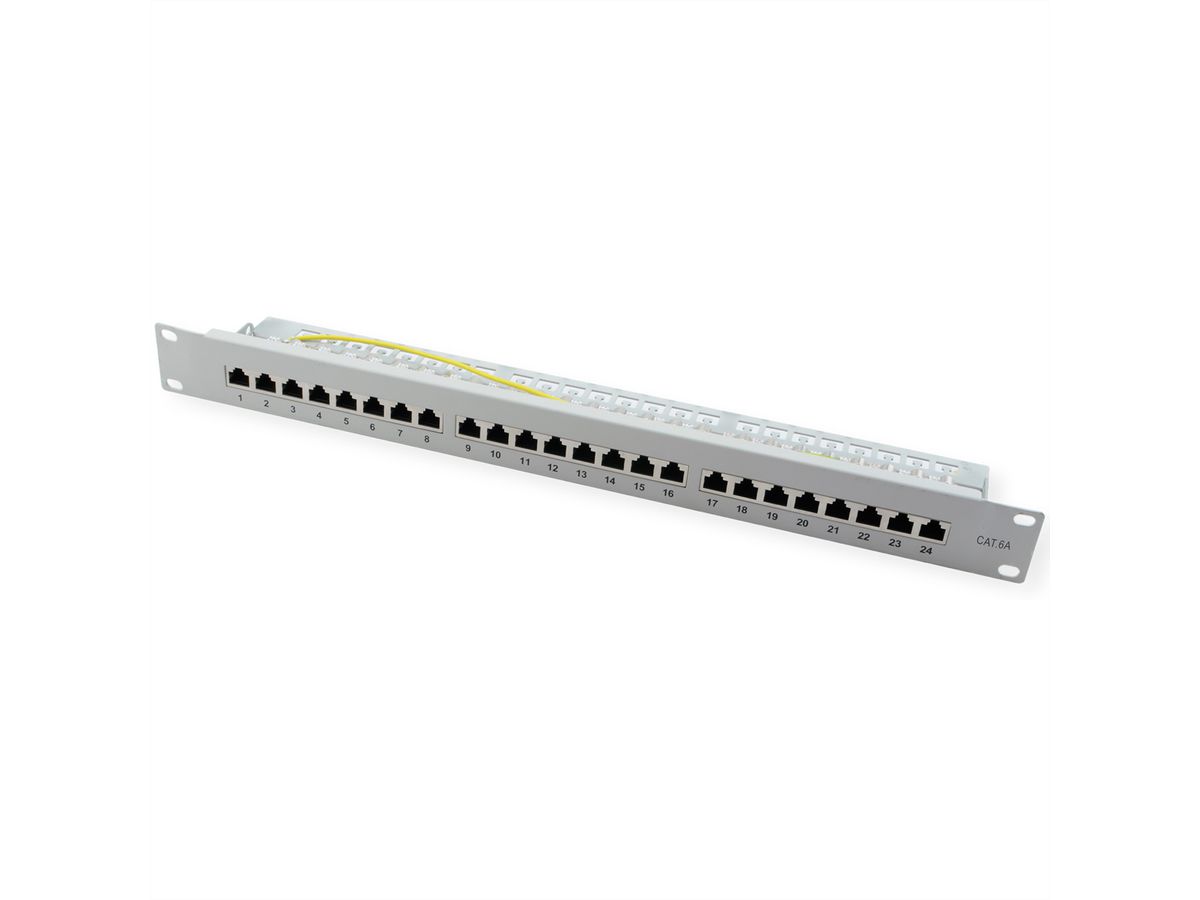

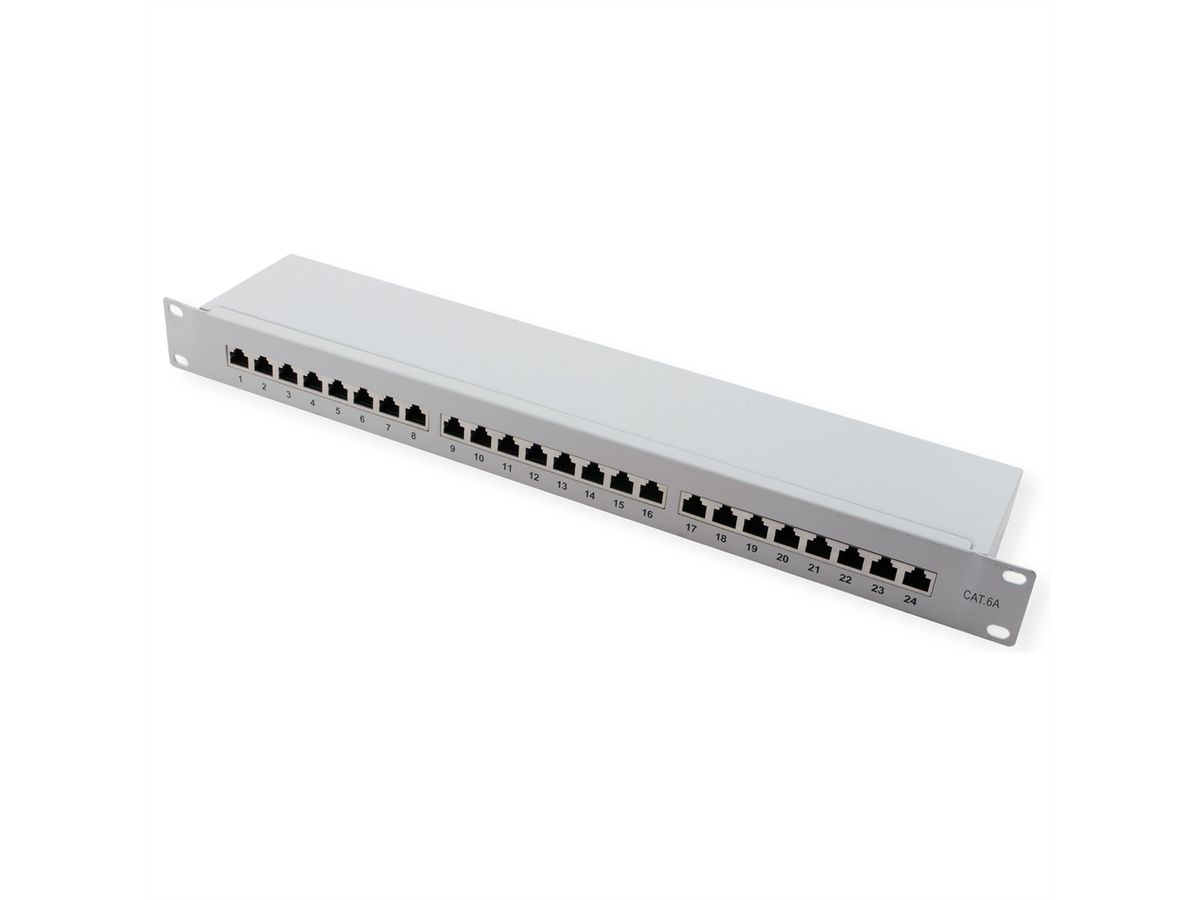

Cat. 6A (Class EA) 19" Patch Panel, shielded, 1U, with 24 ports, for installation in 19” cabinets, incl. mounting material.

• This VALUE Cat. 6A 19" patch panel fulfisl the Cat. 6A/Class E permanent link standard and is ideal for use 10 Gigabit Ethernet networks
• Sheet steel housing
• Shielded

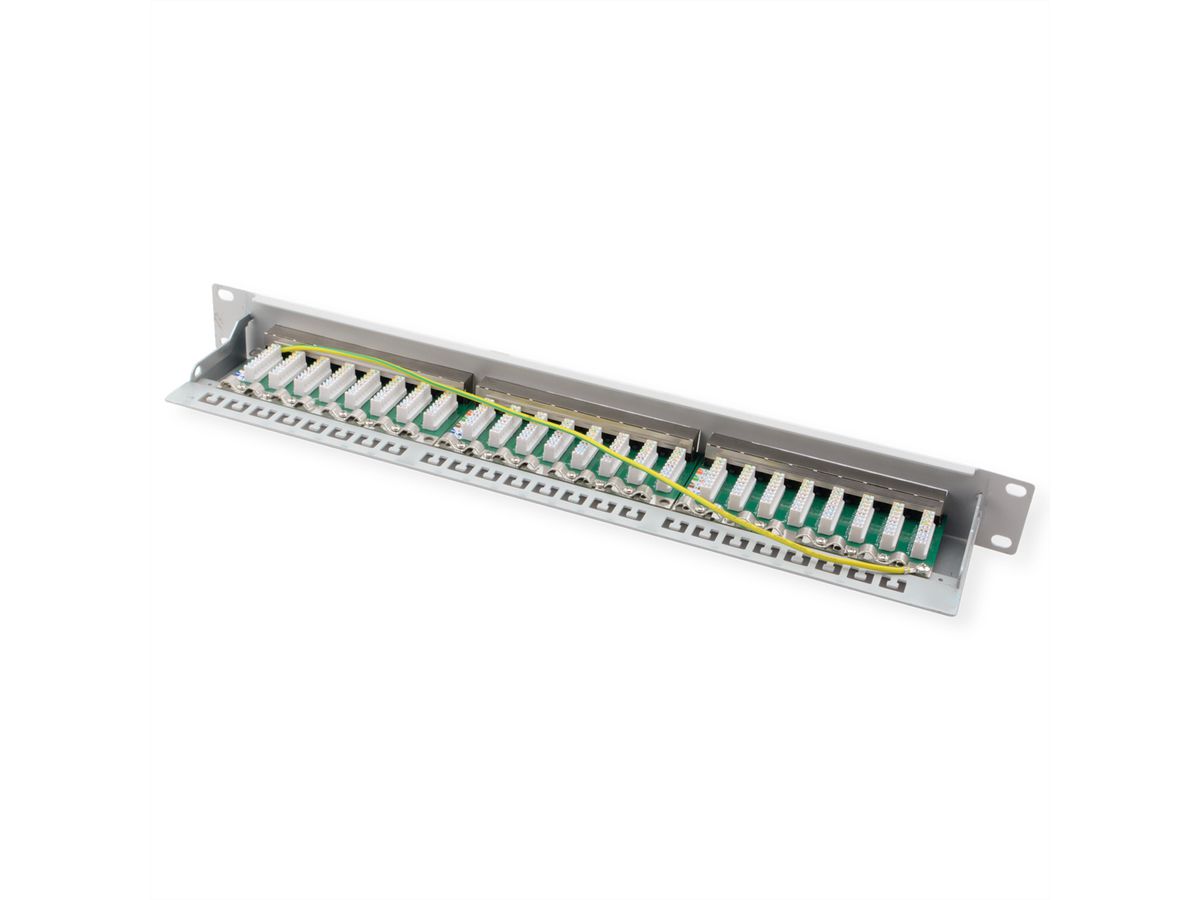

• Cable assembly takes place using LSA plus piercing terminals with colour coding on the top in accordance with EIA/TIA 568A
• Separate strain relief
• For 22-26 AWG Cable
• Colour: light grey

Specifications

Manufacturer	VALUE
Product group	Connection technology TP
Product type	Patchpanel Cat.6A / Class EA
Colour	grey
Scope of delivery	Patch Panel, Mounting Material, Installation Instructions
Shield type	Screened
Transfer quality	Cat6A / Class EA
Cabinet system	19"-Technique
Quantity of ports	24
Assembly cable connection	Krone LSAplus
Assignment	EIA/TIA 568A & 568B
Material (casing)	Metal
separate strain relief	yes
Dimensions (HxWxD)	44,2 x 482,6 x 88 mm
Height units	1 U
RAL colour	RAL 7035 Light grey
Operating temperature min.	-10 °C
Operating temperature max.	60 °C
Storage temperature min.	-40 °C
Storage temperature max.	70 °C
Height	44.2 mm
Width	482.6 mm
Depth	88 mm
Weight	1510 g
Height of packaging (single piece)	60 mm
Width of packaging (single piece)	160 mm
Depth of packaging (single piece)	500 mm
Package weight (single piece)	1.6 kg

Downloads

Product data sheet - English (44.2 KB)

Download

Manufacturer data sheet - English (463.2 KB)

Download
