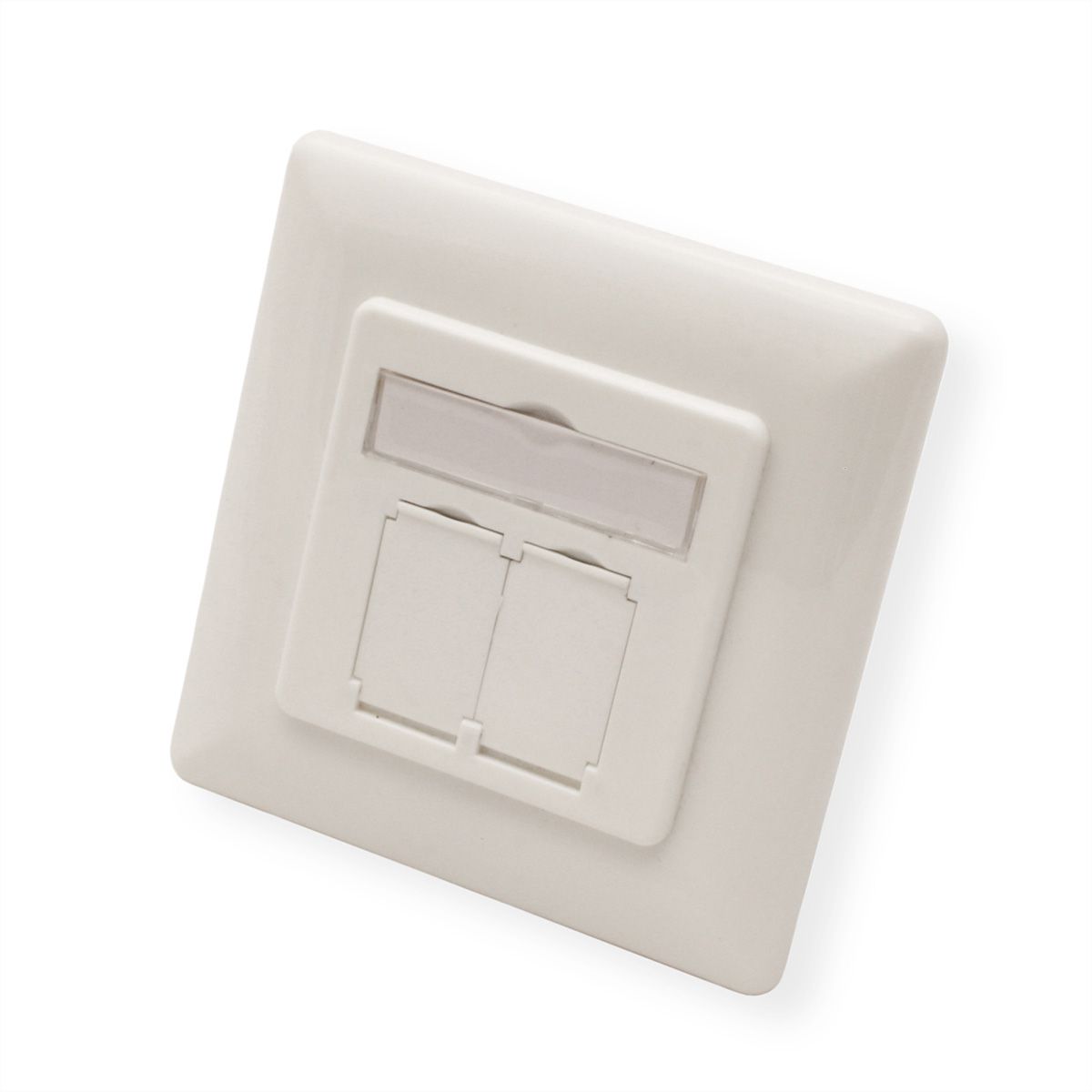

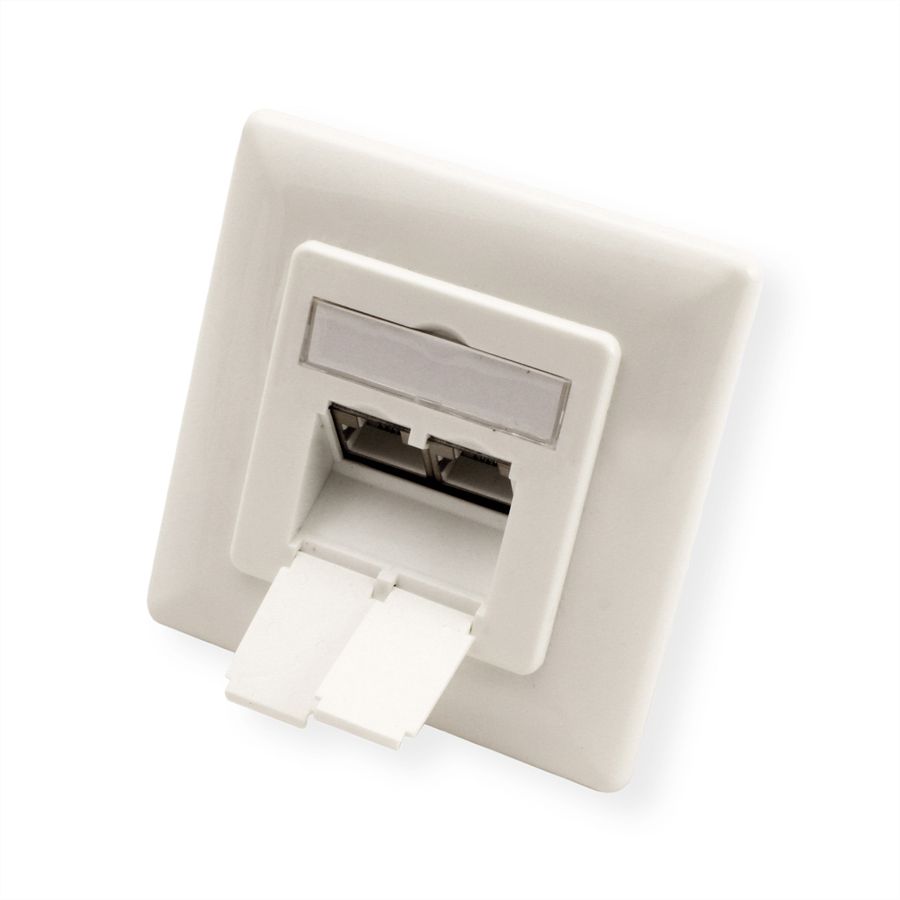

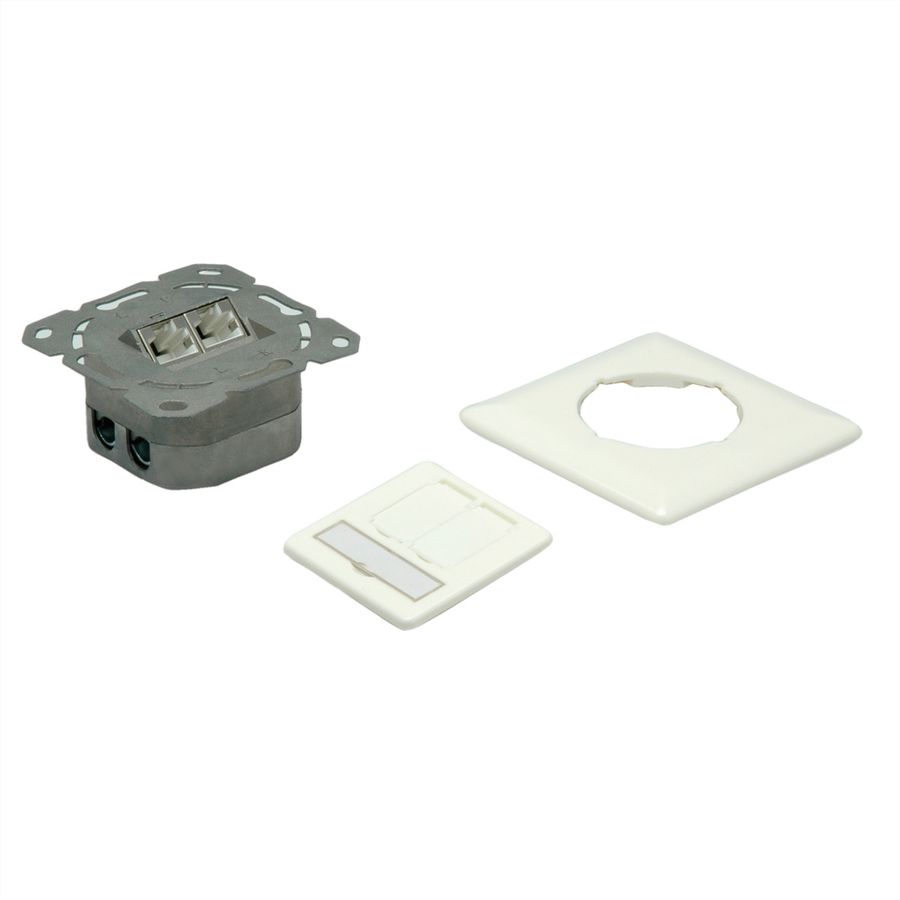

VALUE Cat.6A (Class EA) Flush Mount Wall Jack, STP, horizontal, white

Item no. 25.99.8490-20 Brand / Manufacturer VALUE Manuf. no. 25.99.8490 EAN 7611990931354 Package weight 0.158 kg
VALUE

Please log in to be able to use the shopping cart and then complete orders.

Log in
Available
Ordered until 3 pm - usually dispatched on the same day
Download PDF

Description

  • The VALUE Cat.6a wall jacks fulfil the Cat.6/Class EA Permanent Link Standard and are ideal for gigabit ethernet networks

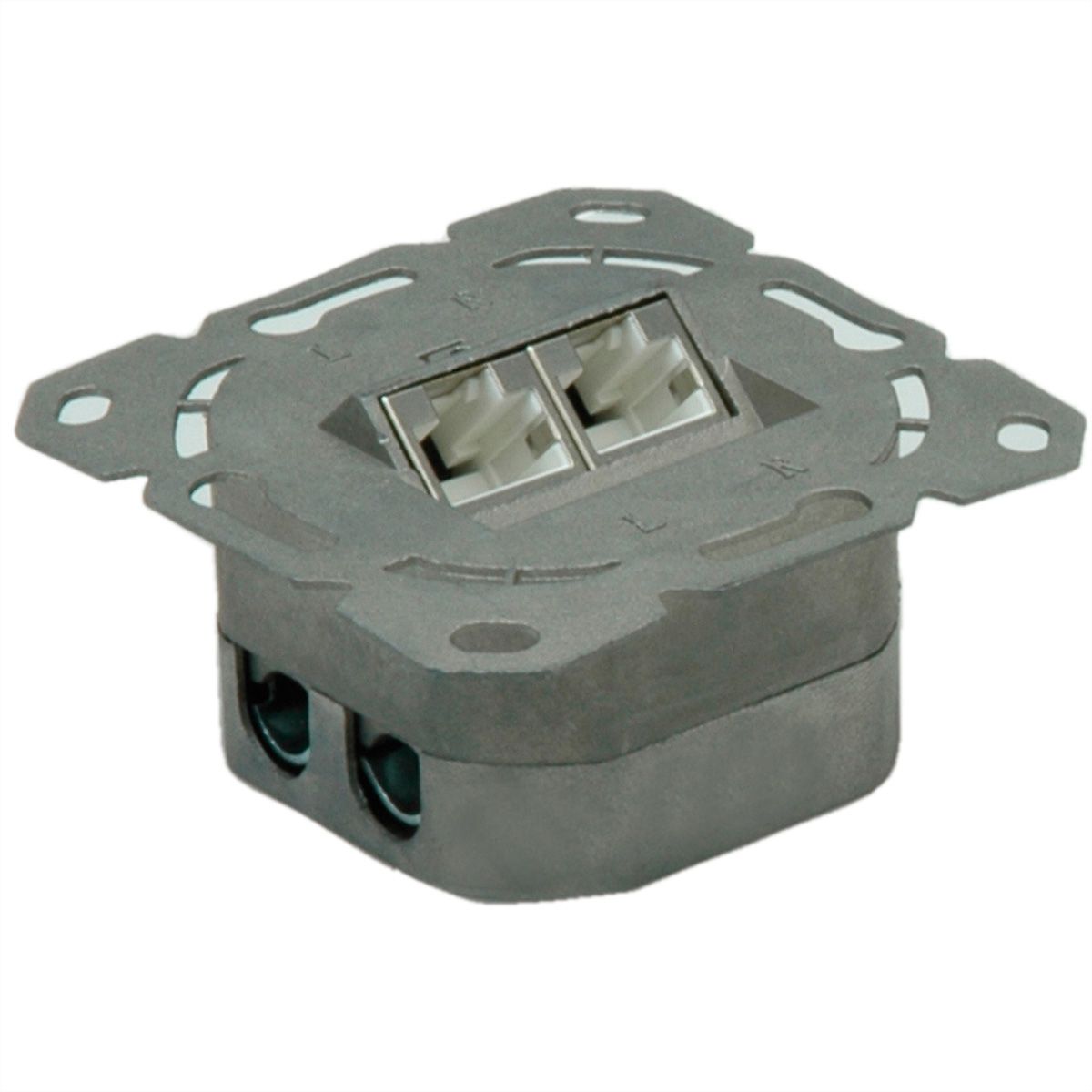

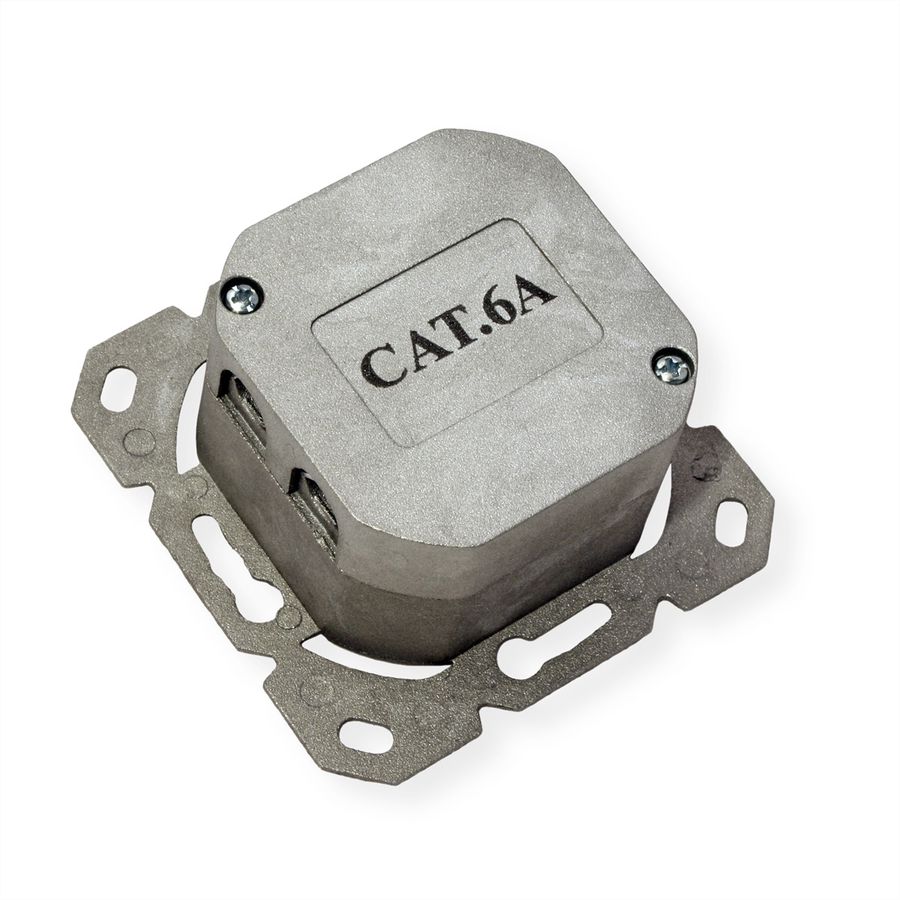

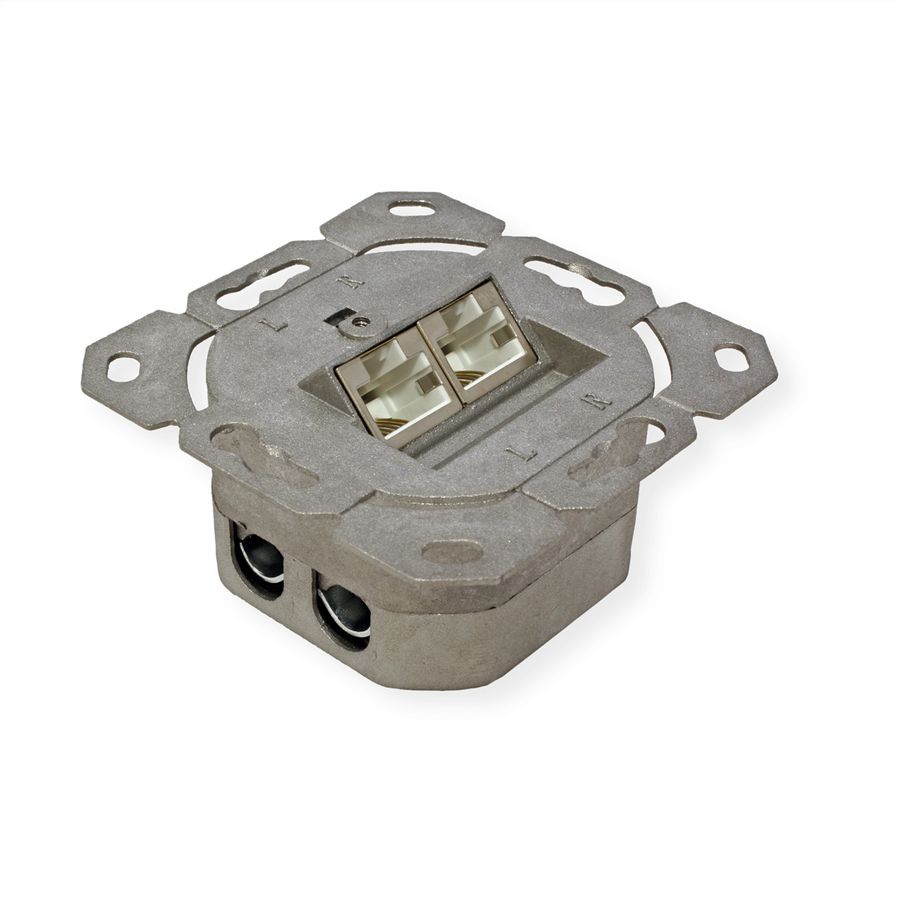

  • Fully screened box in a metal housing, provides security against EMI (shielded version)

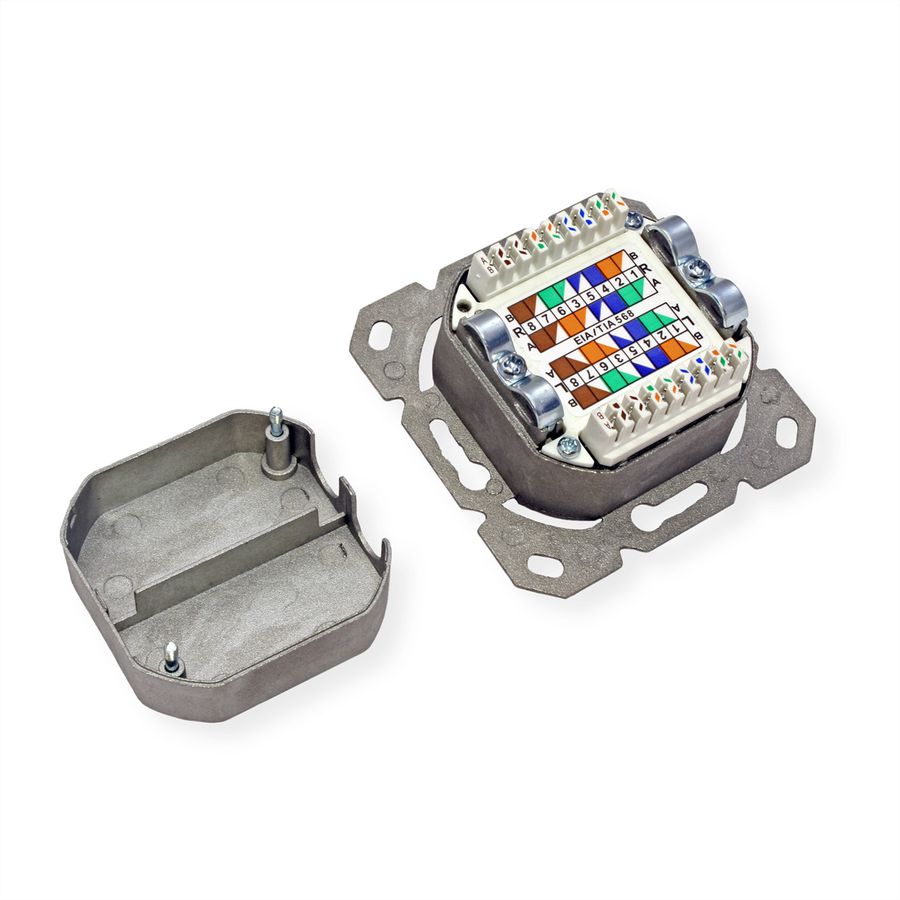

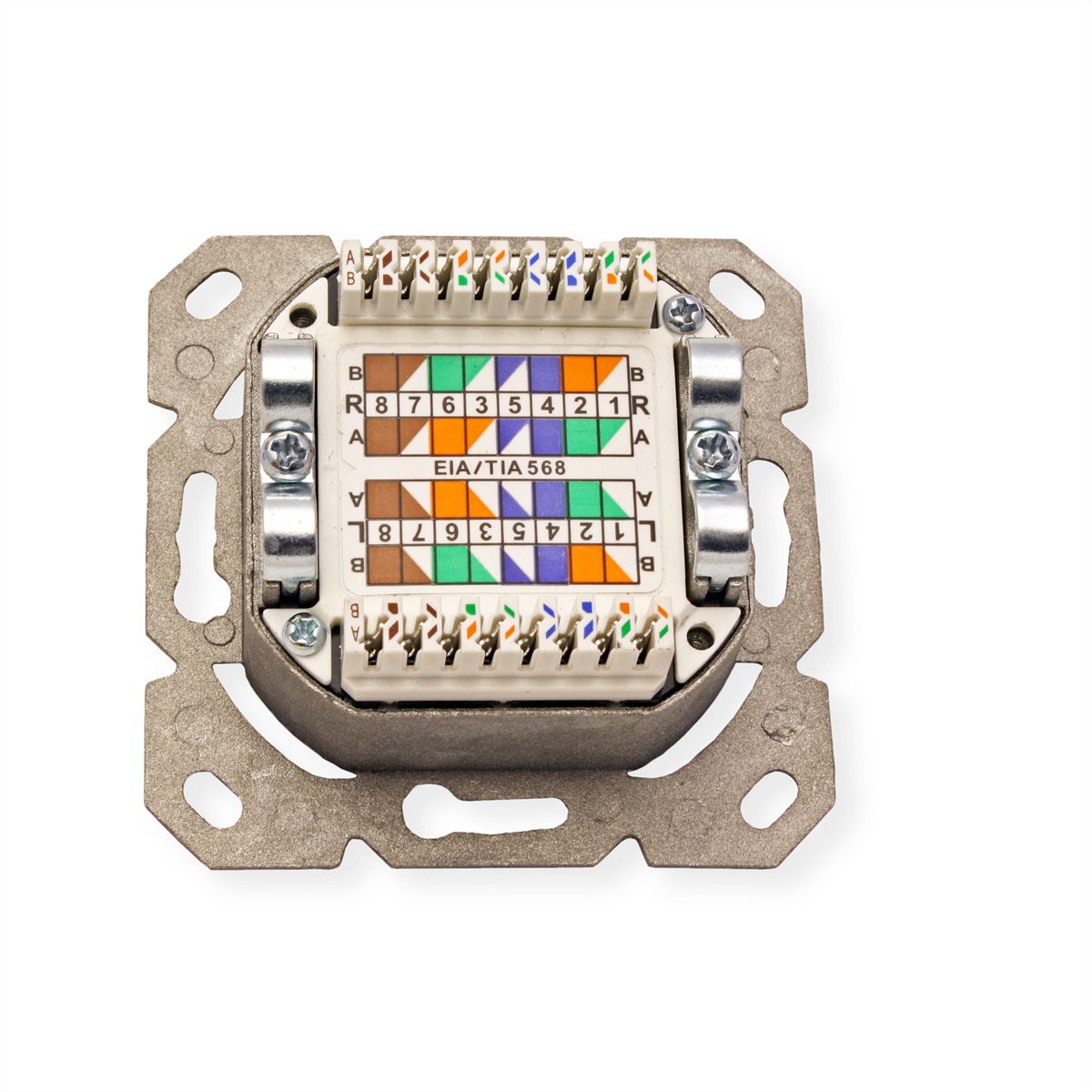

  • Cable assembly takes place using LSAplus piercing terminals with colour coding on the top in accordance with EIA/TIA 568

Specifications

Manufacturer
VALUE
Product group
Connection technology TP
Product type
Connection box Cat.6A
Colour
white

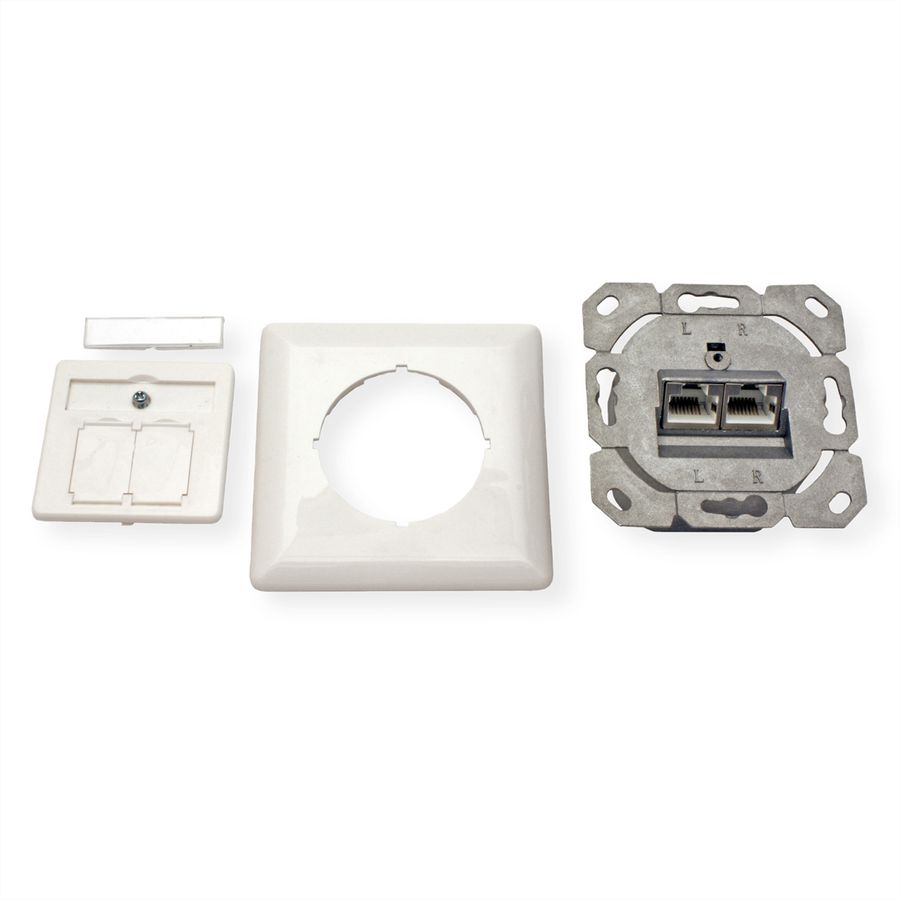

Scope of delivery
1x junction box
Shield type
Screened
Transfer quality
Cat6A / Class EA
Wall fixening
Flush mount

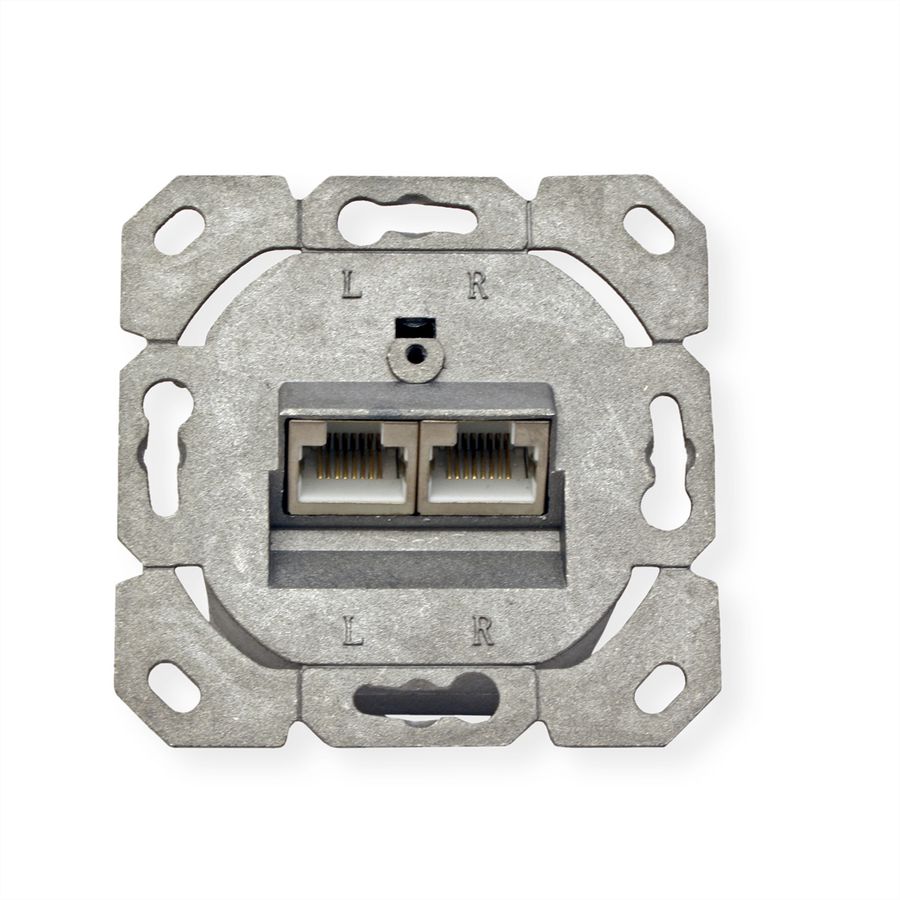

Quantity of ports
2
Assembly cable connection
Krone LSAplus
Modular assembly
no
Material (casing)
metal
Shield contacts
Yes
Connection direction
45°-inclination
Operating temperature min.
0 °C
Operating temperature max.
70 °C
Height
80 mm
Width
80 mm
Depth
39 mm
Weight
172.8 g
Height of packaging (single piece)
80 mm
Width of packaging (single piece)
90 mm
Depth of packaging (single piece)
100 mm
Package weight (single piece)
0.158 kg
