Description

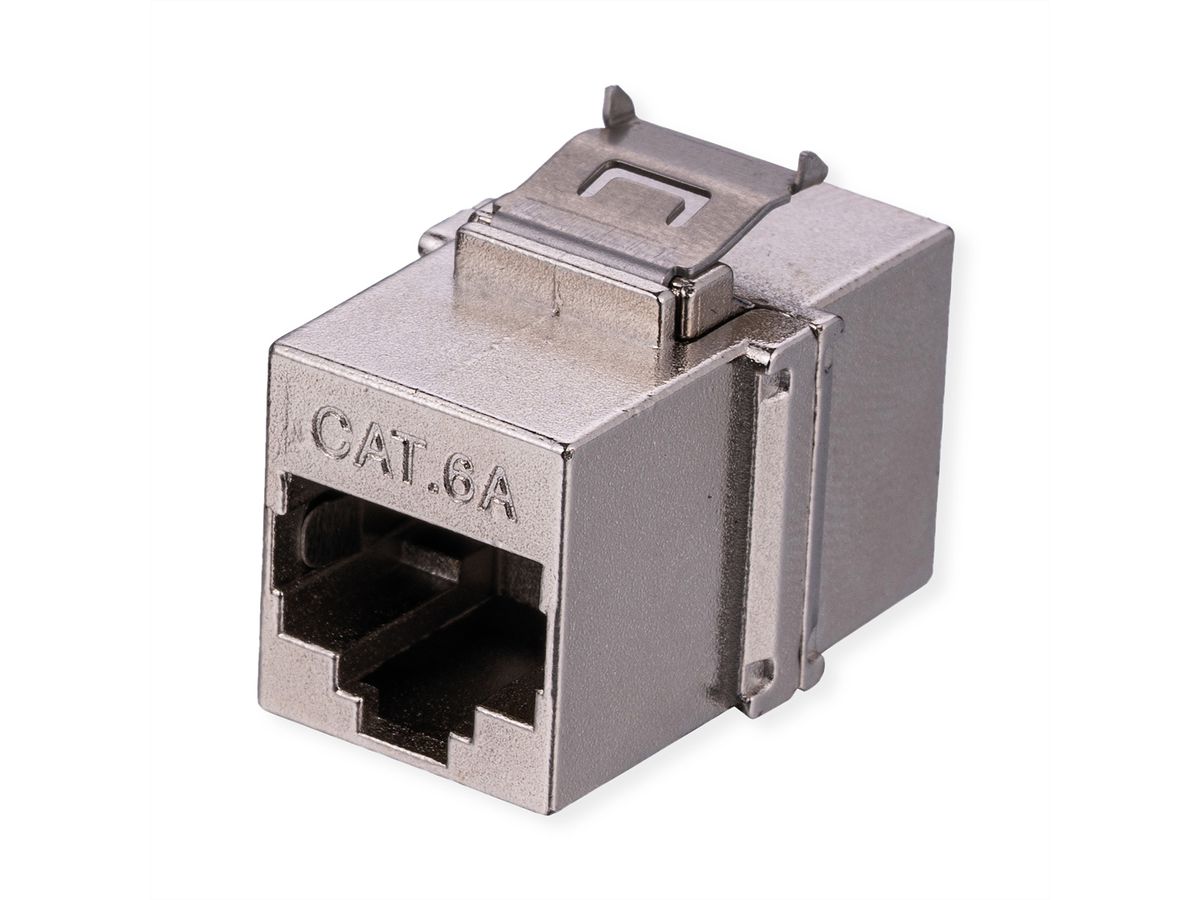

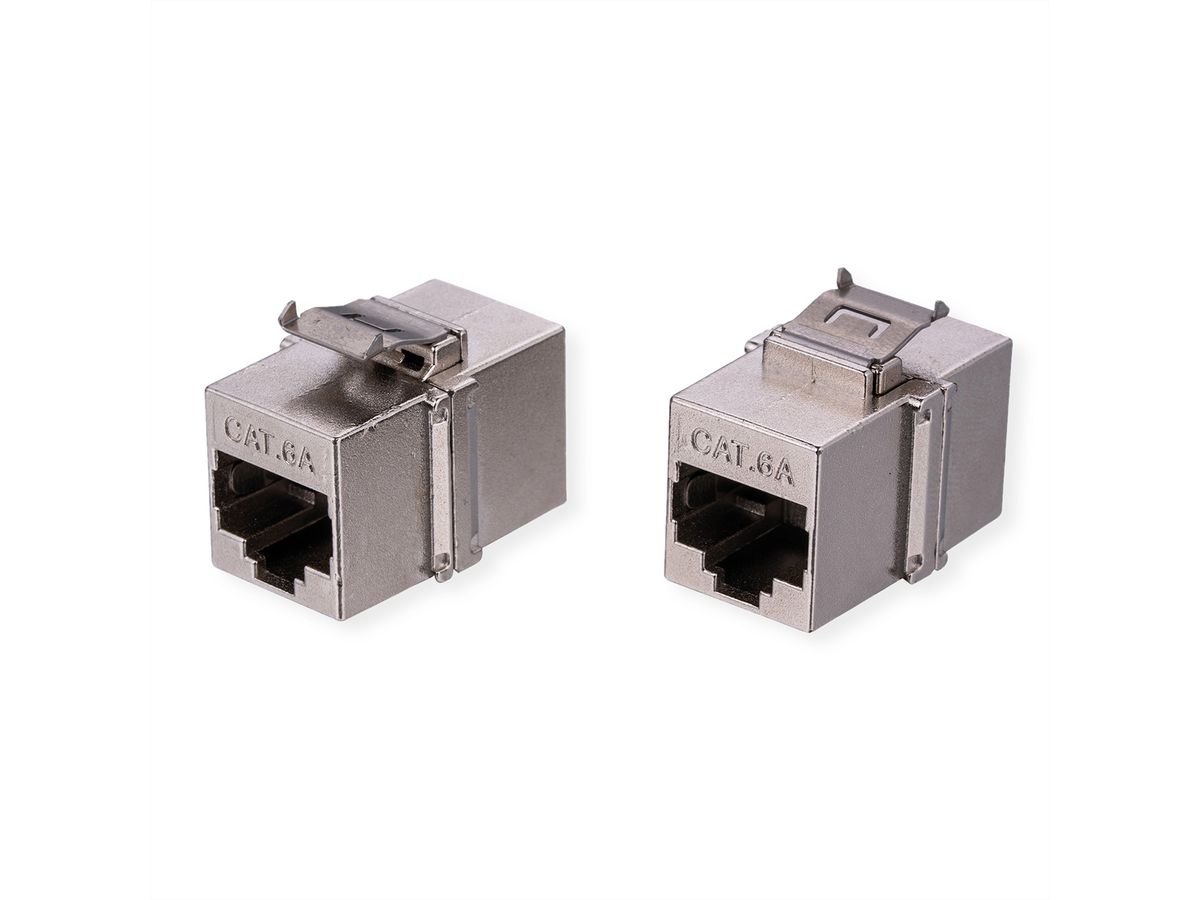

Short Cat.6A/Class EA Coupler for the connection or extention of RJ-45 network cables.

• Cat.6A/Class EA Keystone Coupler
• Short type
• Suitable for Cat.6A cabling up to 500 MHz
• Fully shielded metal housing for signal protection against electromagnetic interference
• 8 contacts, 1:1 connected

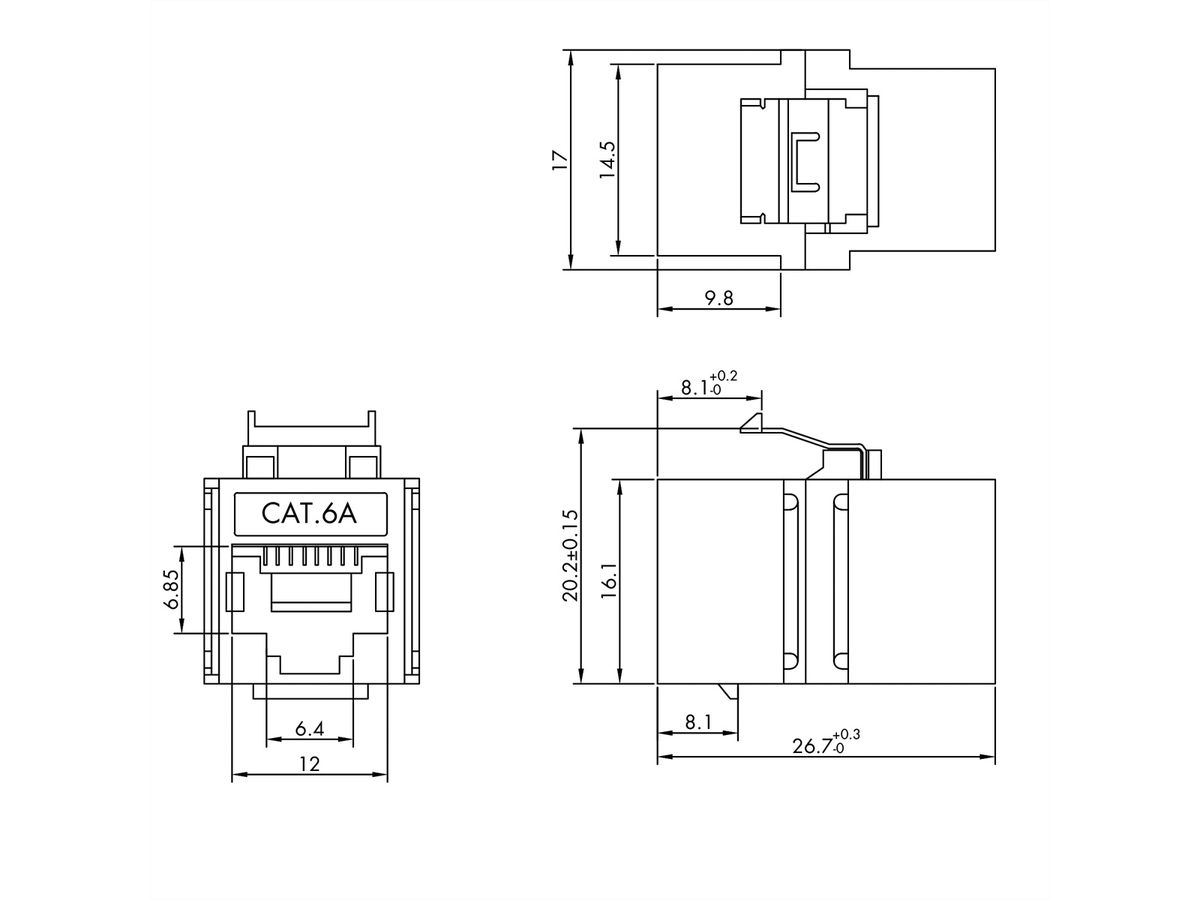

• Dimensions (H x W x D): 20.2 x 17 x 26.7 mm
• Colour: silver

Specifications

Manufacturer	VALUE
Product group	Connection technology TP
Product type	RJ45 Keystone Jack
Colour	silver
Scope of delivery	Coupler
Shield type	Screened
Transfer quality	Cat6A / Class EA
Quantity of ports	1
Assignment	EIA/TIA 568A & 568B
Material (casing)	Metal
Connection direction	Straight
Dimensions (HxWxD)	20.2 x 17 x 26.7 mm
Operating temperature min.	0 °C
Operating temperature max.	70 °C
Storage temperature min.	-40 °C
Storage temperature max.	85 °C
Height	20.2 mm
Width	17 mm
Depth	26.7 mm
Weight	17 g
Height of packaging (single piece)	20 mm
Width of packaging (single piece)	20 mm
Depth of packaging (single piece)	20 mm
Package weight (single piece)	0.002 kg

Downloads

Product data sheet - English (53.7 KB)

Download

Manufacturer data sheet - English (124.1 KB)

Download
