Description

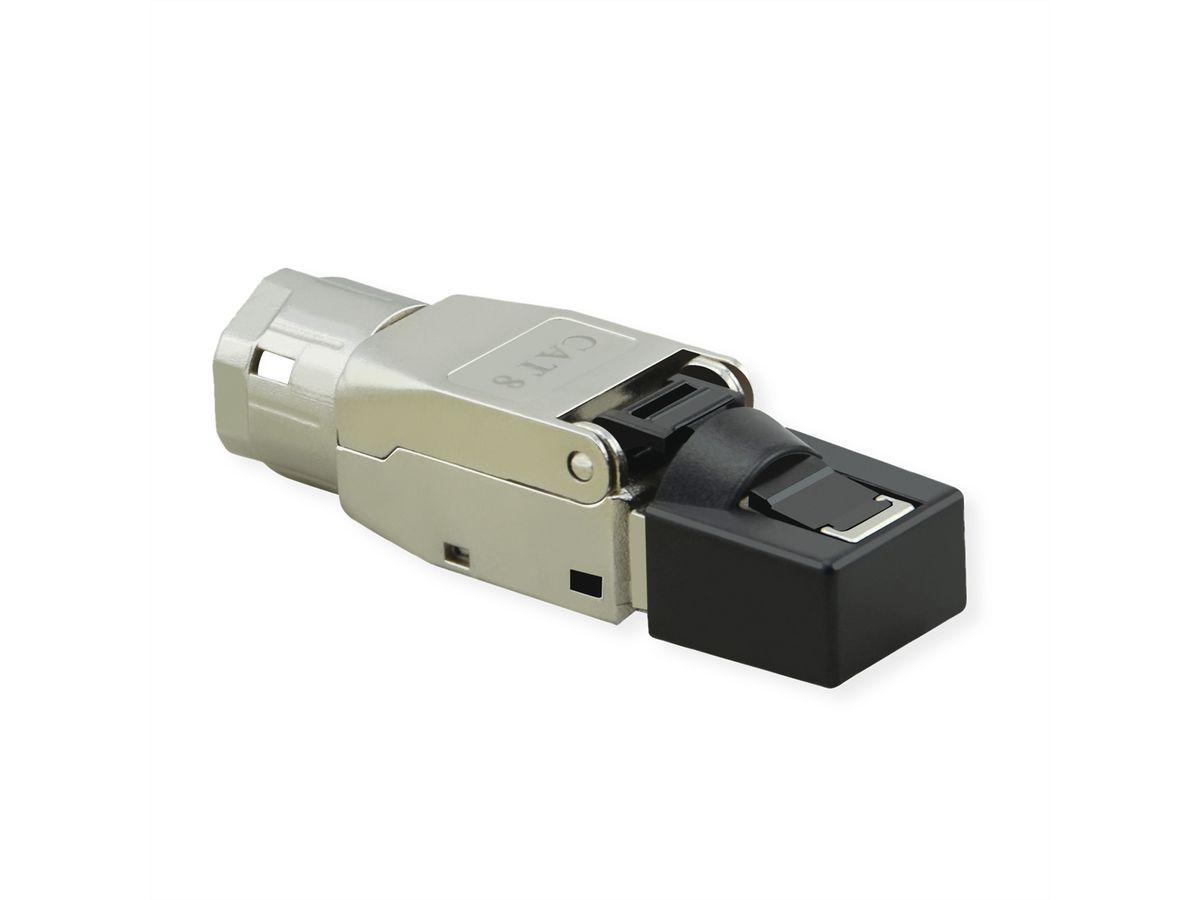

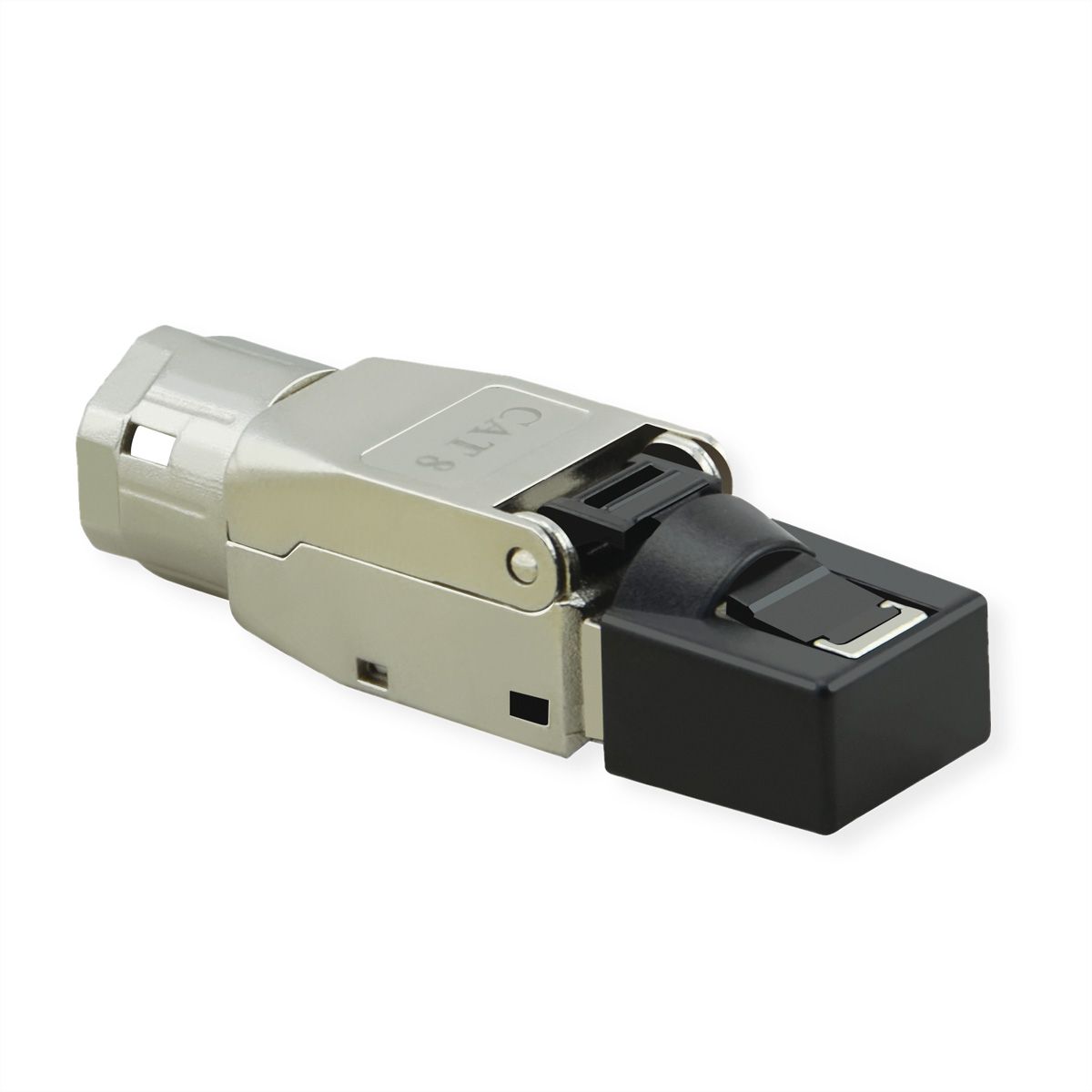

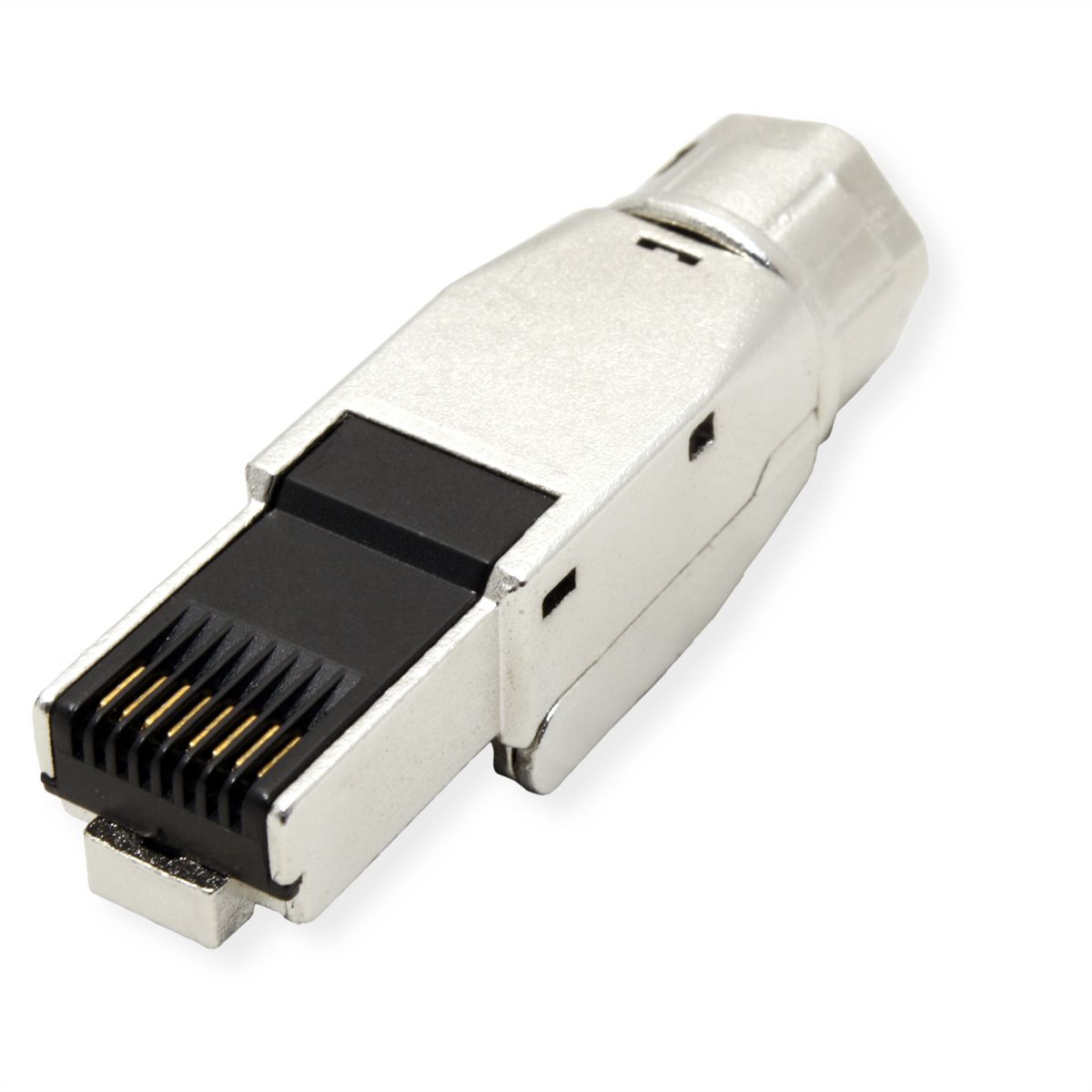

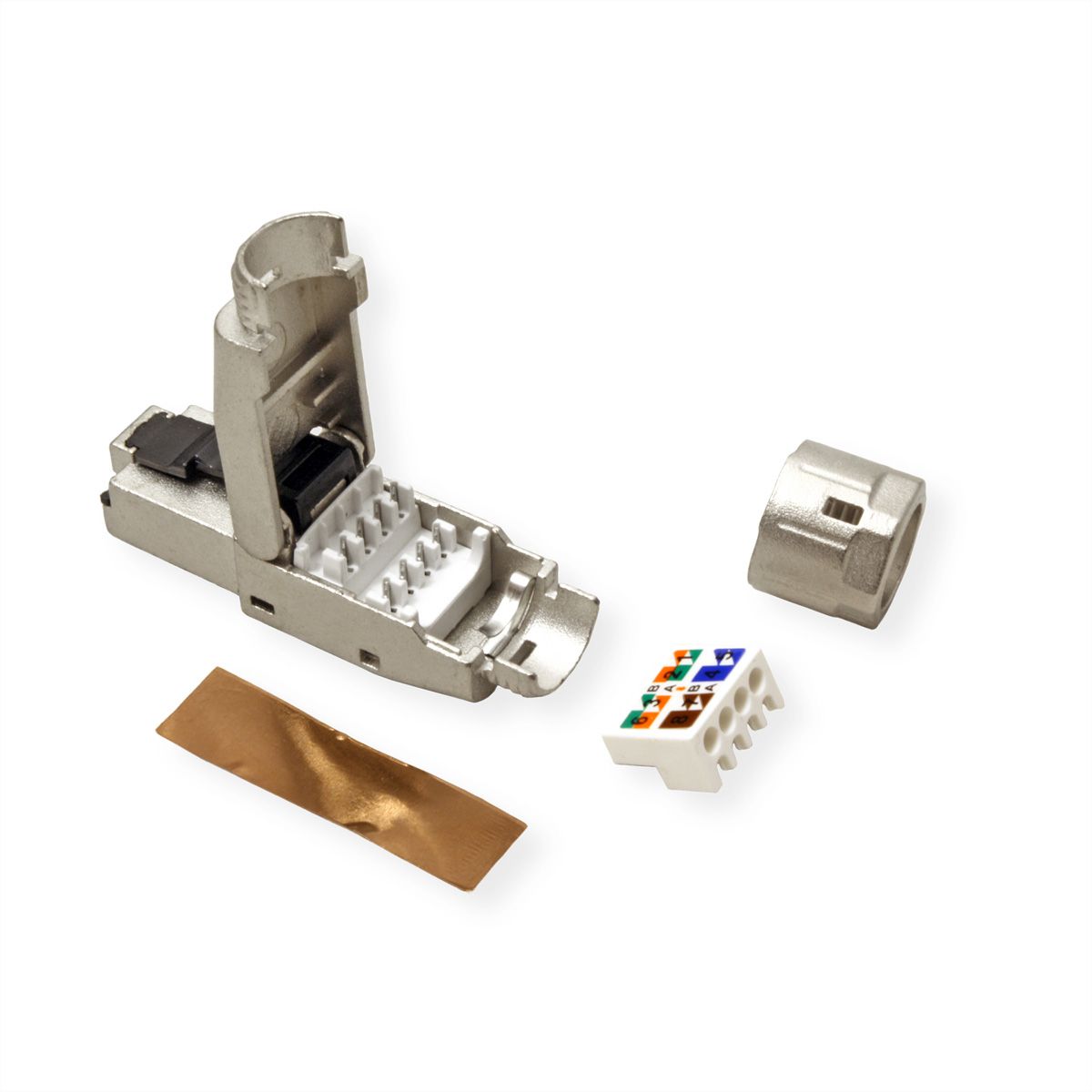

8-wire RJ45 Cat.8 (Class I) field connector plug for an easy, fast and reliable assembly without special tools.

• Full shielded with zinc alloy housing
• T568A & T568B wiring
• Cat. 8 channel performance verified
• Solid: 1/22AWG(0.65MM)-1/26AWG(0.4MM)
• Stranded: 7/22AWG-7/26AWG
• For cables with outer diameters of 5.0 to 8.5mm
• Suitable for PoE+ (IEEE 802.3at) applications
• Easy, quick and reliable installation, no special tool required

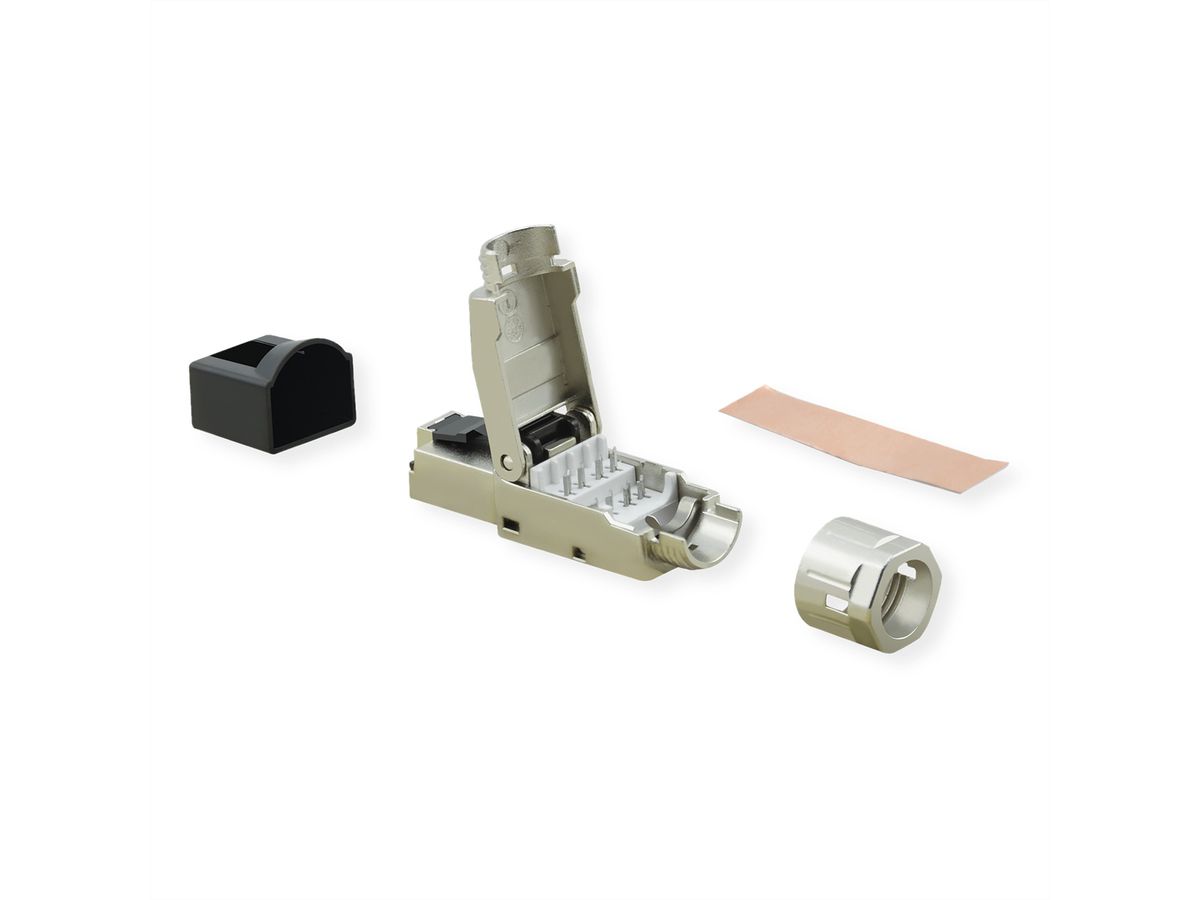

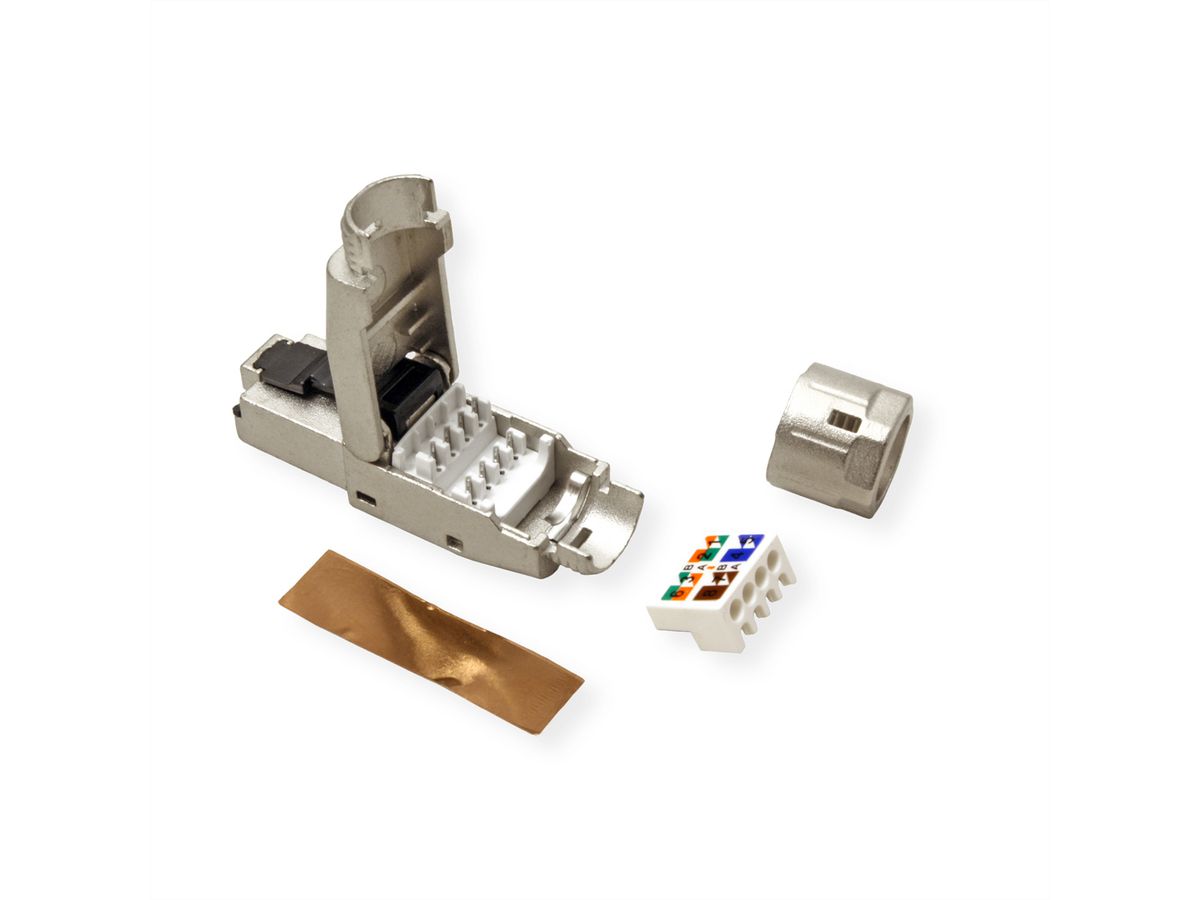

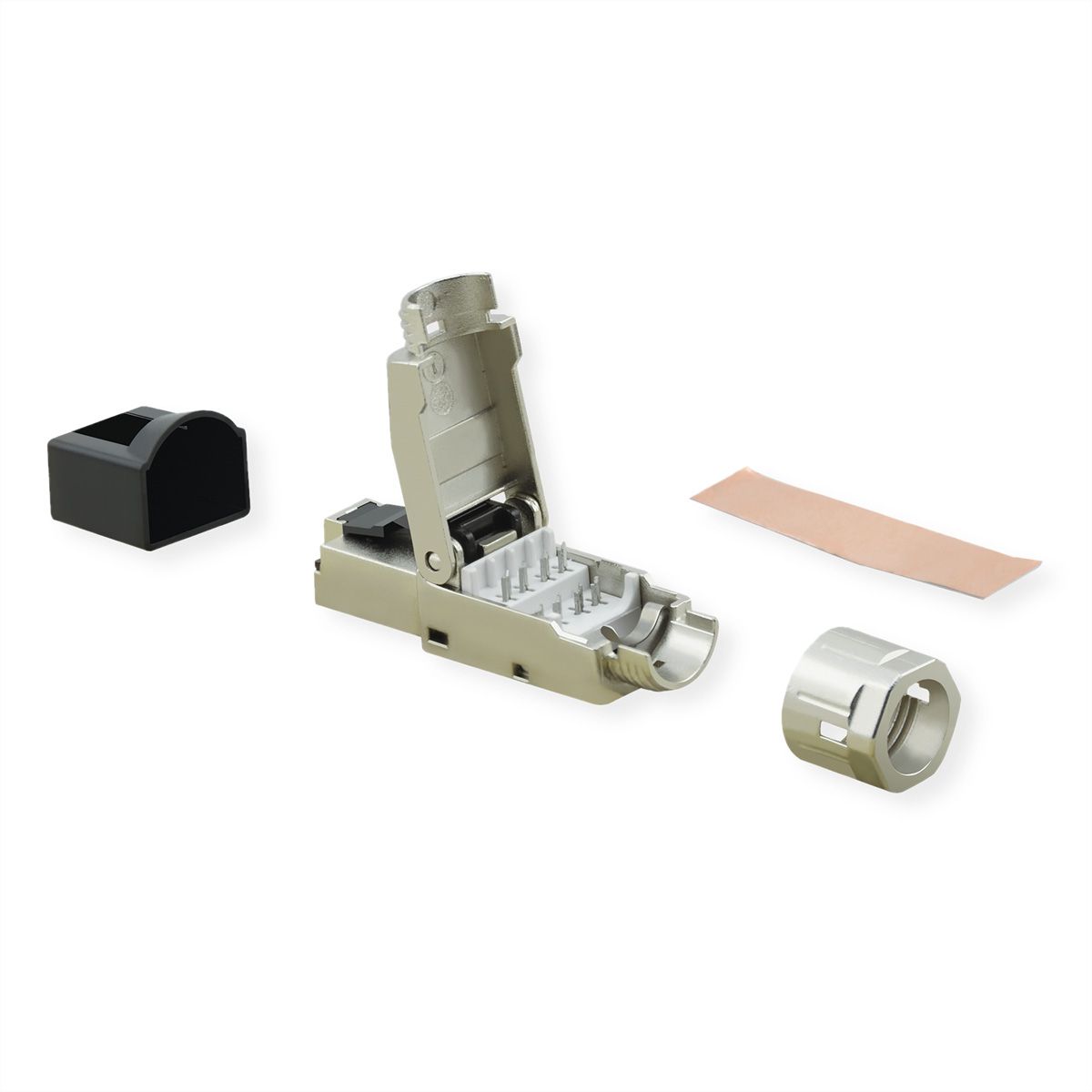

• The ring ensures 360° forwarding of the shielding of the cable to the shielding of the plug

For a Cat.8 channel link S/FTP Cabling we recommend to use the following components:
21.99.1800 VALUE S/FTP Cable, Cat.8, Solid Wire, AWG22
21.99.1807 VALUE Cat.8 RJ45 Keystone, Jack, toolless
21.99.1804 VALUE Cat.8 Shielded Field Connector RJ45 plug
21.99.1801 to 21.99.1803 VALUE S/FTP Patch Cable Stranded Cat.8, grey (1m to 3m)

Specifications

Manufacturer	VALUE
Product group	Connection technology TP
Product type	Connectors RJ-45
Colour	silver
Shield type	Screened
Transfer quality	Cat8.1 / Class I
Quantity of ports	1
Side 1 Connector Type	RJ-45
Side 1 Connector Gender	Male
Material (casing)	Zinc alloy
separate strain relief	yes

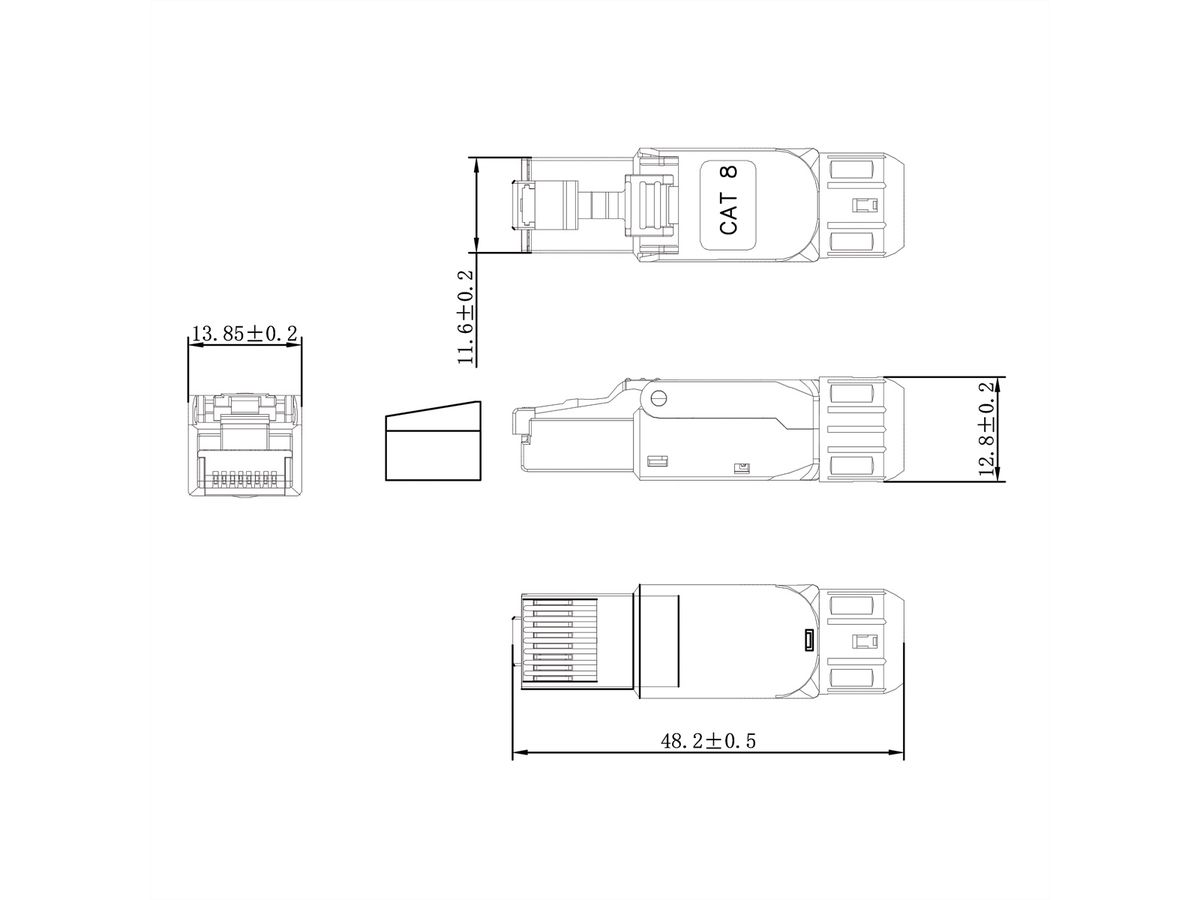

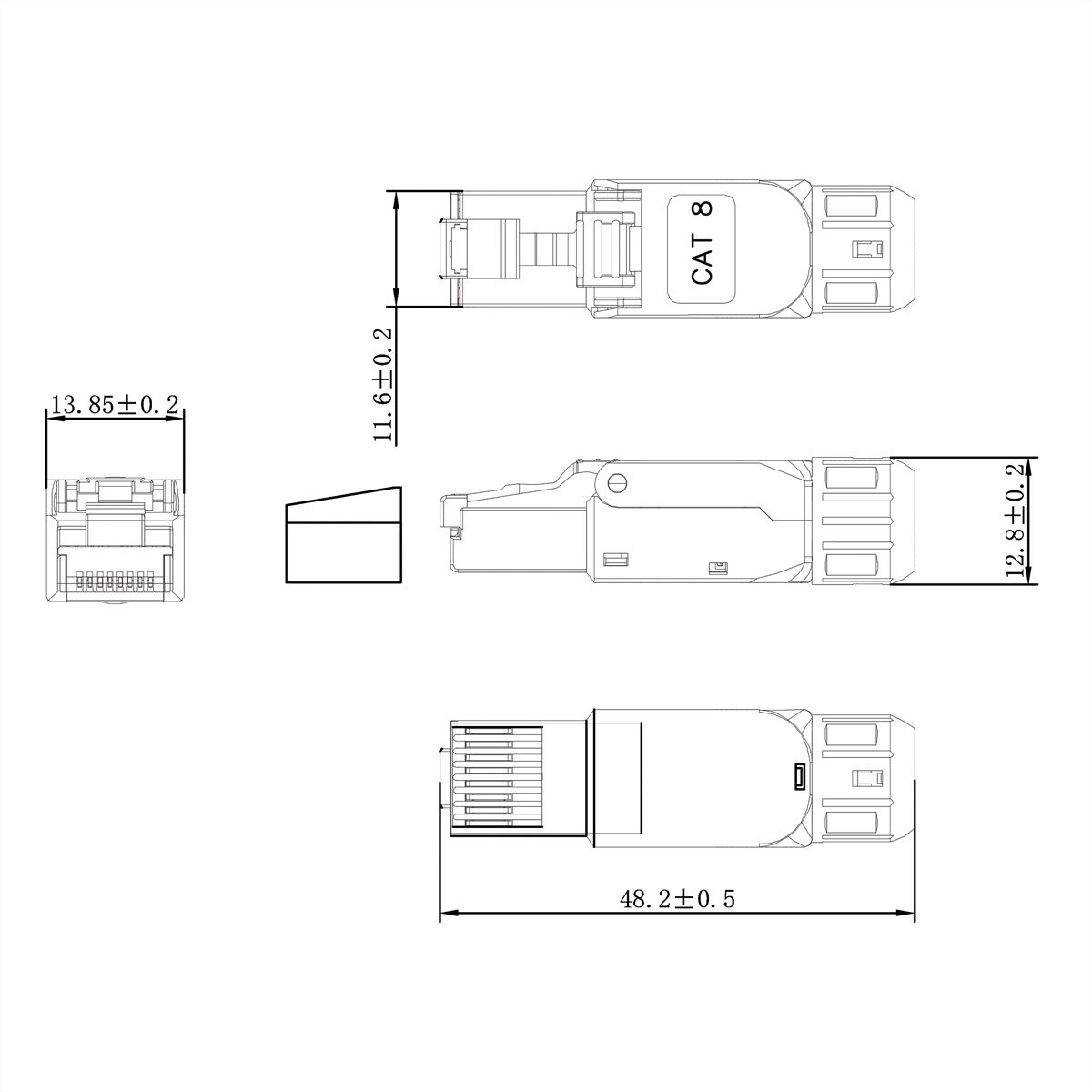

Dimensions (HxWxD)	13 mm x 14 mm x 48 mm
Operating temperature min.	-10 °C
Operating temperature max.	60 °C
Height	13 mm
Width	14 mm
Depth	48 mm
Weight	19 g
Height of packaging (single piece)	10 mm
Width of packaging (single piece)	30 mm
Depth of packaging (single piece)	20 mm
Package weight (single piece)	0.025 kg
